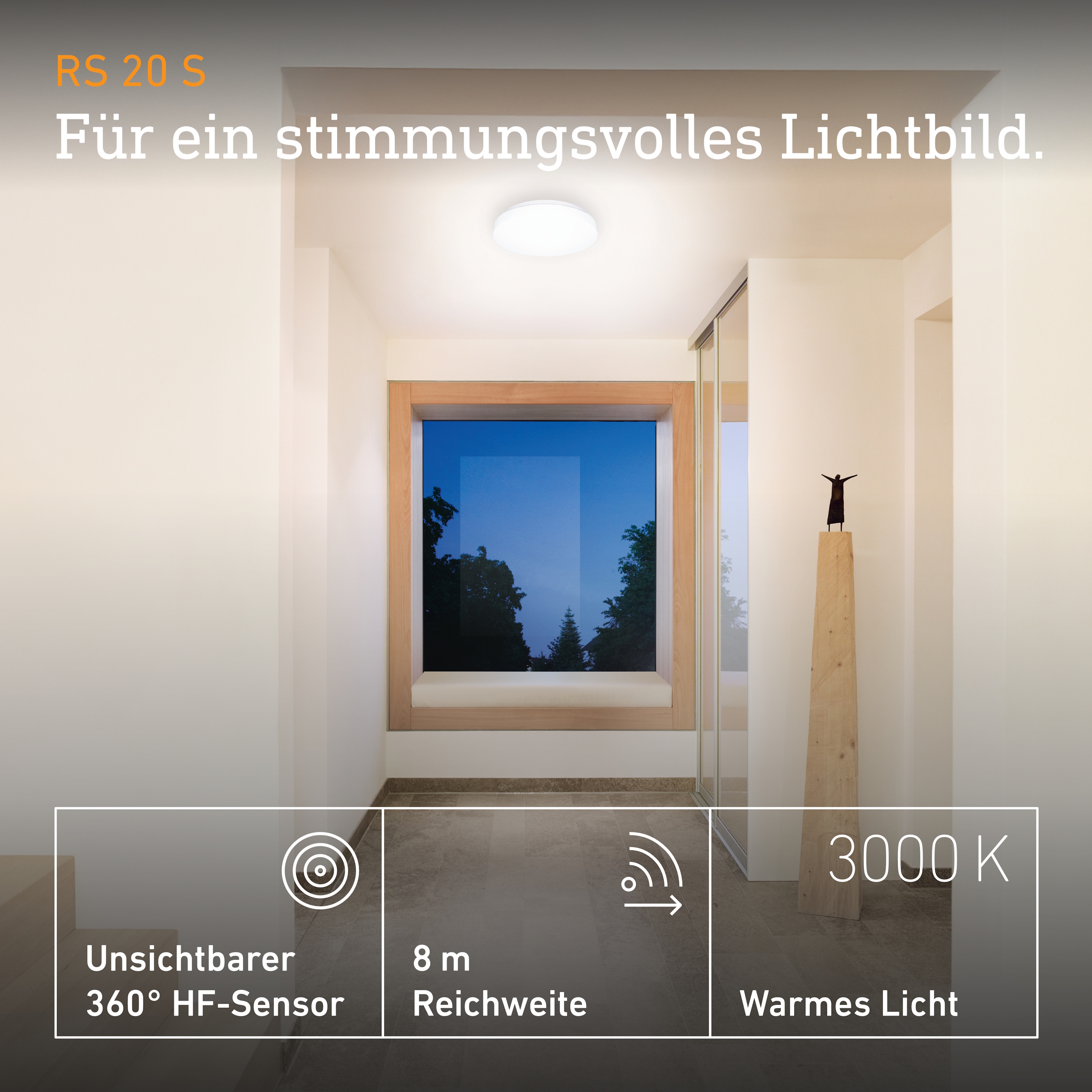

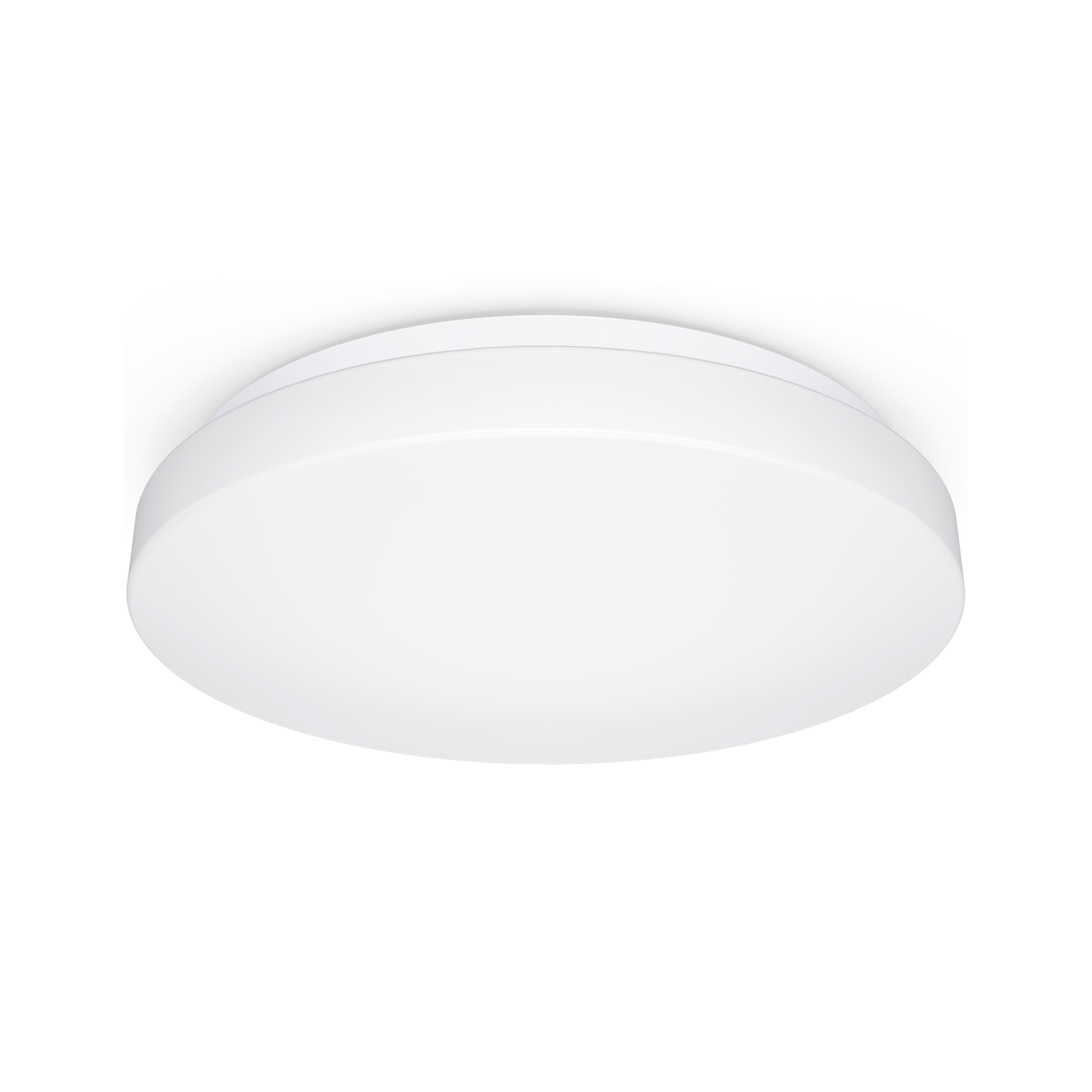

Perfect shape. Perfect efficiency. The perfect switched indoor light . The RS 20 S integrates harmoniously into corridors, hallways and stairwells. It combines timeless design and extremely easy installation with pioneering technology and unbeatable efficiency. As many as ten lights can be interconnected by cable. Output: 9,4 W with 942 lm, 3000 K.

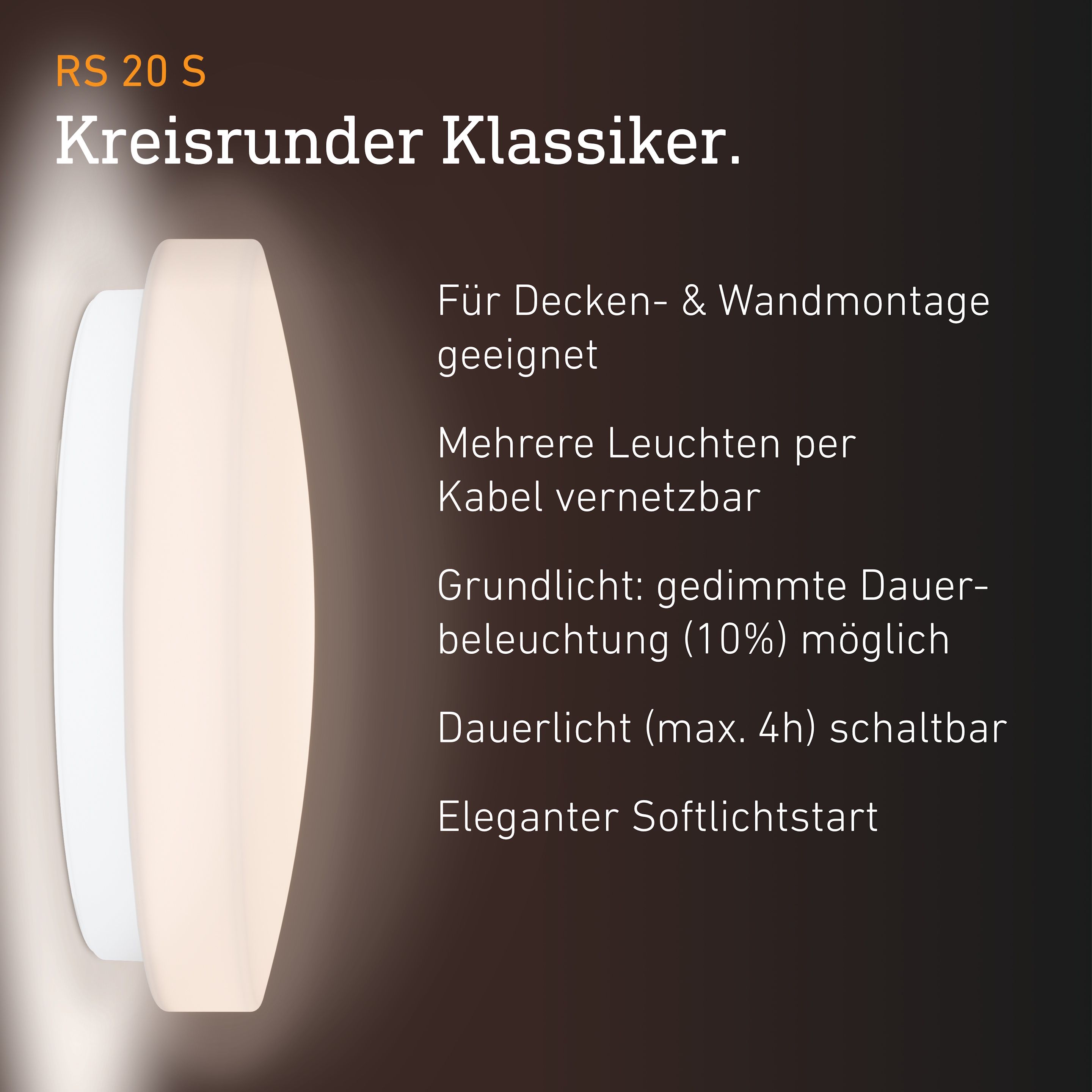

- Indoor light with motion detector in a simple and timeless design
- As ceiling or wall luminaire especially suitable for corridors, staircases, guest WCs or basement rooms
- Several luminaires can be networked by cable for synchronous switching

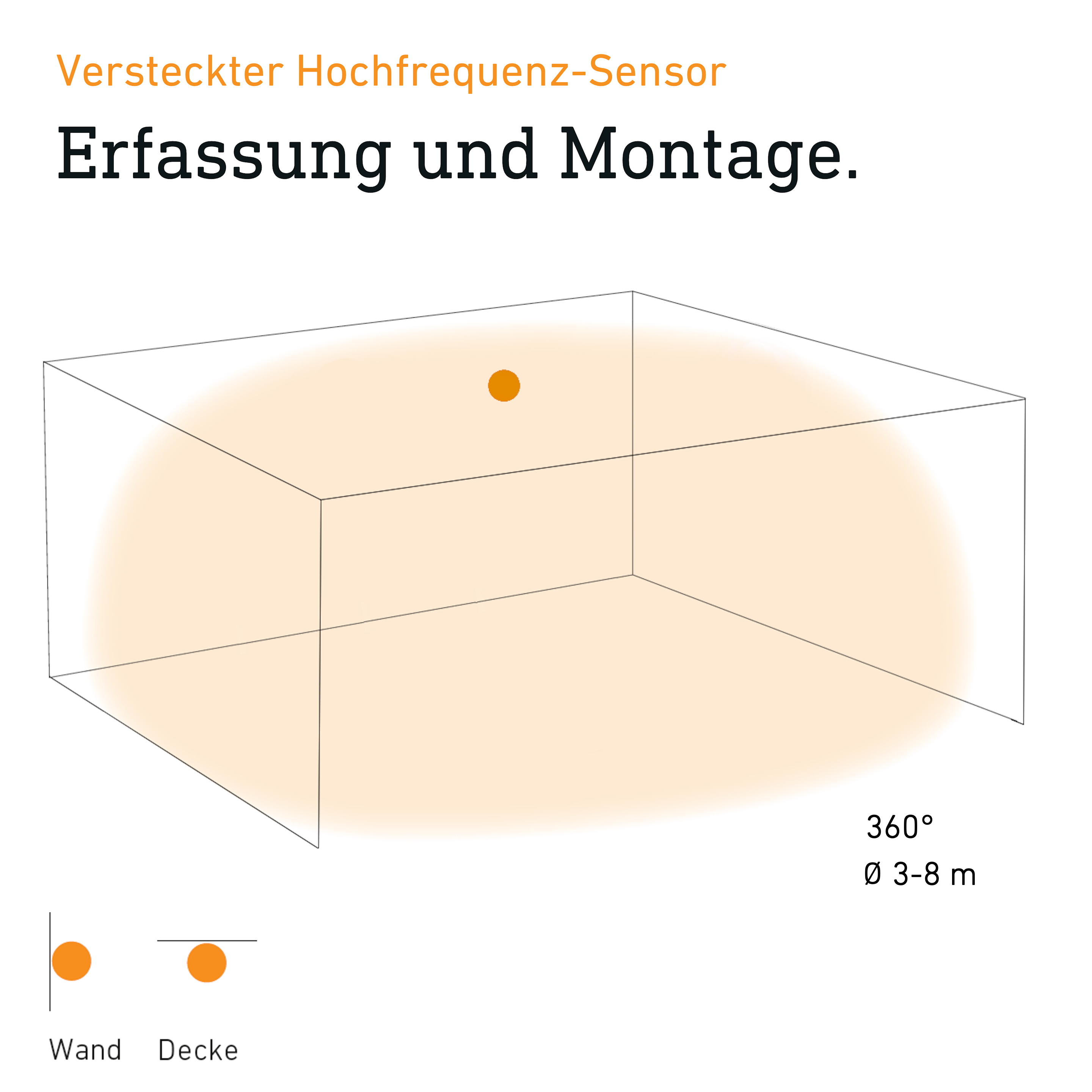

- Automatic light thanks to hidden 360° high-frequency sensor with up to Ø8 m detection on movement
- Functions: adjustable basic light, pleasant soft light start, 4 hours continuous light
- Warm white light (3000 K) and long-life 9,4 W LEDs with 942 lm
- Incl. mounting accessories - plastic-free packaging
Dimensions
Dimensions Ø × H
280 x 110 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
9,4 W
Own consumption
0,38 W
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
160 °
Segment-by-segment masking
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
Ø 8 m (50 m²)
Tangential range
Ø 8 m (50 m²)
Mounting height
2,00 – 4,00 m
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Lighting technology
Measured luminous flux 360°
942 lm
Colour temperature
3000 K
LED colour deviation
SDCM3
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Soft light start
Yes
Continuous light
selectable, 4h
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L80B10
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 s – 15 Min.
Base light function
Yes
Base light function time
10/30 min, all night
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Base light function in percent
10 %
Base light function percent from
10 %
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
II
Ambient temperature
from 10 up to 40 °C
Housing material
Plastic
Cover material
Plastic, opal
Mounting location
ceiling
wall
Application location
Indoors
Mounting type
Surface wiring
Application room
Indoors
WC / washroom
changing room
corridor / aisle
function room / ancillary room
kitchenette
outdoors
stairwell
Colour
white
Scope of delivery & warranty
Manufacturer warranty
3 years

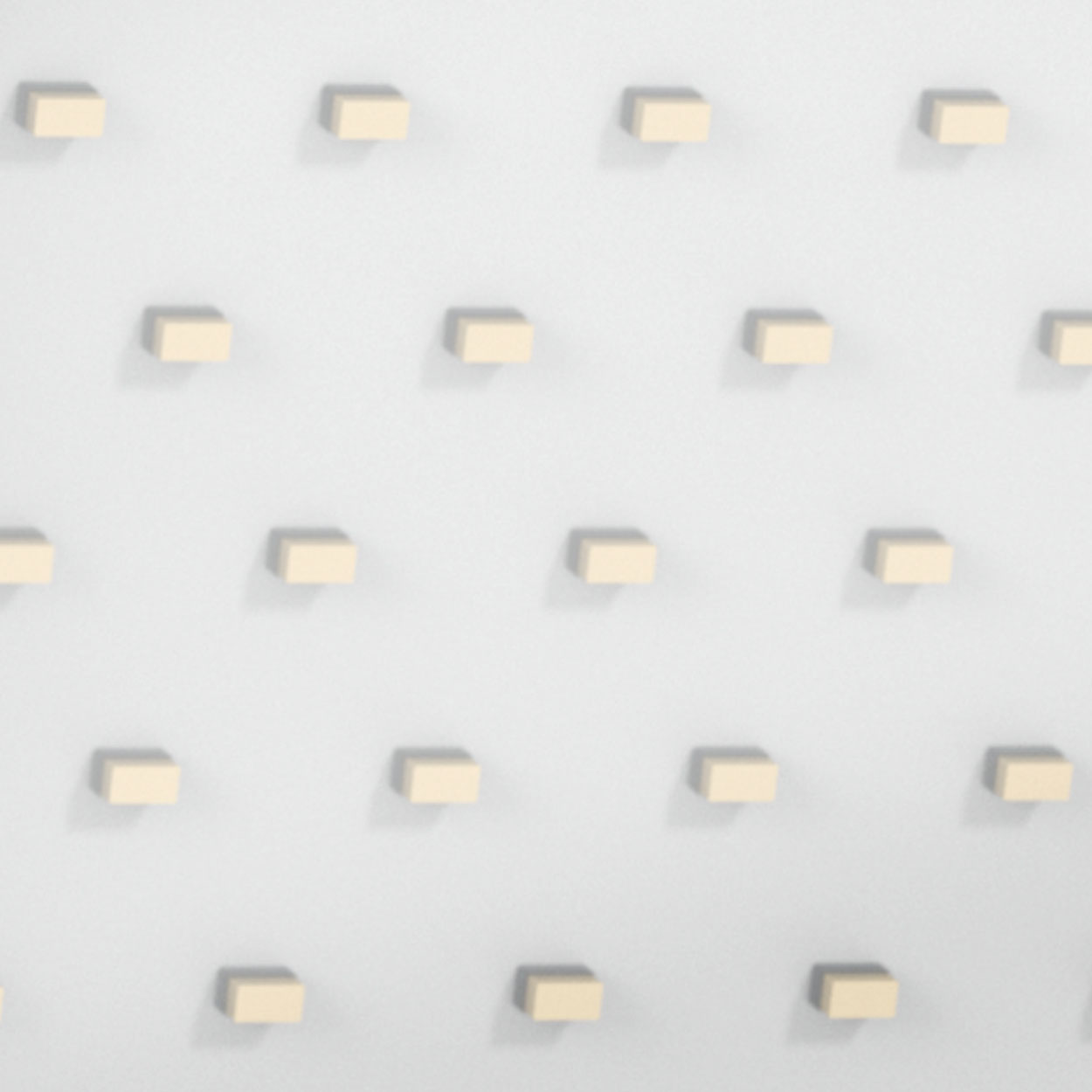

Including STEINEL LED system

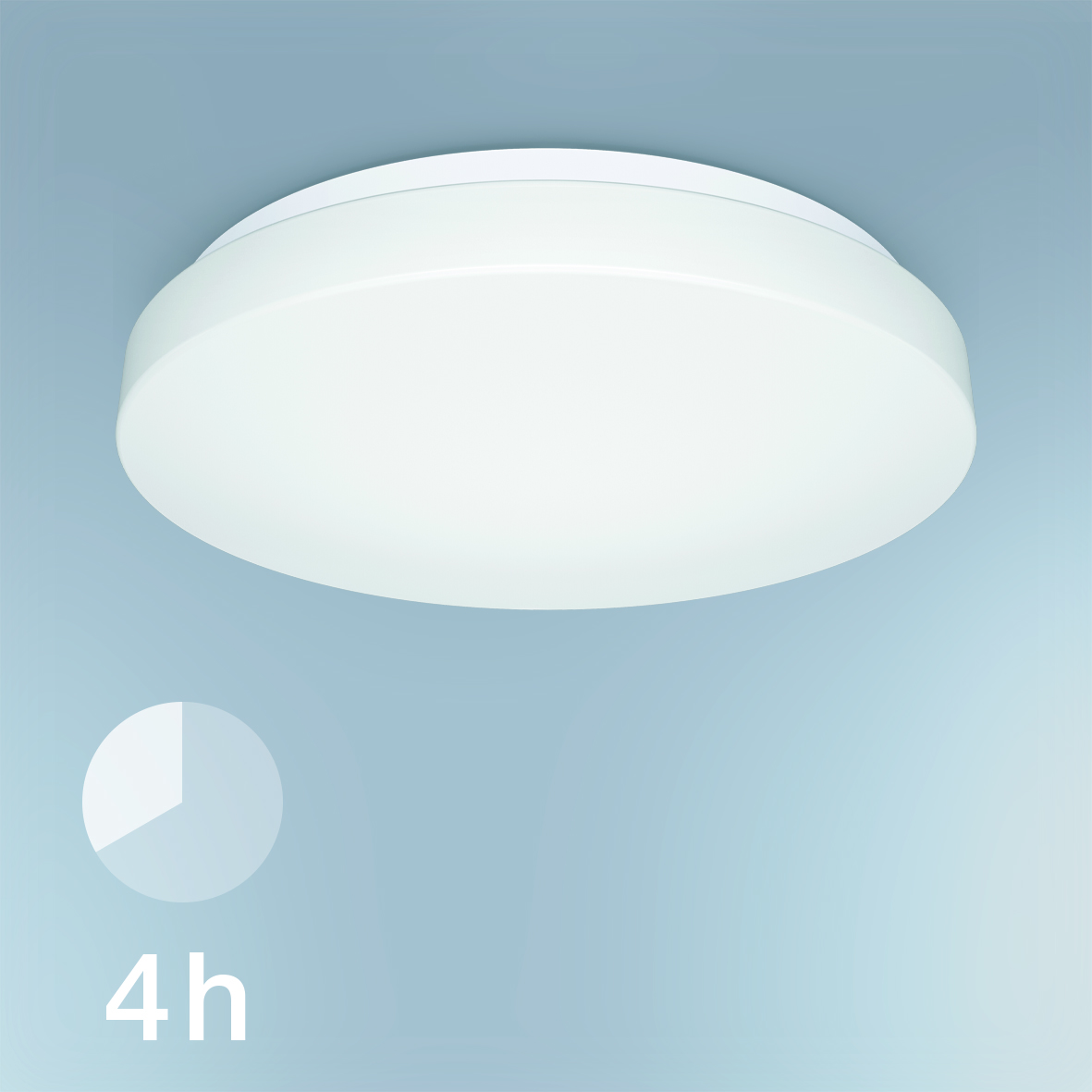

4-hour manual override (optional)

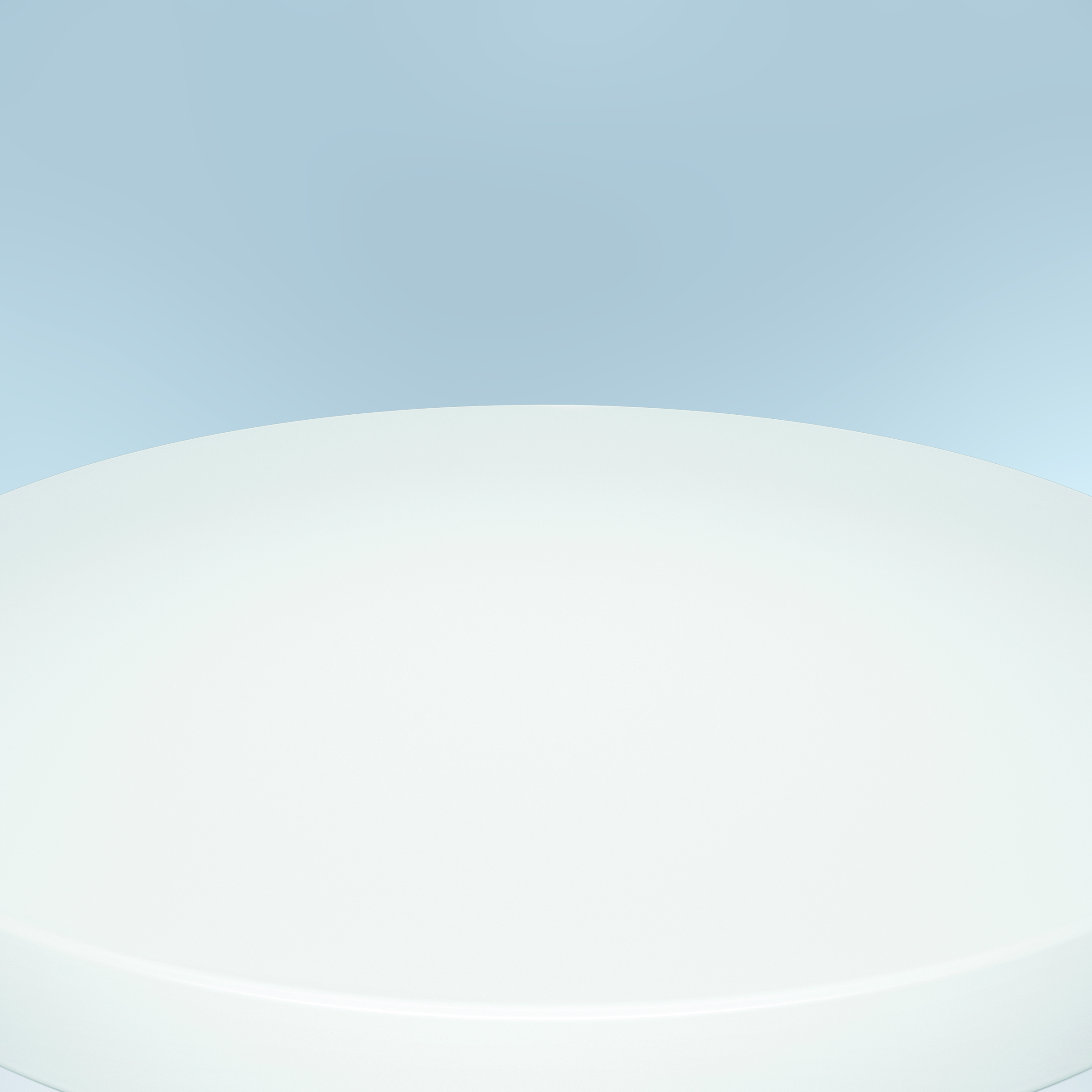

Plastic shade

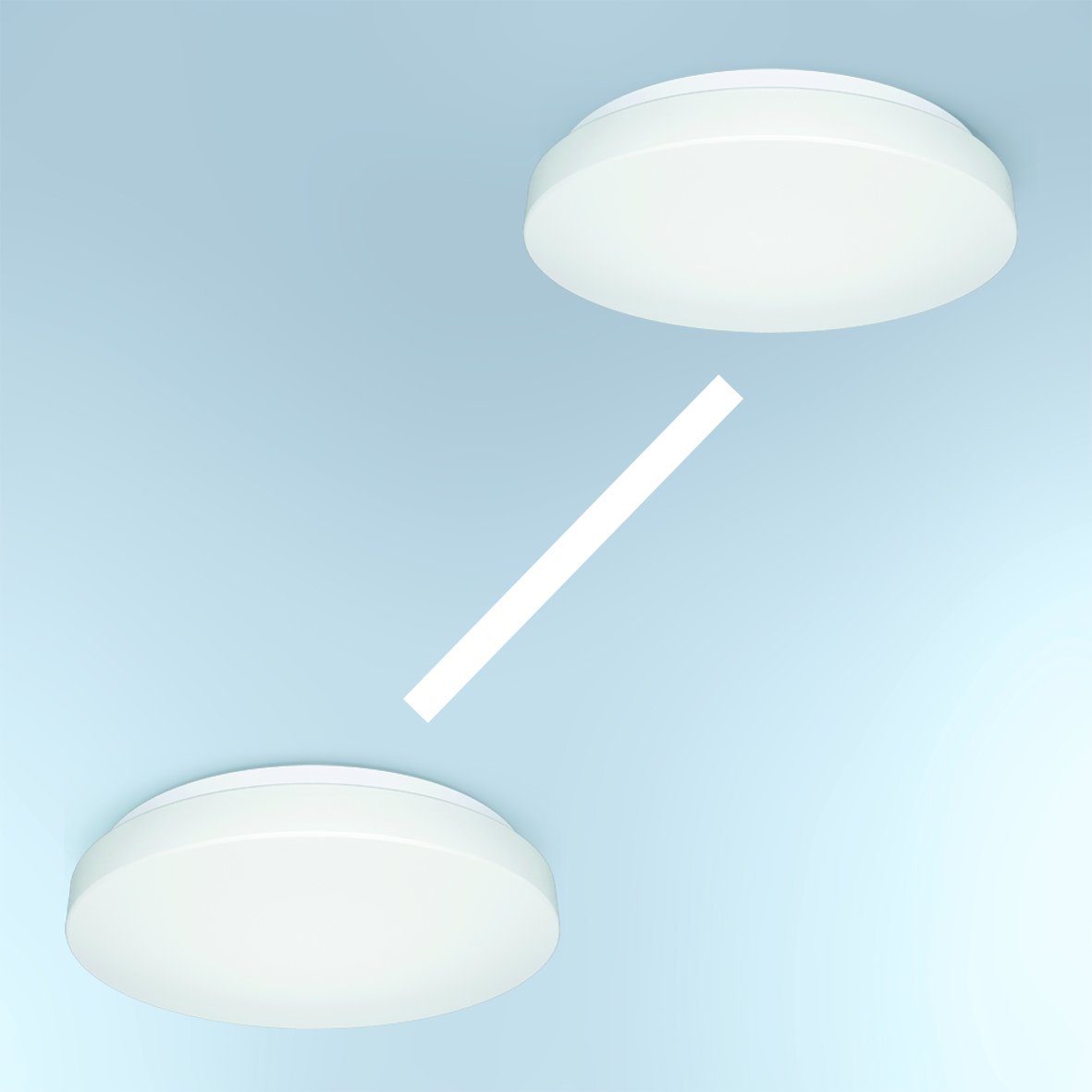

Interconnectable by cable
Technical drawing
Sensor detection range
Wiring diagram 1
Slave/wireless master interconnection circuit diagram
Wiring diagram 2
Master/master interconnection circuit diagram
