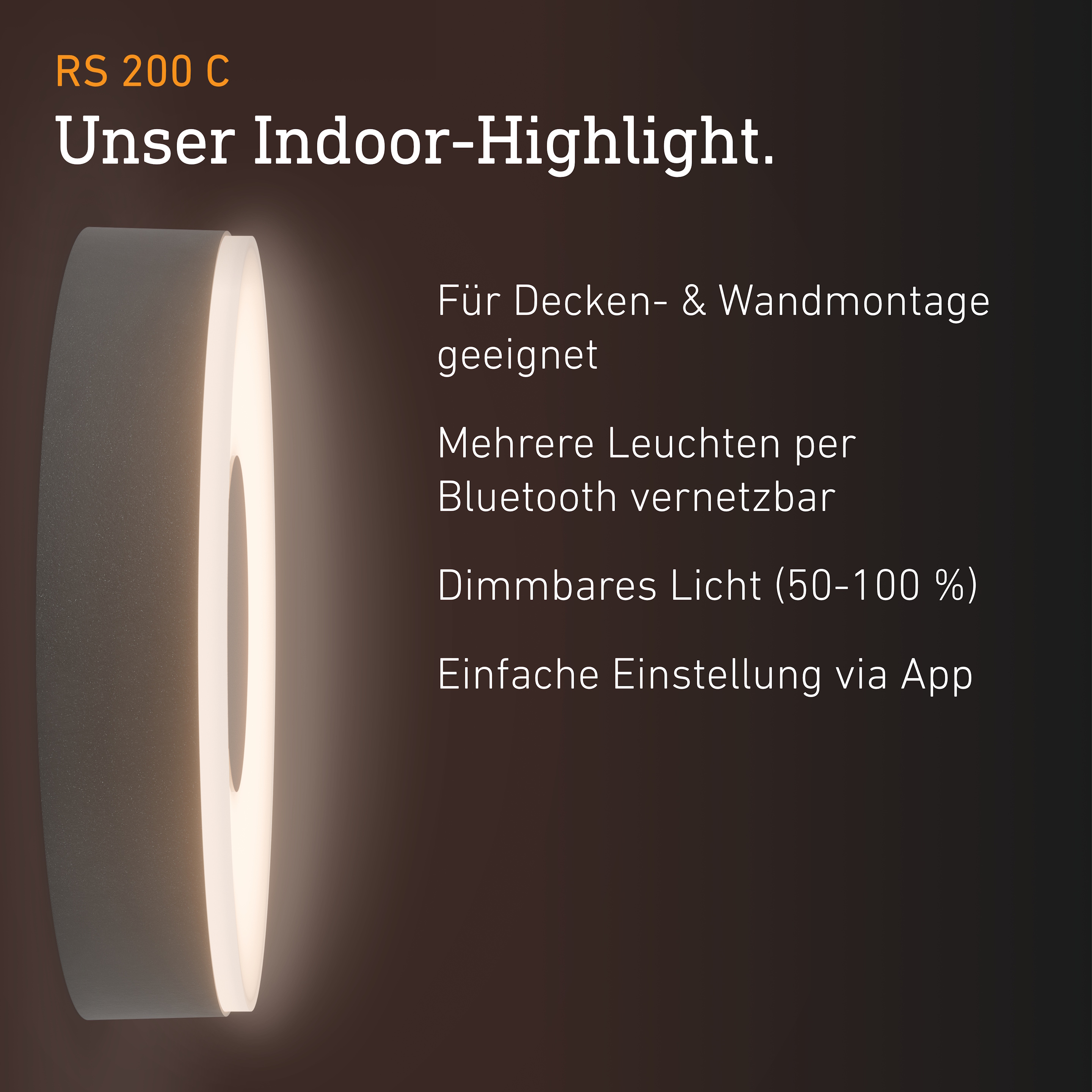

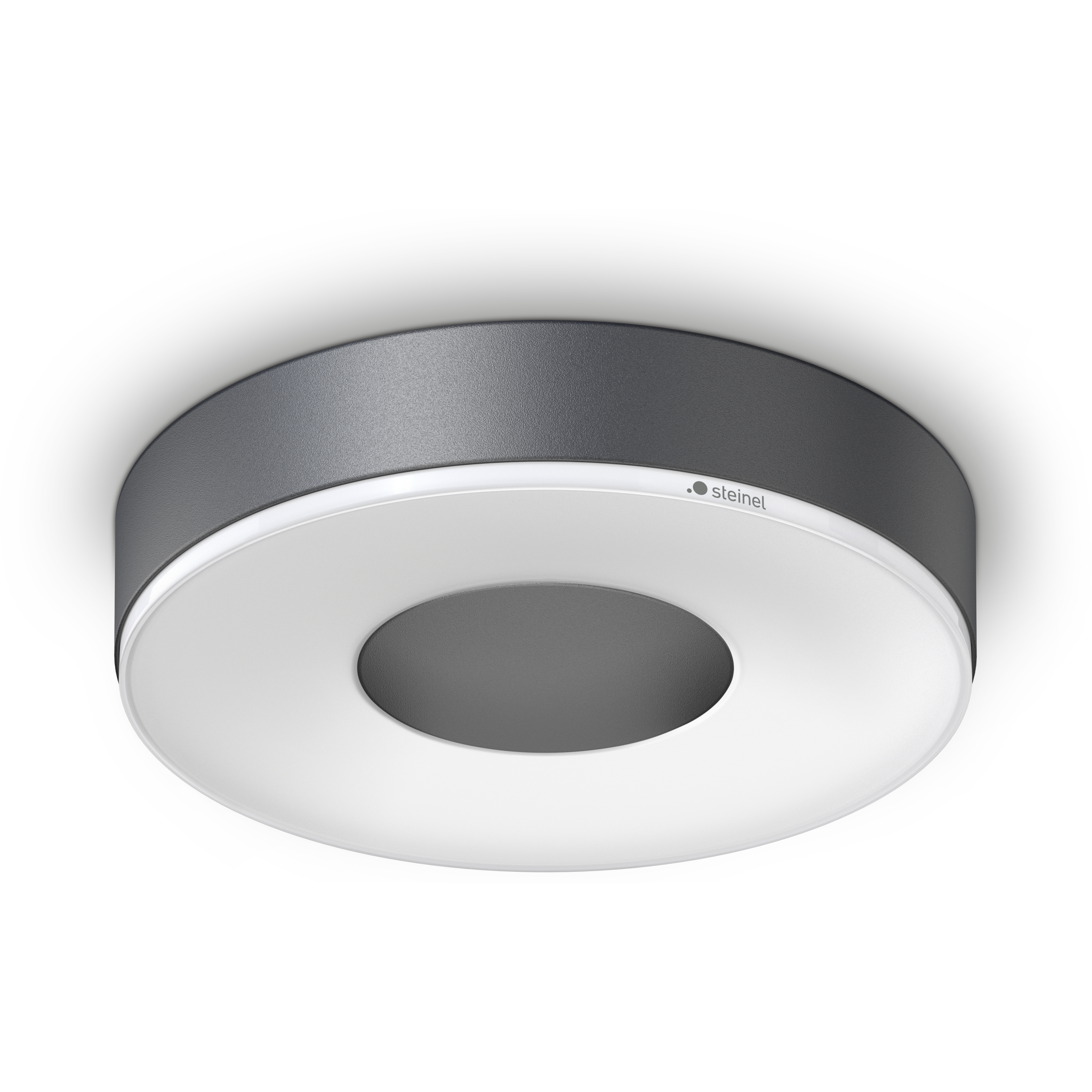

Steinel RS 200 C without motion detector, with Bluetooth

ELDAS® no. 941 012 789

EAN-No. 4007841 078775

Premiere! The RS 200 C is the first Bluetooth-enabled STEINEL Connect indoor light to be featured in our Indoor range. This makes it easy to interconnect, set, adjust and operate via Bluetooth. No cables. Without stress. It's never been easier! Enclosed in a high-quality anthracite-coloured aluminium housing, the LED indoor light has a diameter of 26.2 cm, is 5.3 cm in height and makes classy design and lighting statements on ceilings and walls. At the same time, warm white ambient light in a colour temperature of 3000 K always conjures a pleasing room atmosphere. The innovative RS 200 C is also available with sensor.

Indoor light without motion detector, with high-quality anthracite-coloured aluminium housing
With pleasant ambient light for a beautiful room atmosphere, suitable for ceiling and wall mounting

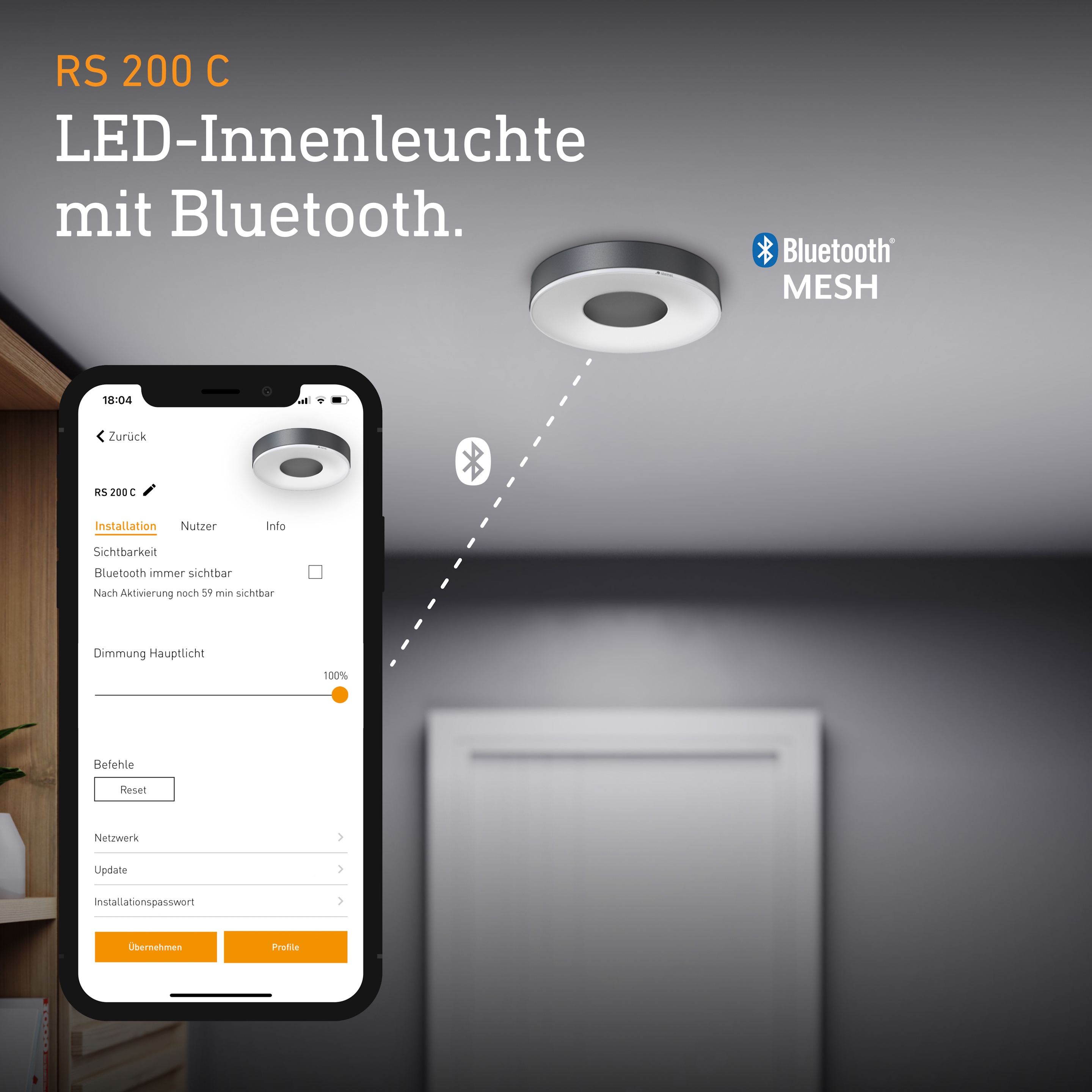

Wireless networking via Bluetooth and easy setting via STEINEL Connect App
Functions: adjustable main light
Warm white light (3000 K) and long-life 17,1 W LEDs with 1165 lm
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions Ø × H 263 x 53 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 17,1 W

Own consumption 0,5 W

Sensor technology

Max. mounting height 4,00 m

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector No

Mounting height 2,00 – 4 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 1165 lm

Colour temperature 3000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

LED cooling system Passive Thermo Control

Soft light start Yes

Efficiency without cover 68 lm/W

Lifetime

LED lifetime L70B50 25°C > 36000 h

Settings

Base light function Yes

Base light function detail LED effect light

Base light function time 1-60 min

Settings via Bluetooth Smartphone Tablet

With remote control No

Base light function in percent 10 – 100 %

Base light function percent from 10 %

Housing & material

Impact resistance IK10

Protection class (IP) IP54

Protection class I

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, opal

Mounting location ceiling wall

Application location Indoors

Mounting type Surface wiring

Material Aluminium

Application room Indoors corridor / aisle function room / ancillary room recreation room stairwell

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

EPREL category Surrounded product with integrated light source

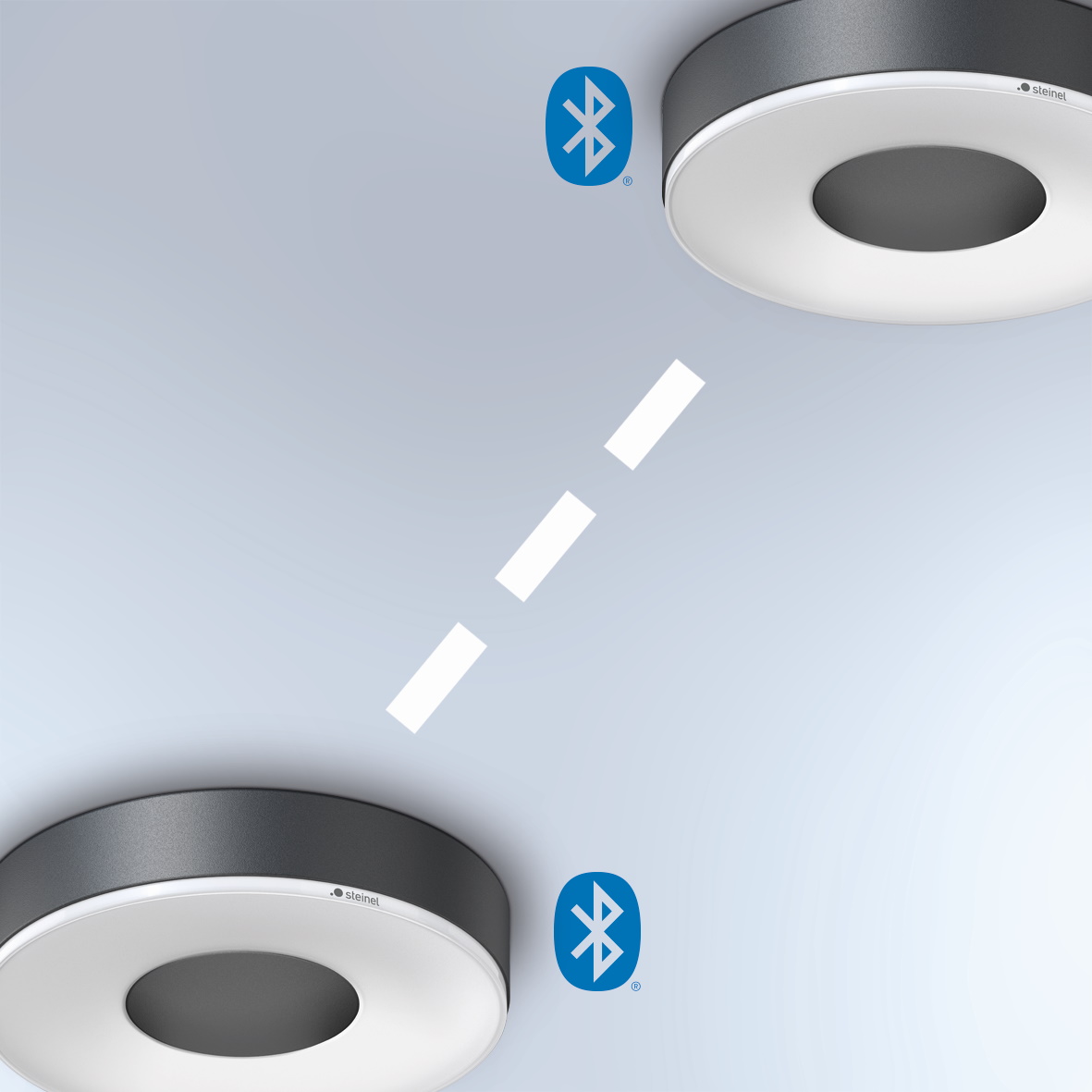

Interconnectable and adjustable via Bluetooth

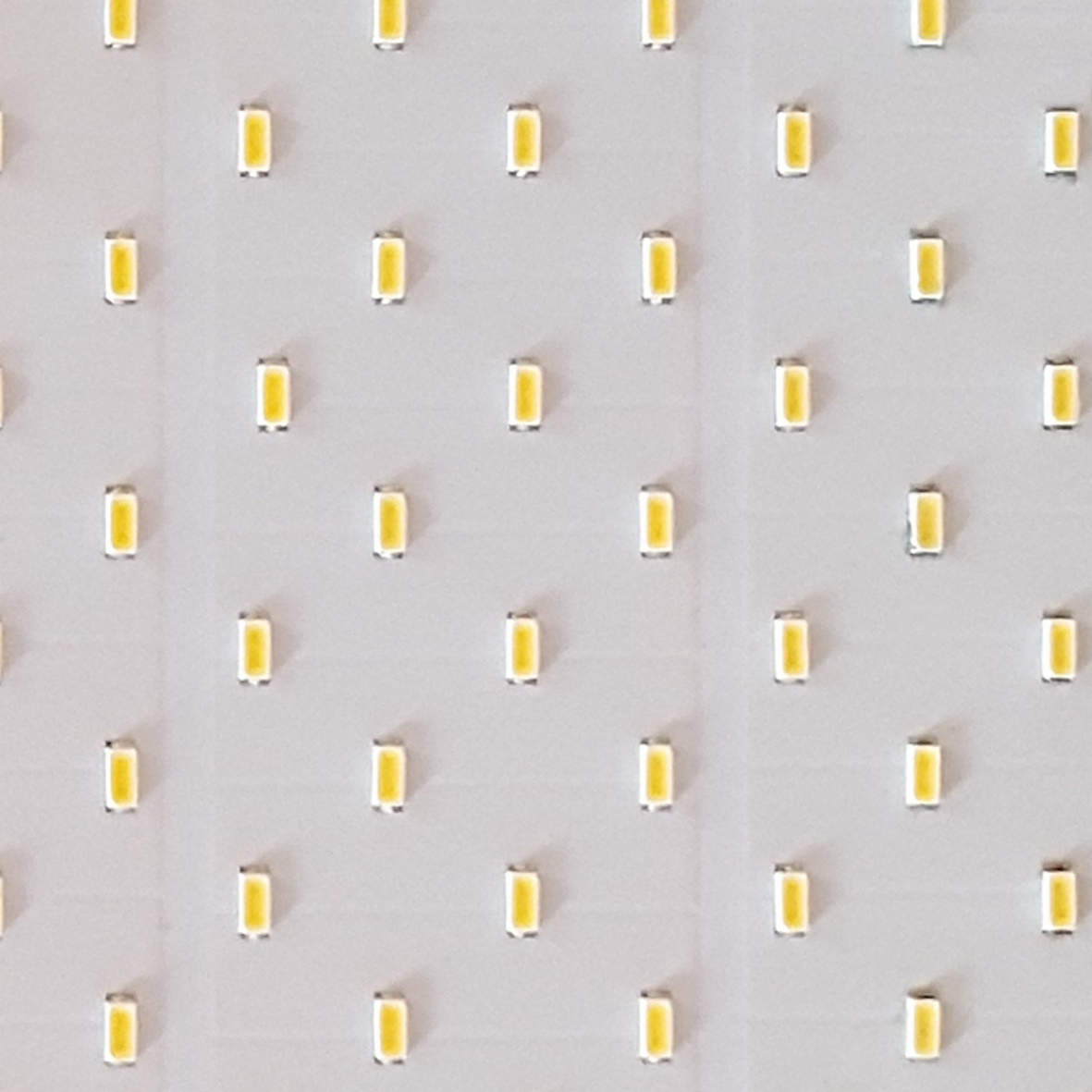

Including STEINEL LED system

Intelligent soft light start (only with bluetooth sensor product)

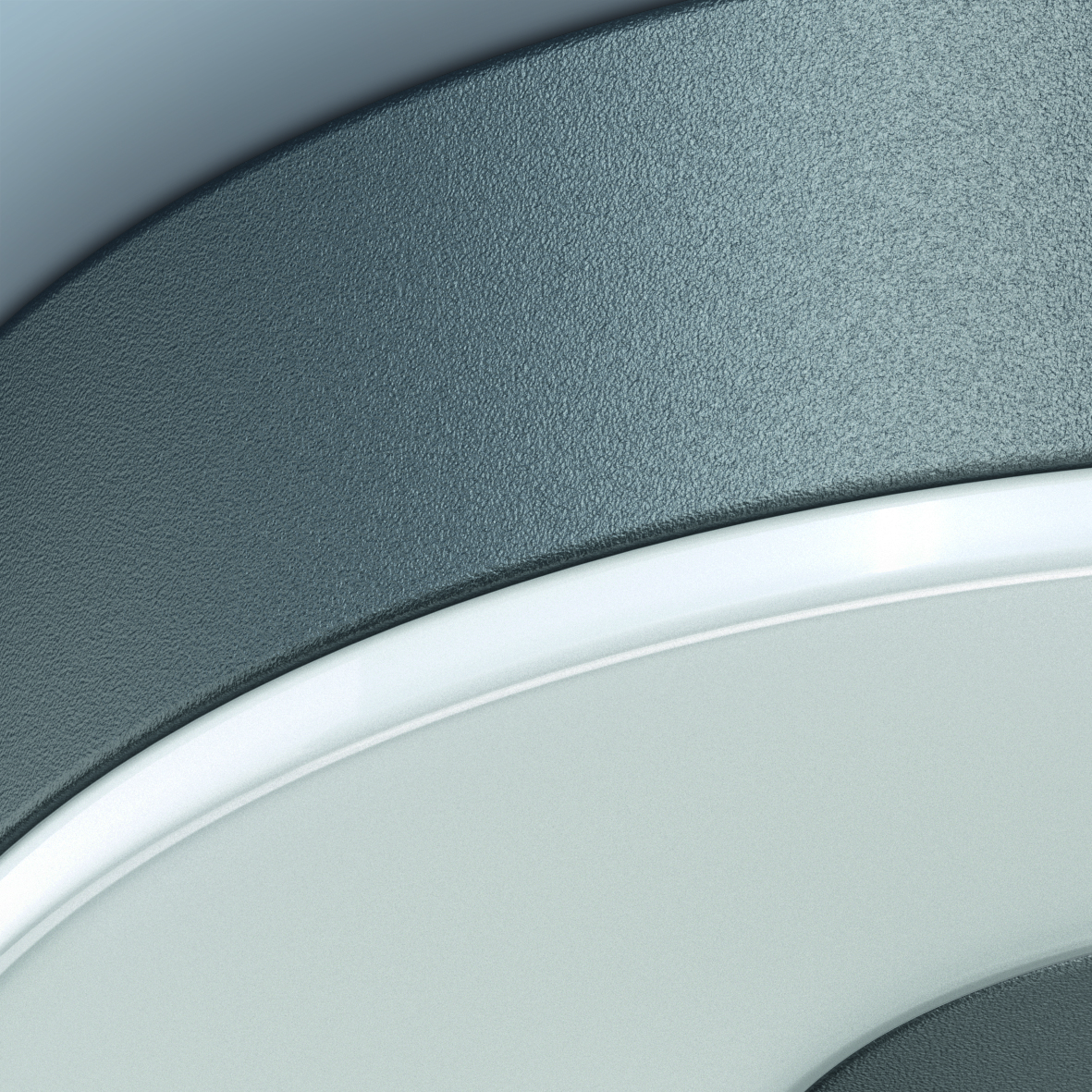

High-quality aluminium

Technical drawing

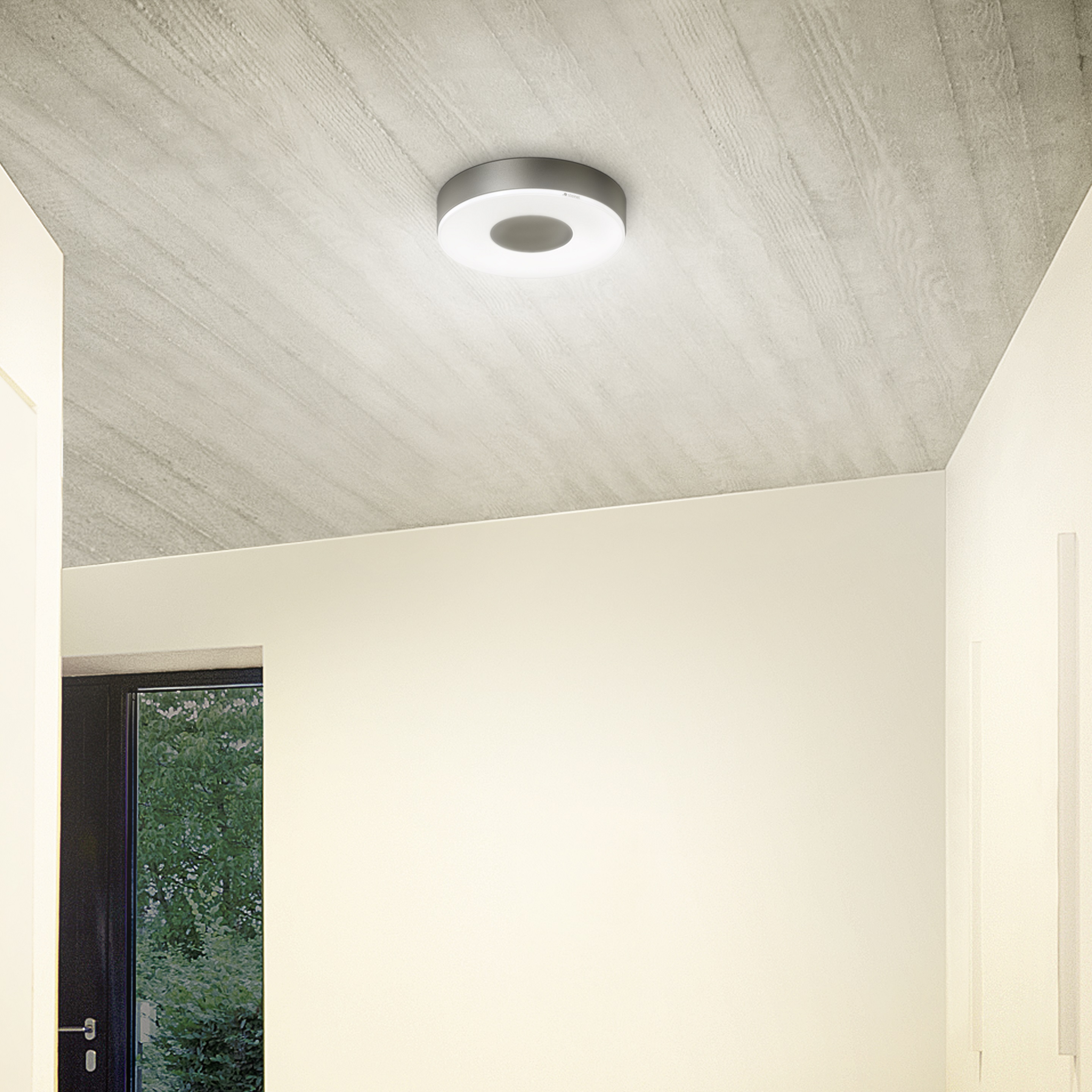

Sensor detection range

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

Data sheet User manual Declaration of conformity Drilling template
