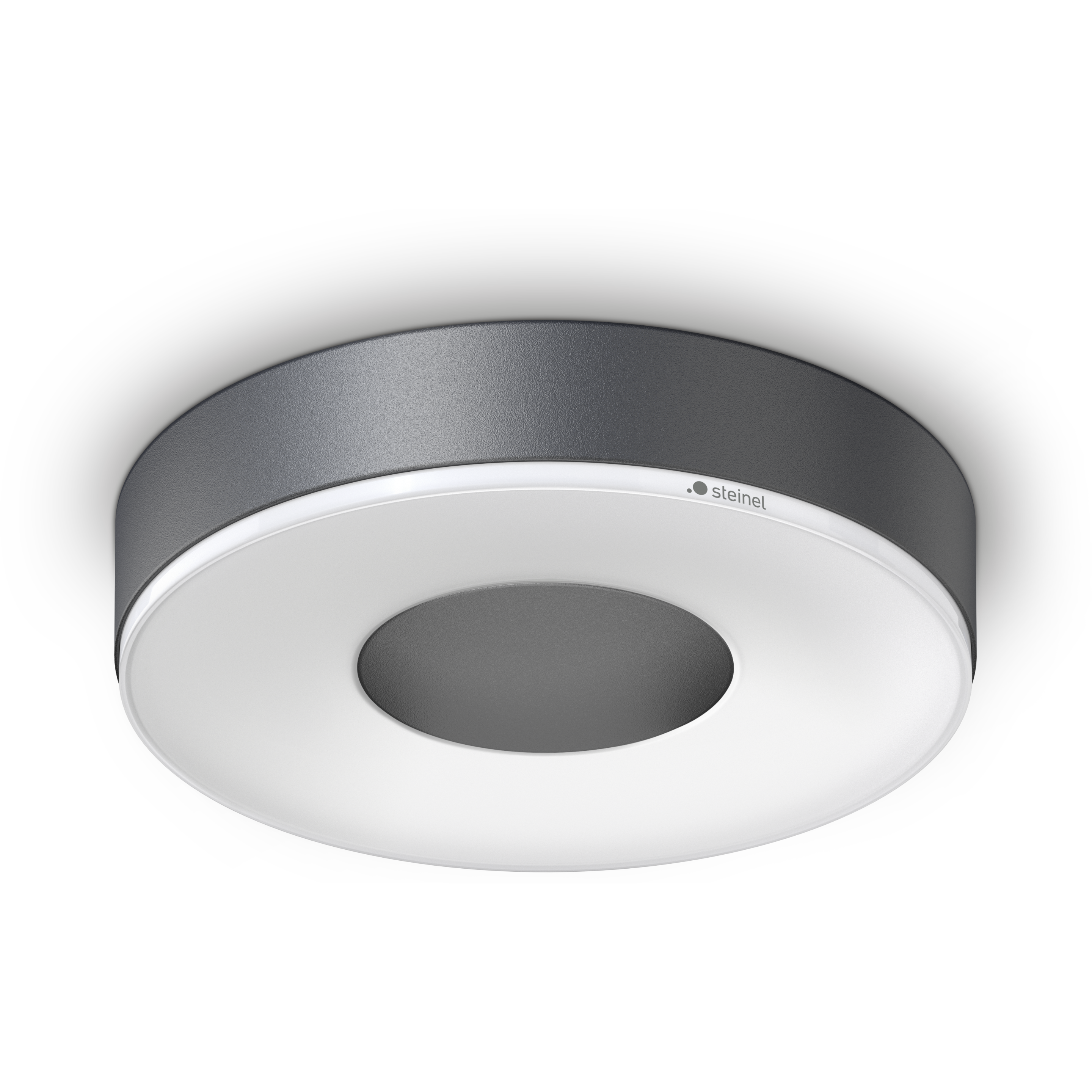

Steinel RS 200 SC with motion detector & Bluetooth

ELDAS® no. 941 012 779

EAN-No. 4007841 078782

Premiere! The RS 200 SC is the first Bluetooth-enabled STEINEL Connect indoor light to be featured in our Indoor range. This makes it easy to interconnect, set, adjust and operate via Bluetooth. No cables. Without stress. It's never been easier! Enclosed in a high-quality anthracite-coloured aluminium housing, the LED indoor light comes with an intelligent soft-start function and a 360° high-frequency sensor. It has a diameter of 26.2 cm, is 5.3 cm in height and makes classy design and lighting statements on ceilings and walls. At the same time, warm white ambient light in a colour temperature of 3000 K always conjures a pleasing room atmosphere. The innovative RS 200 SC is also available without sensor.

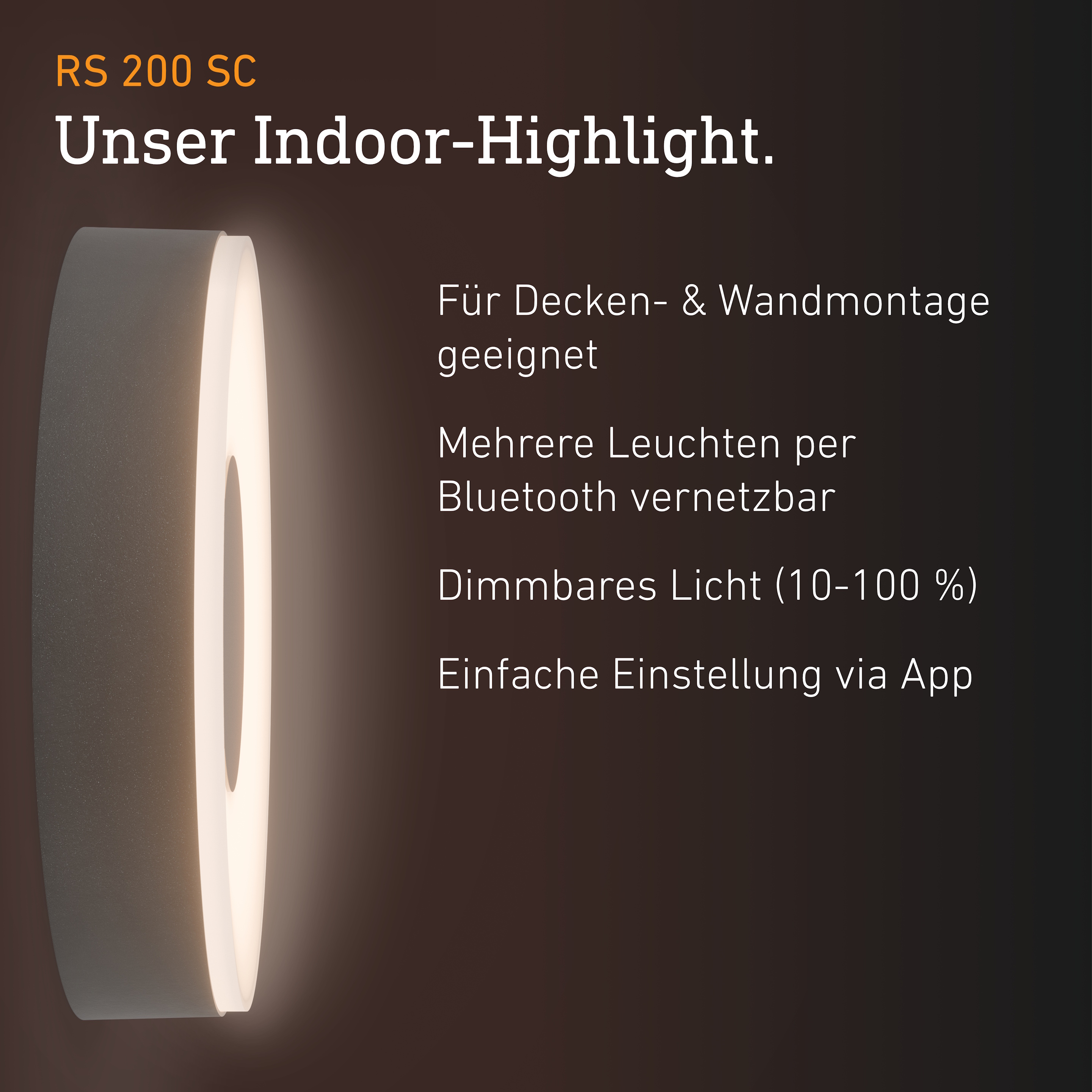

Indoor light with motion detector, with high-quality anthracite-coloured aluminium housing
With pleasant ambient light for a beautiful room atmosphere, suitable for ceiling and wall mounting
Wireless networking via Bluetooth and easy setting via STEINEL Connect App

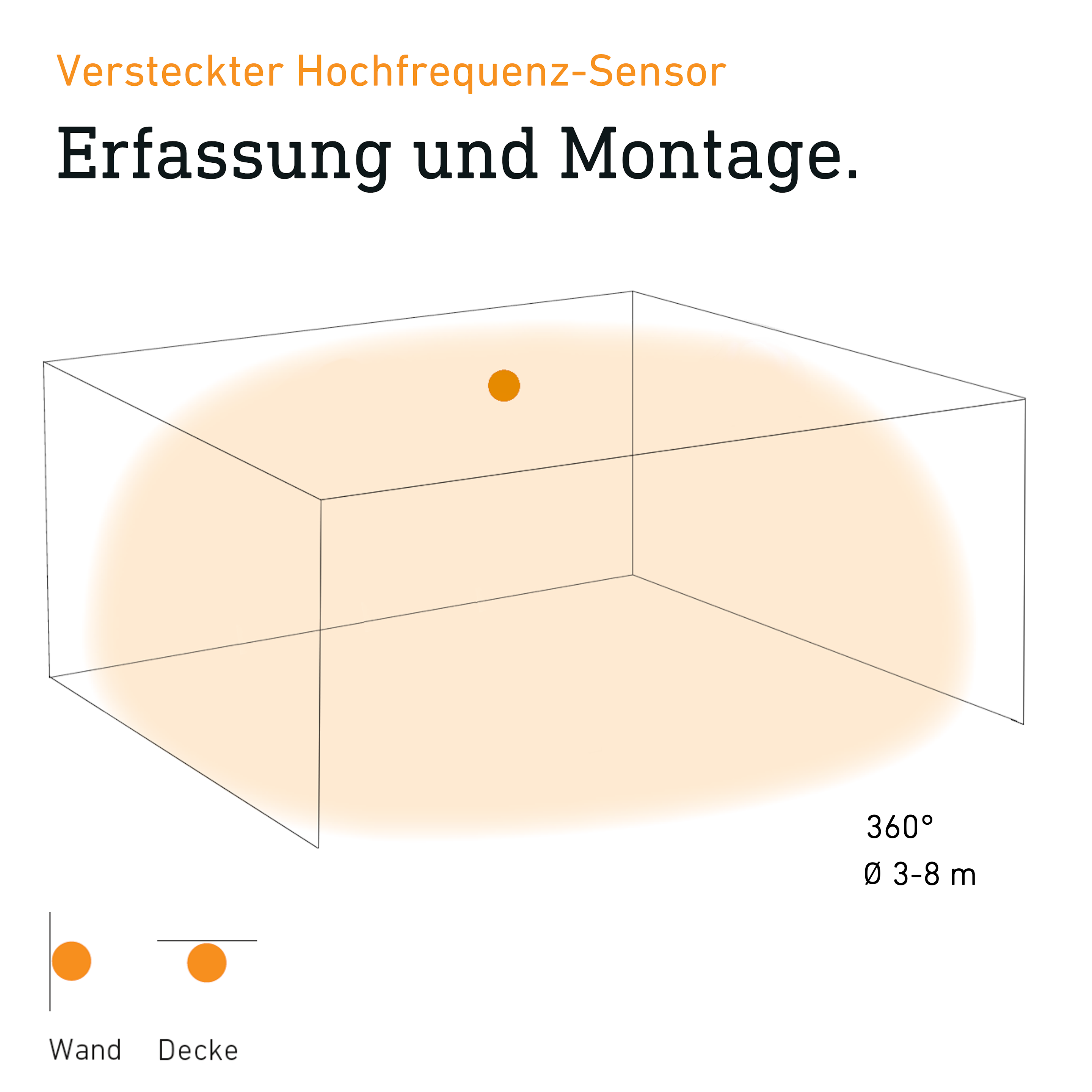

Automatic light thanks to hidden 360° high-frequency sensor with up to Ø8 m detection on movement
Functions: adjustable basic and main light, pleasant soft light start, 4 hours continuous light, neighbour function
Warm white light (3000 K) and long-life 17,1 W LEDs with 1165 lm
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions Ø × H 263 x 53 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 17,1 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Electronic scalability Yes

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,00 – 4 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Bluetooth Mesh

Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 1165 lm

Colour temperature 3000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable, 4h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 30 Min.

Base light function Yes

Base light function detail LED effect light

Base light function time 1-60 min

Main light adjustable 50 - 100 %

Functions Motions sensor DIM function Light sensor Orientation light

Settings via Smartphone Tablet App Bluetooth Mesh

With remote control No

Base light function in percent 10 – 100 %

Base light function percent from 10 %

Housing & material

Impact resistance IK10

Protection class (IP) IP54

Protection class I

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, opal

Mounting location ceiling wall

Application location Indoors

Mounting type Surface wiring

Material Aluminium

Application room Indoors corridor / aisle function room / ancillary room recreation room stairwell

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

EPREL category Surrounded product with integrated light source

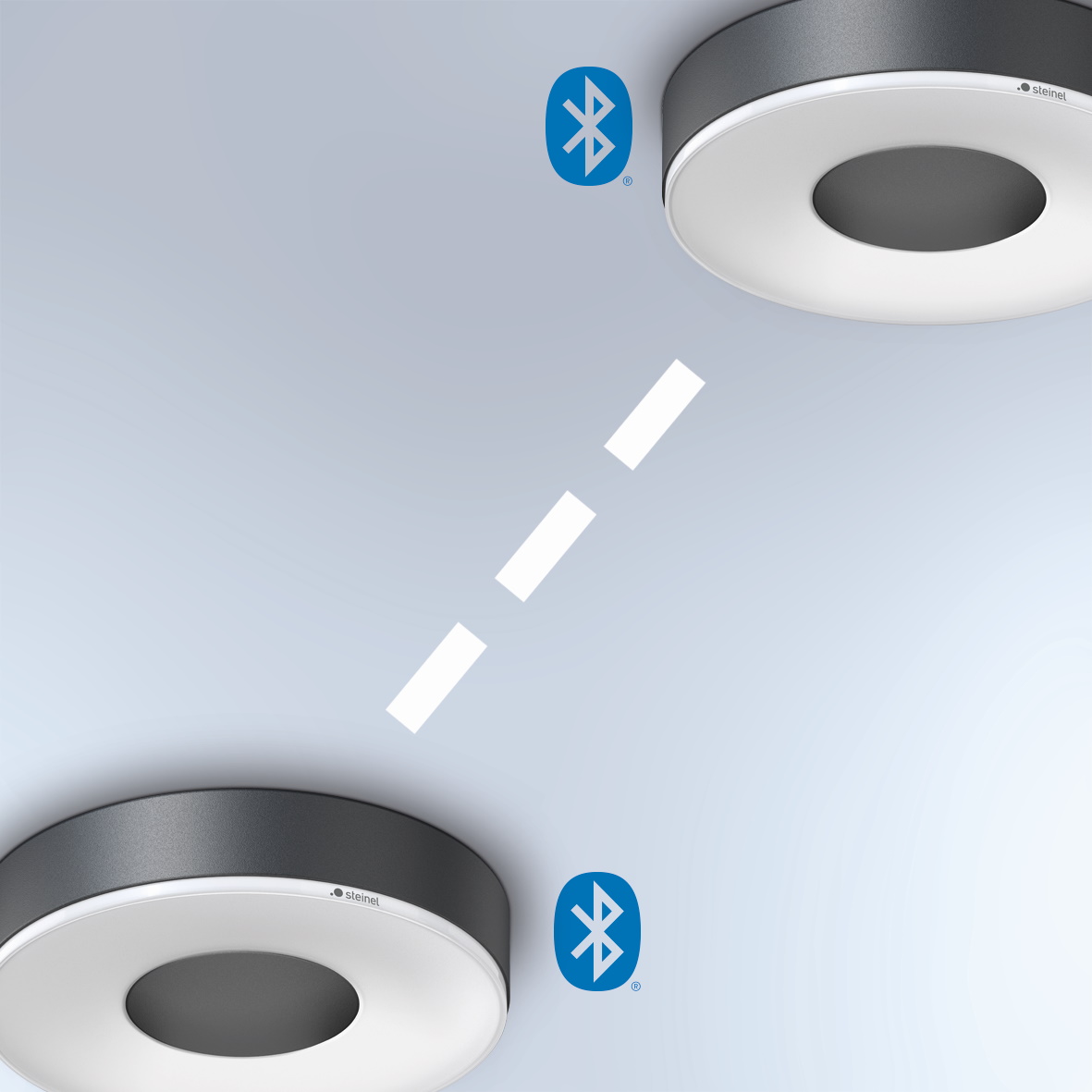

Interconnectable and adjustable via Bluetooth

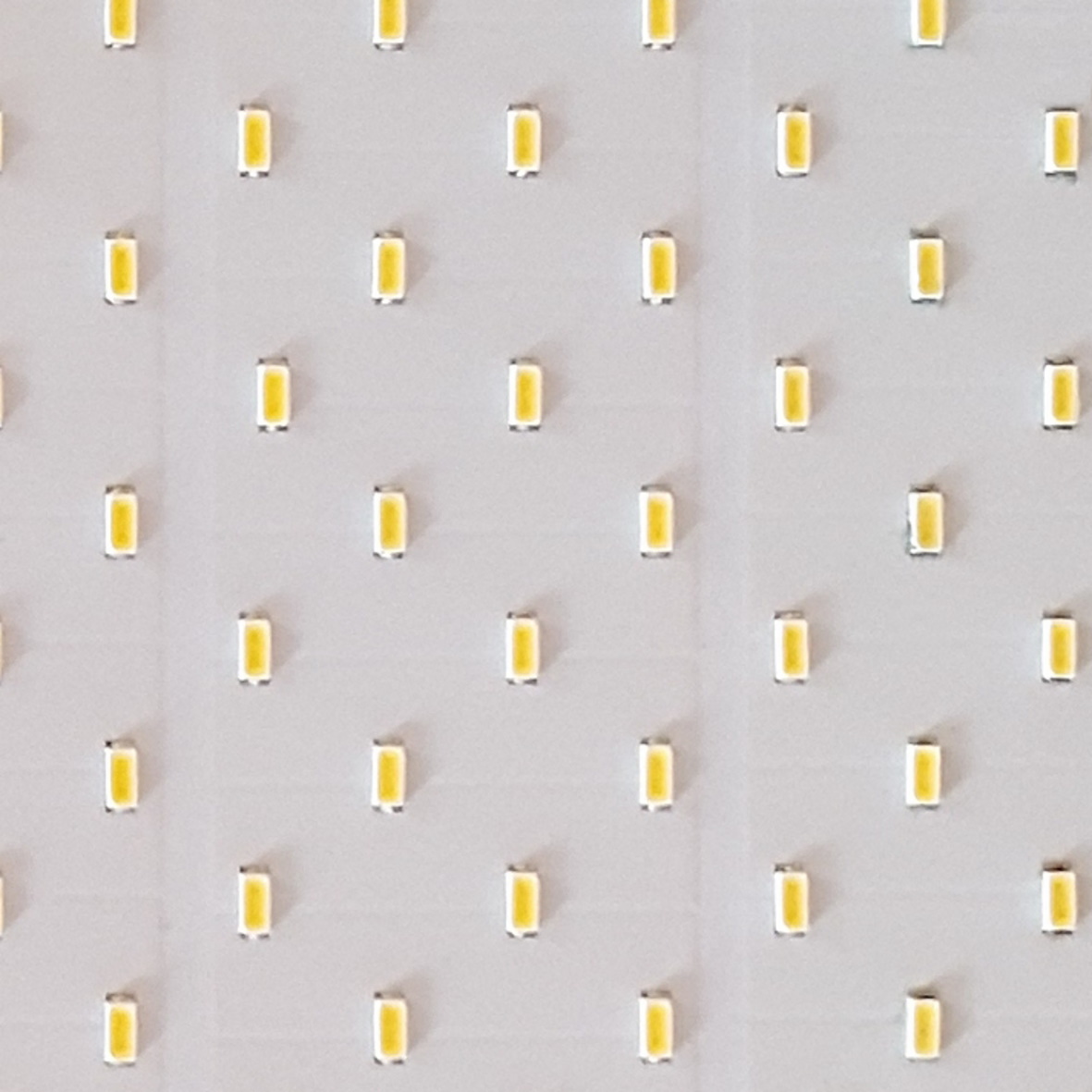

Including STEINEL LED system

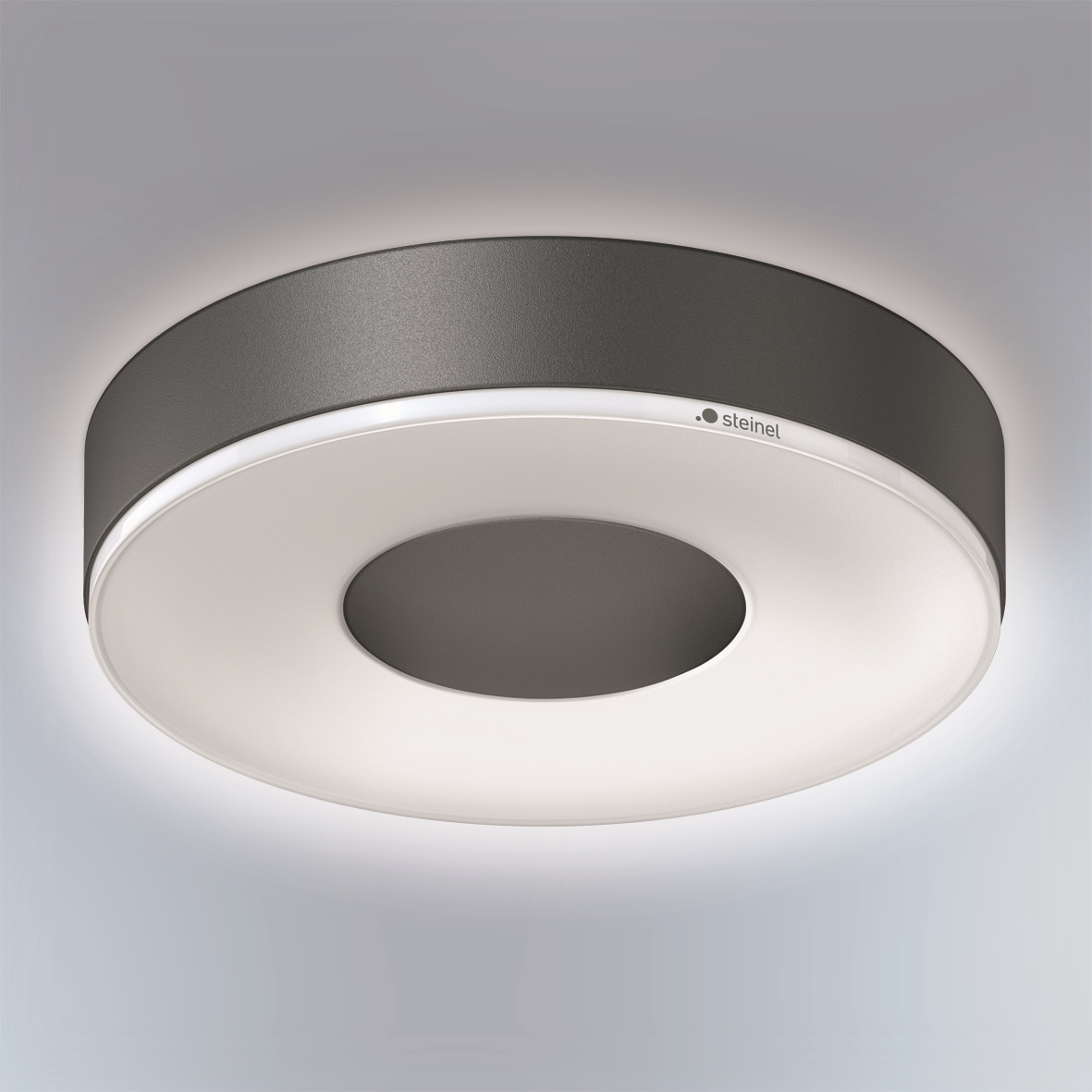

Optional basic lighting level

Intelligent soft light start

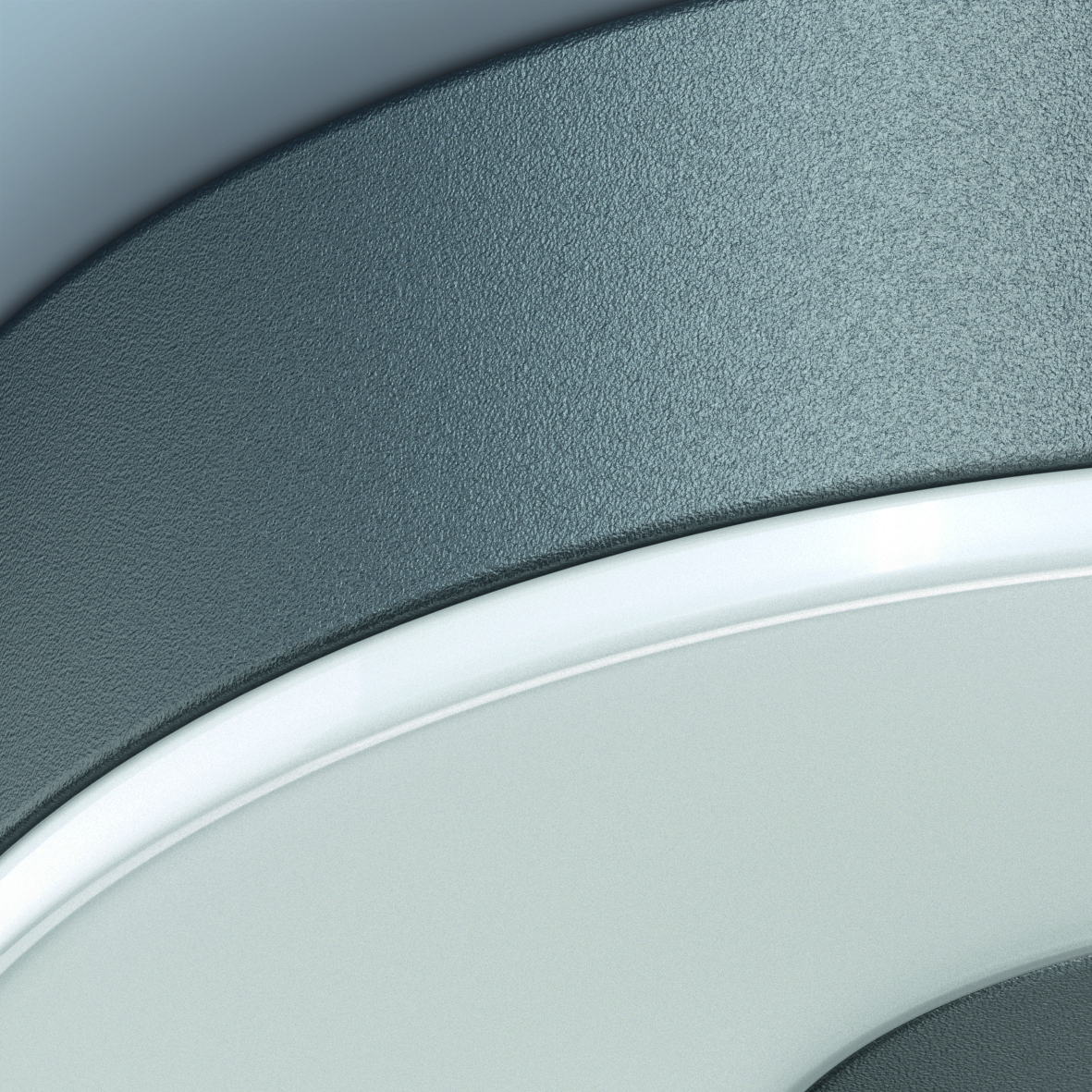

High-quality aluminium

Technical drawing

Sensor detection range

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

Data sheet User manual Declaration of conformity Drilling template LDT file (light distribution)
