Sleek, smart and attractive. Opting for the RS D2 S designer indoor luminaire, you'll be giving your home a real designer highlight with pleasant LED illumination. With its stunning looks and intelligent technology, this light provides the last word in stylish home convenience. Once fitted to the wall or ceiling, the high-frequency sensor switches it ON and OFF in complete silence and all automatically. The light is child's play to install and the function settings on the product are easy to understand too. Your neighbours will be amazed.
- Indoor light with motion detector, with brushed stainless steel frame
- With pleasant ambient light for a beautiful room atmosphere, suitable for ceiling and wall mounting
- Automatic light thanks to hidden 360° high-frequency sensor with up to Ø8 m detection on movement
- Functions: adjustable basic light, 4 hours continuous light
- Warm white light (3000 K) and long-life 8,8 W LEDs with 886 lm
- Incl. mounting accessories - plastic-free packaging
Dimensions
Dimensions L × W × H
66 x 300 x 300 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
8,8 W
Own consumption
0,38 W
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
160 °
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
Ø 8 m (50 m²)
Tangential range
Ø 8 m (50 m²)
Mounting height
2 – 4 m
Optimal mounting height
2,8 m
Connectivity
Networking
No
Lighting technology
Measured luminous flux 360°
886 lm
Colour temperature
3000 K
LED colour deviation
SDCM3
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Soft light start
No
Continuous light
selectable, 4h
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 s – 15 Min.
Base light function
Yes
Base light function time
10/30 min, all night
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Base light function in percent
10 %
Base light function percent from
10 %
Housing & material
Impact resistance
IK03
Protection class (IP)
IP20
Protection class
II
Ambient temperature
from -10 up to 40 °C
Housing material
Plastic
Cover material
Plastic, opal
Mounting location
ceiling
wall
Application location
Indoors
Mounting type
Surface wiring
Application room
Indoors
WC / washroom
corridor / aisle
function room / ancillary room
outdoors
stairwell
Colour
white
Scope of delivery & warranty
Manufacturer warranty
3 years
Certificates & EPREL
EPREL category
Surrounded product with integrated light source
Including STEINEL LED system

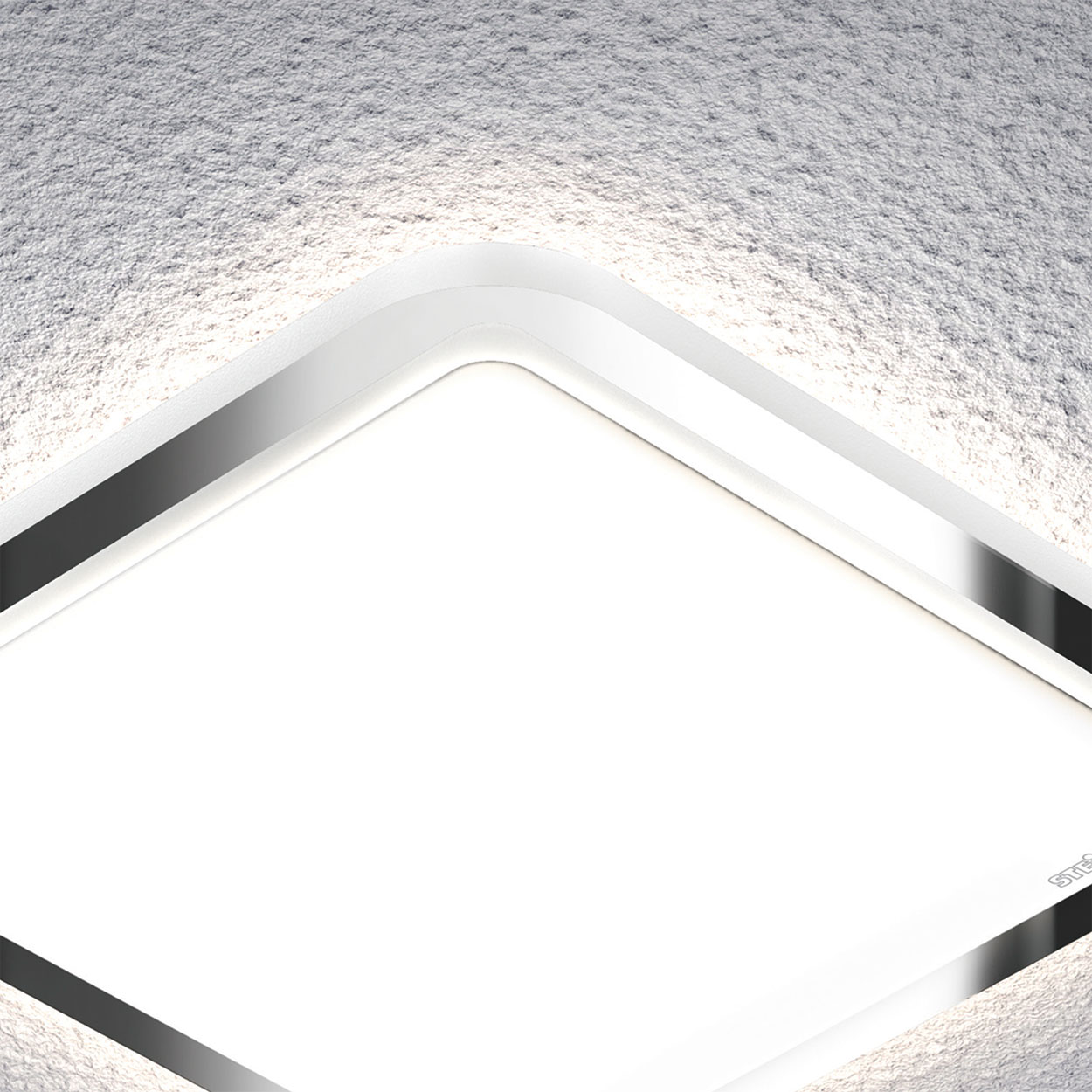

LED ambient light

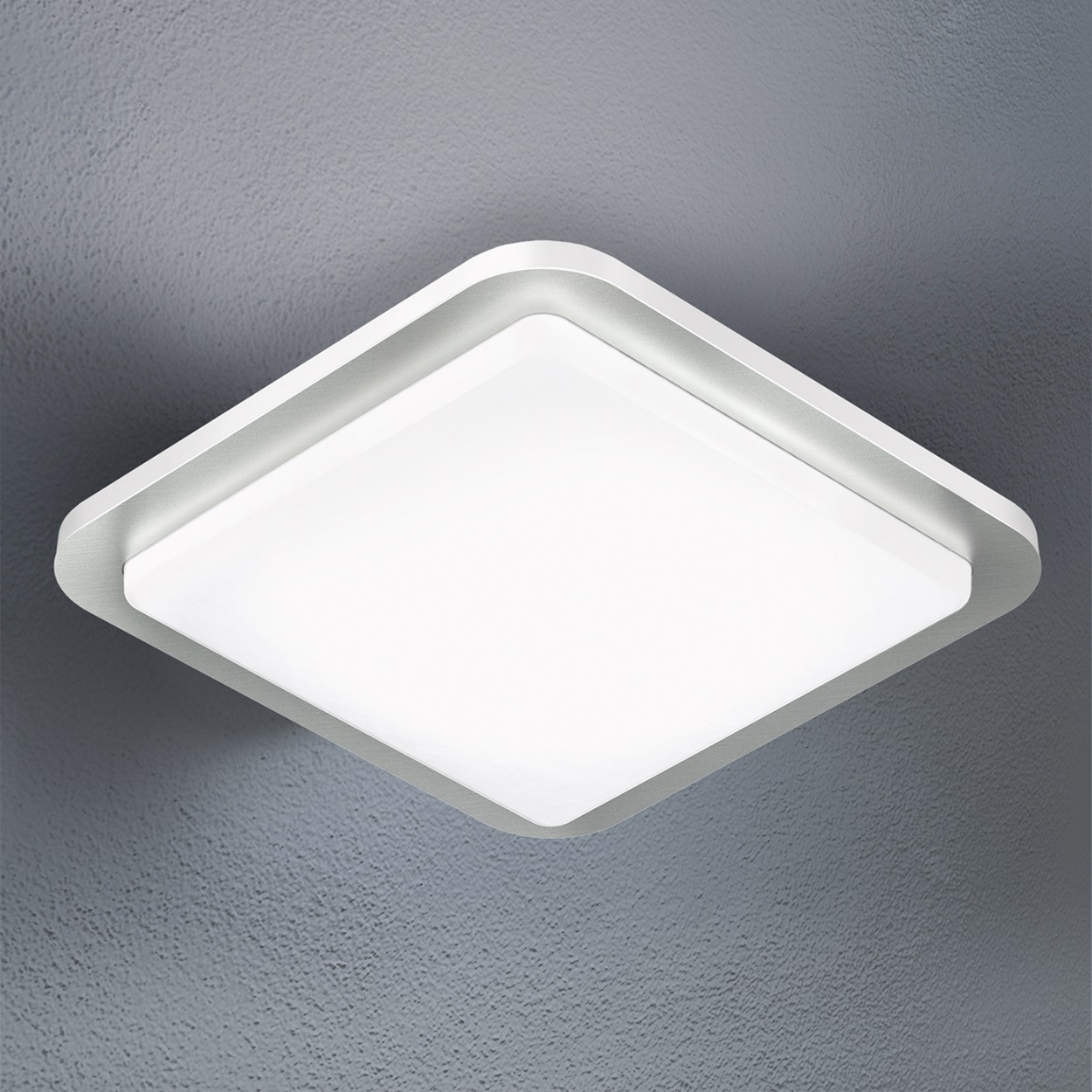

Optional basic lighting level 10 %

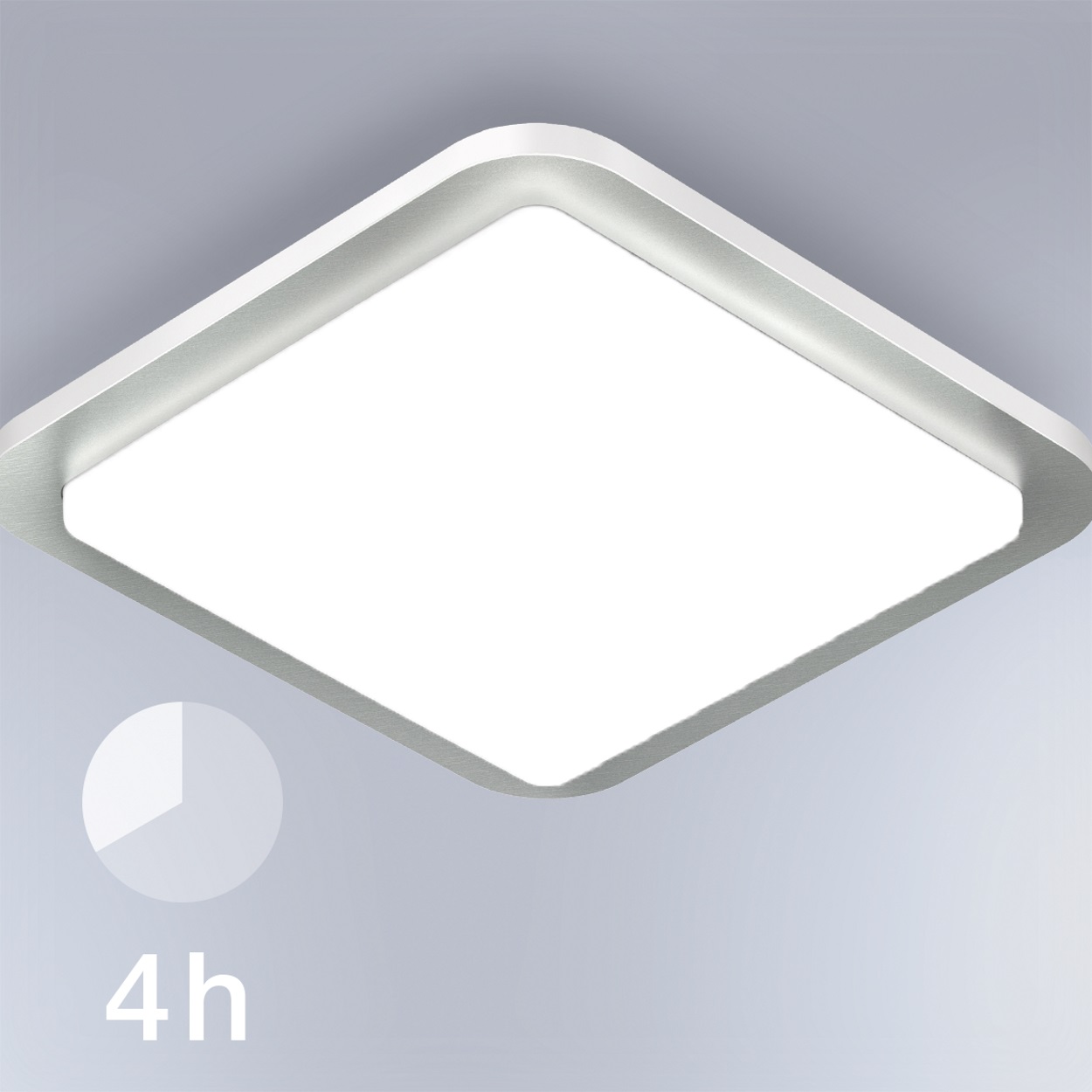

4-hour manual override (optional)

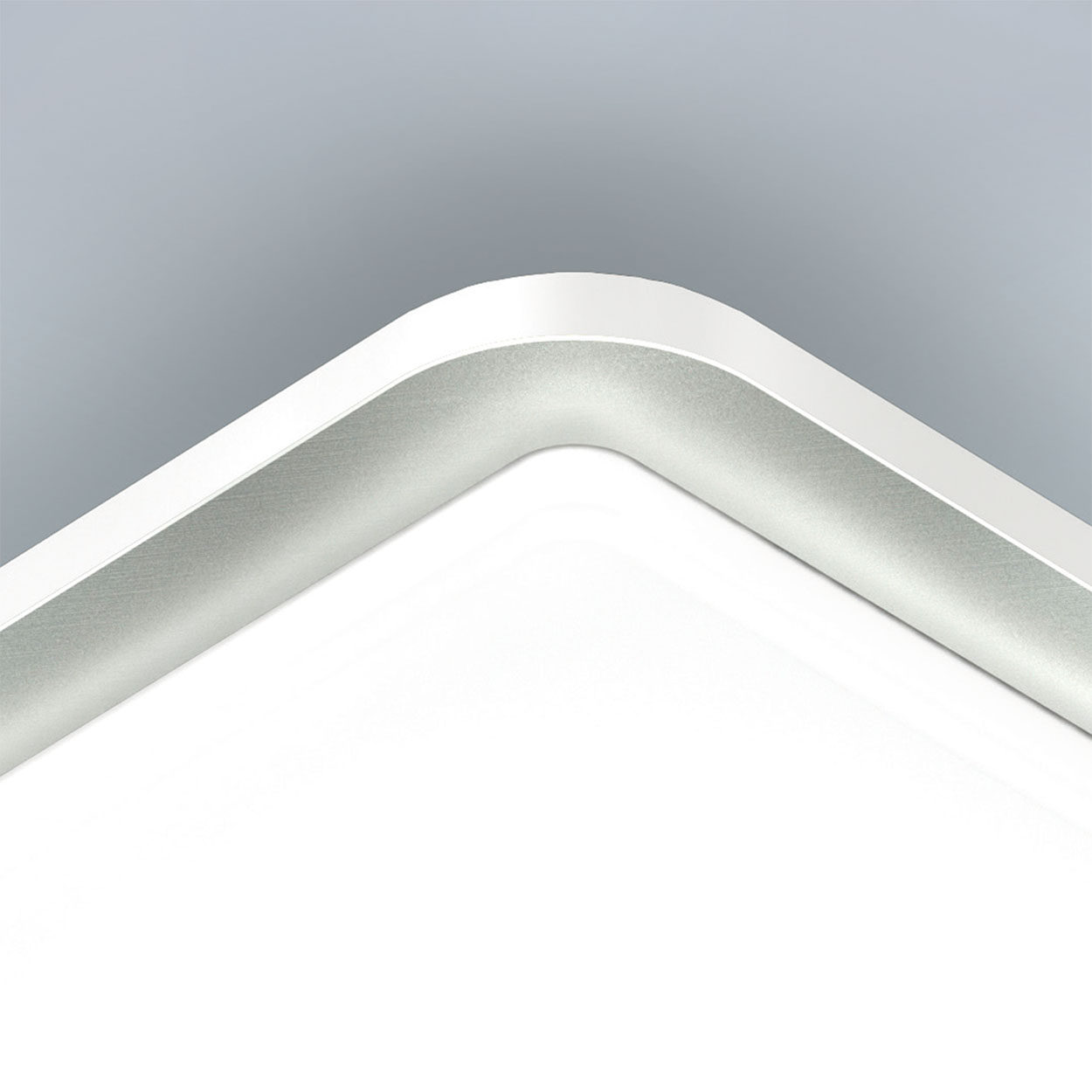

High-quality materials
Technical drawing

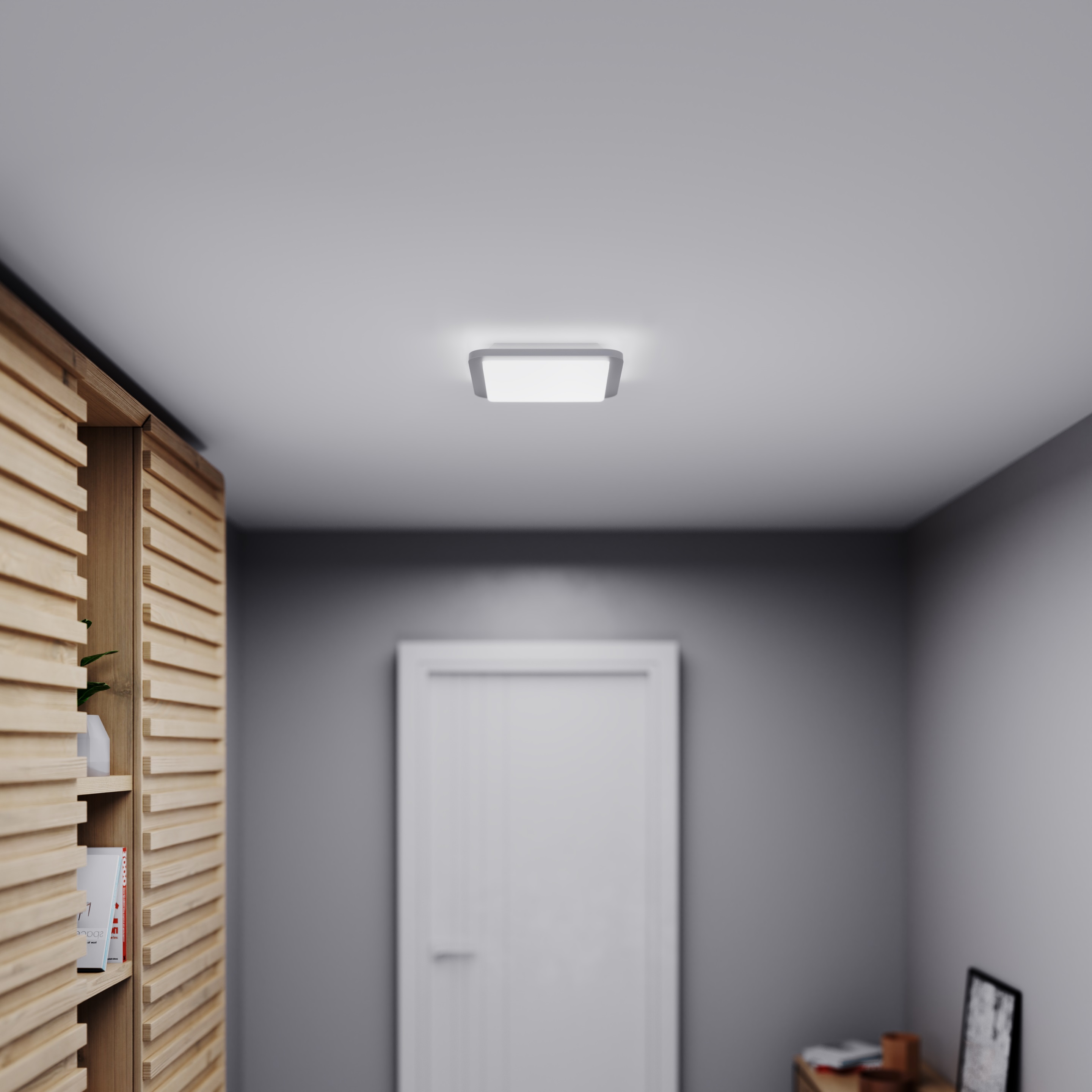

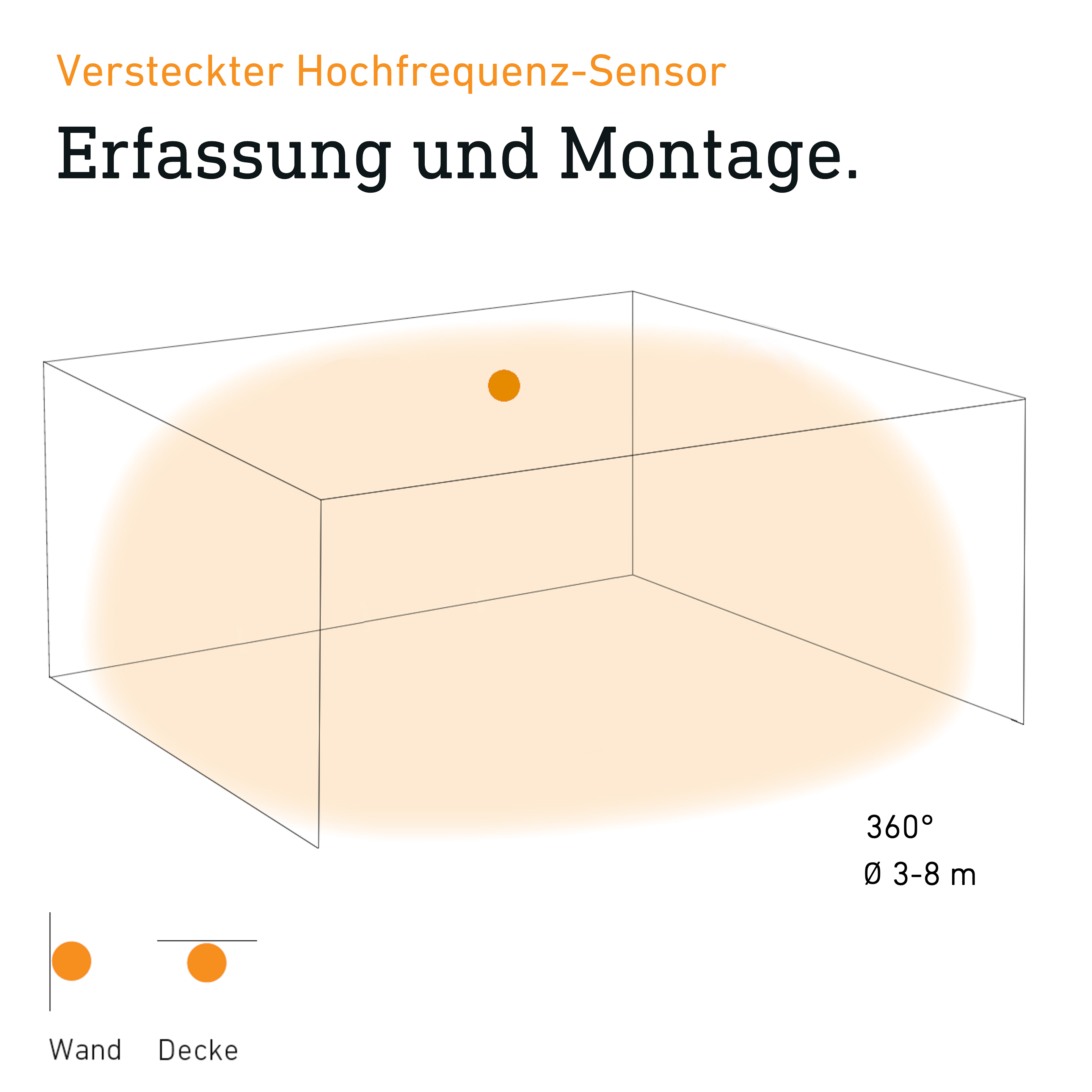

Sensor detection range
Wiring diagram 1
Circuit diagram
