Steinel RS M1 S Stainless steel

Steinel RS M1 S Stainless steel

ELDAS® no. 941 301 129 · EAN-No. 4007841 052492

Technical data Highlights Illustrations Wiring diagrams Downloads
Steinel

Steinel RS M1 S Stainless steel

ELDAS® no. 941 301 129

EAN-No. 4007841 052492

Price: Please log in to see prices

Ideal for indoor use on walls and ceilings: the combination of ambient lighting, good illumination and intelligent technology. The new LED indoor lights with integrated high-frequency sensors provide a light output of 759 lm and feature the latest lighting technology. With a consumption of just 8,8 W, the low energy costs will ensure that the master of the house is bright eyed. With optimum illumination and tasteful ambient lighting. With convenient night light function (10%) and 4-hour manual override.

  • Indoor light with motion detector in square design for elegant accents
  • With pleasant ambient light for a beautiful room atmosphere, suitable for ceiling and wall mounting

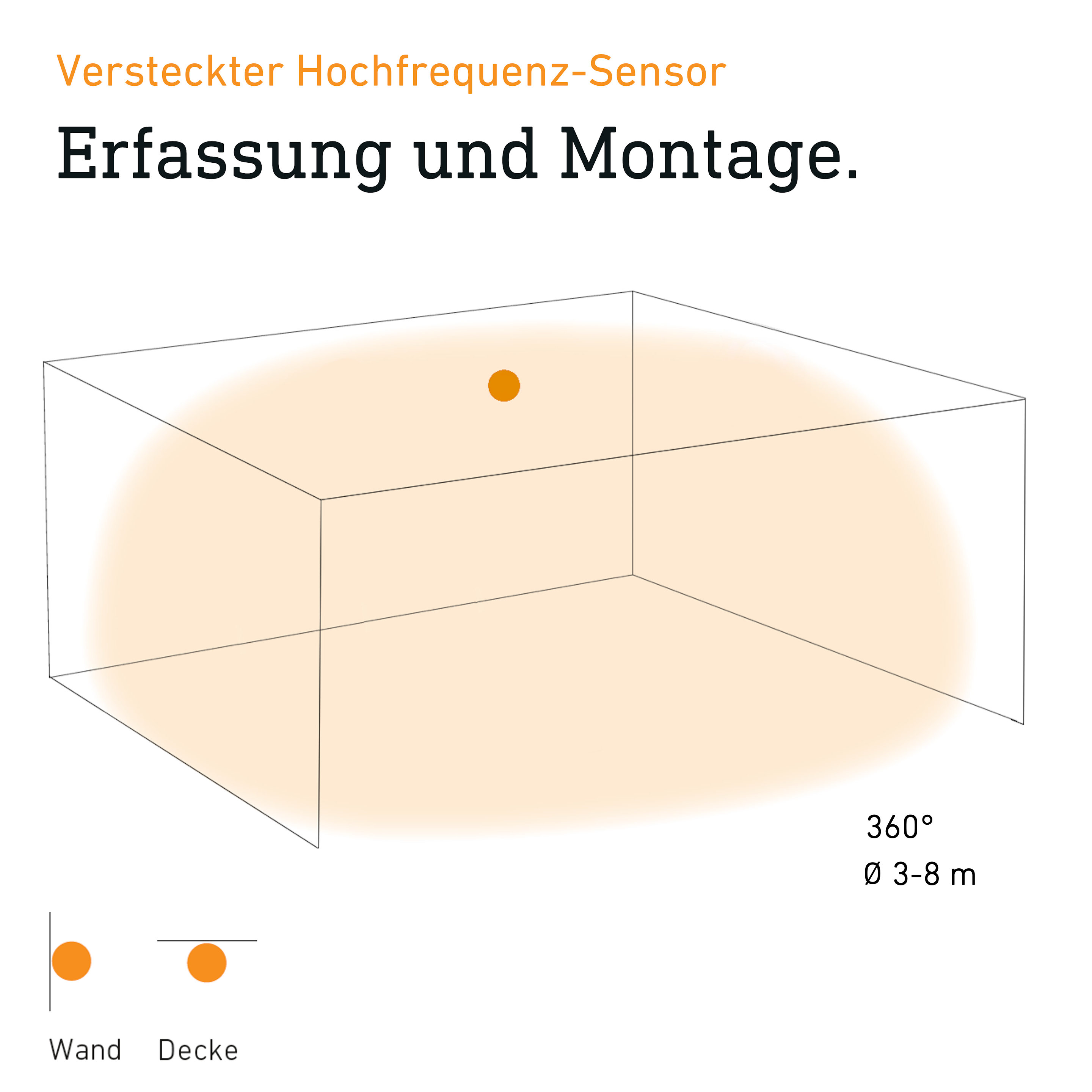

  • Automatic light thanks to hidden 360° high-frequency sensor with up to Ø8 m detection on movement
  • Functions: adjustable basic light, 4 hours continuous light
  • Warm white light (3000 K) and long-life 8,8 W LEDs with 759 lm
  • Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 53 x 200 x 200 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 8,8 W
Own consumption 0,39 W

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 8 m (50 m²)
Tangential range Ø 8 m (50 m²)
Mounting height 2 – 4 m
Optimal mounting height 2,8 m

Lighting technology

Measured luminous flux 360° 759 lm
Colour temperature 3000 K
LED colour deviation SDCM3
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No
Continuous light selectable, 4h

Lifetime

LED lifetime max. °C 60000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 15 Min.
Base light function Yes
Base light function time 10/30 min, all night
Settings via Potentiometers
With remote control No
Twilight setting teach No
Base light function in percent 10 %
Base light function percent from 10 %

Housing & material

Impact resistance IK03
Protection class (IP) IP20
Protection class II
Ambient temperature from -10 up to 30 °C
Housing material Plastic
Cover material Plastic, opal
Mounting location ceiling wall
Application location Indoors
Mounting type Surface wiring
Application room Indoors WC / washroom corridor / aisle function room / ancillary room outdoors stairwell
Colour white

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

Certificates DEKRA

Including STEINEL LED system

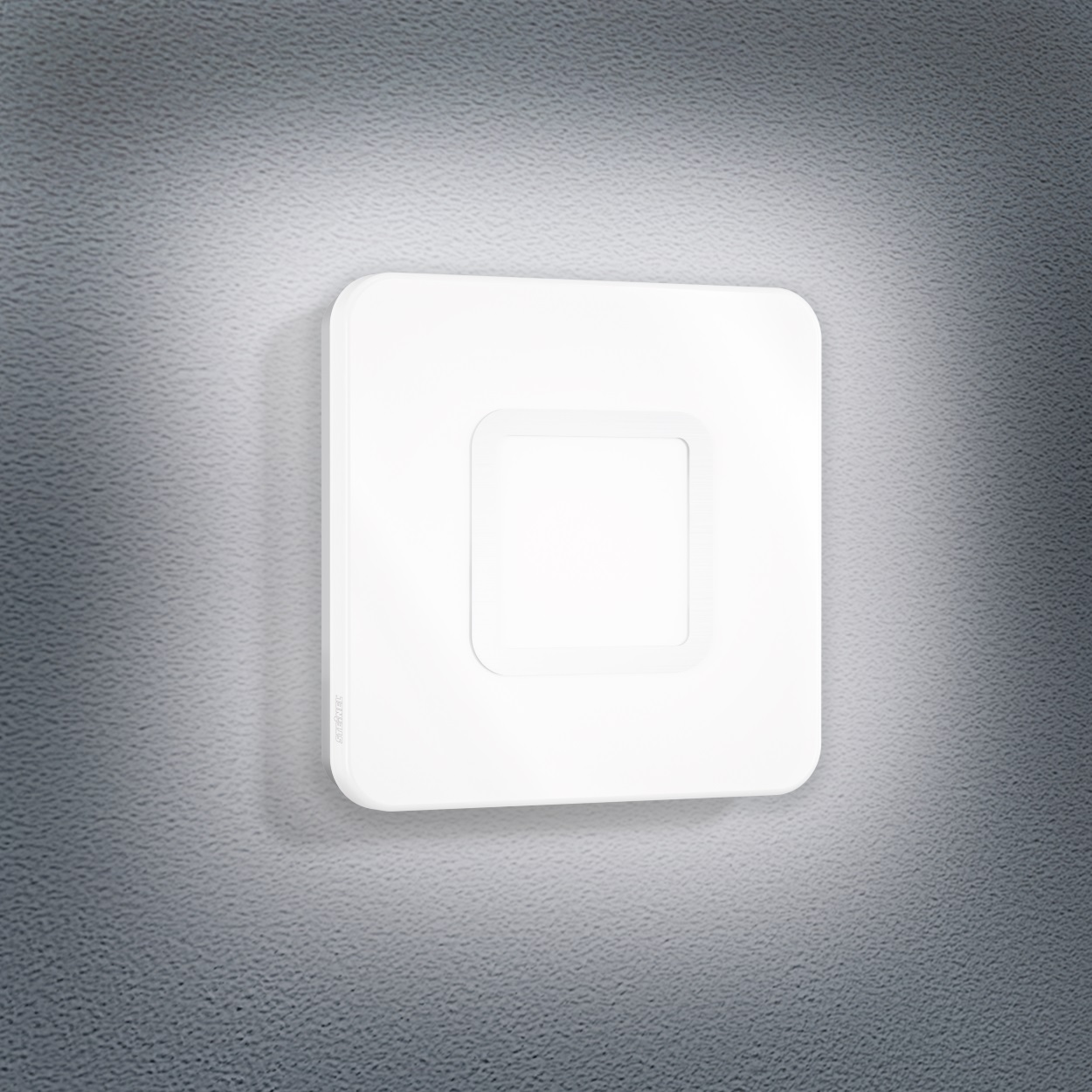

LED ambient light

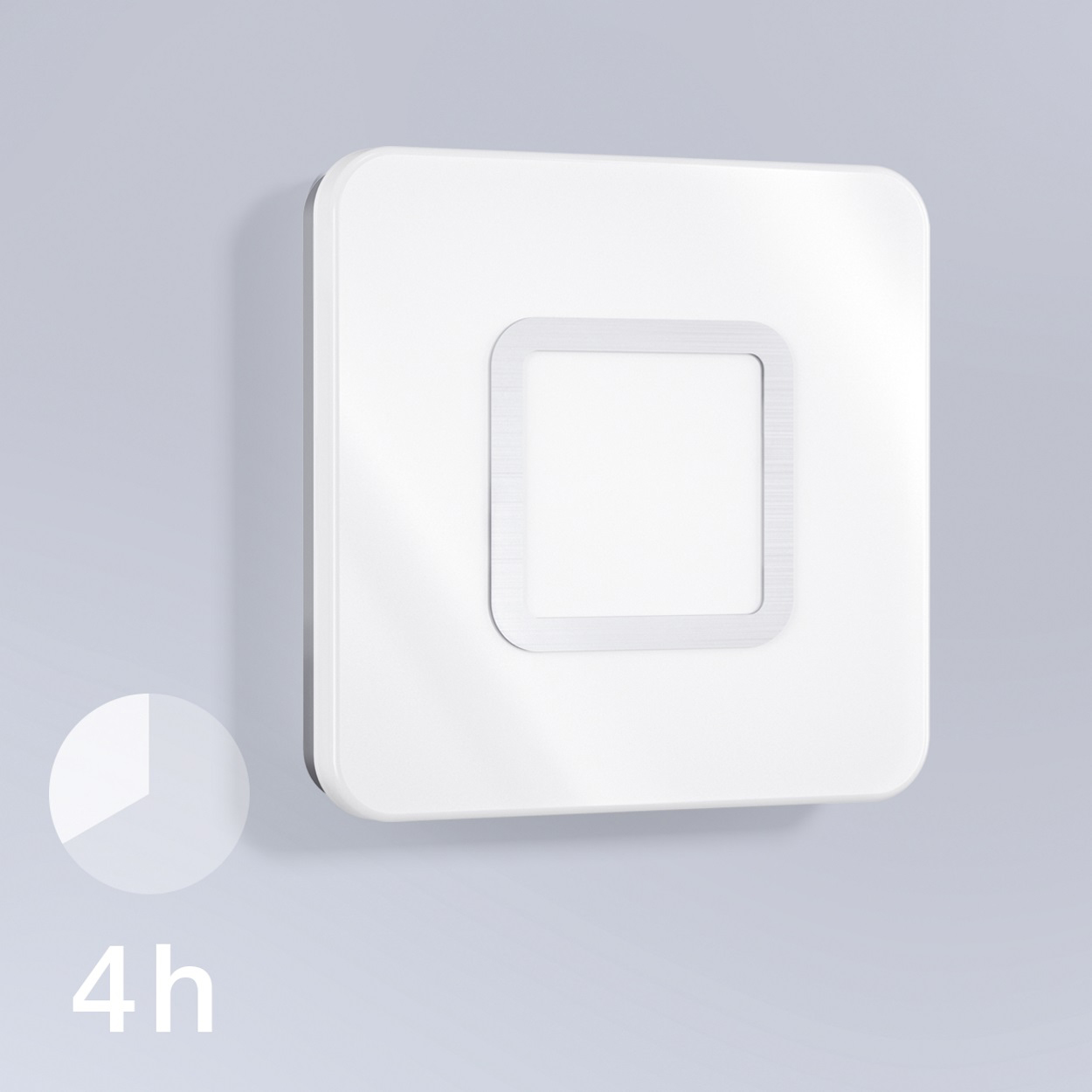

4-hour manual override (optional)

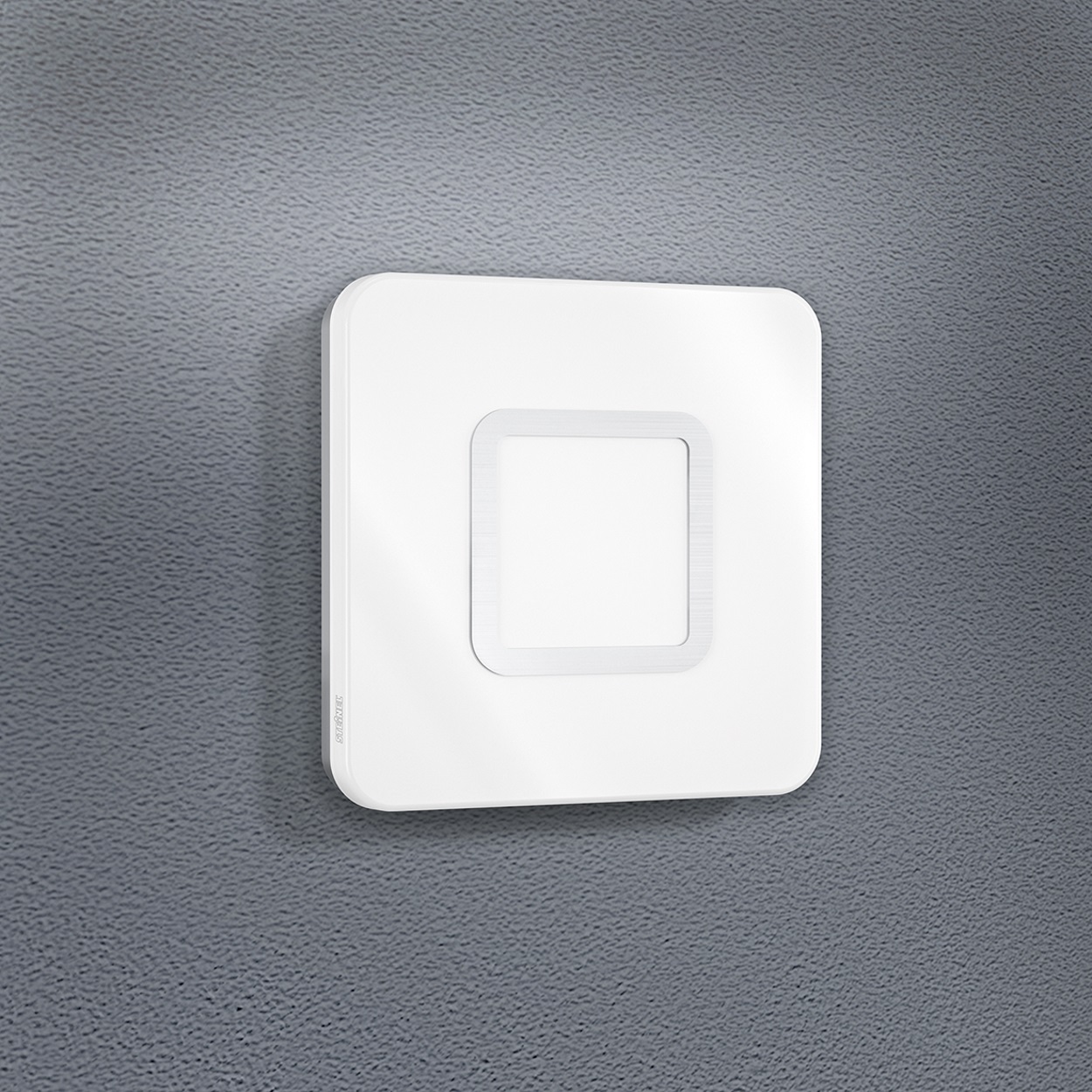

Optional basic lighting level 10 %

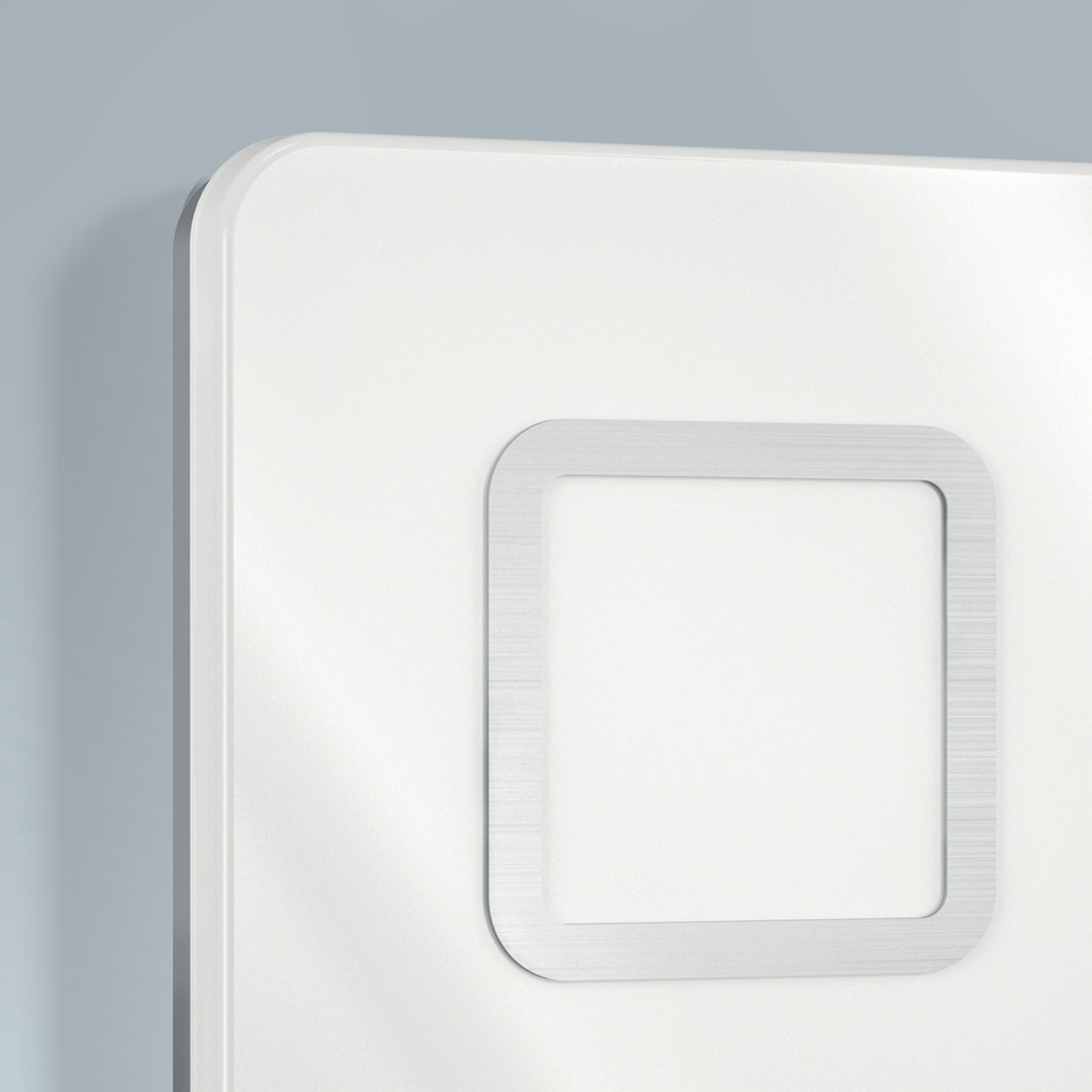

High-quality materials

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
