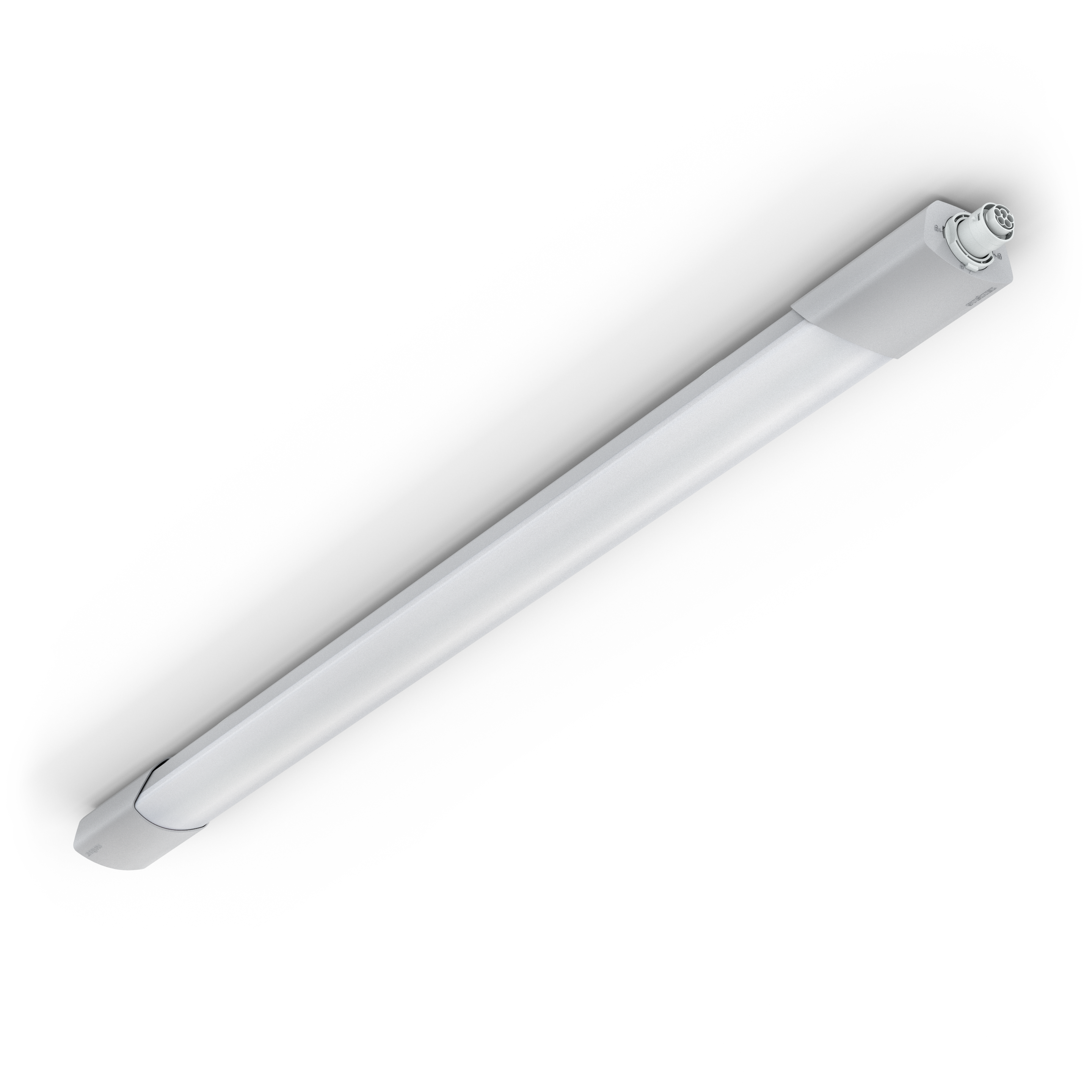

Steinel RS PRO 5100 SC 5C 5 Core (5-core through-wiring)

Steinel RS PRO 5100 SC 5C 5 Core (5-core through-wiring)

ELDAS® no. 941 337 979 · EAN-No. 4007841 079185

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel Bluetooth Mesh

Steinel RS PRO 5100 SC 5C 5 Core (5-core through-wiring)

ELDAS® no. 941 337 979

EAN-No. 4007841 079185

Price: Please log in to see prices

The most modern linear luminaire for tackling renovation backlogs. Change of guard in car parks, basements, halls, garages, corridors and all rooms that are still equipped with old batten luminaires. It's really quite simple: you use the existing wiring, mount the luminaires on existing drill holes, connect the new installation wirelessly and set all parameters via an app. The result: the latest lighting technology on an existing basis, state-of-the-art ease of use with many features and direct cost savings thanks to maximum energy efficiency.

Dimensions

Dimensions L × W × H 1370 x 87 x 58 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 31 W
Own consumption 0,41 W

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
With motion detector Yes
Detection angle 360 °
Opening angle 160 °
Electronic scalability Yes
Mounting height 4,00 m

Connectivity

Networking Yes
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 4250 lm
Colour temperature 4000 K
LED colour deviation SDCM3
Illuminant LED cannot be replaced
LED cooling system Passive Thermo Control

Lifetime

LED lifetime max. °C 60000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function time 1-60 min
Main light adjustable 0 - 100 %
Settings via Bluetooth
Base light function in percent 10 – 100 %
Base light function percent from 10 %

Housing & material

Impact resistance IK07
Protection class (IP) IP65
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material Plastic, structured
Mounting location ceiling wall
Colour grey

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA
EPREL category Surrounded product with integrated light source

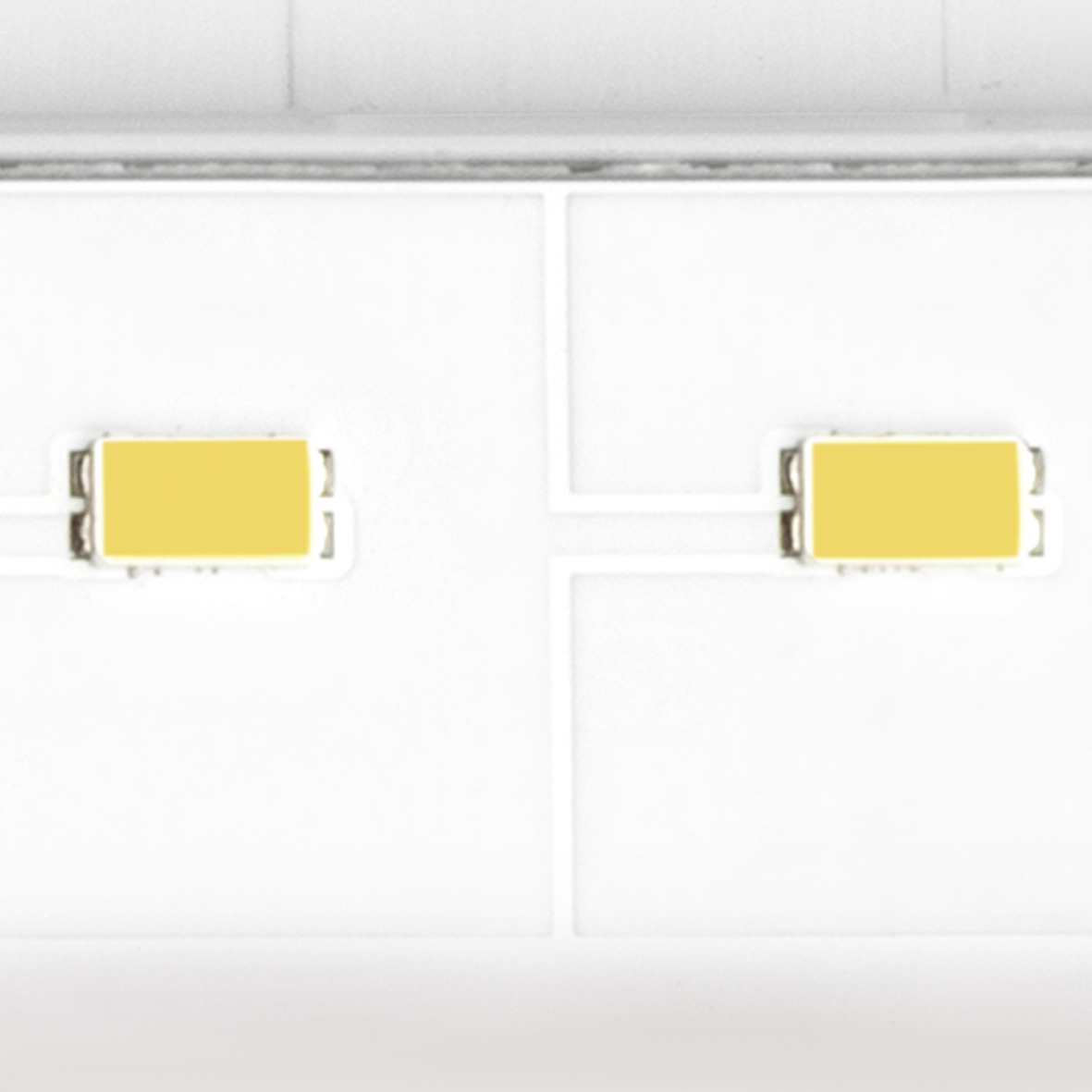

Including STEINEL LED system

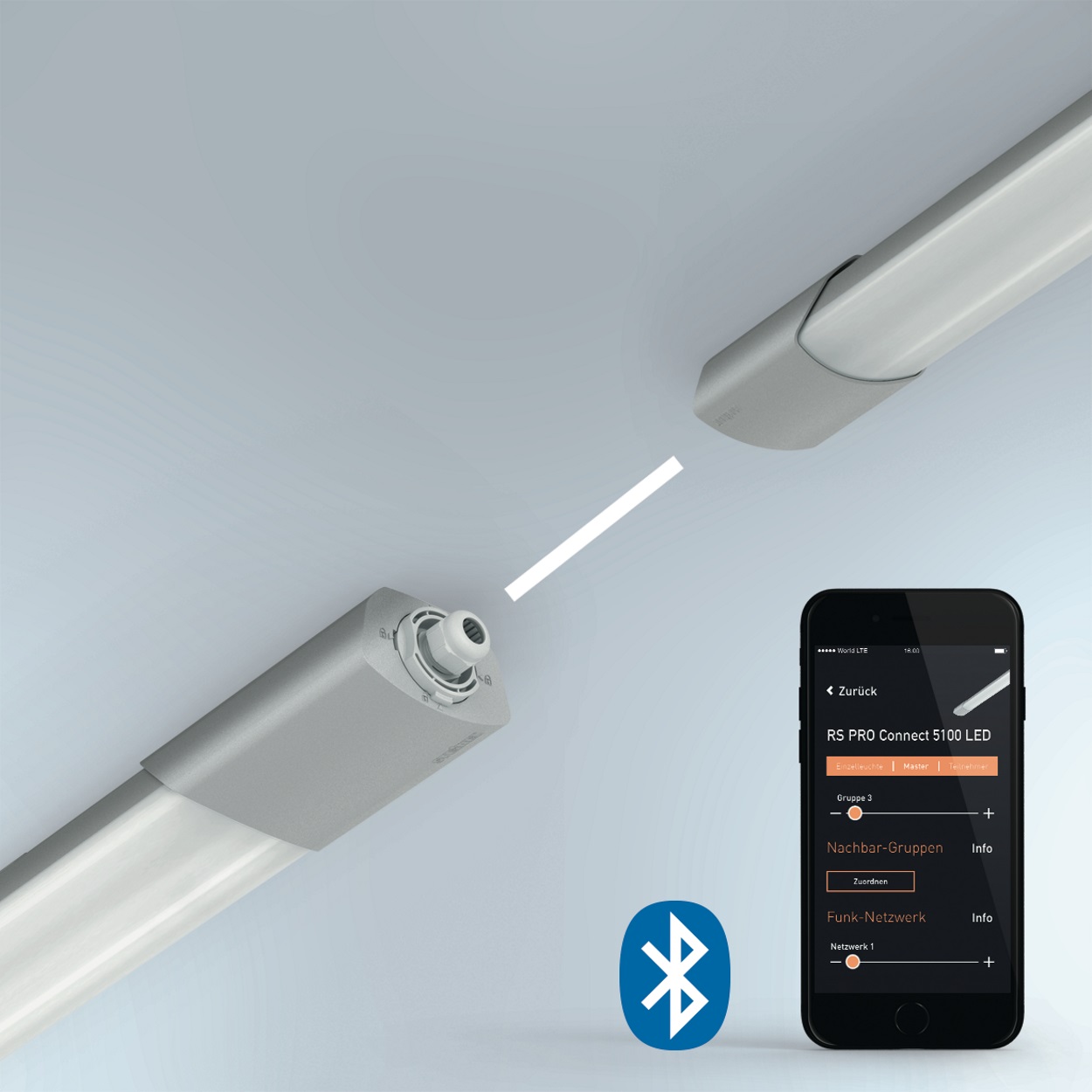

Interconnectable and adjustable via Bluetooth

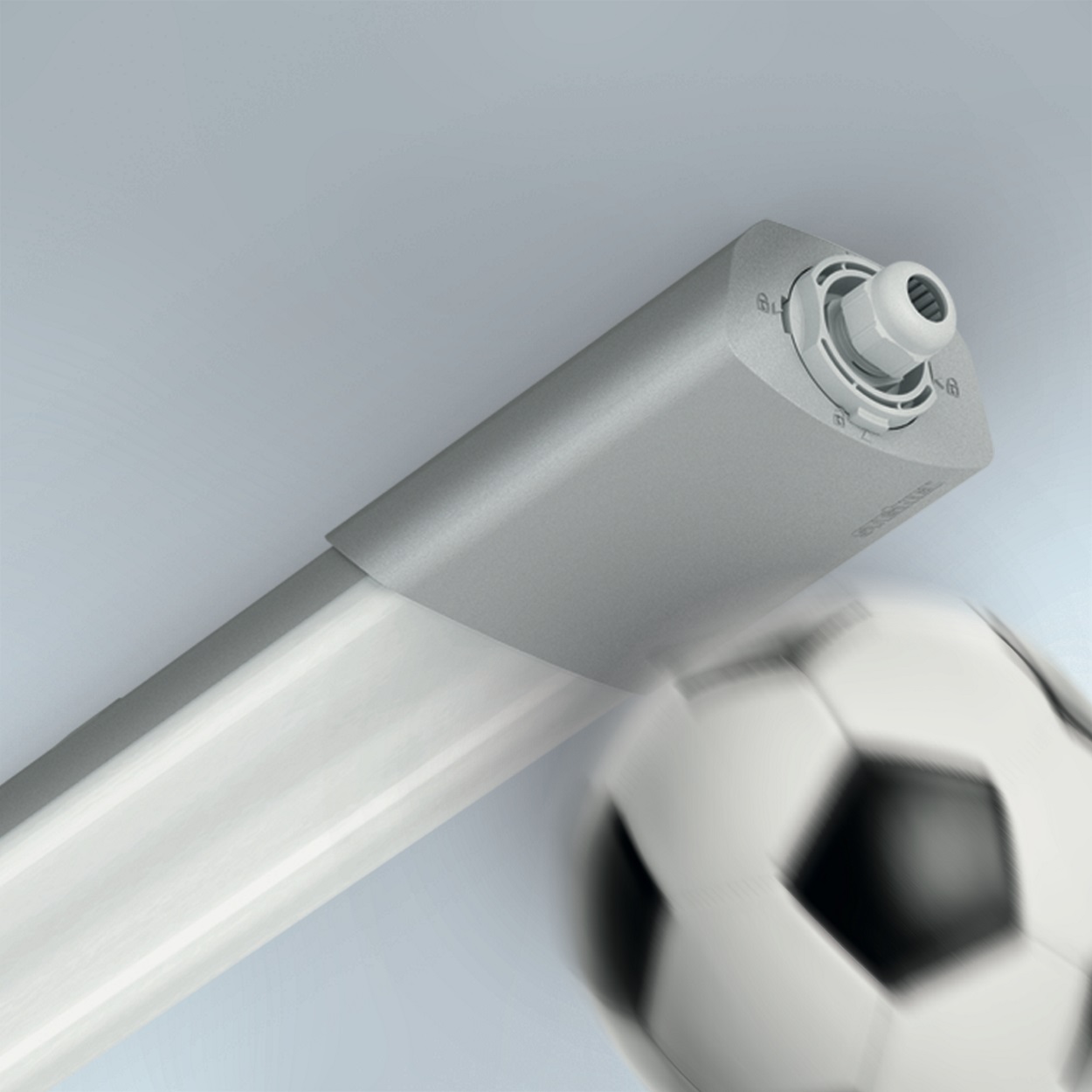

Impact-resistant material rated to IK07

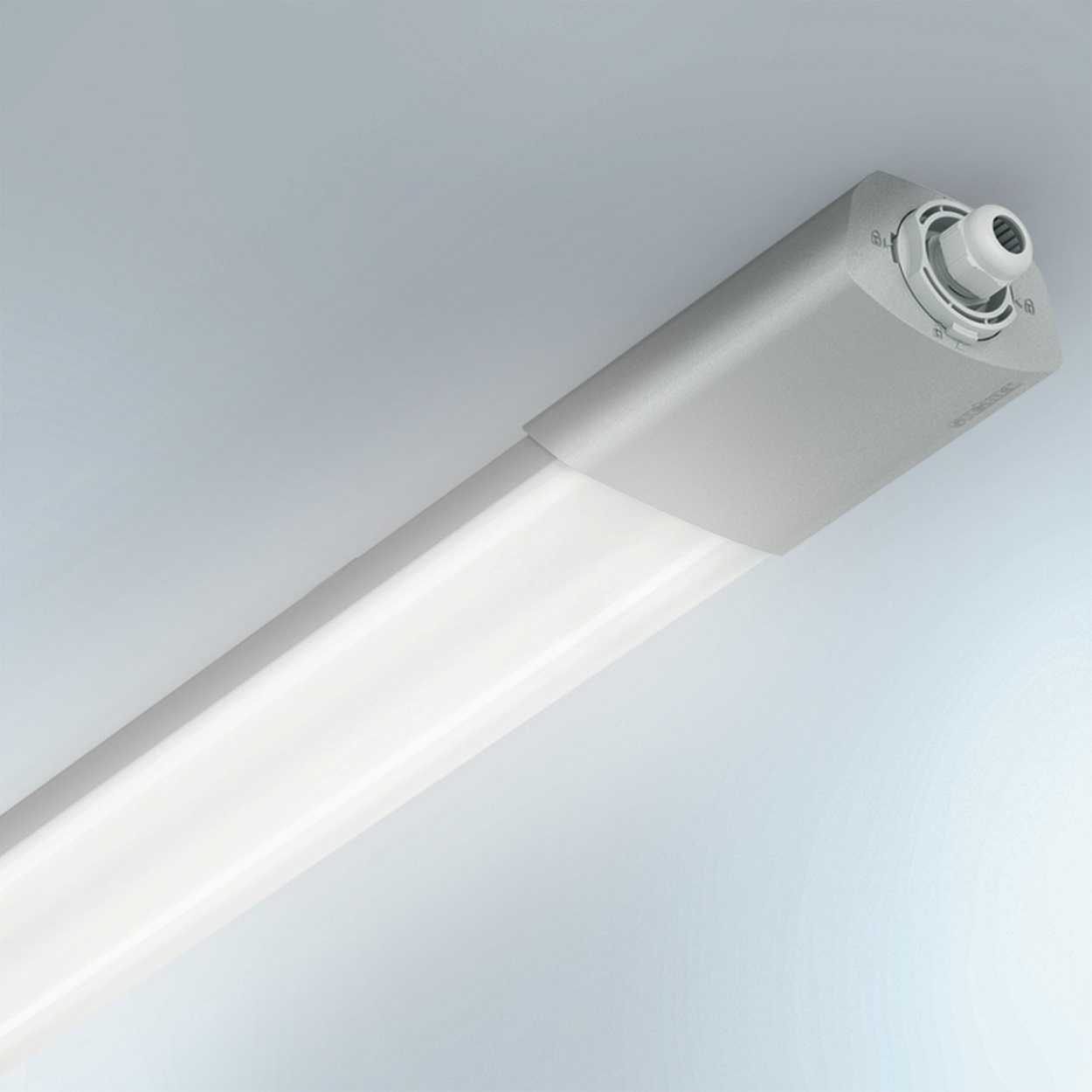

Optional basic lighting level 0 - 100 %

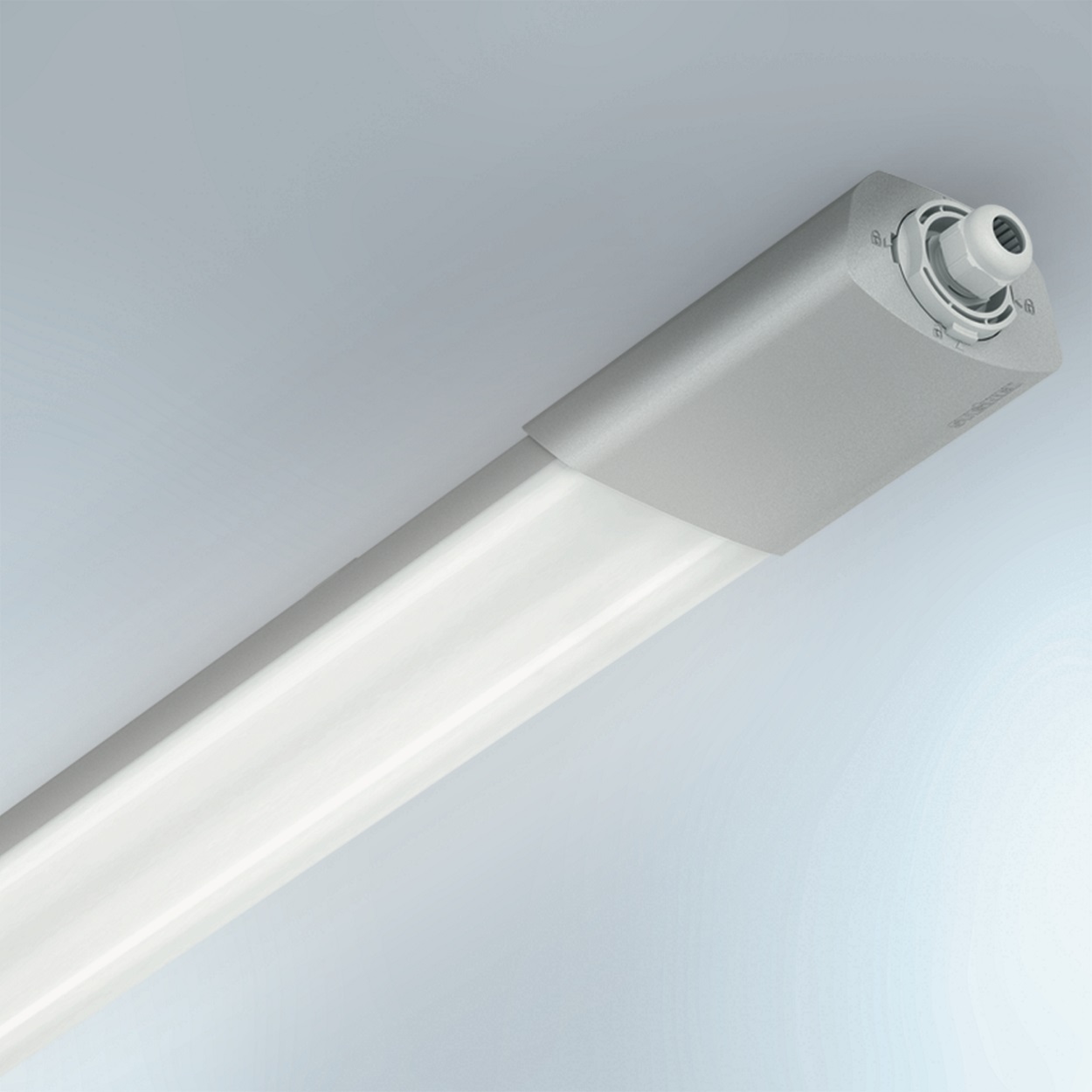

Adjustable main light brighness (0 - 100%)

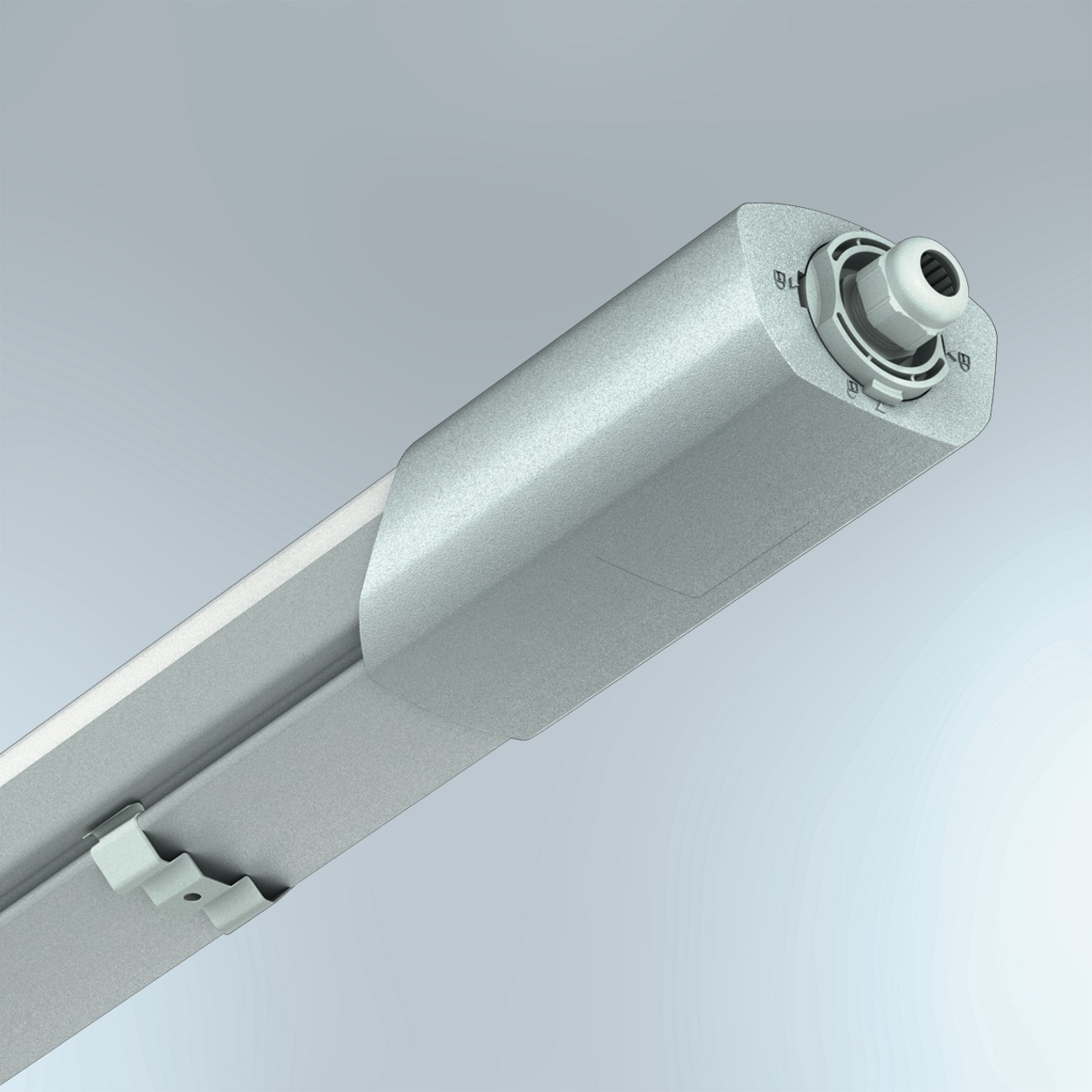

Adjustable mounts for easy installation

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave and master/master interconnection circuit diagram
