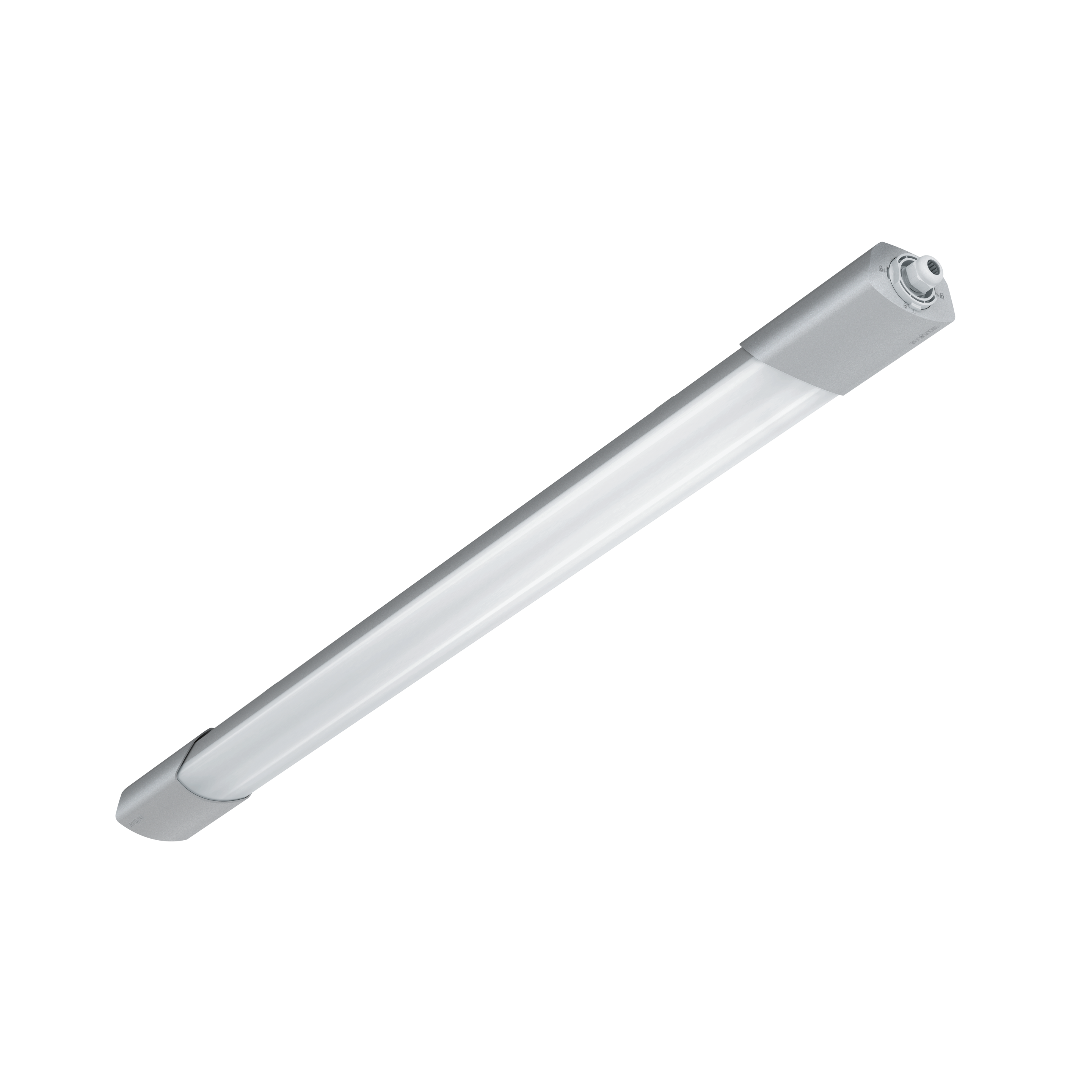

Steinel RS PRO 5100 SC EM Emergency light

EAN-No. 4007841 079161

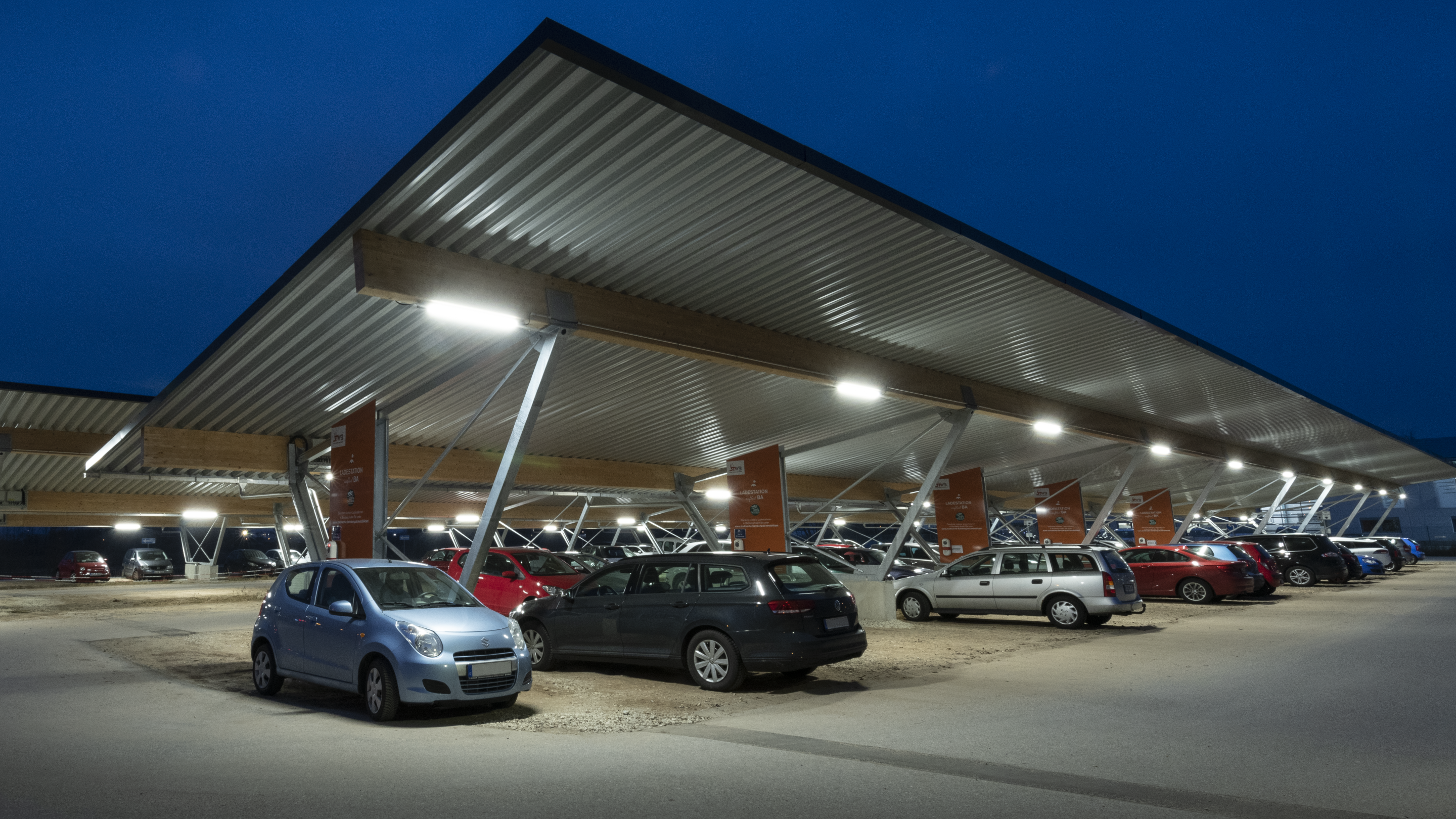

The most modern linear luminaire for tackling renovation backlogs. Change of guard in car parks, basements, halls, garages, corridors and all rooms that are still equipped with old batten luminaires. It's really quite simple: you use the existing wiring, mount the luminaires on existing drill holes, connect the new installation wirelessly and set all parameters via an app. The result: the latest lighting technology on an existing basis, state-of-the-art ease of use with many features and direct cost savings thanks to maximum energy efficiency.

Dimensions

Dimensions L × W × H 1370 x 87 x 58 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 31 W

Own consumption 0,41 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

With motion detector Yes

Detection angle 360 °

Opening angle 160 °

Electronic scalability Yes

Mounting height 4,00 m

Connectivity

Networking Yes

Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 4250 lm

Colour temperature 4000 K

LED colour deviation SDCM3

Illuminant LED cannot be replaced

LED cooling system Passive Thermo Control

Luminous flux emergency light 706 lm

Lifetime

LED lifetime max. °C 60000 h

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L80B10

Settings

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function Yes

Base light function time 1-60 min

Main light adjustable 0 - 100 %

Functions Emergency light in compliance with EN 60598-2-22 for 3h

Settings via Bluetooth

Base light function in percent 10 – 100 %

Base light function percent from 10 %

Housing & material

Impact resistance IK07

Protection class (IP) IP65

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Plastic

Cover material Plastic, structured

Mounting location ceiling wall

Colour grey

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA

EPREL category Surrounded product with integrated light source

Including STEINEL LED system

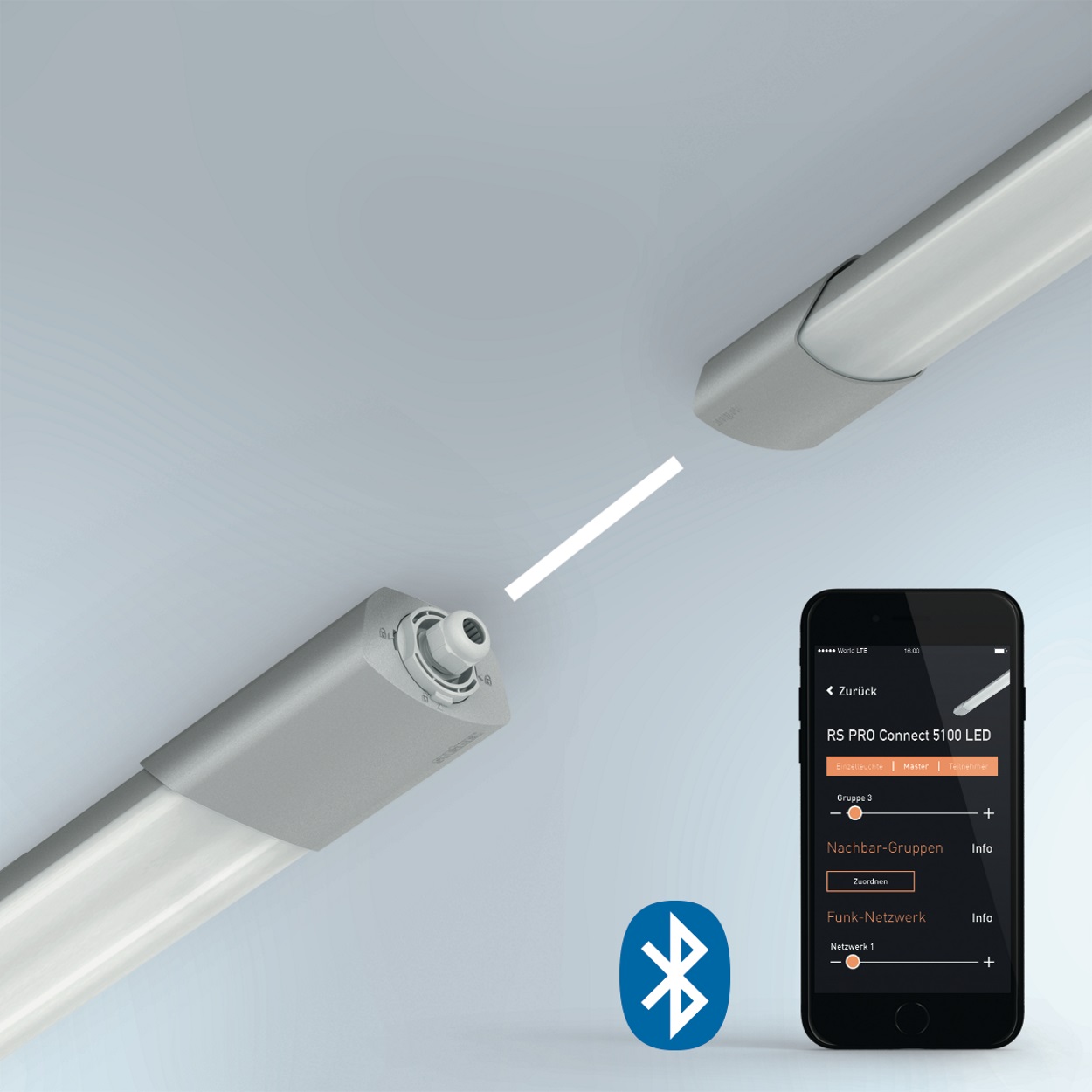

Interconnectable and adjustable via Bluetooth

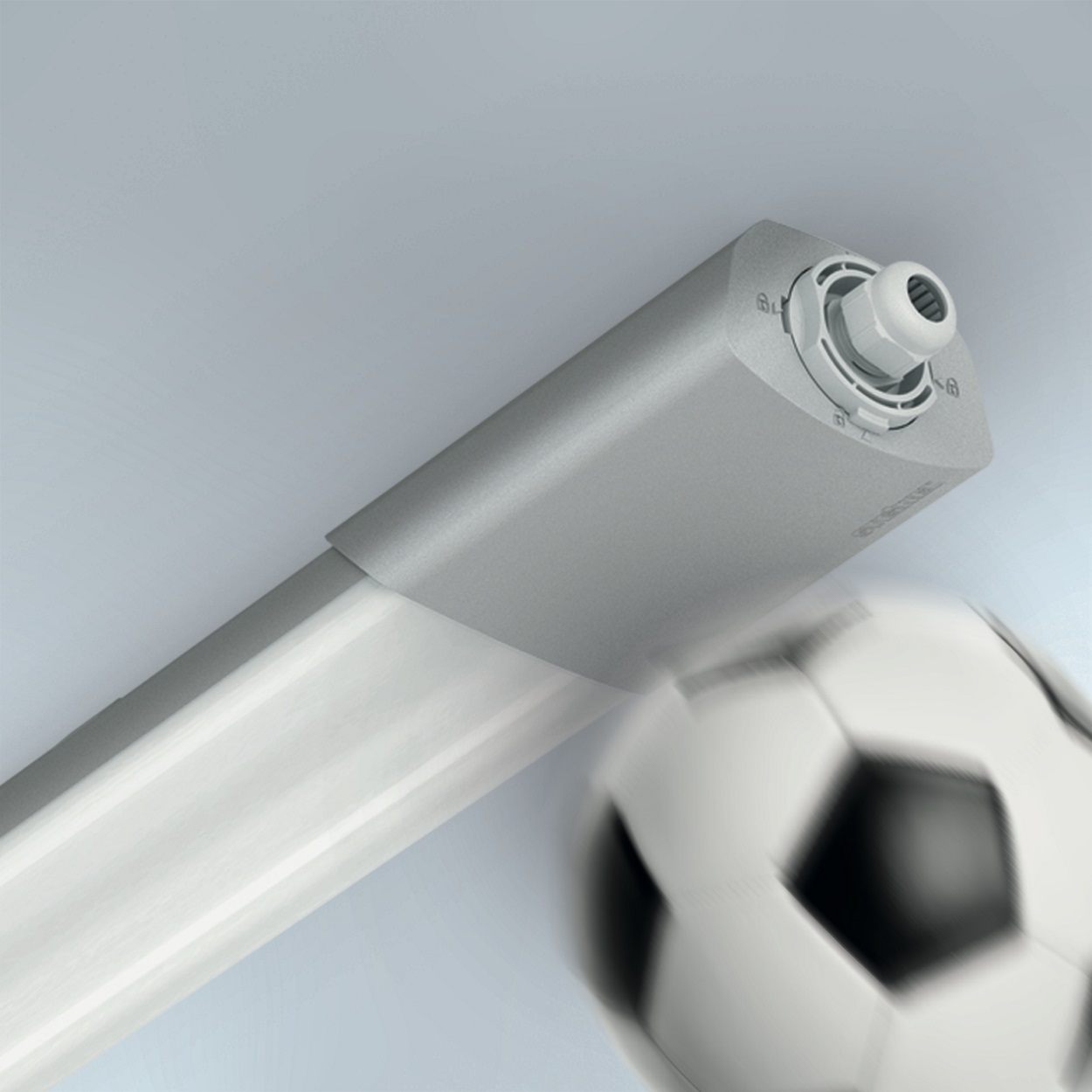

Impact-resistant material rated to IK07

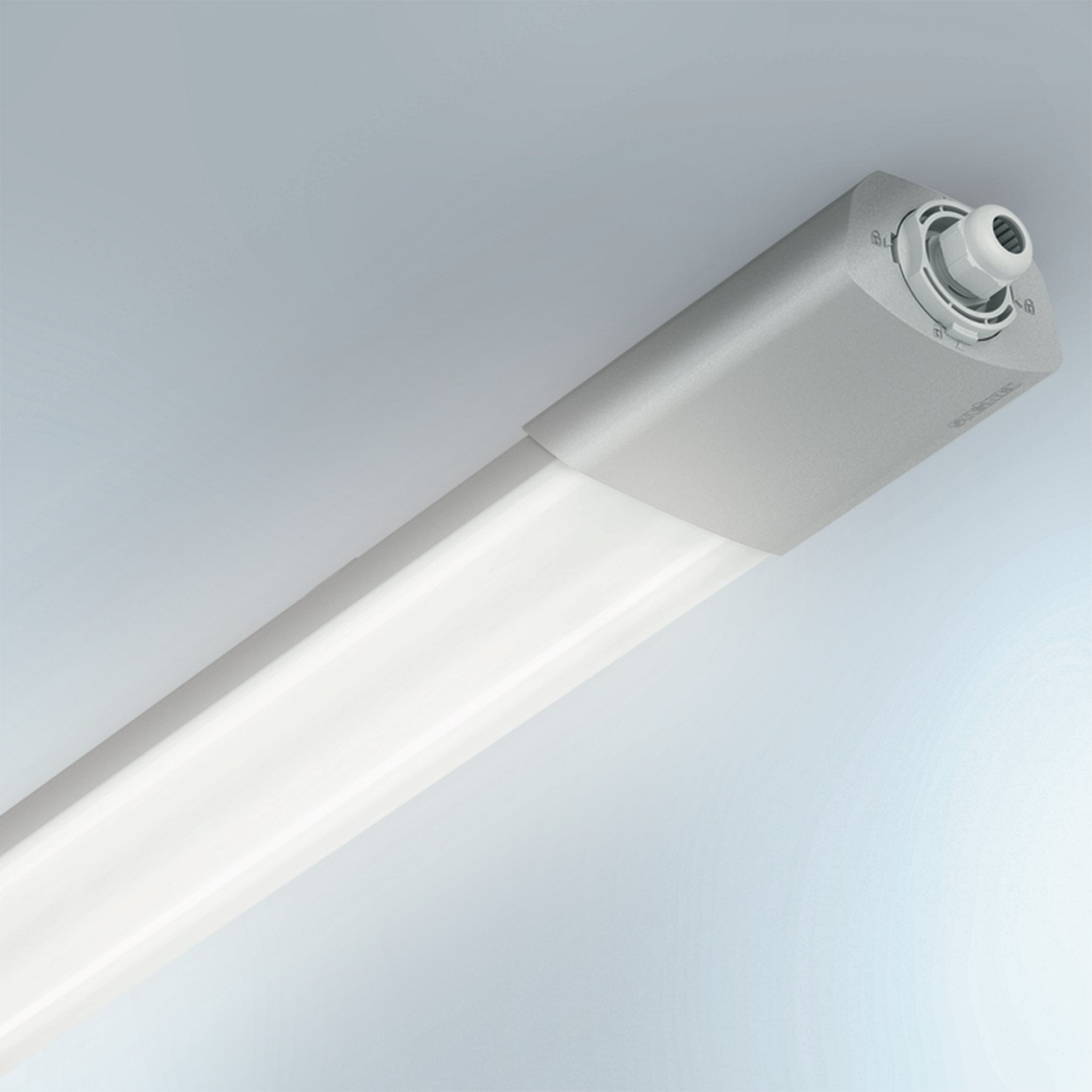

Optional basic lighting level 0 - 100 %

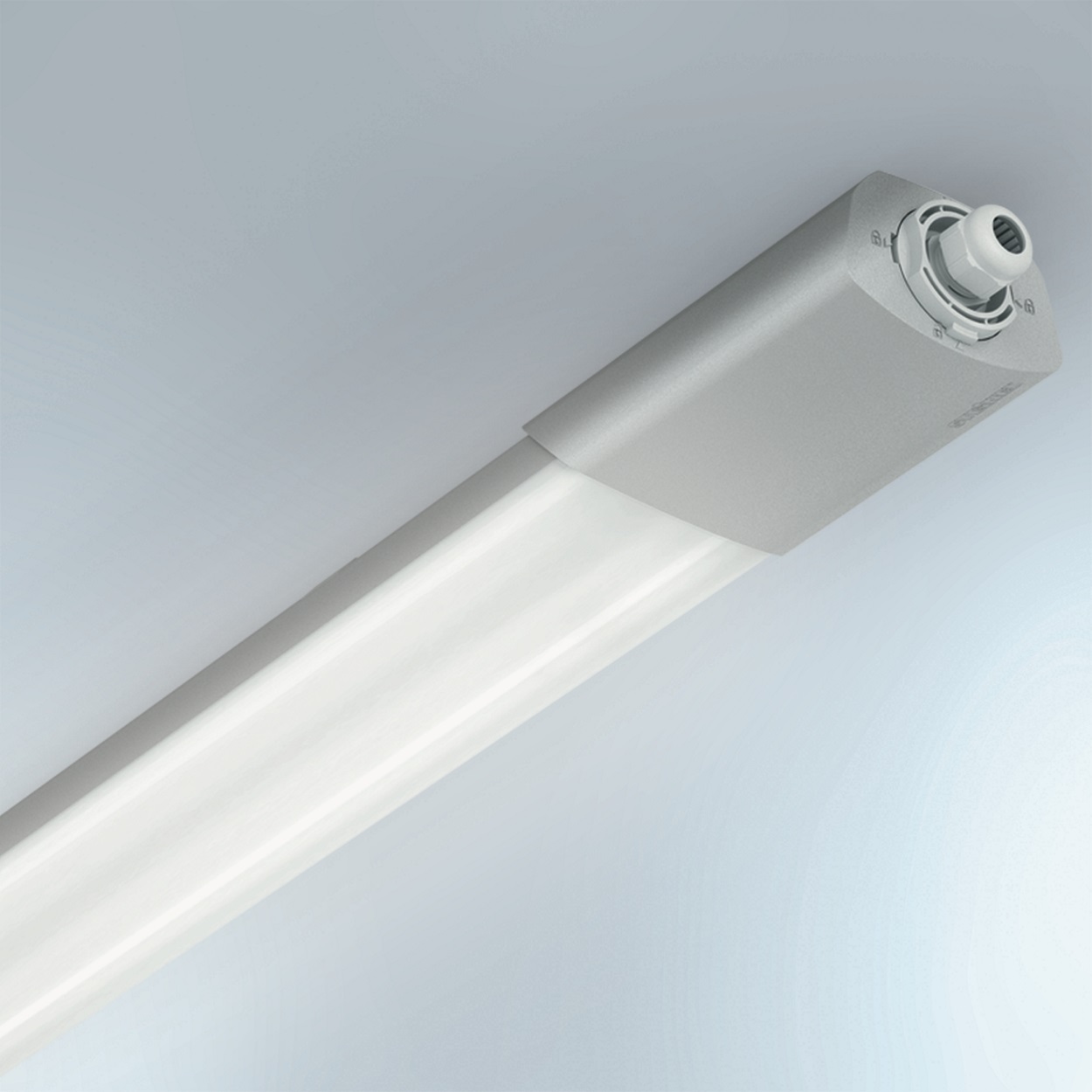

Adjustable main light brighness (0 - 100%)

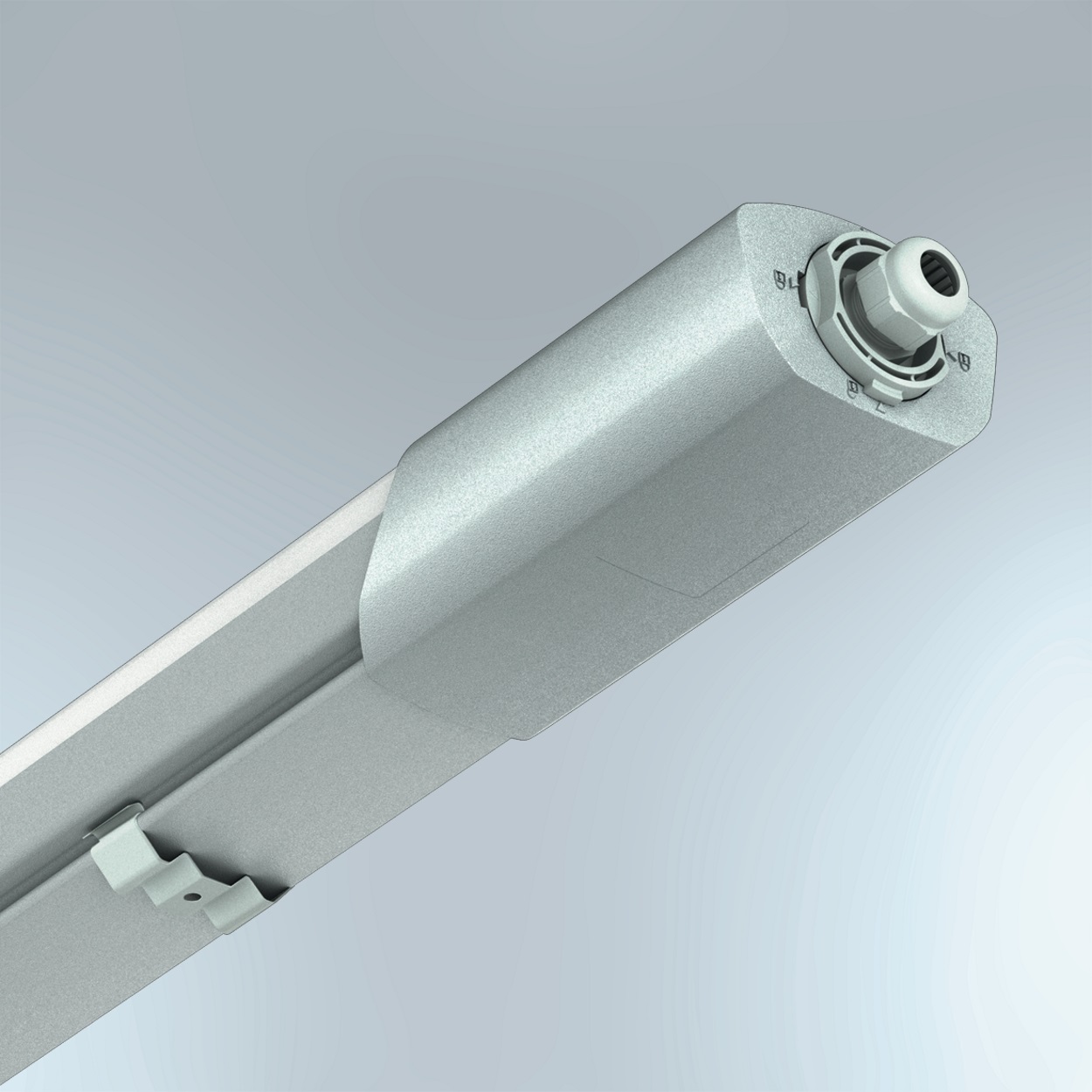

Adjustable mounts for easy installation

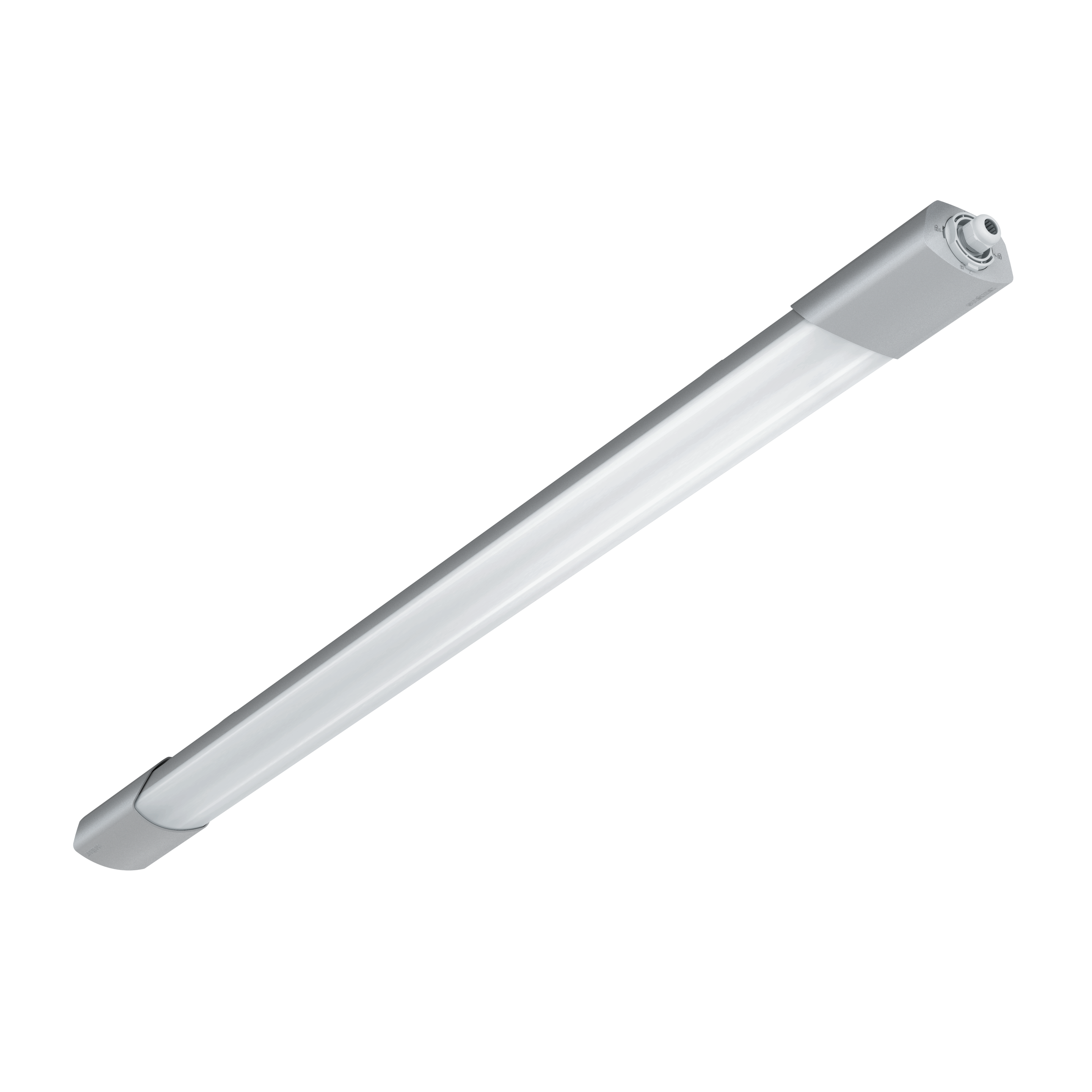

Emergency light module in compliance with EN 60598-2-22

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave and master/master interconnection circuit diagram
