Steinel RS PRO 5100 SC V2 with motion detector - 4000K

Steinel RS PRO 5100 SC V2 with motion detector - 4000K

ELDAS® no. 941 386 019 · EAN-No. 4007841 091453

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel Bluetooth Mesh

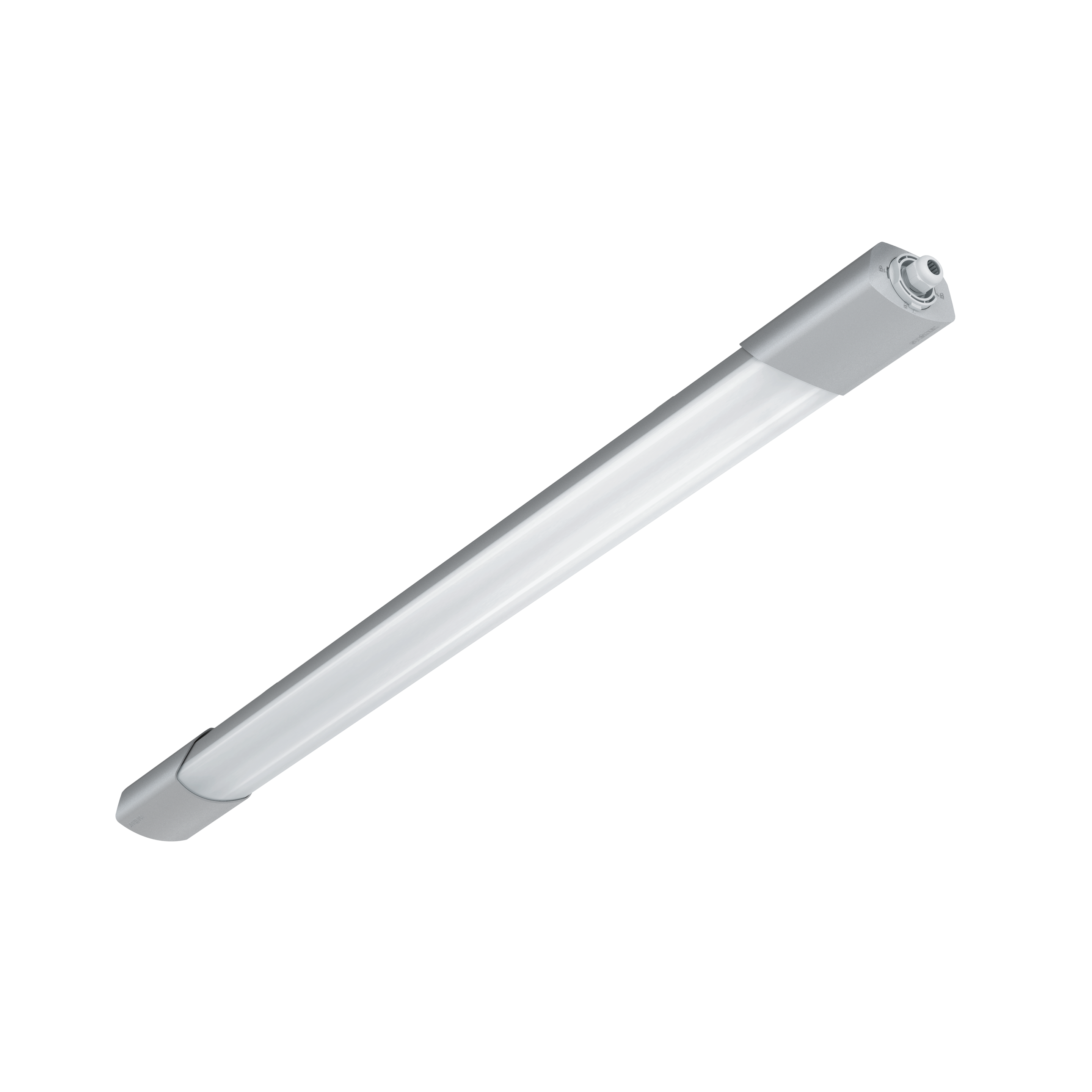

Steinel RS PRO 5100 SC V2 with motion detector - 4000K

ELDAS® no. 941 386 019

EAN-No. 4007841 091453

Coming soon

This product has been announced and is not yet available.

Price: Please log in to see prices

The most modern linear luminaire for tackling renovation backlogs. Change of guard in car parks, basements, halls, garages, corridors and all rooms that are still equipped with old batten luminaires. It's really quite simple: you use the existing wiring, mount the luminaires on existing drill holes, connect the new installation wirelessly and set all parameters via an app. The result: the latest lighting technology on an existing basis, state-of-the-art ease of use with many features and direct cost savings thanks to maximum energy efficiency.

  • Linear luminaire, 1370 mm, with integrated digital high-frequency sensor
  • Ideal for renovating car parks, halls or garages
  • Easy conversion thanks to movable bracket
  • 360° motion detection with ø8 m range, 3-wire wired
  • Precise adjustment of range and sensitivity
  • Dimmable basic and main light from 10-100%
  • Easy adjustment and networking via the free Steinel Connect app
  • Suitable for connection to a central battery

Dimensions

Dimensions L × W × H 1370 x 87 x 58 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 31 W
Own consumption 0,45 W

Sensor technology

Max. mounting height 3,50 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 24 GHz
With motion detector Yes
Detection angle 360 °
Opening angle 160 °
Electronic scalability Yes
Radial range Ø 8 m (50 m²)
Tangential range Ø 8 m (50 m²)
Mounting height 3,50 m

Connectivity

Networking Yes
Networking via Bluetooth Mesh
Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 4200 lm
Colour temperature 4000 K
LED colour deviation SDCM3
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
LED cooling system Passive Thermo Control

Lifetime

LED lifetime max. °C 60000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function time 1-60 min
Main light adjustable 10 - 100 %
Settings via Bluetooth
Base light function in percent 10 – 100 %
Base light function percent from 10 %

Housing & material

Impact resistance IK07
Protection class (IP) IP65
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material Plastic, structured
Mounting location ceiling wall
Colour grey

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA

Including STEINEL LED system

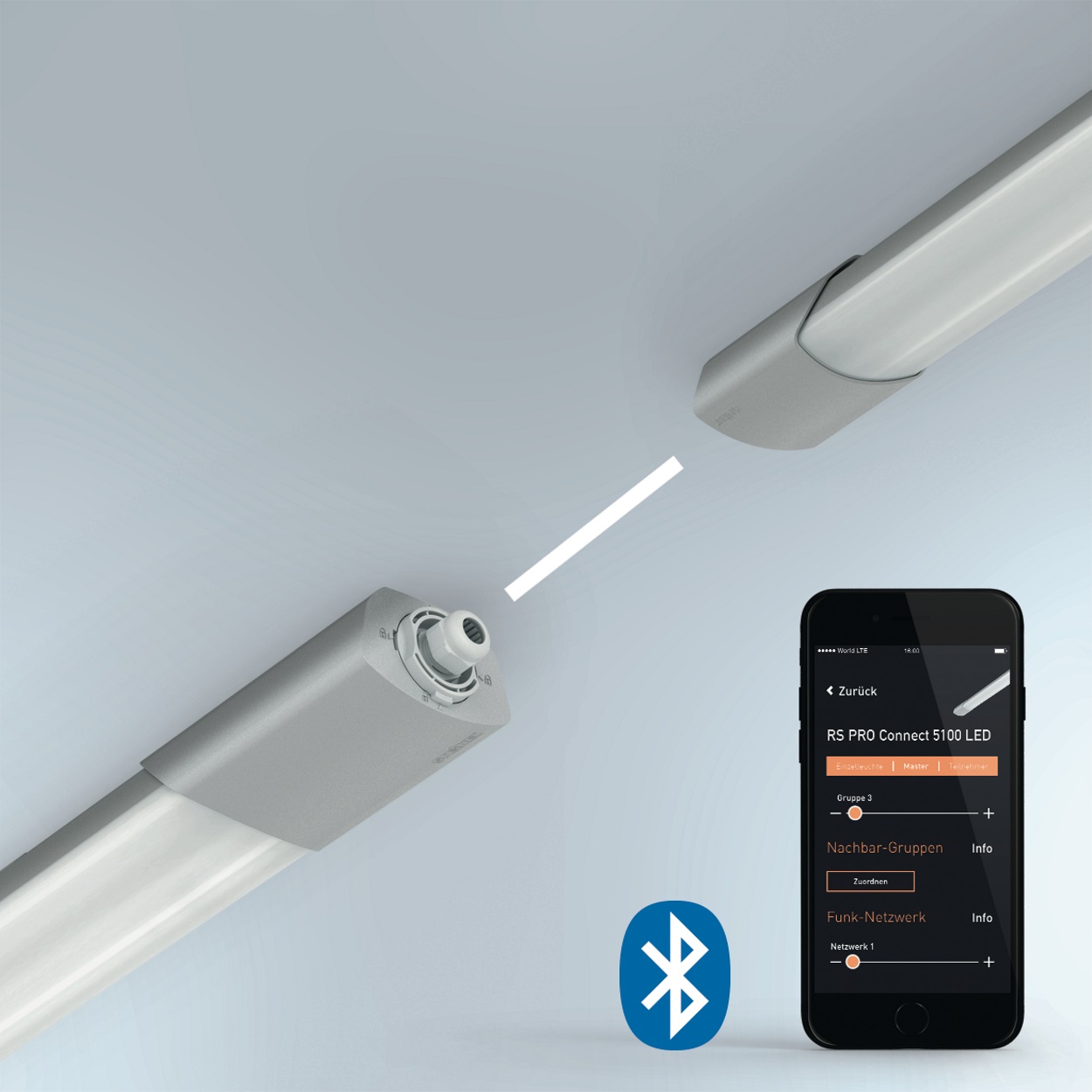

Interconnectable and adjustable via Bluetooth

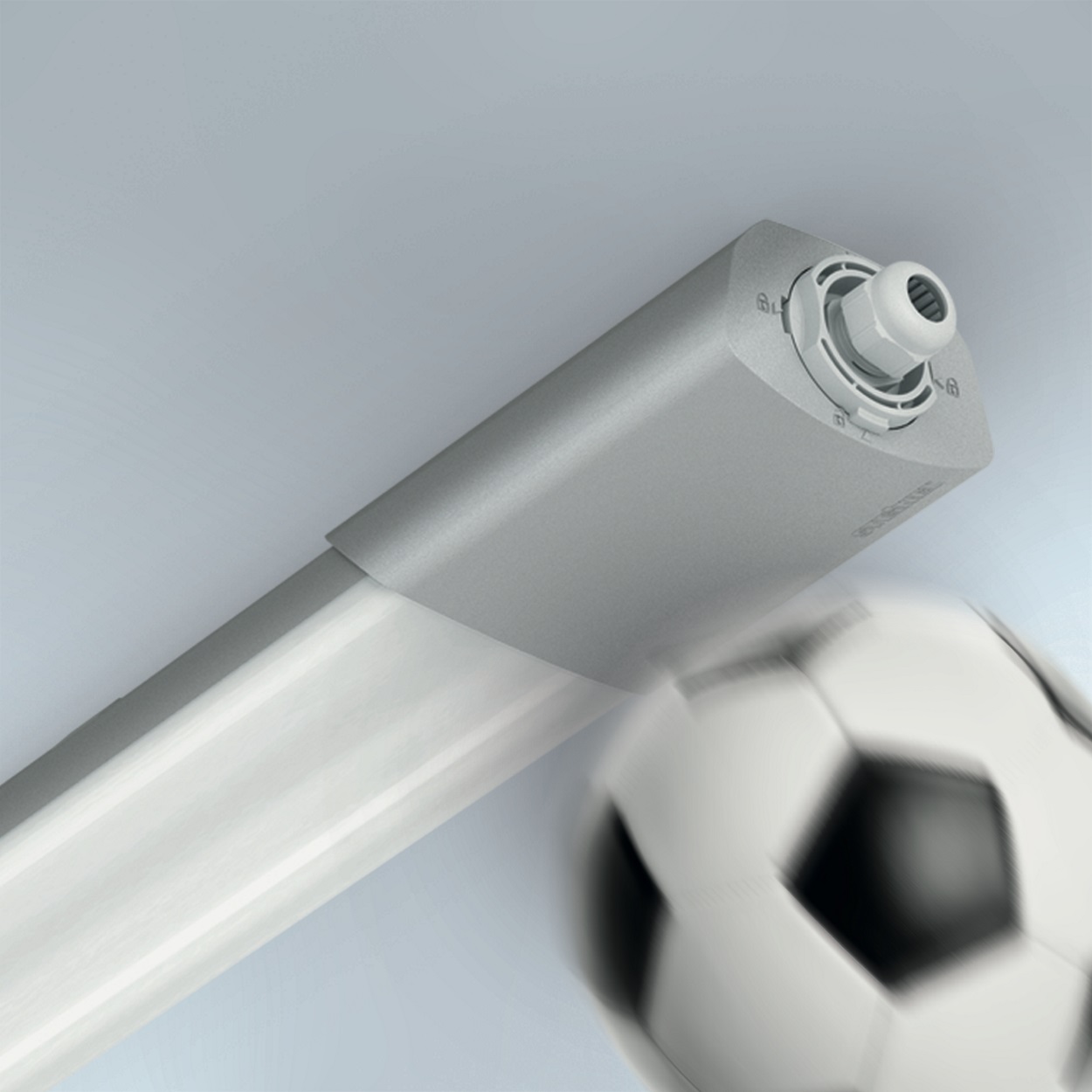

Impact-resistant material rated to IK07

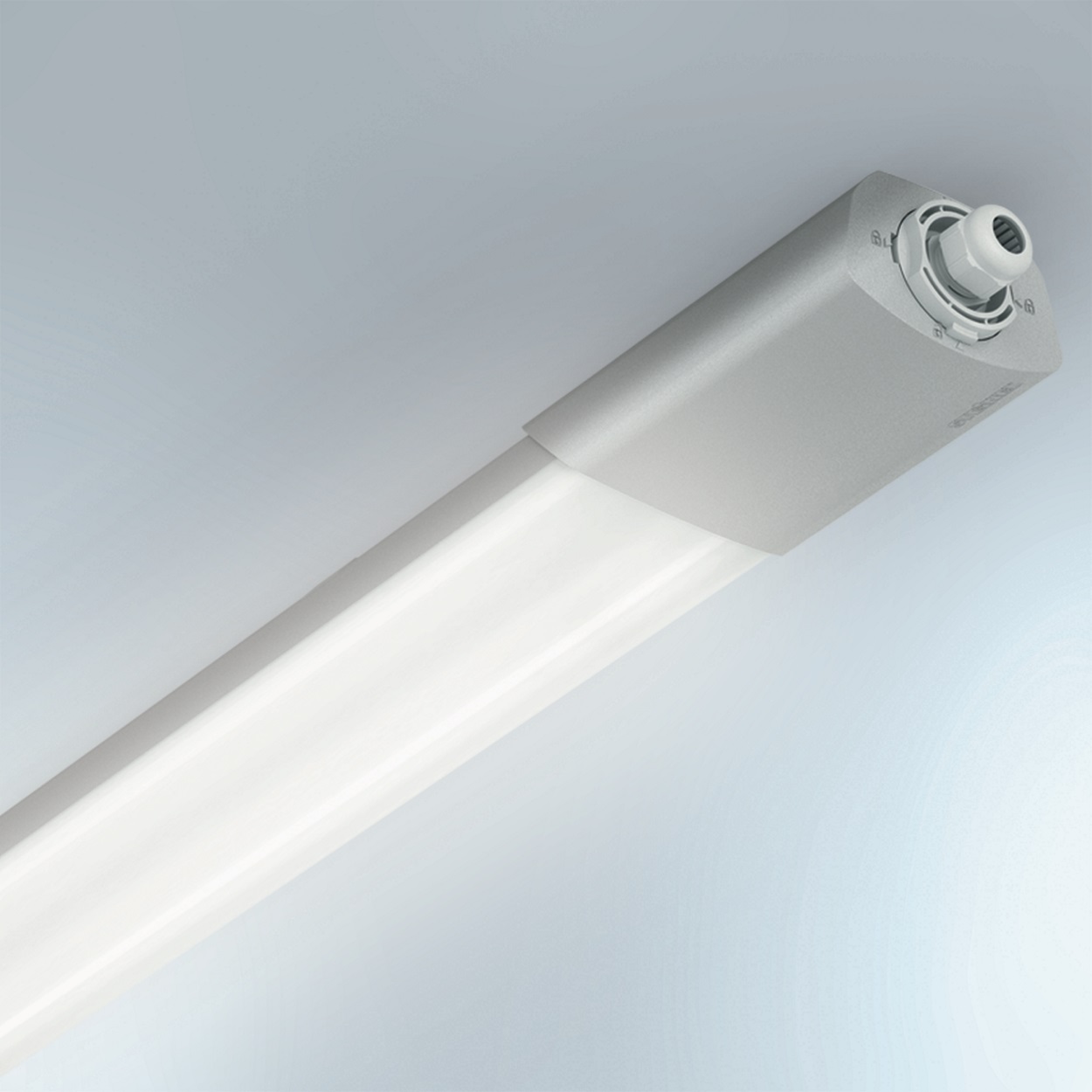

Optional basic lighting level 0 - 100 %

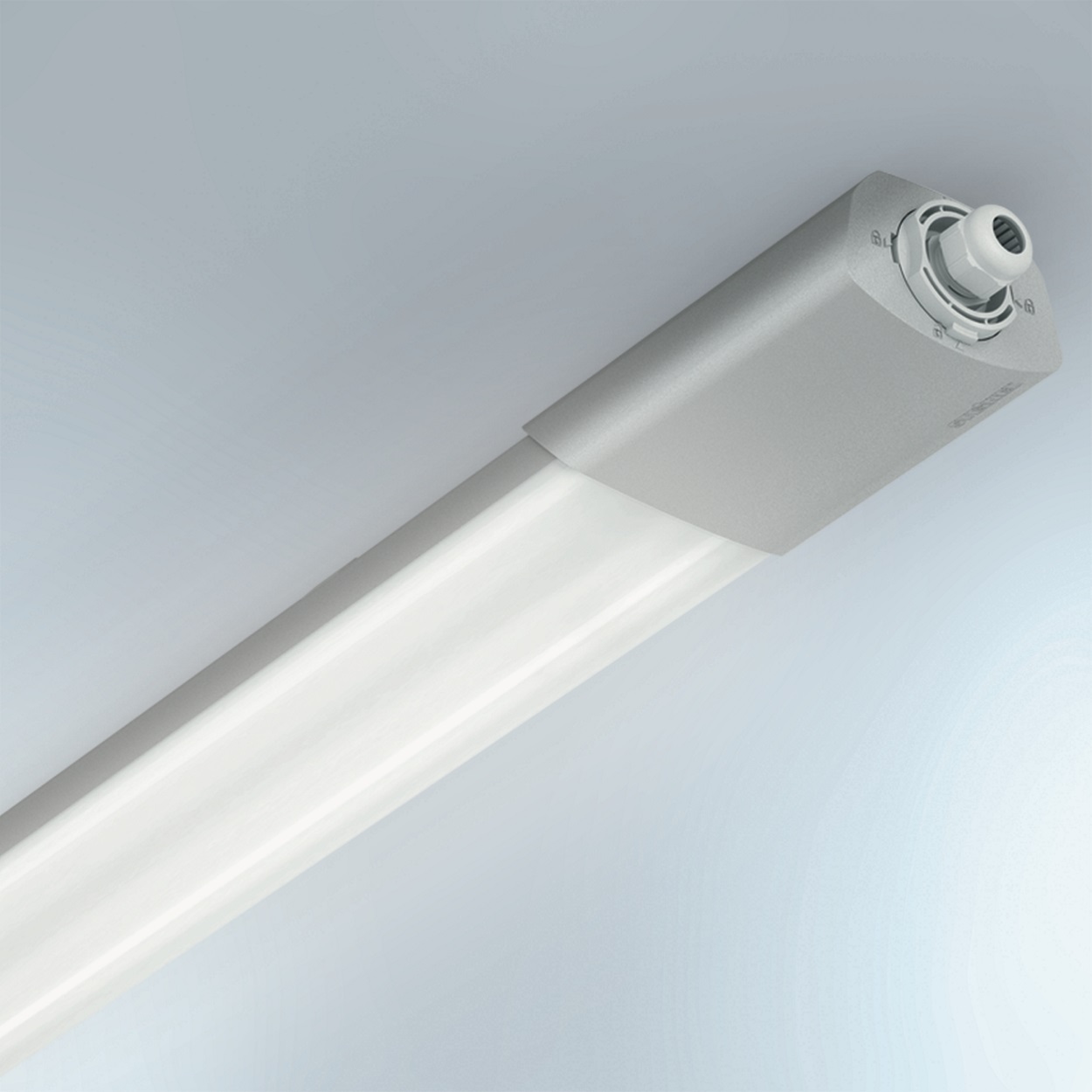

Adjustable main light brighness (0 - 100%)

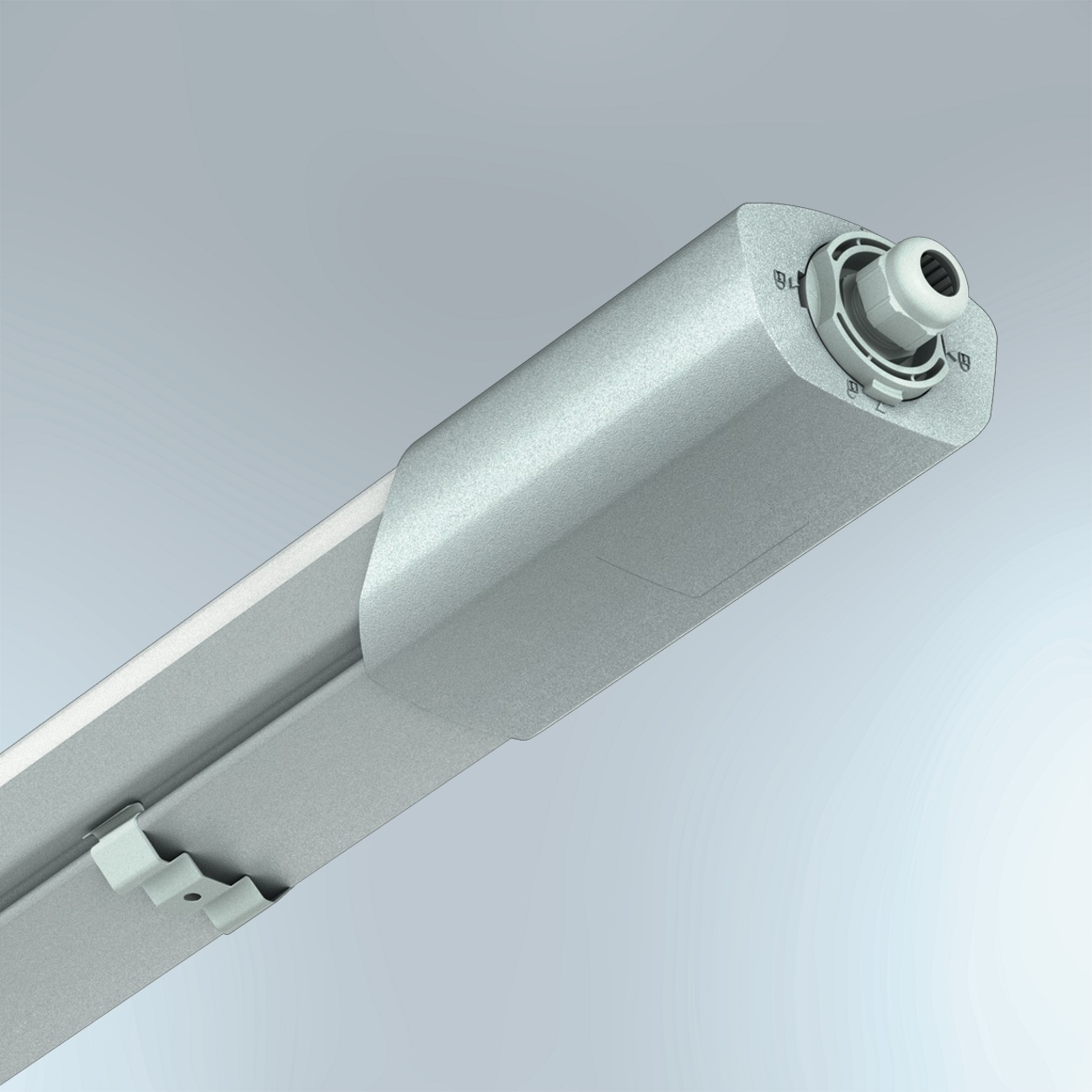

Adjustable mounts for easy installation

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave and master/master interconnection circuit diagram
