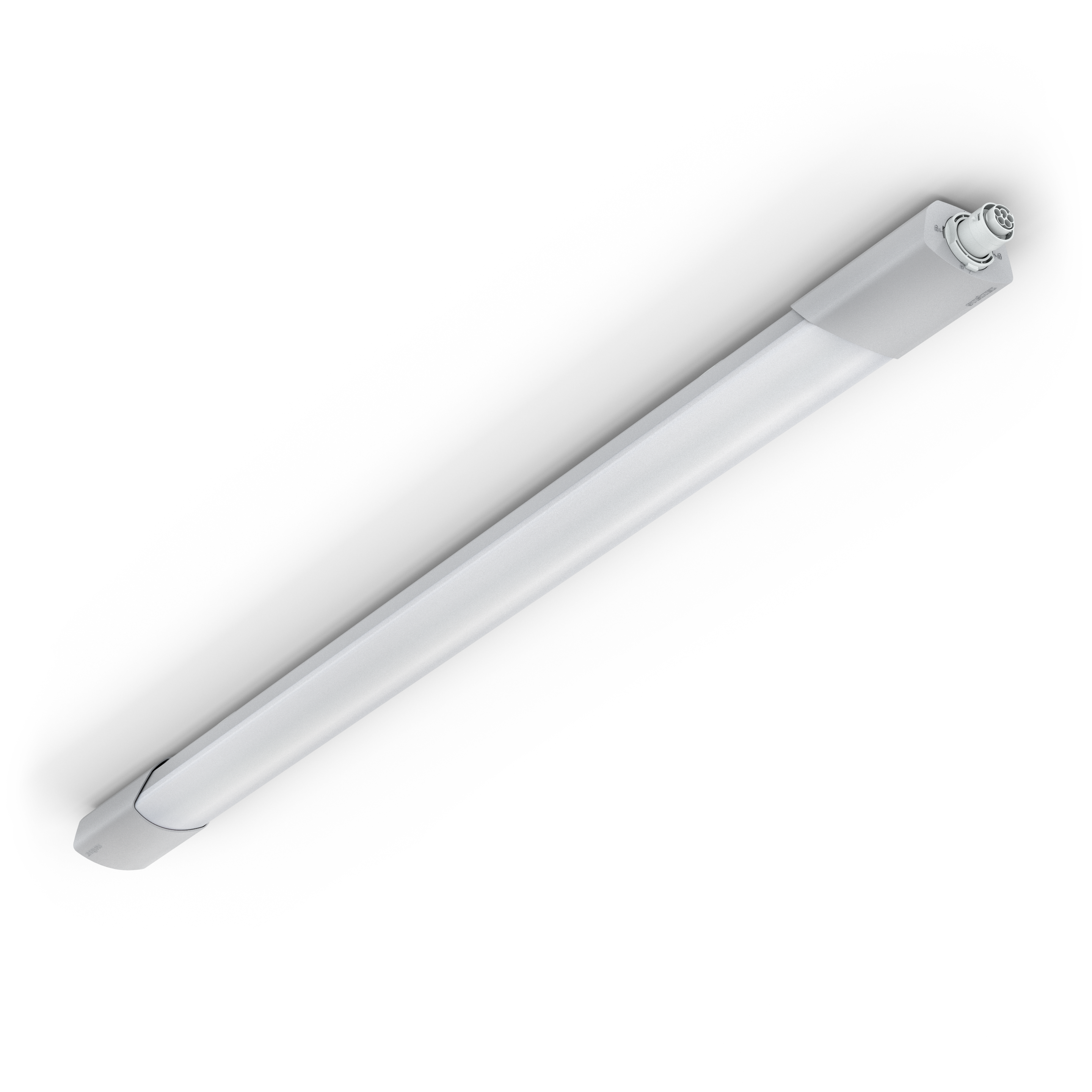

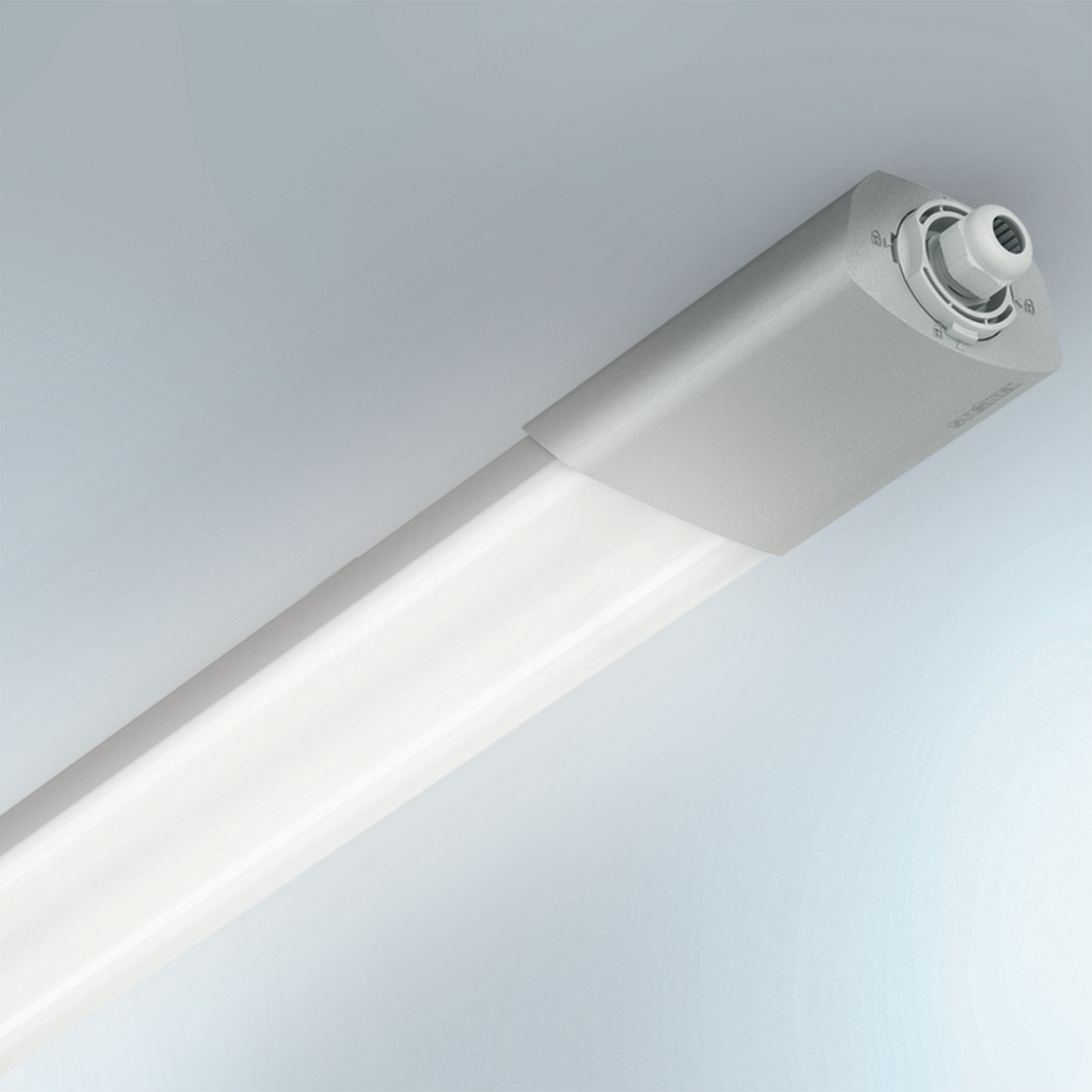

Steinel RS PRO 5150 SC 5C 5 Core (5-core through-wiring)

ELDAS® no. 941 375 609

EAN-No. 4007841 079338

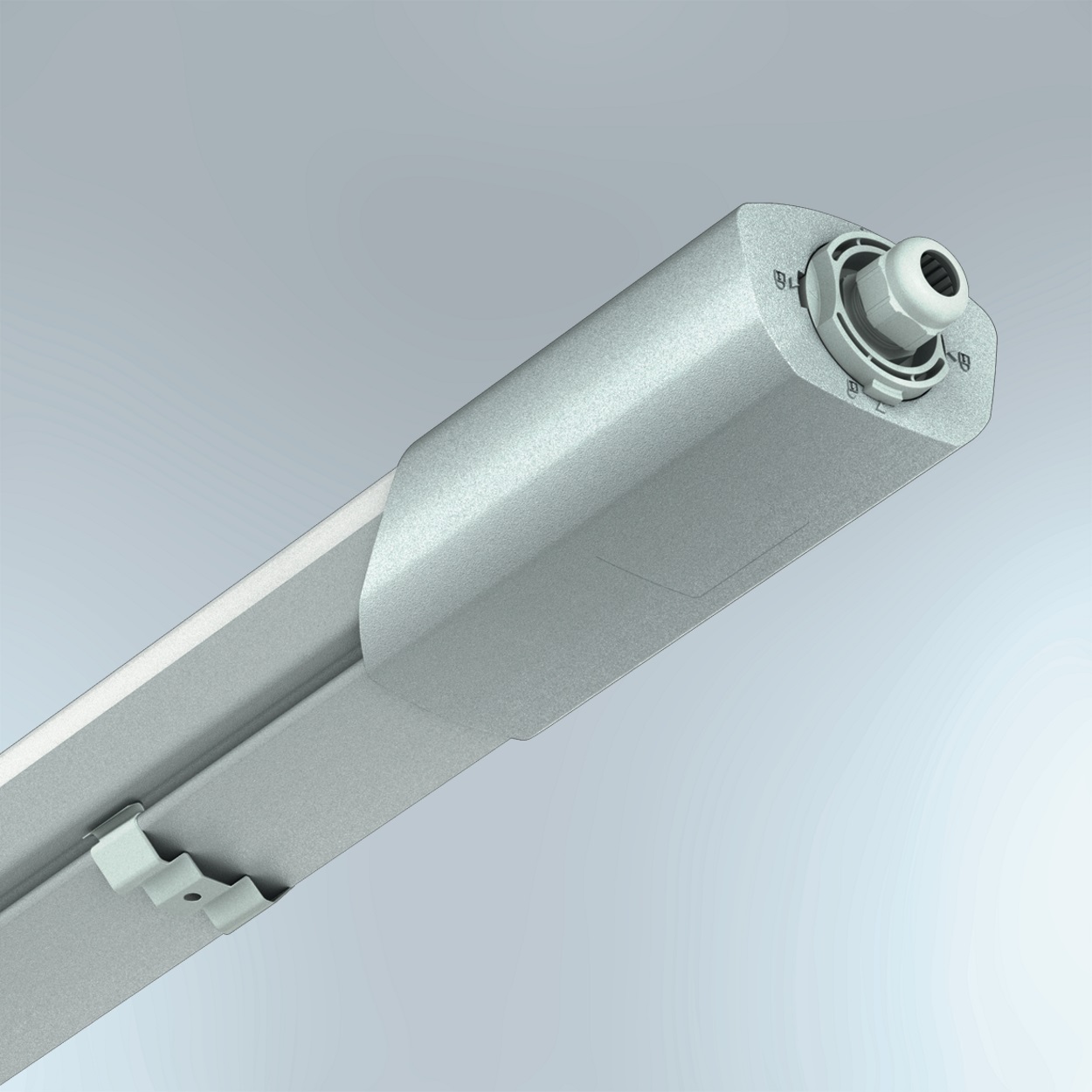

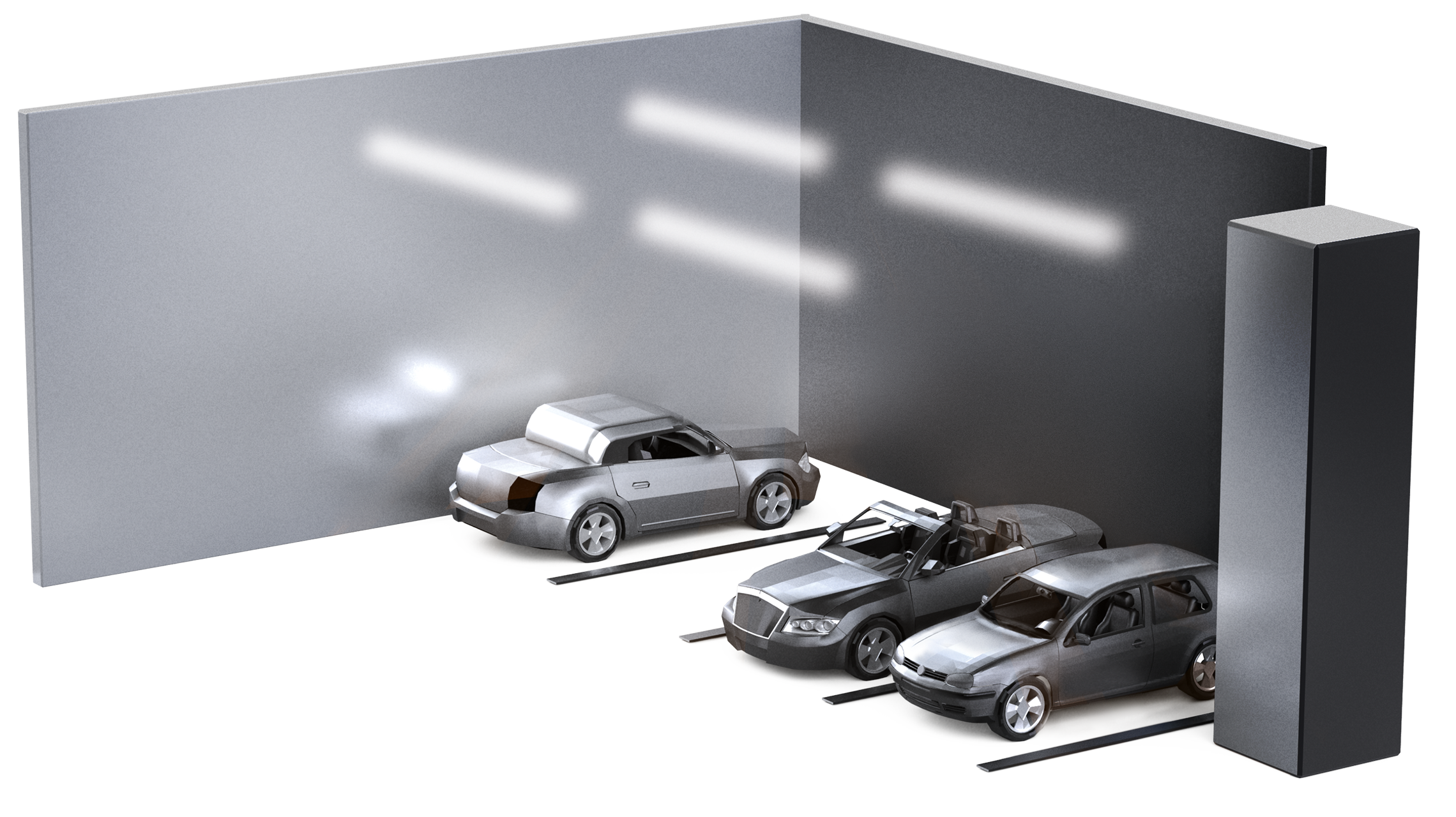

Changing of the guard in car parks, cellars, halls, garages, corridors and all rooms still equipped with old diffuser luminaires. The new RS PRO 5150 indoor luminaires, with a length of 1500 mm and a luminous intensity of 5940 lm, will impress you with greater size and performance. Installation is basically quite simple: you use the existing wiring, mount on existing drill holes, network the new installation wirelessly and set all parameters via app. The result: the latest luminaire technology on an existing basis, state-of-the-art ease of use with many features and direct cost savings thanks to maximum energy efficiency. Our variants with emergency light and 5-core through-wiring are also new.

Identification

Type of accessory Other

Dimensions

Dimensions L × W × H 1500 x 87 x 58 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 42 W

Own consumption 0,45 W

Sensor technology

Max. mounting height 3,50 m

Sensor technology High frequency

With motion detector Yes

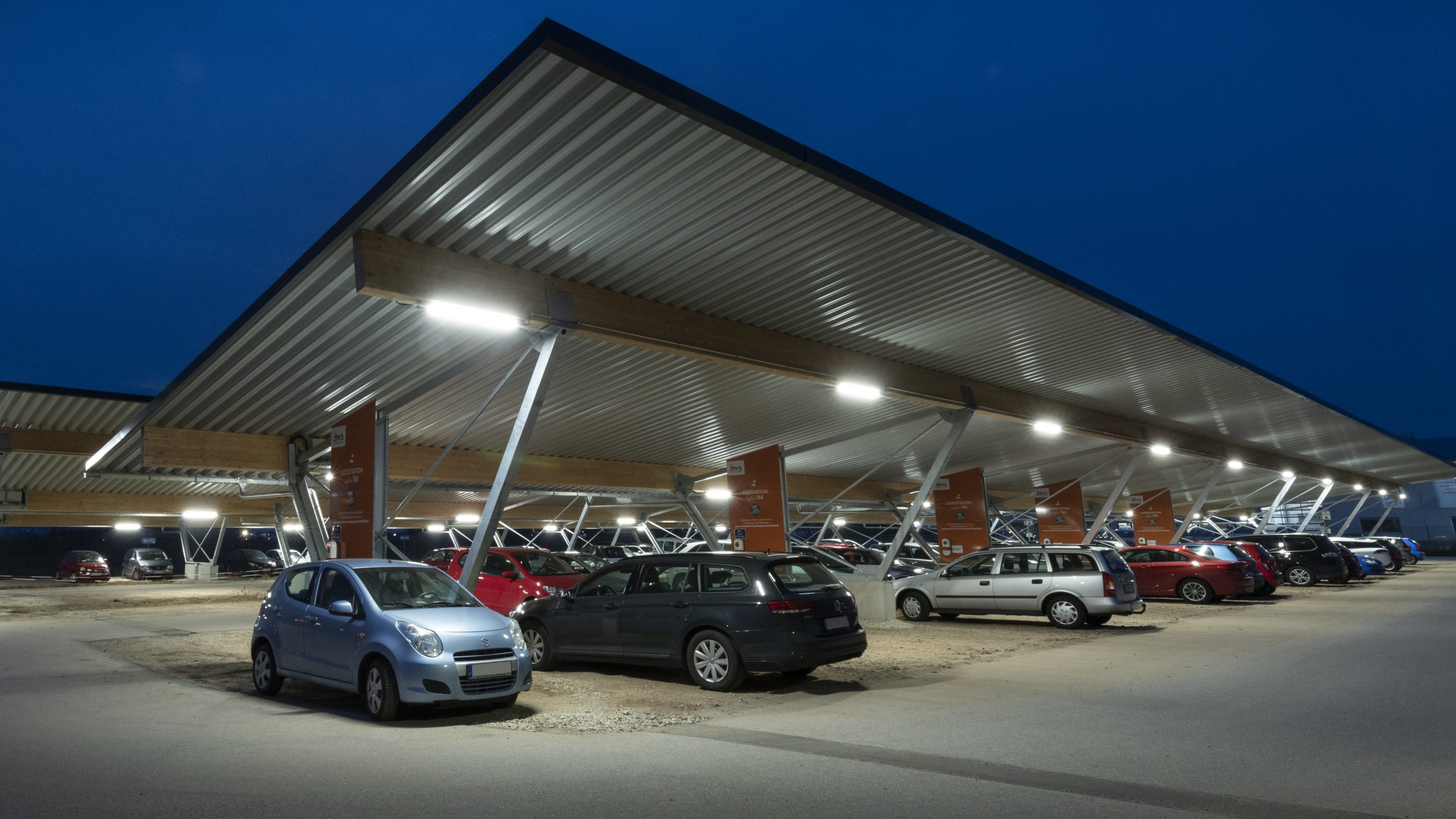

Detection angle 360 °

Opening angle 160 °

Electronic scalability Yes

Mounting height 3,50 m

Connectivity

Networking Yes

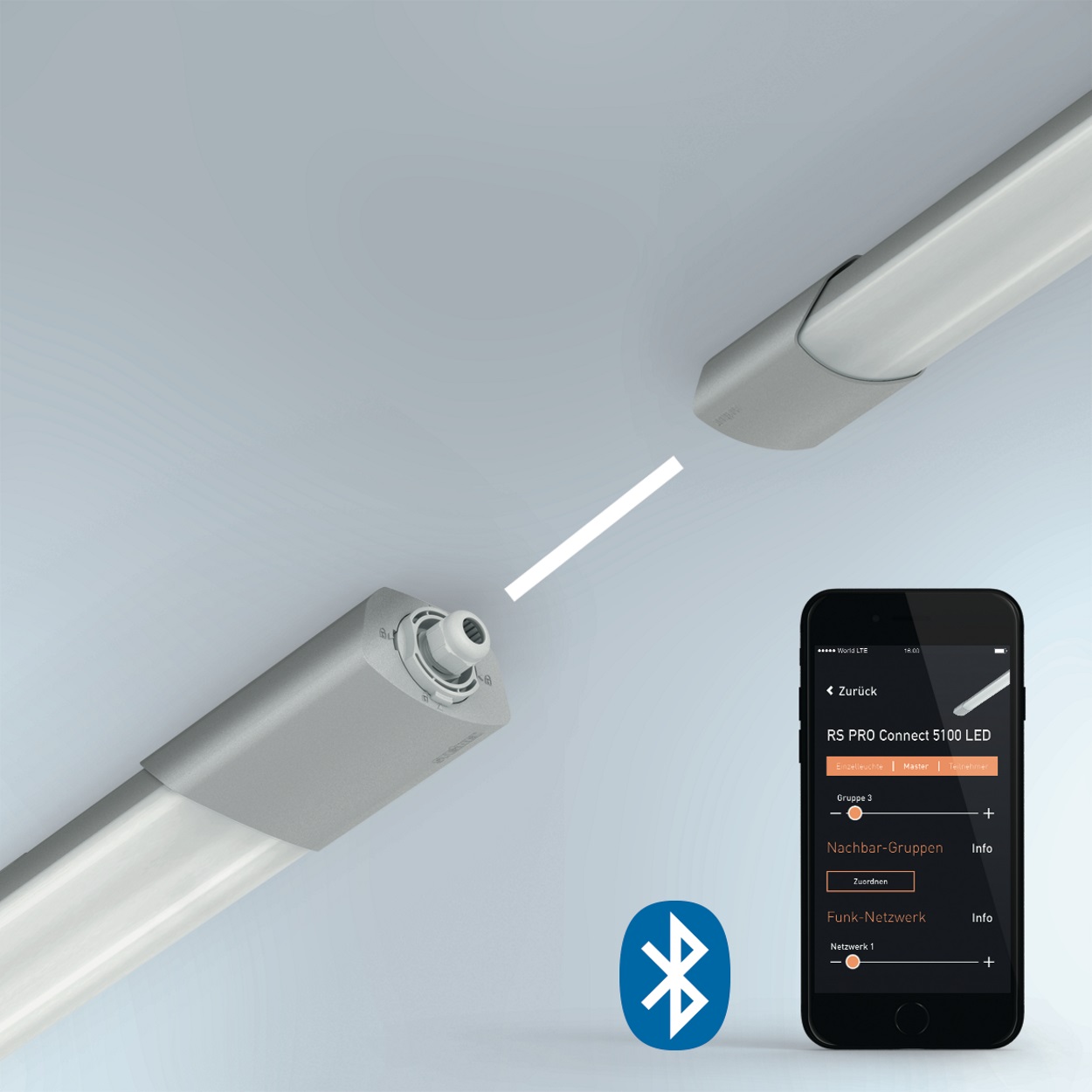

Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 5940 lm

Colour temperature 4000 K

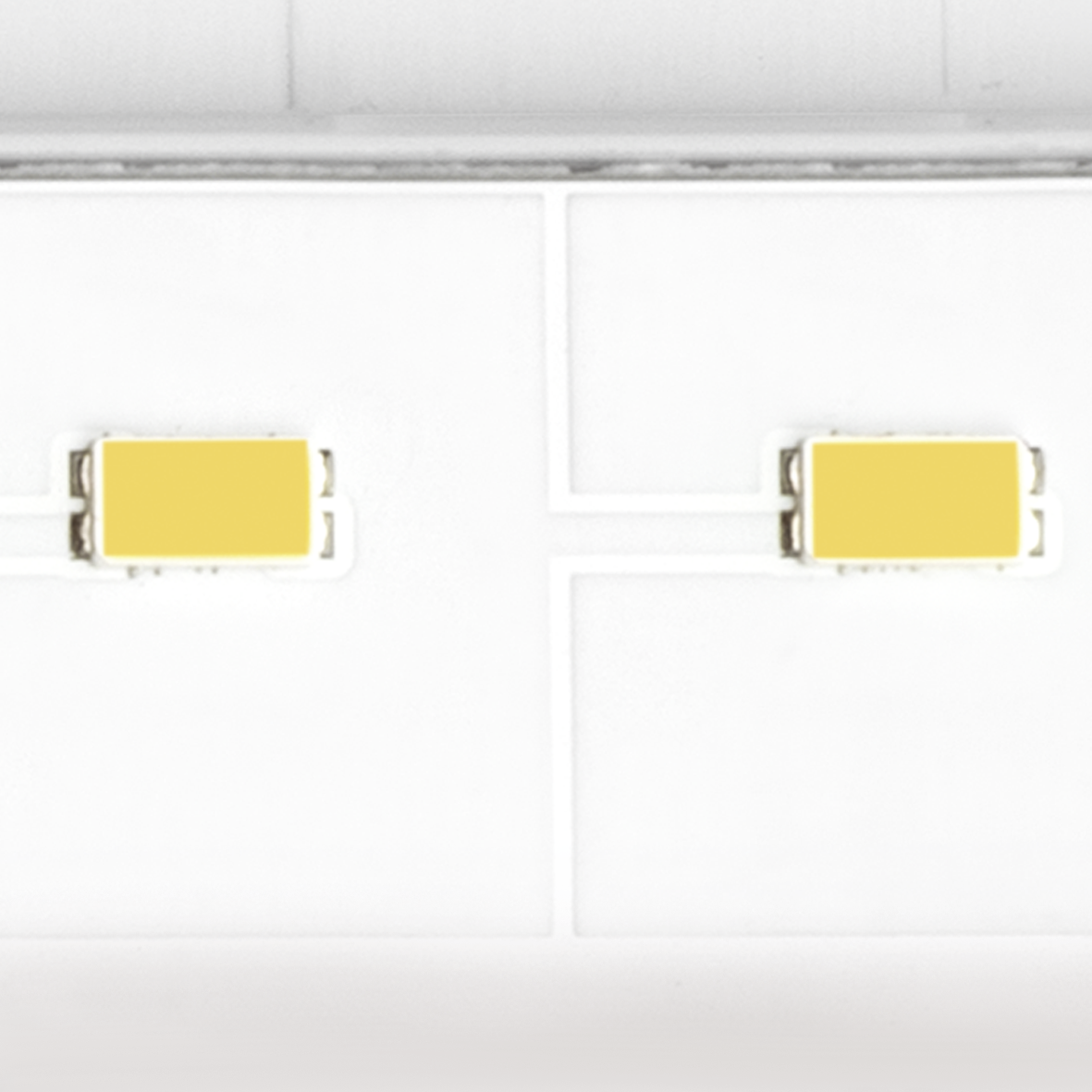

Illuminant LED cannot be replaced

Lifetime

LED lifetime max. °C 60000 h

Luminous flux decline per LM80 L80B10

Settings

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function Yes

Base light function time 1-60 min

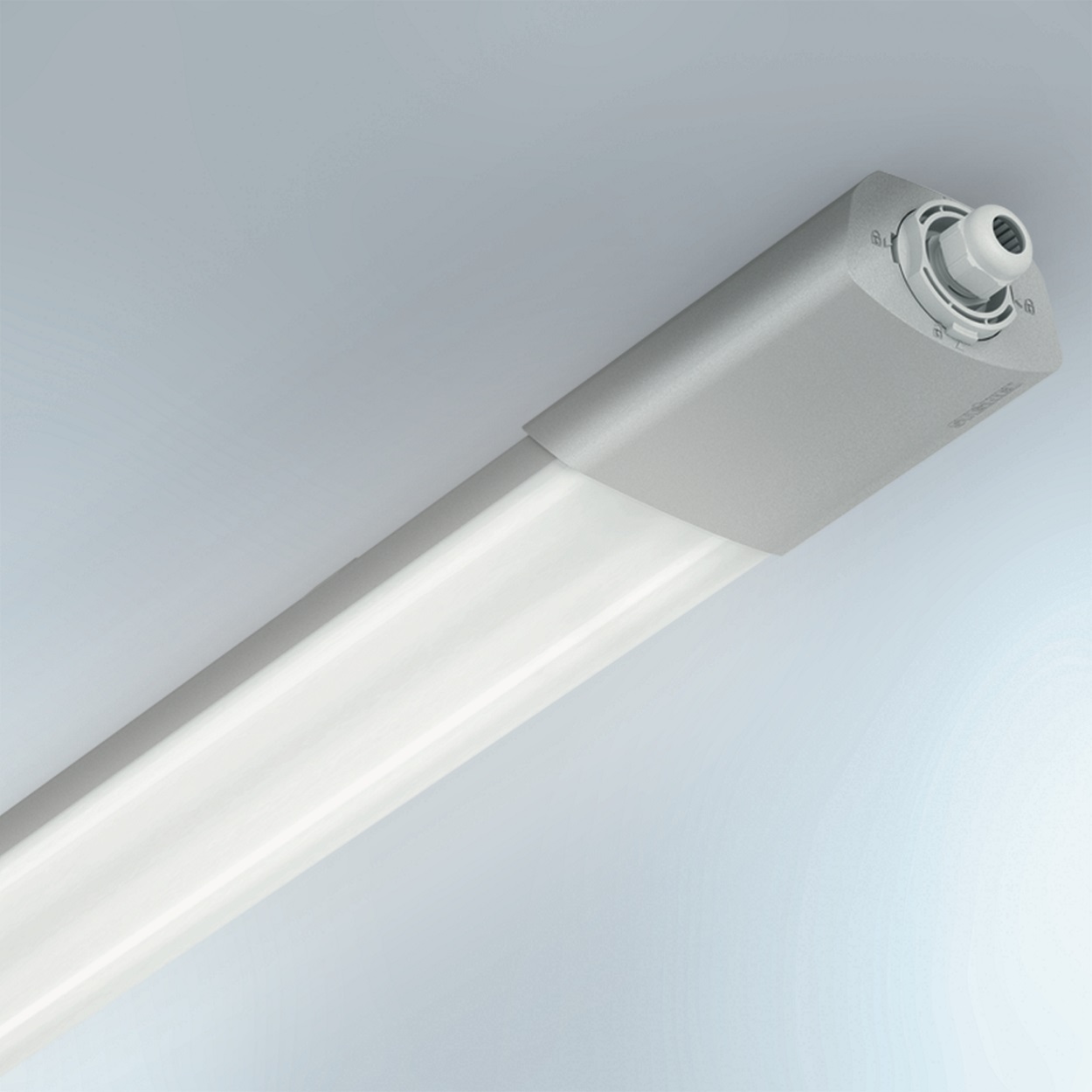

Main light adjustable 0 - 100 %

Functions Encrypted communication Neighbouring group function Free selection of the light value in a luminaire group Adjustable fade time when switching on and off Connection to central battery systems Motions sensor Light sensor Orientation light

Base light function in percent 10 – 100 %

Base light function percent from 10 %
