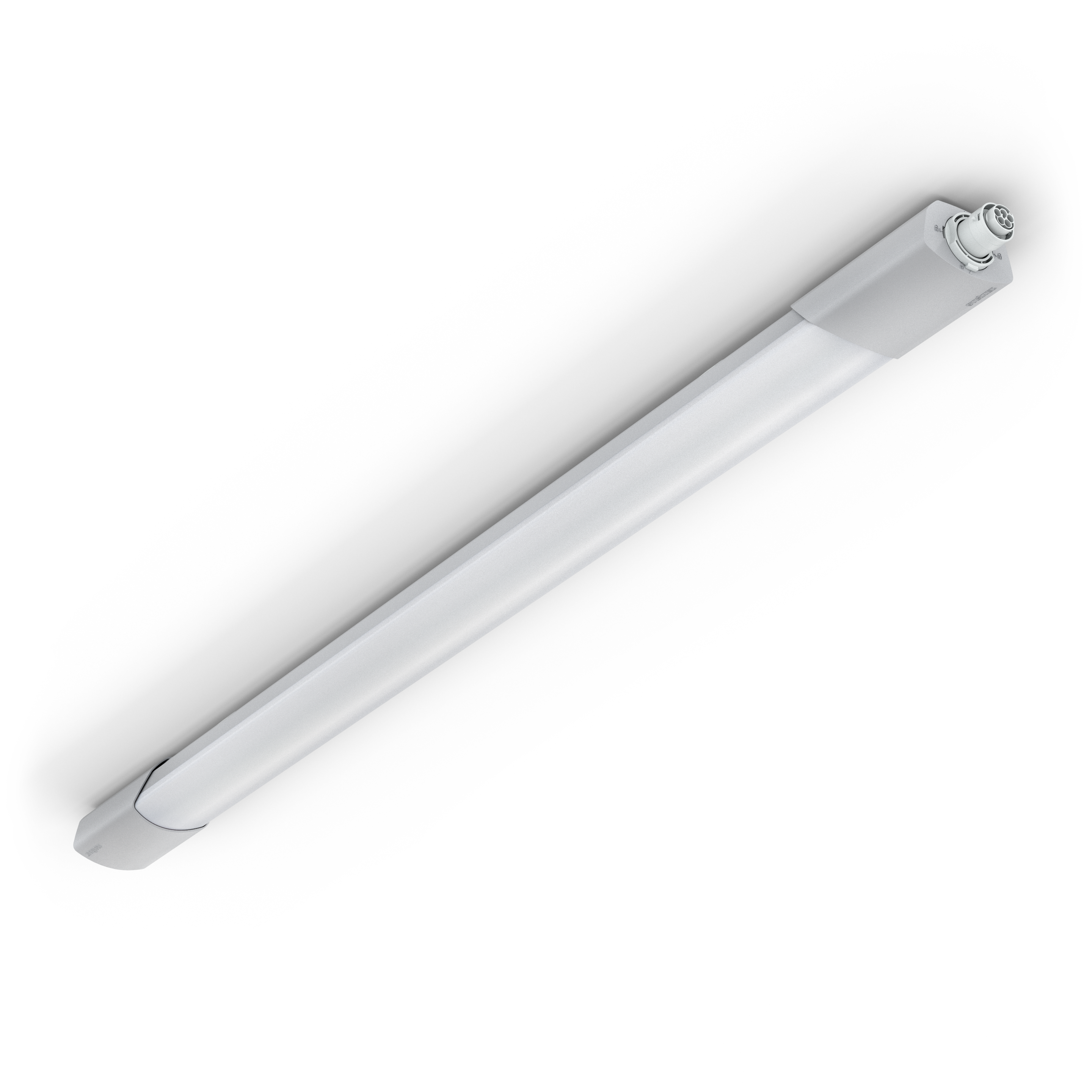

Steinel RS PRO 5150 SC V2 with motion detector - 3000K

ELDAS® no. 941 386 089

EAN-No. 4007841 087531

Coming soon

This product has been announced and is not yet available.

Price: Please log in to see prices

Changing of the guard in car parks, cellars, halls, garages, corridors and all rooms still equipped with old diffuser luminaires. The new RS PRO 5150 indoor luminaires, with a length of 1500 mm and a luminous intensity of 5940 lm, will impress you with greater size and performance. Installation is basically quite simple: you use the existing wiring, mount on existing drill holes, network the new installation wirelessly and set all parameters via app. The result: the latest luminaire technology on an existing basis, state-of-the-art ease of use with many features and direct cost savings thanks to maximum energy efficiency. Our variants with emergency light and 5-core through-wiring are also new.

  • Long field luminaire, 1500 mm, with integrated digital high-frequency sensor
  • Ideal for renovating car parks, halls or garages
  • Easy conversion thanks to sliding bracket
  • 360° motion detection with ø8 m range, 3-wire through-wiring
  • Precise adjustment of range and sensitivity
  • Dimmable basic and main light from 10-100%
  • All settings and networking easily via the free Steinel Connect app
  • Suitable for connection to central battery

Identification

Type of accessory Other

Dimensions

Dimensions L × W × H 1500 x 87 x 58 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 42 W
Own consumption 0,45 W

Sensor technology

Max. mounting height 3,50 m
Sensor technology High frequency
With motion detector Yes
Detection angle 360 °
Opening angle 160 °
Electronic scalability Yes
Mounting height 3,50 m

Connectivity

Networking Yes
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 5940 lm
Colour temperature 3000 K
Illuminant LED cannot be replaced

Lifetime

LED lifetime max. °C 60000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function time 1-60 min
Main light adjustable 0 - 100 %
Functions Encrypted communication Neighbouring group function Free selection of the light value in a luminaire group Adjustable fade time when switching on and off Connection to central battery systems Motions sensor Light sensor Orientation light
Base light function in percent 10 – 100 %
Base light function percent from 10 %

Housing & material

Impact resistance IK07
Protection class (IP) IP65
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material Plastic, structured
Mounting location ceiling wall
Material Plastic
Colour grey

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave and master/master interconnection circuit diagram
