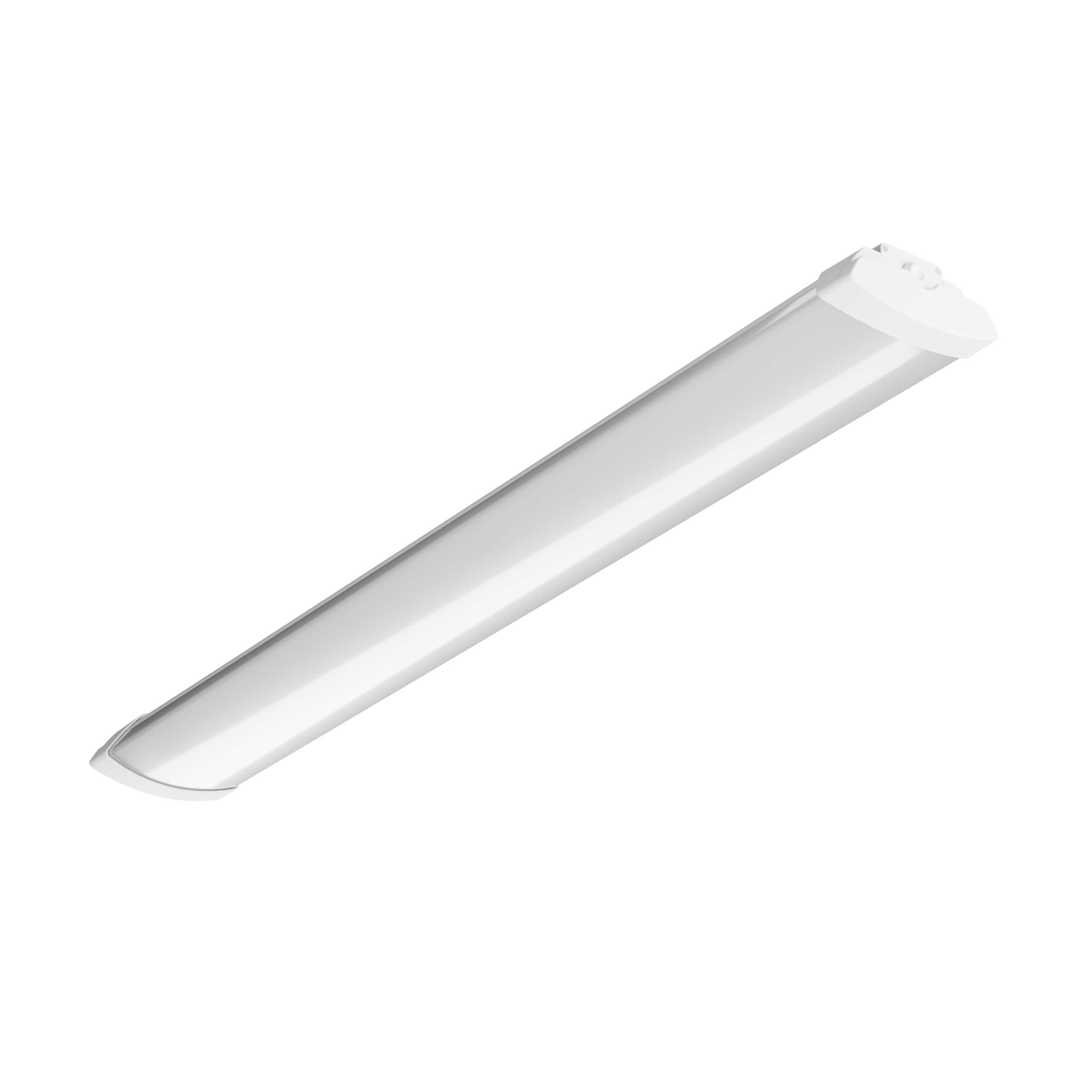

Steinel RS PRO 5500 SC with motion detector - 4000K, emergency light

Steinel RS PRO 5500 SC with motion detector - 4000K, emergency light

ELDAS® no. 941 463 299 · EAN-No. 4007841 086862

Steinel Bluetooth Mesh

Steinel RS PRO 5500 SC with motion detector - 4000K, emergency light

ELDAS® no. 941 463 299

EAN-No. 4007841 086862

Price: Please log in to see prices

Length

1200_mm 1500_mm

Light colour

Warm white (3000K) Neutral white (4000K)

Our two new RS PRO 5500/5550 SC linear luminaires cut an excellent figure in industrial environments as well as in passageways and office environments. In addition to their attractive appearance, their inner values are also impressive. The luminaires offer pleasant lighting comfort and are also a shining example of exemplary energy efficiency - also, but not only, thanks to the Bluetooth-based benefits of STEINEL Connected Lighting. Thanks to new high-frequency technology with 24 GHz, detection ends at the wall. Added to this is the centimetre-precise range setting, which in turn ensures even greater detection sensitivity. For better repairability and the longest possible service life, the luminaires are deliberately modular in design and thus follow our sustainability approach. This means that the sensor, control gear, LEDs, emergency lighting battery and emergency lighting control gear can be replaced as spare parts by a specialist in addition to the cover. The cable with 5-core through-wiring can also be inserted on both sides or from the rear. The standard SC version enables an emergency lighting function on the central battery. The SC EM version is available for a decentralised single battery solution for 3 hours of emergency lighting.

  • Linear luminaire, 1200 mm, with integrated digital high-frequency sensor
  • Ideal for passageways and office environments
  • Easy conversion thanks to sliding bracket
  • 5-core cable, through-wired and can be inserted from both sides or from the rear
  • 360° motion detection with ø8 m range
  • Precise adjustment of range and sensitivity
  • Dimmable basic and main light from 10-100%
  • All settings and networking easily via the free Steinel Connect app
  • Suitable for connection to a central battery or as a single battery light with 3 hours of light
  • Maximum service life thanks to excellent repairability

Dimensions

Dimensions L × W × H 1200 x 164 x 75 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 31 W

Sensor technology

Max. mounting height 3,50 m
Sensor technology High frequency
HF technology 24 GHz
With motion detector Yes
Detection angle 360 °
Opening angle 160 °
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 8 m (50 m²)
Tangential range Ø 8 m (50 m²)
Mounting height 2 – 3,50 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Type of networking Master/master
Networking via Bluetooth Mesh
Slave mode adjustable Yes

Lighting technology

Colour temperature 4000 K
LED colour deviation SDCM3
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base Other
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable
Luminous flux emergency light 730 lm

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function time 1-60 min
Main light adjustable 10 - 100 %
Functions DIM function Orientation light Light sensor Connection to central battery systems Motions sensor Adjustable fade time when switching on and off Free selection of the light value in a luminaire group Group parameterisation Neighbouring group function Encrypted communication Emergency light in compliance with EN 60598-2-22 for 3h
Settings via Bluetooth Mesh Bluetooth App
With remote control No
Twilight setting teach Yes
Base light function in percent 10 – 100 %
Base light function percent from 10 %

Housing & material

Impact resistance IK07
Protection class (IP) IP44
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material Plastic, opal
Mounting location ceiling wall
Application location Indoors
Mounting type Surface wiring
Application room Indoors WC / washroom changing room corridor / aisle function room / ancillary room multi-storey / underground car park stairwell warehouse
Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
