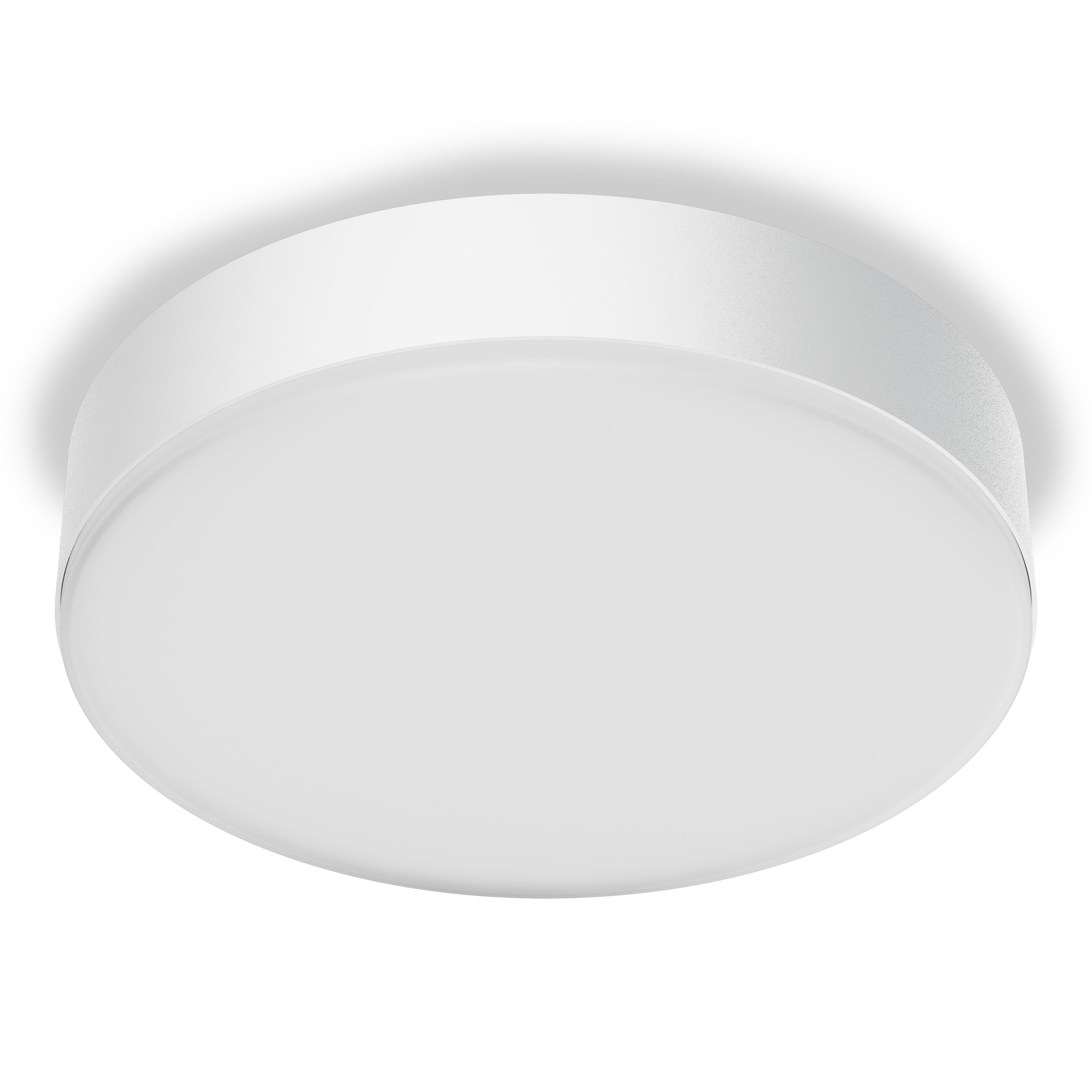

Steinel RS PRO A30 SC warm white white

Robust sensor light for access balconies and corridors. Impact-resistant and splash-proof.

ELDAS® no. 941 600 839

EAN-No. 4007841 088354

Price: Please log in to see prices

Dimensions Ø × H

193 x 69 mm 262 x 69 mm 331 x 69 mm

Colour temperature

3000 K 4000 K

Colour

Anthracite White

Sophisticated design for demanding environments: Equipped with a powerful high-frequency sensor and an aluminium chassis that is as attractive as it is robust, the A series is ideal for pergolas or similar applications thanks to its IK10 impact resistance and tested IP54 protection class. In combination with our Connected Lighting System, the luminaires can be controlled using a wireless push-button. Semi-automatic operation, timer functions, the setting of neighbour groups and tracking light can also be implemented quickly and easily using Connected Lighting. Of course, cross-series networking is also possible at any time without any problems.

Ideal for demanding environments such as pergolas or similar applications
Non-visible high-frequency sensor with ø8 m range, 3000 K, 2534 lm, 20,7 W, 122,4 lm/W
Robust aluminium housing with high impact resistance IK10 and protection class IP54
Simple networking via Bluetooth Mesh Connect and commissioning via STEINEL Connect app
Benefits of the Connected Lighting System and cross-range networking possible
With plug-in terminals for easy installation

Variants

Colour White

Dimensions

Dimensions Ø × H 331 x 69 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 20,7 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,0 – 4,0 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Master

Slave mode adjustable Yes

Control technology Steinel Connect

Wireless networking via BT SIG Mesh

Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 2534 lm

Colour temperature 3000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable

Efficiency without cover 158,89 lm/W

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 10 s – 60 min

Base light function Yes

Base light function time 1-60 min

Main light adjustable 0 - 100 %

Functions Selecting programmed lighting scenarios, Motions sensor, DIM function, Adjustable fade time when switching on and off, Semi-/fully automatic, Neighbouring group function, Encrypted communication, Timer

Settings via App, Smartphone, Tablet, Bluetooth

With remote control No

Twilight setting teach Yes

Base light function in percent 0 – 100 %

Base light function percent from 0 %

Housing & material

Impact resistance IK10

Protection class (IP) IP54

Protection class II

Ambient temperature -20...+40 °C

Housing material Aluminium

Cover material Opal PC

Mounting location ceiling, wall

Application location Indoors

Mounting type Surface mounting

Application room WC / washroom, changing room, corridor / aisle, function room / ancillary room, kitchenette, stairwell, warehouse

Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years

House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Technical drawing

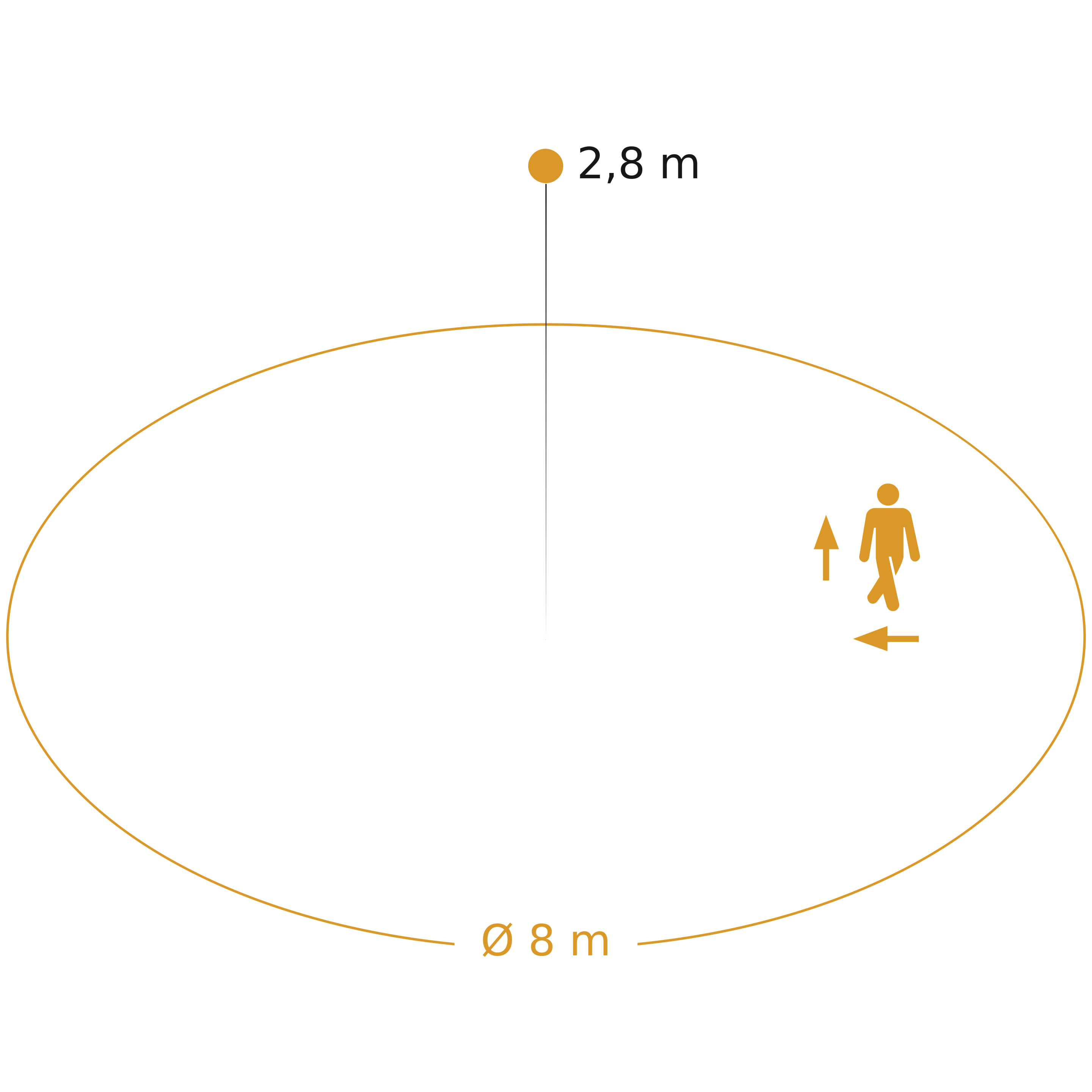

Sensor detection range

Data sheet User manual Declaration of conformity Drilling template Product brochure LDT file (light distribution)
