Steinel RS PRO P1 flat S Neutral white

Steinel RS PRO P1 flat S Neutral white

ELDAS® no. 941 003 259 · EAN-No. 4007841 069674

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel

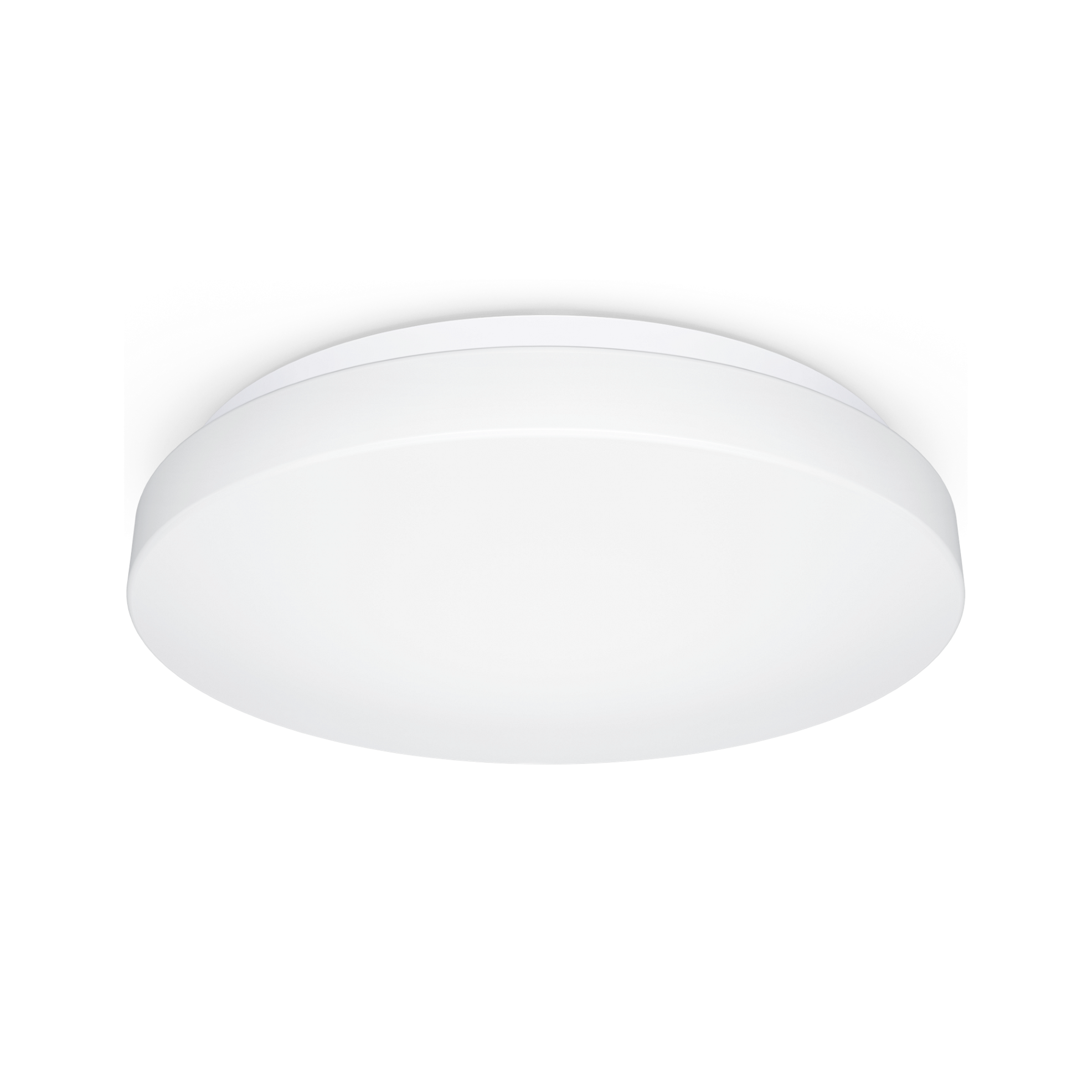

Steinel RS PRO P1 flat S Neutral white

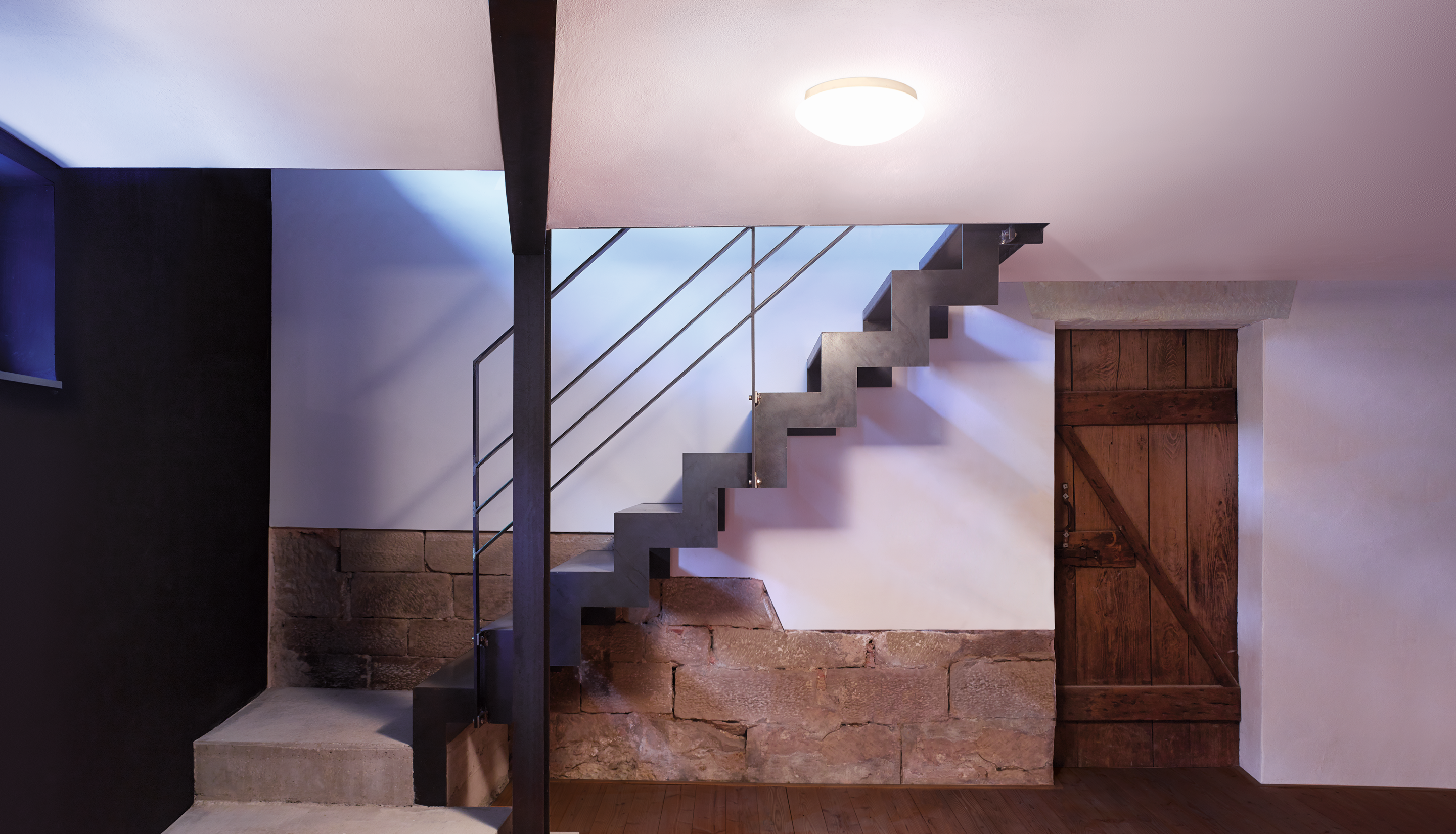

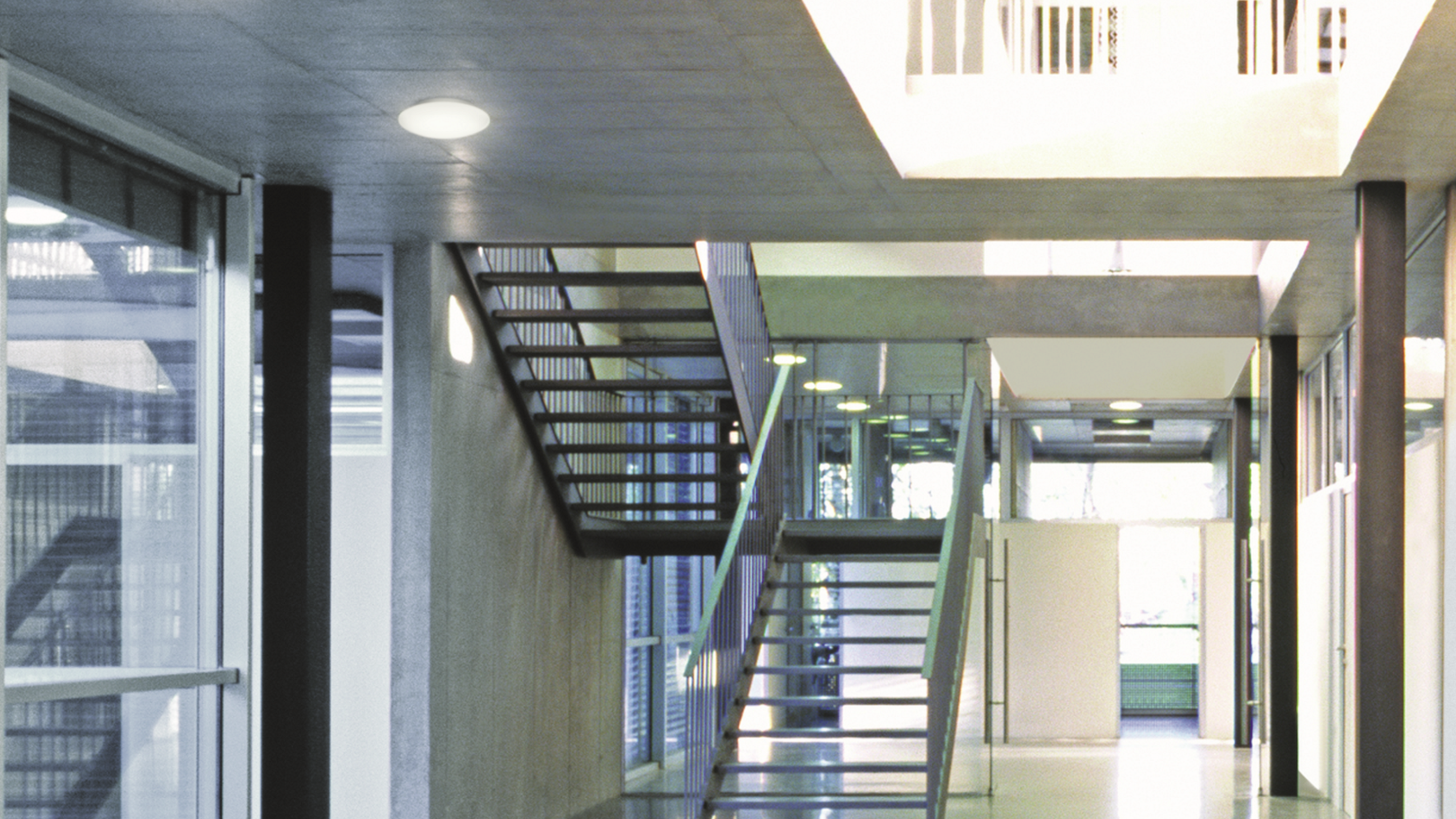

Round light for stairwells, cellars and storerooms. Optionally with sensor and integrated emergency light.

ELDAS® no. 941 003 259

EAN-No. 4007841 069674

Price: Please log in to see prices

Variant

P1 convex P1 flat P2 convex P2 flat P3 convex

With motion detector

No Yes

Colour temperature

3000 K 4000 K

With emergency light

No

Version

Shock-tested Standard

Today, indoor lighting solutions are in demand that not only provide the last word in convenience and intelligent technology but also integrate harmoniously into the particular interior design. We have found the perfect answer in the RS PRO P1 flat. Timeless design and very easy installation combined with pioneering technology and maximum efficiency. Because with the virtually invisible 360-degree high-frequency sensor always switching the 9,4 W LED lighting system ON reliably, the indoor light is a real bonus for any building, both from the aspect of aesthetic appeal as well as cost-efficiency. The versions without sensor are quickly and easily interconnected via cable.

Variants

Version With sensor

Dimensions

Dimensions Ø × H 272 x 64 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 9,4 W
Fluorescent lamps ECG 400 W
Fluorescent lamps uncompensated 400 VA
Fluorescent lamps series-compensated 400 VA
Fluorescent lamps parallel-compensated 400 VA
Switching output 1 low-voltage halogen lamps 800 VA
LED lamps < 2 W 16 W
LED lamps > 2 W < 8 W 64 W
LED lamps > 8 W 64 W
Capacitive load in µF 88 µF
Switching output 1 number of LED/fluorescent lamps 50 pcs.

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Detection angle 360 °
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 8 m (50 m²)
Tangential range Ø 8 m (50 m²)
Mounting height 2,0 – 4,0 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Networking via Cable

Lighting technology

Measured luminous flux 360° 965 lm
Colour temperature 4000 K
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable, 4h

Lifetime

LED lifetime max. °C 60000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight setting 2 – 2000 lx
Time setting 5 s – 15 min
Base light function Yes
Base light function time 10/30 min, all night
Main light adjustable No
Base light function in percent 10 %
Base light function percent from 10 %

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class II
Ambient temperature -10...+40 °C
Housing material Plastic
Cover material Opal plastic
Mounting location ceiling, wall
Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA
EPREL category Surrounded product with integrated light source

Including STEINEL LED system

Intelligent soft light start

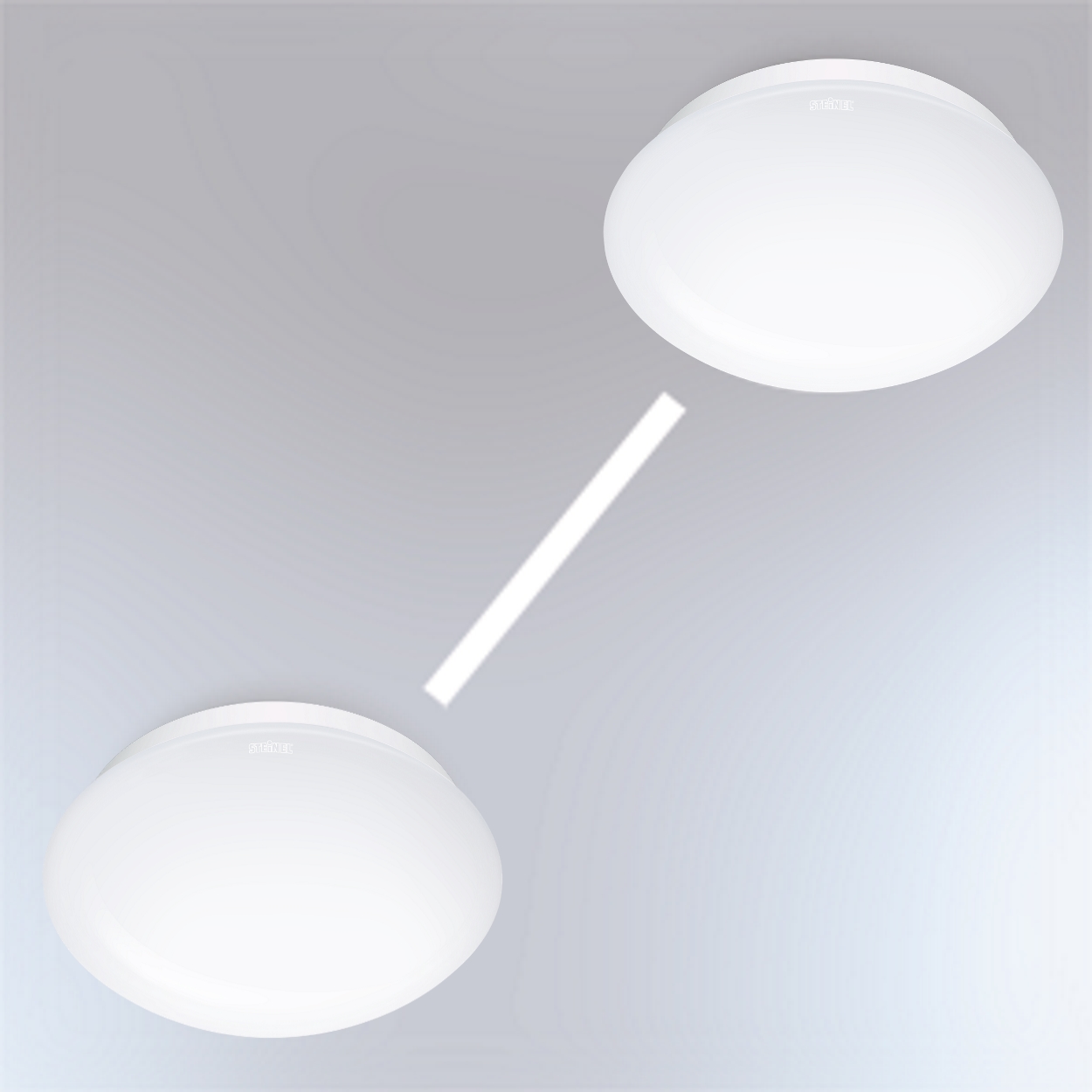

Interconnectable by cable (maximum of 10 units)

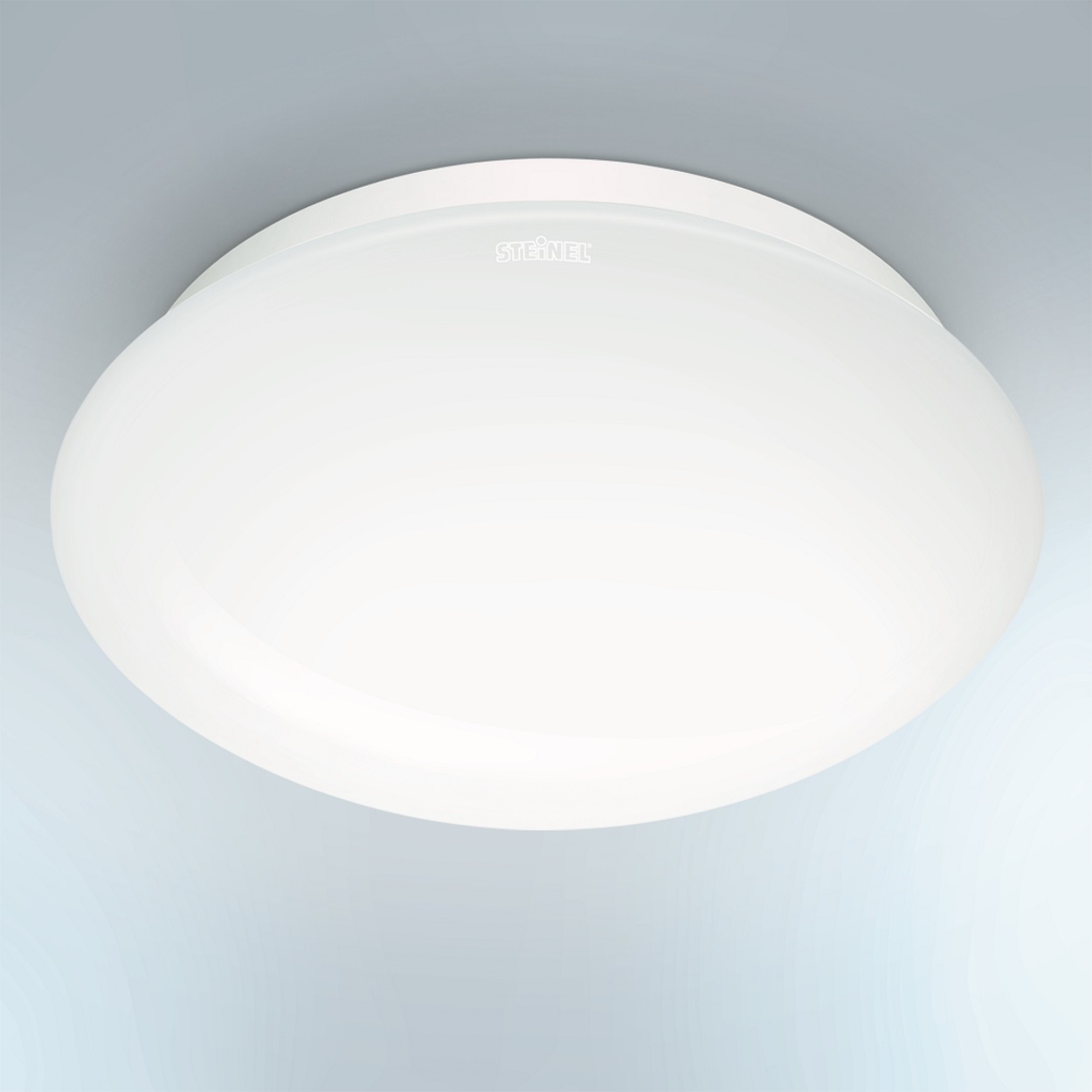

Optional basic lighting level 10 %

Technical drawing

Lichtverteilungskurve

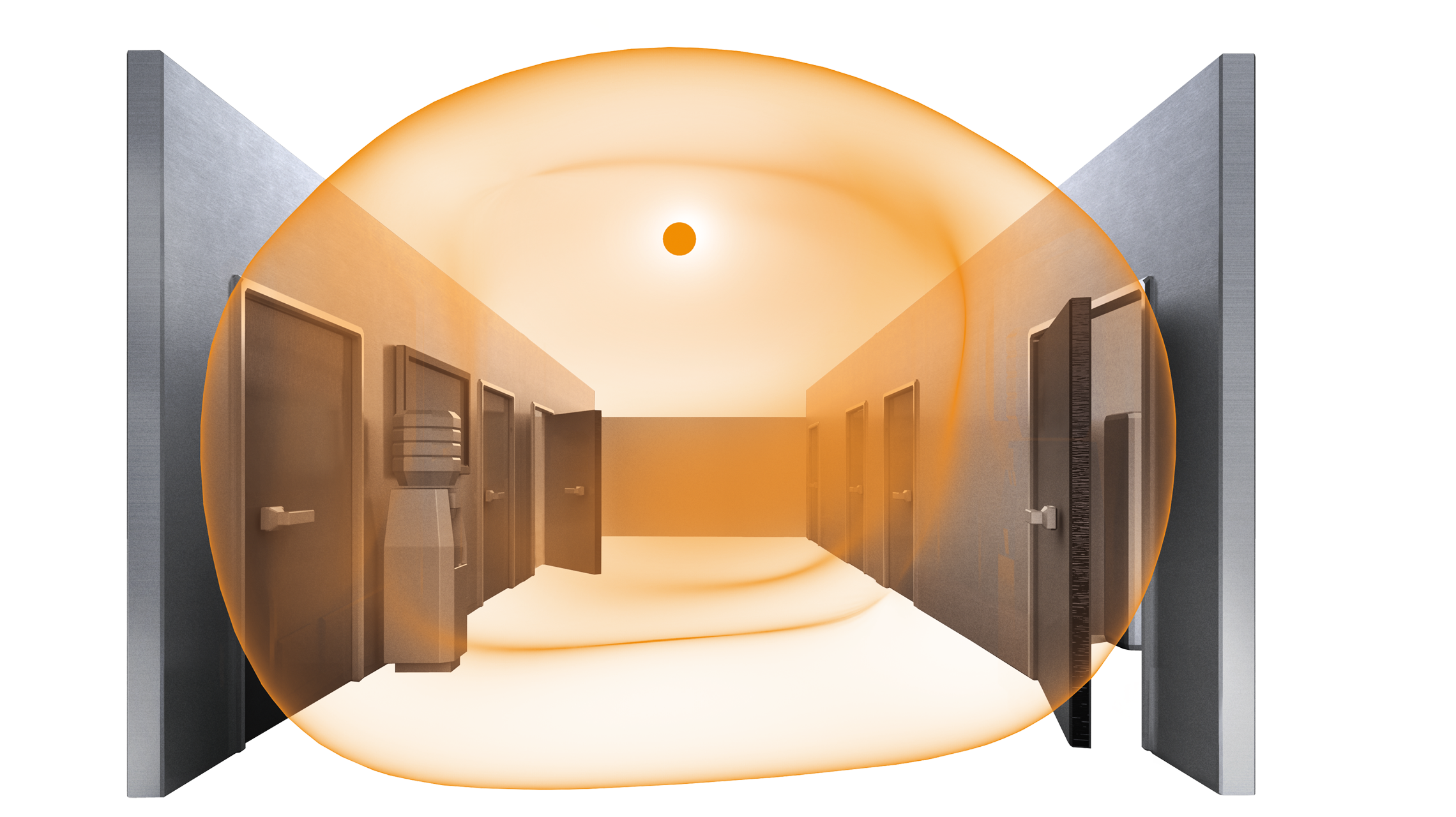

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
