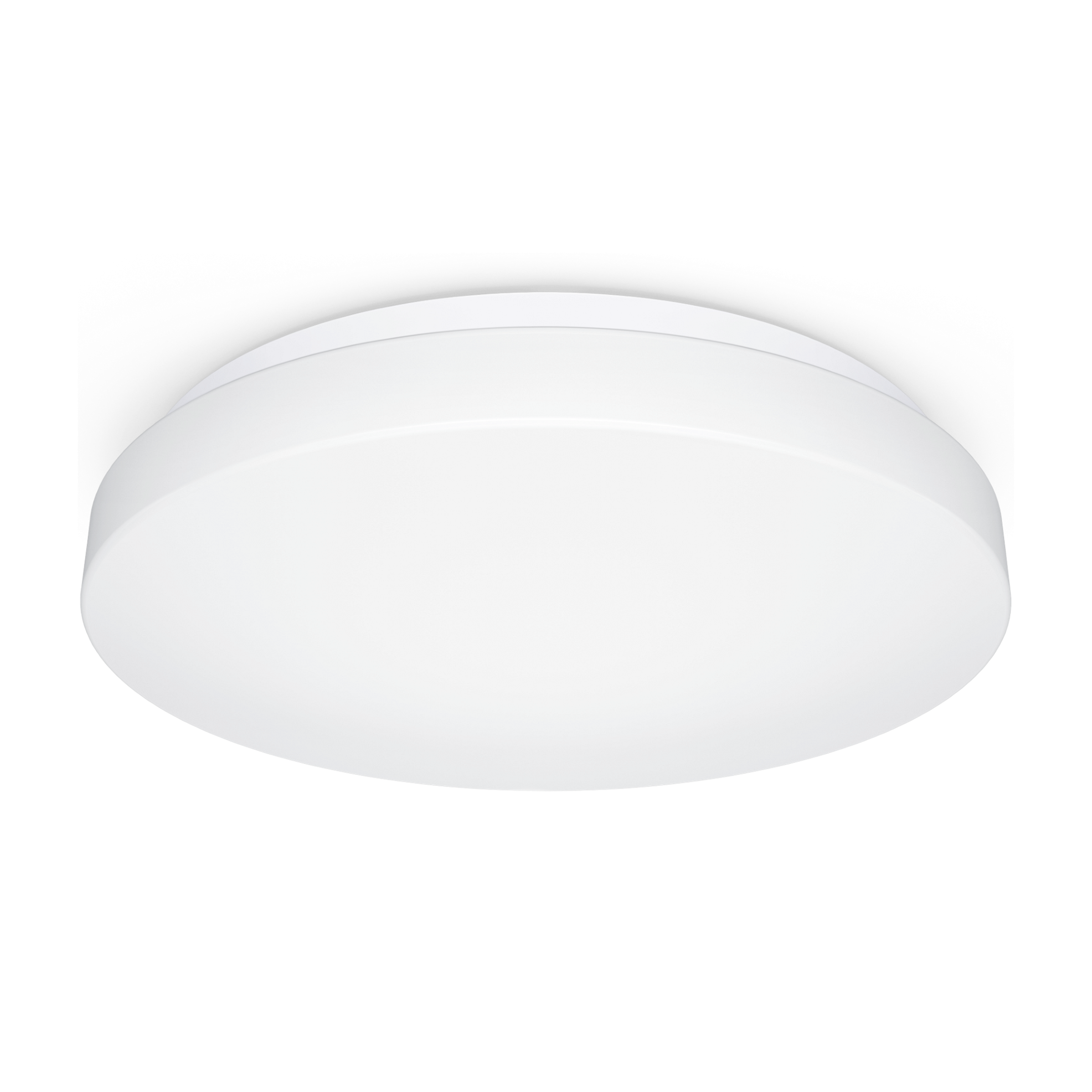

Steinel RS PRO P2 flat S warm white

Steinel RS PRO P2 flat S warm white

ELDAS® no. 941 003 559 · EAN-No. 4007841 069742

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel

Steinel RS PRO P2 flat S warm white

ELDAS® no. 941 003 559

EAN-No. 4007841 069742

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Light colour

3000K Warm white 4000K Neutral white

Dimension

P2 Ø322mm P1 Ø272mm

Colour

white Weiß

Today, indoor lighting solutions are in demand that not only provide the last word in convenience and intelligent technology but also integrate harmoniously into the particular interior design. We have found the perfect answer in the RS PRO P2 flat. Timeless design and very easy installation combined with pioneering technology and maximum efficiency. Because with the virtually invisible 360-degree high-frequency sensor always switching the 15,1 W LED lighting system ON reliably, the indoor light is a real bonus for any building, both from the aspect of aesthetic appeal as well as cost-efficiency. The versions without sensor are quickly and easily interconnected via cable.

Dimensions

Dimensions Ø × H 322 x 68 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 15,1 W
Switching output 1 low-voltage halogen lamps 800 VA
LED lamps > 8 W 250 W
Capacitive load in µF 88 µF
Switching output 1 number of LED/fluorescent lamps 50 pcs.

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
With motion detector Yes
Detection angle 360 °
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 8 m (50 m²)
Tangential range Ø 8 m (50 m²)
Mounting height 2 – 4 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Networking via Cable

Lighting technology

Measured luminous flux 360° 1608 lm
Colour temperature 3000 K
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight setting 2 – 2000 lx
Time setting 5 s – 15 Min.
Base light function Yes
Base light function time 10/30 min, all night
Main light adjustable No
Base light function in percent 10 %
Base light function percent from 10 %

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class II
Ambient temperature from -10 up to 40 °C
Housing material Plastic
Cover material Plastic, opal
Mounting location ceiling wall
Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA
EPREL category Surrounded product with integrated light source

Including STEINEL LED system

Intelligent soft light start

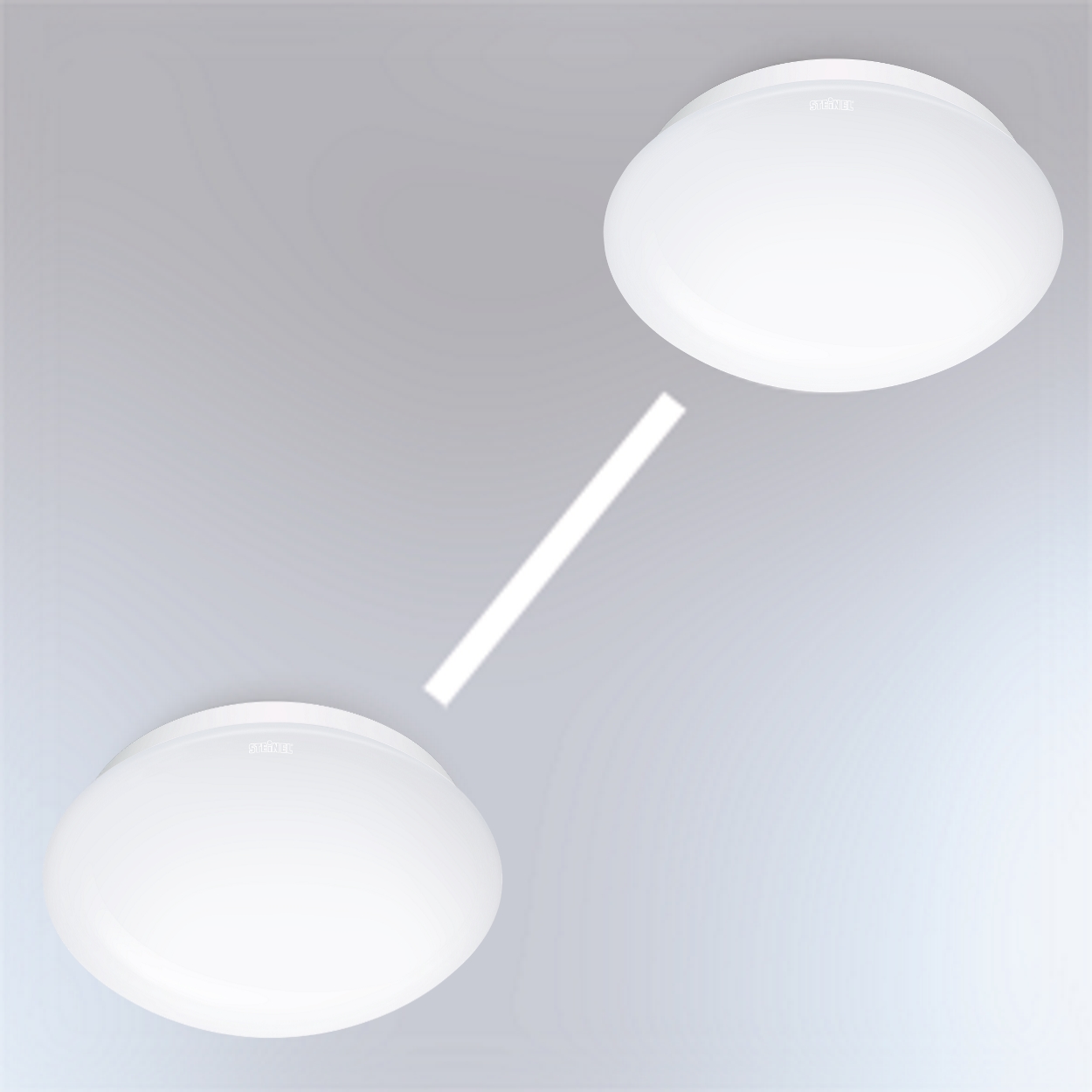

Interconnectable by cable (maximum of 10 units)

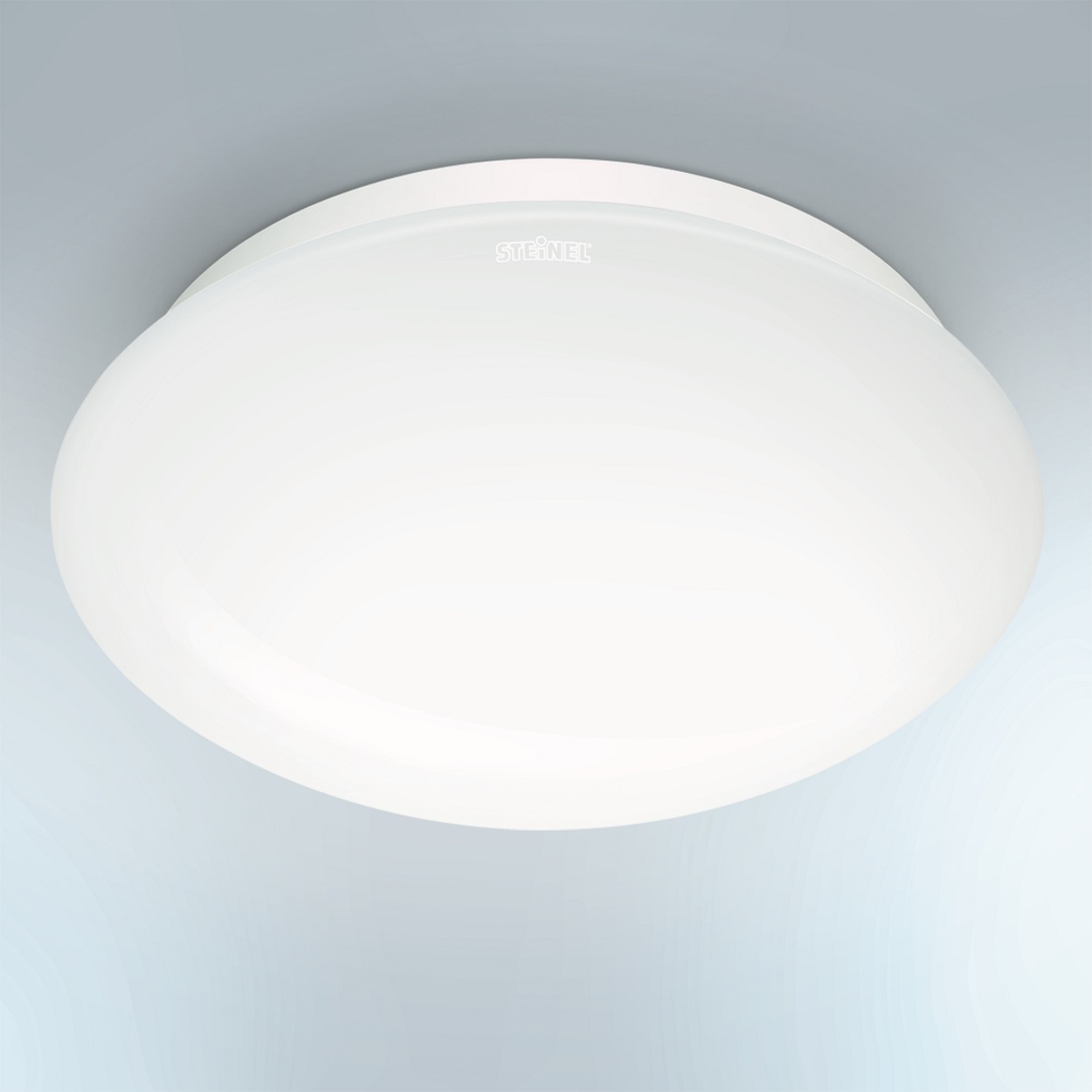

Optional basic lighting level 10 %

Technical drawing

Lichtverteilungskurve

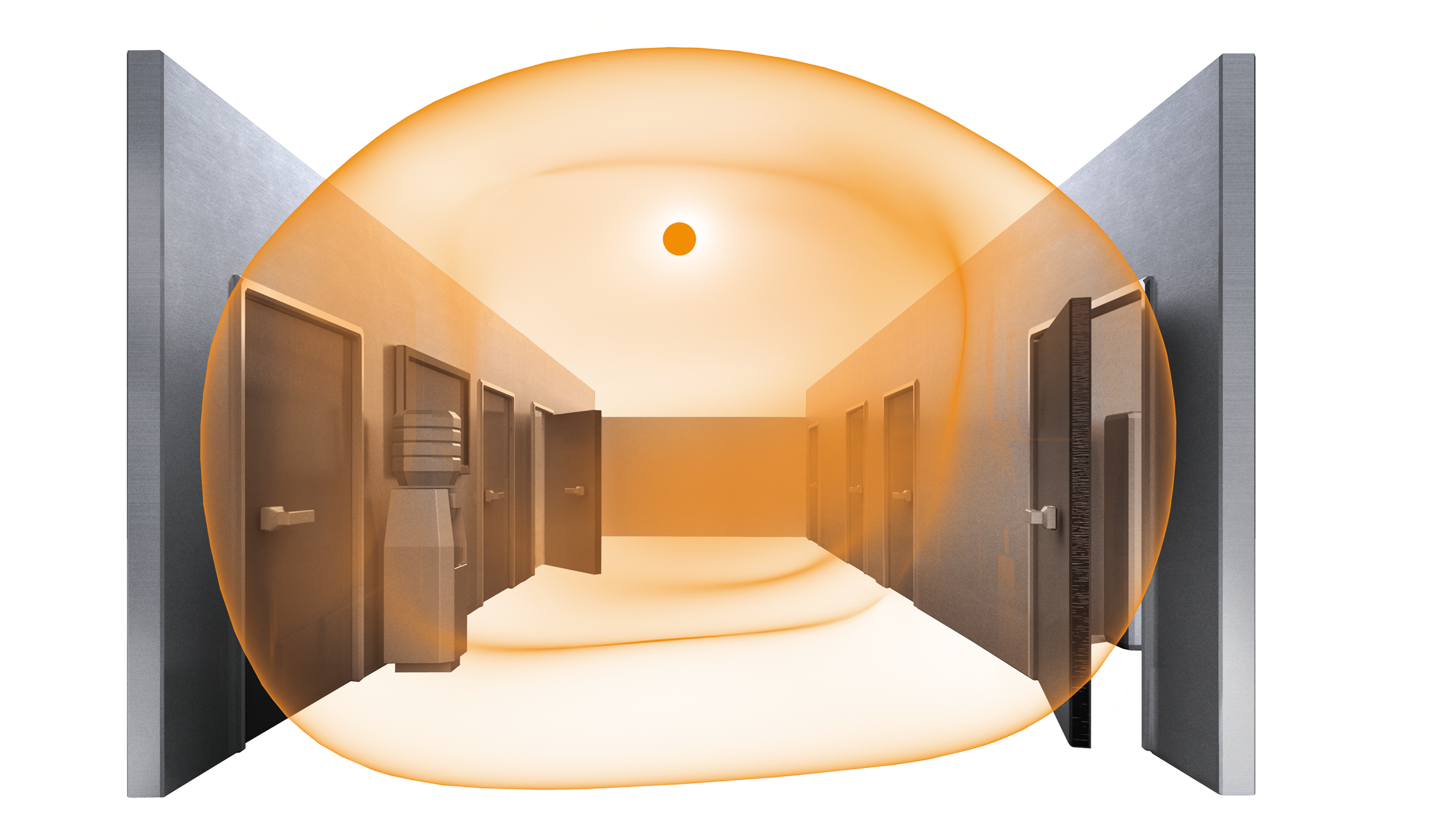

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
