Steinel RS PRO P3 warm white

Steinel RS PRO P3 warm white

ELDAS® no. 941 000 289 · EAN-No. 4007841 056131

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel

Steinel RS PRO P3 warm white

ELDAS® no. 941 000 289

EAN-No. 4007841 056131

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Light colour

3000K Warm white 4000K Neutral white

Diameter

Ø320mm Ø400mm Ø280mm

Colour

white Weiß

Today, indoor lighting solutions are in demand that not only provide the last word in convenience and intelligent technology but also integrate harmoniously into the particular interior design. We have found the perfect answer in the RS PRO P series. Timeless design and very easy installation combined with pioneering technology and maximum efficiency. Because with the virtually invisible 360-degree high-frequency sensor always switching the 17,8 W LED lighting system ON reliably, the indoor light is a real bonus for any building, both from the aspect of aesthetic appeal as well as cost-efficiency. The versions without sensor are quickly and easily interconnected via cable.

Dimensions

Dimensions Ø × H 400 x 142 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 17,8 W

Sensor technology

With motion detector No

Connectivity

Networking via Cable

Lighting technology

Measured luminous flux 360° 2081 lm
Colour temperature 3000 K
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L80B10

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class II
Ambient temperature from -10 up to 40 °C
Housing material Plastic
Cover material Plastic, opal
Mounting location ceiling wall
Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA
EPREL category Surrounded product with integrated light source

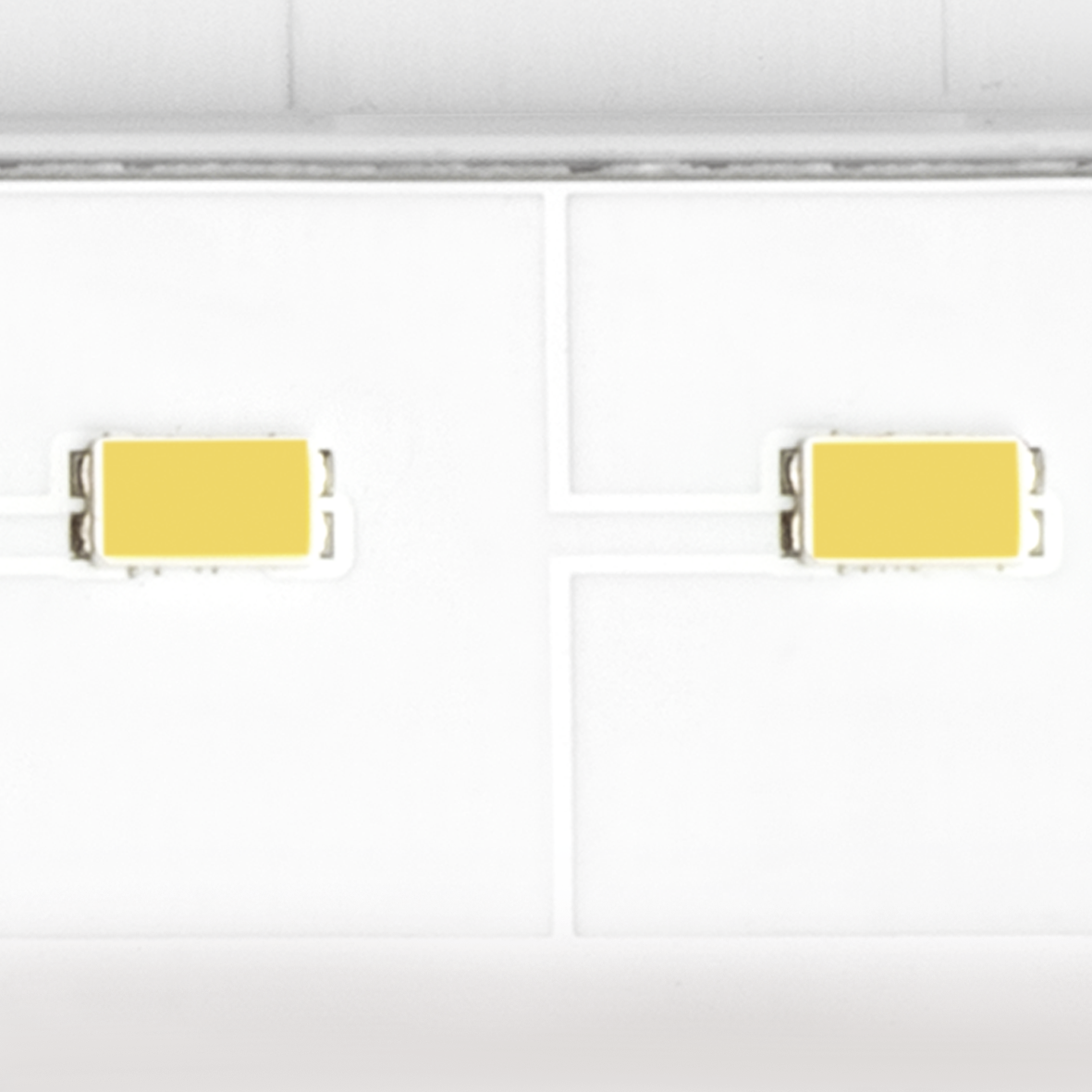

Including STEINEL LED system

Intelligent soft light start

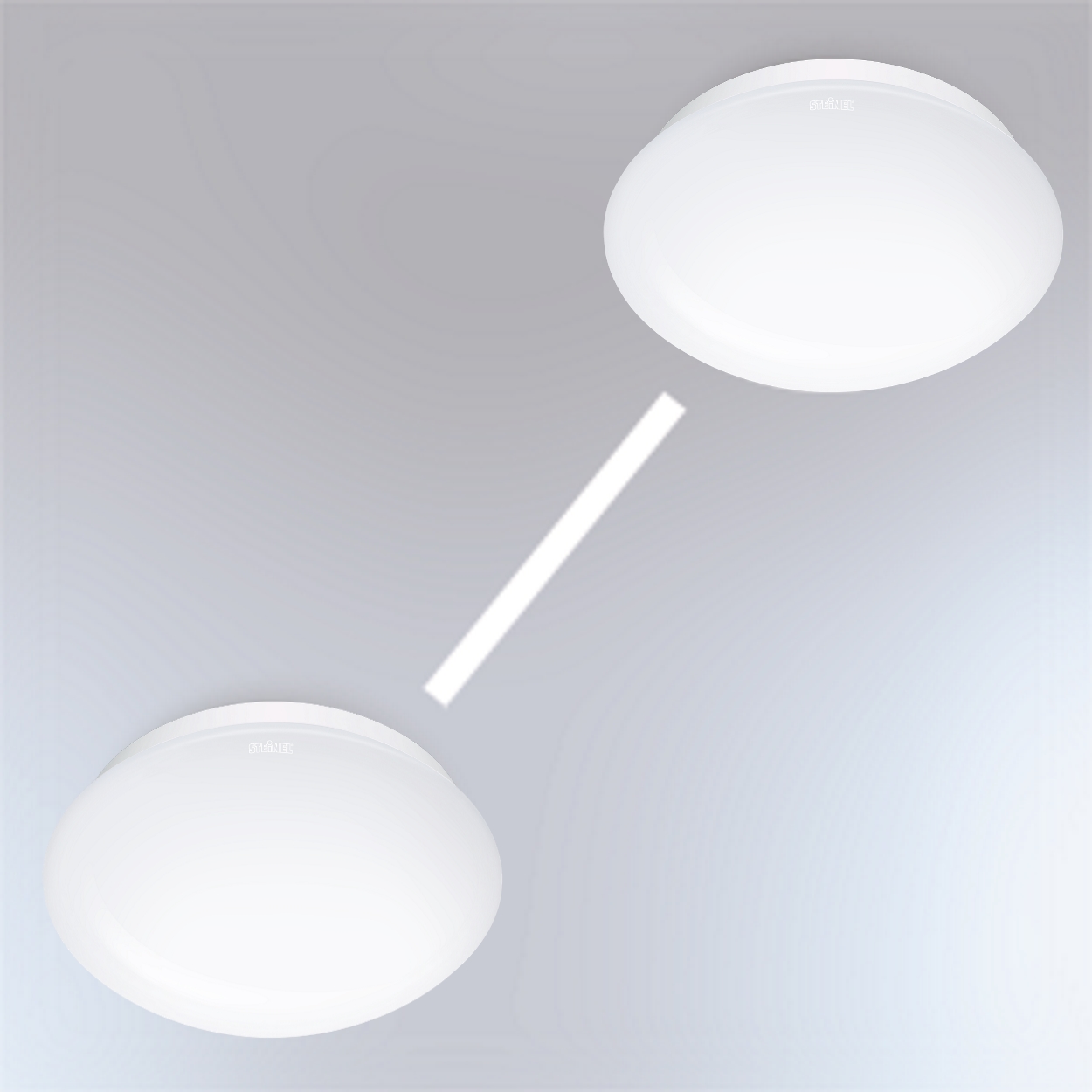

Interconnectable by cable (maximum of 10 units)

Technical drawing

Lichtverteilungskurve

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
