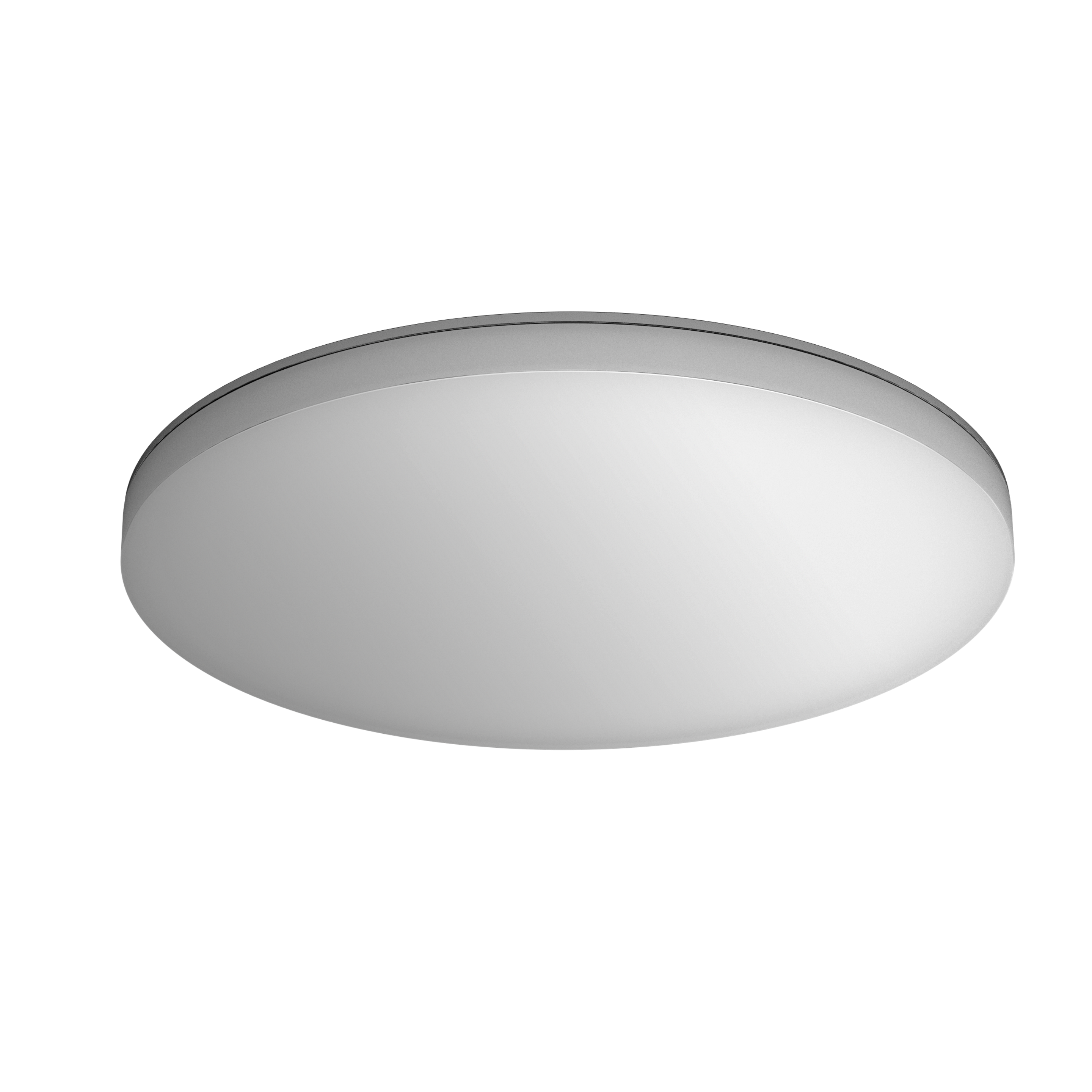

Steinel RS PRO R30 plus SC warm white

Steinel RS PRO R30 plus SC warm white

ELDAS® no. 941 002 669 · EAN-No. 4007841 067793

Steinel Bluetooth Mesh

Steinel RS PRO R30 plus SC warm white

ELDAS® no. 941 002 669

EAN-No. 4007841 067793

Price: Please log in to see prices

Dimensions

Light colour

Warm white (3000K) Neutral white (4000K)

Version

Plus Basic

Packaging unit

1 piece 5 pieces

Connected lighting perfection: wirelessly adjustable via app, the RS PRO R-series plus with 4 light functions (basic light, backlight, dimmable main light and optional emergency light) is the most intelligent and user-friendly digital sensor-switched light system on the market – and truly impresses planners, electricians and building owners alike. The RS PRO R series plus skilfully combines clean-cut, universally suitable design and optimum illumination with extremely easy installation and interconnection via app. Thanks to modern Bluetooth technology as well as update and IoT capability, the digital sensor-switched light system is absolutely future-proof. And impresses with high-precision HF sensor, outstanding efficiency and perfectly even light distribution. With two enclosure designs (round/square) and five sizes, the RS PRO R-series plus provides the right solution for every taste and need with lighting up to a maximum of 3200 lumens – in neutral or warm white light. Basic and main light level are easy to set via smartphone. Optionally selectable via app, the backlight creates a particularly inviting lighting mood. The convenient neighbouring-group function ensures seamlessly efficient lighting at all times. In the event of a power failure, the optional emergency light module powered by rechargeable battery reliably provides sufficient light. Emergency lighting operation is alternatively possible via connection to central battery systems. Upshot: whether for new build or refurbishment – the RS PRO R series plus is by far the most comprehensive lighting solution of our time.

Dimensions

Dimensions Ø × H 420 x 55 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 23,7 W
Own consumption 0,3 W

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 10 m (79 m²)
Tangential range Ø 10 m (79 m²)
Mounting height 2,00 – 4,00 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Type of networking Master/master Master/slave
Networking via Bluetooth Mesh
Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 2813 lm
Colour temperature 3000 K
LED colour deviation SDCM3
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable

Lifetime

LED lifetime max. °C 55000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L80B50

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function detail LED Backlight
Base light function time 1-60 min
Main light adjustable 0 - 100 %
Functions Group parameterisation Manual ON / ON-OFF Neighbouring group function Backlight Orientation light Connection to central battery systems Adjustable fade time when switching on and off Free selection of the light value in a luminaire group Encrypted communication Motions sensor Light sensor
Settings via Bluetooth
With remote control No
Twilight setting teach Yes
Base light function in percent 0 – 100 %
Base light function percent from 0 %

Housing & material

Impact resistance IK07
Protection class (IP) IP40
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material PC, opal
Mounting location ceiling wall
Application location Indoors
Mounting type Surface wiring
Material Plastic
Application room Indoors changing room corridor / aisle function room / ancillary room kitchenette stairwell
Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Including STEINEL LED system

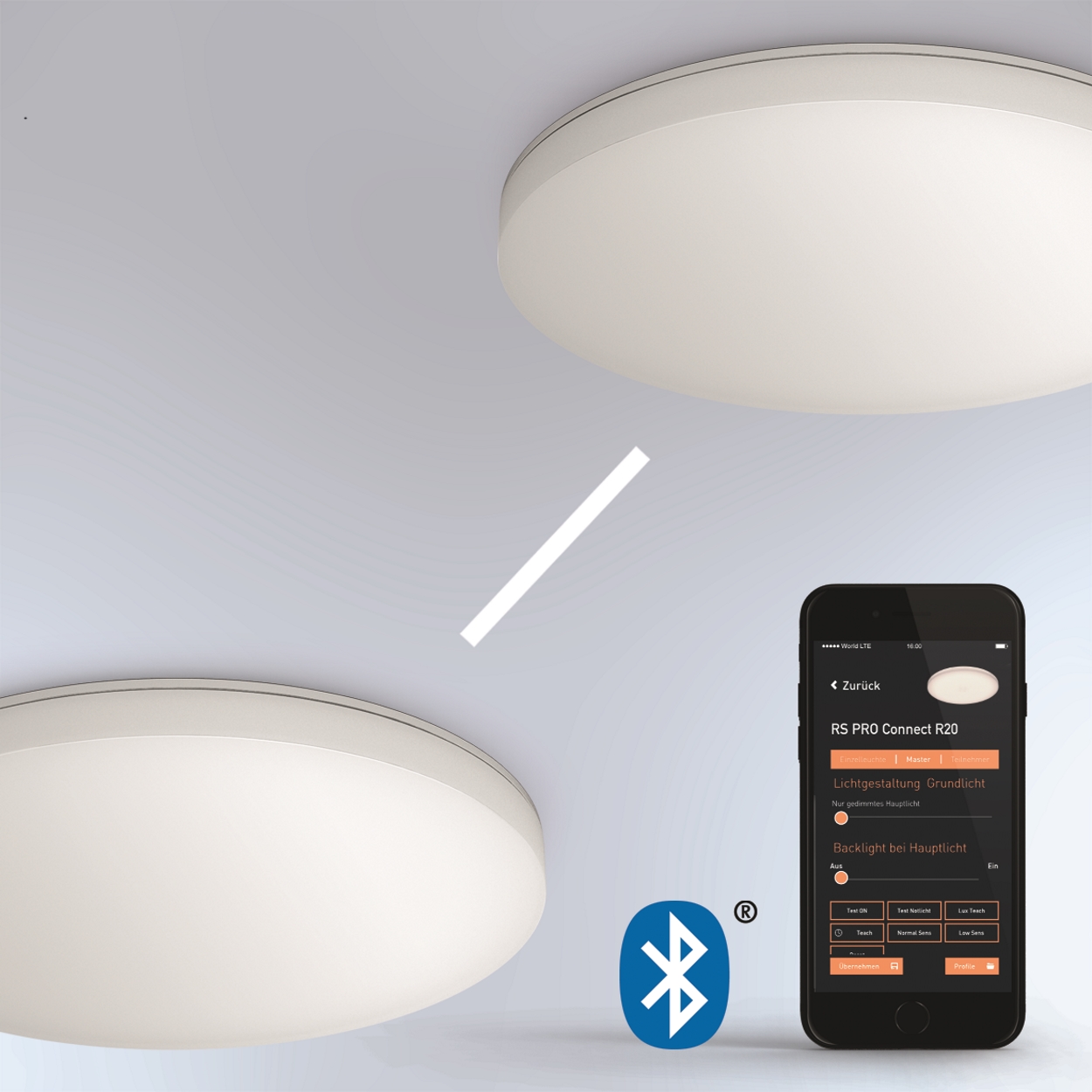

Interconnectable and adjustable via Bluetooth

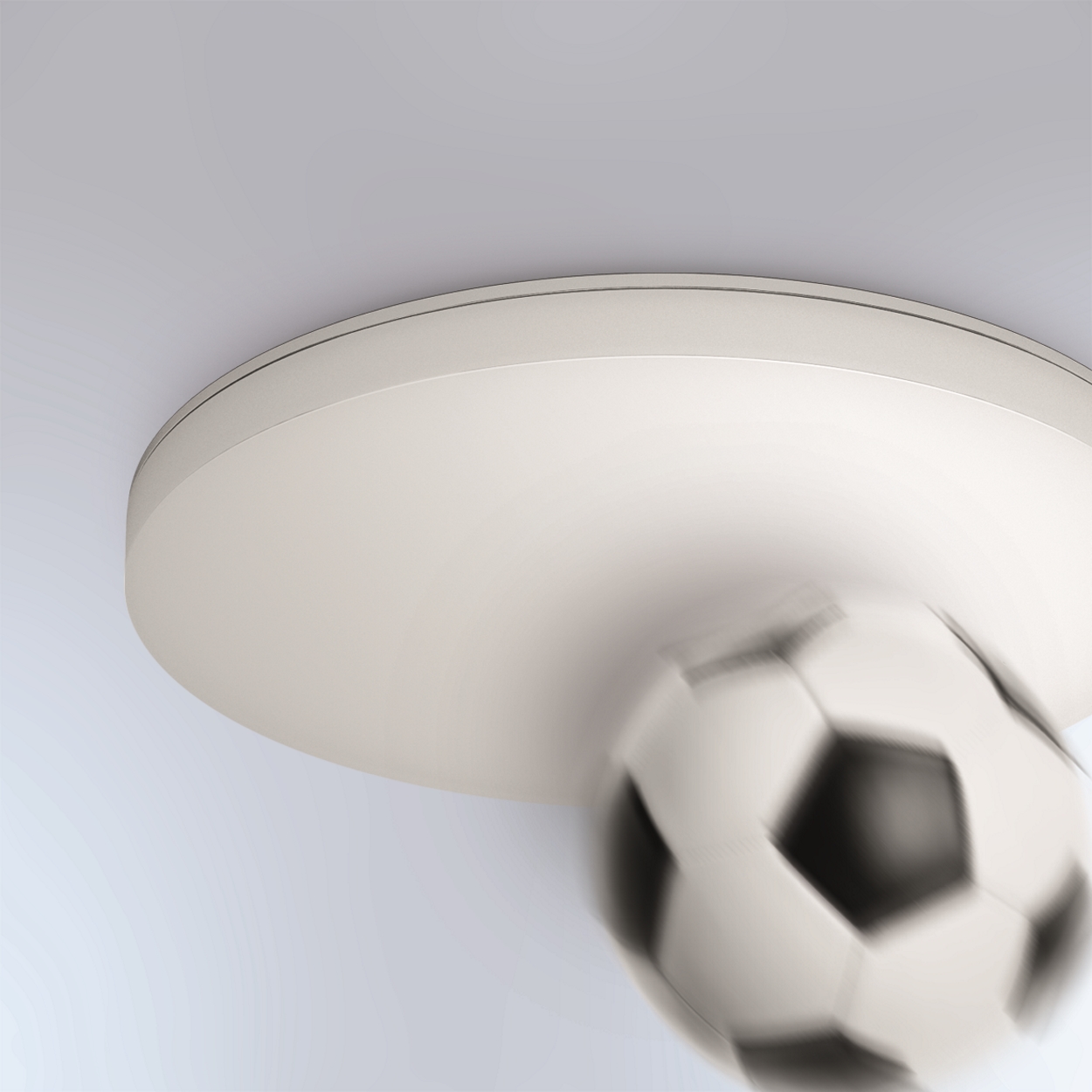

Impact-resistant material rated to IK07

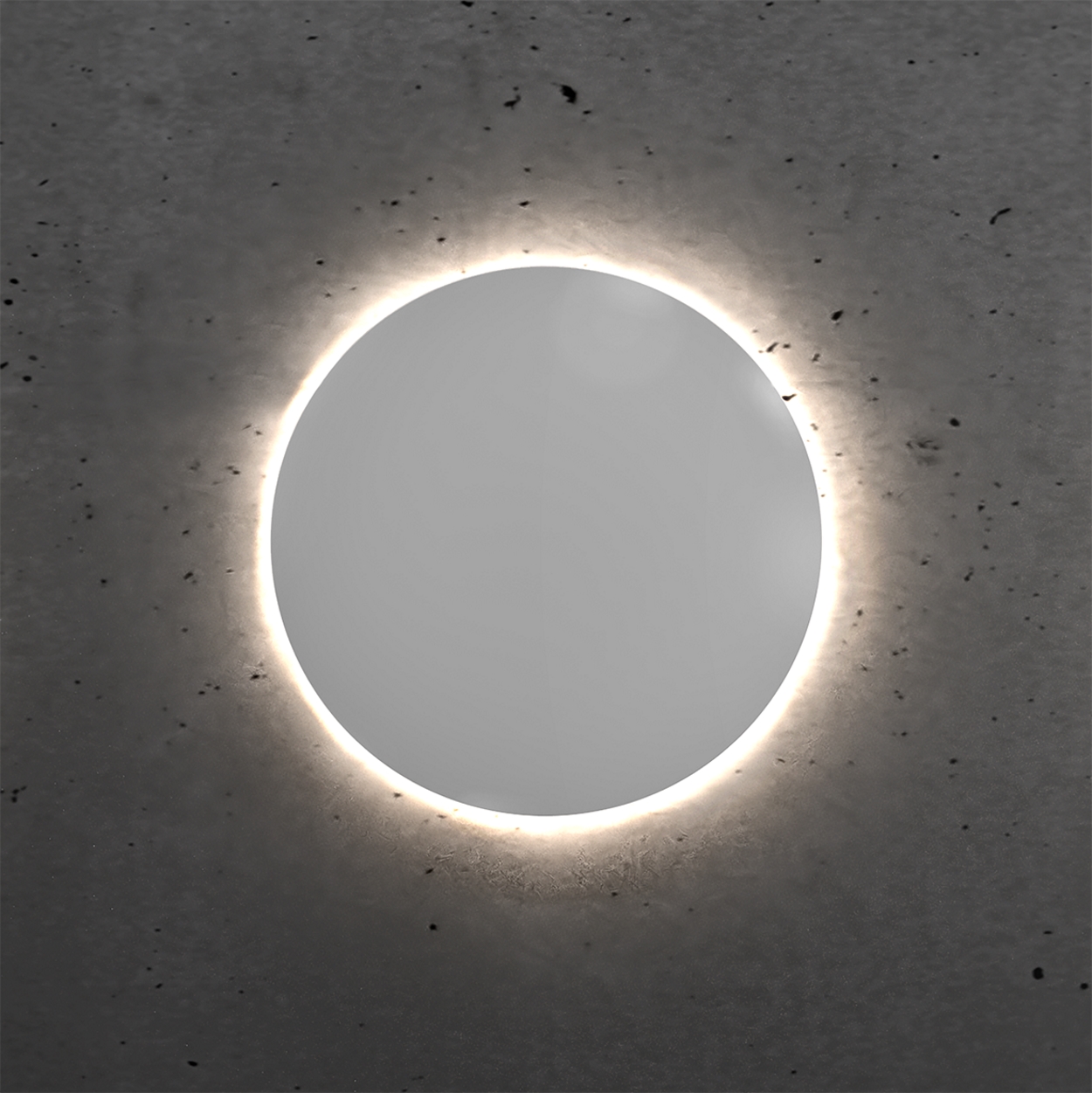

Backlight function

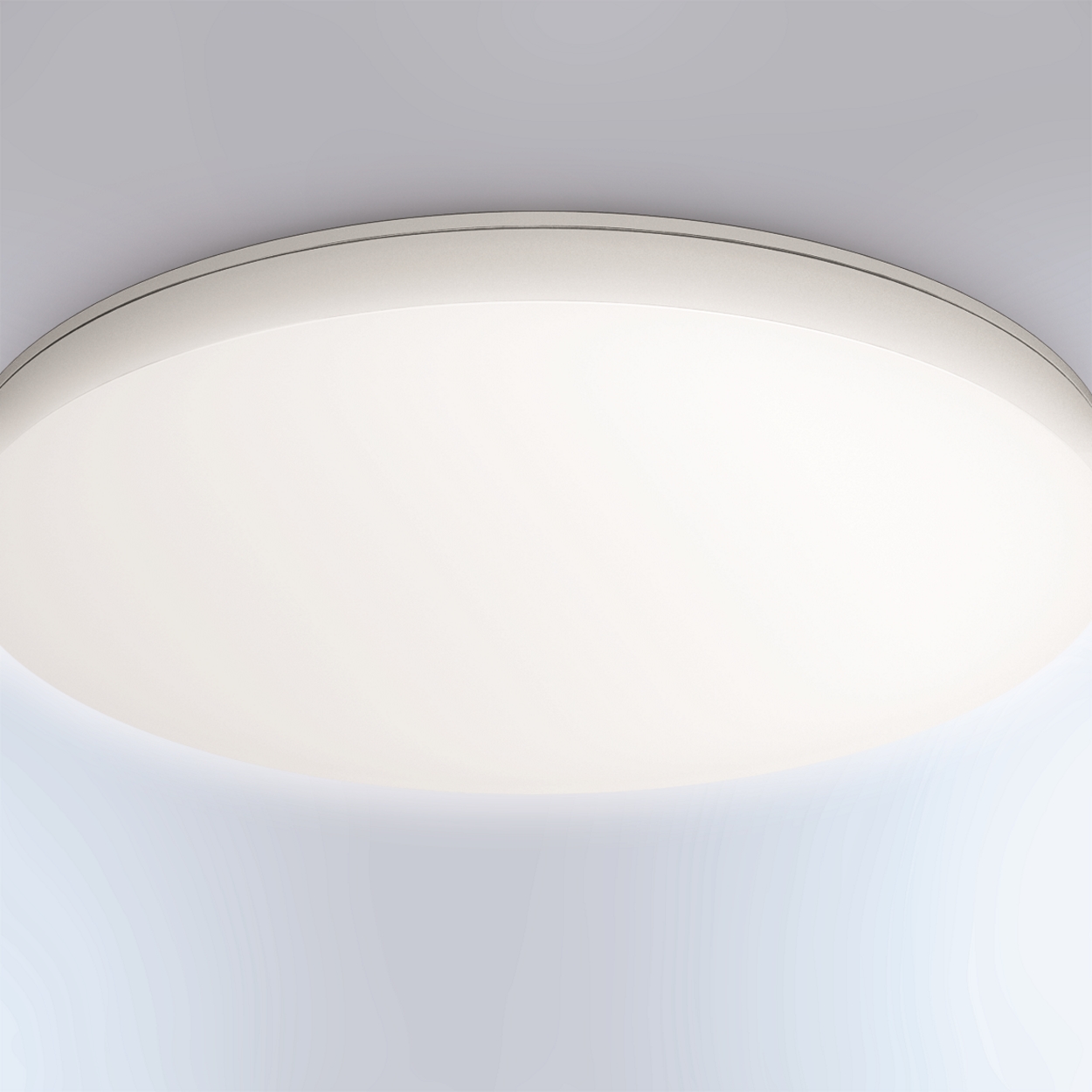

Optional basic lighting level 0 - 100 %

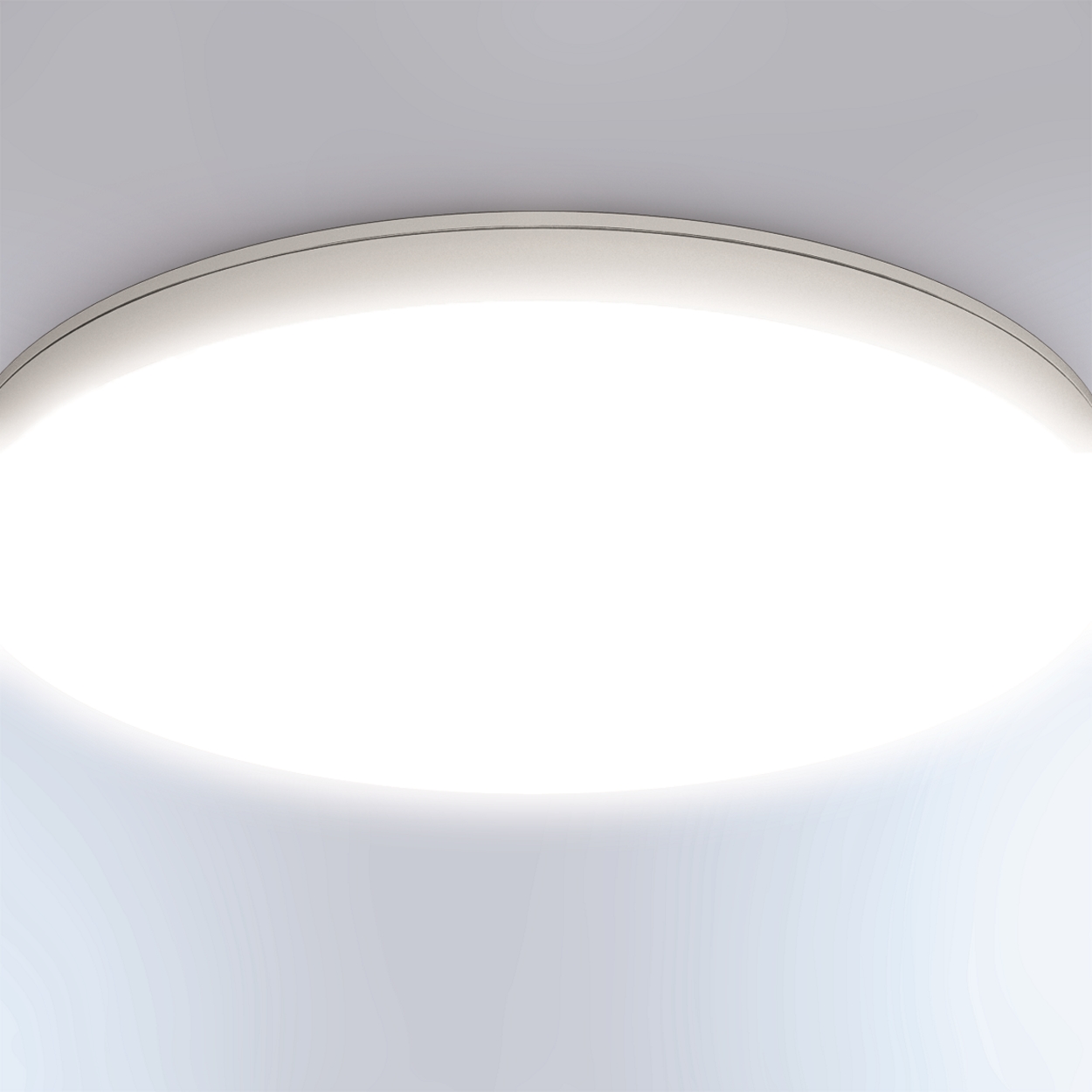

Adjustable main light brighness (0 - 100%)

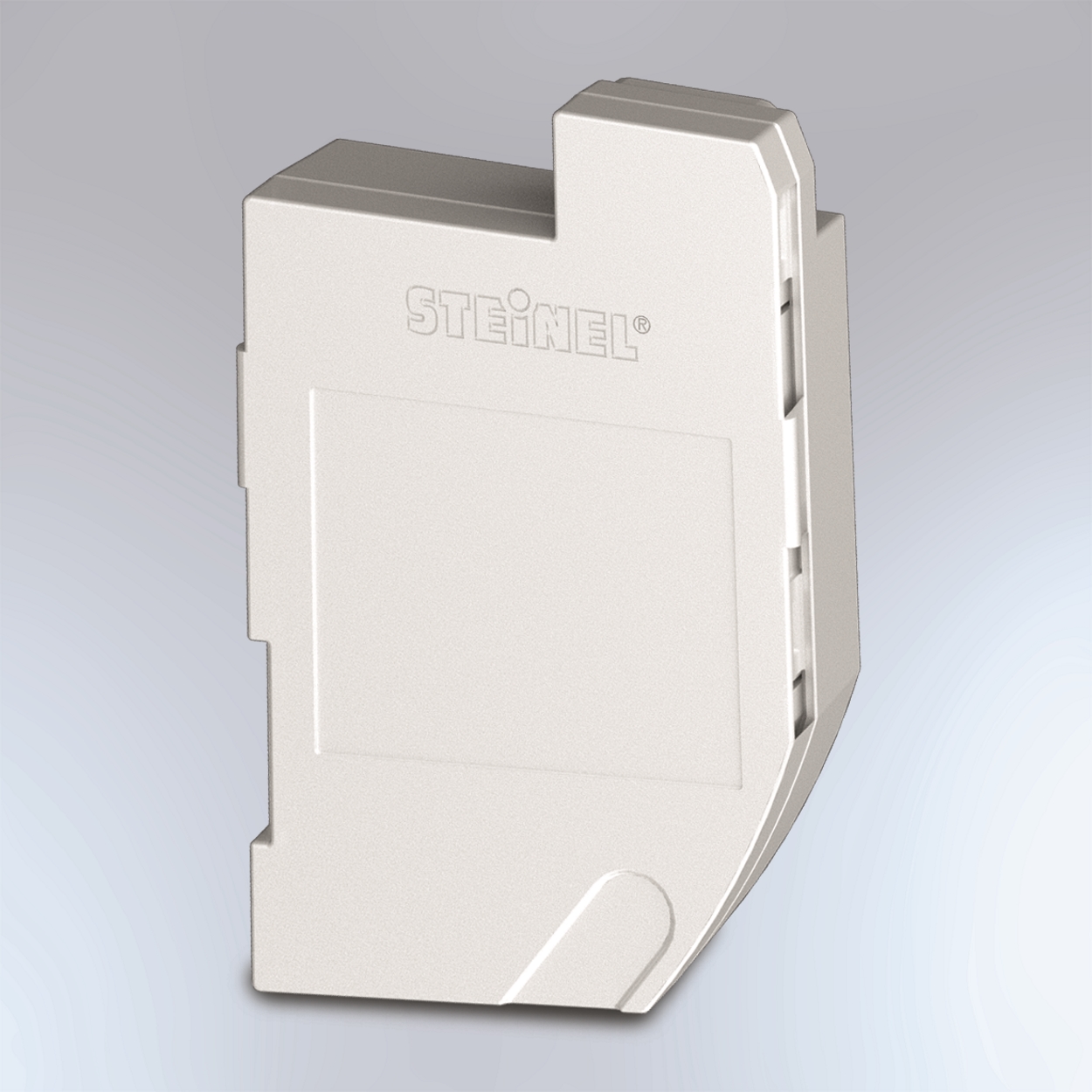

Optional emergency light

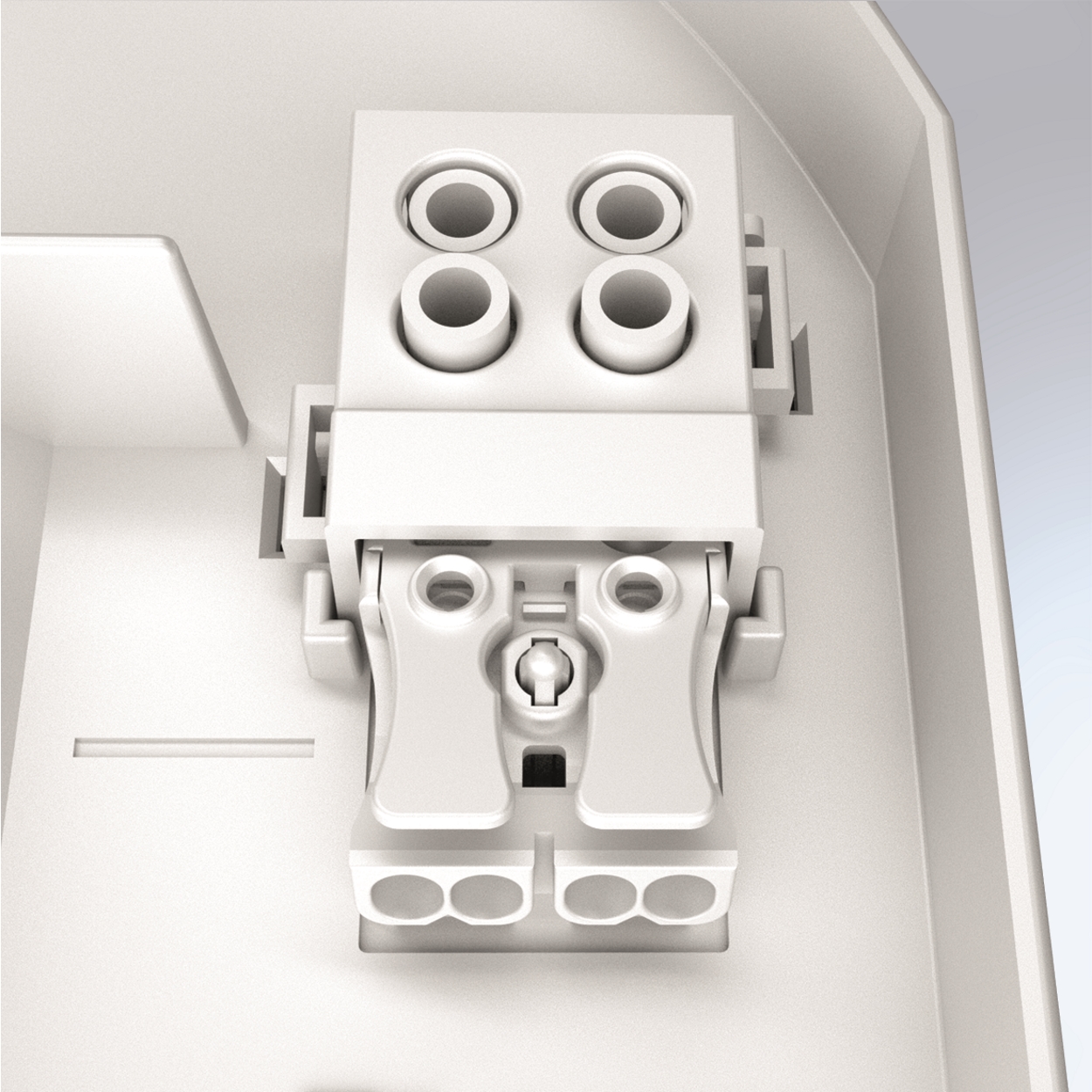

Modern plug-in terminals for straightforward installation

Metal shrouds for defining the direction of sensor detection

Technical drawing

Sensor detection range

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
