Steinel RS PRO S10 SC Multipack (5 pcs.) PC neutral white

Steinel RS PRO S10 SC Multipack (5 pcs.) PC neutral white

ELDAS® no. 941 349 409 · EAN-No. 4007841 081928

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel Bluetooth Mesh

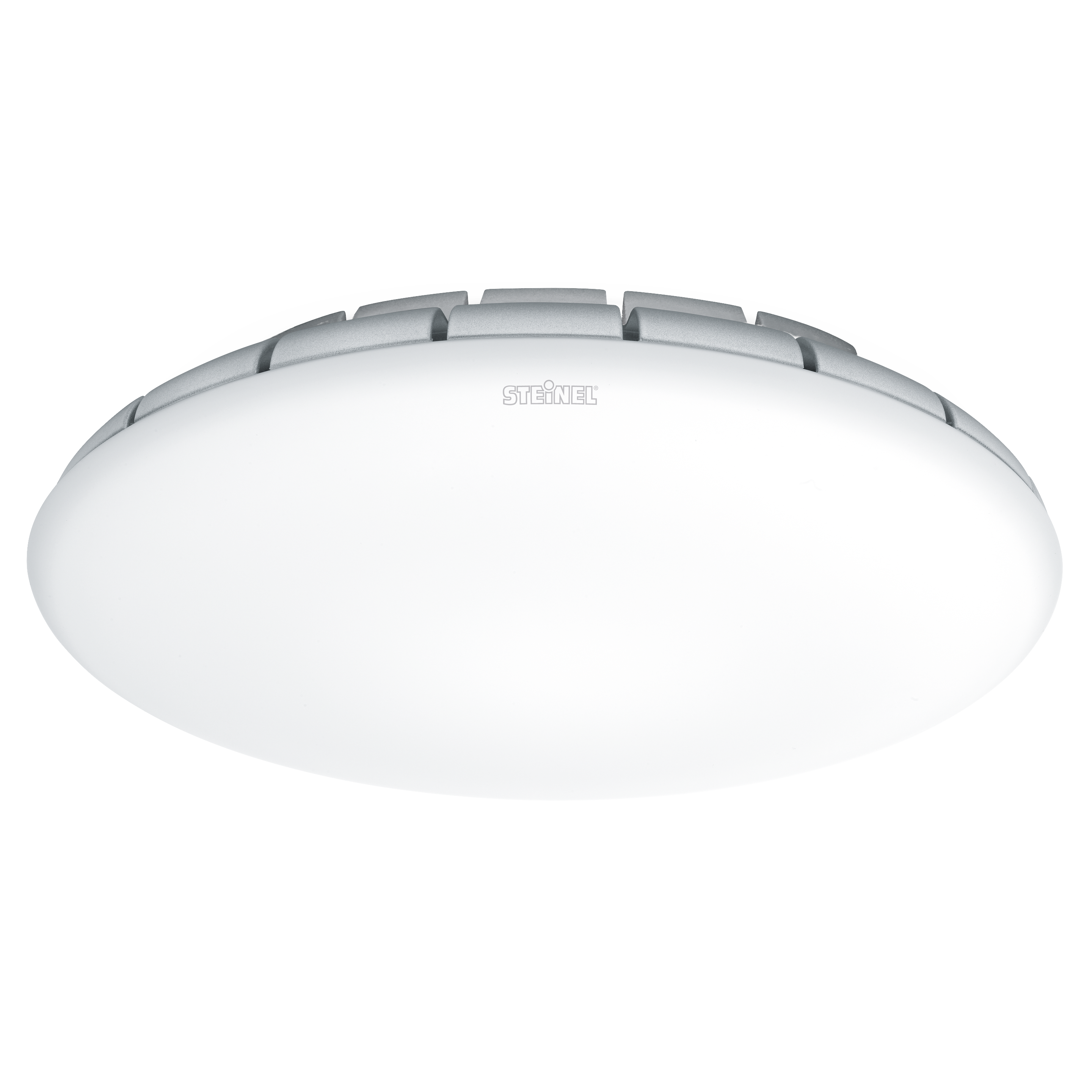

Steinel RS PRO S10 SC Multipack (5 pcs.) PC neutral white

ELDAS® no. 941 349 409

EAN-No. 4007841 081928

Price: Please log in to see prices

Light colour

3000K Warm white 4000K Neutral white

Size

Ø350mm - 25.8 W - S30 Ø300mm - 9.5 W - S10 Ø300mm - 15.7 W - S20

Packaging unit

1 piece 5 pieces

Colour

Silver white

It is flat, puristic and perfectly shaped all round. It is intelligent, energy-efficient, a shining example and equipped with everything that is technically feasible today: 9,1 W STEINEL LED light system for instantaneous and power-saving light generation, no unintentional switching off ,light running ahead thanks to neighbouring group function, aluminium cooling fins and long service life. The high-frequency sensor detects 360°. With the Bluetooth Mesh radio connection, luminaire groups can be formed wirelessly and effortlessly. Conclusion: the RS PRO S series is more than just a lighting evolution, it is a revolution.

Dimensions

Dimensions Ø × H 300 x 71 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9,1 W
Own consumption 0,38 W

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Electronic scalability Yes
Radial range Ø 8 m (50 m²)
Tangential range Ø 8 m (50 m²)
Mounting height 2 – 4 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Networking via Bluetooth Mesh
Slave mode adjustable Yes

Lighting technology

Colour temperature 4000 K
LED colour deviation SDCM3
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function detail LED effect light
Base light function time 1-60 min
Main light adjustable Yes
Functions Motions sensor Adjustable fade time when switching on and off DIM function Free selection of the light value in a luminaire group Group parameterisation Semi-/fully automatic Light sensor Neighbouring group function Normal / test mode Orientation light Presence detector logic Encrypted communication
Settings via App Bluetooth Mesh
Twilight setting teach Yes
Base light function in percent 7 – 100 %
Base light function percent from 7 %

Housing & material

Impact resistance IK07
Protection class (IP) IP20
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material PC, opal
Mounting location ceiling wall
Application location Indoors
Mounting type Surface wiring
Application room Indoors corridor / aisle function room / ancillary room multi-storey / underground car park reception / lobby
Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL category Surrounded product with integrated light source

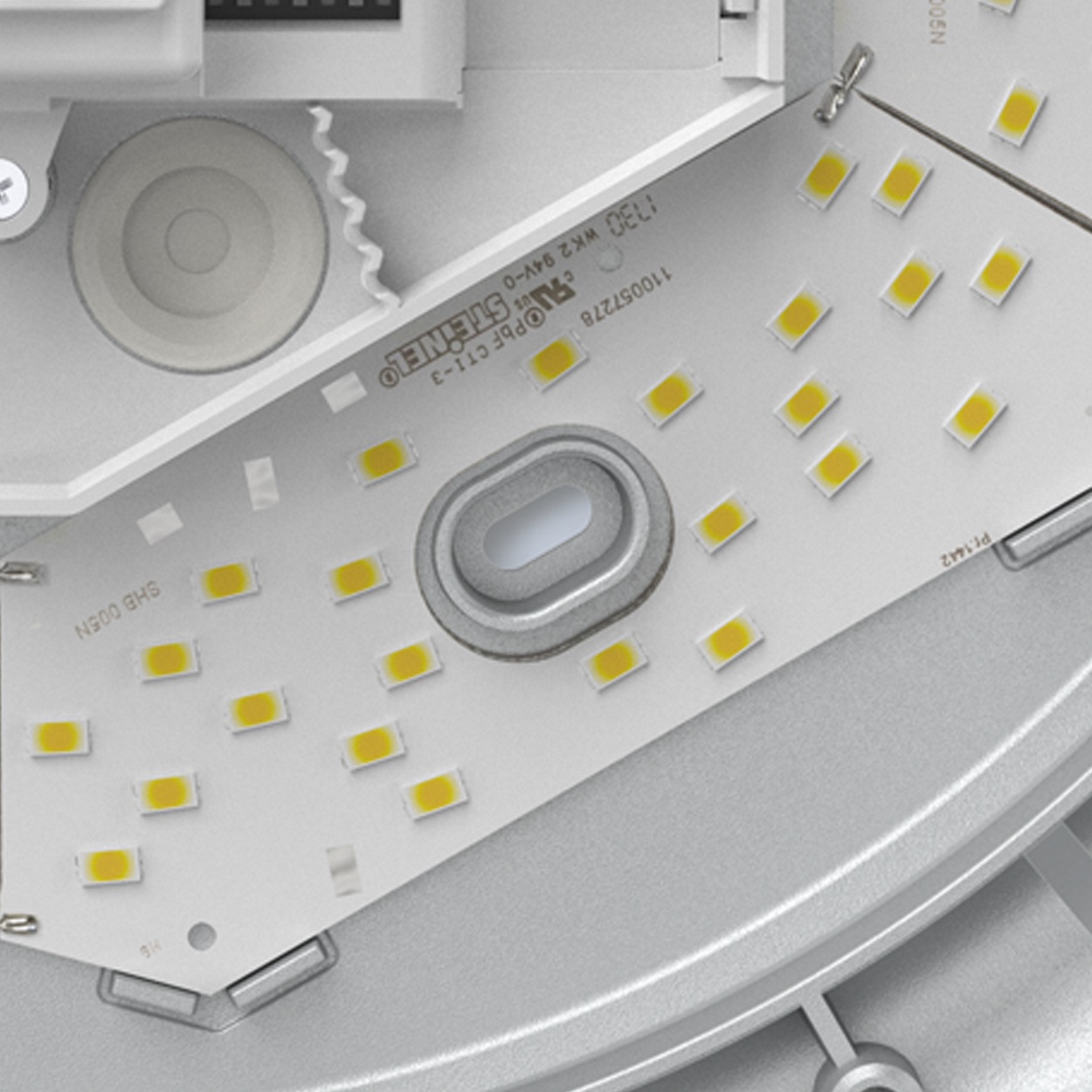

Including STEINEL LED system

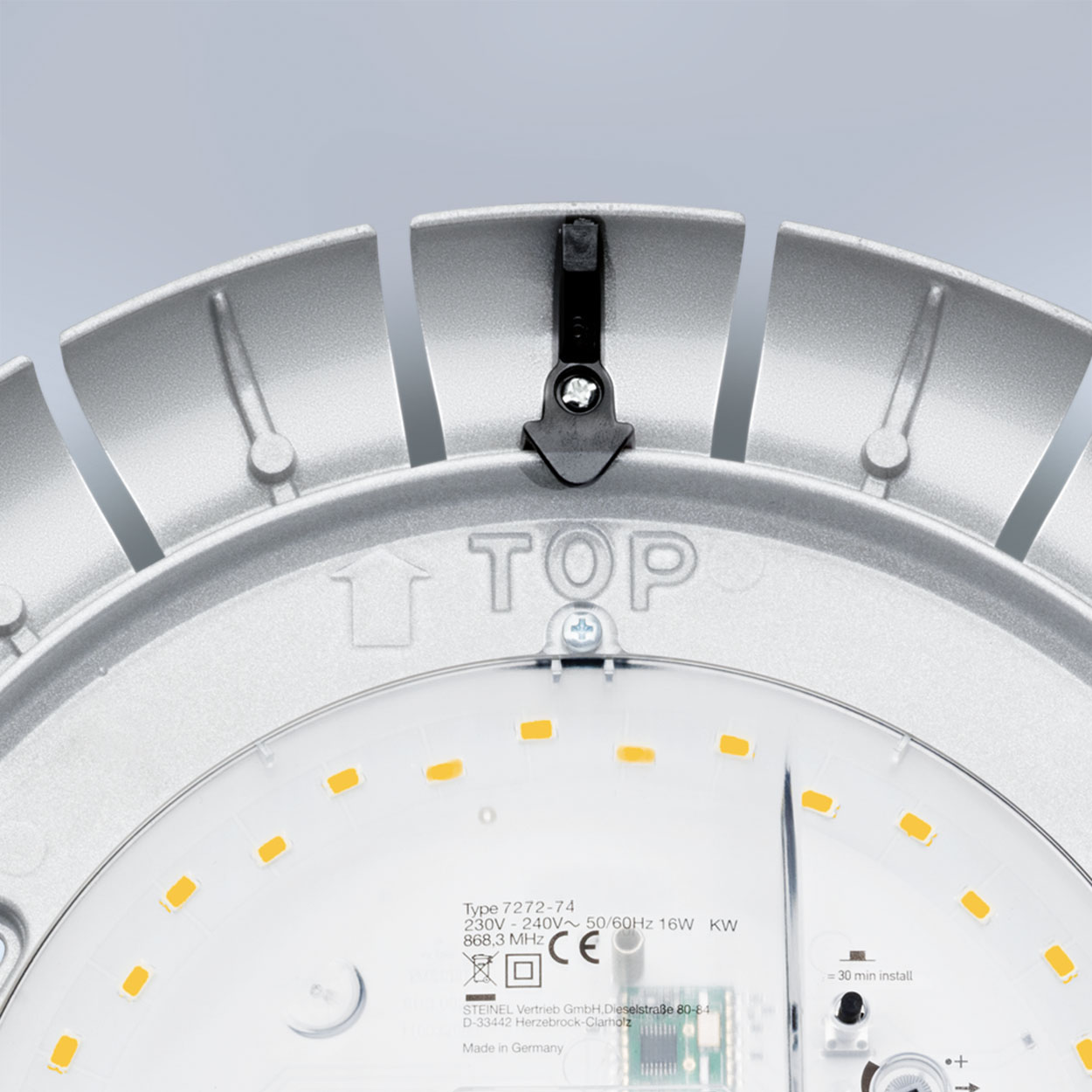

Intelligent LED cooling system

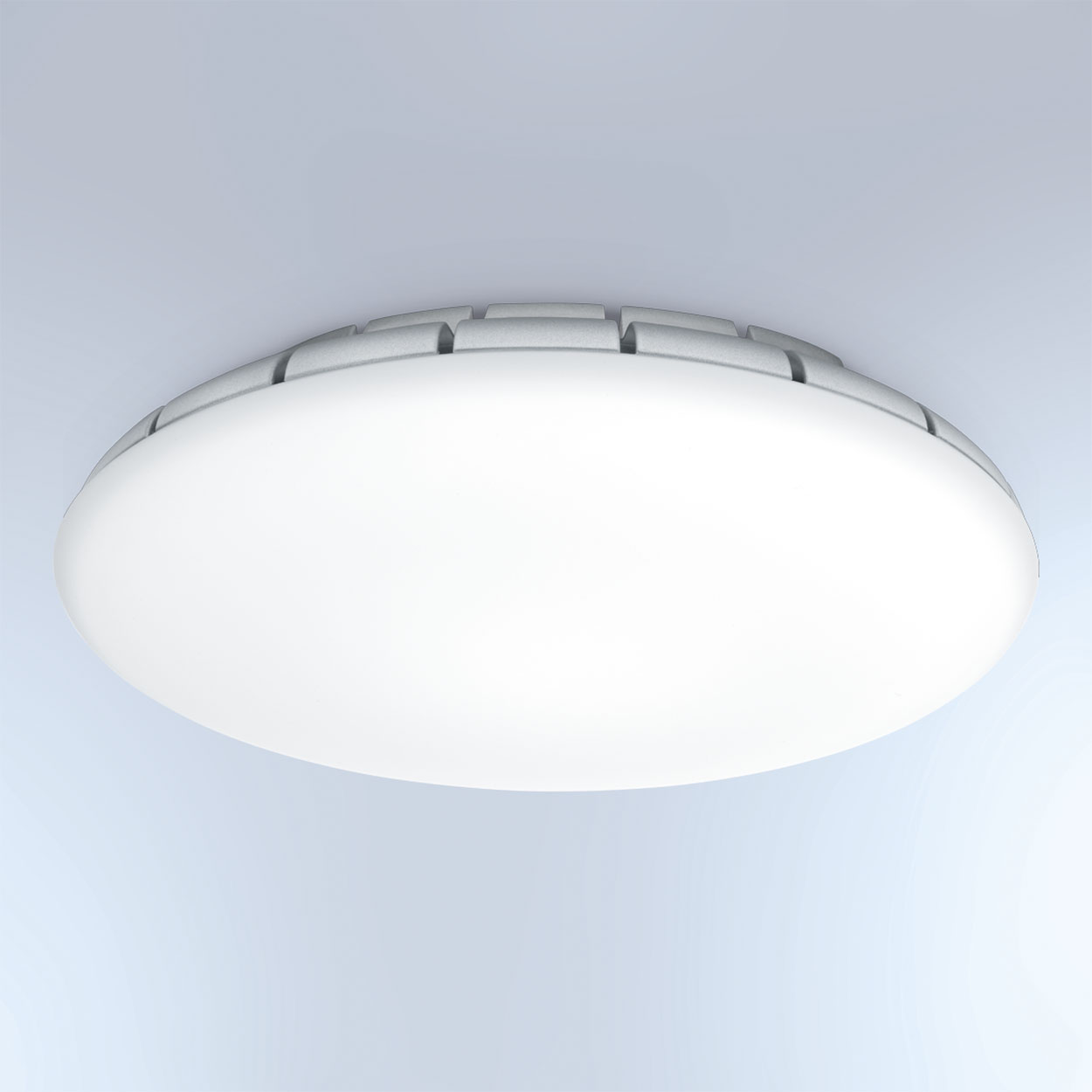

Optional basic lighting level 10 %

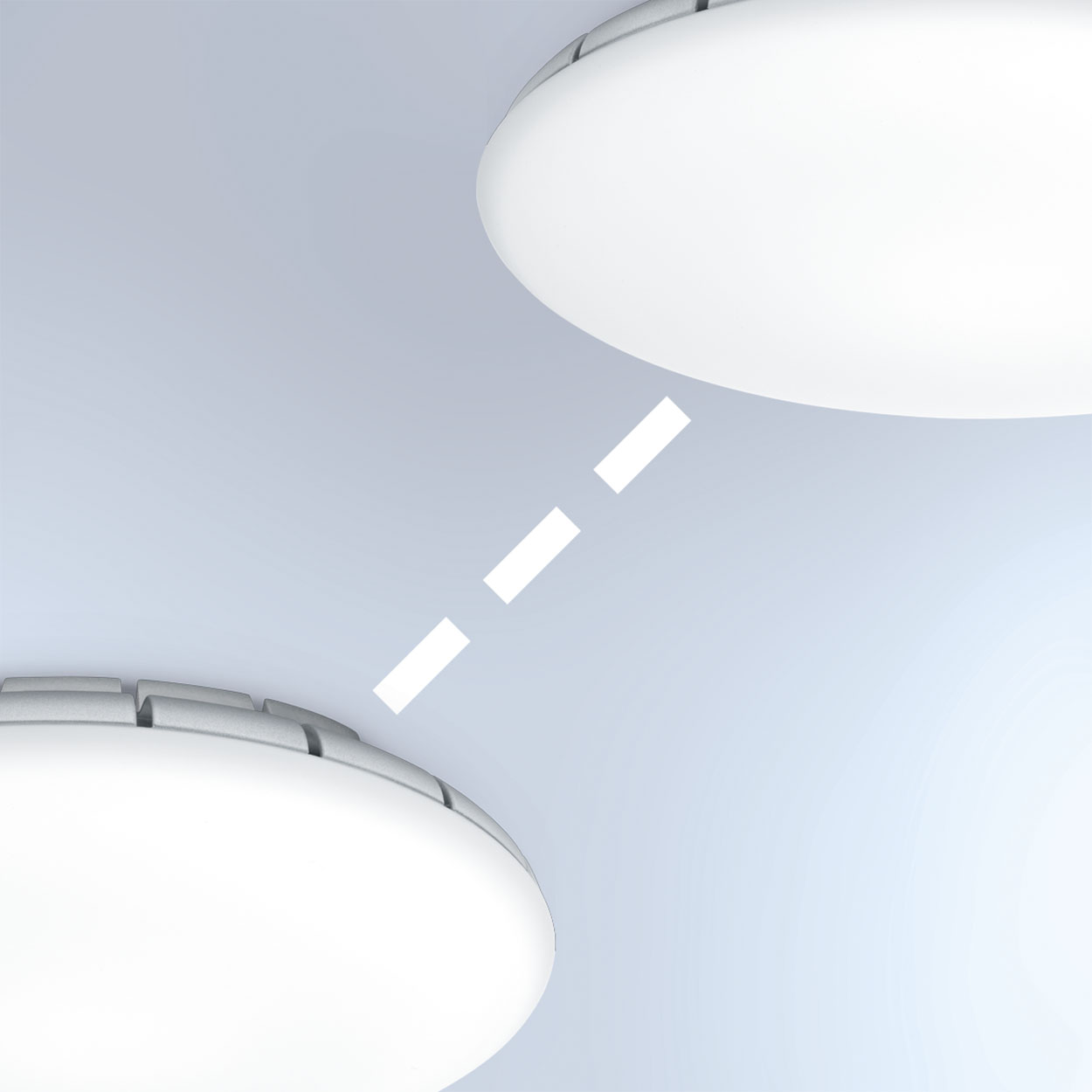

Interconnectable and adjustable via Bluetooth

High-quality aluminium

Technical drawing

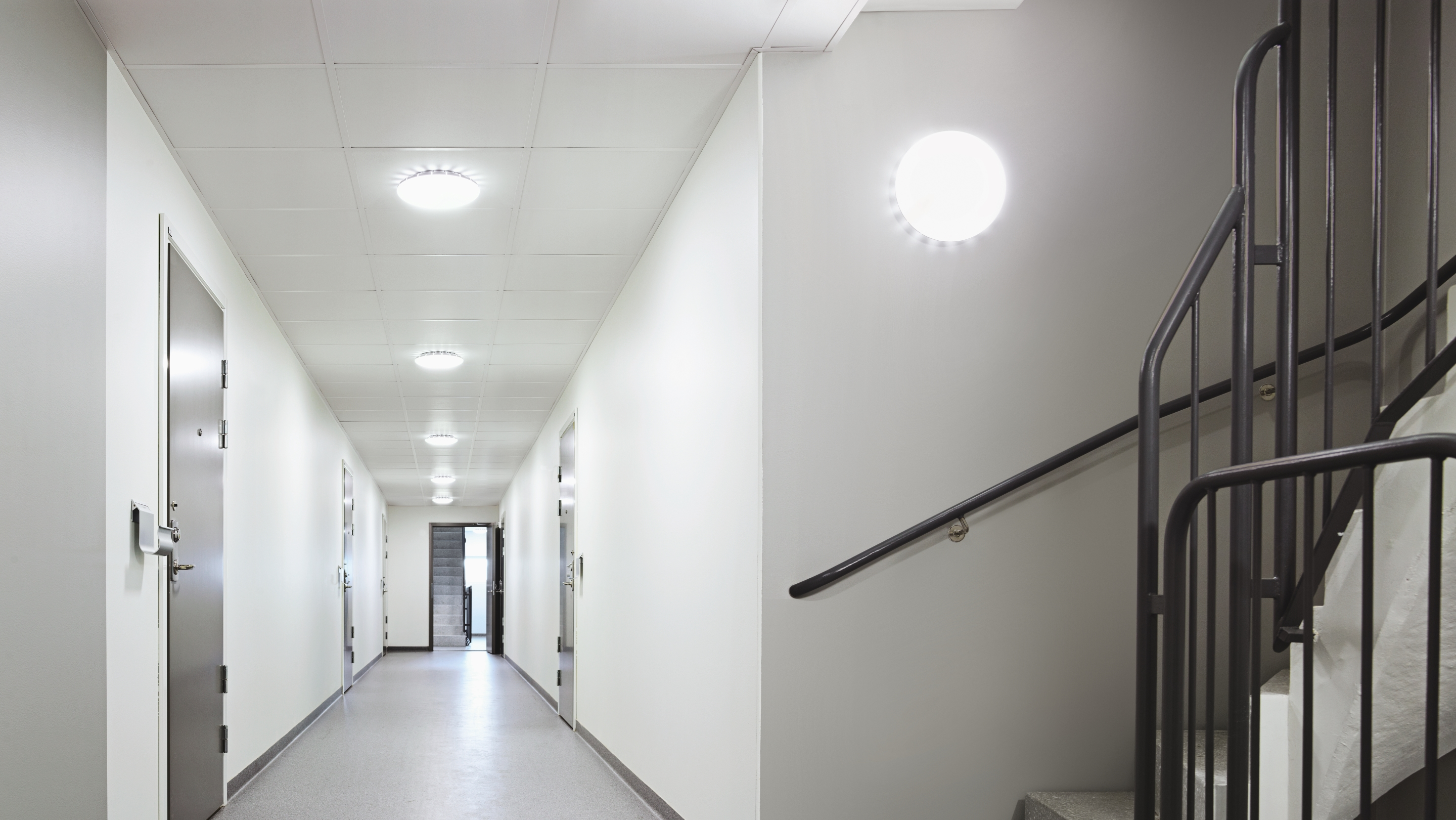

Sensor detection range

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
