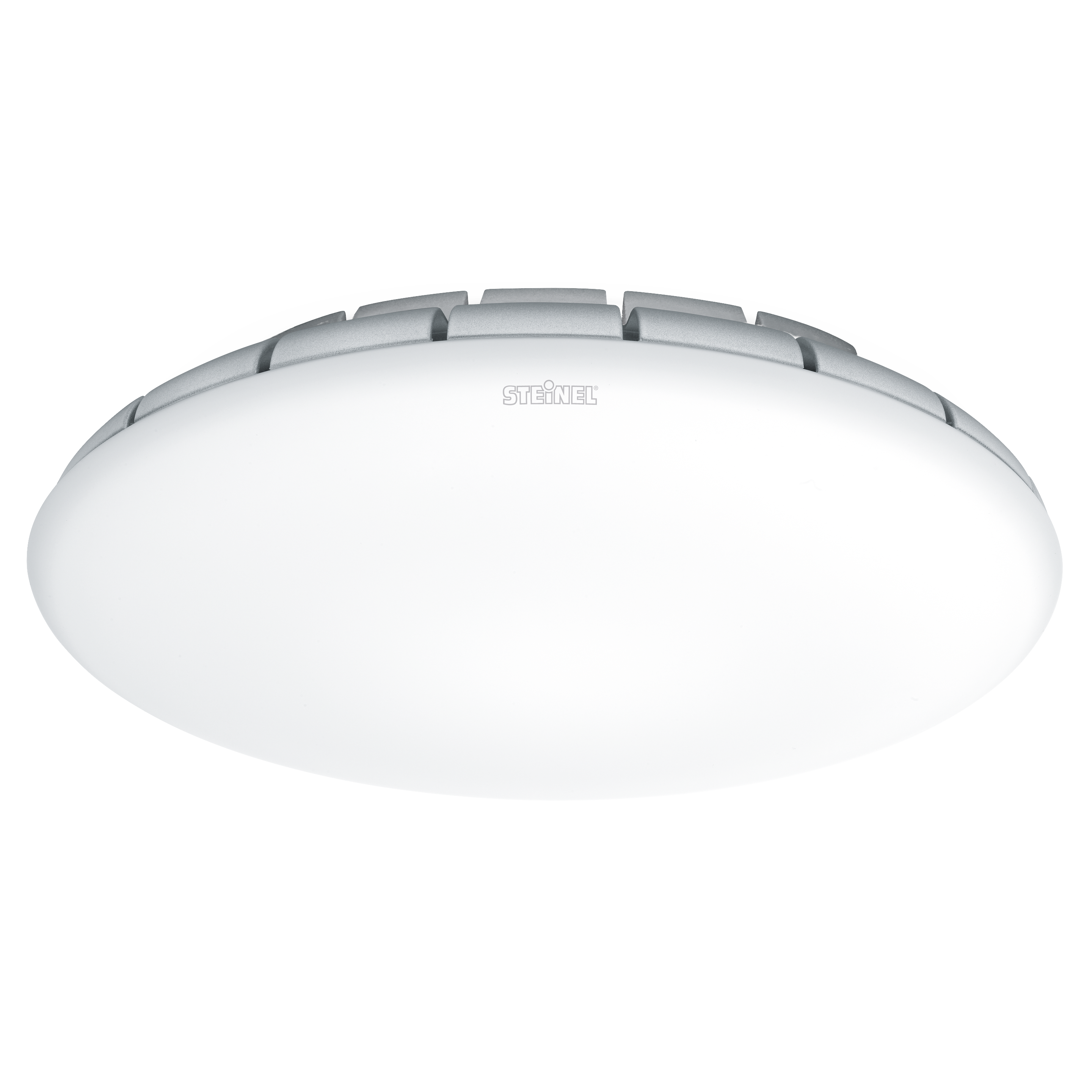

Steinel RS PRO S10 SC PC warm white

Round sensor light for corridors, lobbies and car parks. Compact, Bluetooth Mesh networked.

ELDAS® no. 941 004 019

EAN-No. 4007841 081096

Price: Please log in to see prices

Dimensions Ø × H

300 x 71 mm 350 x 83 mm

Colour temperature

3000 K 4000 K

Protection class (IP)

IP20 IP65

Packaging unit

1 piece 5 pieces

It is flat, puristic and perfectly shaped all round. It is intelligent, energy-efficient, a shining example and equipped with everything that is technically feasible today: 9,1 W STEINEL LED light system for instantaneous and power-saving light generation, no unintentional switching off ,light running ahead thanks to neighbouring group function, aluminium cooling fins and long service life. The high-frequency sensor detects 360°. With the Bluetooth Mesh radio connection, luminaire groups can be formed wirelessly and effortlessly. Conclusion: the RS PRO S series is more than just a lighting evolution, it is a revolution.

Variants

Packaging unit 1 piece

Dimensions

Dimensions Ø × H 300 x 71 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 9,1 W

Own consumption 0,38 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Electronic scalability Yes

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,0 – 4,0 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Slave mode adjustable Yes

Control technology Steinel Connect

Wireless networking via BT SIG Mesh

Networking via Bluetooth Mesh

Lighting technology

Colour temperature 3000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 min

Base light function Yes

Base light function detail LED effect light

Base light function time 1-60 min, all night

Main light adjustable Yes

Functions Motions sensor, Adjustable fade time when switching on and off, DIM function, Free selection of the light value in a luminaire group, Group parameterisation, Semi-/fully automatic, Light sensor, Neighbouring group function, Normal / test mode, Orientation light, Presence detector logic, Encrypted communication

Settings via App, Smartphone, Tablet, Bluetooth

Twilight setting teach Yes

Base light function in percent 7 – 100 %

Base light function percent from 7 %

Housing & material

Impact resistance IK07

Protection class II

Ambient temperature -20...+40 °C

Housing material Aluminium

Cover material Opal PC

Mounting location ceiling, wall

Application location Indoors

Mounting type Surface mounting

Application room Indoors, corridor / aisle, function room / ancillary room, multi-storey / underground car park, reception / lobby

Colour Silver

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL category Surrounded product with integrated light source

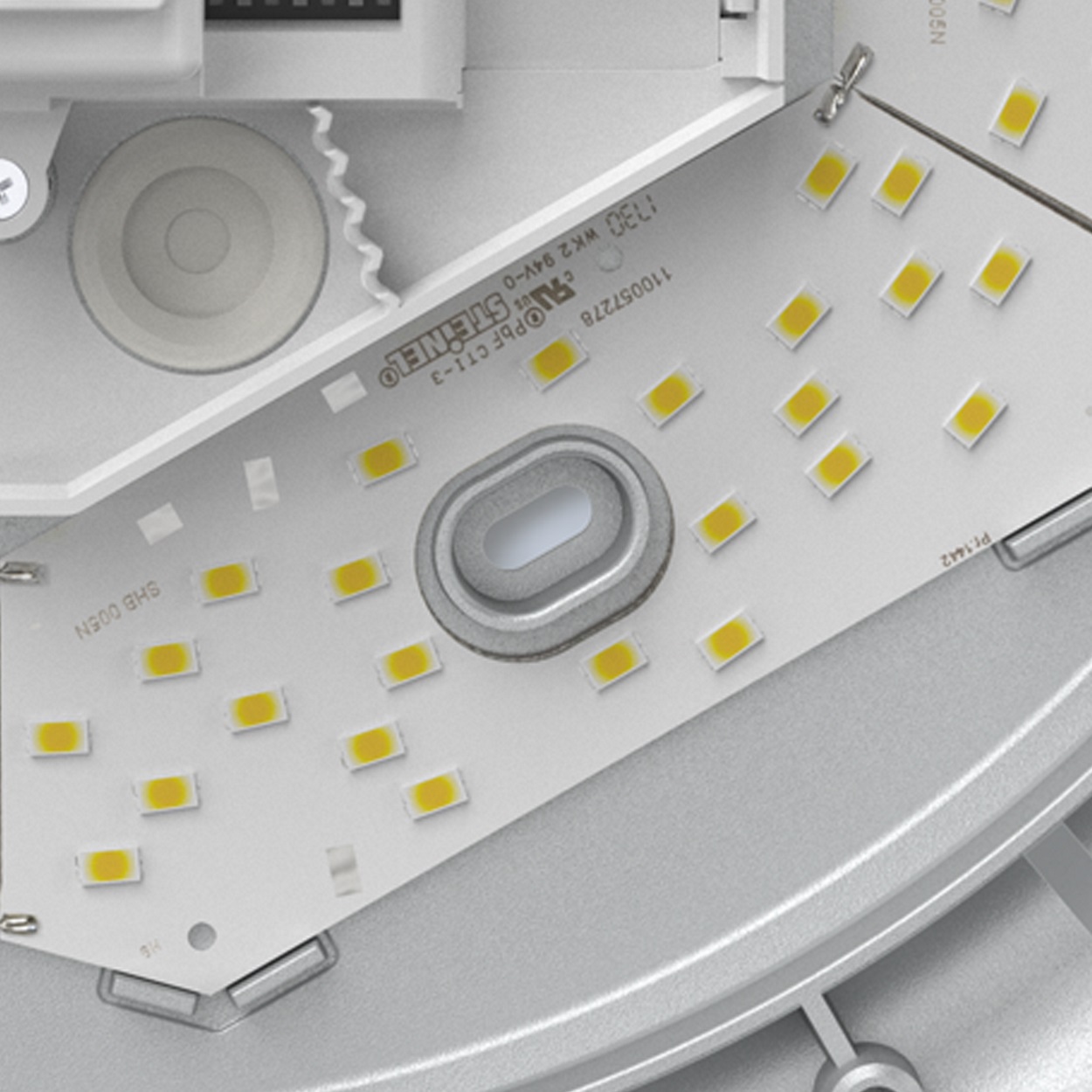

Including STEINEL LED system

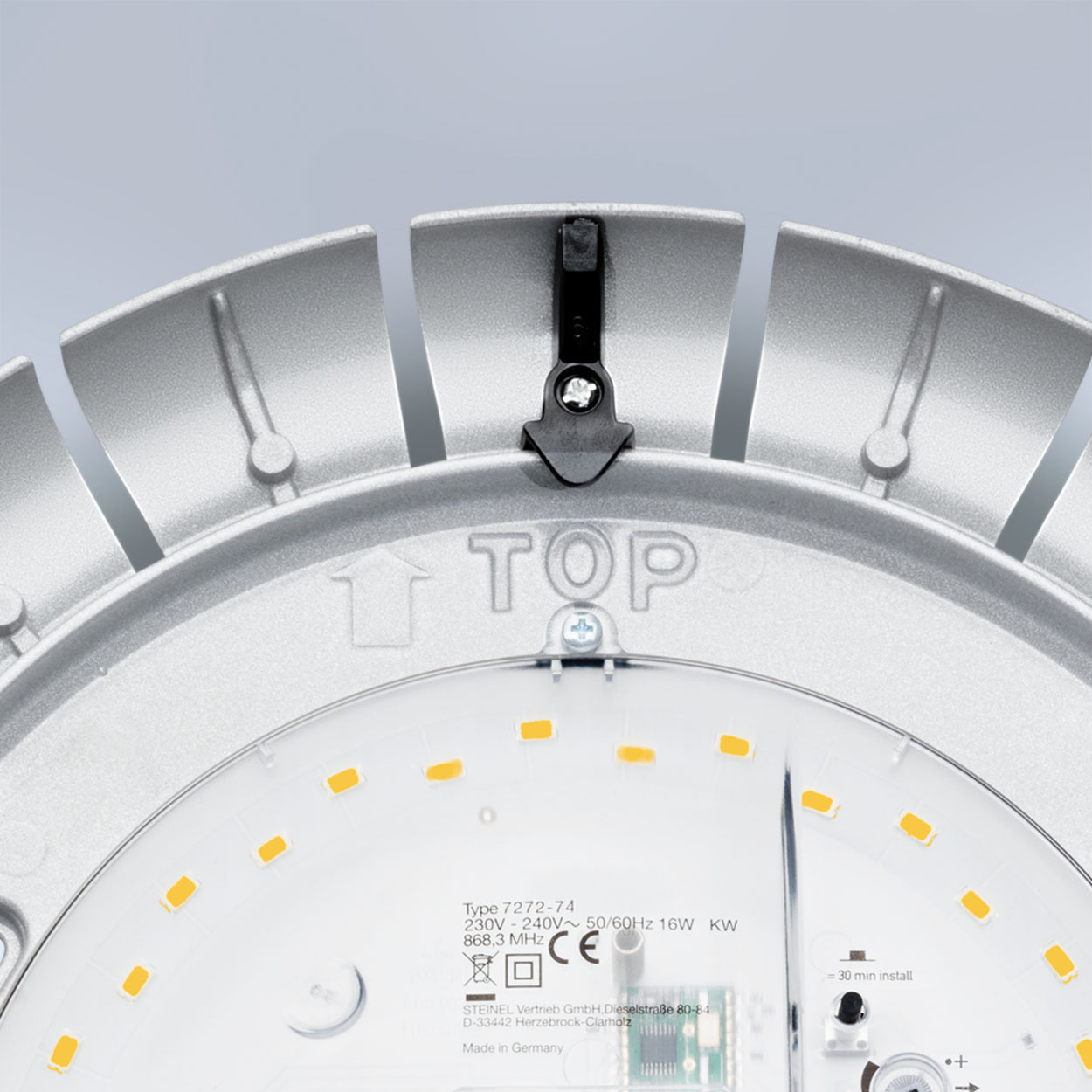

Intelligent LED cooling system

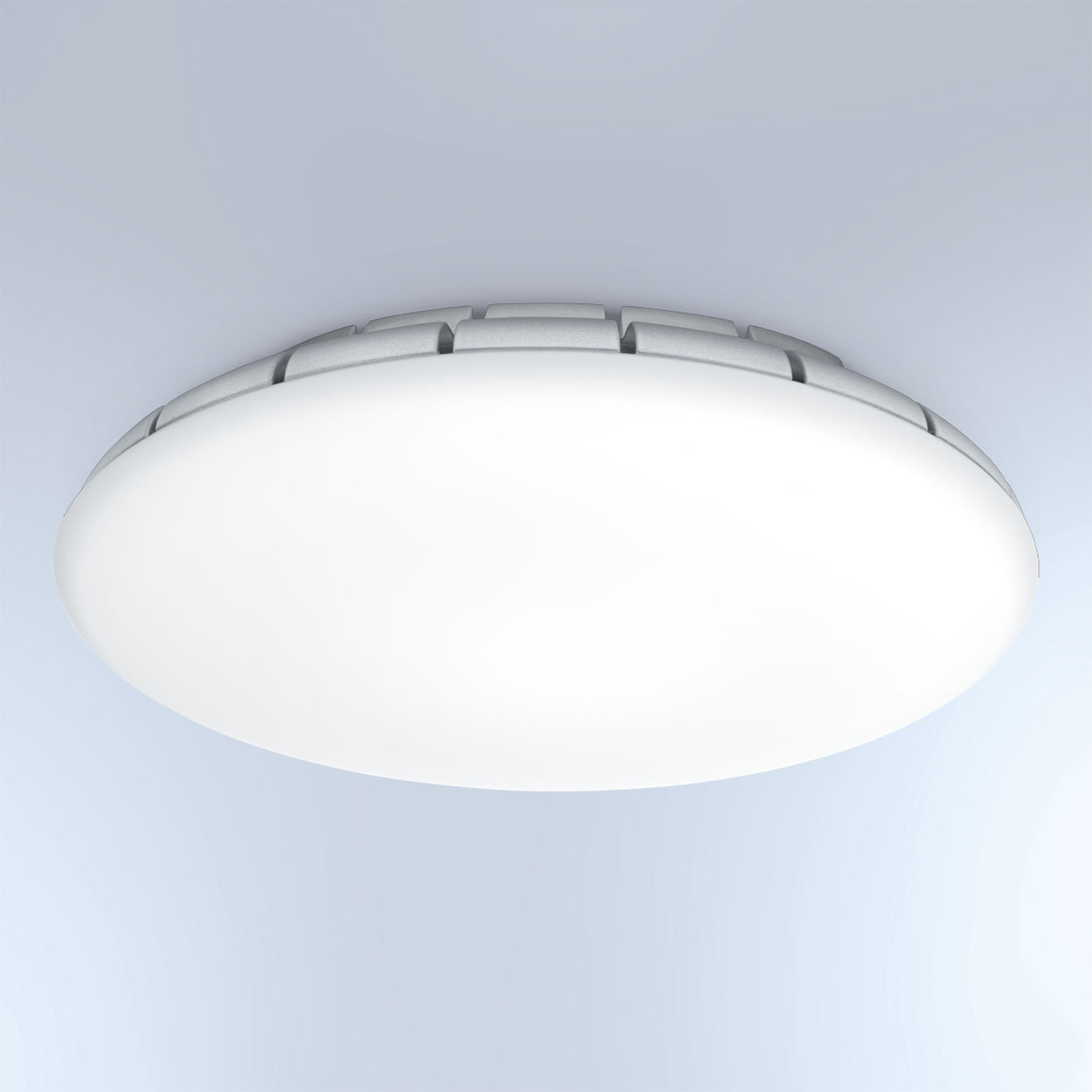

Optional basic lighting level 10 %

Interconnectable and adjustable via Bluetooth

High-quality aluminium

Technical drawing

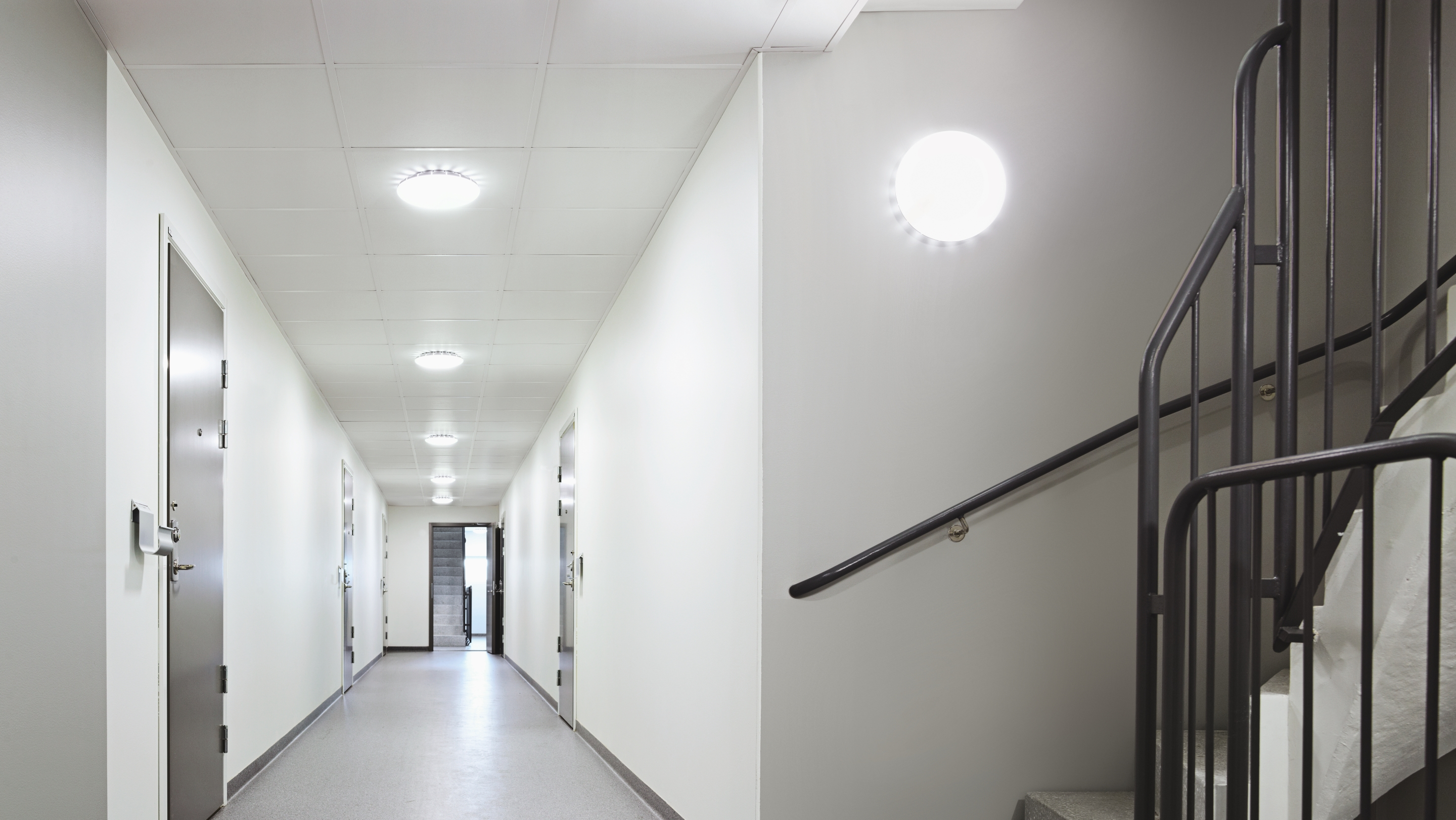

Sensor detection range

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity Drilling template LDT file (light distribution)
