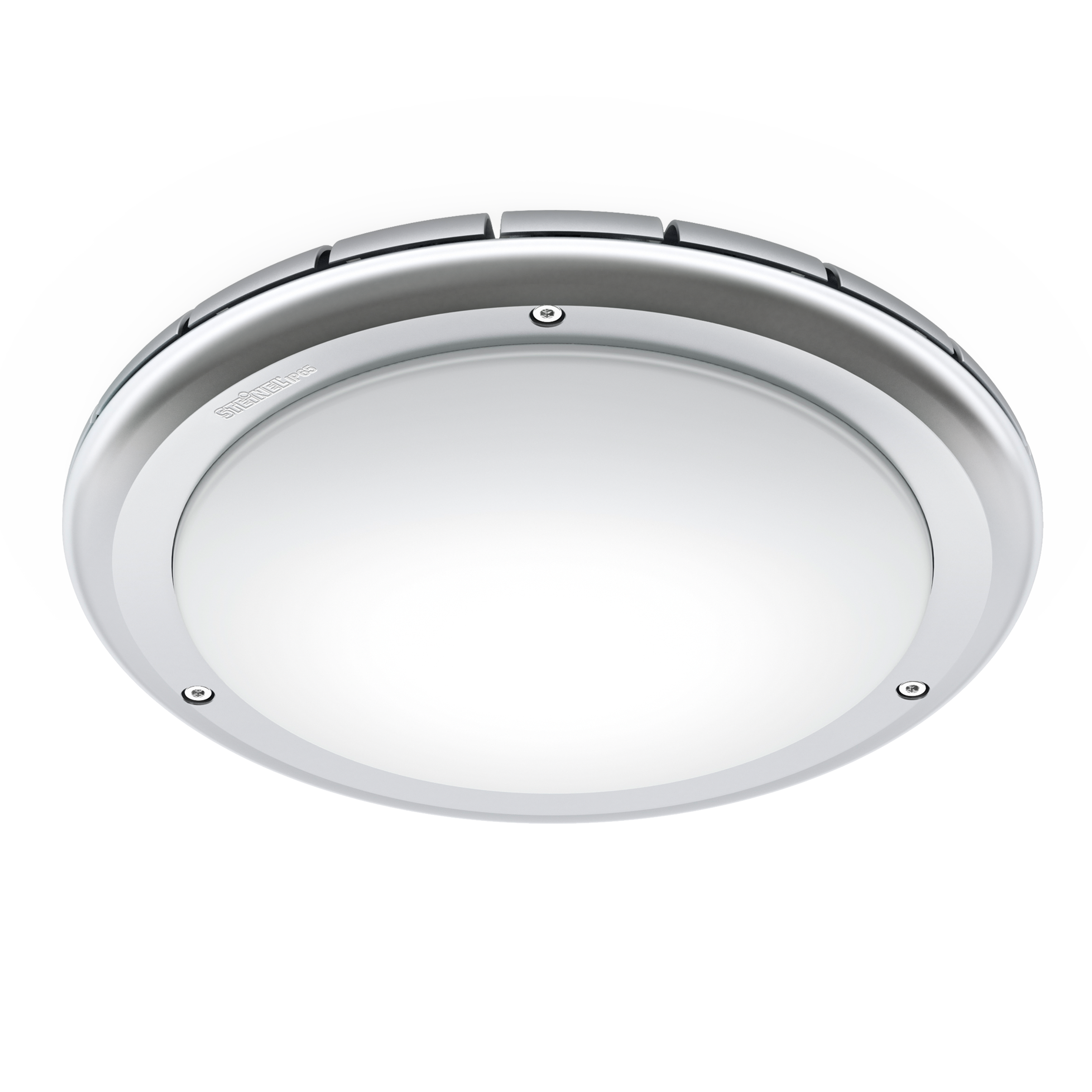

Steinel RS PRO S20 SC IP65 PC warm white

Round sensor light for corridors, lobbies and car parks. Compact, Bluetooth Mesh networked.

ELDAS® no. 941 004 619

EAN-No. 4007841 079789

Price: Please log in to see prices

Dimensions Ø × H

300 x 71 mm

Colour temperature

3000 K 4000 K

Protection class (IP)

IP20 IP65

Packaging unit

1 piece

Public buildings, swimming pools, passages, subways and the like are tough environments when it comes to lighting. Because it's here that wet environments, unintentional knocks and vandalism are the order of the day. All this leaves the RS PRO S20 SC IP65 completely indifferent. Its screw-mounted surround is impervious to dust and jets of water. With a shatter-proof interior, shade and enclosure are impact-resistant to IK10 as well. It is intelligent, energy-efficient, a shining example and equipped with everything that is technically feasible today: 15,7 W STEINEL LED light system for instantaneous and power-saving light generation, no unintentional switching off ,light running ahead thanks to neighbouring group function, aluminium cooling fins and long service life. The high-frequency sensor detects 360°. With the Bluetooth Mesh radio connection, luminaire groups can be formed wirelessly and effortlessly.

Variants

Packaging unit 1 piece

Dimensions

Dimensions Ø × H 300 x 71 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 15,7 W

Own consumption 0,39 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,0 – 4,0 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Slave mode adjustable Yes

Control technology Steinel Connect

Wireless networking via BT SIG Mesh

Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 1209 lm

Colour temperature 3000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

Soft light start Yes

Continuous light selectable, 4h

Lifetime

LED lifetime max. °C 60000 h

Luminous flux decline per LM80 L80B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 min

Base light function Yes

Base light function detail LED effect light

Base light function time 1-60 min

Main light adjustable Yes

Functions Neighbouring group function, Group parameterisation, Manual ON / ON-OFF, Connection to central battery systems, Motions sensor, Adjustable fade time when switching on and off, Orientation light, DIM function, Free selection of the light value in a luminaire group, Light sensor, Normal / test mode, Encrypted communication

Settings via App, Smartphone, Tablet, Bluetooth

Twilight setting teach Yes

Base light function in percent 7 – 100 %

Base light function percent from 7 %

Housing & material

Impact resistance IK10

Protection class II

Ambient temperature -10...+50 °C

Housing material Aluminium

Cover material Opal plastic

Mounting location ceiling, wall

Application location Indoors

Material Aluminium

Application room Indoors, WC / washroom, changing room, corridor / aisle, function room / ancillary room, kitchenette, outdoors, stairwell

Colour Silver

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates KEMA EAC

EPREL category Surrounded product with integrated light source

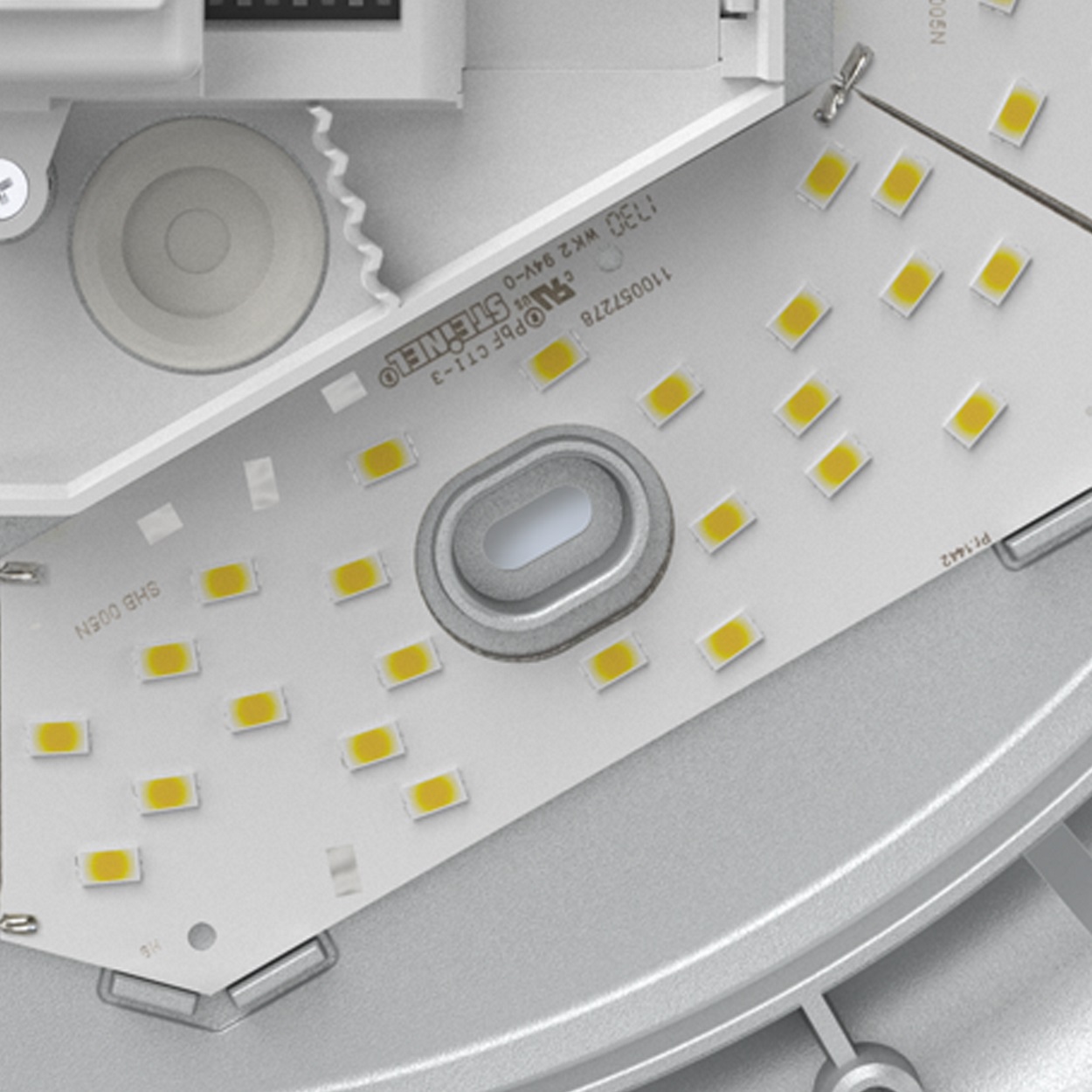

Including STEINEL LED system

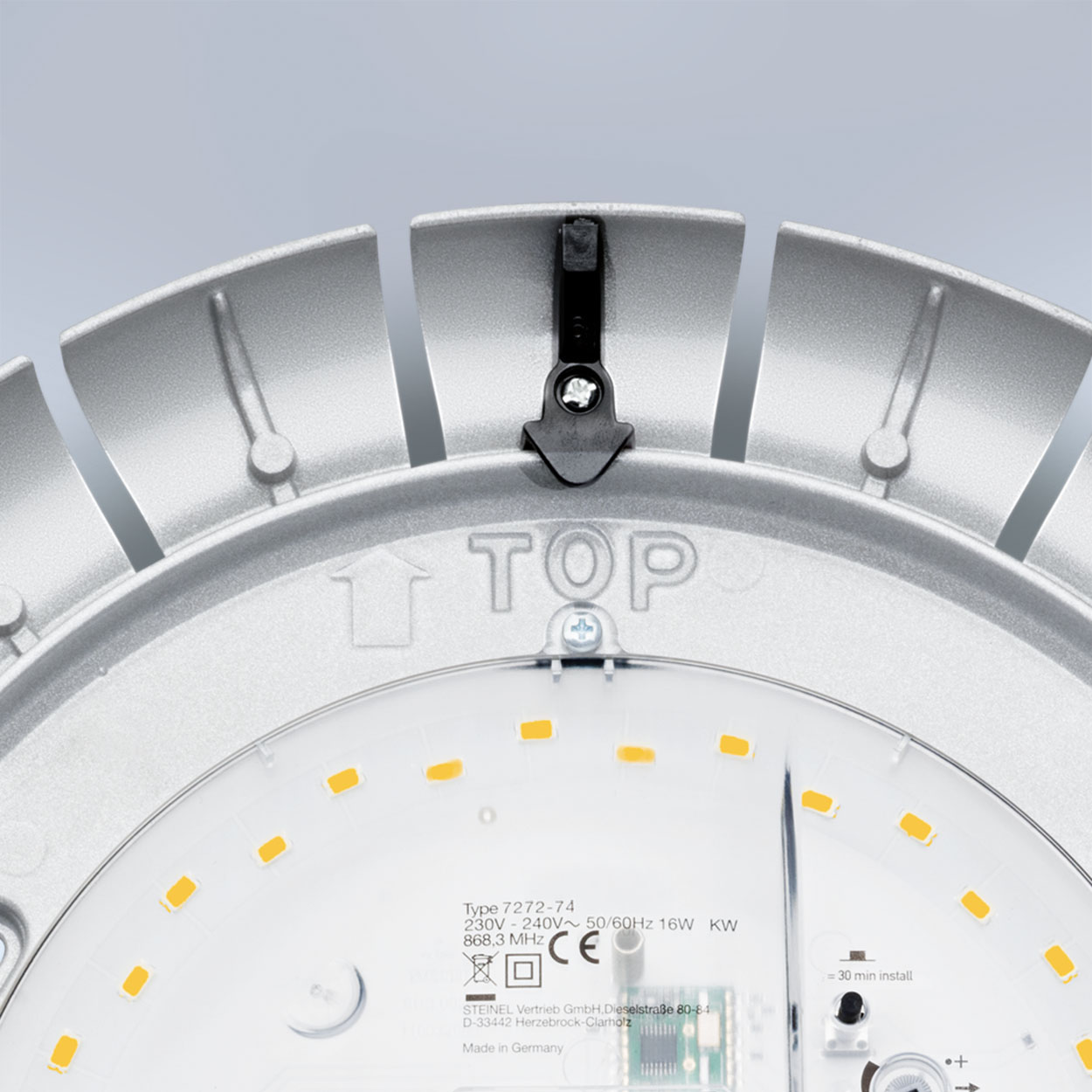

Intelligent LED cooling system

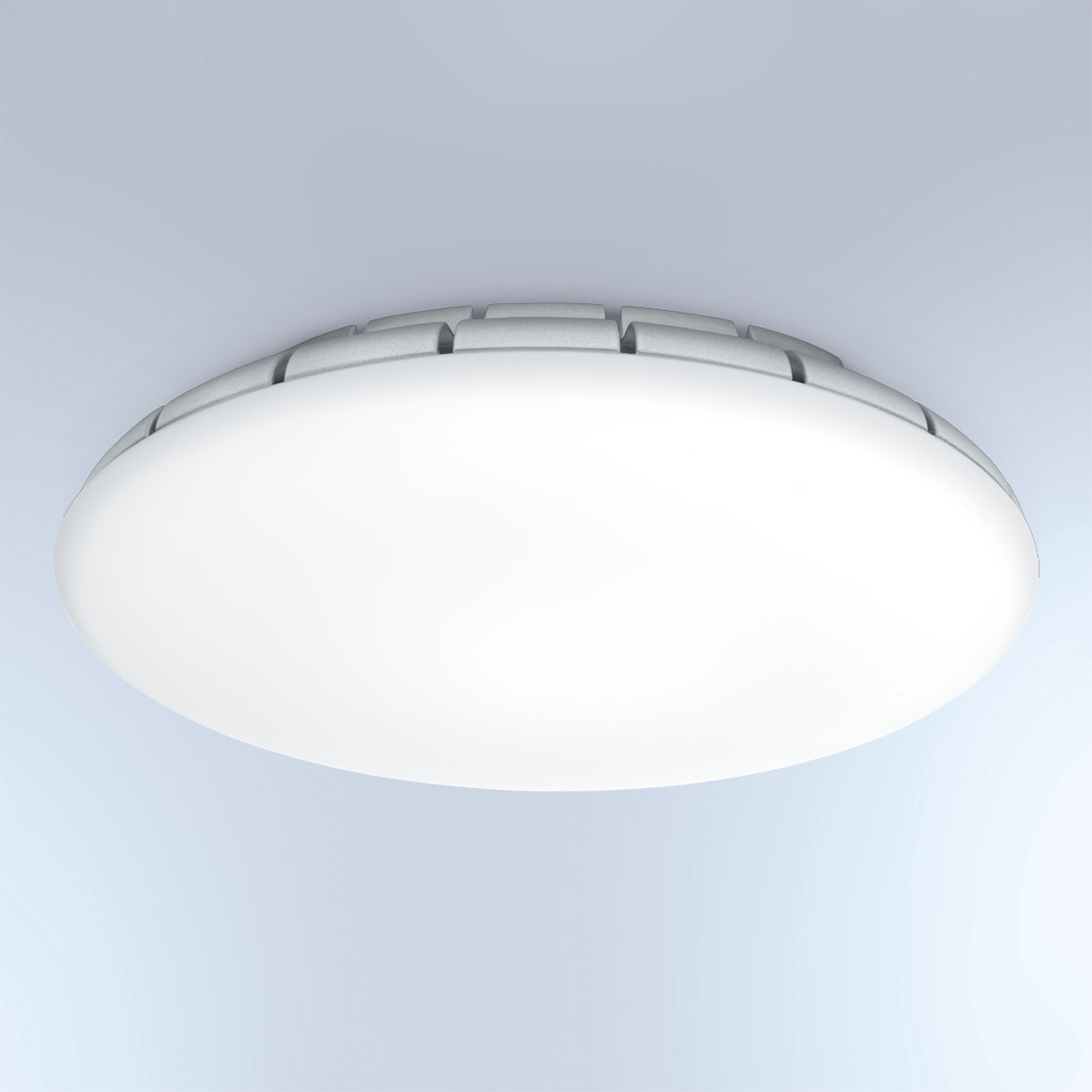

Optional basic lighting level 10 %

Wireless interconnection

High-quality aluminium

Technical drawing

Lichtverteilungskurve

Sensor detection range

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity Drilling template LDT file (light distribution)
