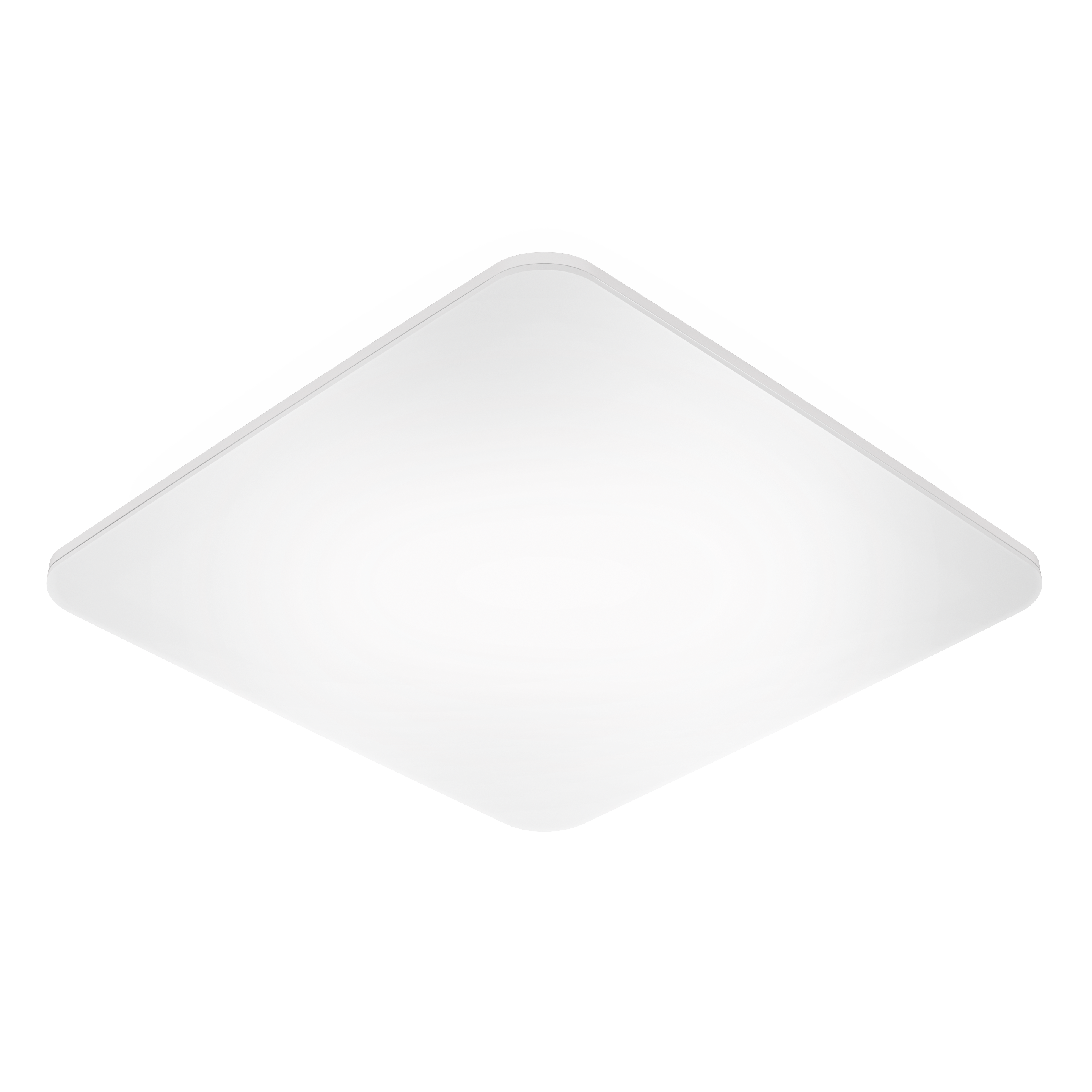

Steinel RS PRO S30 Q SC warm white

Square sensor light for corridors and storerooms. Bright light, Bluetooth Mesh networked.

ELDAS® no. 941 326 939

EAN-No. 4007841 067526

Colour temperature

3000 K 4000 K

It is flat, puristic and perfectly shaped all round. It is intelligent, energy-efficient, a shining example and equipped with everything that is technically feasible today: 26 W STEINEL LED light system for instantaneous and power-saving light generation, no unintentional switching off ,light running ahead thanks to neighbouring group function, aluminium cooling fins and long service life. The high-frequency sensor detects 360°. With the Bluetooth Mesh radio connection, luminaire groups can be formed wirelessly and effortlessly. Conclusion: the RS PRO S series is more than just a lighting evolution, it is a revolution.

Dimensions

Dimensions L × W × H 331 x 331 x 56 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 26 W

Own consumption 0,39 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 10 m (79 m²)

Tangential range Ø 10 m (79 m²)

Mounting height 2,0 – 4,0 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Master

Slave mode adjustable Yes

Control technology Steinel Connect

Wireless networking via BT SIG Mesh

Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 2801 lm

Colour temperature 3000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable

Lifetime

LED lifetime max. °C 50000 h

Luminous flux decline per LM80 L80B50

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 min

Base light function Yes

Base light function detail LED effect light

Base light function time 1-60 min

Main light adjustable Yes

Functions Group parameterisation, Manual ON / ON-OFF, Neighbouring group function, Presence function, Motions sensor, Connection to central battery systems, DIM function, Adjustable fade time when switching on and off, Light sensor, Normal / test mode, Orientation light, Presence detector logic, Encrypted communication

Settings via App, Smartphone, Tablet, Bluetooth

With remote control No

Twilight setting teach Yes

Base light function in percent 7 – 100 %

Base light function percent from 7 %

Housing & material

Impact resistance IK03

Protection class (IP) IP20

Protection class II

Ambient temperature -20...+40 °C

Housing material Aluminium

Cover material Opal plastic

Mounting location ceiling, wall

Application location Indoors

Mounting type Surface mounting

Application room Indoors, WC / washroom, changing room, corridor / aisle, function room / ancillary room, kitchenette, outdoors, stairwell

Colour Silver

Scope of delivery & warranty

Manufacturer warranty 5 years

House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Including STEINEL LED system

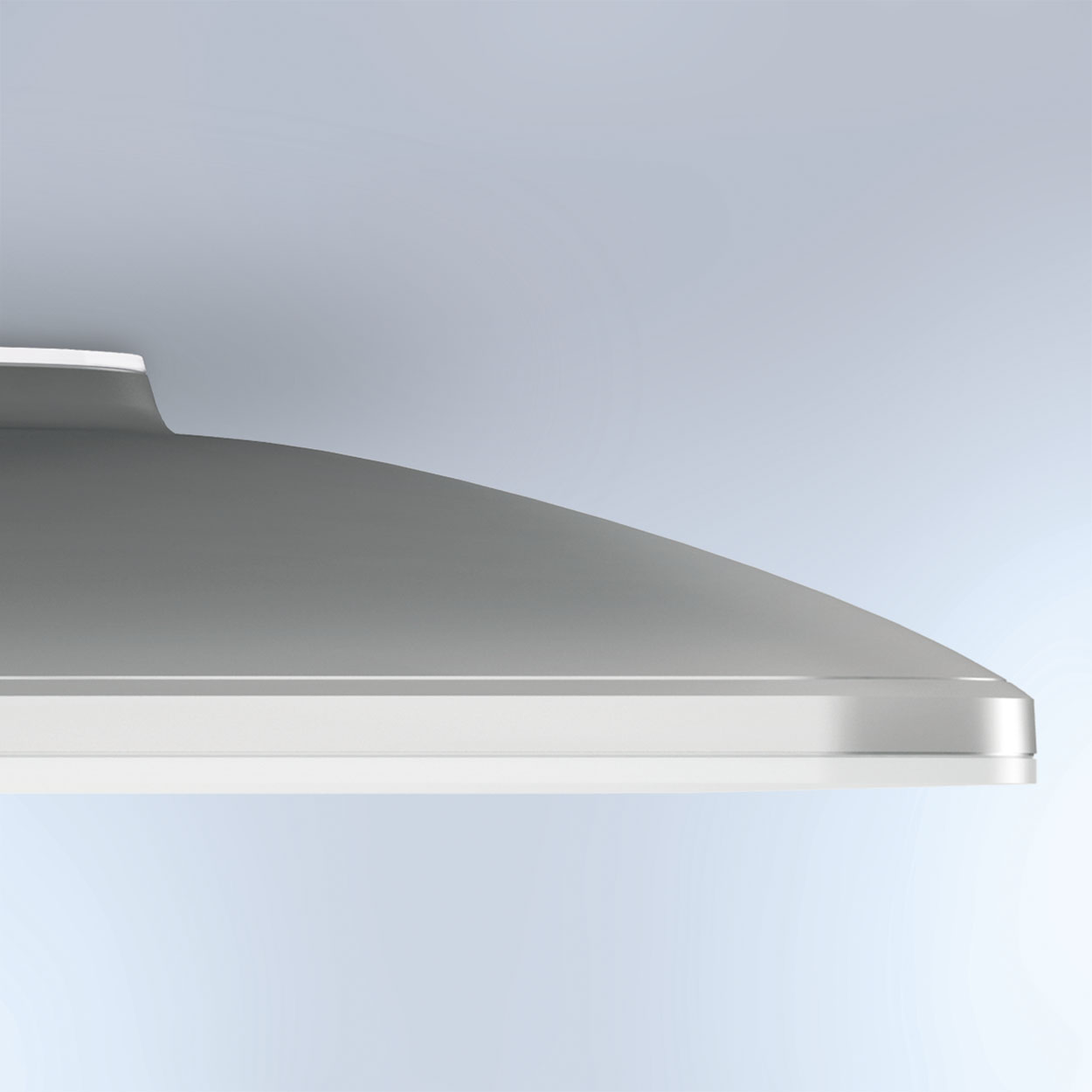

Intelligent LED cooling system

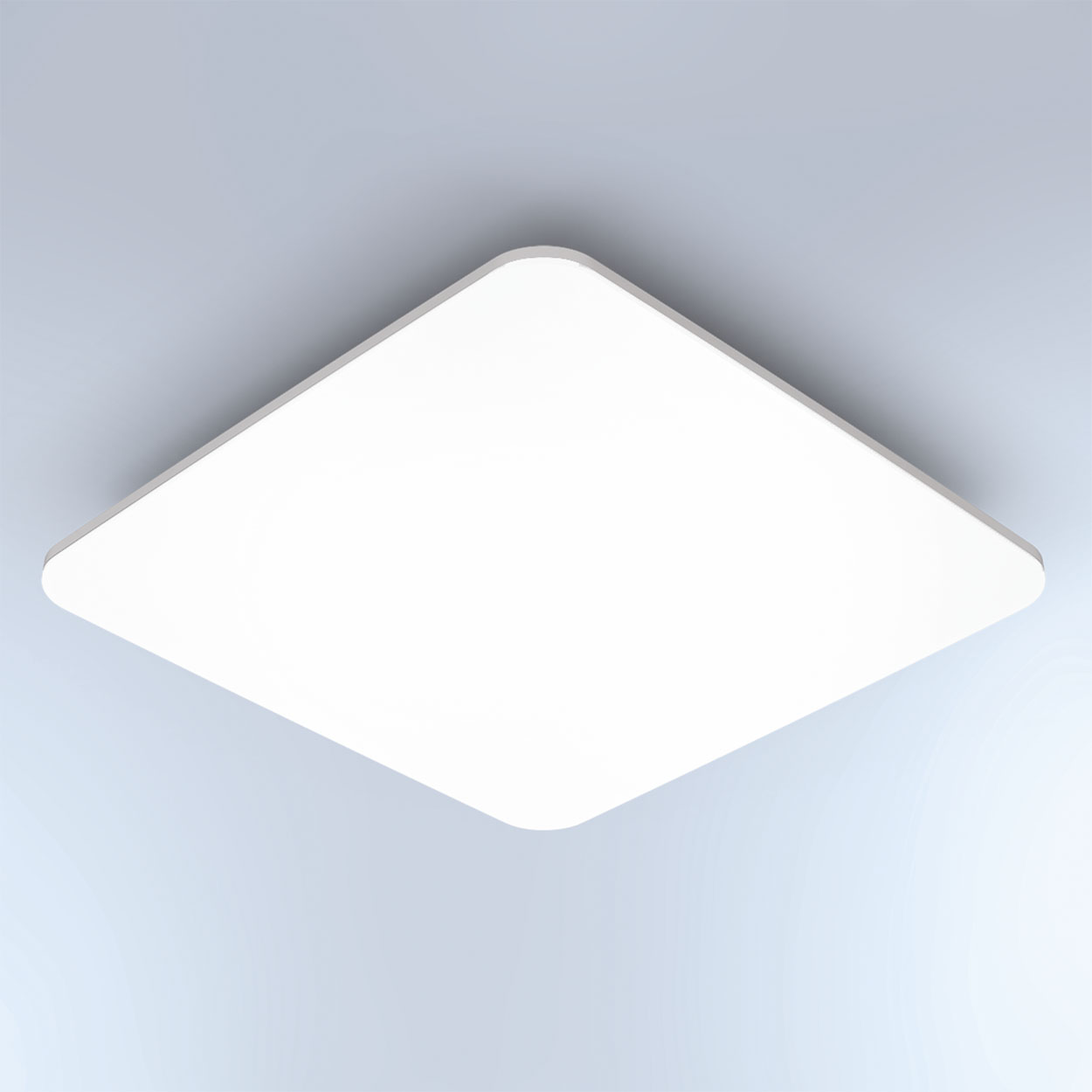

Optional basic lighting level 10 - 50 %

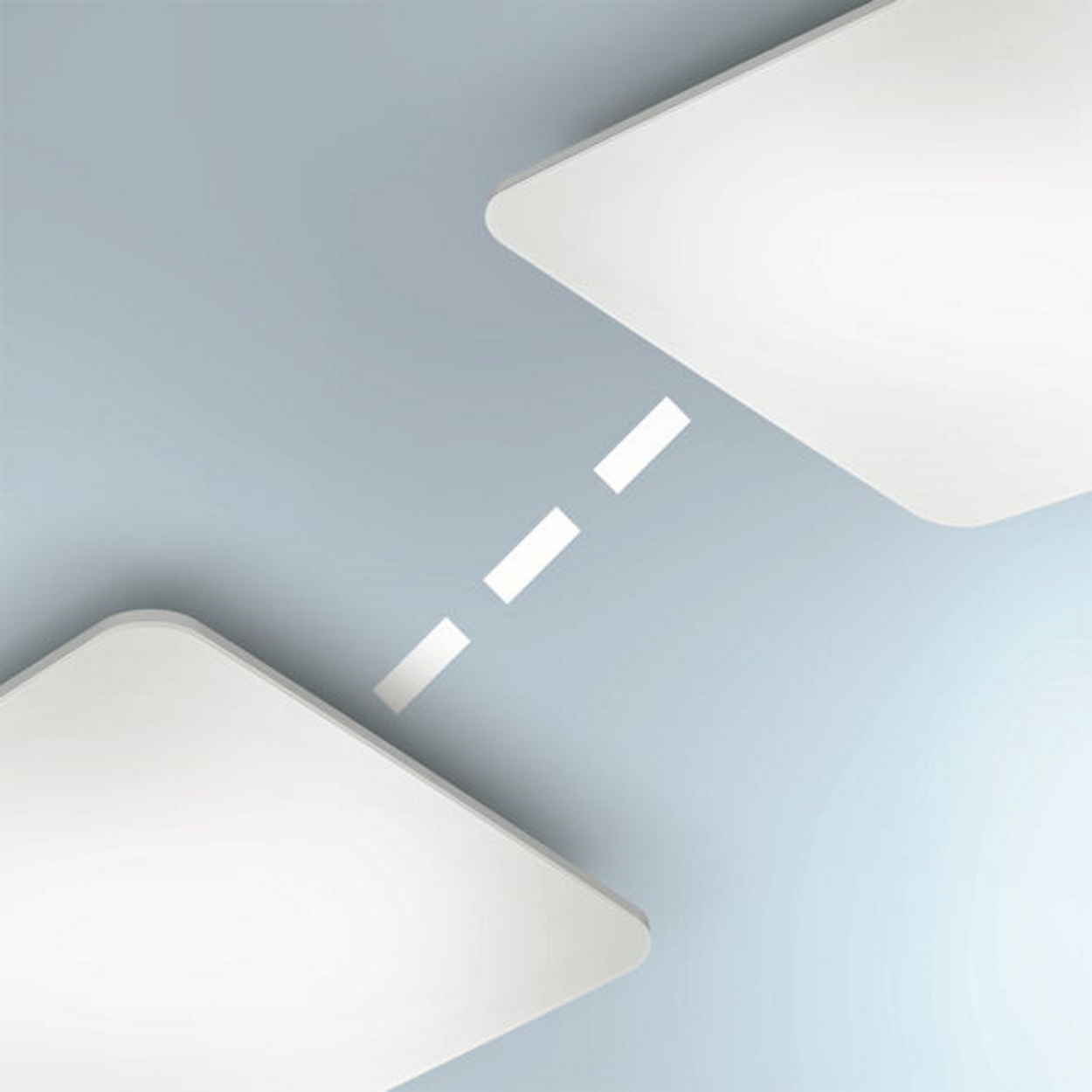

Interconnectable and adjustable via Bluetooth

High-quality aluminium

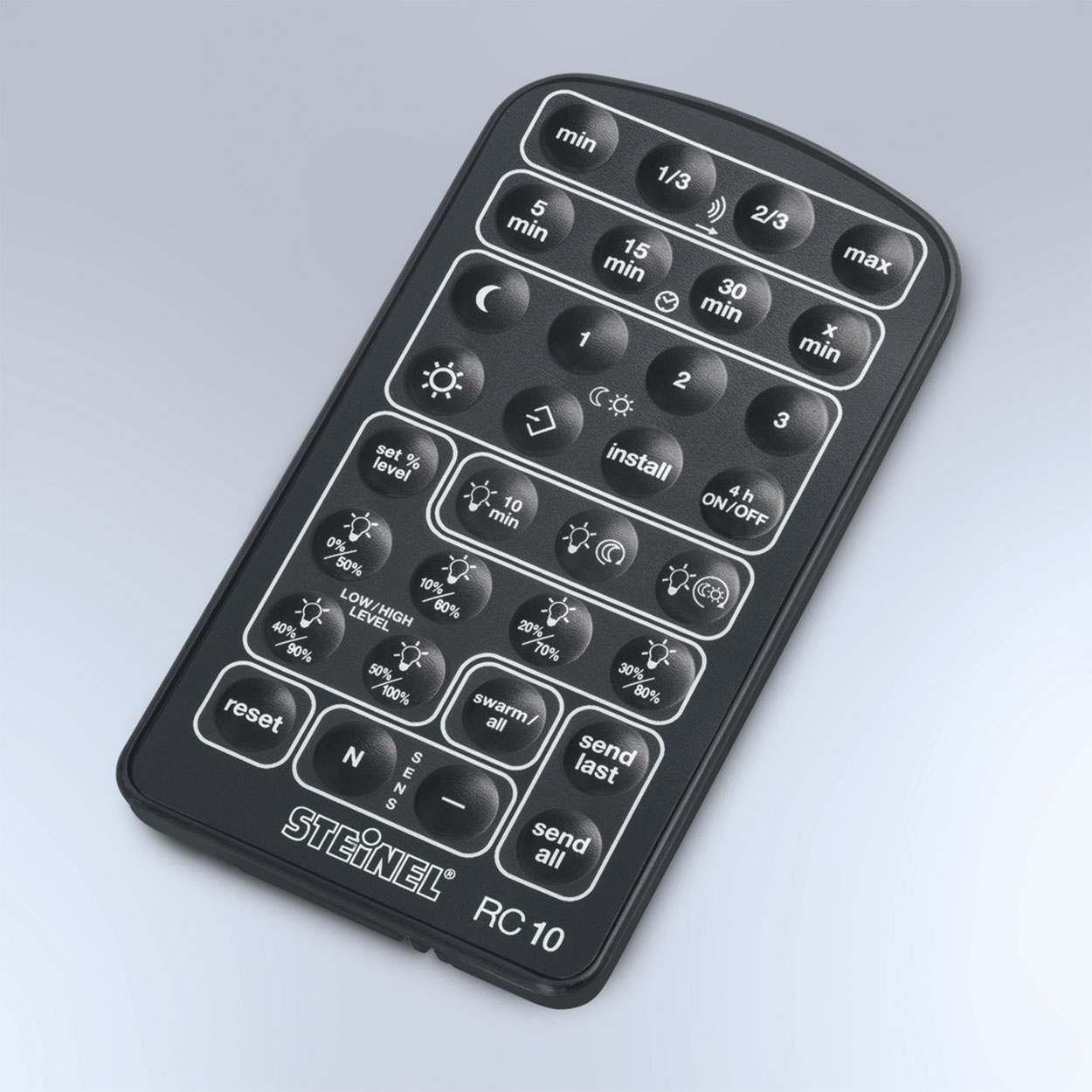

Optional remote control RC10

Technical drawing

Sensor detection range

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
