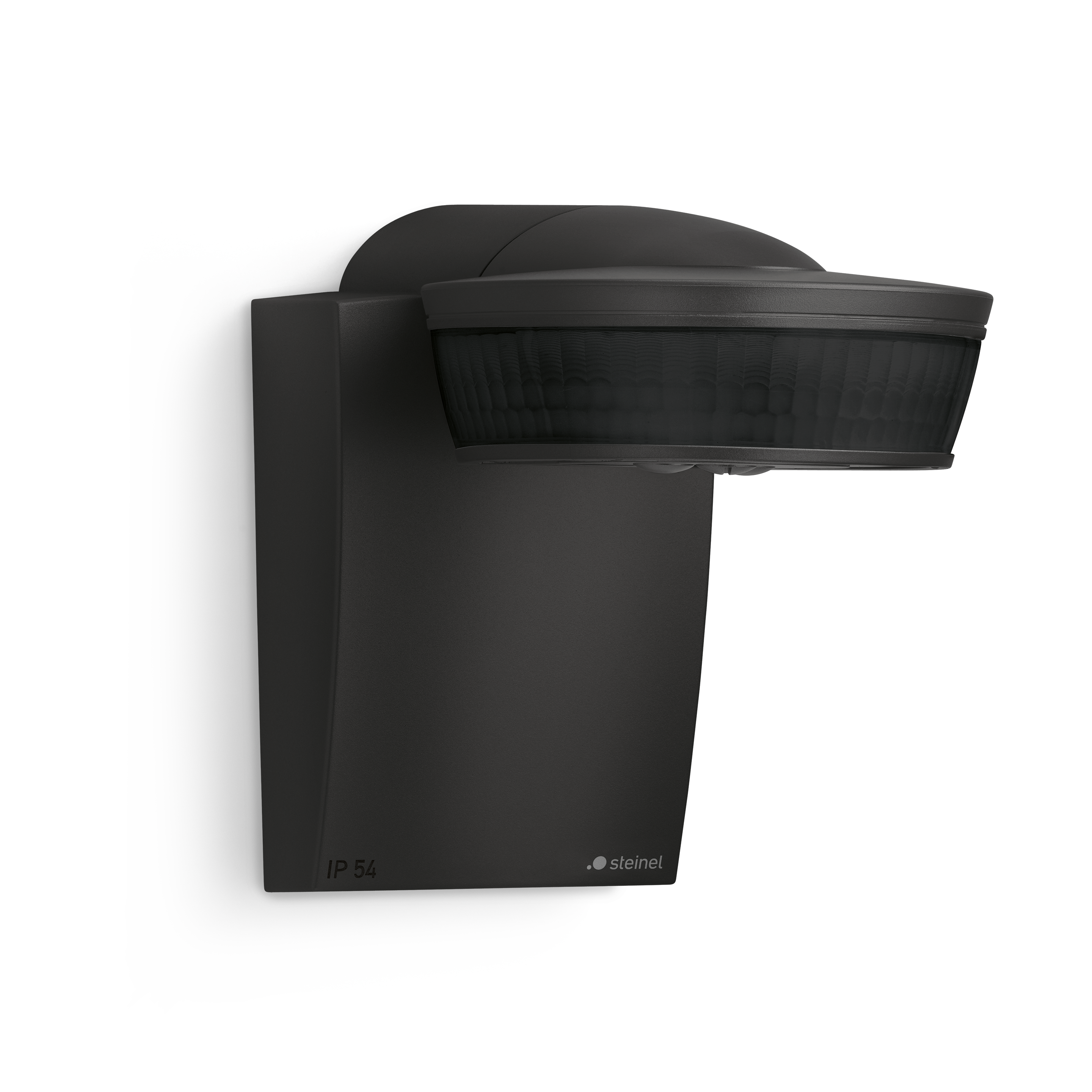

Steinel sensIQ schwarz
ELDAS® no. 535 940 680
EAN-No. 4007841 029579
Price: Please log in to see prices
Identification
Version
Motion detectors
Type of accessory
Corner adapter
Dimensions
Dimensions L × W × H
172 x 113 x 144 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
2500 W
Switching output 1 resistive
2500 W
Fluorescent lamps ECG
500 W
Fluorescent lamps series-compensated
1800 VA
Fluorescent lamps parallel-compensated
500 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
250 W
LED lamps > 8 W
500 W
Capacitive load in µF
176 µF
Switching output 1 number of LED/fluorescent lamps
8 pcs.
Switching output 1 potential-free
No
Sensor technology
Max. mounting height
5,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
300 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
Yes
Range detail
Reach adjustable from 2 - 20 m in 3 directions (100° in each)
Radial range
r = 4 m (42 m²)
Tangential range
r = 20 m (1047 m²)
Detection planes
11
Switching zones
1360 switching zones
Mounting height
2 – 5 m
Optimal mounting height
2 m
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Lighting technology
Soft light start
No
Continuous light
selectable, 4h
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 s – 15 Min.
Base light function
No
Main light adjustable
No
Functions
Normal / test mode
Manual ON / ON-OFF
Settings via
Remote control
Potentiometers
Smart Remote
With remote control
Yes
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP54
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
corner
wall
Application location
Indoors
Outdoors
Mounting type
Surface wiring
Material
Plastic
Application room
Indoors
all round the building
courtyard & driveway
front door
multi-storey / underground car park
outdoors
warehouse
Colour
black
RAL colour
9005
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
Yes
Certificates & EPREL
Certificates
VDE

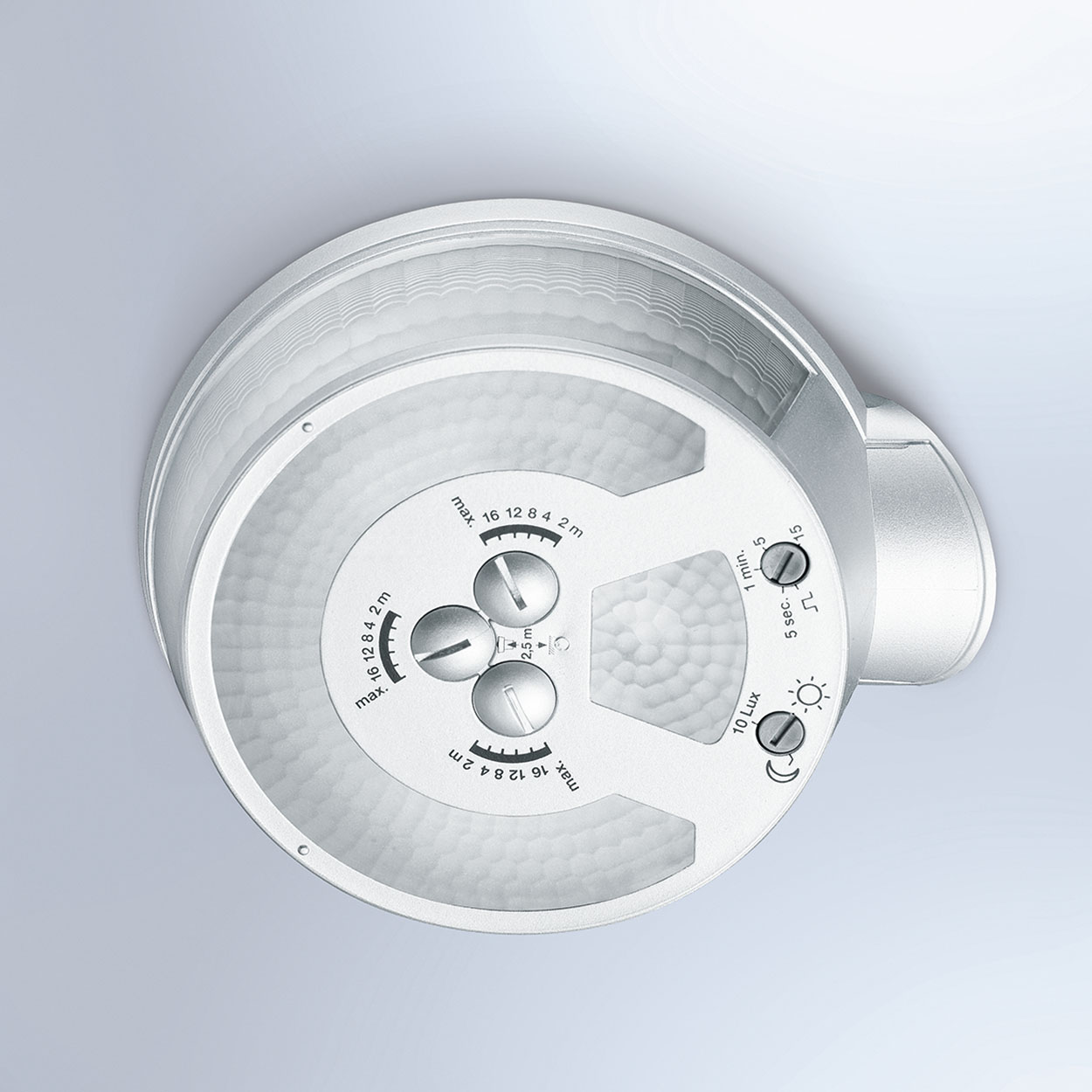

4x pyro system

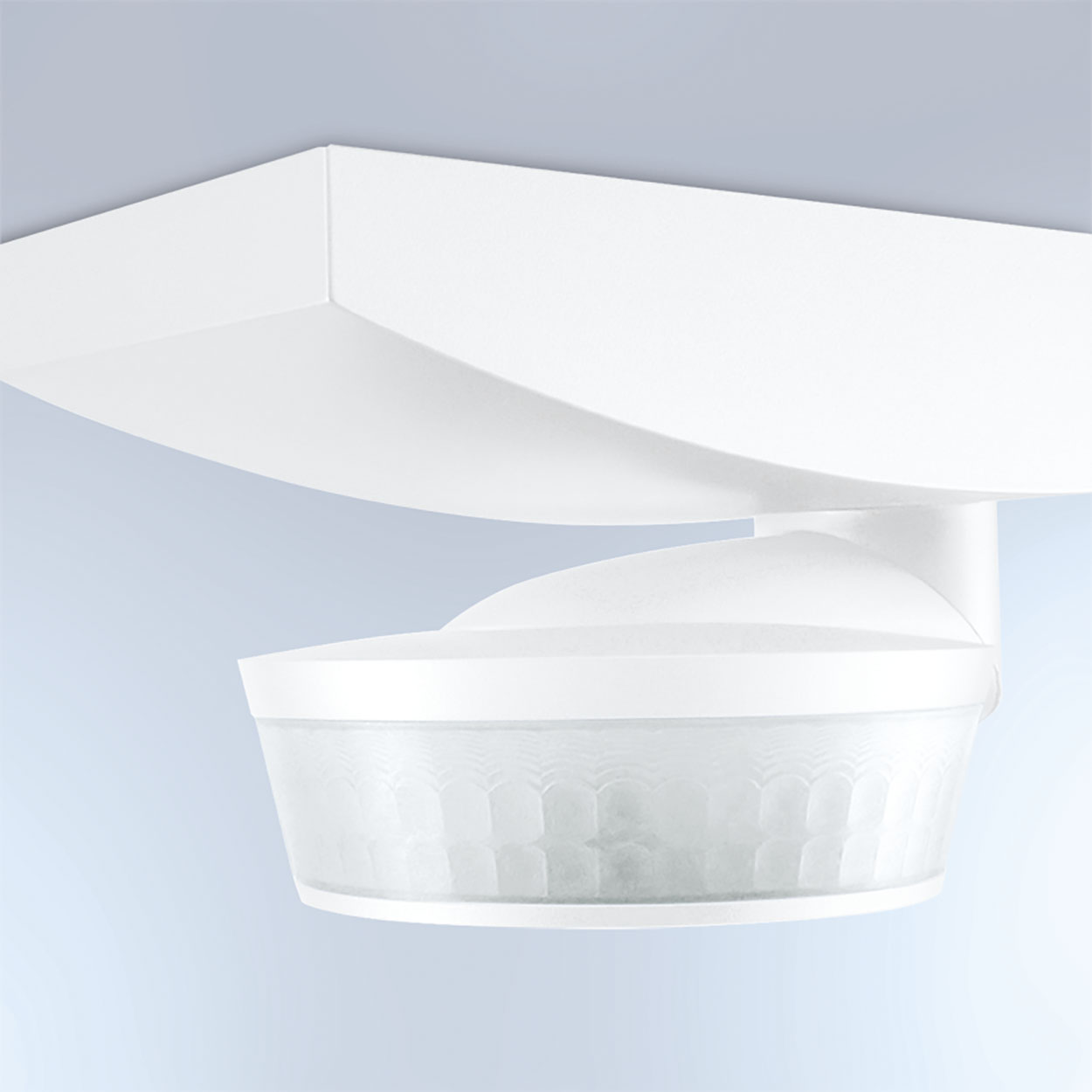

Suitable for mounting on ceilings

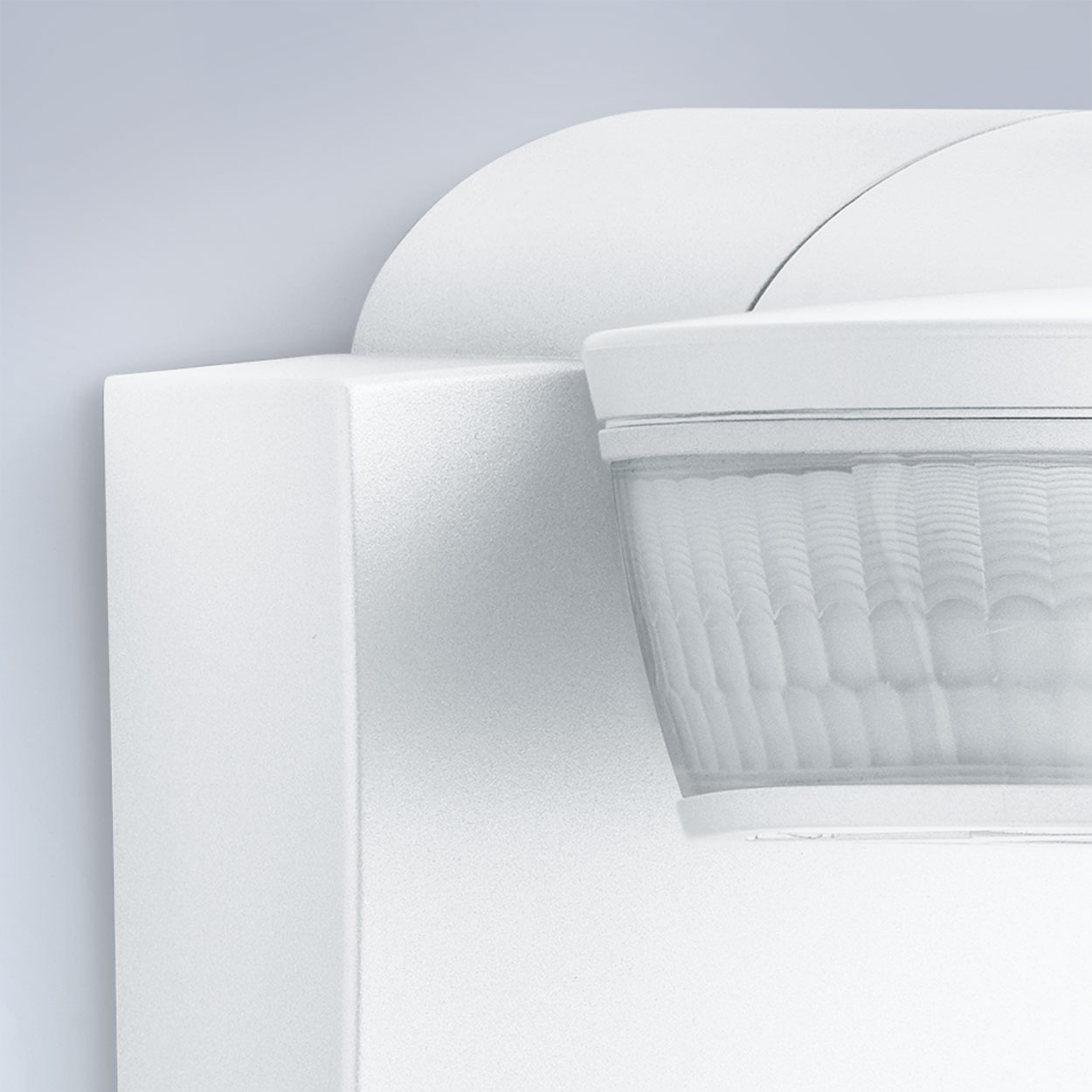

UV-resistant plastic

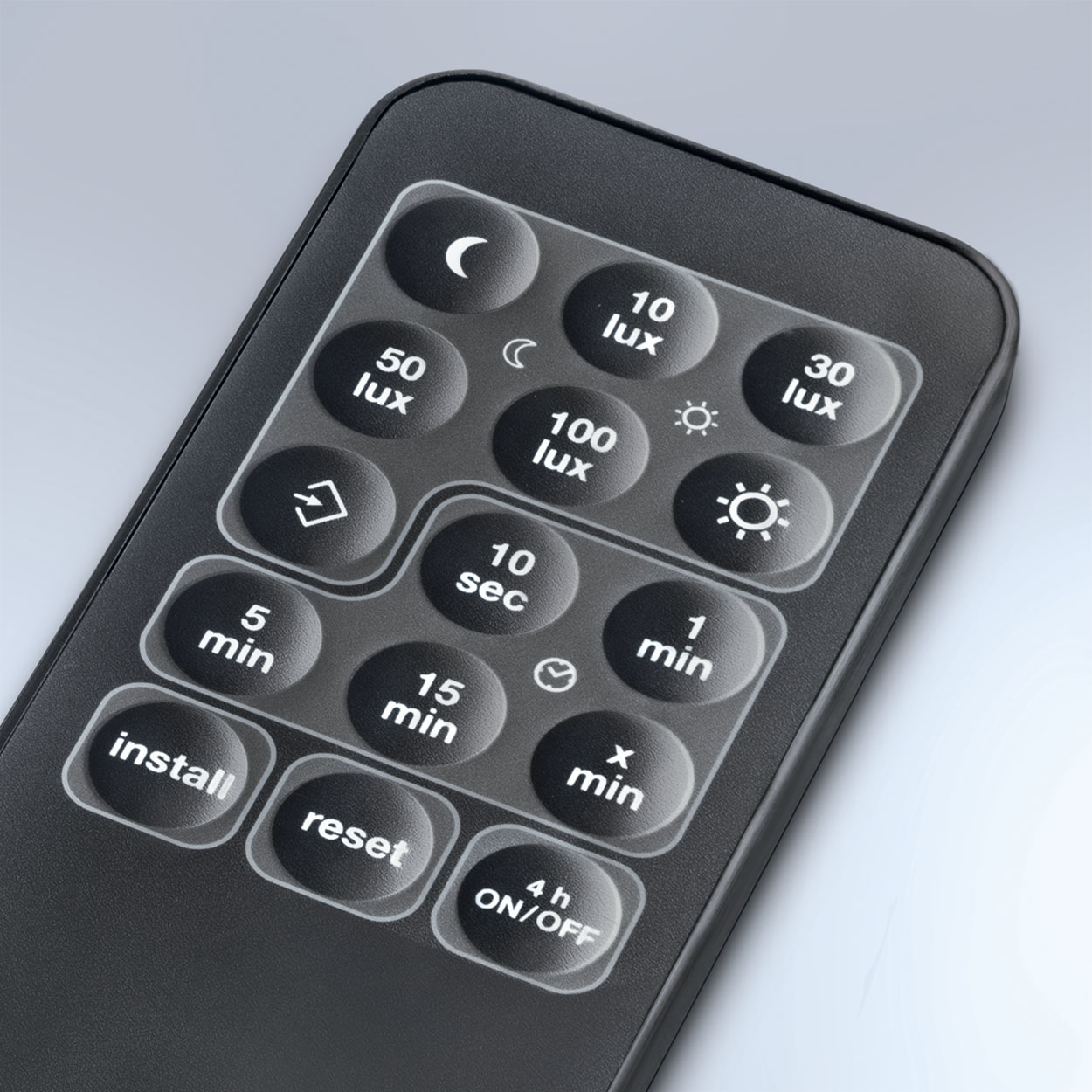

Remote control RC9 included

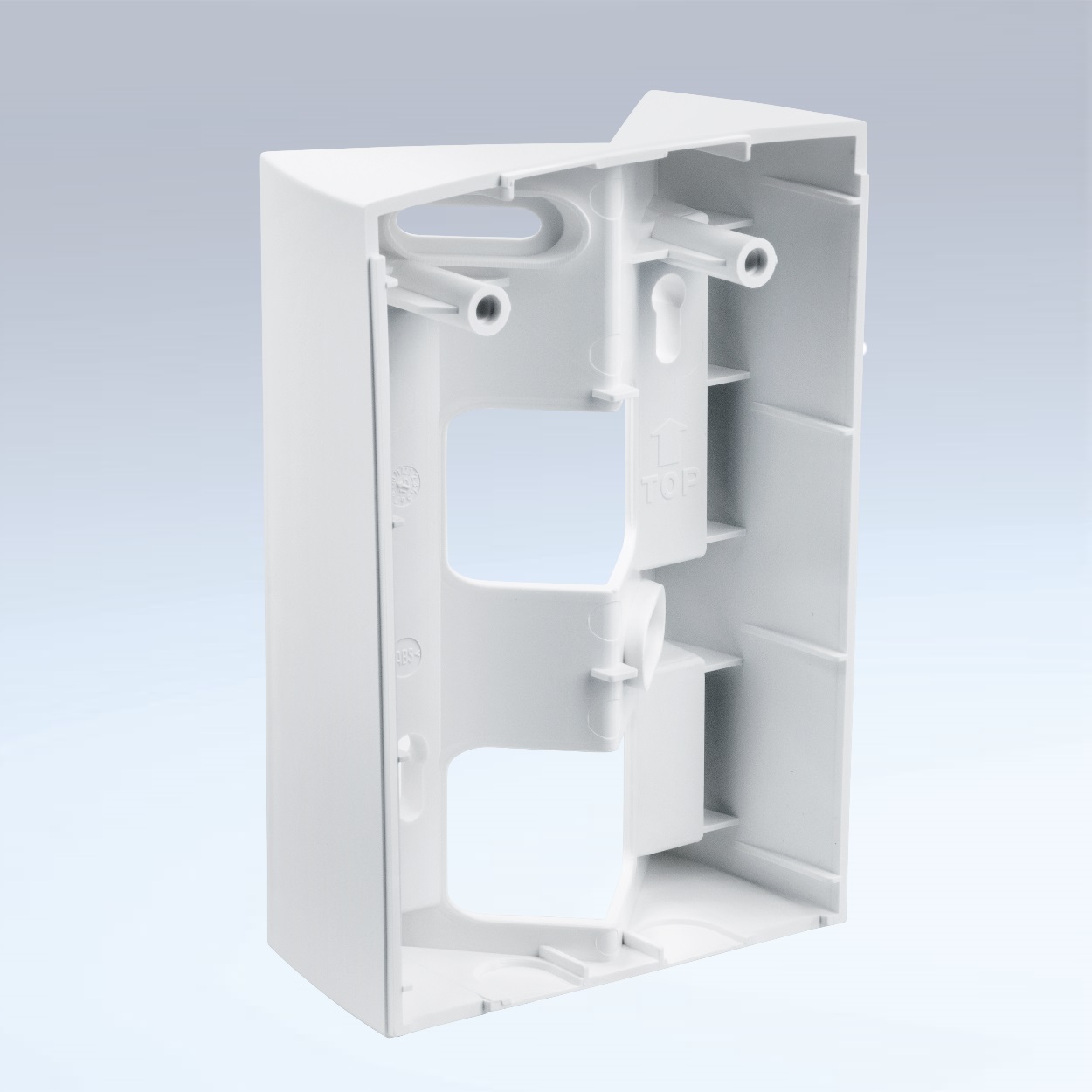

Including corner wall mount

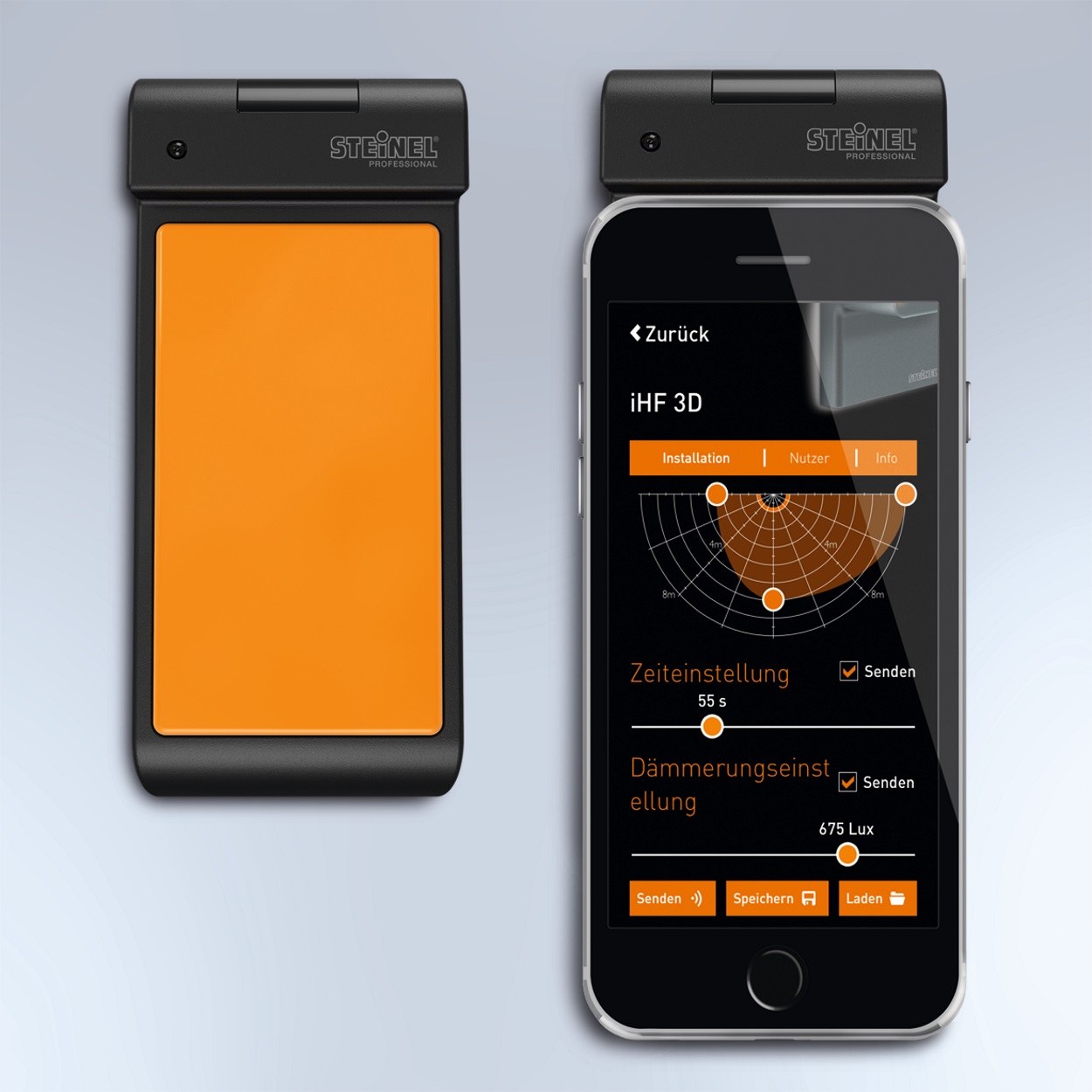

Smart Remote remote control optional
Technical drawing

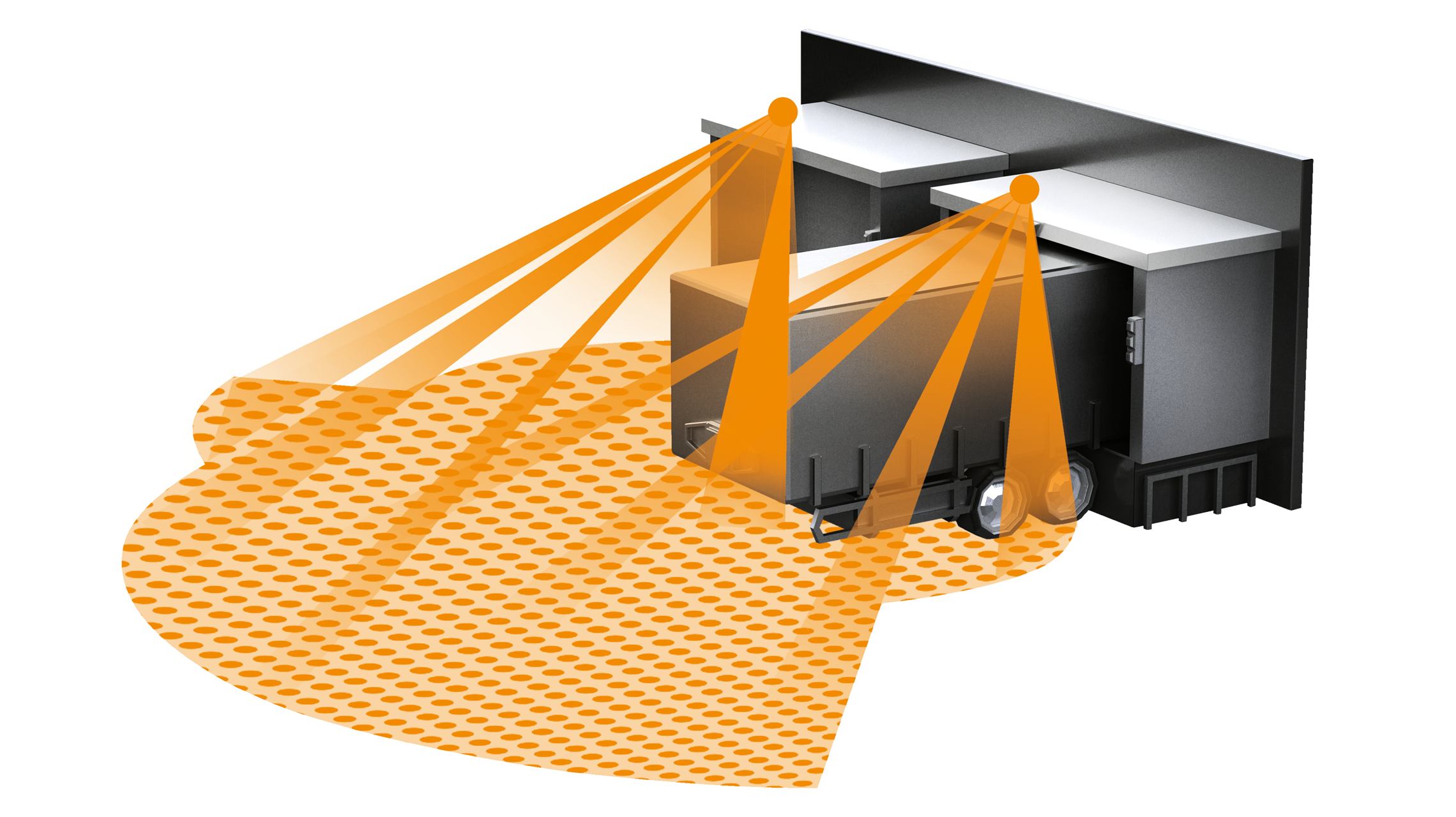

Sensor detection range
Wiring diagram 1
Light without neutral conductor
Wiring diagram 2
Light with neutral conductor
