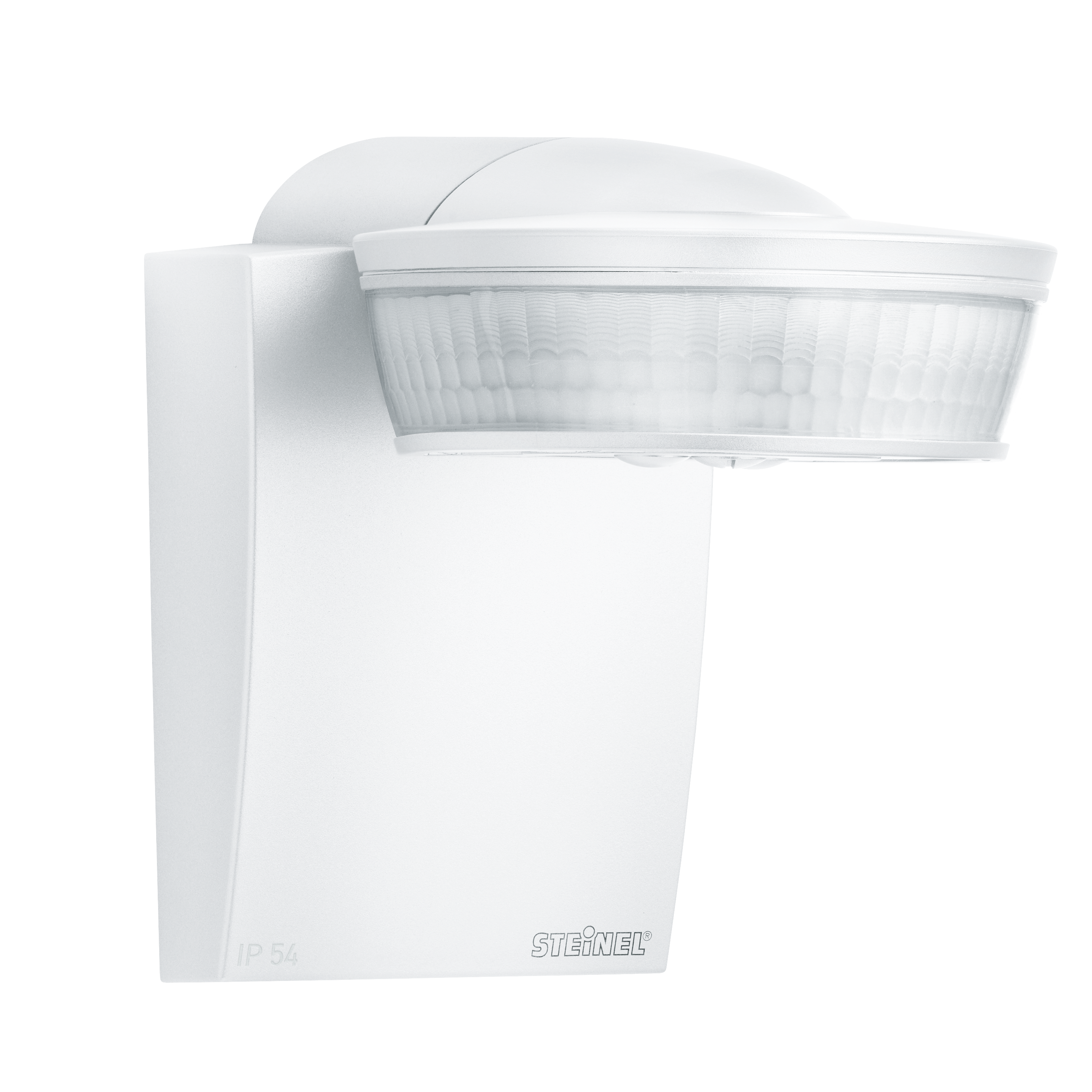

Steinel sensIQ white

ELDAS® no. 535 940 690

EAN-No. 4007841 029562

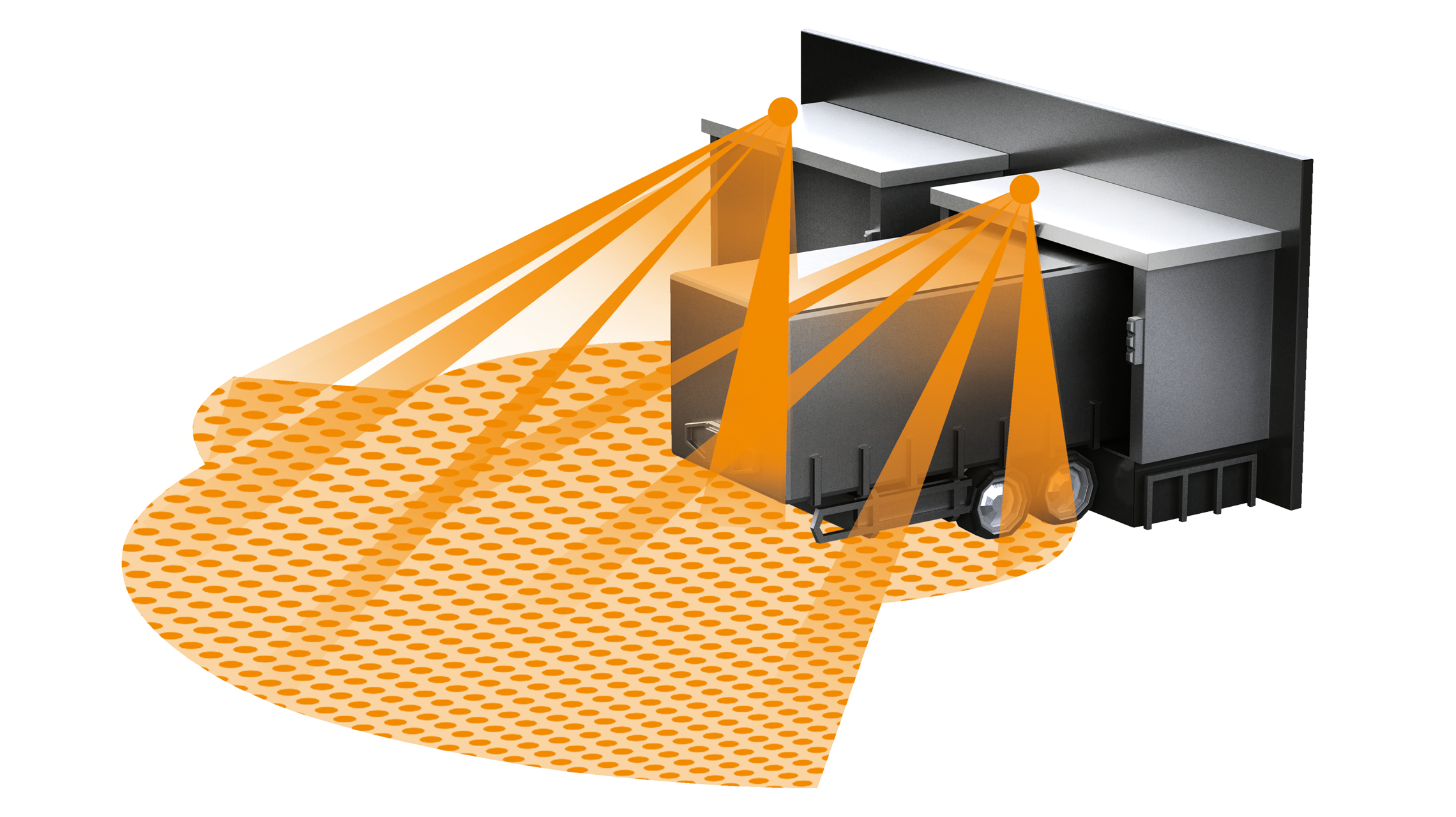

Most motion detectors sit around inconspicuously on a wall or ceiling. The sensIQ is different. Its design is so spectacular that it's a stylish signature on any facade, automatically attracting admiring glances. Behind its internationally acclaimed form is intelligent technology that puts virtually everything else in the shade. Unmatched, the detection reach of the four pyro sensors can easily be scaled in three directions via control dials – instead of shrouds of the type normally used on most other motion detectors. The floating module permits further functions, and you can use the newly available eNet version to integrate the sensor into existing eNet wireless networks.

Identification

Version Motion detectors

Type of accessory Corner adapter

Dimensions

Dimensions L × W × H 172 x 113 x 144 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 2500 W

Switching output 1 resistive 2500 W

Fluorescent lamps ECG 500 W

Fluorescent lamps series-compensated 1800 VA

Fluorescent lamps parallel-compensated 500 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 250 W

LED lamps > 8 W 500 W

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 8 pcs.

Switching output 1 potential-free No

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 300 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability Yes

Range detail Reach adjustable from 2 - 20 m in 3 directions (100° in each)

Radial range r = 4 m (42 m²)

Tangential range r = 20 m (1047 m²)

Detection planes 11

Switching zones 1360 switching zones

Mounting height 2,00 – 5,00 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 15 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode Manual ON / ON-OFF

Settings via Remote control Potentiometers Smart Remote

With remote control Yes

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling corner wall

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Application room Indoors all round the building courtyard & driveway front door multi-storey / underground car park outdoors warehouse

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included Yes

Certificates & EPREL

Certificates VDE

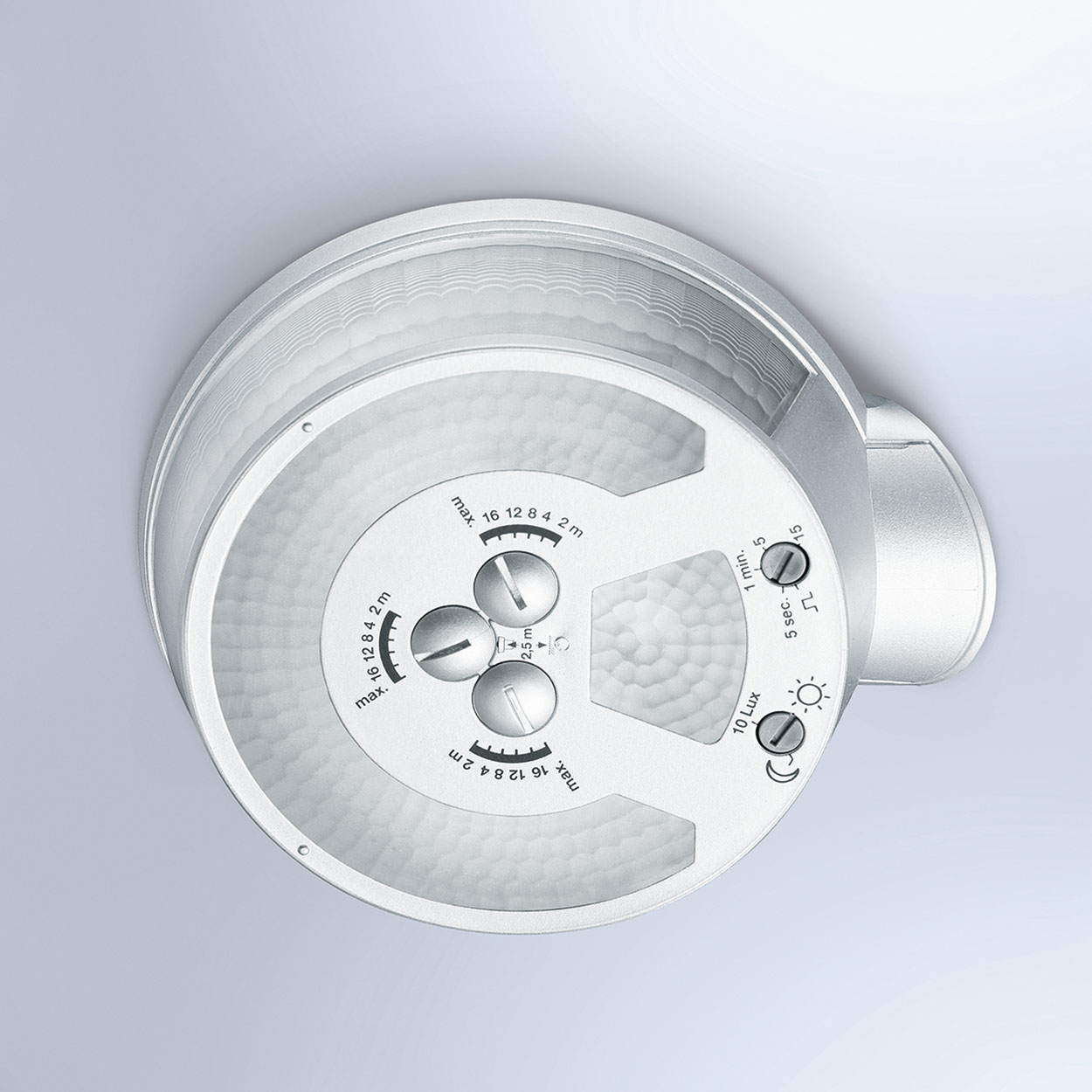

4x pyro system

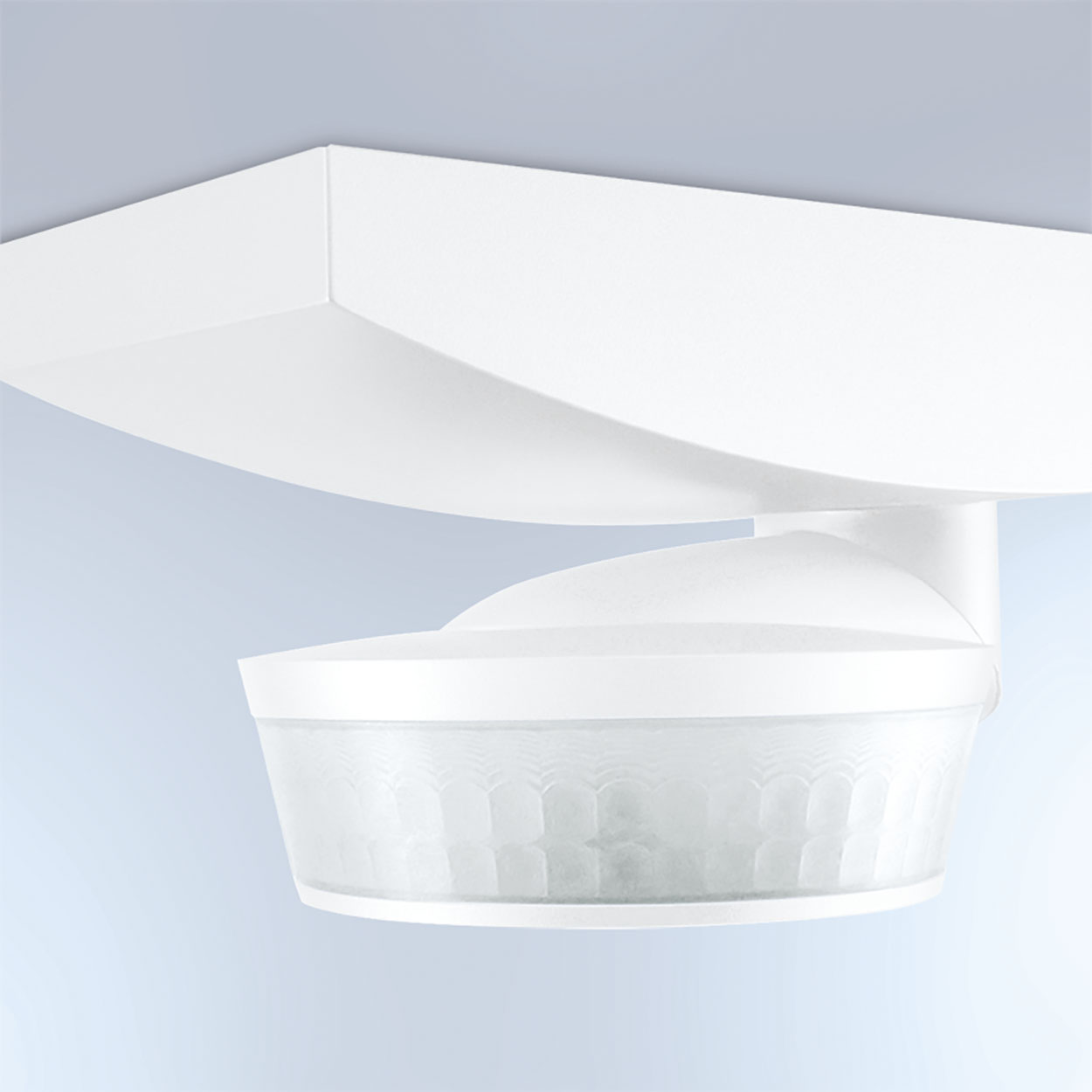

Suitable for mounting on ceilings

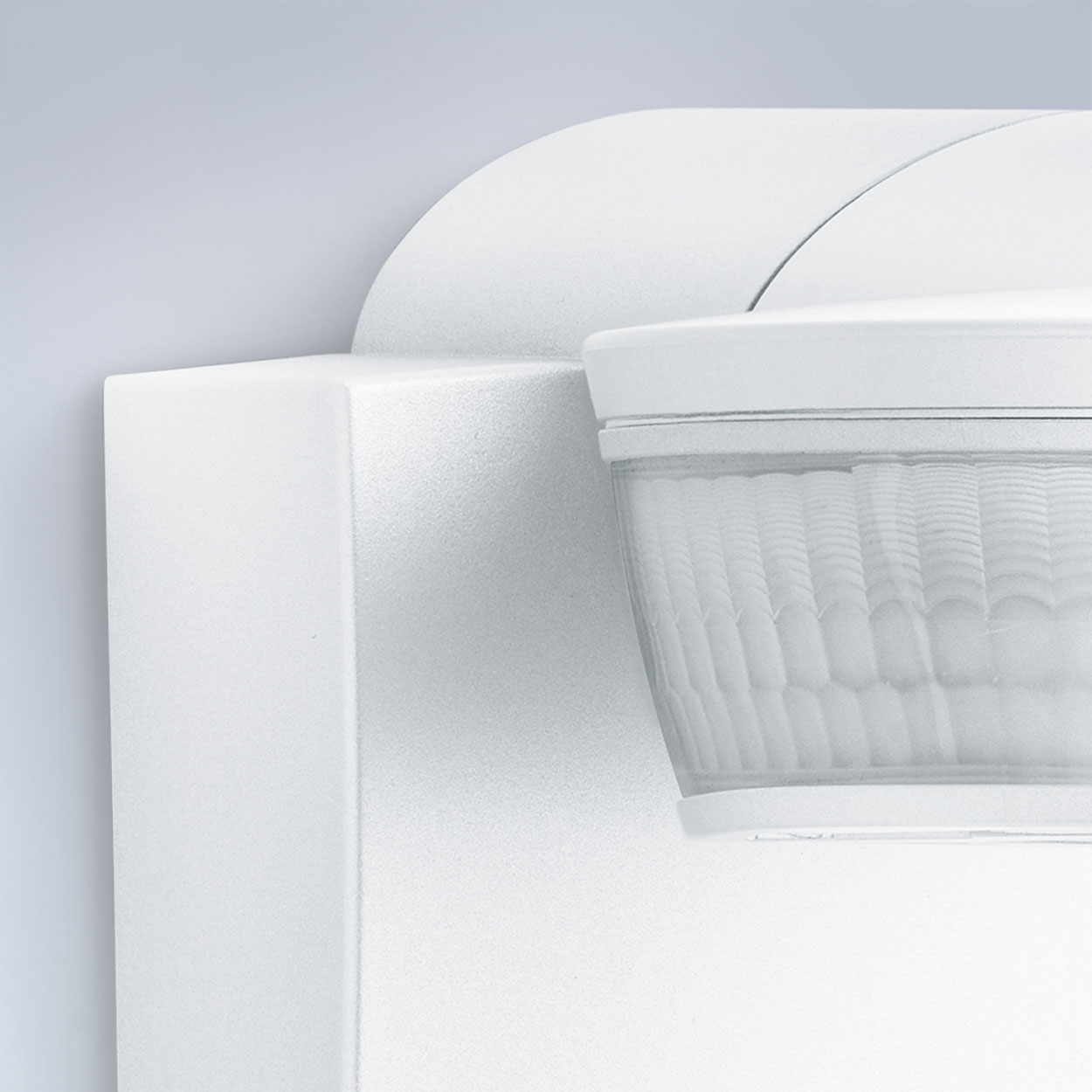

UV-resistant plastic

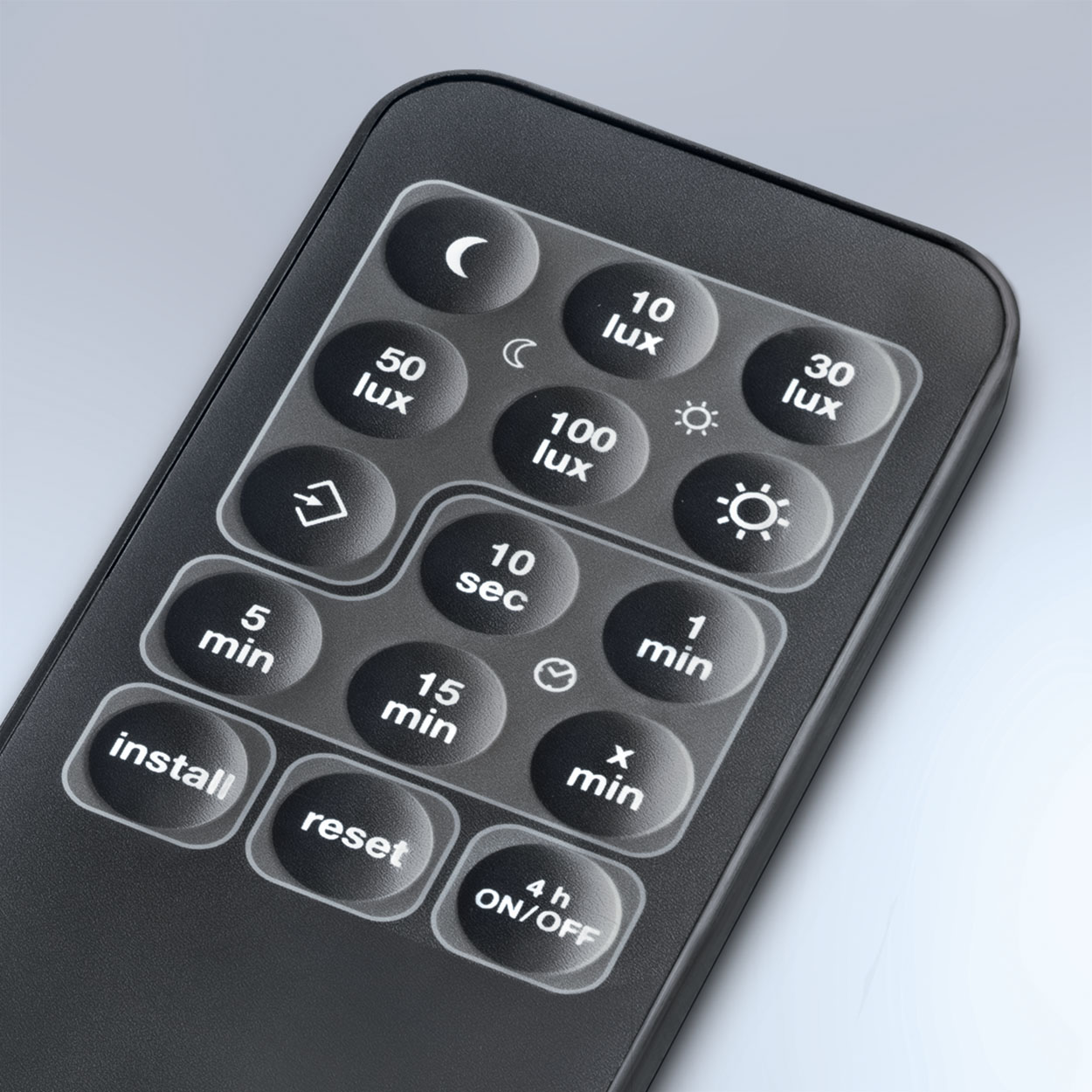

Remote control RC9 included

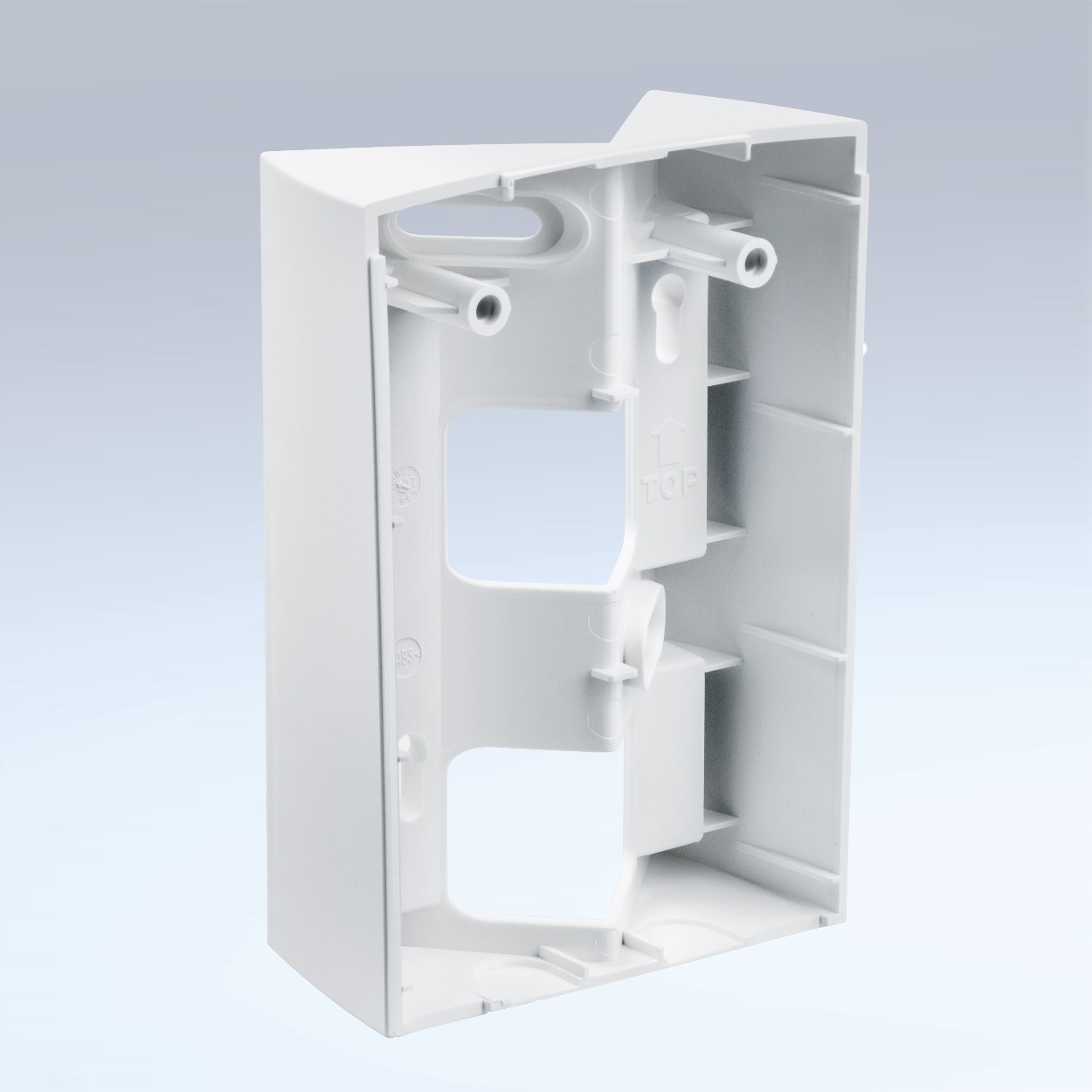

Including corner wall mount

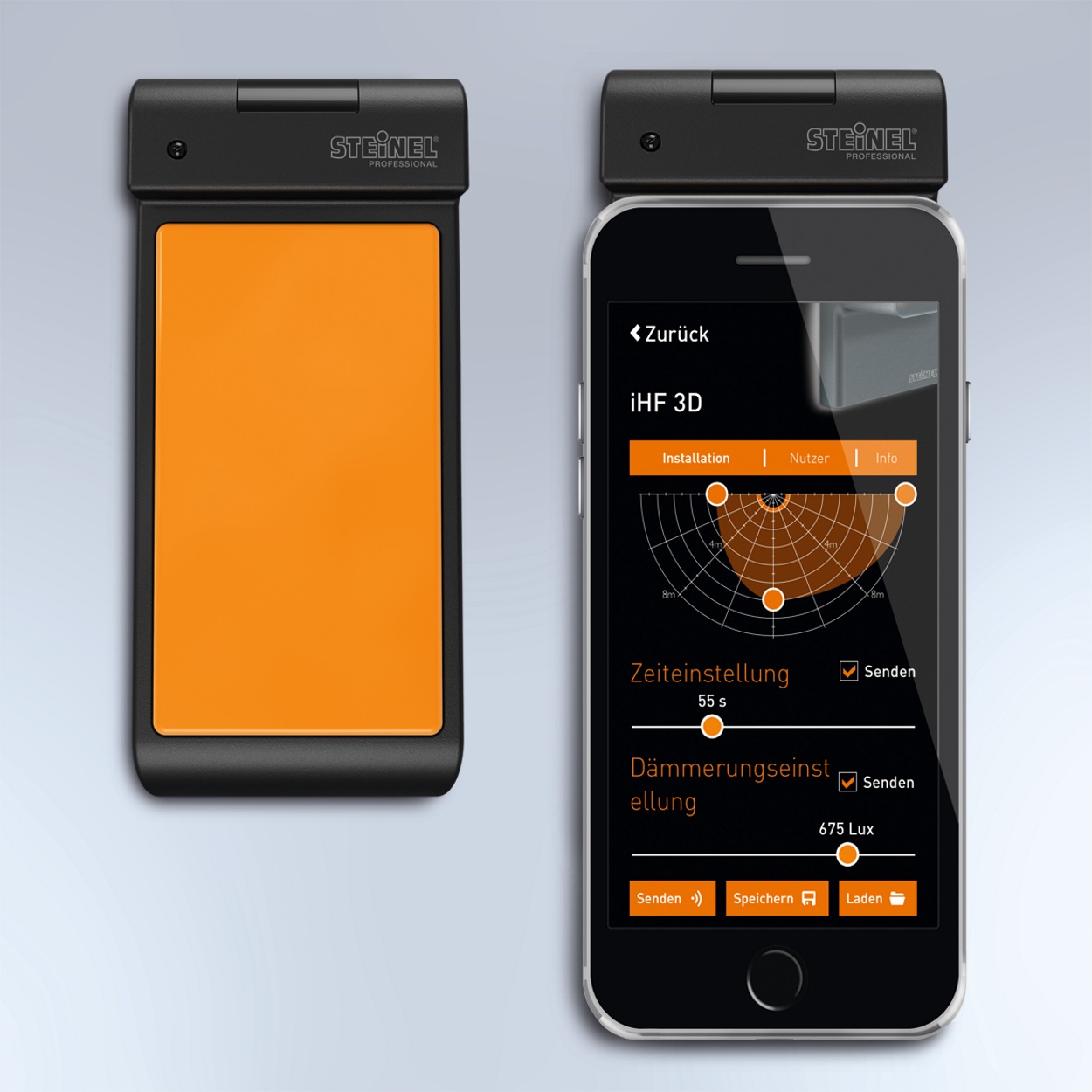

Smart Remote remote control optional

Technical drawing

Sensor detection range

Wiring diagram 1

Light without neutral conductor

Wiring diagram 2

Light with neutral conductor
