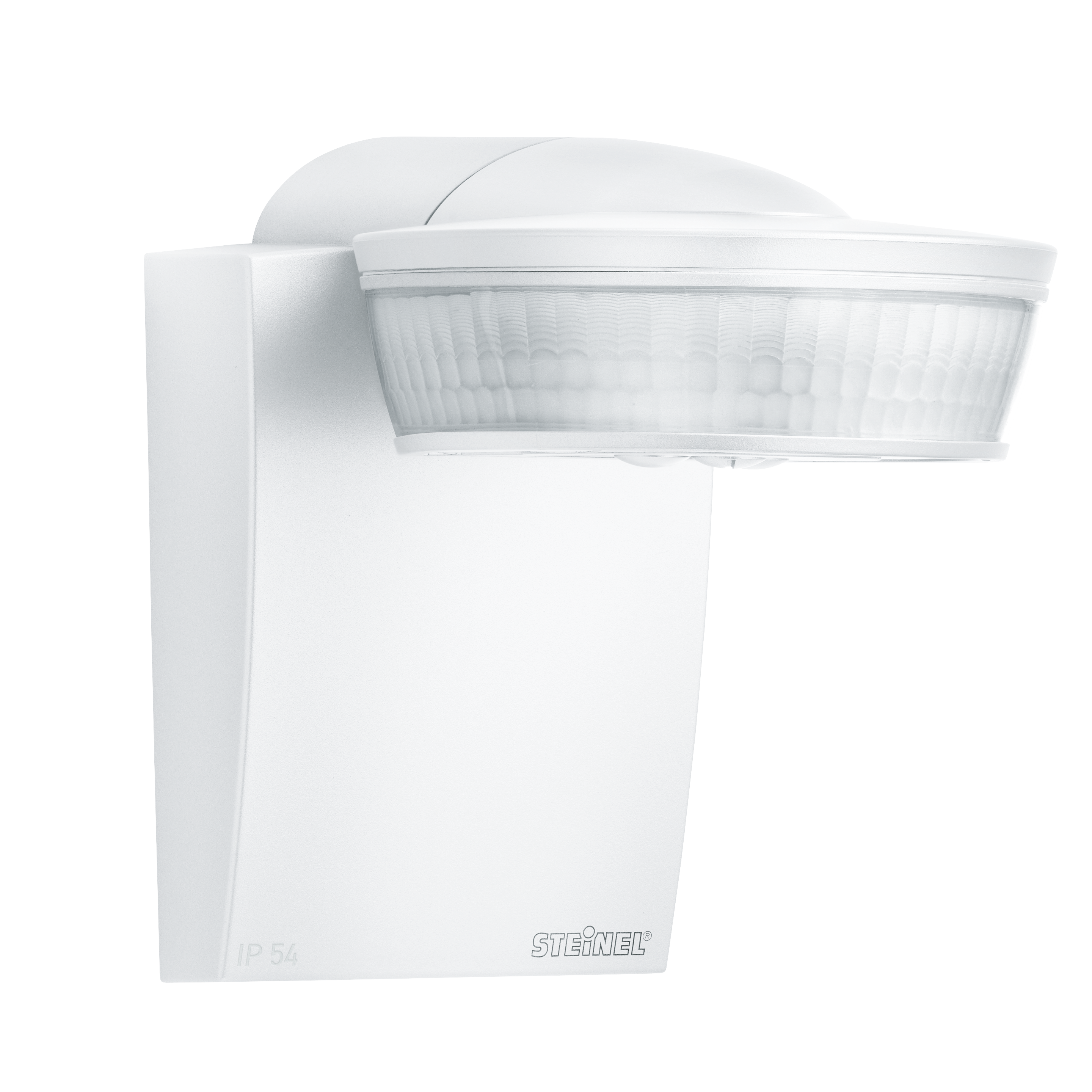

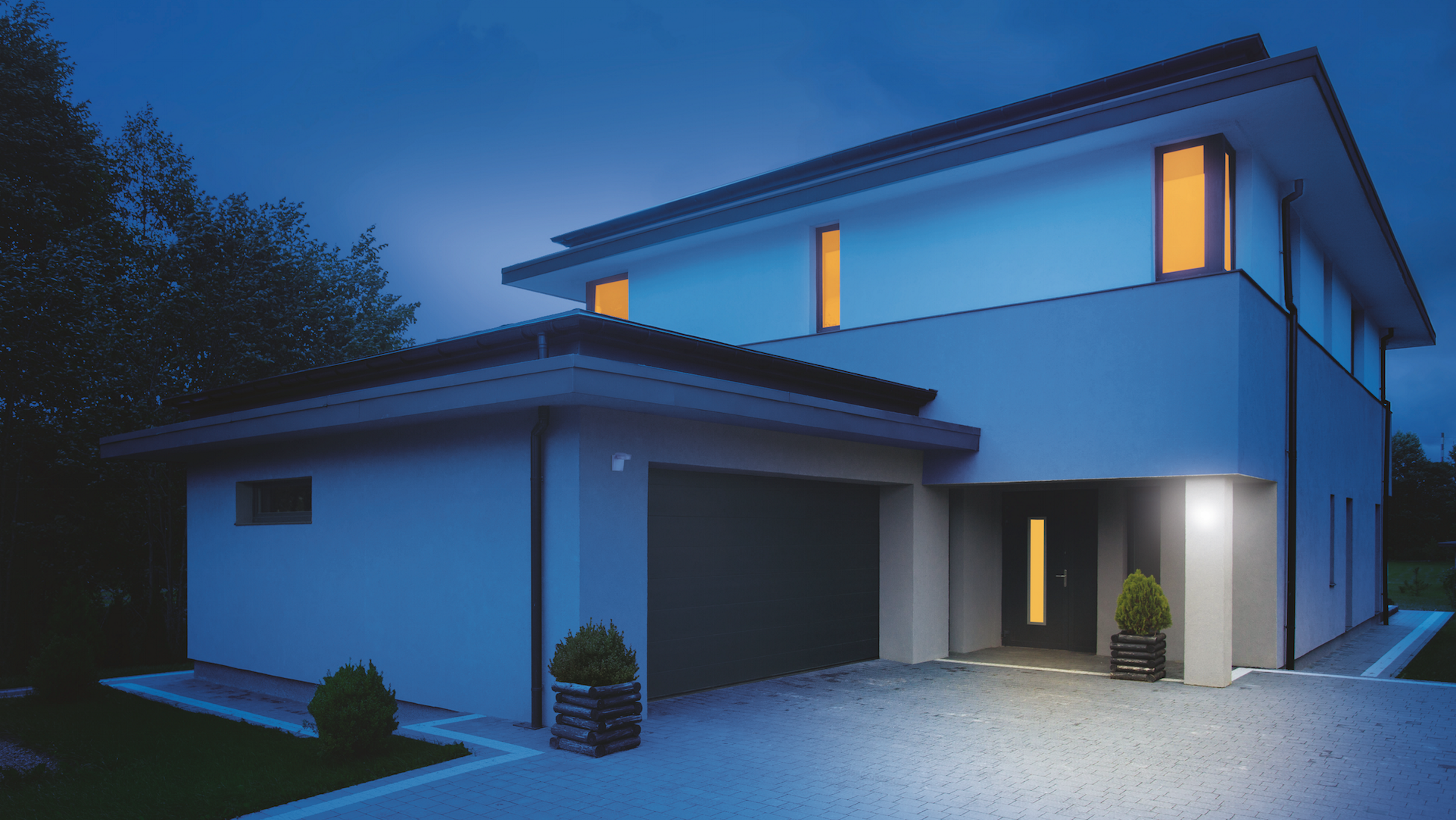

Steinel sensIQ white

ELDAS® no. 535 940 208

EAN-No. 4007841 059576

Most motion detectors sit around inconspicuously on a wall or ceiling. Not so the sensIQ KNX. Its design is so spectacular that makes it's a stylish signature on any facade, automatically attracting admiring glances. Behind its internationally acclaimed form is intelligent technology that puts virtually everything else in the shade. Unmatched: the detection reach of the four pyro sensors can easily be scaled in three directions using control dials - instead of shrouds of the type normally used on most other motion detectors. On this note: Welcome to the world of almost endless possibilities!

Identification

Version Motion detectors

Type of accessory Corner adapter

Dimensions

Dimensions L × W × H 172 x 113 x 144 mm

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 300 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability Yes

Range detail Reach adjustable from 2 - 20 m in 3 directions (100° in each)

Radial range r = 4 m (42 m²)

Tangential range r = 20 m (1047 m²)

Switching zones 1360 switching zones

Mounting height 2,00 – 5,00 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Light output 2x Presence output Light level Constant-lighting control Basic light level function Photo-cell controller Close range Individual pyro evaluation Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 60 s – 255 Min.

Base light function Yes

Base light function time 1-255 min

Main light adjustable 0 - 100 %

Settings via ETS software Remote control Bus Smart Remote

With remote control Yes

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling corner wall

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Application room Indoors all round the building courtyard & driveway front door multi-storey / underground car park outdoors warehouse

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included Yes

Certificates & EPREL

Certificates VDE

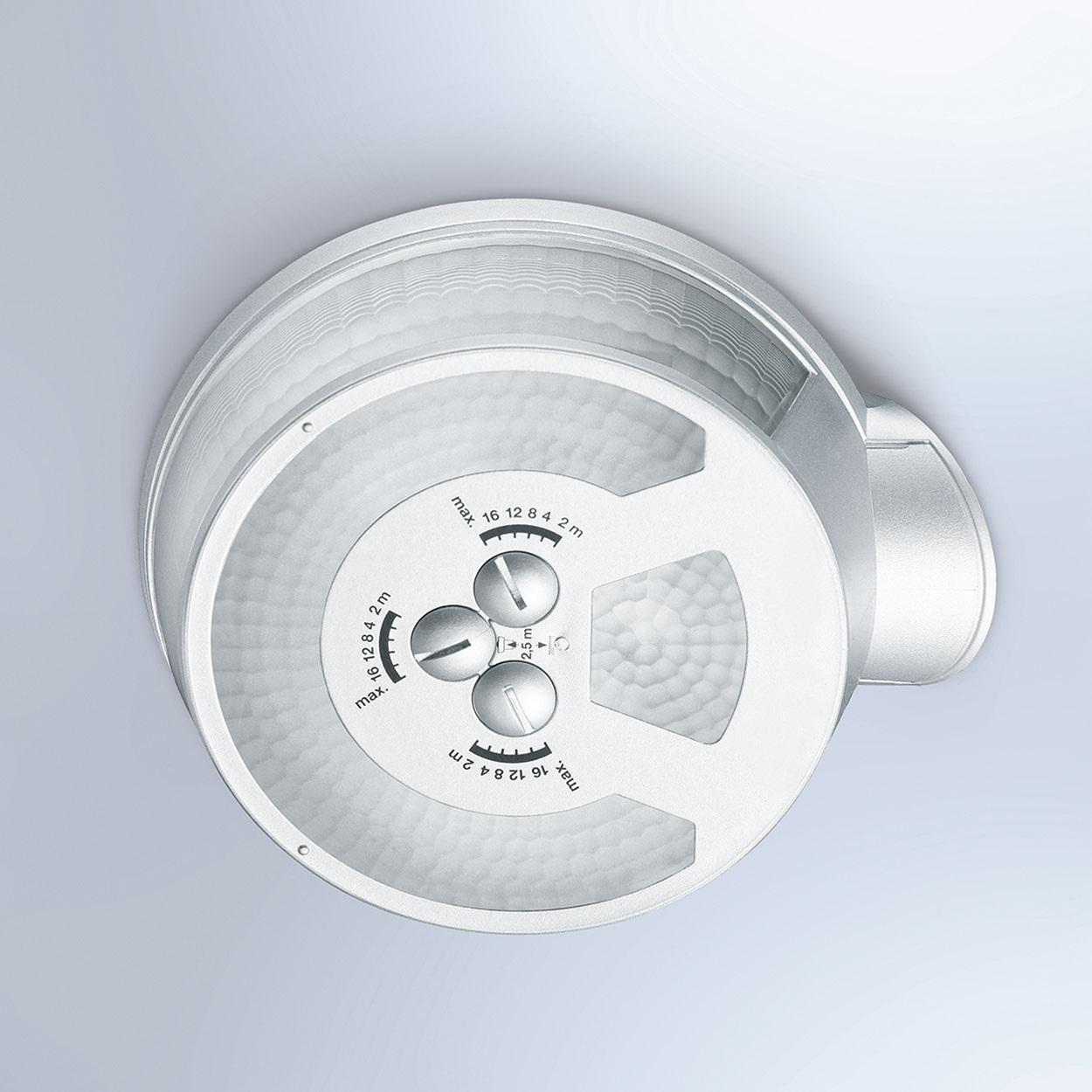

4x pyro system

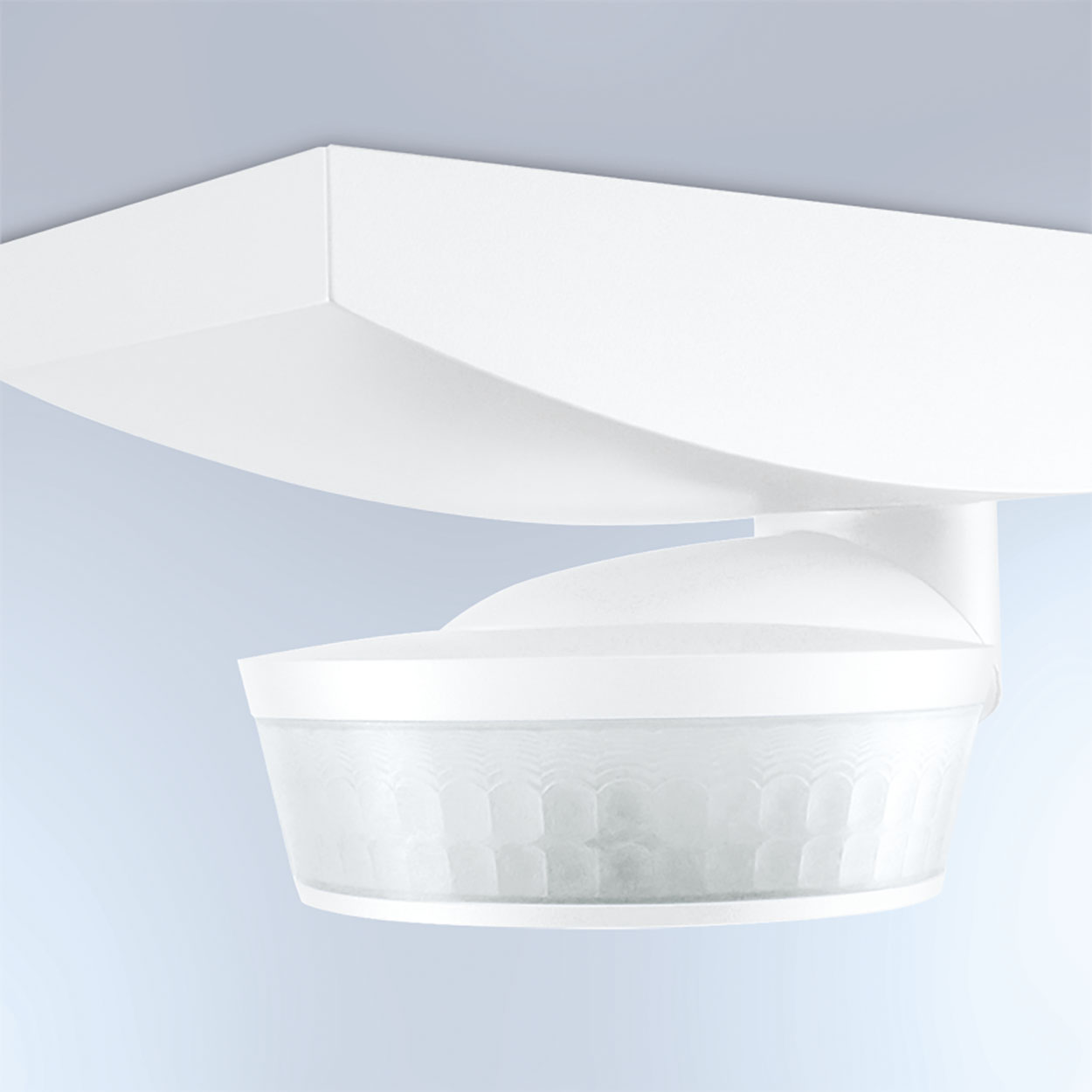

Suitable for mounting on ceilings

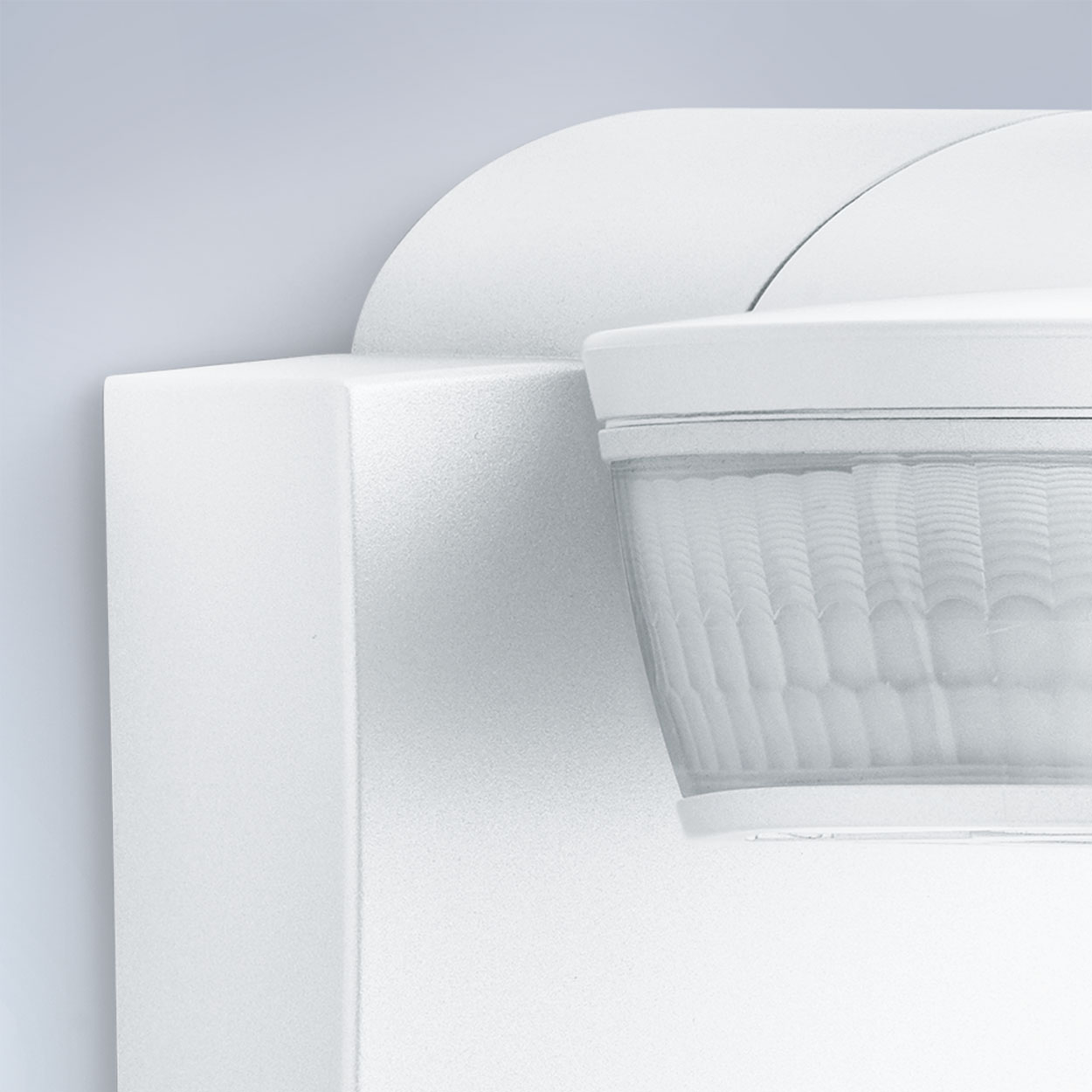

UV-resistant plastic

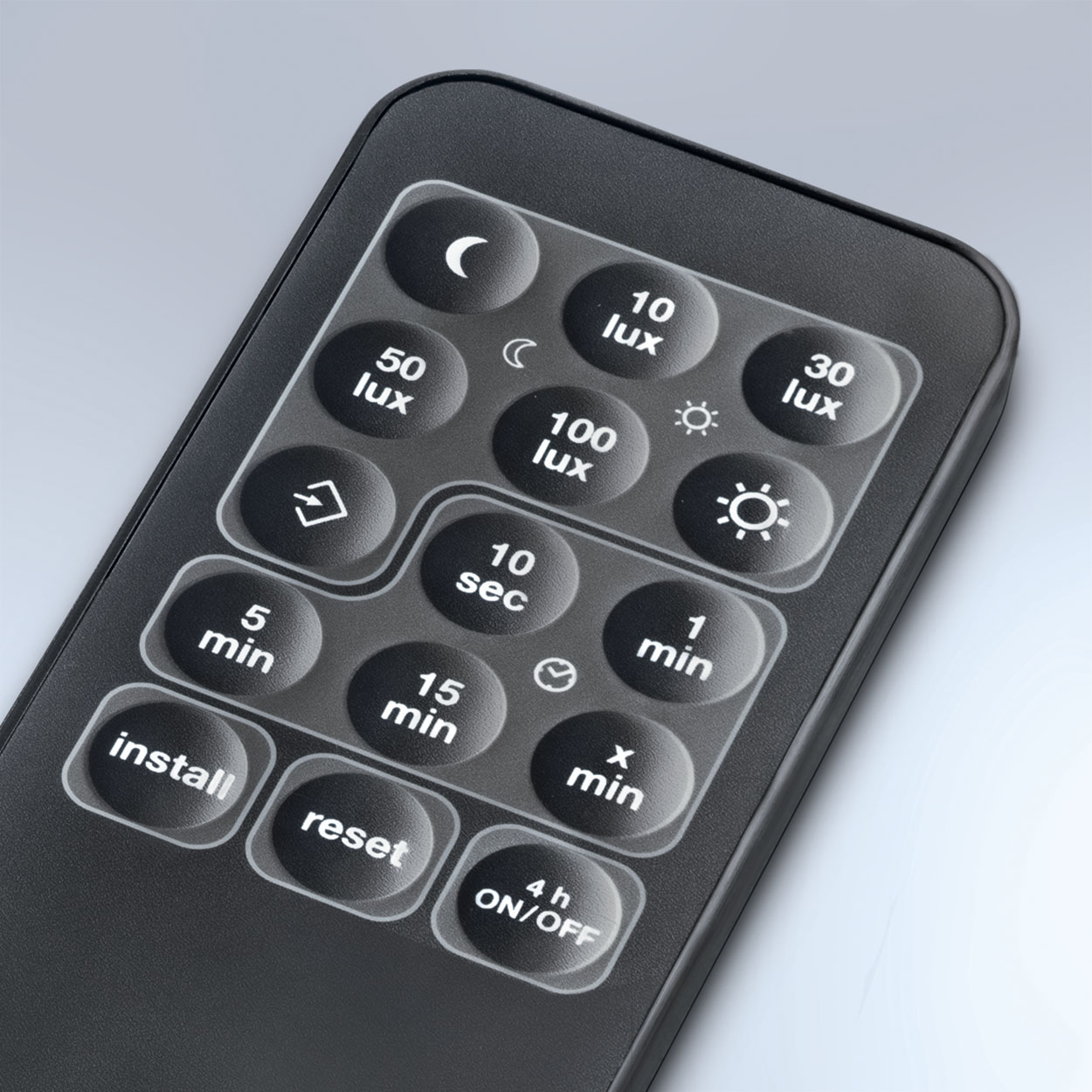

Remote control RC9 included

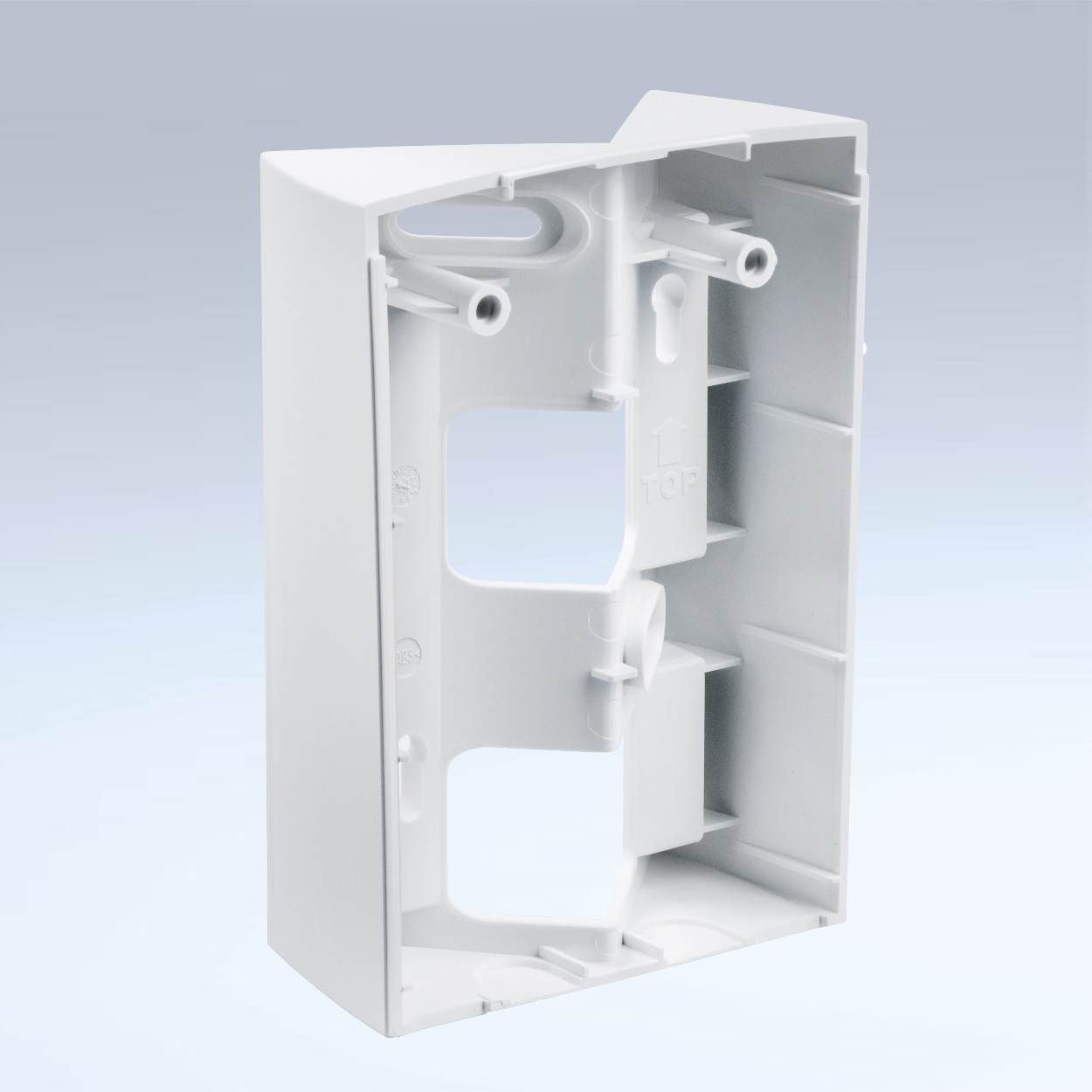

Including corner wall mount

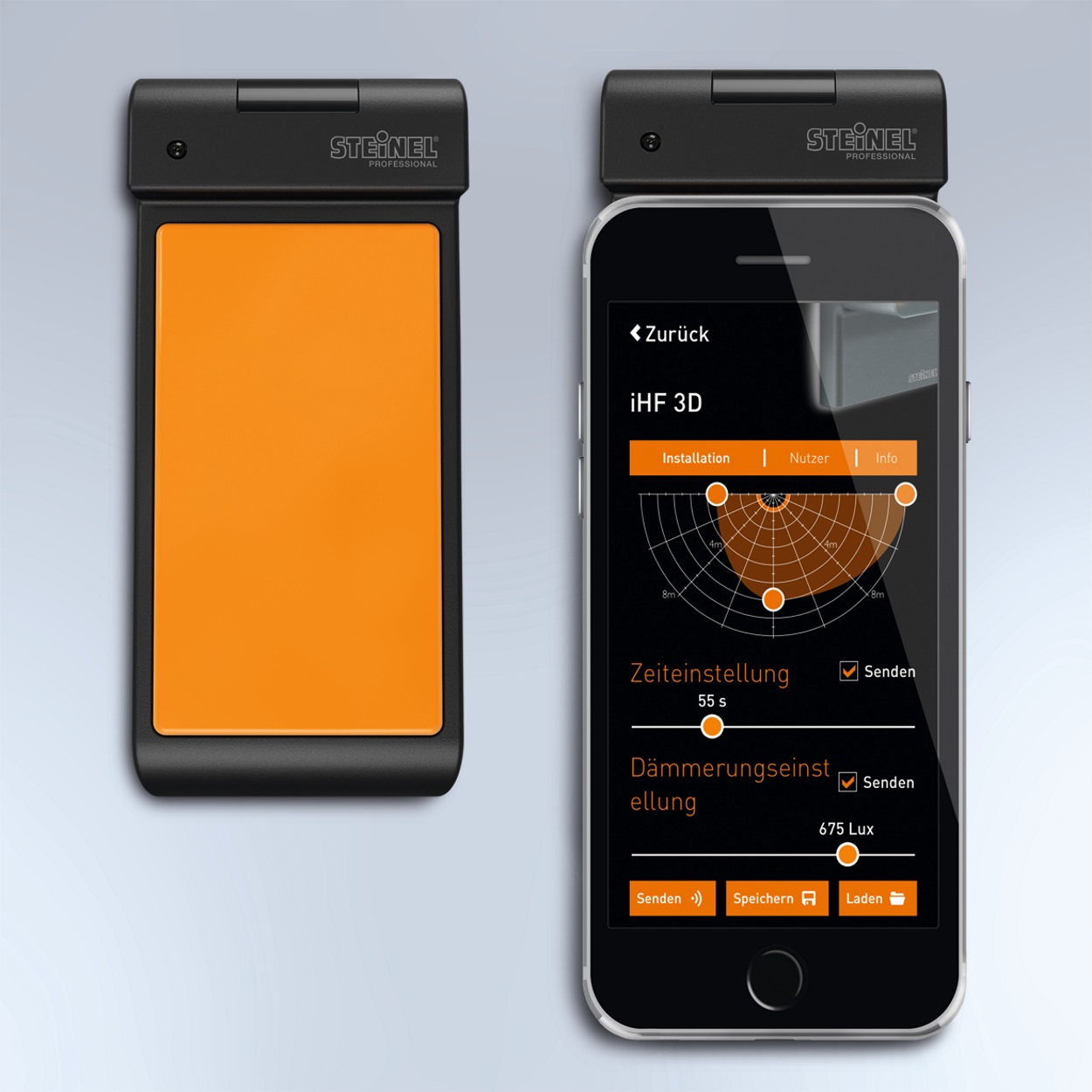

Smart Remote remote control optional

Technical drawing

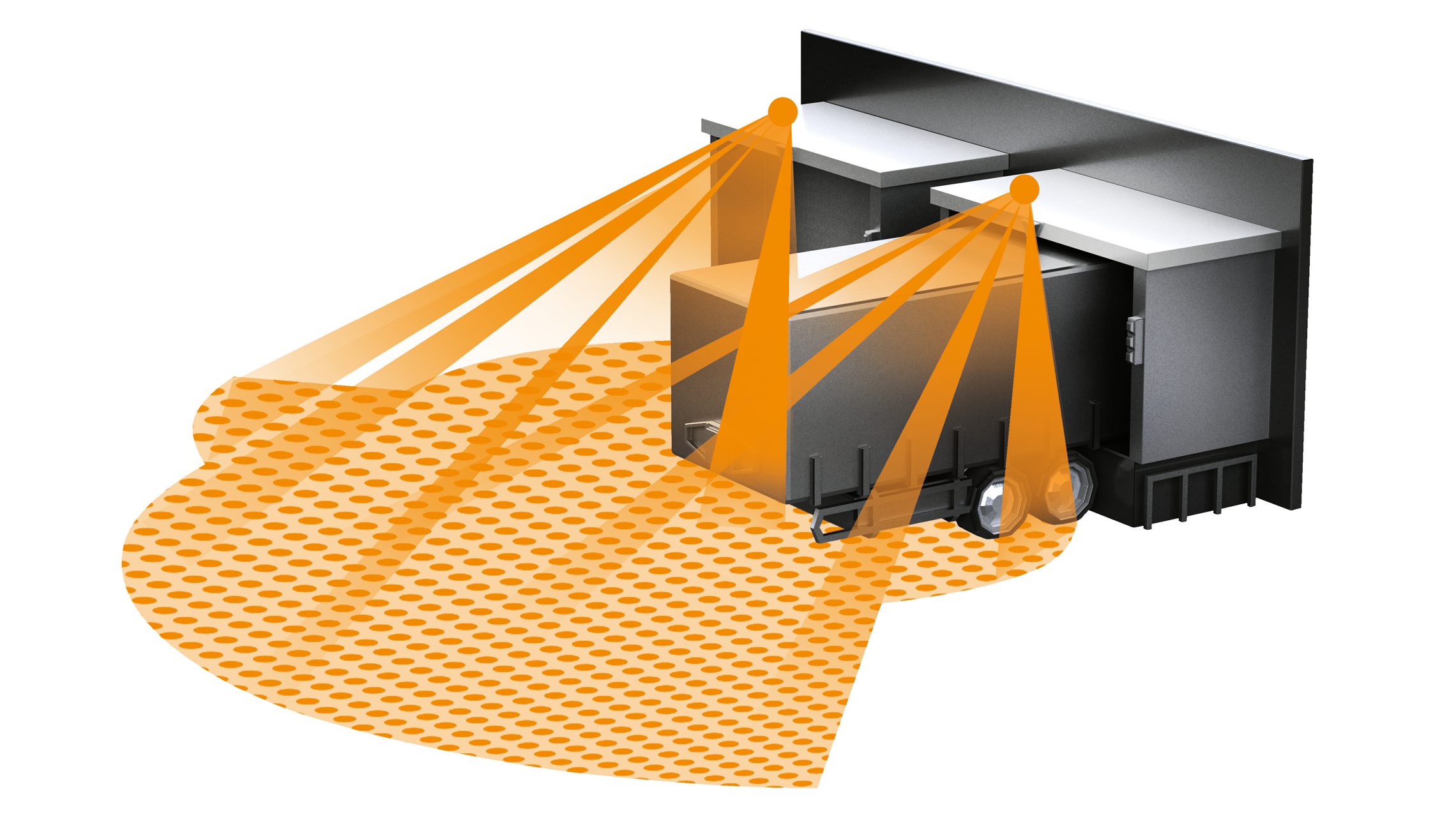

Sensor detection range

Data sheet User manual Declaration of conformity Drilling template
