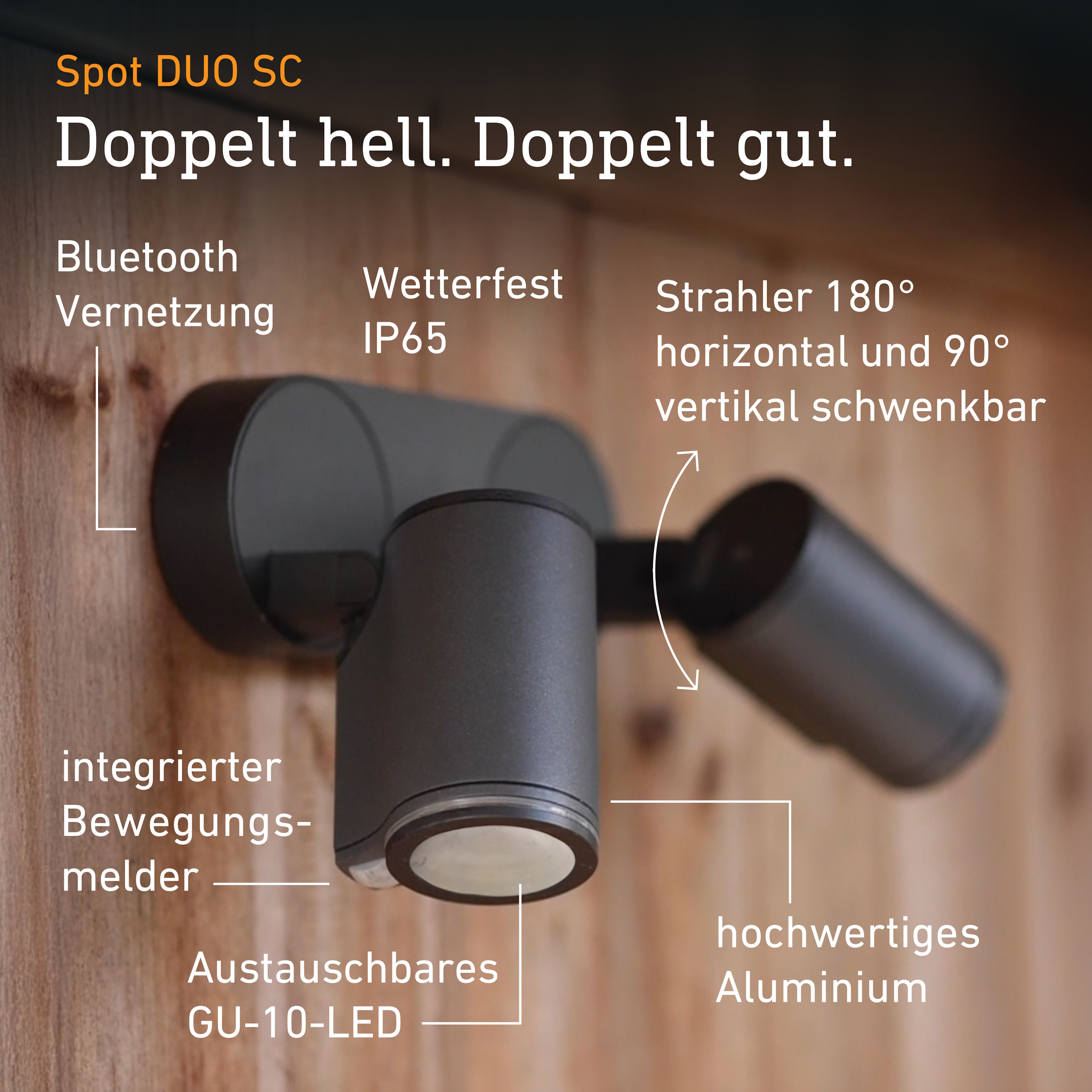

Steinel Spot DUO SC with motion detector & Bluetooth

ELDAS® no. 941 200 289

EAN-No. 4007841 058654

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

The "Spot DUO" wall spot series simply looks doubly good. On the one hand, because of its unmistakably clean-cut design. On the other because of its powerful performance with 2 x 512 lm light output from only 2 x 7,5 W. The individual LED spots each turn through 180°and tilt through 90°. For targeted, selective illumination of different areas around the building. Both versions – "Spot DUO S" as well as "Spot DUO SC" – are each fitted with two intelligent 90° infrared sensors which are reliable activated over a reach of up to 10 m. Selectable time and twilight threshold for both. The Bluetooth-based Connect version can be wirelessly interconnected and set and controlled via app. Groups can also be created and lights designated via app for added convenience. The replaceable lamps are included.

Swivel-mounted wall spotlight with motion detector for stylish lighting accents around the house
Elegant and puristic design made of high-quality aluminium, spotlight heads can be tilted 180° horizontally and 90° vertically
Wireless networking via Bluetooth and easy setting via STEINEL Connect App
Automatic light thanks to two 90° infrared sensors with up to 10 m detection of movement
Functions: Twilight-controlled light, integrated timer, night economy mode, 4 hours continuous light
Incl. 2x GU-10 LED bulbs with warm white light (3000 K) with 512 lm} at 7,3 W each
Incl. mounting accessories - plastic-free packaging

Variants

Version With motion detector and Bluetooth

Dimensions

Dimensions L × W × H 175 x 247 x 98 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 14,6 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 90 °

Opening angle 90 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range r = 2 m (3 m²)

Tangential range r = 10 m (79 m²)

Mounting height 1,8 – 2,5 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Networking via Bluetooth

Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 1024 lm

Colour temperature 3000 K

LED colour deviation SDCM5

Colour rendering index 80-89

With illuminant Yes, LED lamp

Illuminant LED can be replaced

Base GU10

Soft light start No

Continuous light selectable, 4h

Lifetime

LED lifetime L70B50 25°C > 20000 h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function No

Main light adjustable No

Functions Timer Master/slave override

Settings via Bluetooth

Twilight setting teach Yes

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, transparent

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway outdoors terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class F

EPREL category Surrounded product with separate light source (e.g. E27)

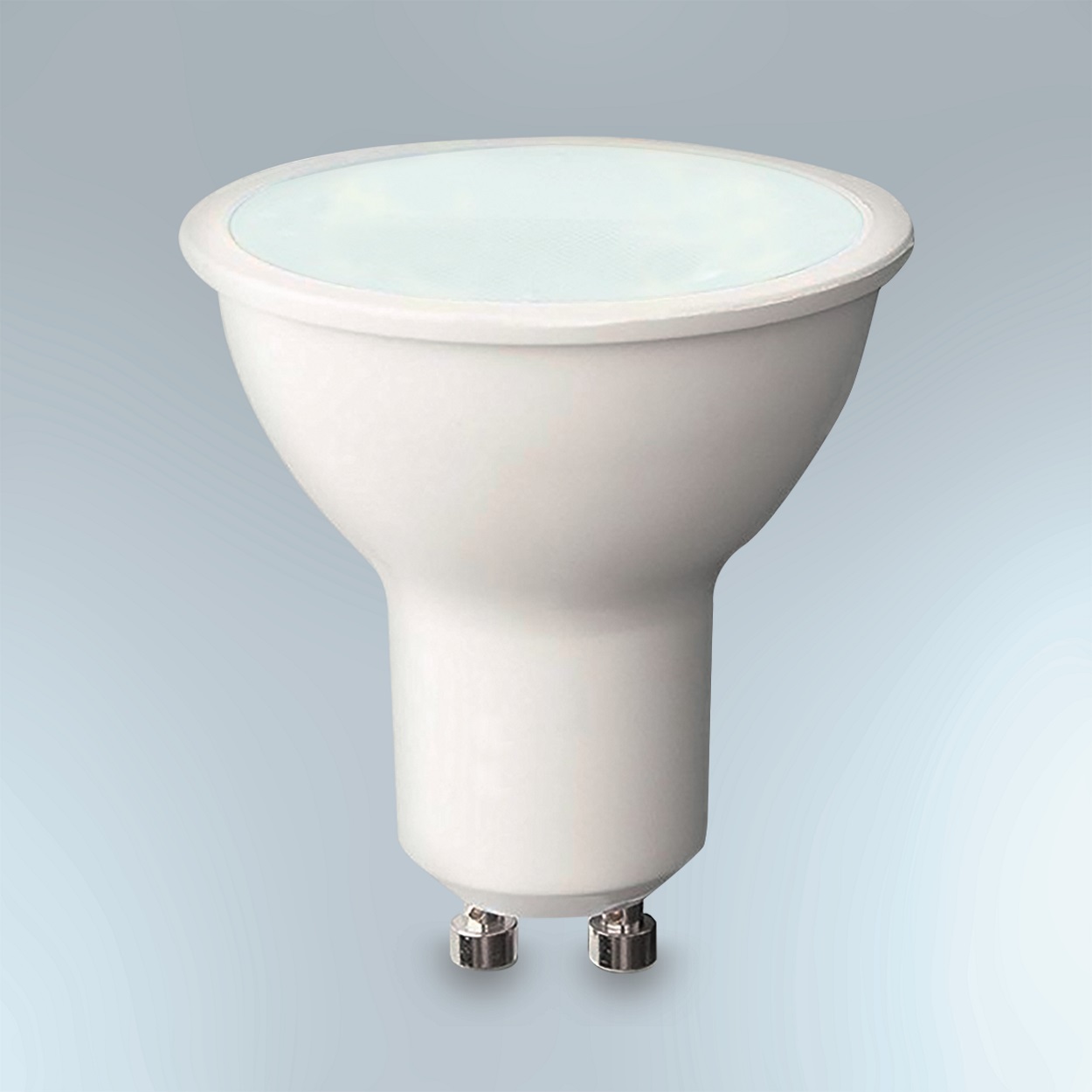

Including GU10 LED lamp

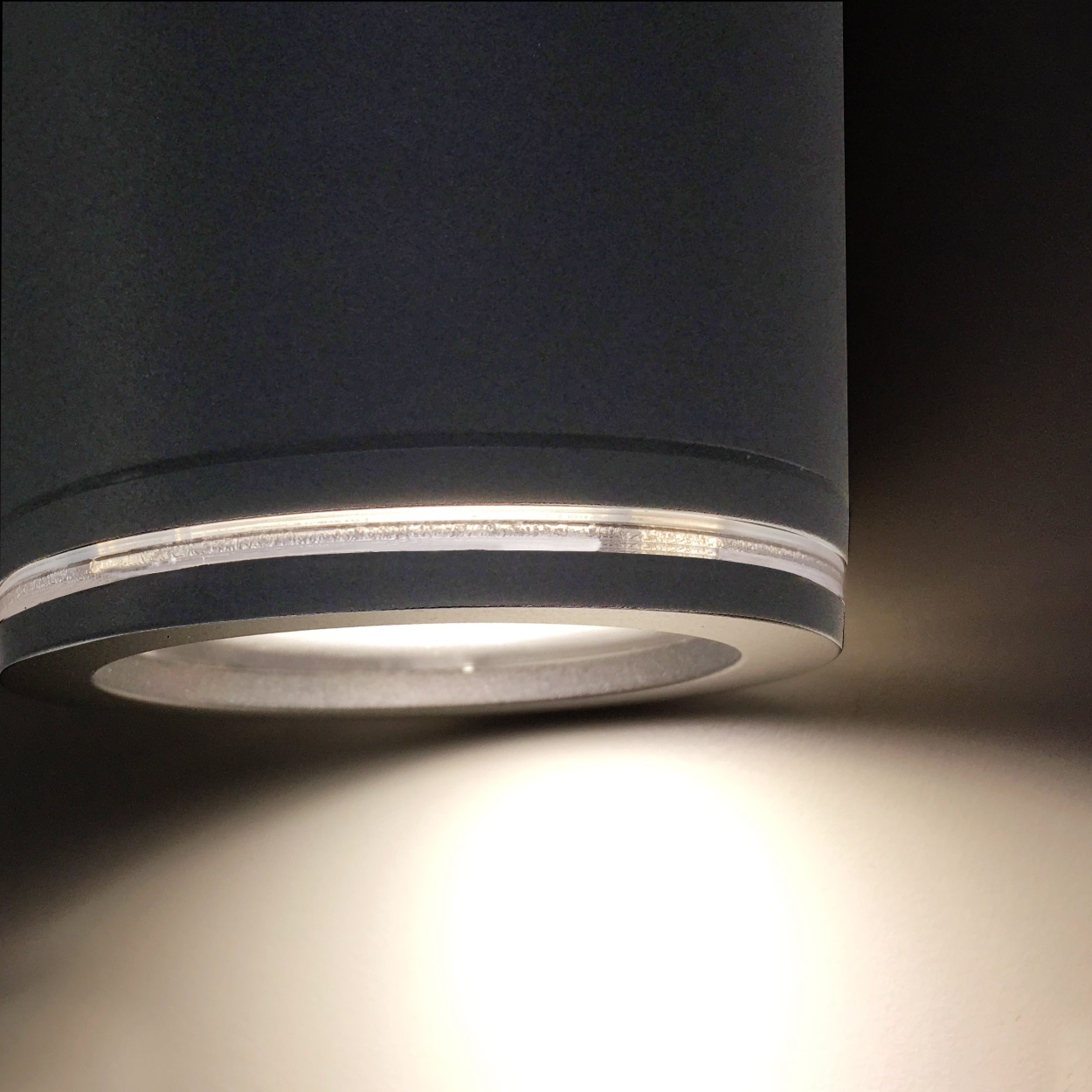

LED ambient light

High-quality aluminium

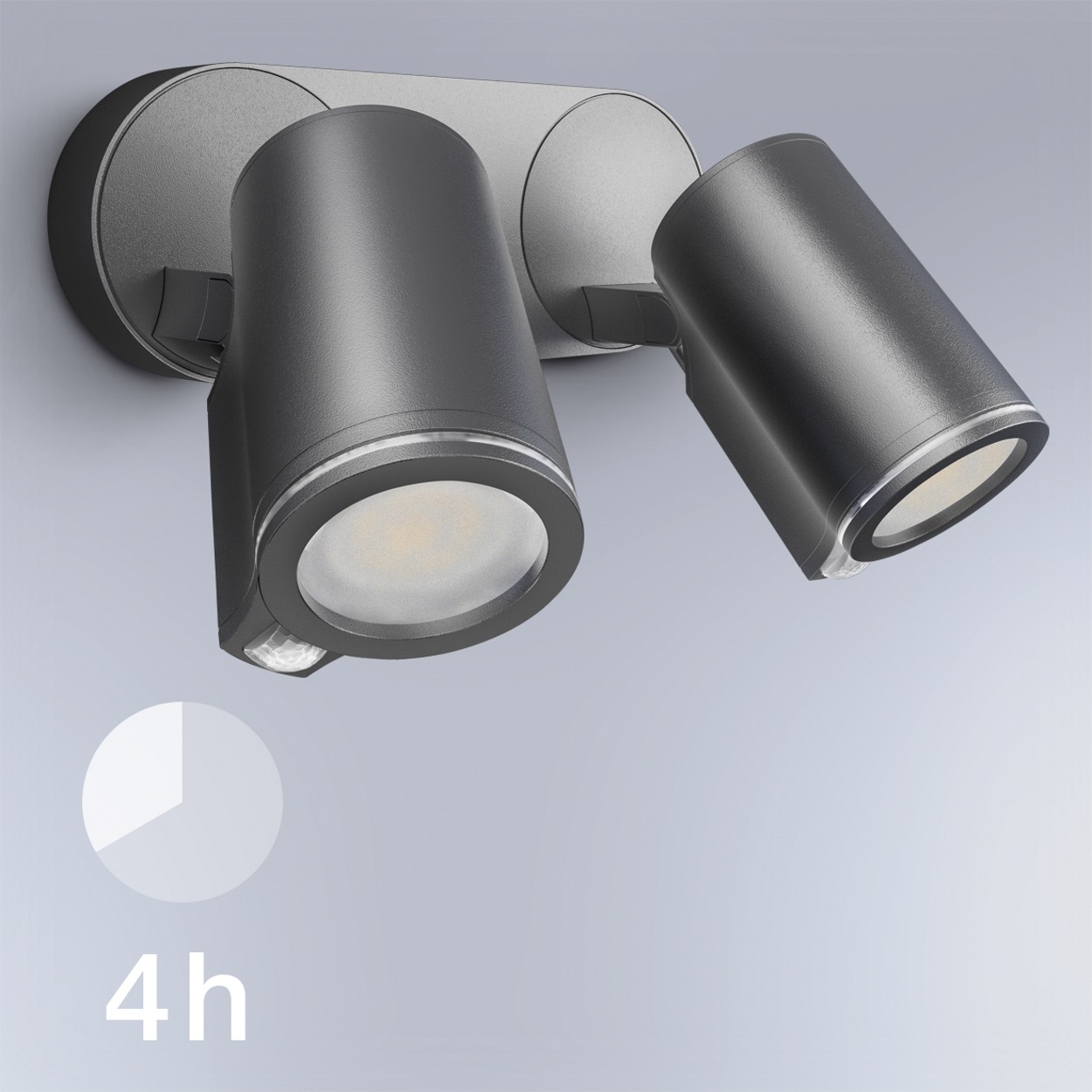

4-hour manual override (optional)

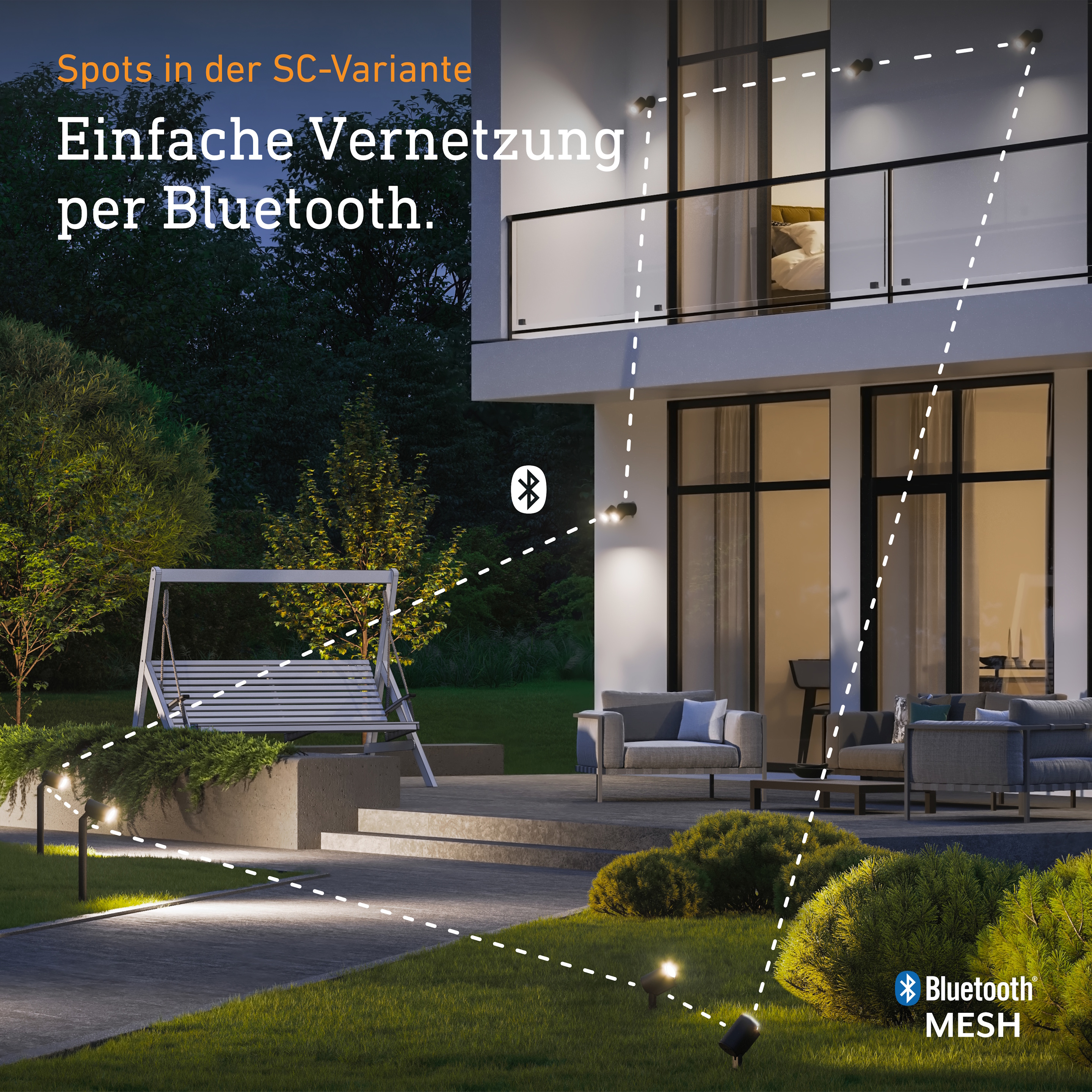

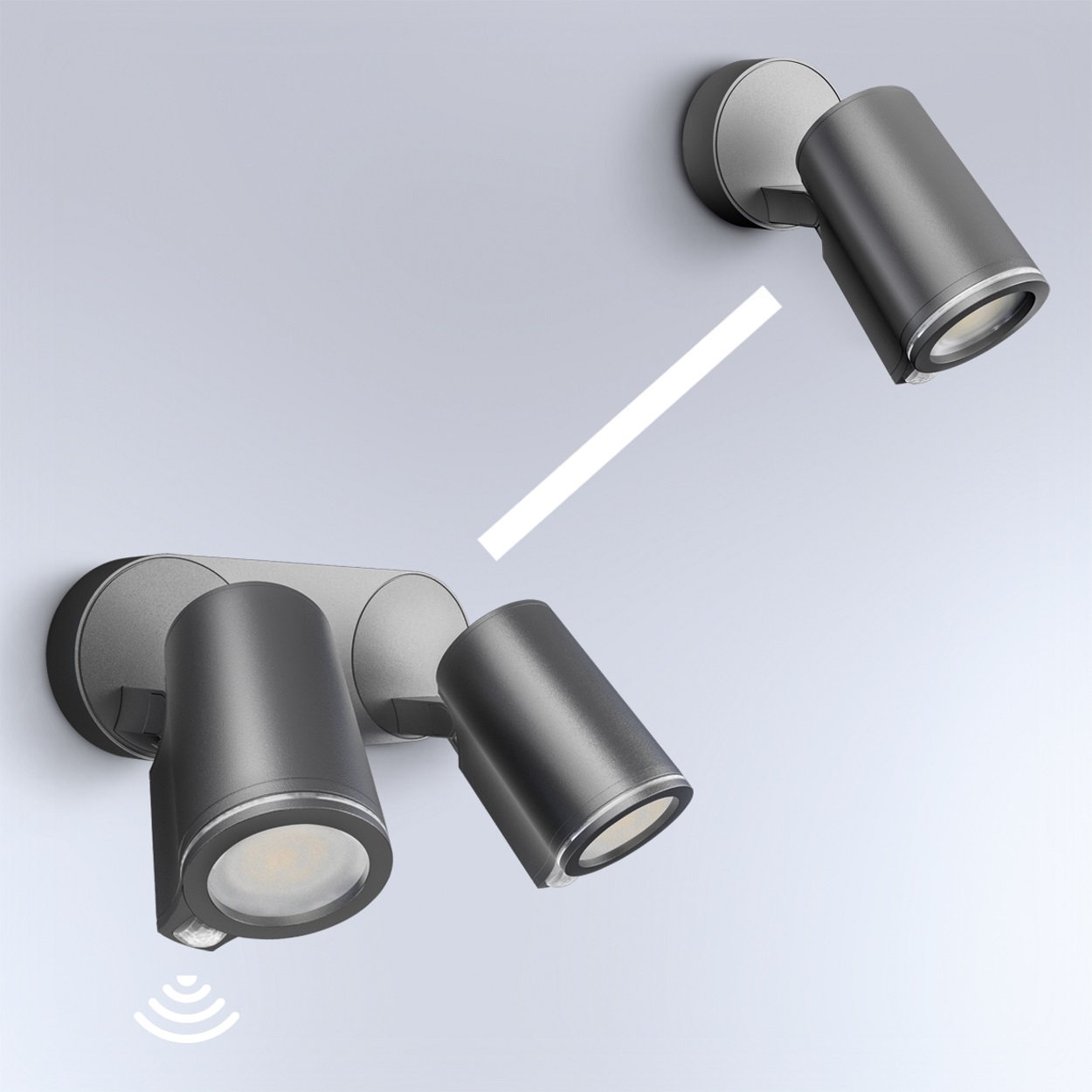

Interconnectable and adjustable via Bluetooth

Technical drawing

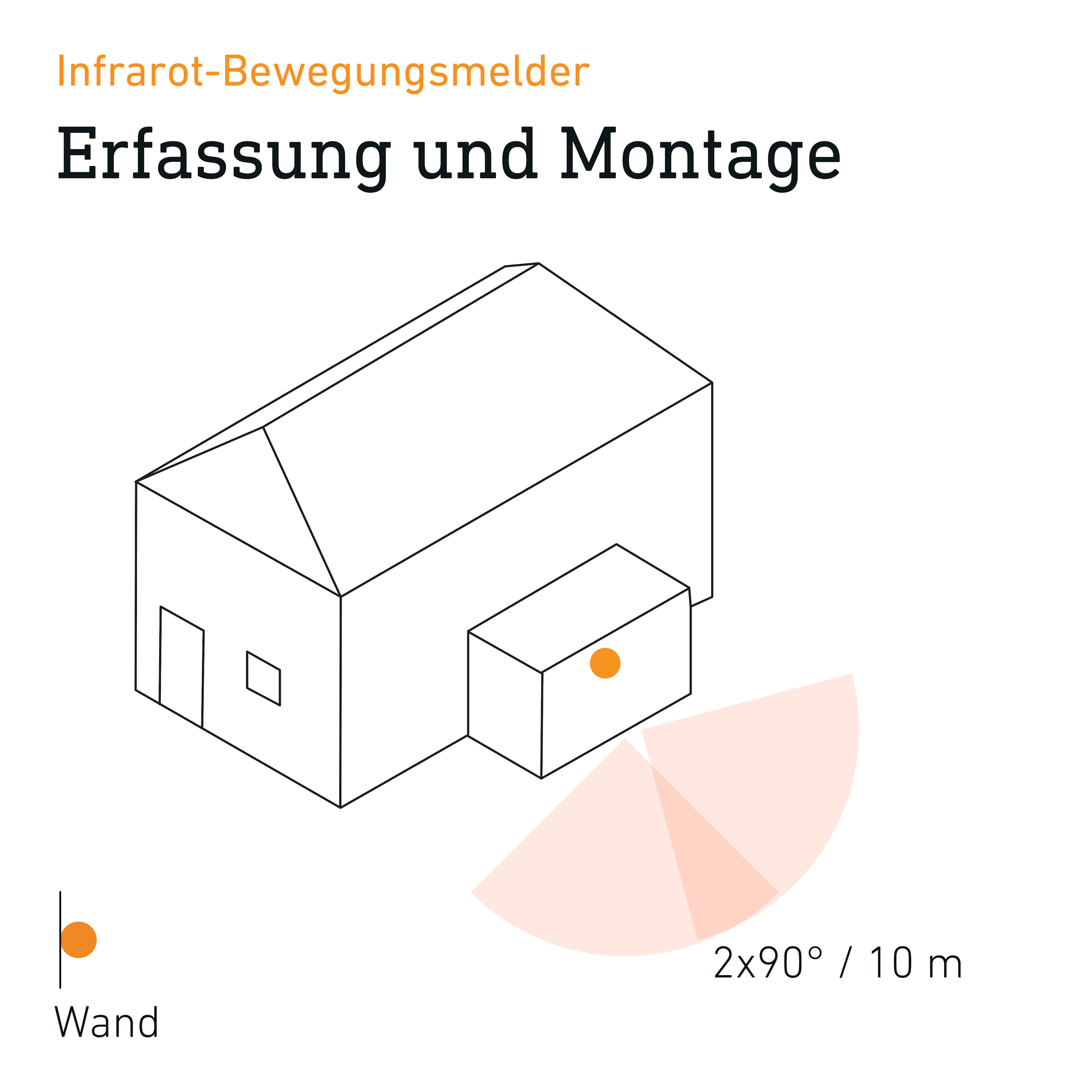

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Master/master bluetooth interconnection circuit diagram

Data sheet User manual Declaration of conformity Drilling template
