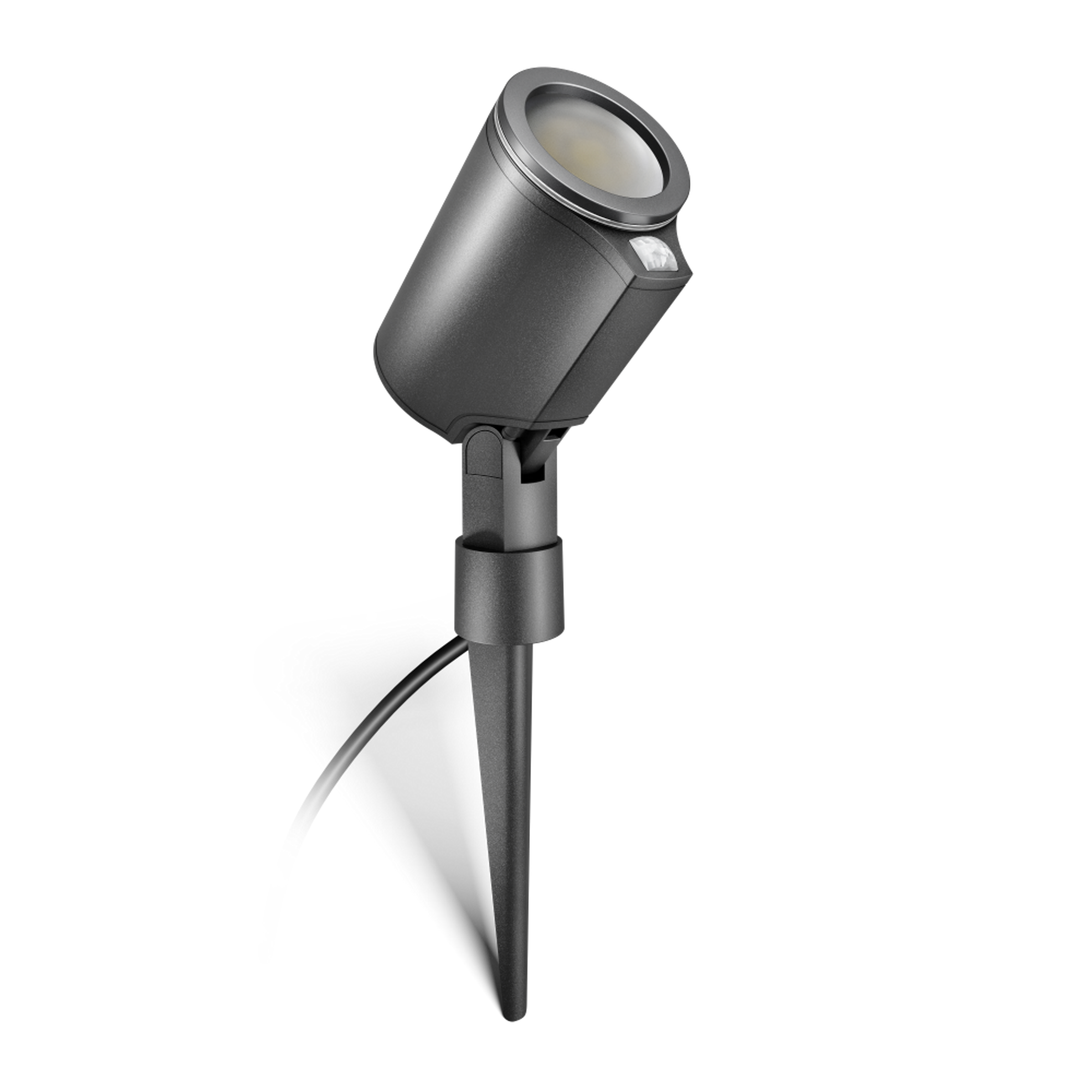

Steinel Spot Garden SC 24V with motion detector & Bluetooth

EAN-No. 4007841 089344

The ideal lighting solution for stylish lighting accents around your home. The "Spot Garden 24V" ground spotlight series, featuring a clean, modern design, is simply inserted into the ground and easily connected to the 24V garden lighting system thanks to Plug & Play – no tools required. This allows you to quickly create targeted, optionally colored lighting accents and elegantly and effectively illuminate dark areas 363 lm. Available as "Spot Garden C 24V" with brightness sensor, and as "Spot Garden SC 24V" with innovative infrared sensor (90° detection) with a range of max. 10 meters. The settings and control of the functions can also be conveniently managed via the STEINEL Connect app. Time and twilight settings, on/off schedules, and lighting groups can all be programmed in no time. Power supply and cables are not included in delivery.

Your garden. Your light. With the 24V garden lighting system, you can make your outdoor area shine. Simply connect the light, cable and power supply unit and set via the STEINEL Connect app.

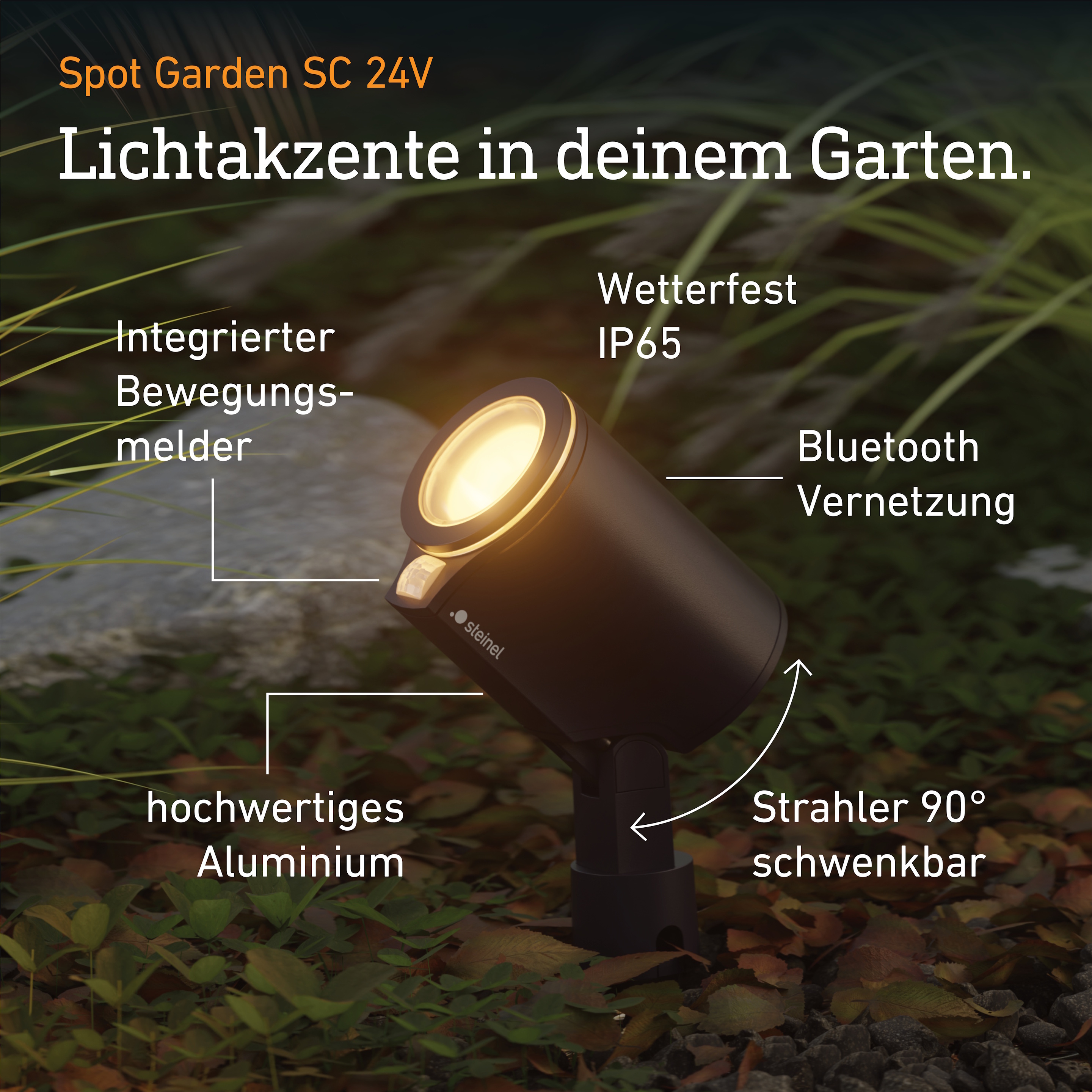

Stylish coloured light accents: swivelling 24V garden spotlight with ground spike with motion detector
High-quality material: Elegant and puristic design made of durable aluminium
STEINEL Connect App: Easy configuration and networking of multiple lights via Bluetooth
True Color: true-to-life color rendering in warm white, cool white and color, dimmable for flexible lighting scenes
Plug & Play: All components can be connected quickly and without tools, and can be expanded as desired

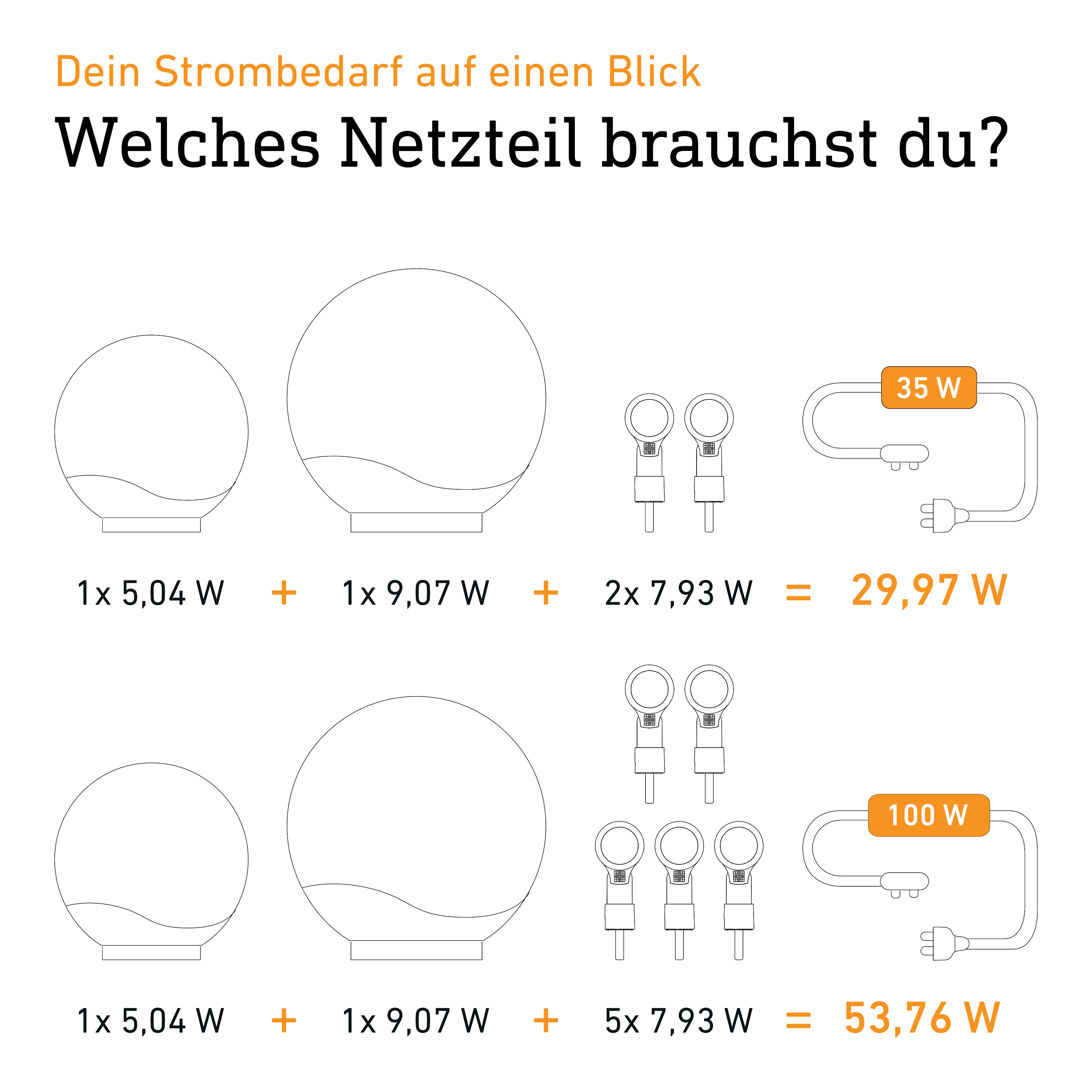

Well planned: This light consumes 7,9 W. To operate it, you’ll need a 24V power supply that matches the total power requirement – not included.

Dimensions

Dimensions L × W × H 69 x 118 x 369 mm

Electrical

Power 7,9 W

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 90 °

Opening angle 90 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range r = 2 m (3 m²)

Tangential range r = 10 m (79 m²)

Connectivity

Networking Yes

Networking via Bluetooth Mesh

Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 363 lm

Efficiency 46 lm/W

Colour temperature all colors + 1800-4000 K

LED colour deviation SDCM3

Colour rendering index = 90

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Soft light start Yes

Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h

Average rated power supply lifetime at 25 °C > 60000 h

Settings

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function Yes

Base light function time 5s-60 min

Main light adjustable 10 - 100 %

Functions DIM function Motions sensor Color temperature change Light sensor Normal / test mode Push button configuration

Settings via Bluetooth Mesh

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 100 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP65

Protection class III

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material PC structured

Mounting location Floor

Application location Outdoors

Mounting type Other

Material Aluminium

Application room garden outdoors terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included No

Certificates & EPREL

Certificates TSU

EPREL category Surrounded product with integrated light source

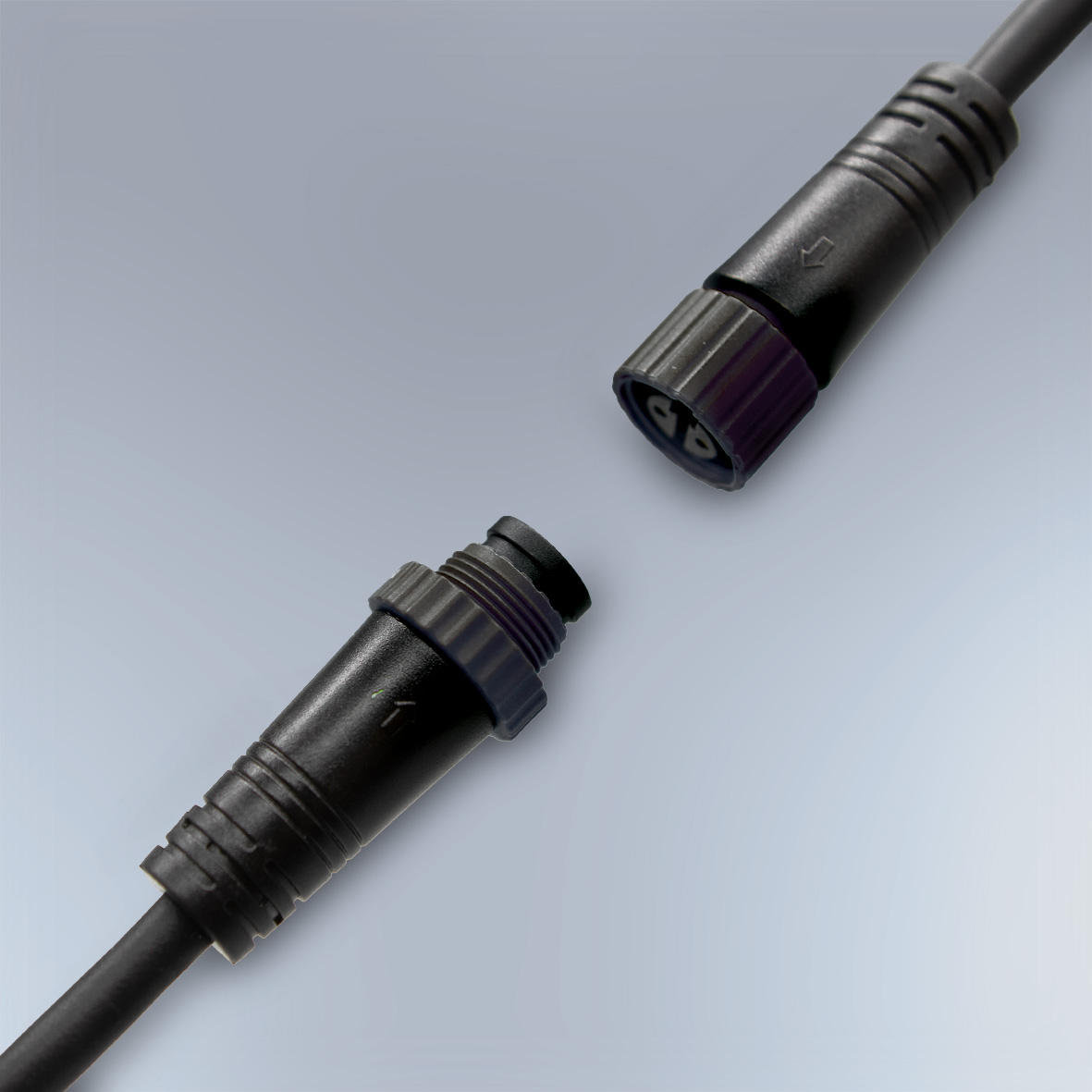

Plug&Play - Easy to install

True Color

Dimmable lighting

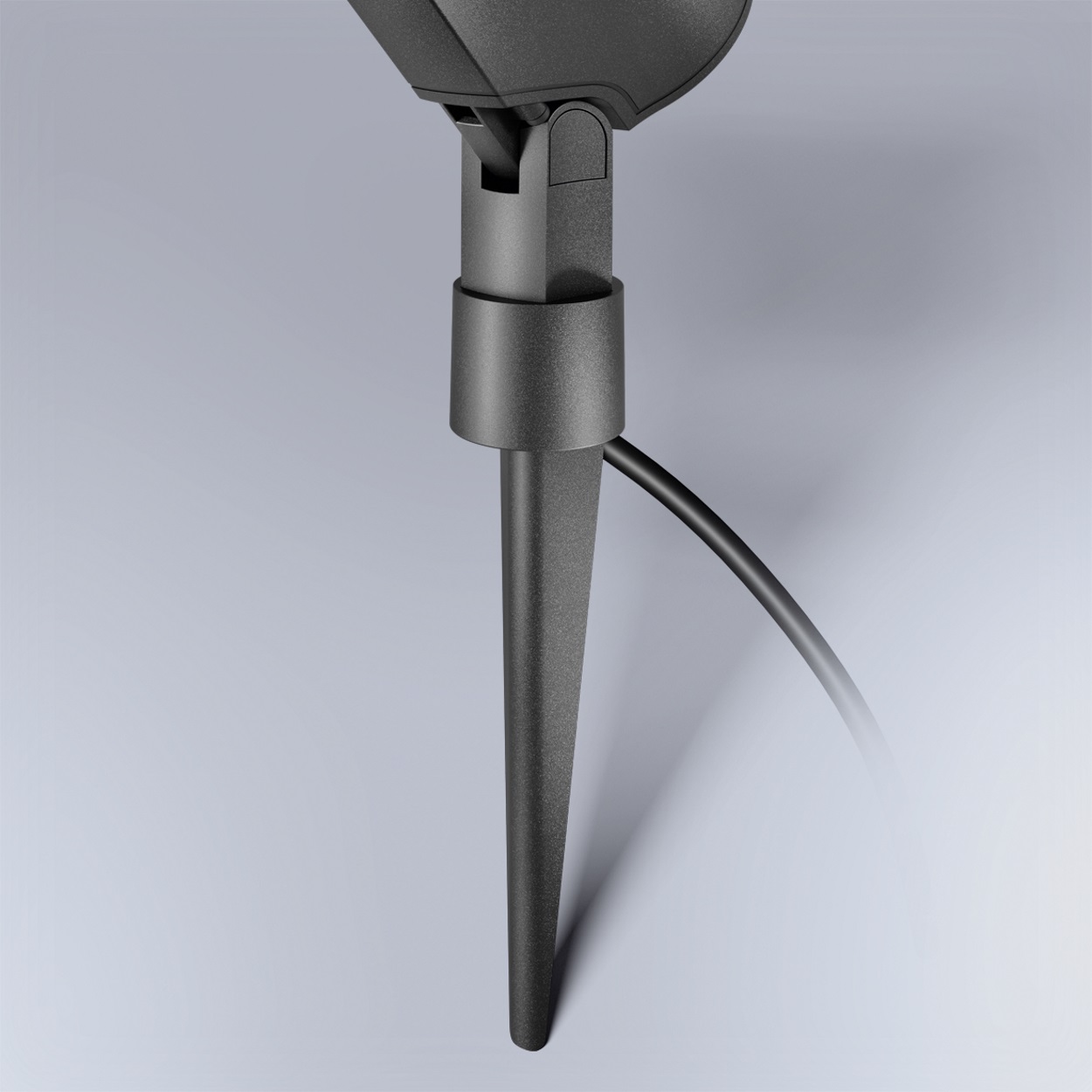

Sturdy ground spike

High-quality aluminium

Technical drawing

Sensor detection range

Data sheet User manual Declaration of conformity LDT file (light distribution)
