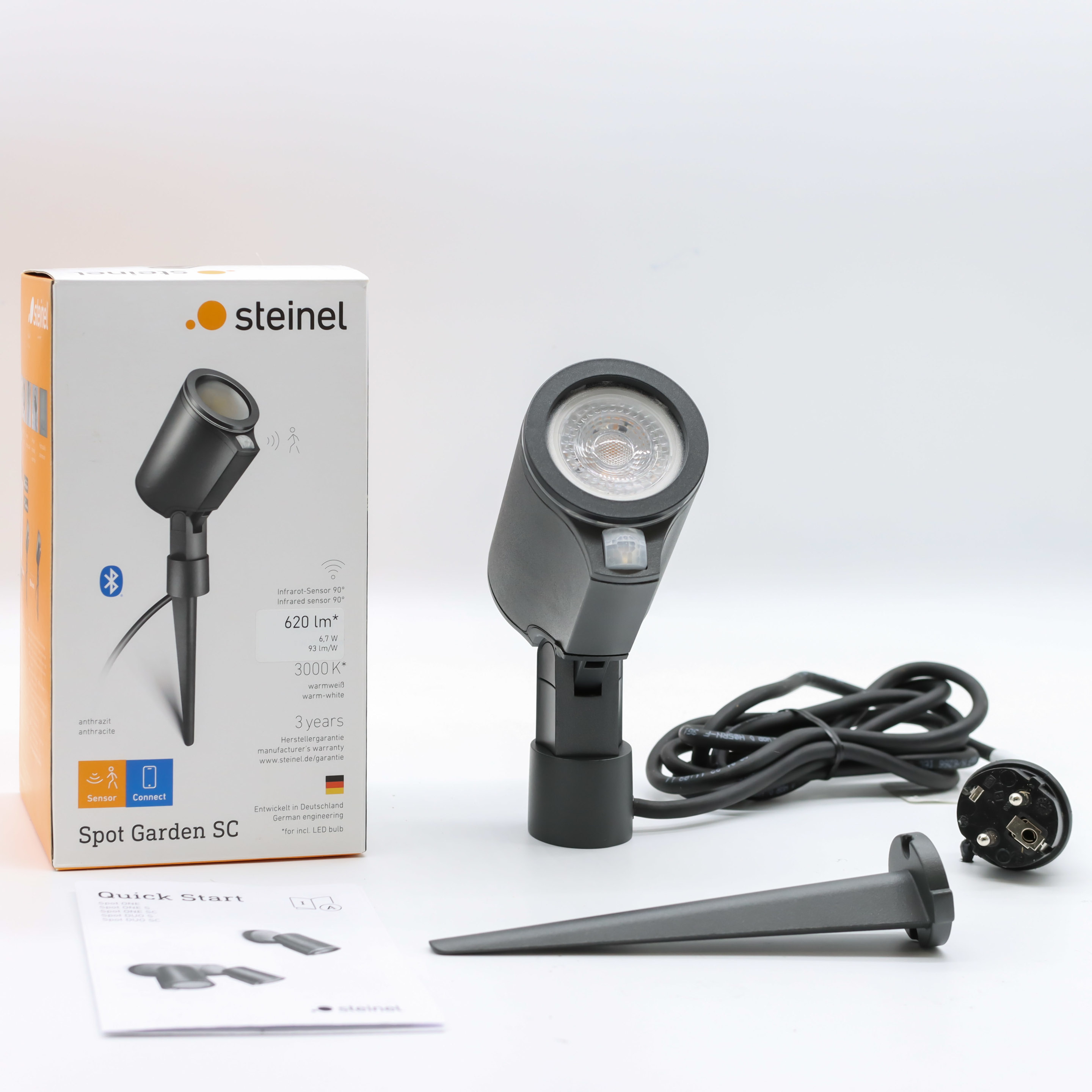

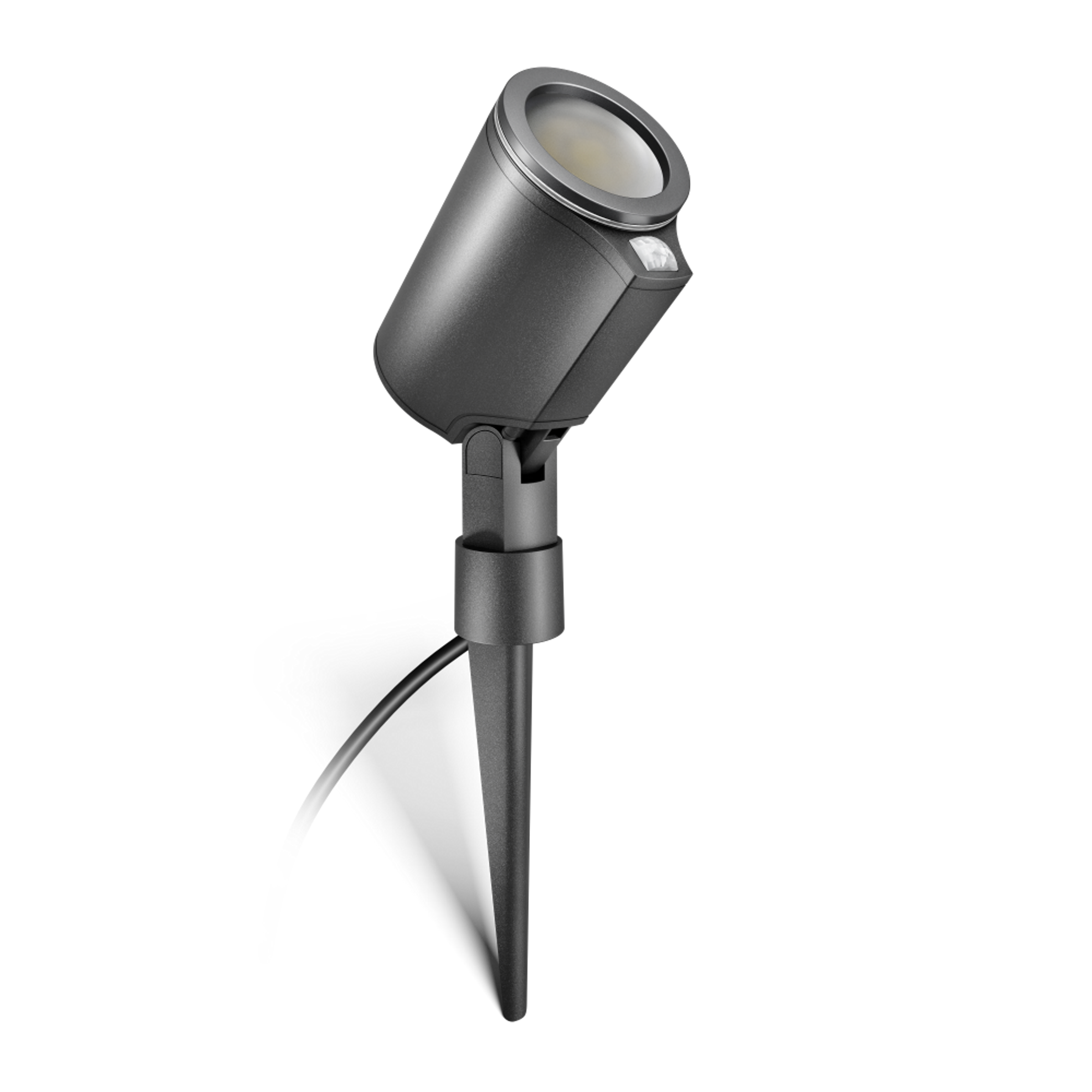

Steinel Spot Garden SC Sensor Connect

ELDAS® no. 941 200 529

EAN-No. 4007841 058685

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

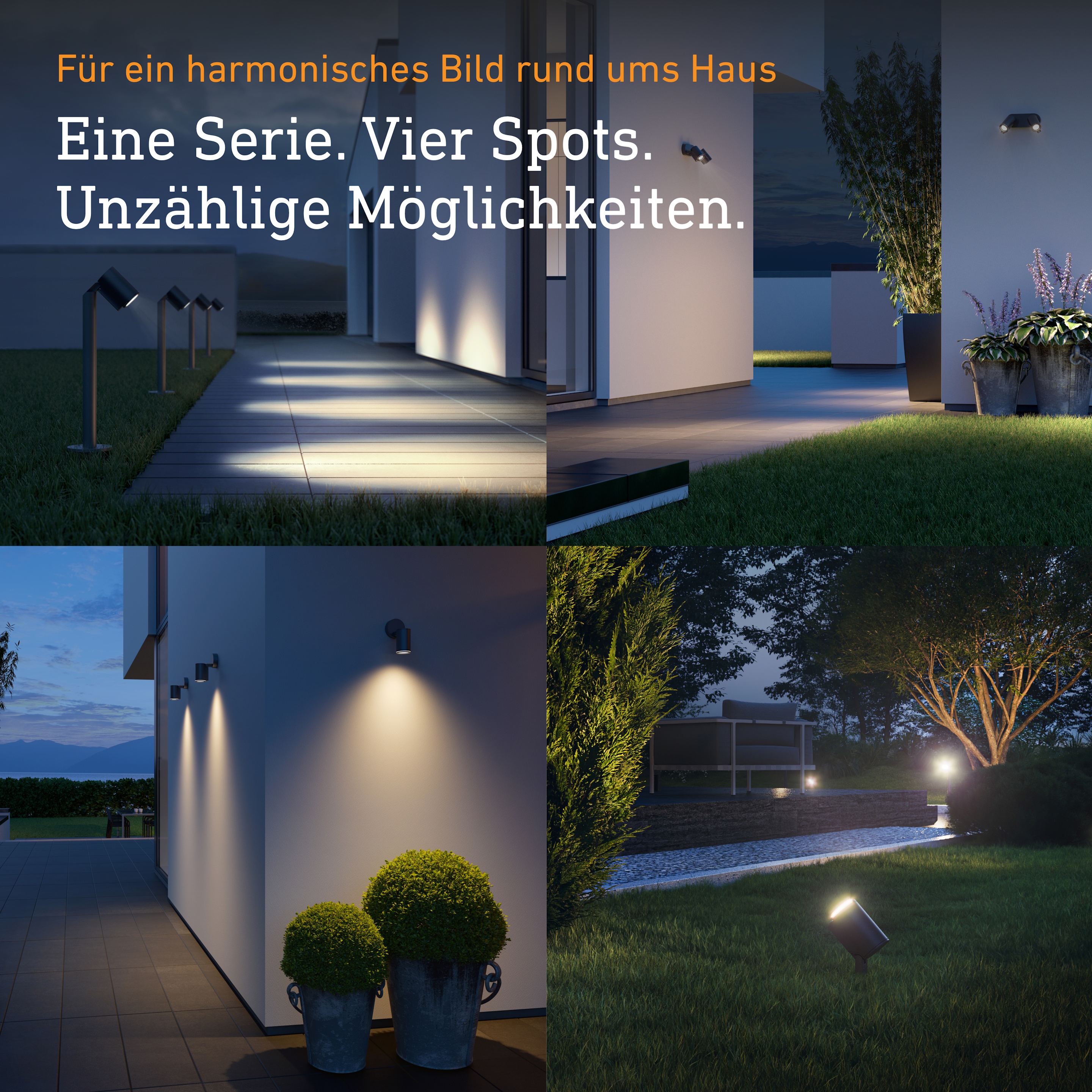

The ideal lighting solution for green spaces all around the building. The "Spot Garden" series of ground spots in clean-cut, modern design is simply pushed into the ground – that's all there is to it. This quickly creates selective lighting statements and illuminates dark areas elegantly and effectively. Available as "Spot Garden N" with light-level sensor, as the "Spot Garden" model without sensor and also in the form of "Spot Garden SC" with innovative infrared sensor (90° detection) with a reach of 10 m. The Connect version also makes it easy to interconnect several spots via Bluetooth without the need for cables. Here, an app also provides convenience in selecting settings and control functions. This means time and twilight settings, ON and OFF times as well as lighting groups can be programmed in a matter of seconds. With mains plug (2.5 m cable length). Lamp (GU-10 LED) included.

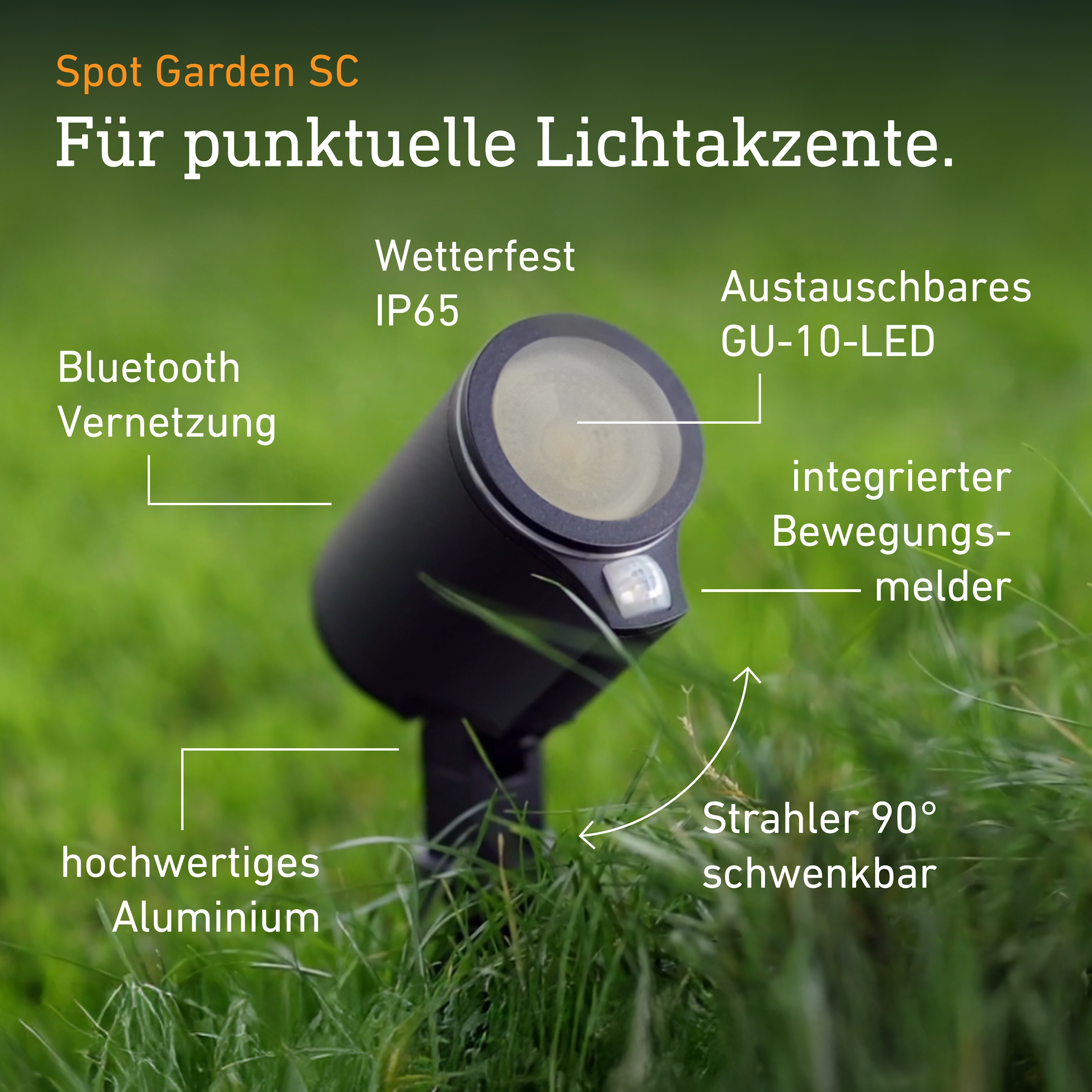

Ground spotlight with motion detector for stylish lighting accents in the garden
Elegant and puristic design made of high-quality aluminium, spotlight head can be swivelled vertically by 90°

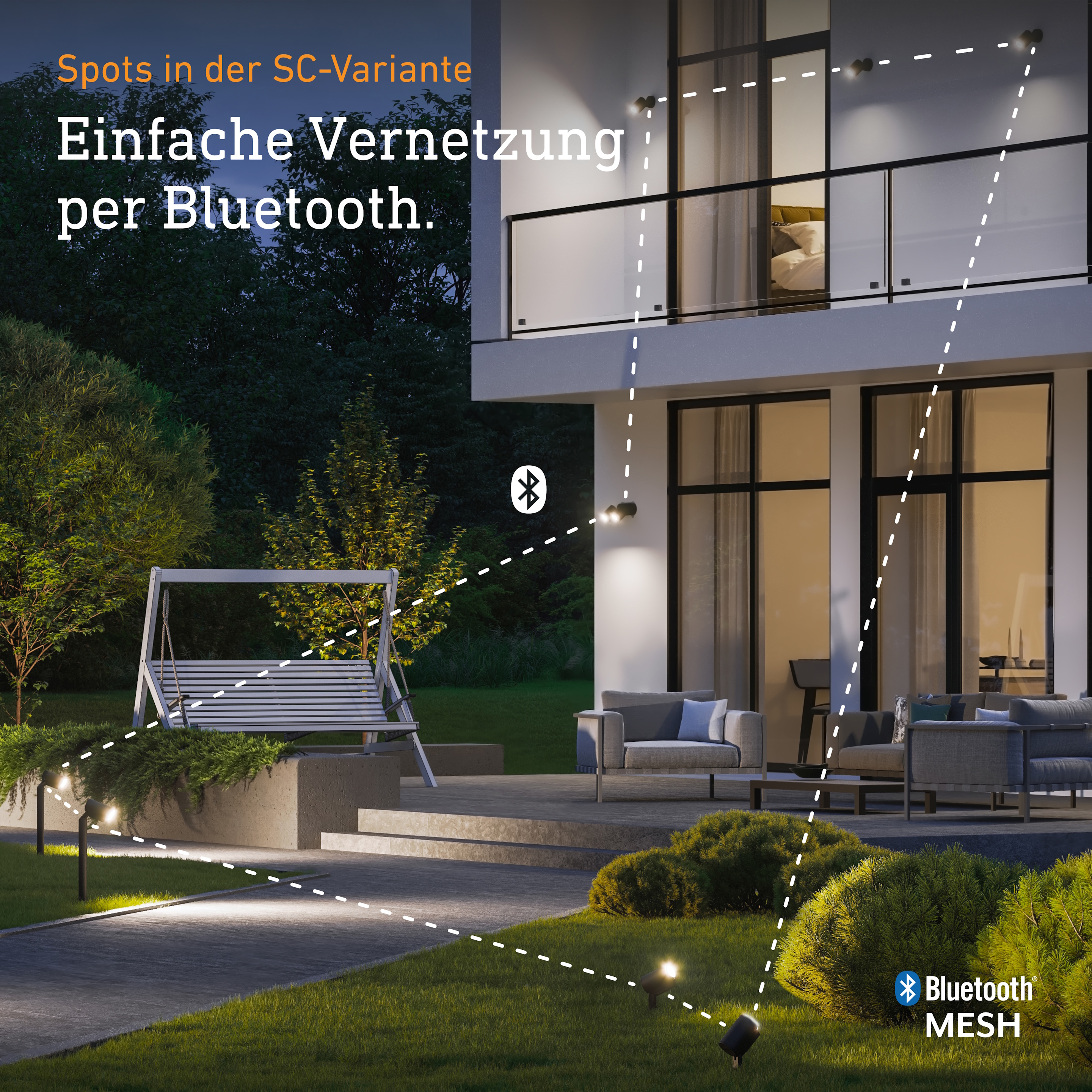

Wireless networking via Bluetooth and easy setting via STEINEL Connect App
Automatic light thanks to 90° Infrared sensor with up to 10 m detection of movement
Functions: Twilight-controlled light, integrated timer, night economy mode, 4 hours continuous light
Incl. GU-10 LED bulb with warm white light (3000 K) with 512 lm at 7,9 W
Incl. 2.5 m mains cable and mounting accessories - plastic-free packaging

Variants

Version With motion detector and Bluetooth

Dimensions

Dimensions L × W × H 140 x 69 x 369 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 7,9 W

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 90 °

Opening angle 90 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range r = 2 m (3 m²)

Tangential range r = 10 m (79 m²)

Connectivity

Networking Yes

Networking via Bluetooth

Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 512 lm

Colour temperature 3000 K

LED colour deviation SDCM5

Colour rendering index 80-89

With illuminant Yes, LED lamp

Illuminant LED can be replaced

Base GU10

Soft light start No

Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 20000 h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function No

Main light adjustable No

Functions Manual ON / ON-OFF Timer Master/slave override

Settings via Bluetooth

Twilight setting teach Yes

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, transparent

Mounting location Ground spike

Application location Outdoors

Mounting type Other

Application room garden outdoors

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class F

EPREL category Surrounded product with separate light source (e.g. E27)

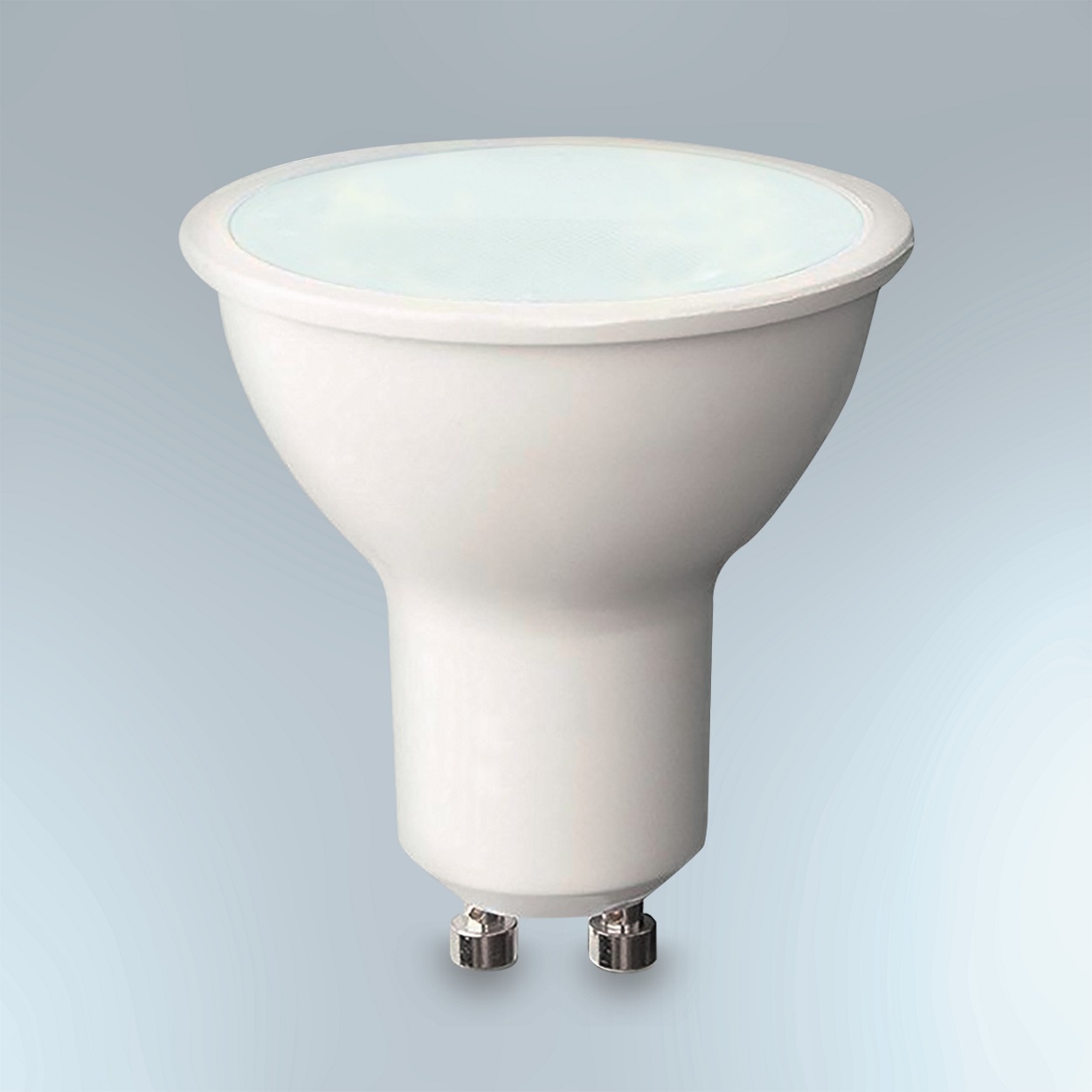

Including GU10 LED lamp

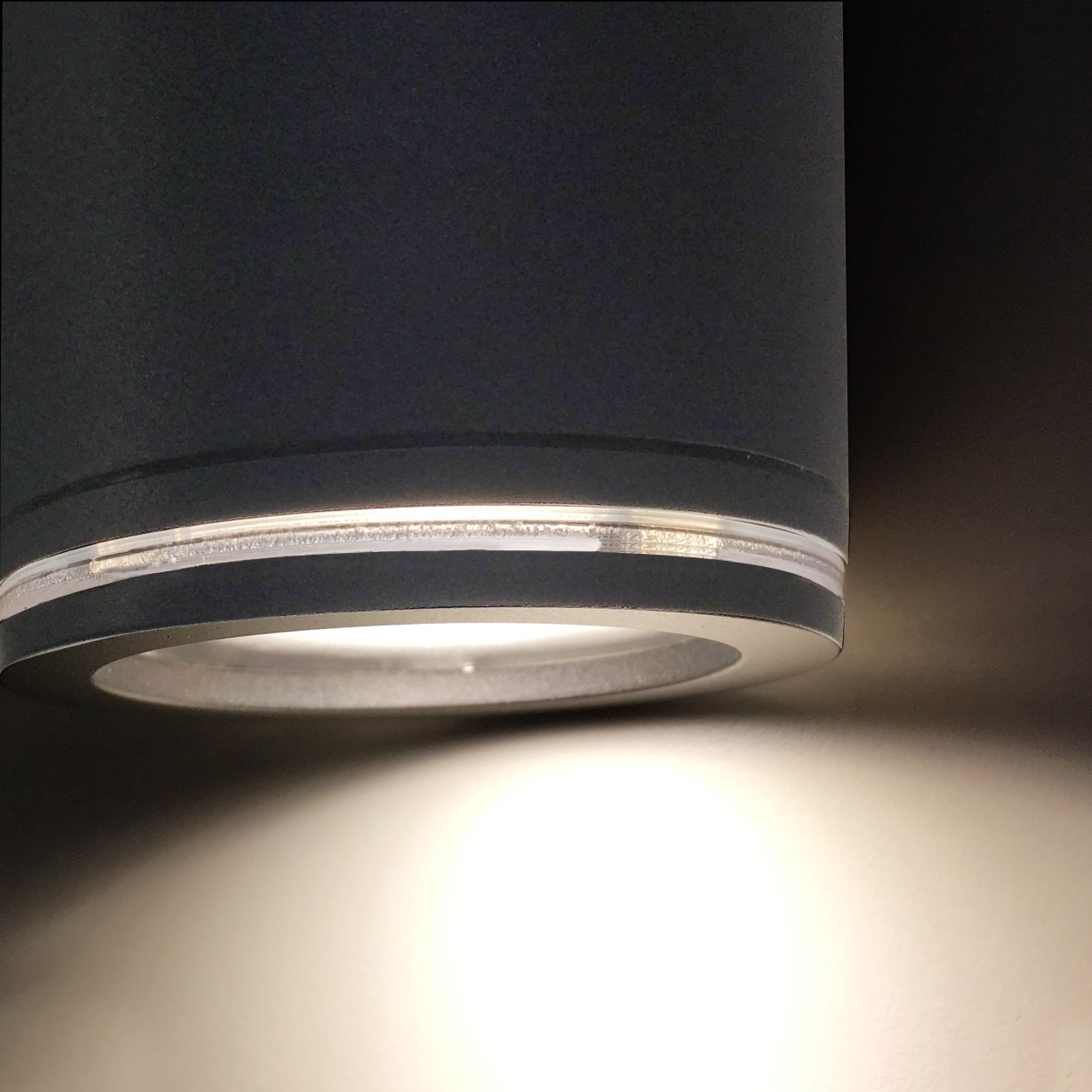

LED ambient light

High-quality aluminium

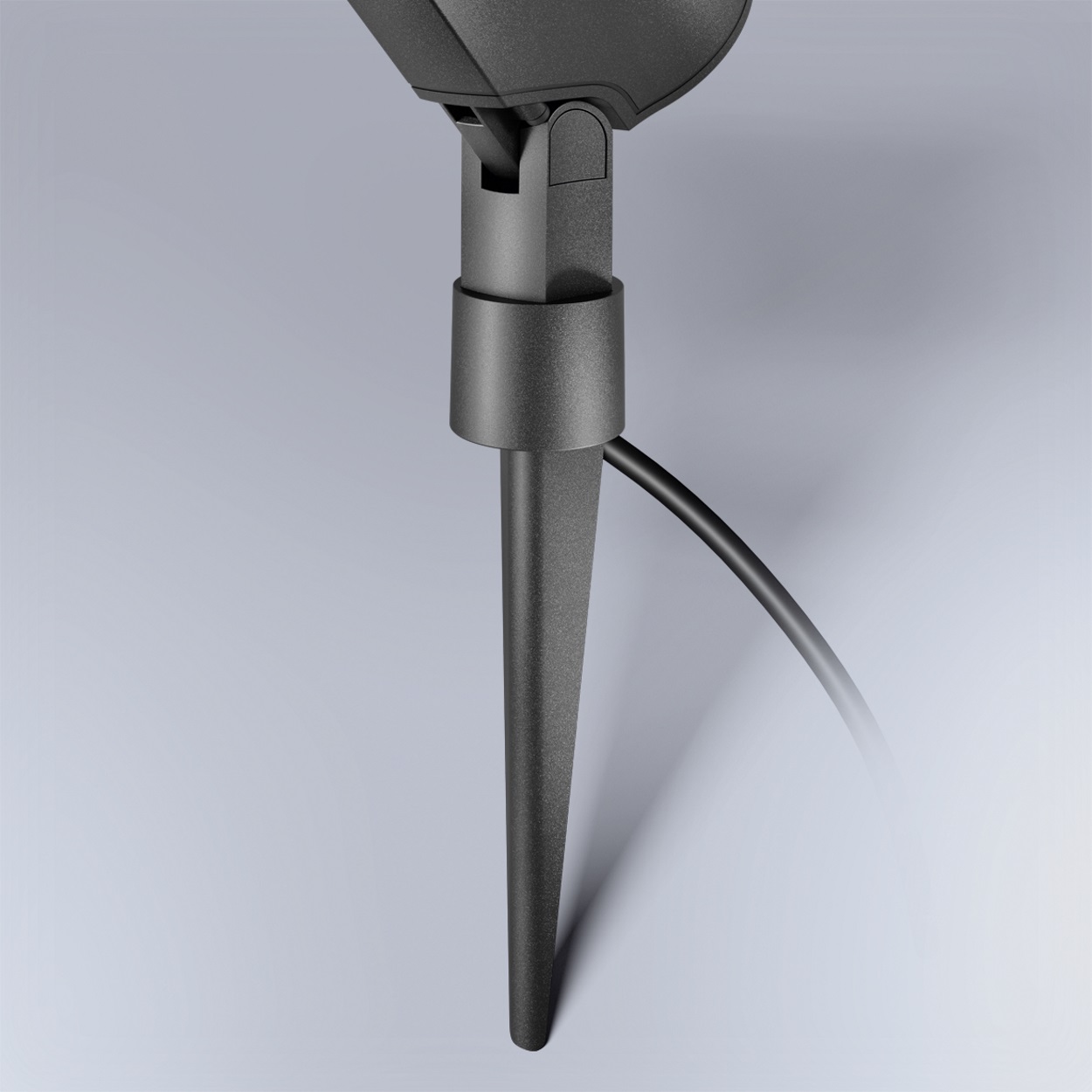

Sturdy ground spike

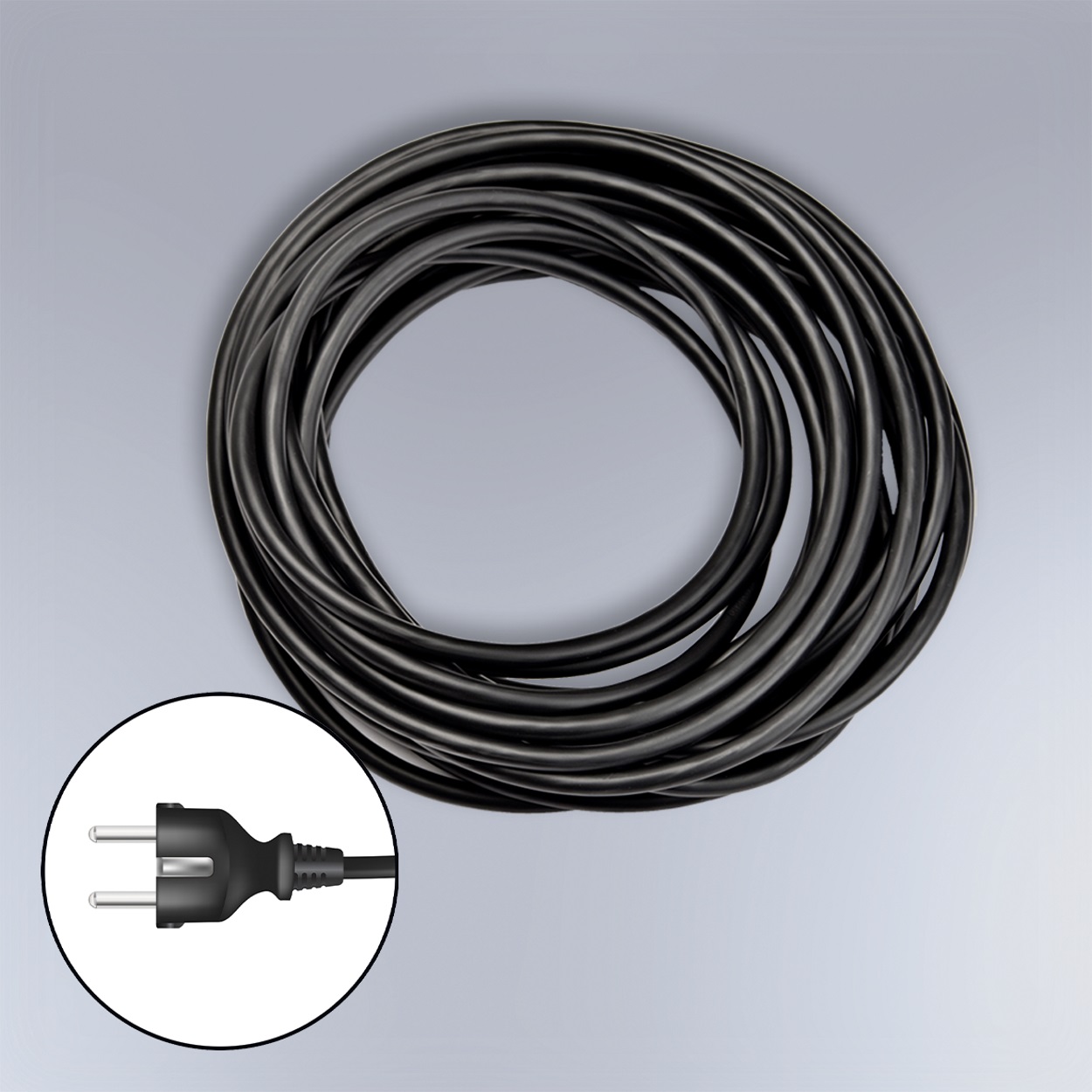

With 2.5m mains connection cable

Technical drawing

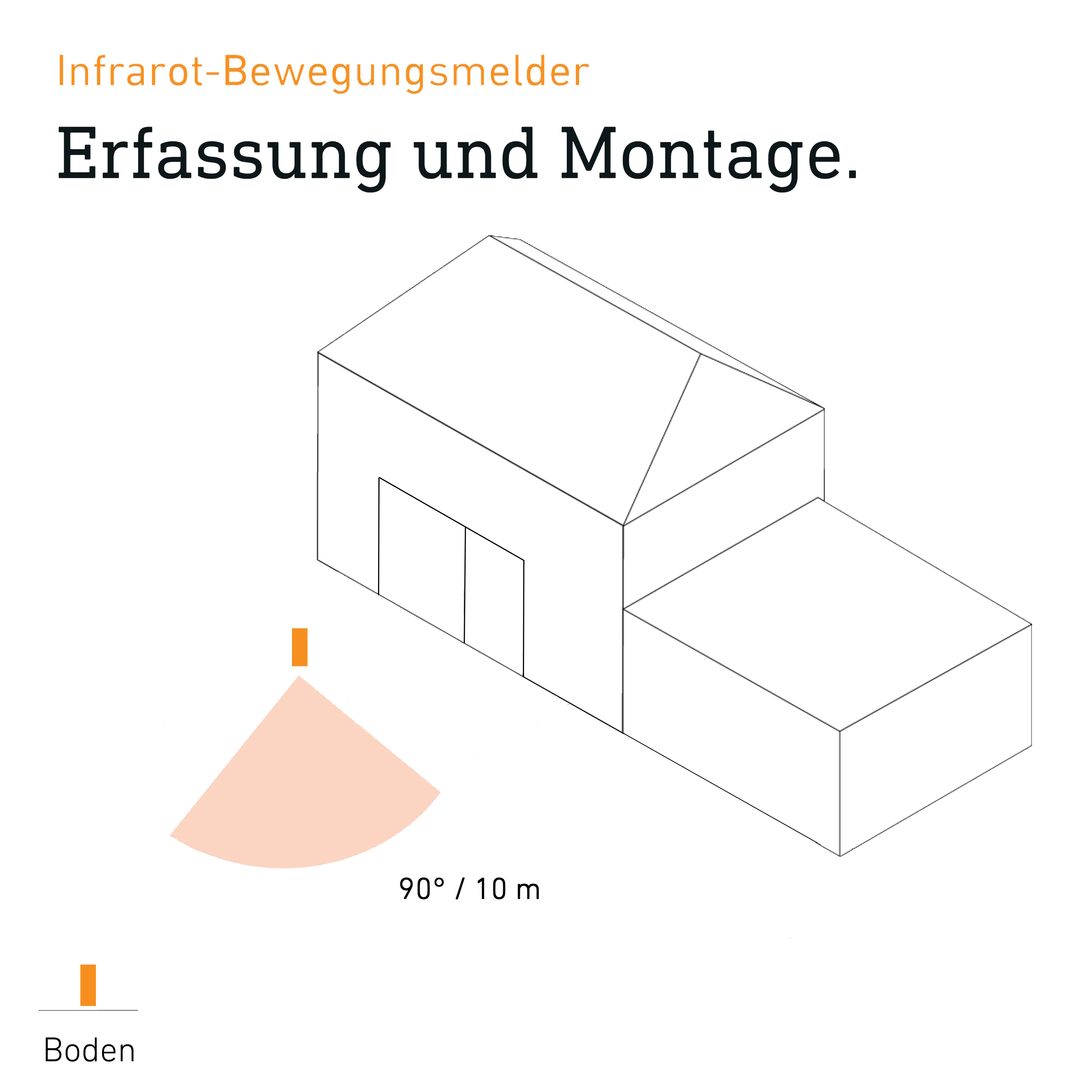

Sensor detection range
