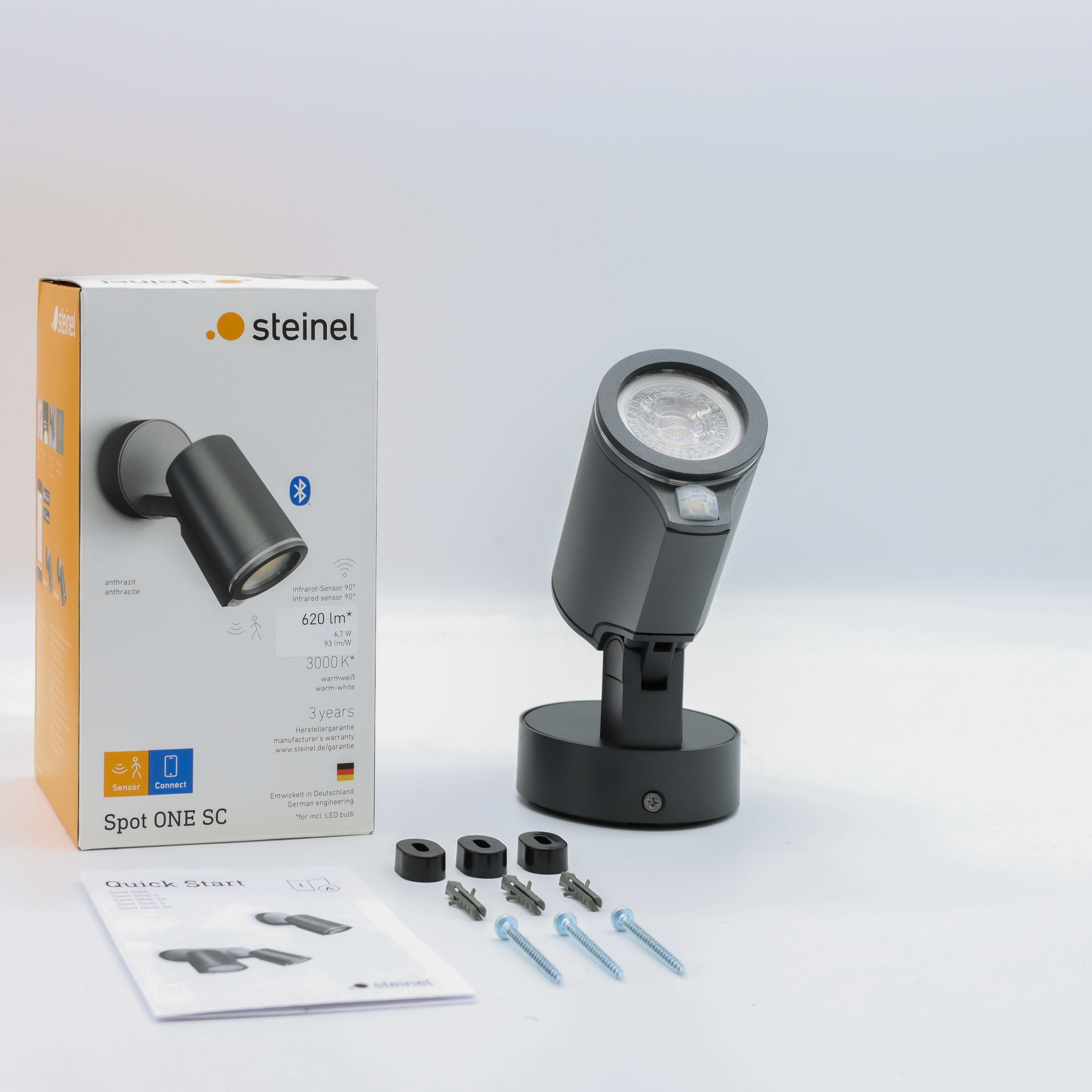

Steinel Spot ONE SC with motion detector & Bluetooth

ELDAS® no. 941 200 279

EAN-No. 4007841 058630

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

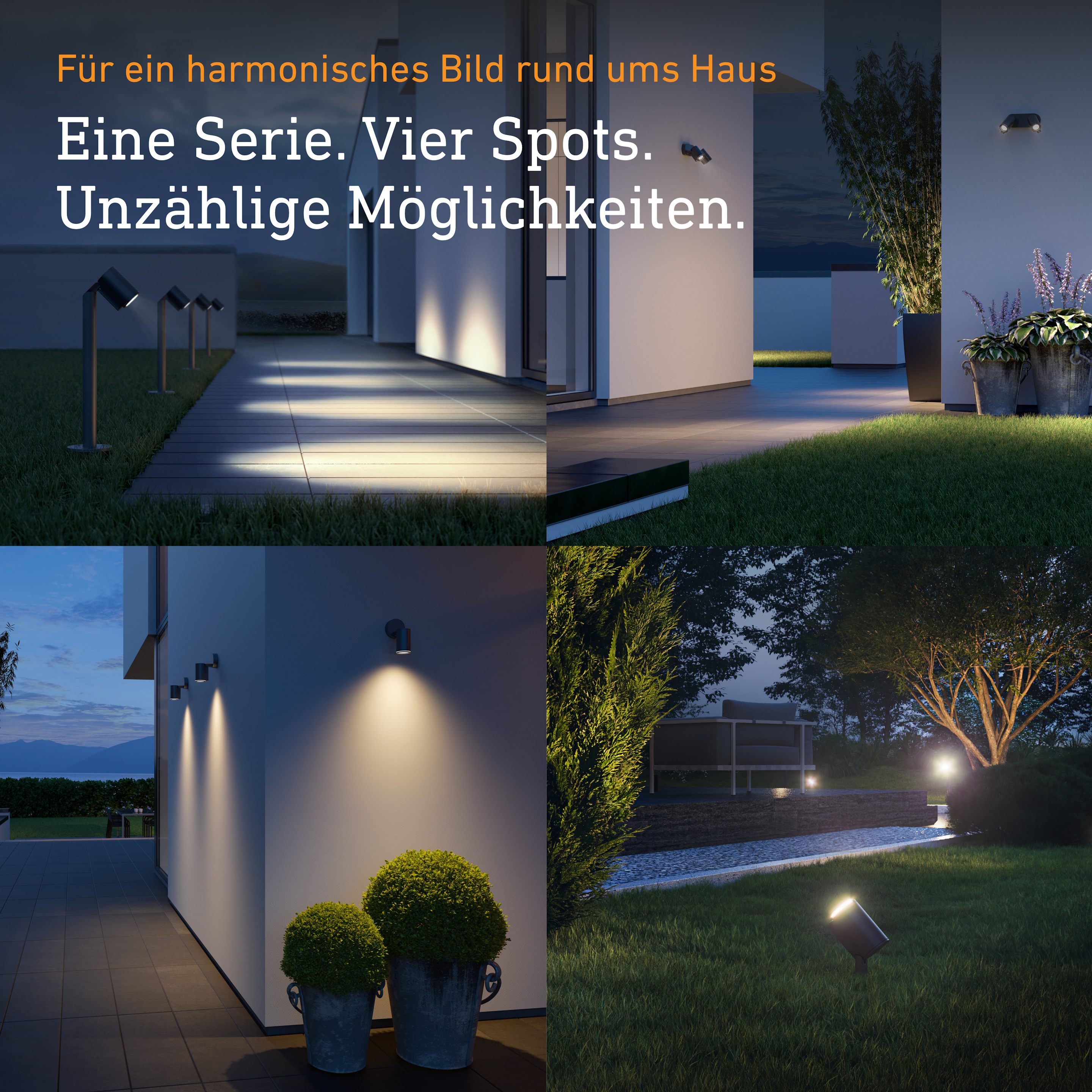

The "Spot ONE" spotlight series scores with purist design and makes stylist statements. The sturdy spot heads turn (180°) and tilt (90°), can be aimed with effortless ease to suit any situation and, with a light output of 512 lm and warm-white 3000 K, provide perfect illumination all around the building. The attractive spotlight series is available in three versions: in the classic "Spot ONE S" sensor-switched version with infrared motion detector with a 90° angle of coverage and 10 m reach. In the "Spot ONE SC" version, which is fitted with identical sensor, but also permits convenient wireless adjustment, interconnection and function control via Bluetooth and app. And as the "Spot ONE" model without sensor. In each case complete with the replaceable GU-10 LED lamp.

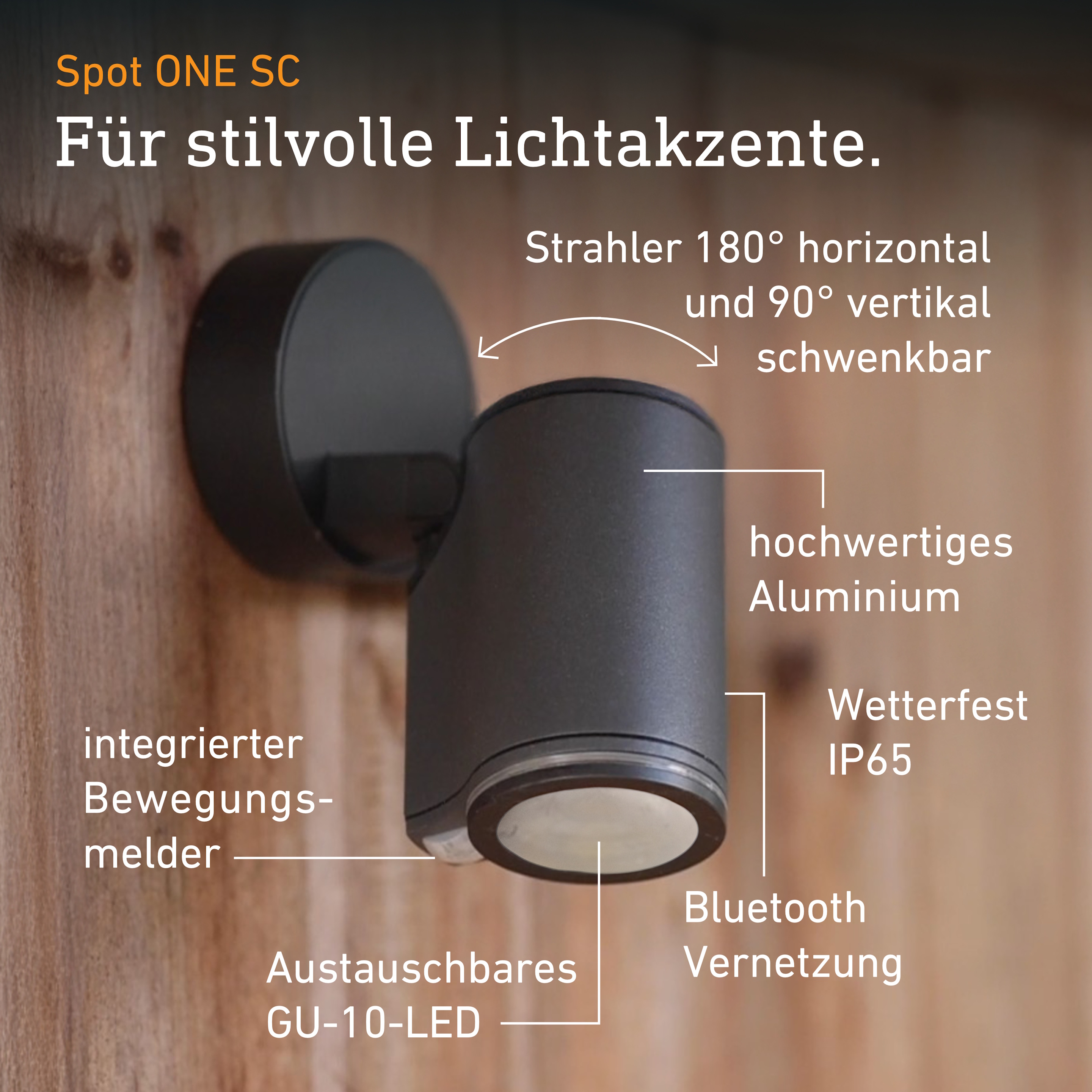

Swivel-mounted wall spotlight with motion detector for stylish lighting accents around the house
Elegant and puristic design made of high-quality aluminium, spotlight head can be swivelled 180° horizontally and 90° vertically
Wireless networking via Bluetooth and easy setting via STEINEL Connect App
Automatic light thanks to 90° Infrared sensor with up to 10 m detection of movement
Functions: Twilight-controlled light, integrated timer, night economy mode, 4 hours continuous light
Incl. GU-10 LED bulb with warm white light (3000 K) with 512 lm at 7,9 W
Incl. mounting accessories - plastic-free packaging

Variants

Version With motion detector and Bluetooth

Dimensions

Dimensions L × W × H 175 x 97 x 98 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 7,9 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 90 °

Opening angle 90 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range r = 2 m (3 m²)

Tangential range r = 10 m (79 m²)

Mounting height 1,8 – 2,5 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Networking via Bluetooth

Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 512 lm

Colour temperature 3000 K

LED colour deviation SDCM5

Colour rendering index 80-89

With illuminant Yes, LED lamp

Illuminant LED can be replaced

Base GU10

Soft light start No

Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 20000 h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function No

Main light adjustable No

Functions Manual ON / ON-OFF Master/slave override Timer

Settings via Bluetooth

Twilight setting teach Yes

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, transparent

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway outdoors terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class F

EPREL category Surrounded product with separate light source (e.g. E27)

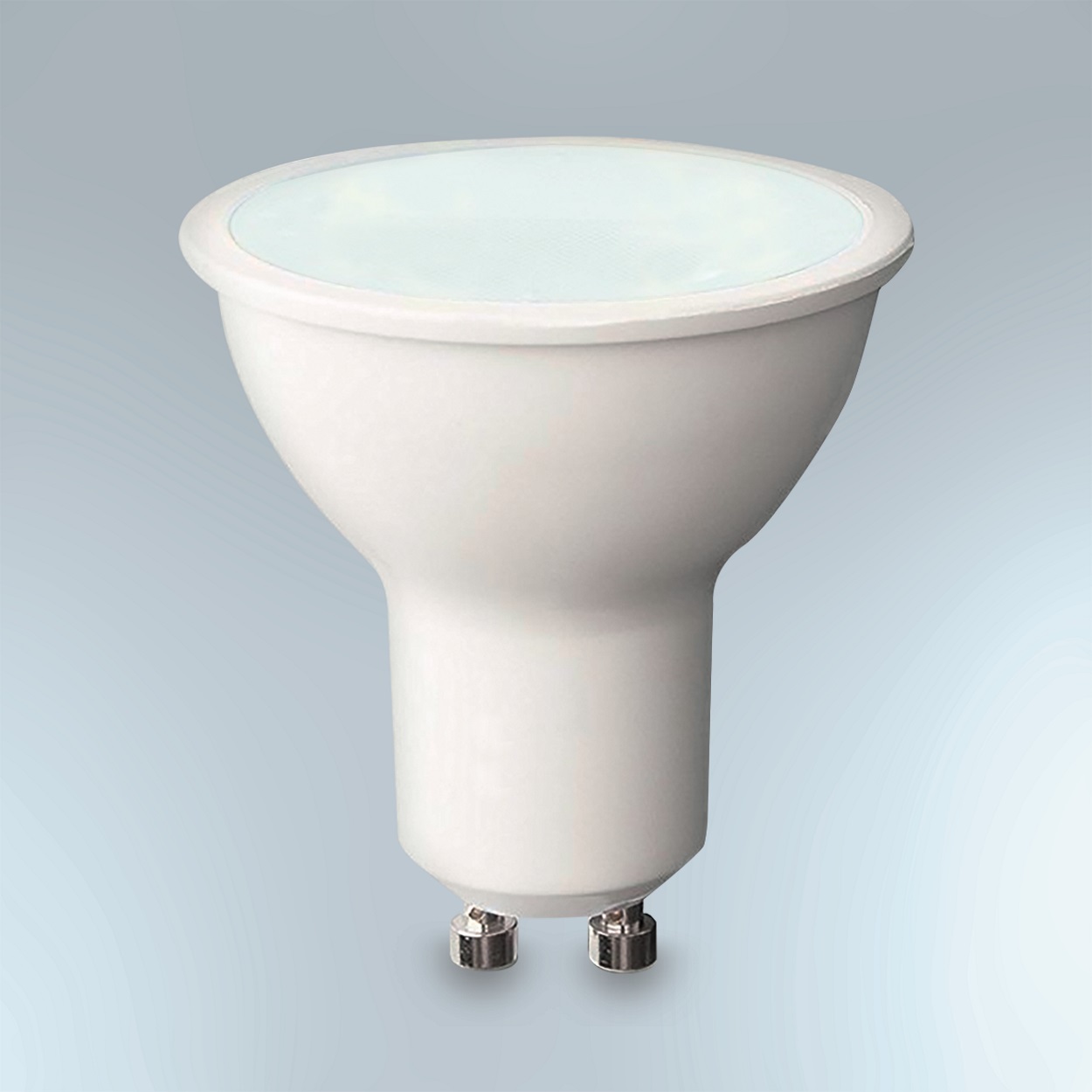

Including GU10 LED lamp

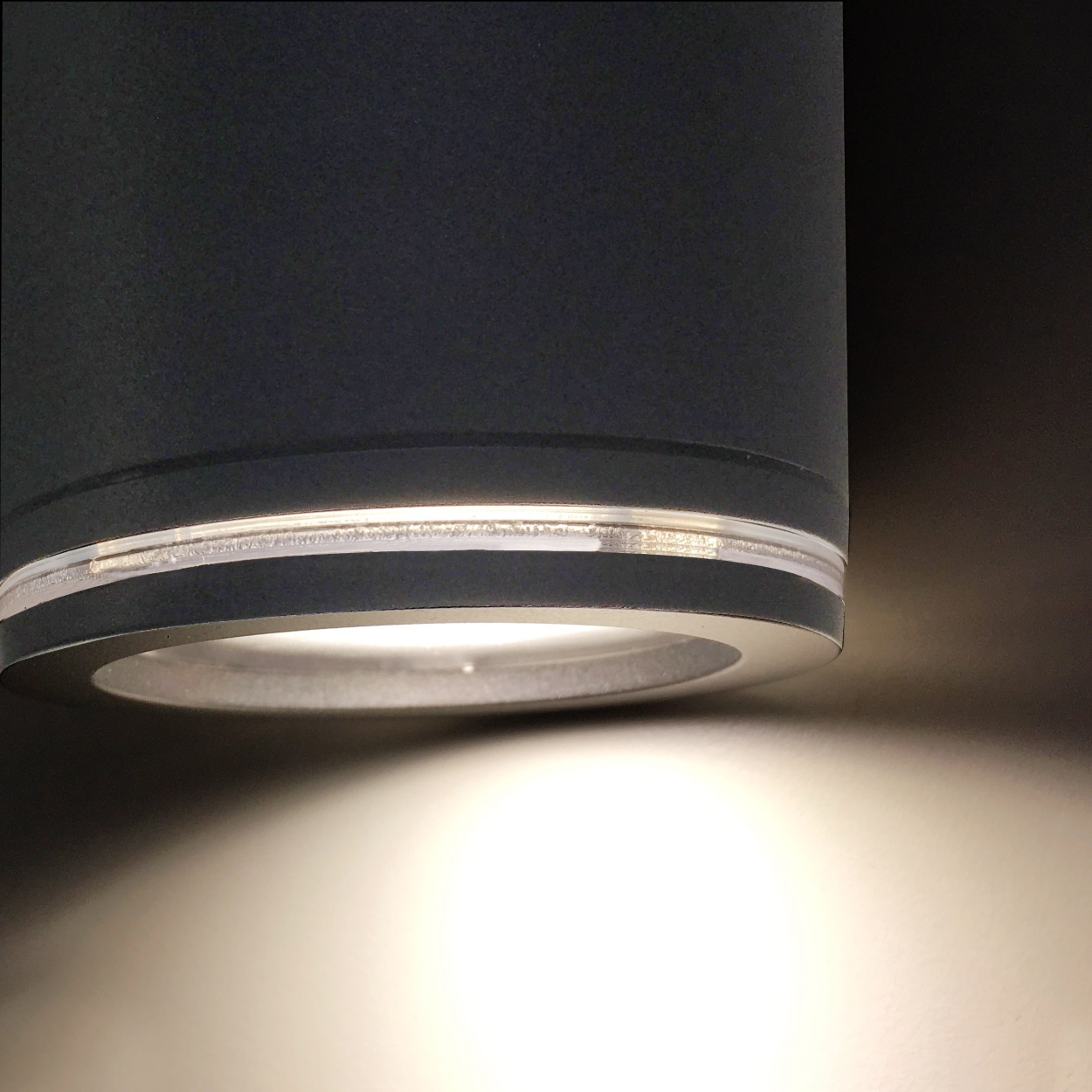

LED ambient light

High-quality aluminium

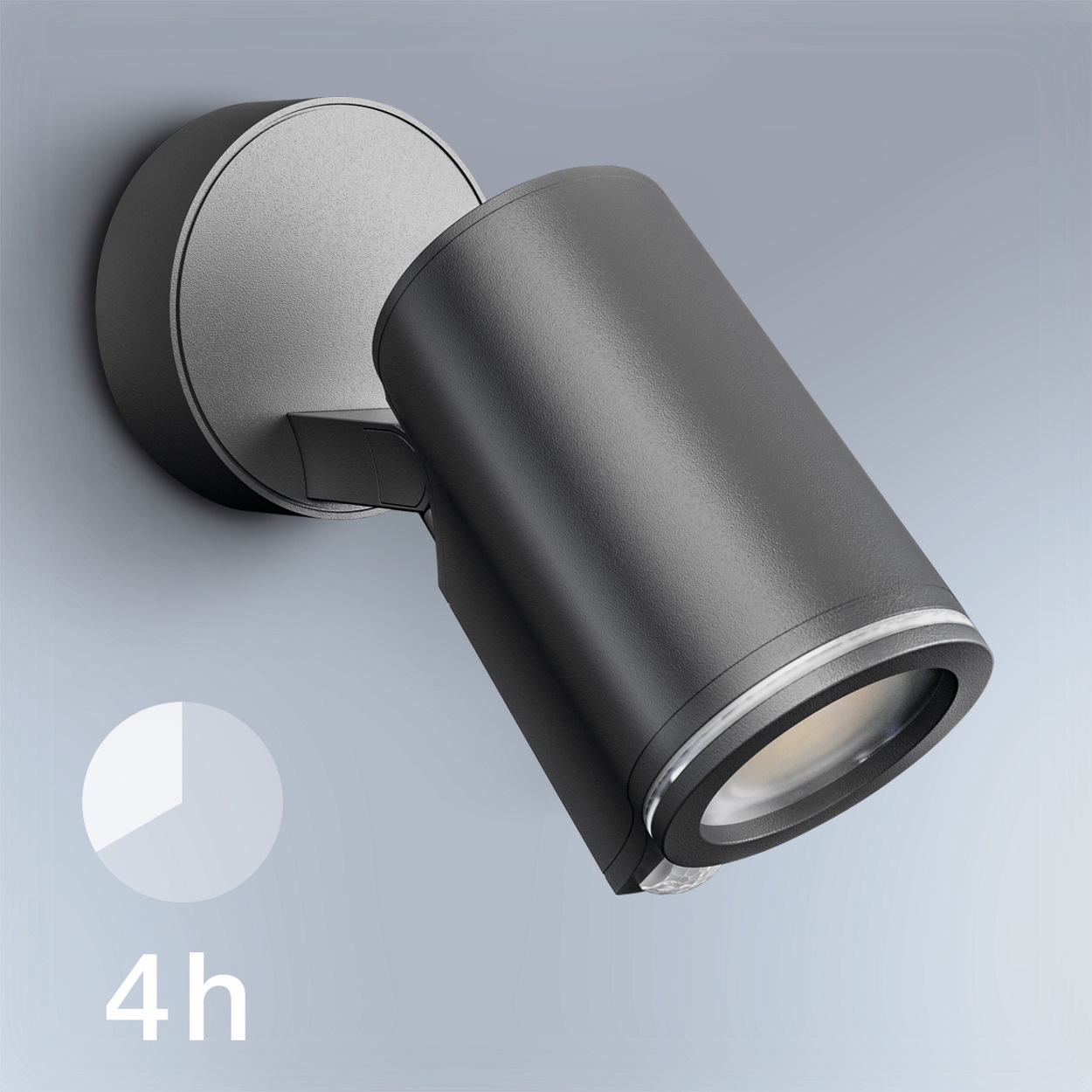

4-hour manual override (optional)

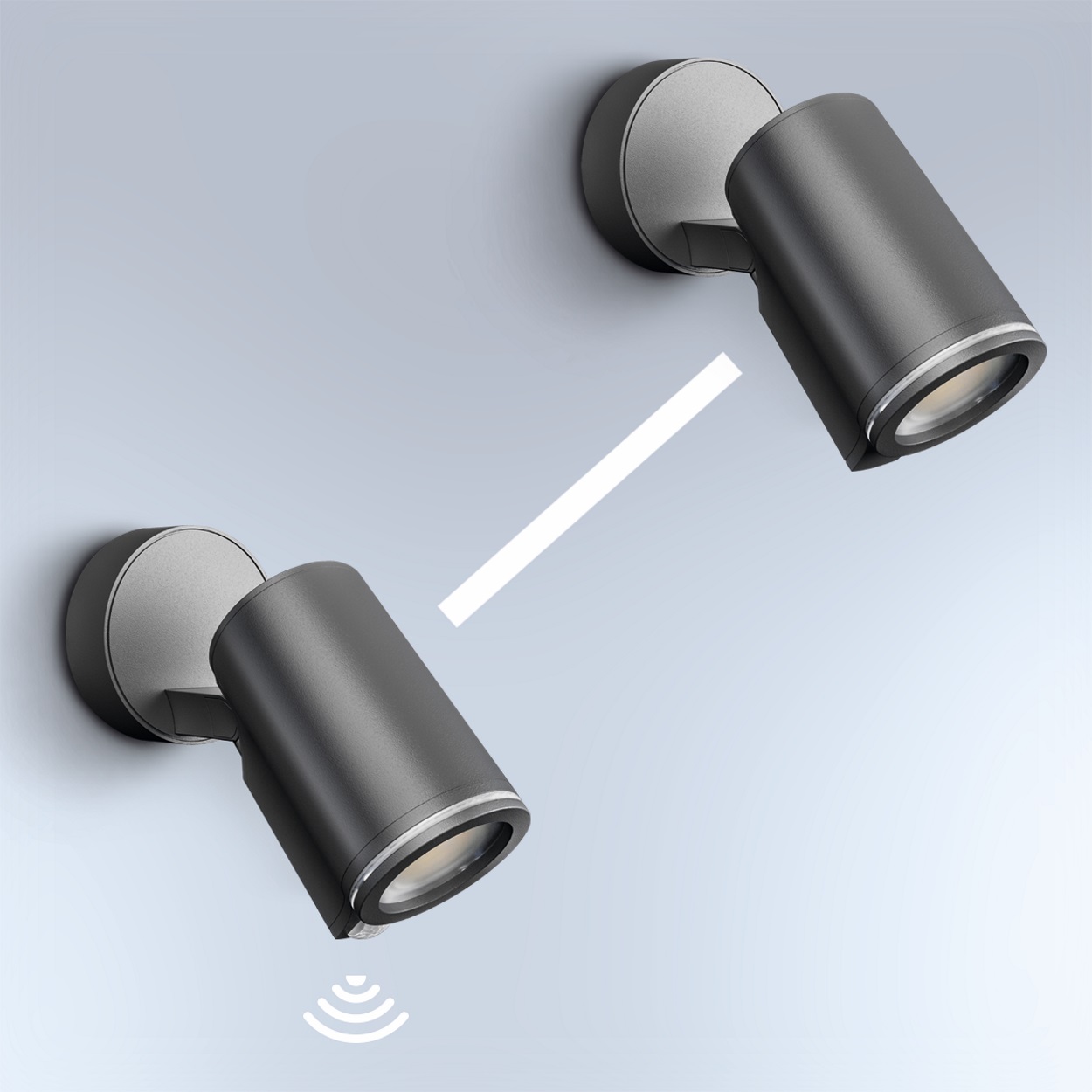

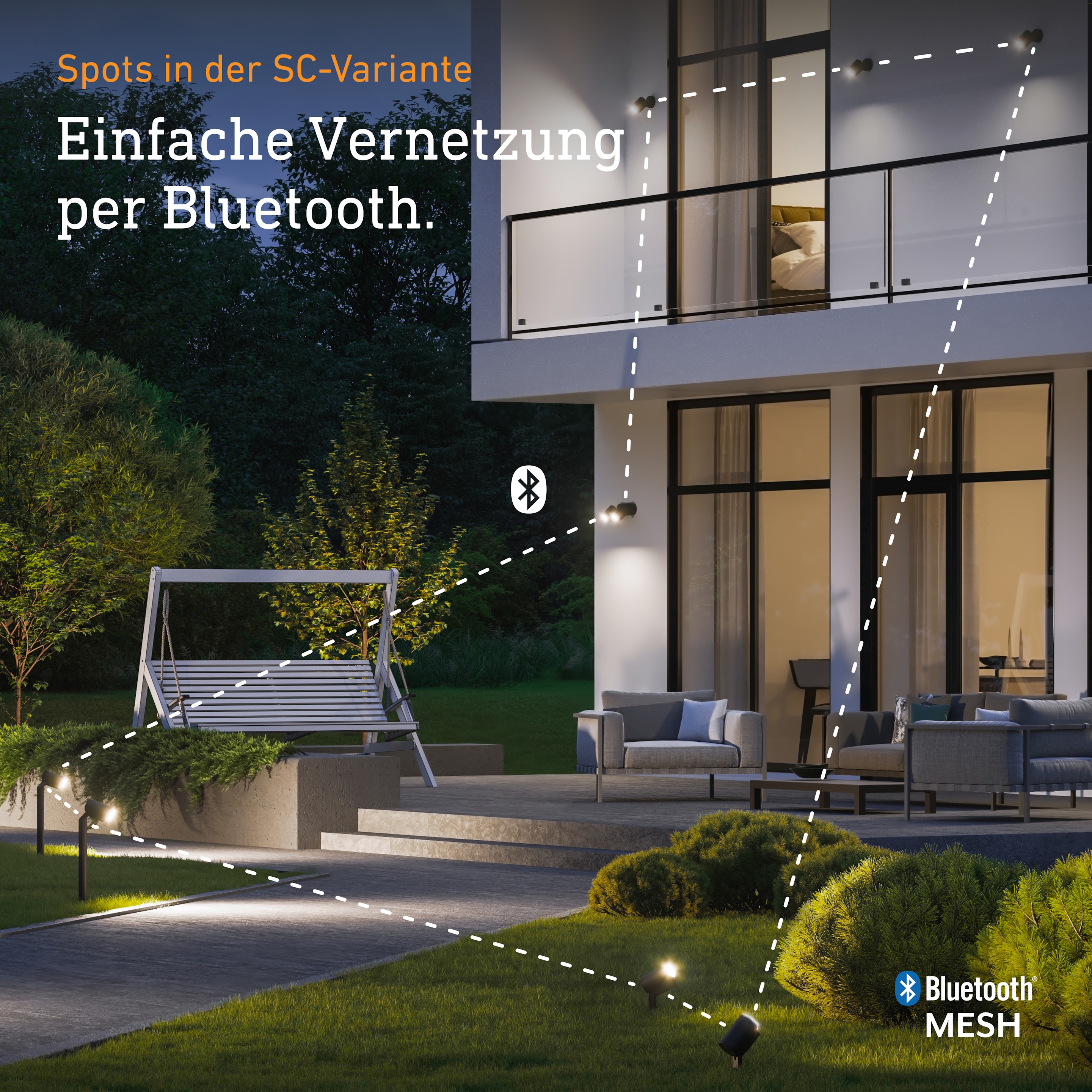

Interconnectable and adjustable via Bluetooth

Technical drawing

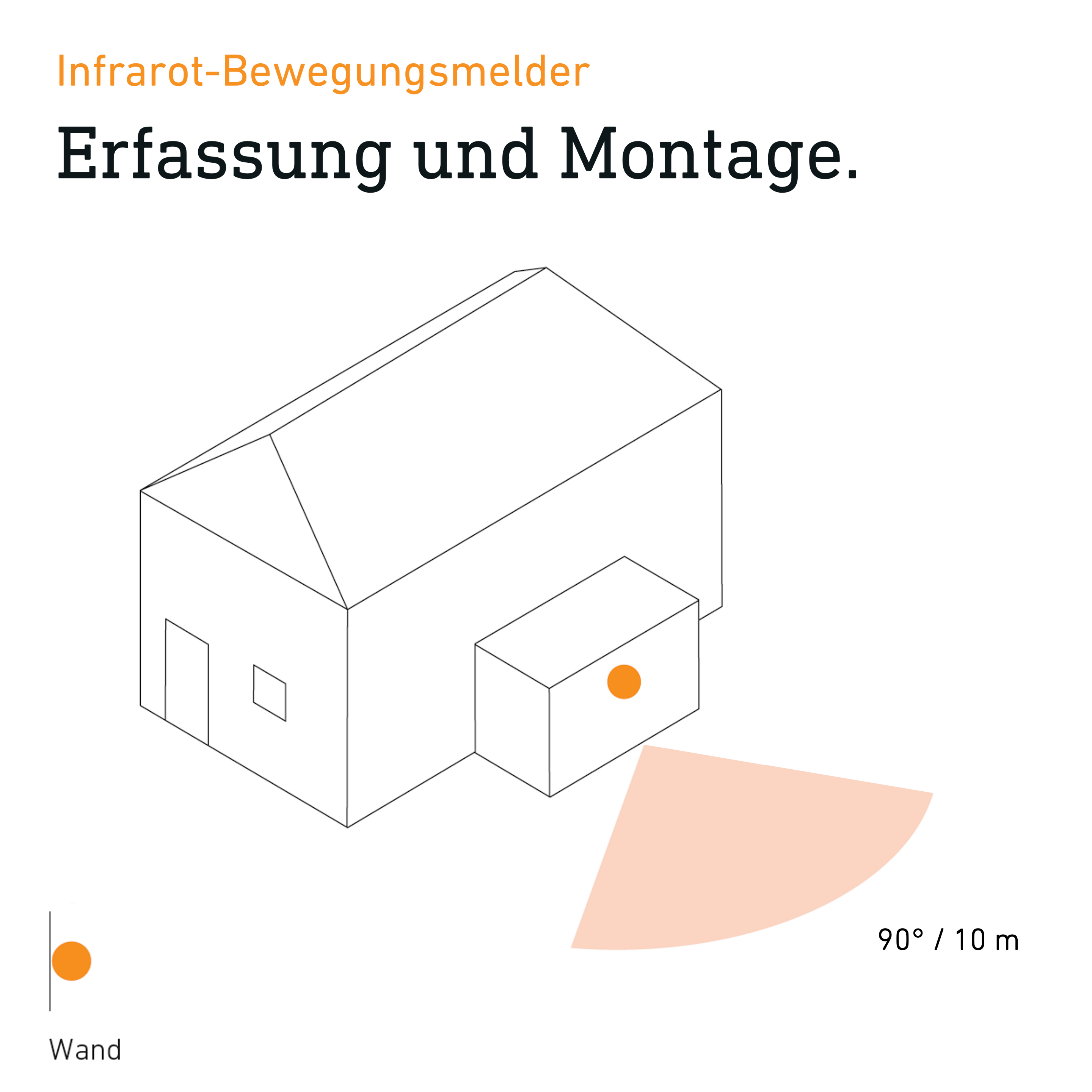

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Master/master bluetooth interconnection circuit diagram

Data sheet User manual Declaration of conformity Drilling template
