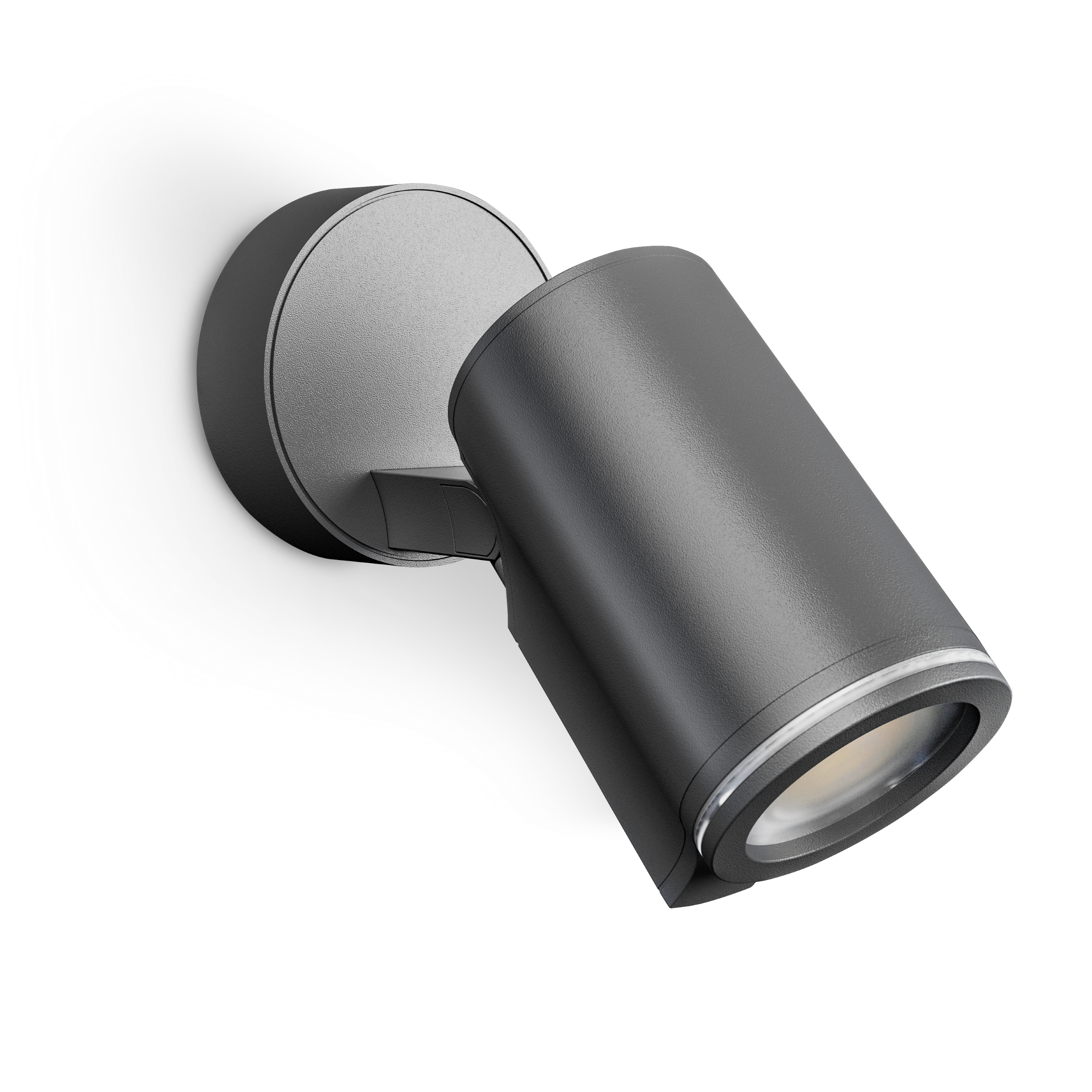

Steinel Spot ONE without motion detector

ELDAS® no. 941 501 369

EAN-No. 4007841 058623

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

The "Spot ONE" spotlight series scores with purist design and makes stylist statements. The sturdy spot heads turn (180°) and tilt (90°), can be aimed with effortless ease to suit any situation and, with a light output of 512 lm and warm-white 3000 K, provide perfect illumination all around the building. The attractive spotlight series is available in three versions: in the classic "Spot ONE S" sensor-switched version with infrared motion detector with a 90° angle of coverage and 10 m reach. In the "Spot ONE SC" version, which is fitted with identical sensor, but also permits convenient wireless adjustment, interconnection and function control via Bluetooth and app. And as the "Spot ONE" model without sensor. In each case complete with the replaceable GU-10 LED lamp.

Swivel-mounted wall spotlight without motion detector for stylish lighting accents around the house

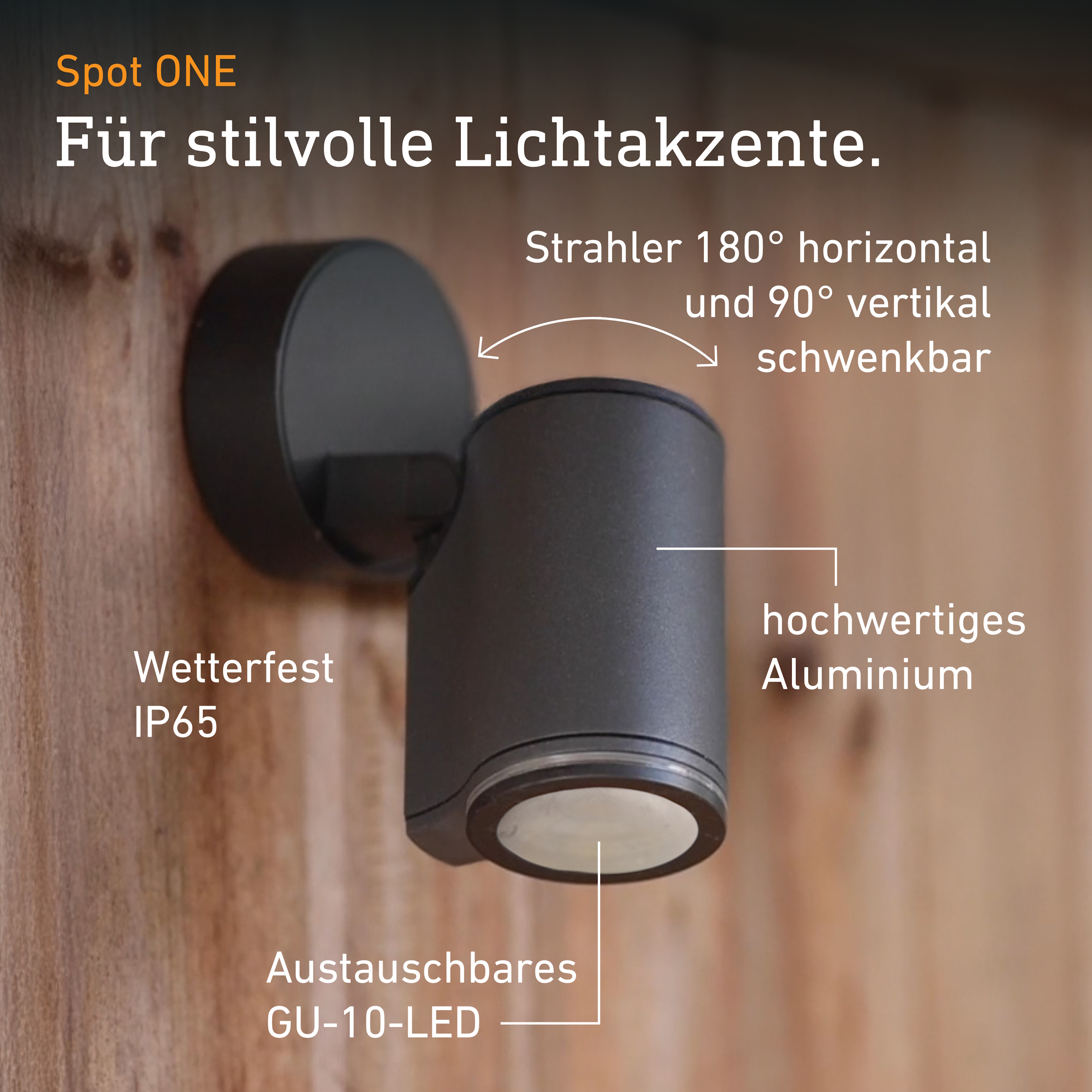

Elegant and puristic design made of high-quality aluminium, spotlight head can be swivelled 180° horizontally and 90° vertically
Several spots can be networked via cable
Incl. GU-10 LED bulb with warm white light (3000 K) with 512 lm at 6,7 W

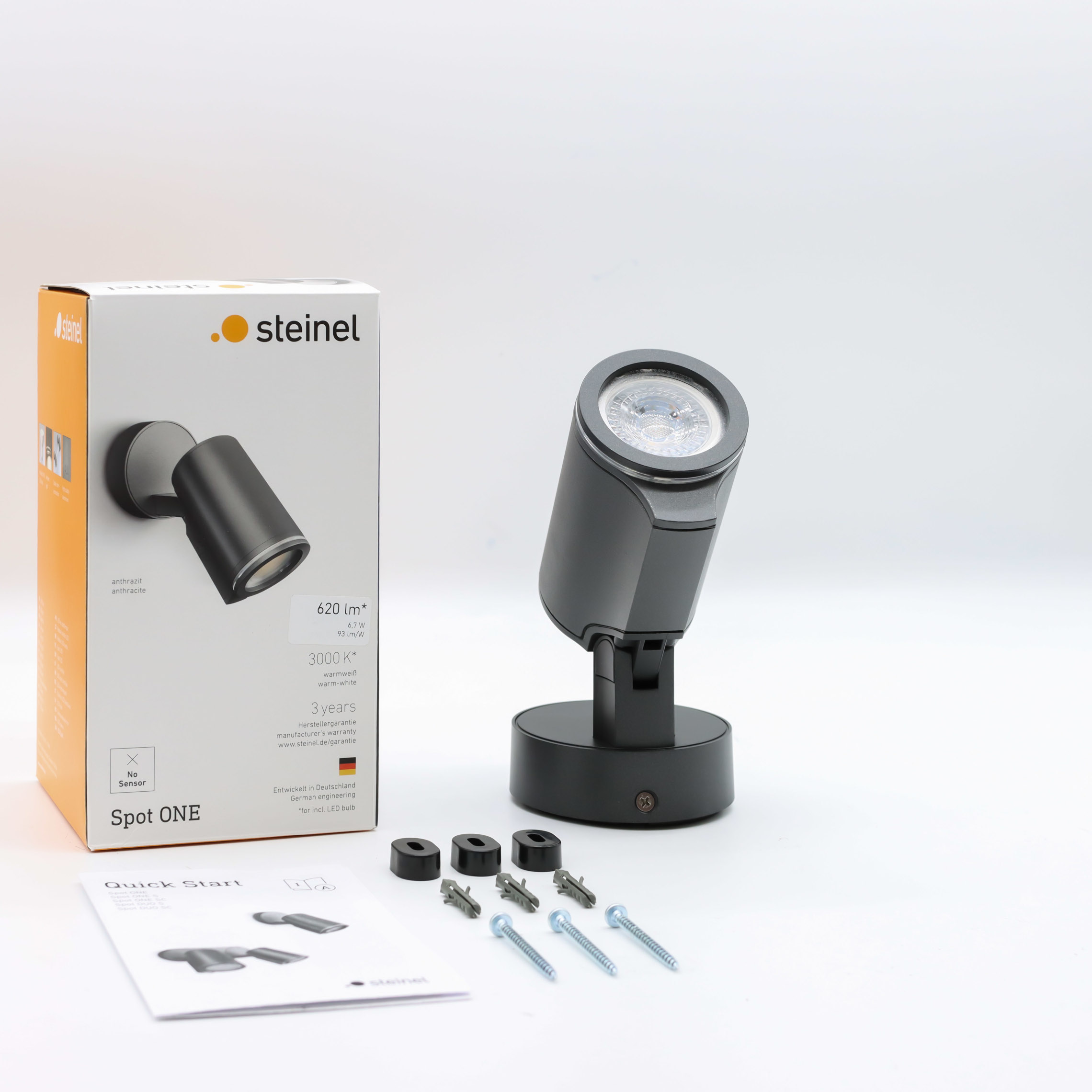

Incl. mounting accessories - plastic-free packaging

Variants

Version Without motion detector

Dimensions

Dimensions L × W × H 175 x 97 x 98 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 6,7 W

Sensor technology

With motion detector No

Mechanical scalability No

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 512 lm

Colour temperature 3000 K

LED colour deviation SDCM5

Colour rendering index 80-89

With illuminant Yes, LED lamp

Illuminant LED can be replaced

Base GU10

Soft light start No

Lifetime

LED lifetime L70B50 25°C > 20000 h

Settings

Base light function No

Main light adjustable No

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, transparent

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway outdoors terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class F

EPREL category Surrounded product with separate light source (e.g. E27)

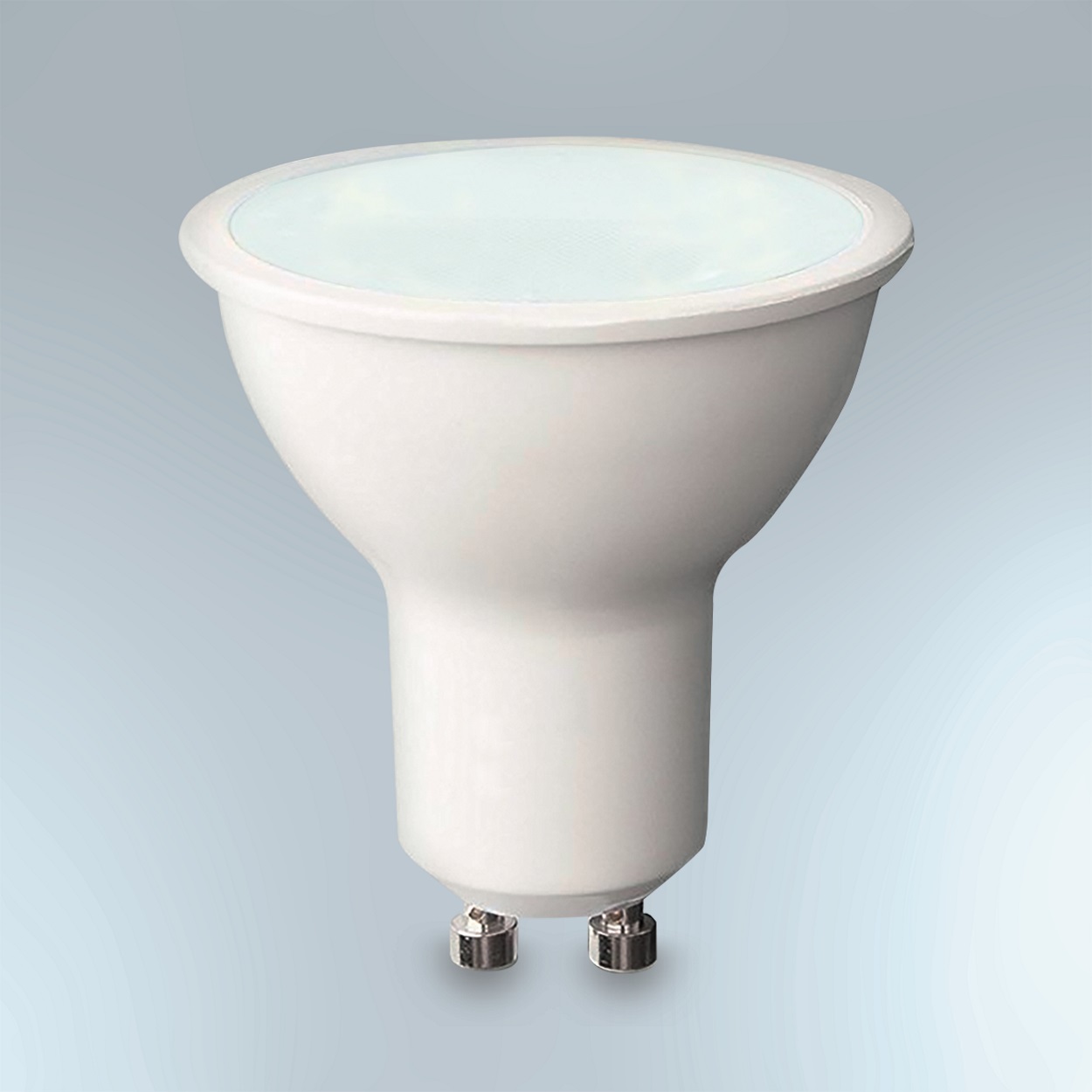

Including GU10 LED lamp

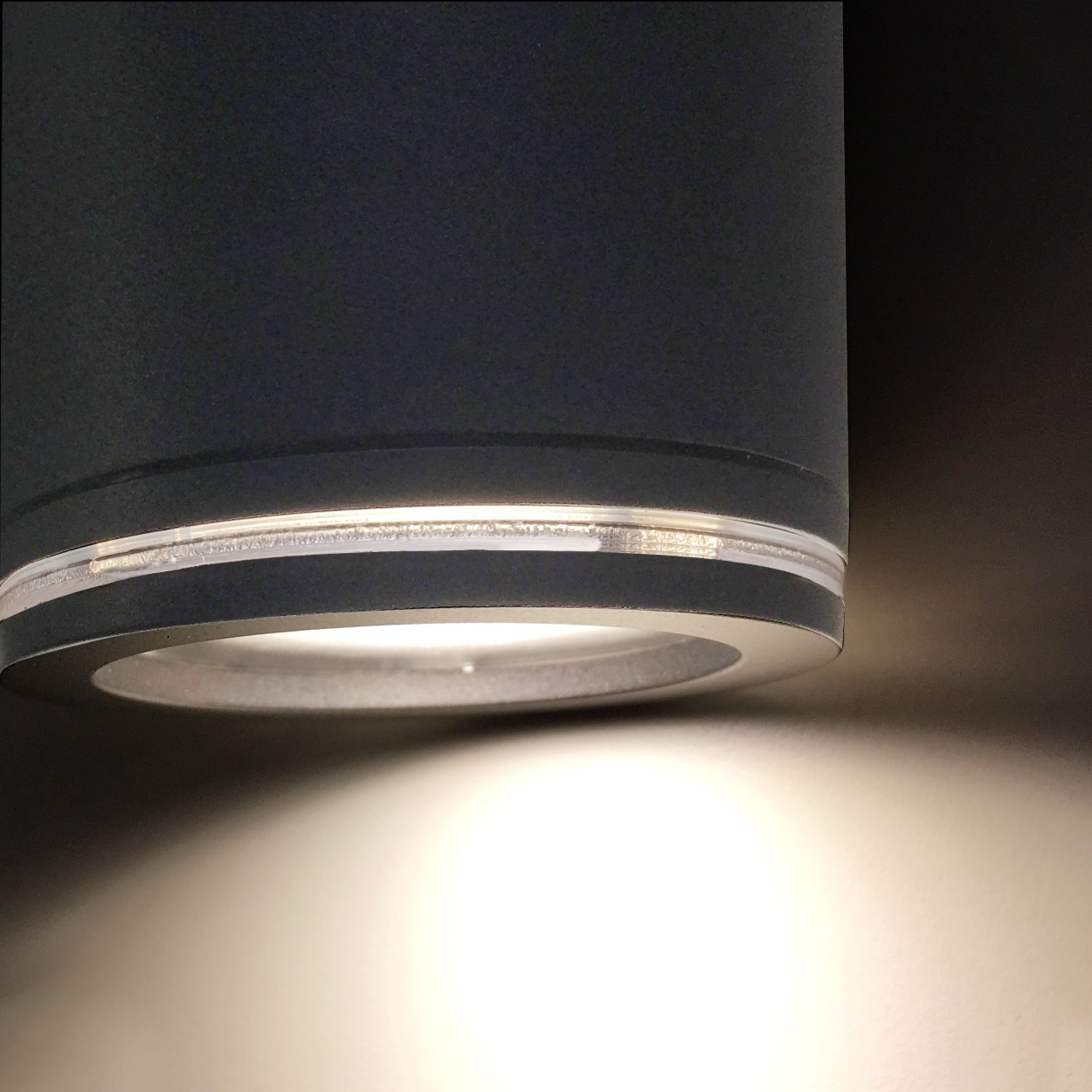

LED ambient light

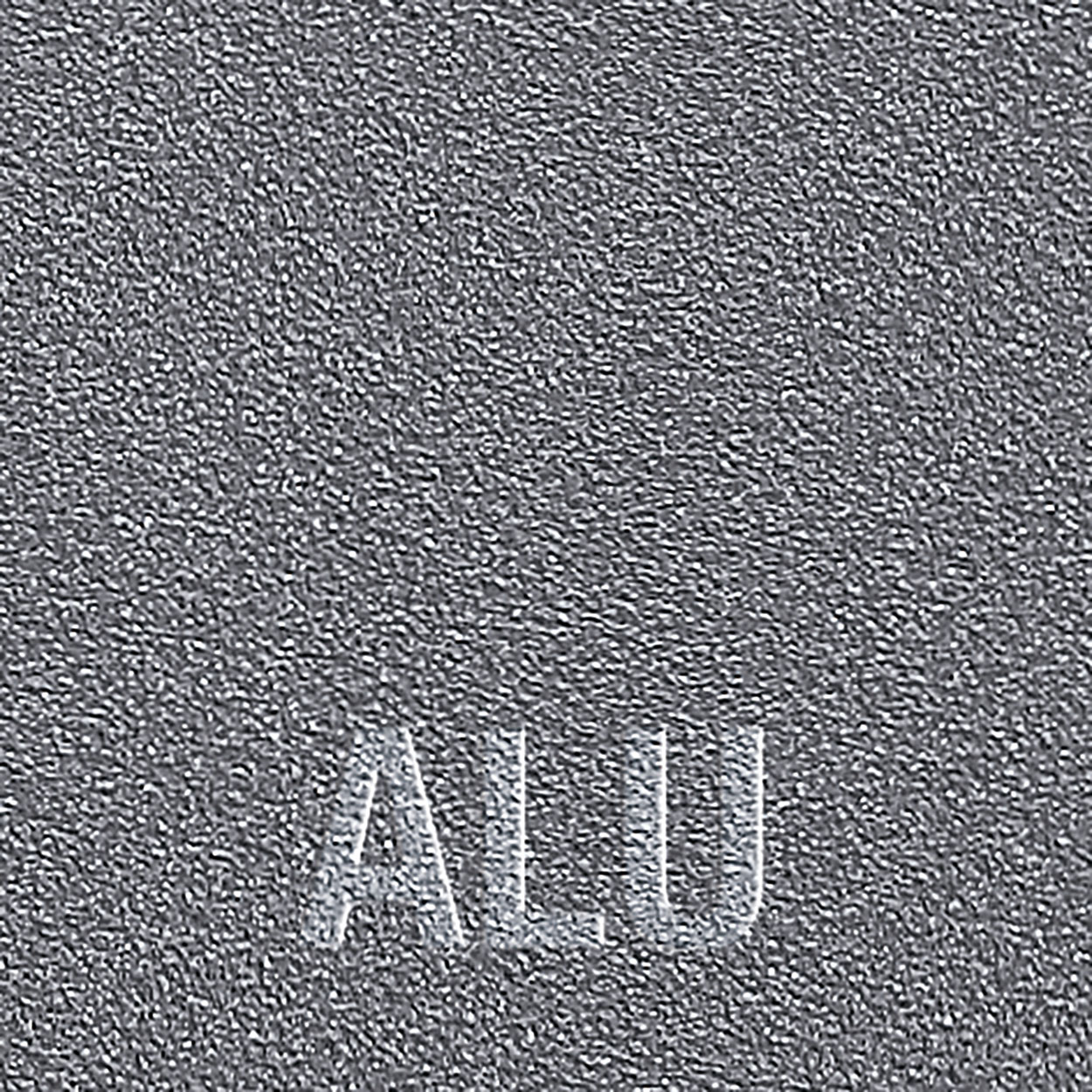

High-quality aluminium

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram

Data sheet User manual Declaration of conformity Drilling template
