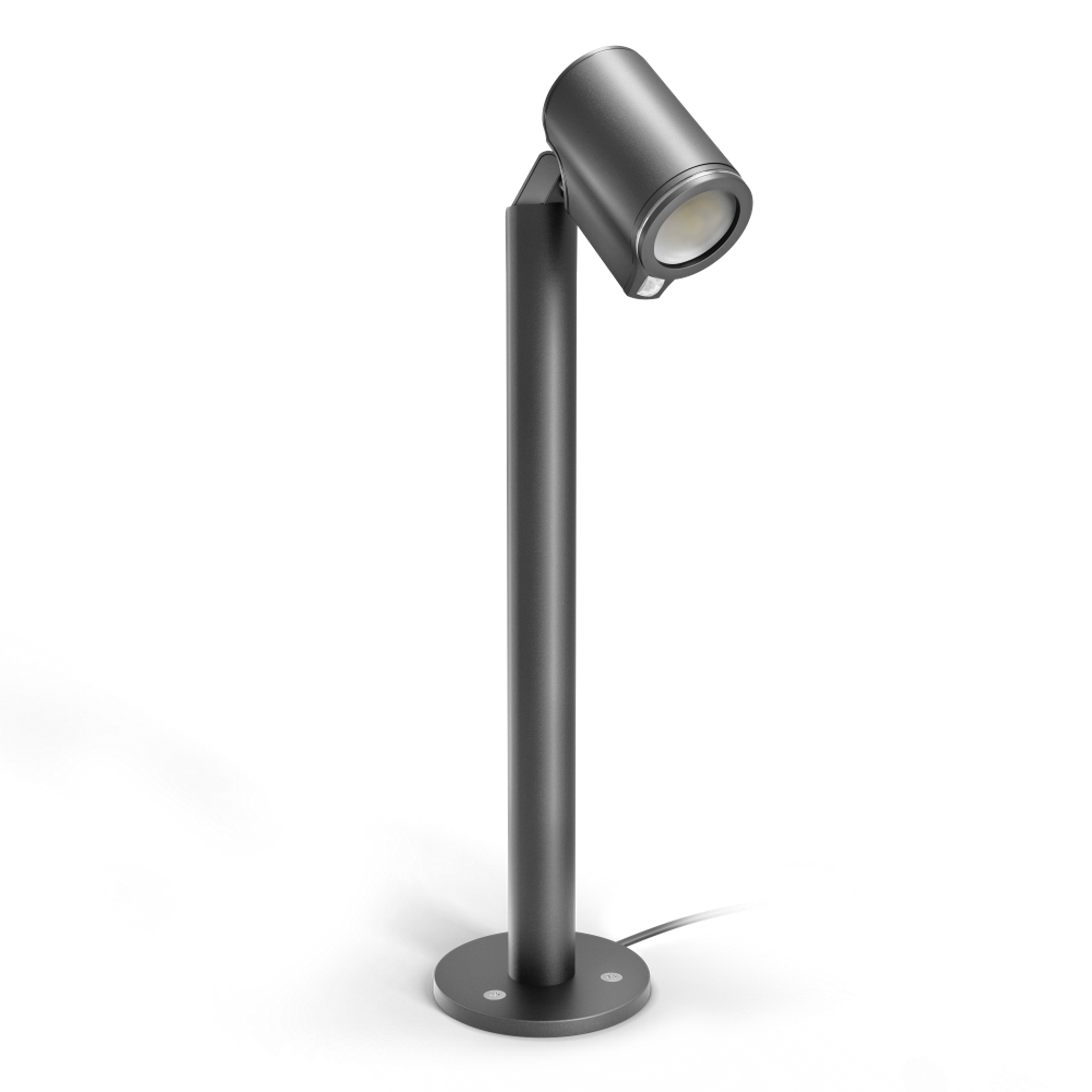

Steinel Spot Way SC 24V with motion detector & Bluetooth

EAN-No. 4007841 089320

The perfect solution for atmospheric and functional path lighting around the house. As part of the 24V garden lighting system, the "Spot Way 24V" stand and path spotlight impresses with its sleek, modern design and provides targeted, atmospheric light exactly where you need it. Thanks to Plug & Play, installation is quick and easy. Whether warm white light or colored accents on request – dark garden paths, flowerbeds, or terrace areas are elegantly and safely illuminated (363 lm). Available as "Spot Way C 24V" with brightness sensor and as "Spot Way SC 24V" with innovative infrared sensor (90° detection) and a range of 10 m. Everything is controlled and individually adjusted conveniently via the STEINEL Connect App – from time and twilight settings to lighting groups and on/off schedules. Power supply is not included.

Your garden. Your light. With the 24V garden lighting system, you can make your outdoor area shine. Simply connect the light, cable and power supply unit and set via the STEINEL Connect app.

Stylish coloured light accents: Swivelling 24V pathway light without motion detector
High-quality material: Elegant and puristic design made of durable aluminium
STEINEL Connect App: Easy configuration and networking of multiple lights via Bluetooth
True Color: true-to-life color rendering in warm white, cool white and color, dimmable for flexible lighting scenes
Plug & Play: All components can be connected quickly and without tools, and can be expanded as desired

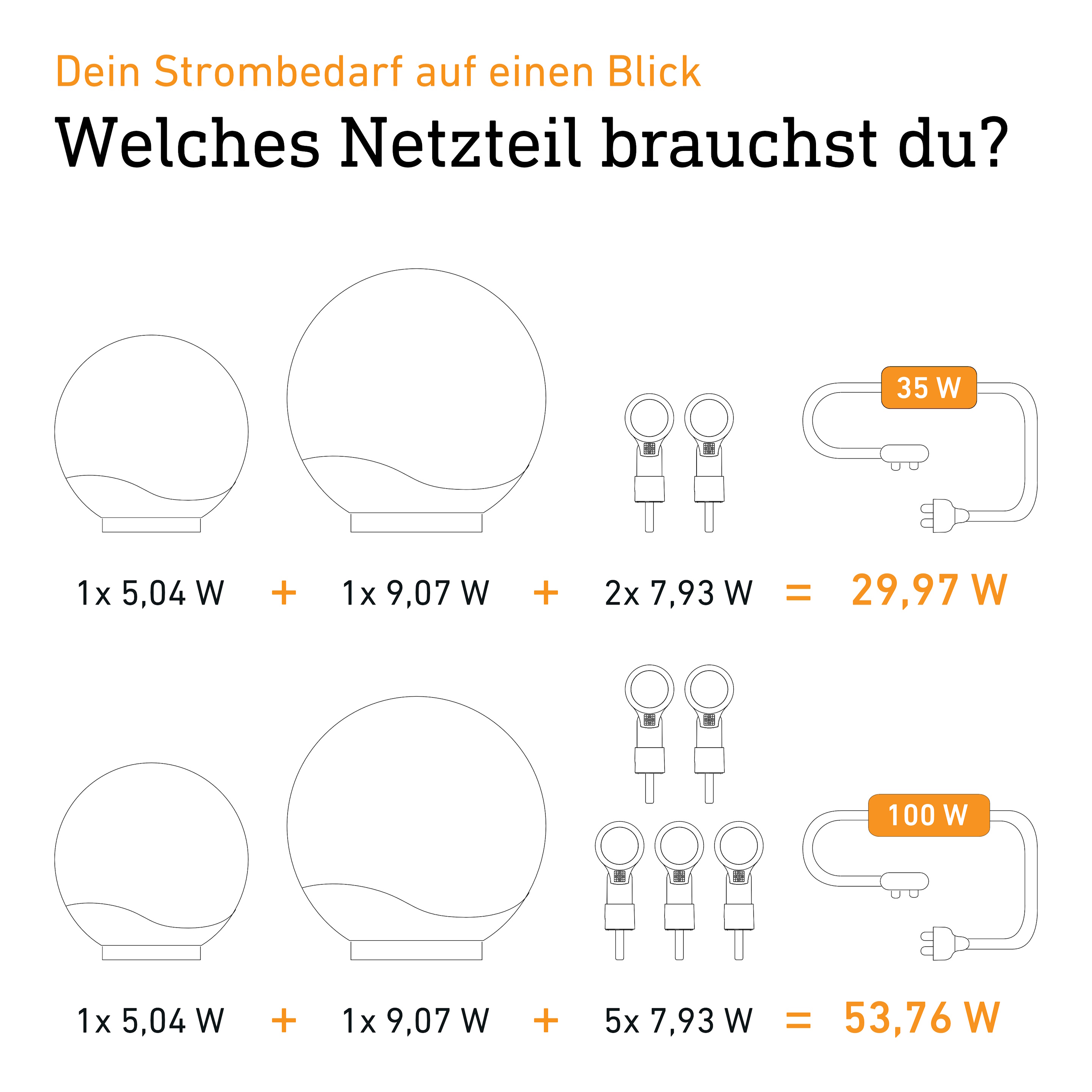

Well planned: This light consumes 7,93 W. To operate it, you’ll need a 24V power supply that matches the total power requirement – not included.

Dimensions

Dimensions L × W × H 140 x 226 x 572 mm

Electrical

Power 7,93 W

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 90 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range r = 2 m (3 m²)

Tangential range r = 10 m (79 m²)

Connectivity

Networking Yes

Networking via Bluetooth Mesh

Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 363 lm

Efficiency 45,8 lm/W

Colour temperature all colors + 1800-4000 K

LED colour deviation SDCM3

Colour rendering index = 90

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Soft light start Yes

Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h

Average rated power supply lifetime at 25 °C > 60000 h

Settings

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function Yes

Base light function time 5s-60 min

Main light adjustable 10 - 100 %

Functions DIM function Motions sensor Color temperature change Light sensor Normal / test mode Push button configuration

Settings via Bluetooth Mesh

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 100 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP65

Protection class III

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material PC structured

Mounting location Floor

Application location Outdoors

Mounting type Other

Material Aluminium

Application room garden outdoors terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included No

Certificates & EPREL

Certificates TSU

EPREL category Surrounded product with integrated light source

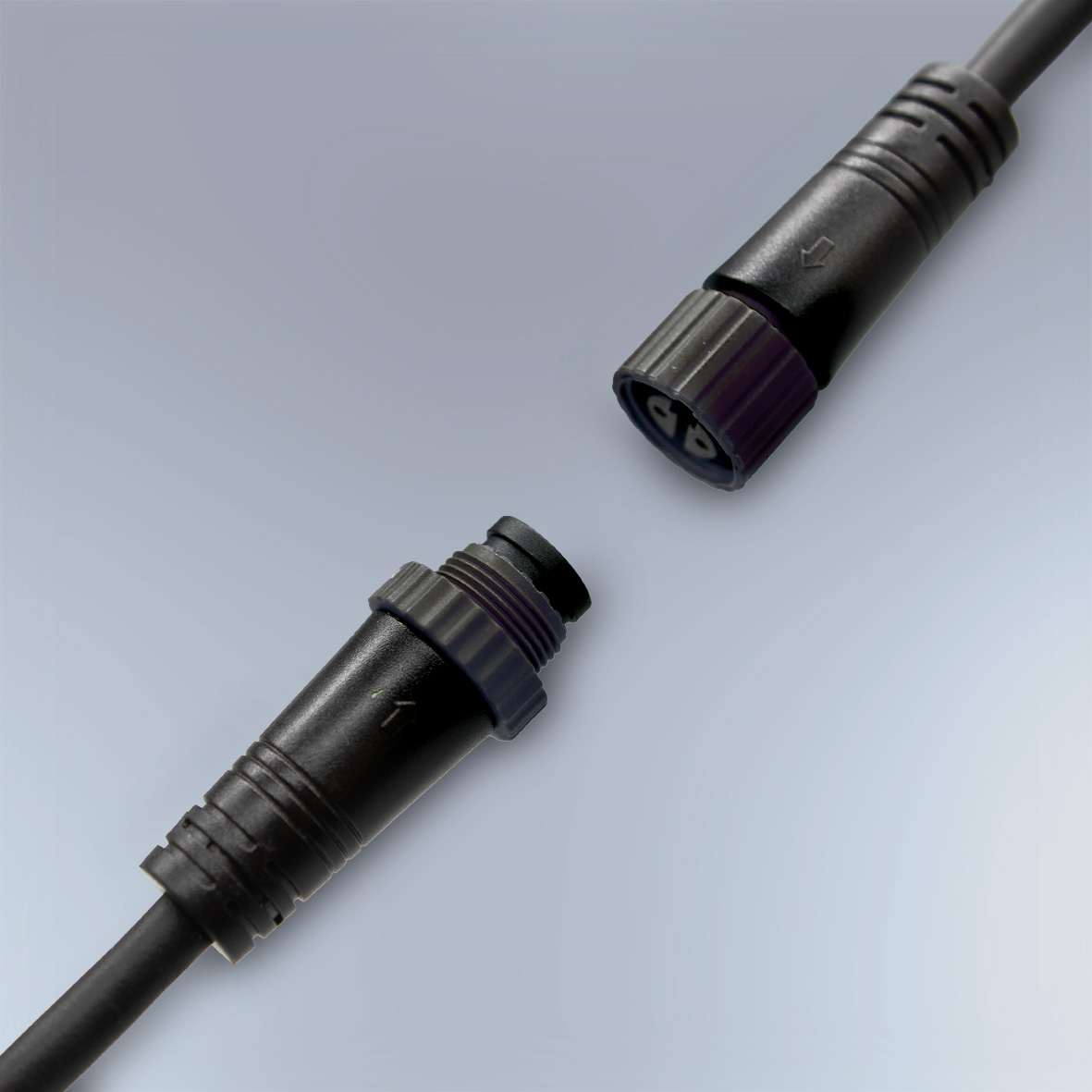

Plug&Play - Easy to install

True Color

Dimmable lighting

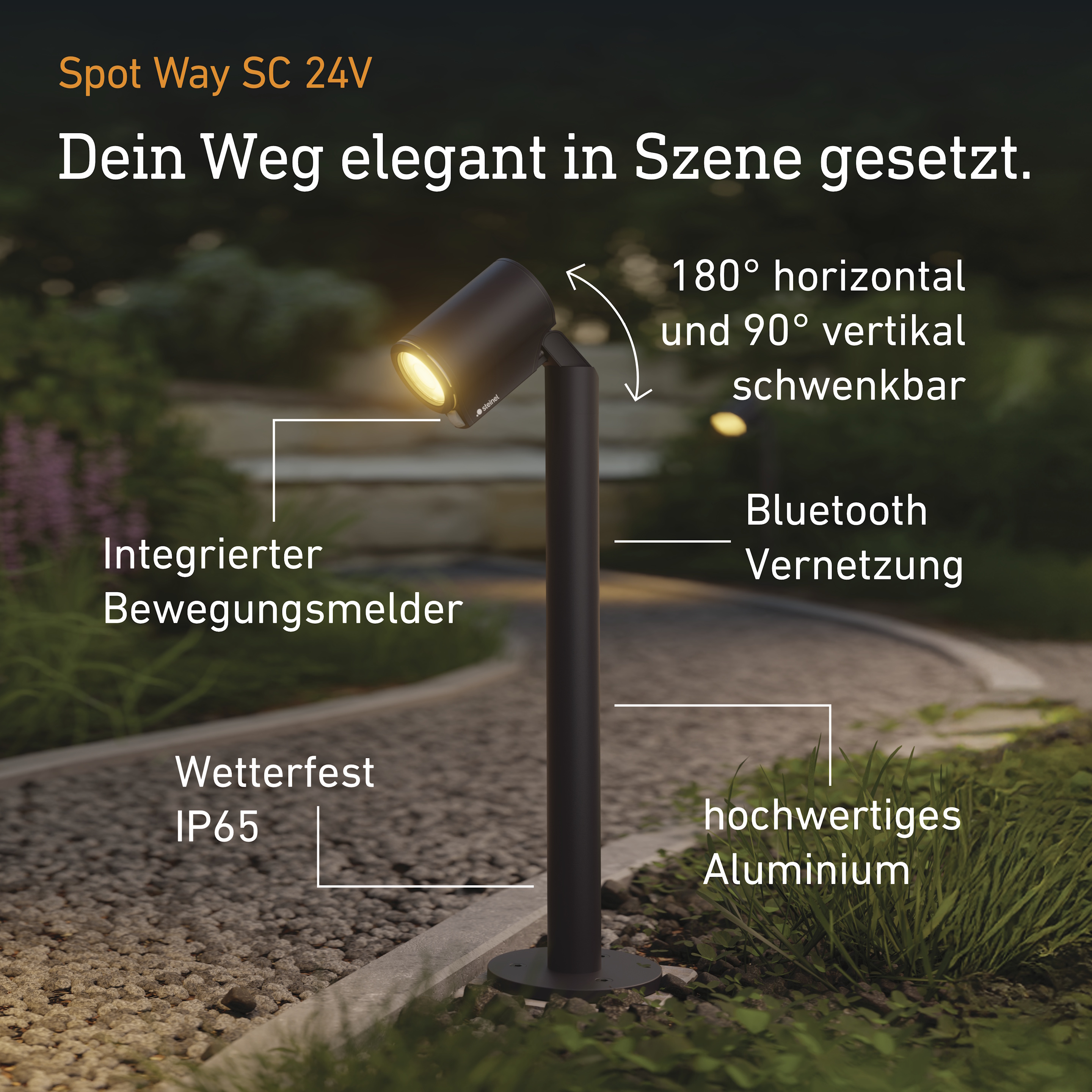

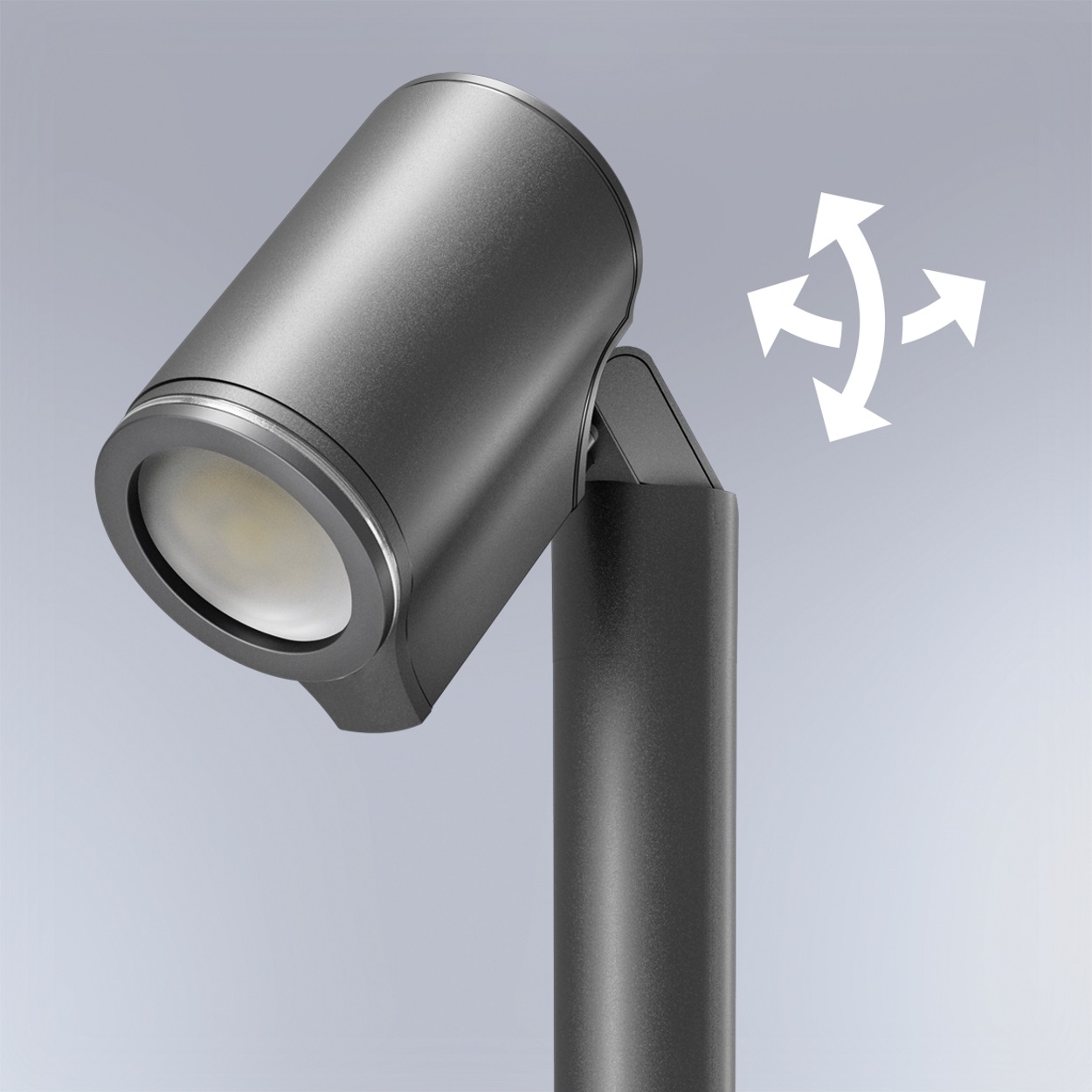

Turns through 180° and tilts through 90°

High-quality aluminium

Technical drawing

Sensor detection range

Data sheet User manual Drilling template LDT file (light distribution)
