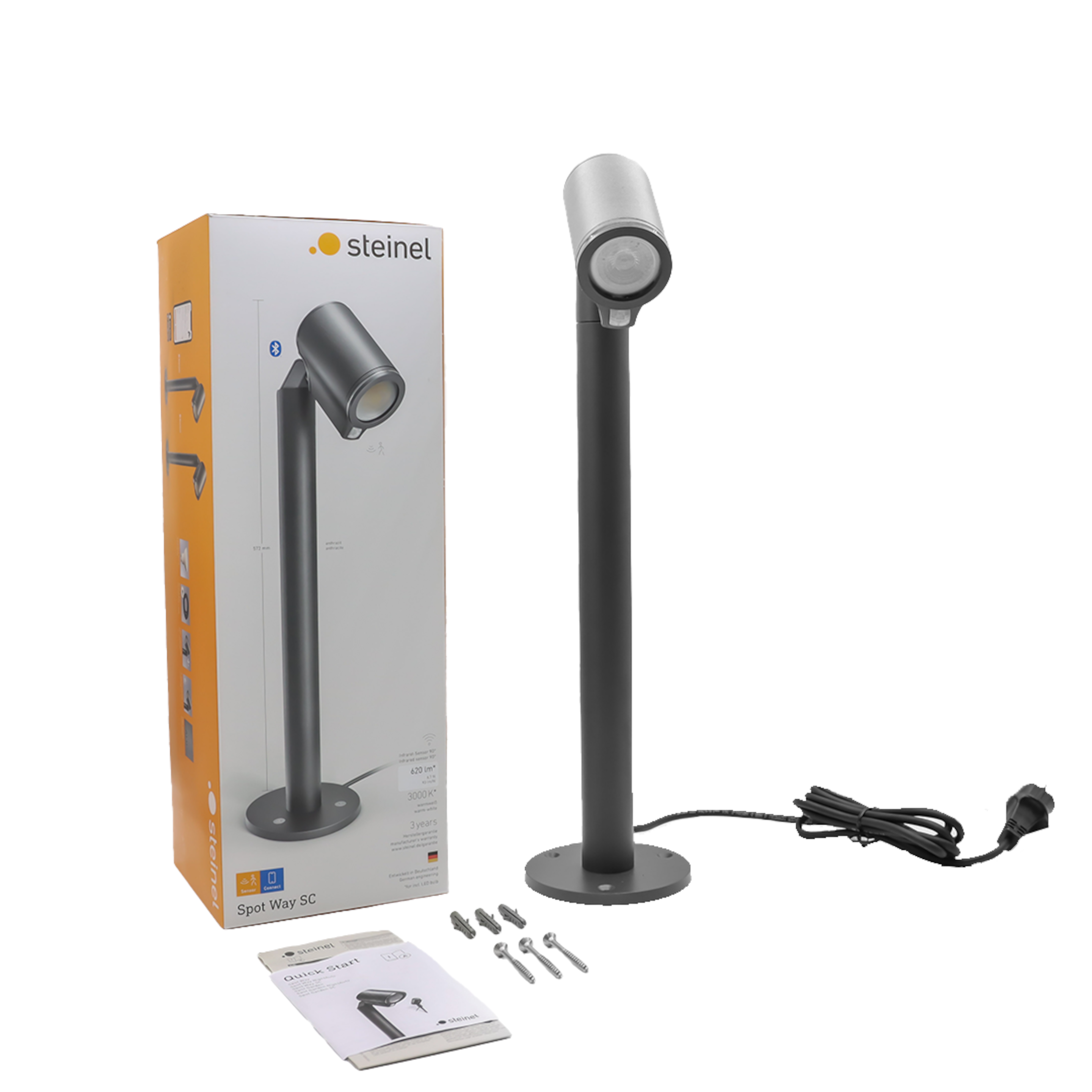

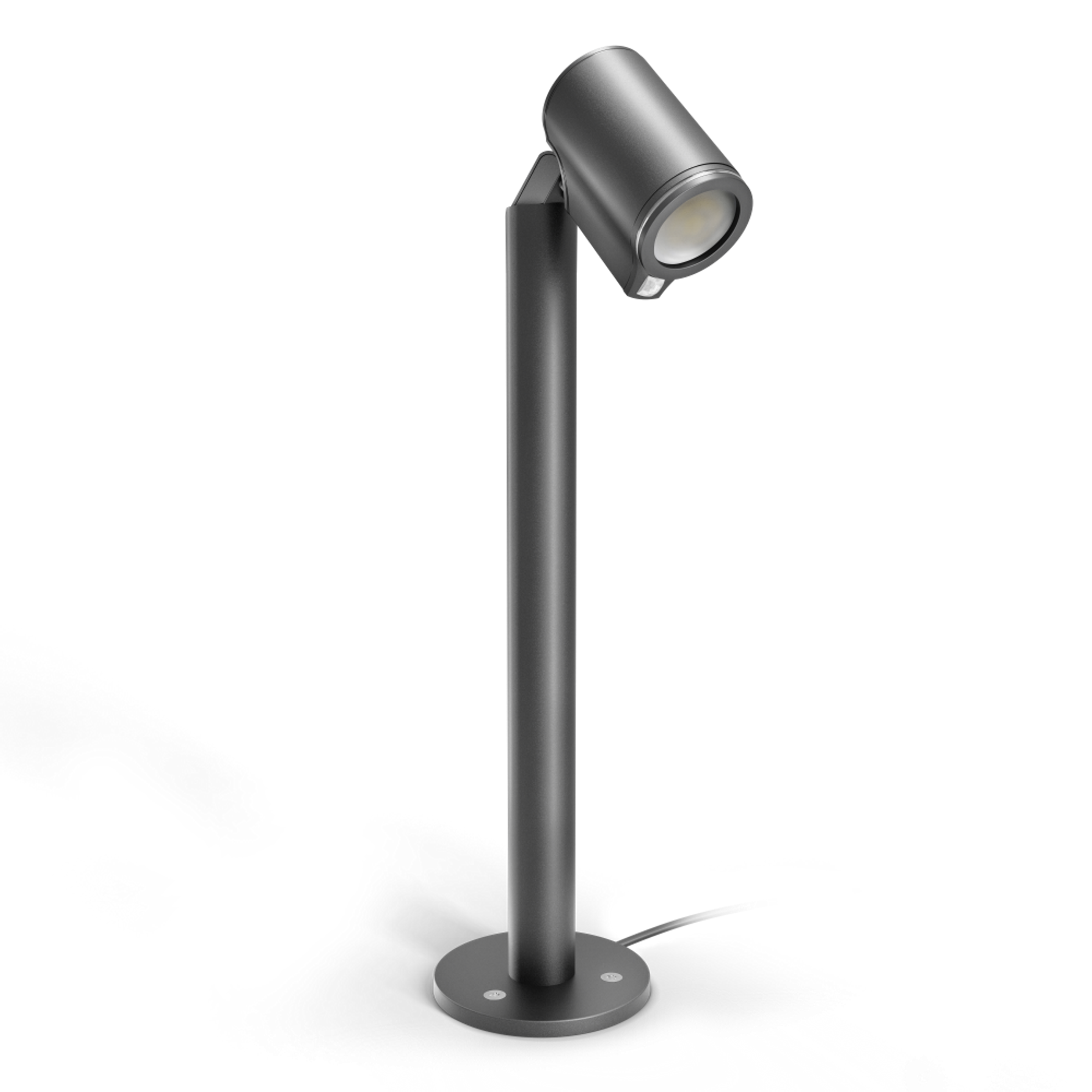

Steinel Spot Way SC with motion detector & Bluetooth

ELDAS® no. 941 200 469

EAN-No. 4007841 058661

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

What first catches the eye: the uncompromisingly elegant design. On closer examination, the 57 cm tall "Spot Way" ground spot series not only impresses with swivelling spotlight head but also with brilliant technical details. For instance, it delivers warm-white light of 3000 K and 512 lm from a low consumption of just 7,9 W, always bathing driveways, entrance and garden paths in the most attractive light at dusk. The "Spot Way SC" Connect version is based on the Bluetooth wireless standard and permits wireless interconnection as well as digital adjustment and control of many different functions, such as time setting and light-level threshold or ON and OFF times. Lighting groups can also be easily defined on this basis. The ground spots from the "Spot Way" series are fitted with a 2.5 m mains connection cable and come complete with lamp (GU-10 LED).

Floor and path luminaire with motion detector, perfect for illuminating paths and driveways

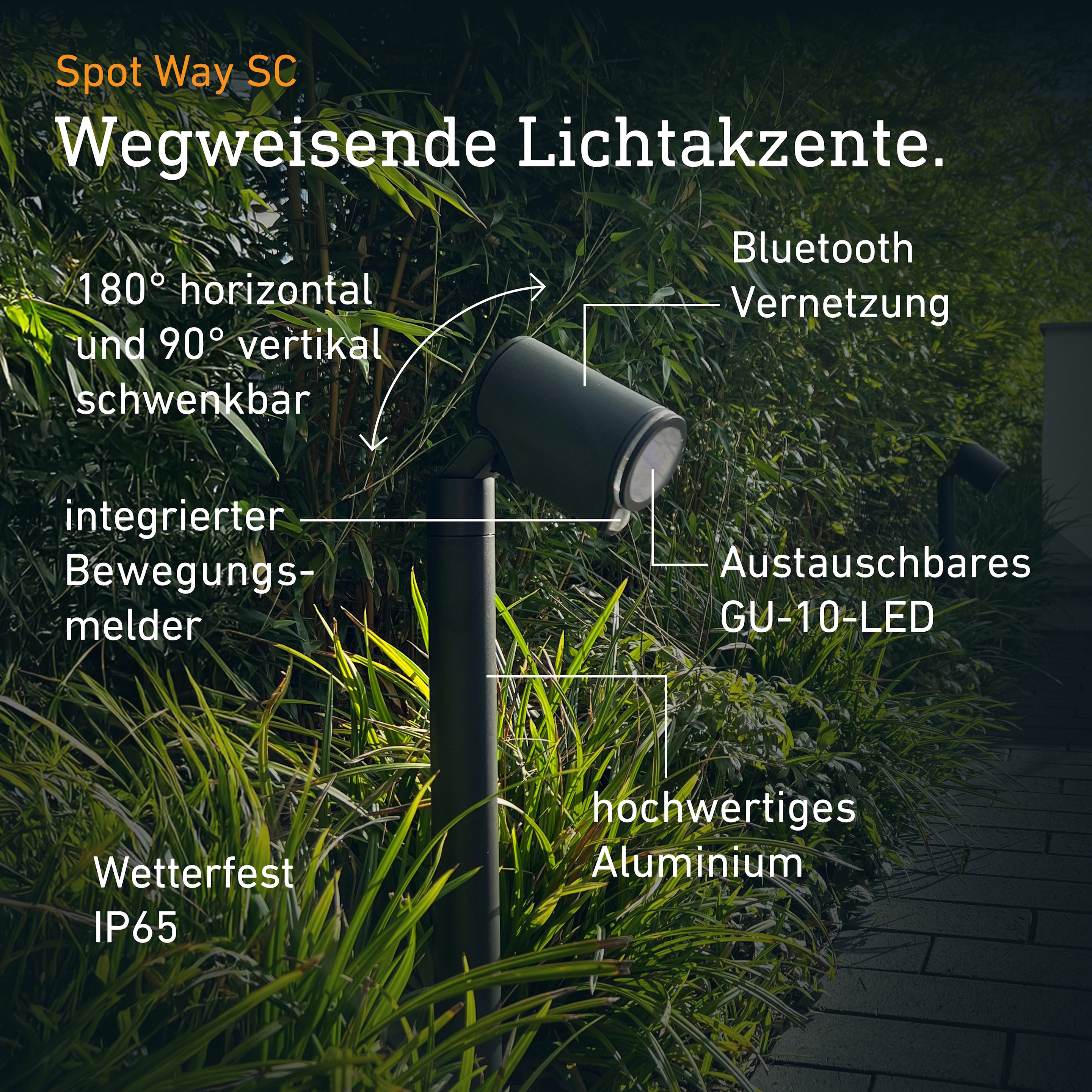

Elegant and puristic design made of high-quality aluminium, spotlight head can be swivelled 180° horizontally and 90° vertically

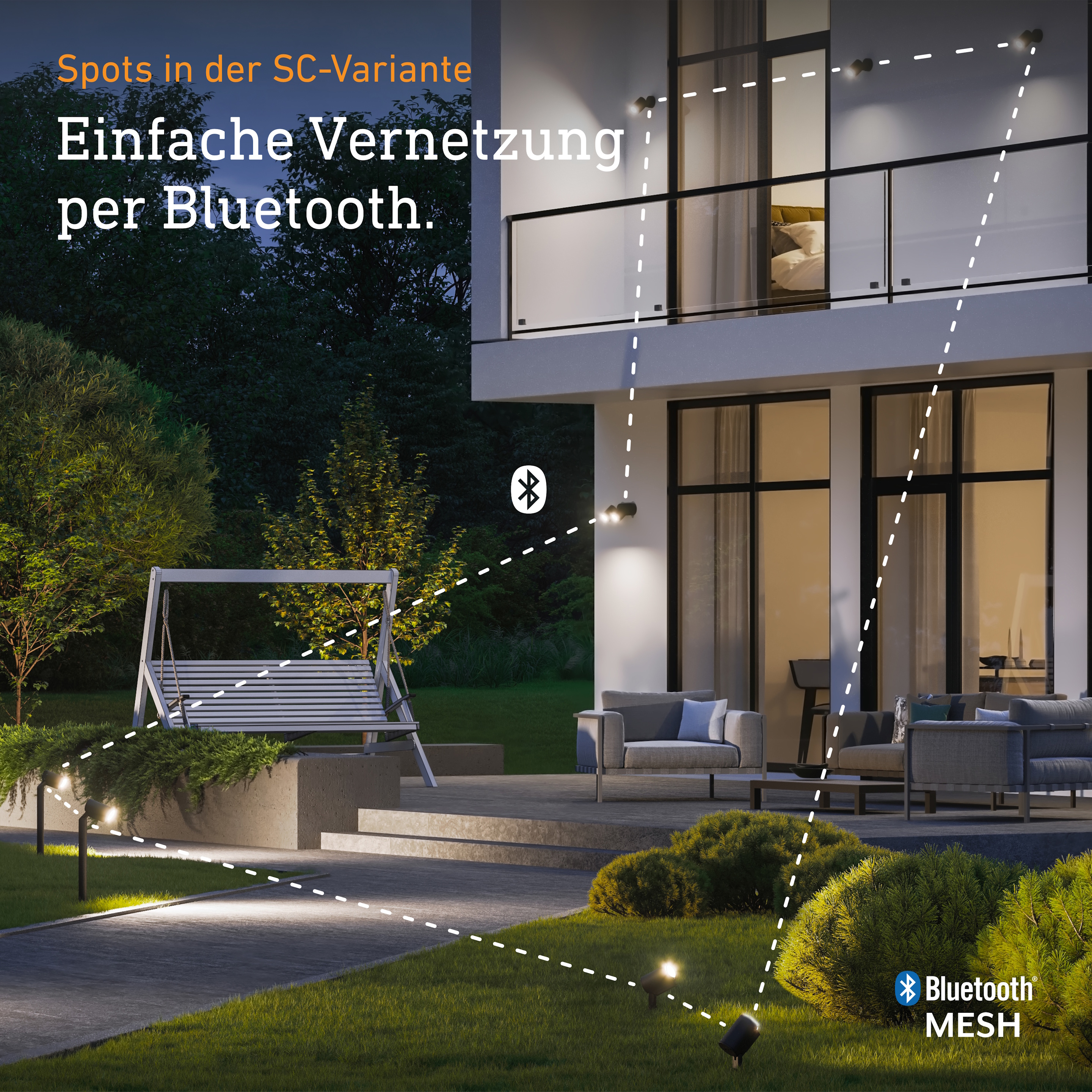

Wireless networking via Bluetooth and easy setting via STEINEL Connect App
Automatic light thanks to 90° Infrared sensor with up to 10 m detection of movement
Functions: Twilight-controlled light, integrated timer, night economy mode, 4 hours continuous light
Incl. GU-10 LED bulb with warm white light (3000 K) with 512 lm at 7,9 W
Incl. 2.5 m mains cable and mounting accessories - plastic-free packaging

Variants

Version With motion detector and Bluetooth

Dimensions

Dimensions L × W × H 226 x 140 x 572 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 7,9 W

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 90 °

Opening angle 90 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range r = 2 m (3 m²)

Tangential range r = 10 m (79 m²)

Connectivity

Networking Yes

Networking via Bluetooth

Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 512 lm

Colour temperature 3000 K

LED colour deviation SDCM5

Colour rendering index 80-89

With illuminant Yes, LED lamp

Illuminant LED can be replaced

Base GU10

Soft light start No

Continuous light selectable, 4h

Lifetime

LED lifetime L70B50 25°C > 20000 h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function No

Main light adjustable No

Functions Manual ON / ON-OFF Timer Master/slave override

Settings via Bluetooth

Twilight setting teach Yes

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, transparent

Mounting location Stand mounted

Application location Outdoors

Mounting type Surface wiring

Application room garden outdoors

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class F

EPREL category Surrounded product with separate light source (e.g. E27)

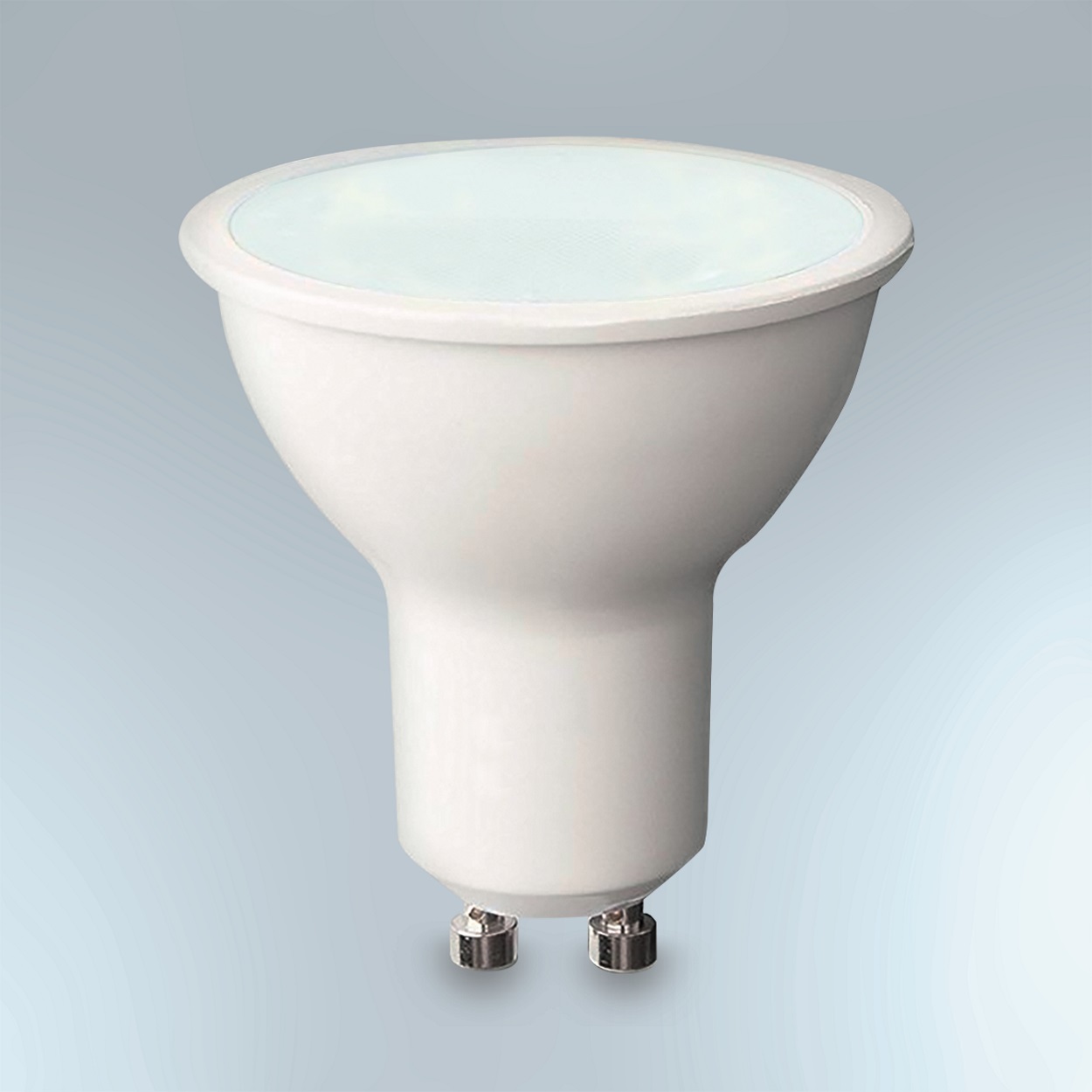

Including GU10 LED lamp

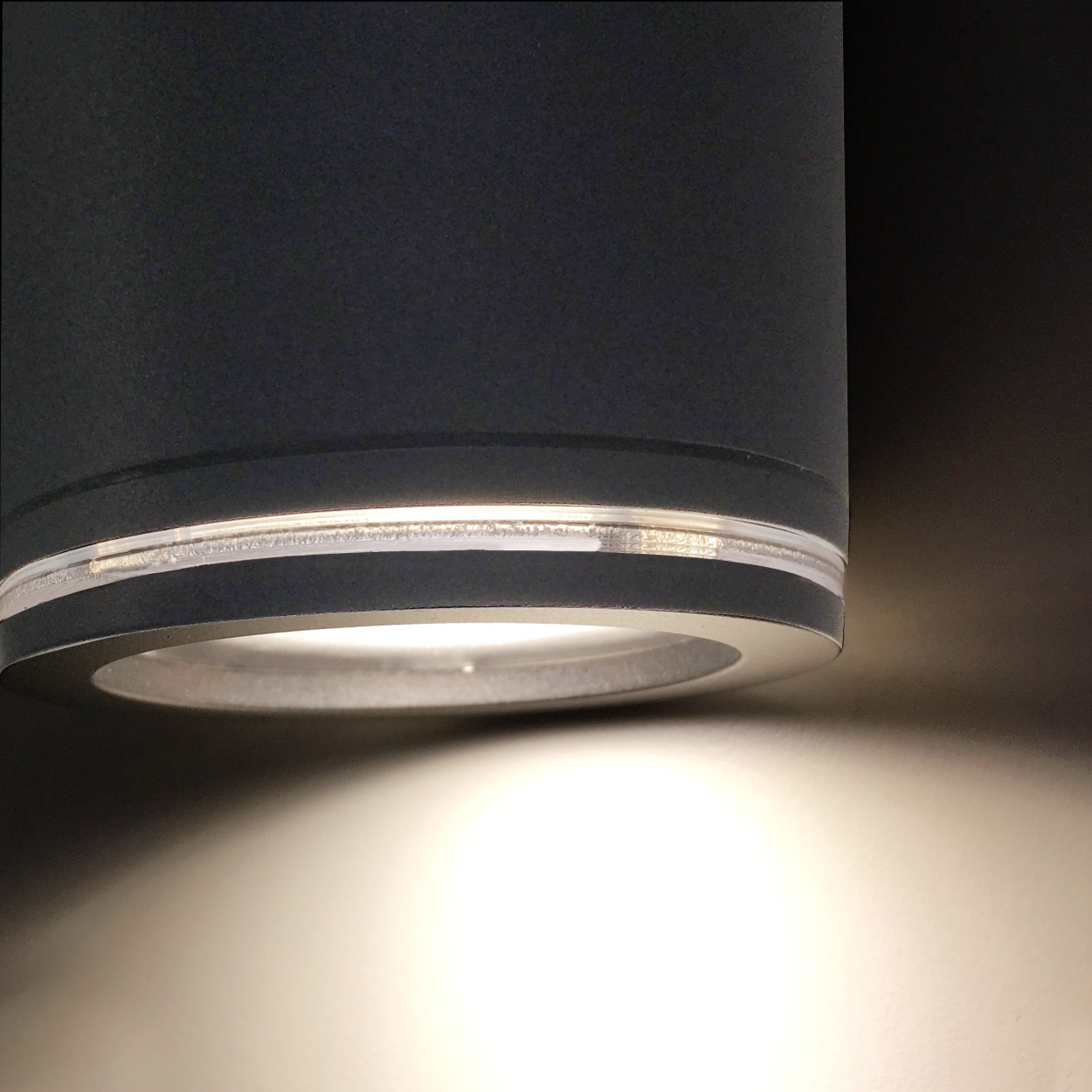

LED ambient light

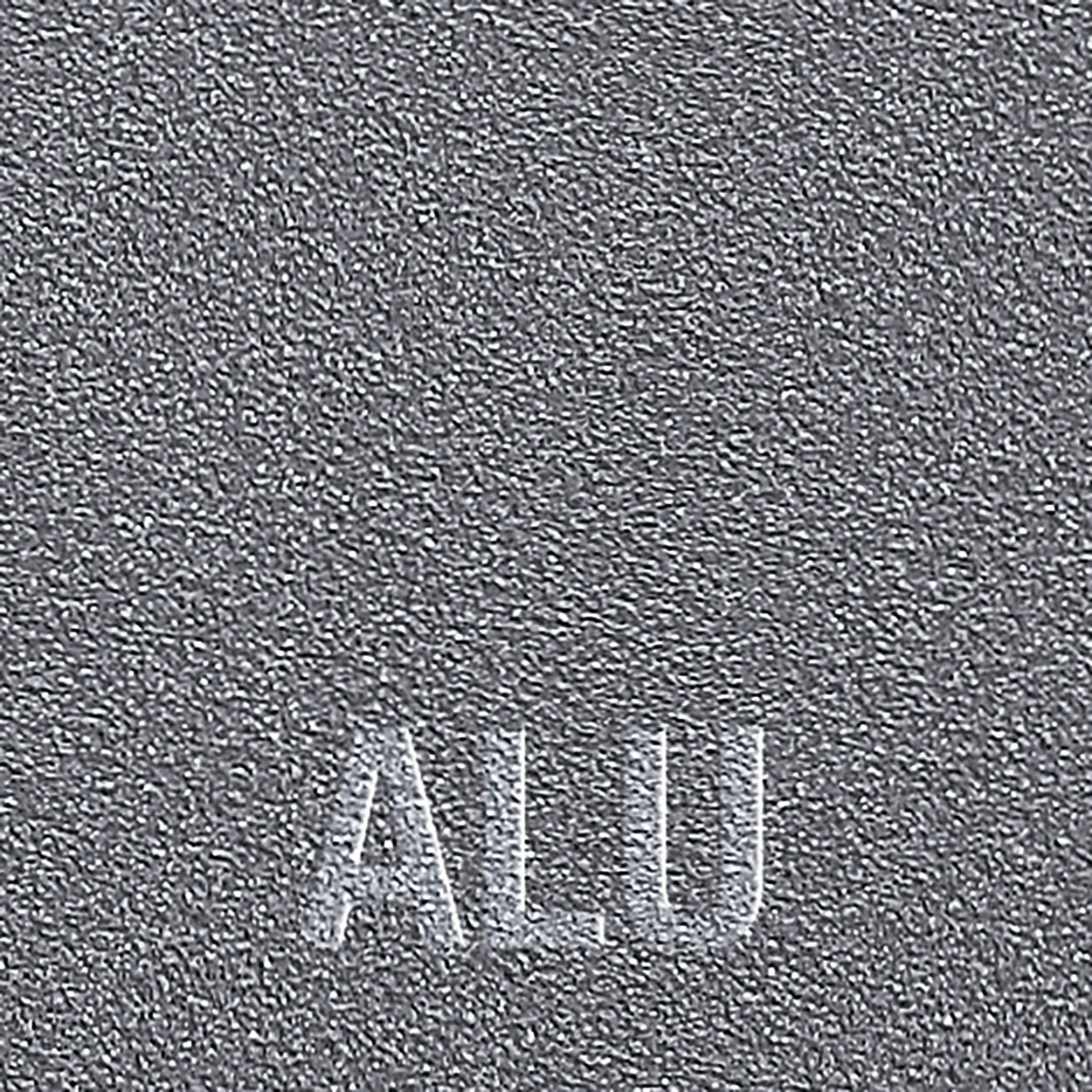

High-quality aluminium

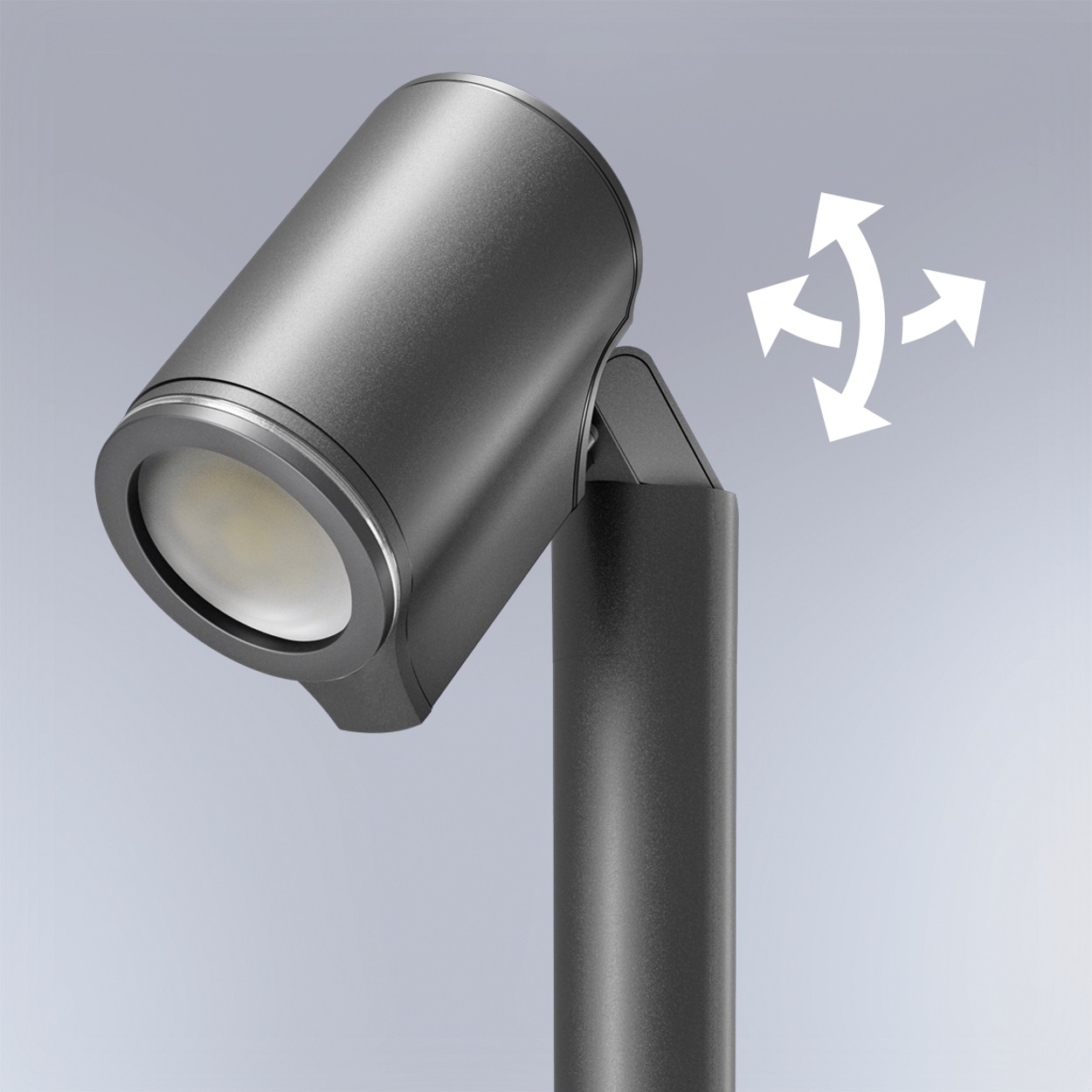

Turns through 180° and tilts through 90°

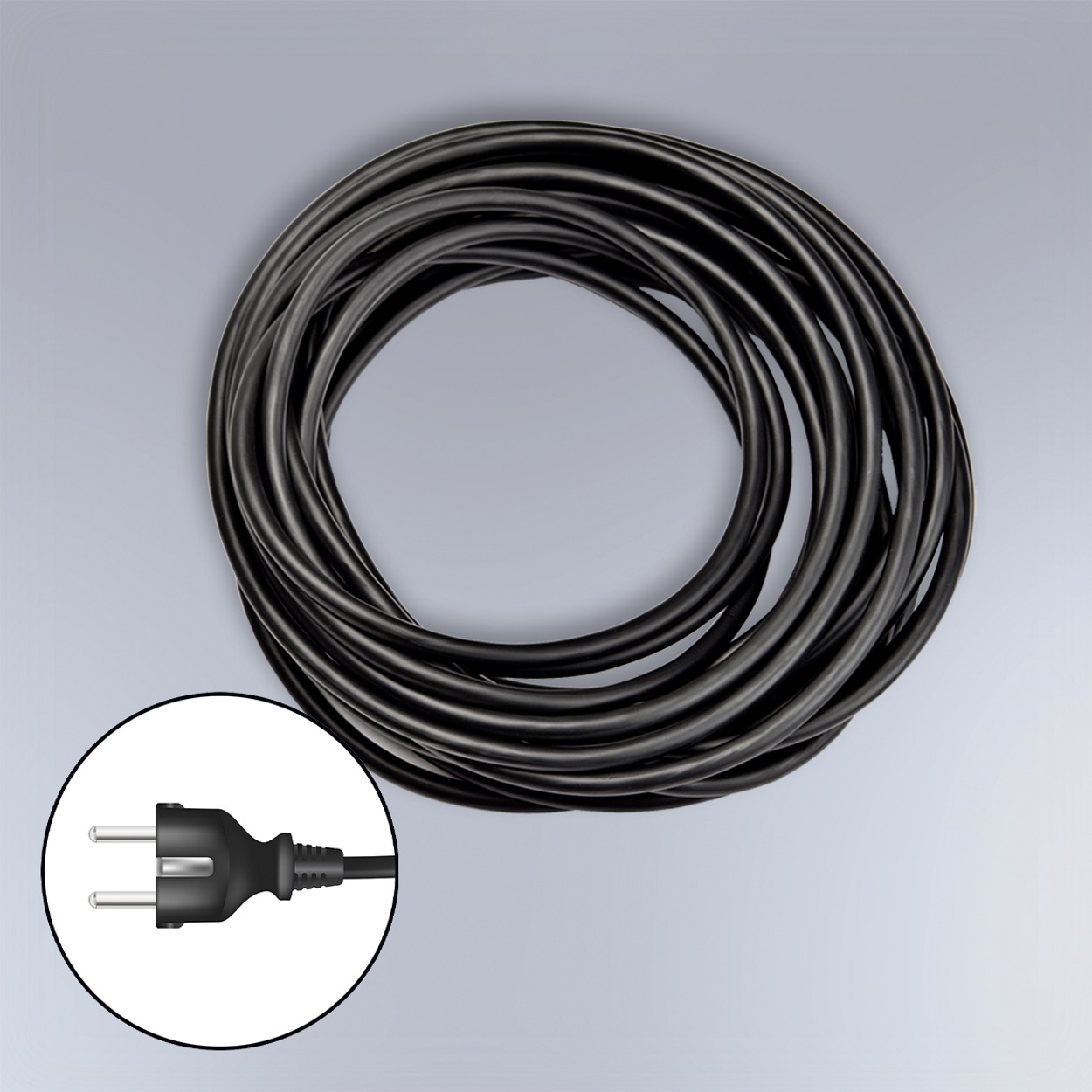

With 2.5m mains connection cable

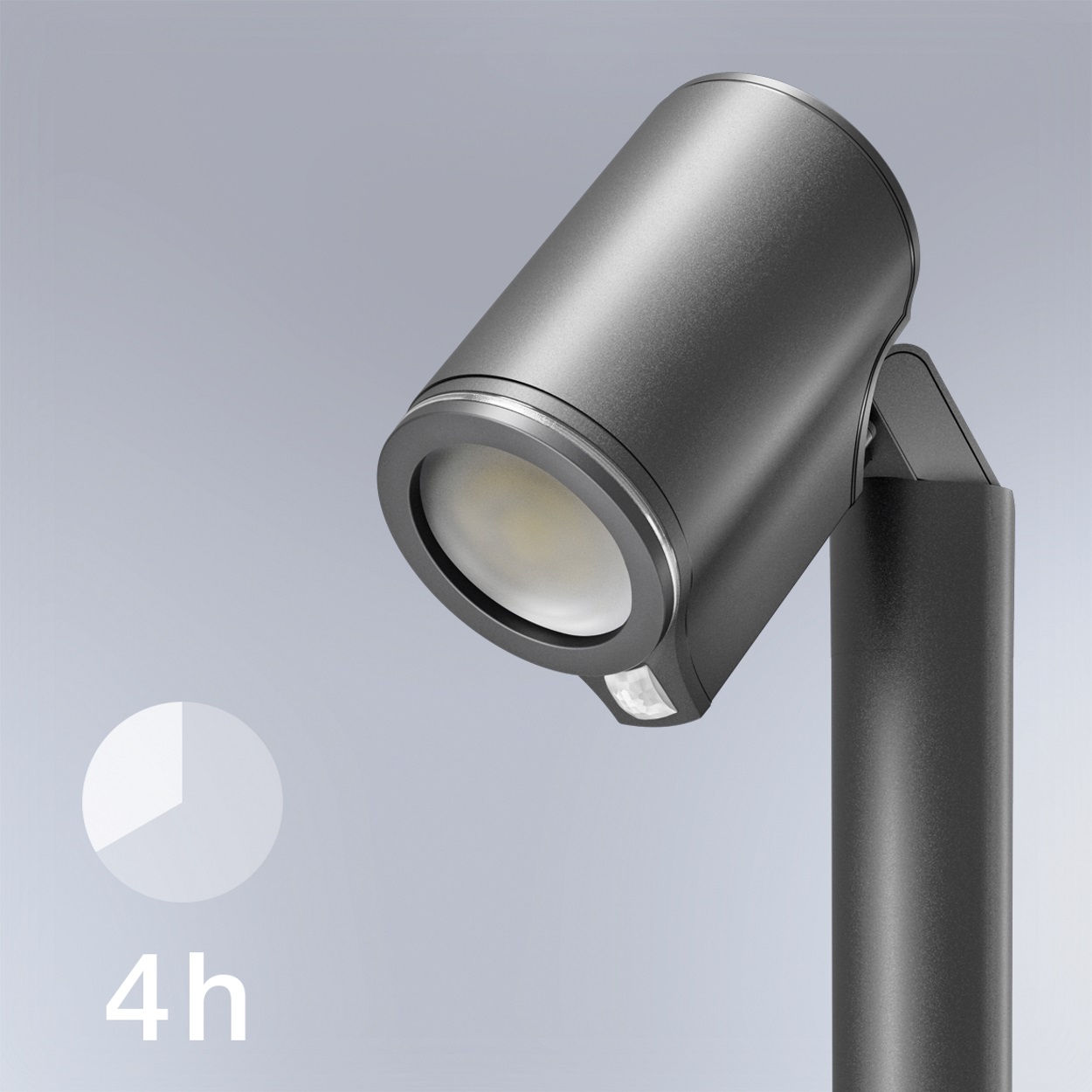

4-hour manual override (optional)

Technical drawing

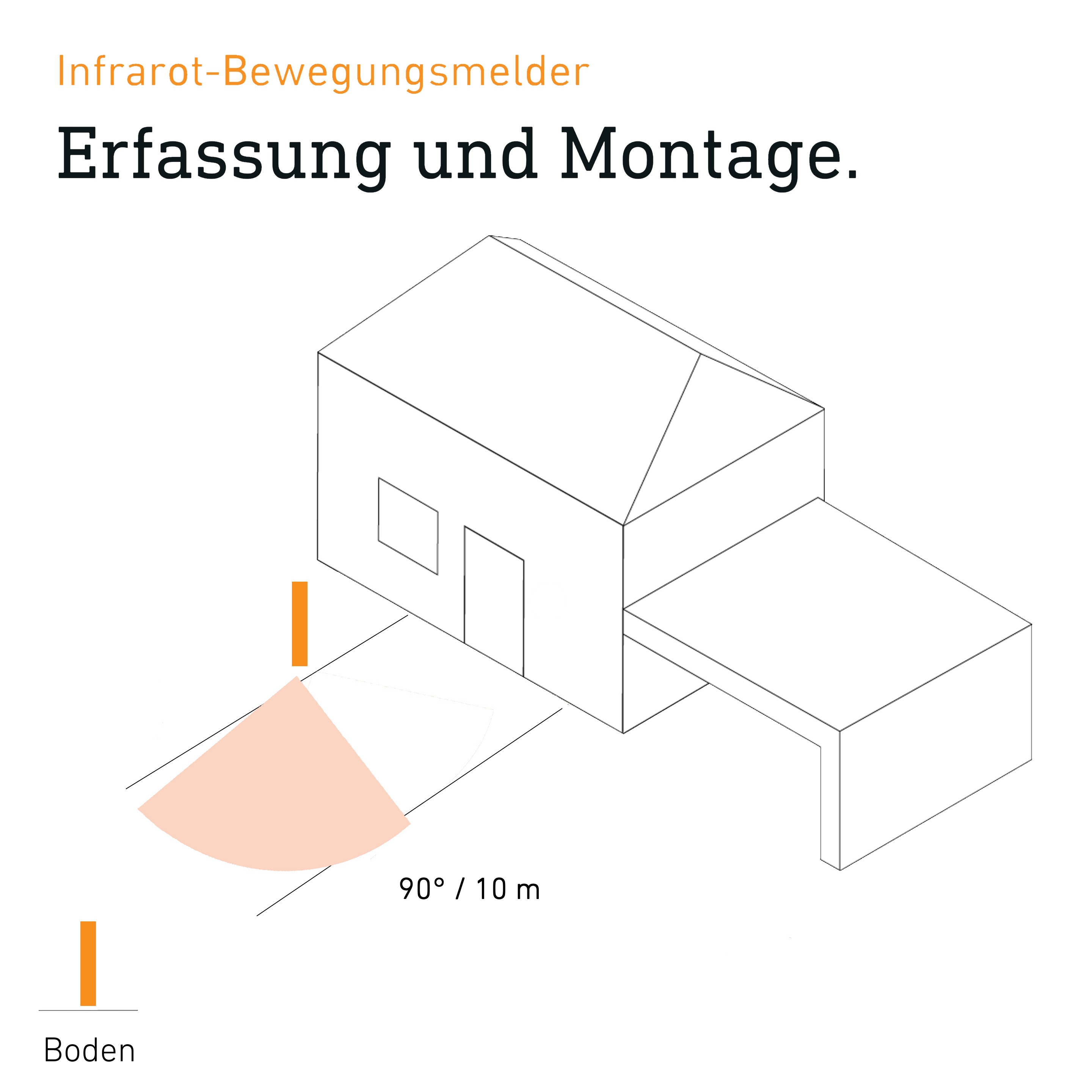

Sensor detection range

Data sheet User manual Declaration of conformity
