Steinel TCL PRO white

Steinel TCL PRO white

ELDAS® no. 535 903 083 · EAN-No. 4007841 089146

Technical data Highlights Illustrations Downloads
Steinel Bluetooth Mesh

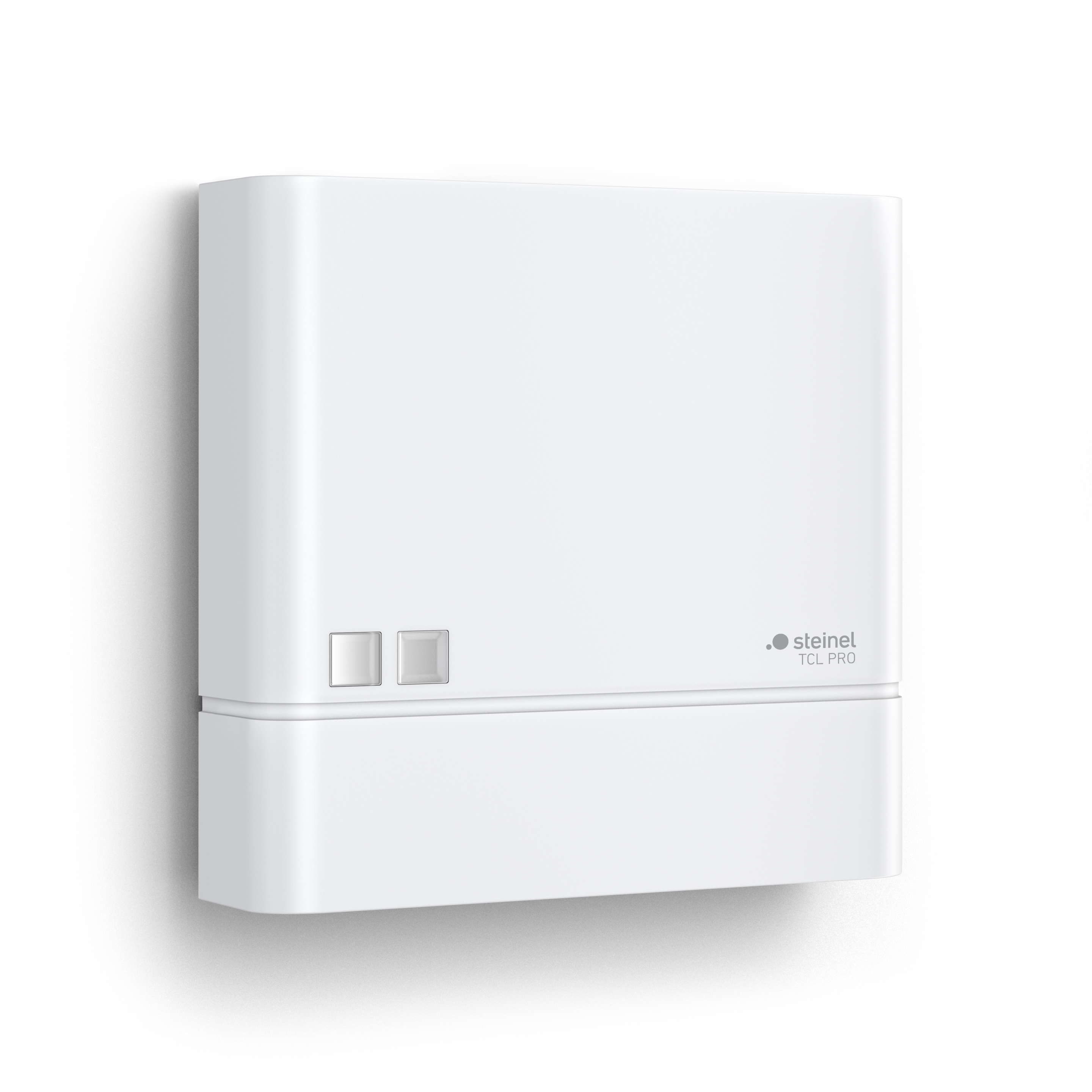

Steinel TCL PRO white

Light sensor for exterior walls. Feeds time and daylight level into the Bluetooth Mesh network.

ELDAS® no. 535 903 083

EAN-No. 4007841 089146

Price: Please log in to see prices

Colour

Anthracite White

Variant

Without relay With relay

This timer never runs out of time thanks to the Real Time Clock. One year always has 31,536,000 seconds. A 7-day battery buffer ensures that the system continues to run smoothly even in the event of a power failure. The TCL PRO has a light sensor and can transmit the lux values to the system via Bluetooth Mesh. A perfect network sensor for safeguarding time-based automation.

  • Photo-cell controller for automatic night-time illumination of house fronts, gardens, shop windows and other areas
  • Straight, flat design made of UV-resistant material
  • Wireless networking via Bluetooth and easy setting via STEINEL Connect App
  • Thanks to the brightness sensor, the light comes on automatically at dusk - and goes off again at dawn
  • Functions: Individual time settings via timer, night-economy mode

Identification

Version Photo-cell controller

Variants

Version Without relay
Colour White

Dimensions

Dimensions L × W × H 38 x 95 x 95 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Own consumption 0,5 W

Sensor technology

Max. mounting height 4,00 m
Sensor technology Photo-cell controller
With motion detector No
Mounting height 1,8 – 4,0 m
Optimal mounting height 2,0 m

Connectivity

Networking Yes
Type of networking Master/Slave, Master/Master
Control technology Steinel Connect
Wireless networking via BT SIG Mesh
Networking via Bluetooth Mesh

Lighting technology

Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 1 – 1000 lx
Base light function No
Settings via App, Smartphone, Tablet, Bluetooth
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP54
Ambient temperature -20...+40 °C
Housing material Plastic
Mounting location Wall
Application location Outdoors
Mounting type Surface mounting
Material Plastic
Application room Indoors, all round the building, courtyard & driveway, front door, outdoors, terrace / balcony
Colour White
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

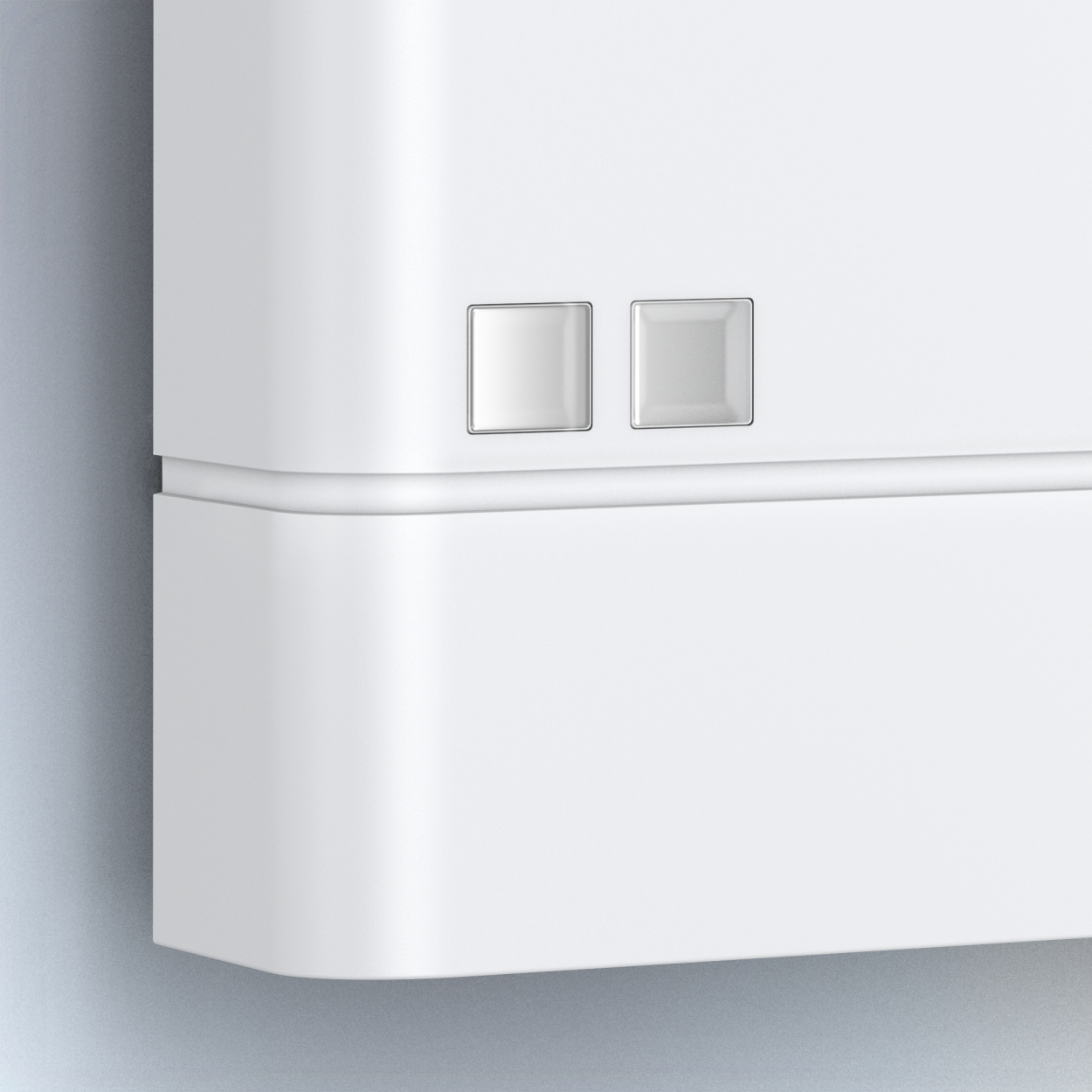

UV resistant material

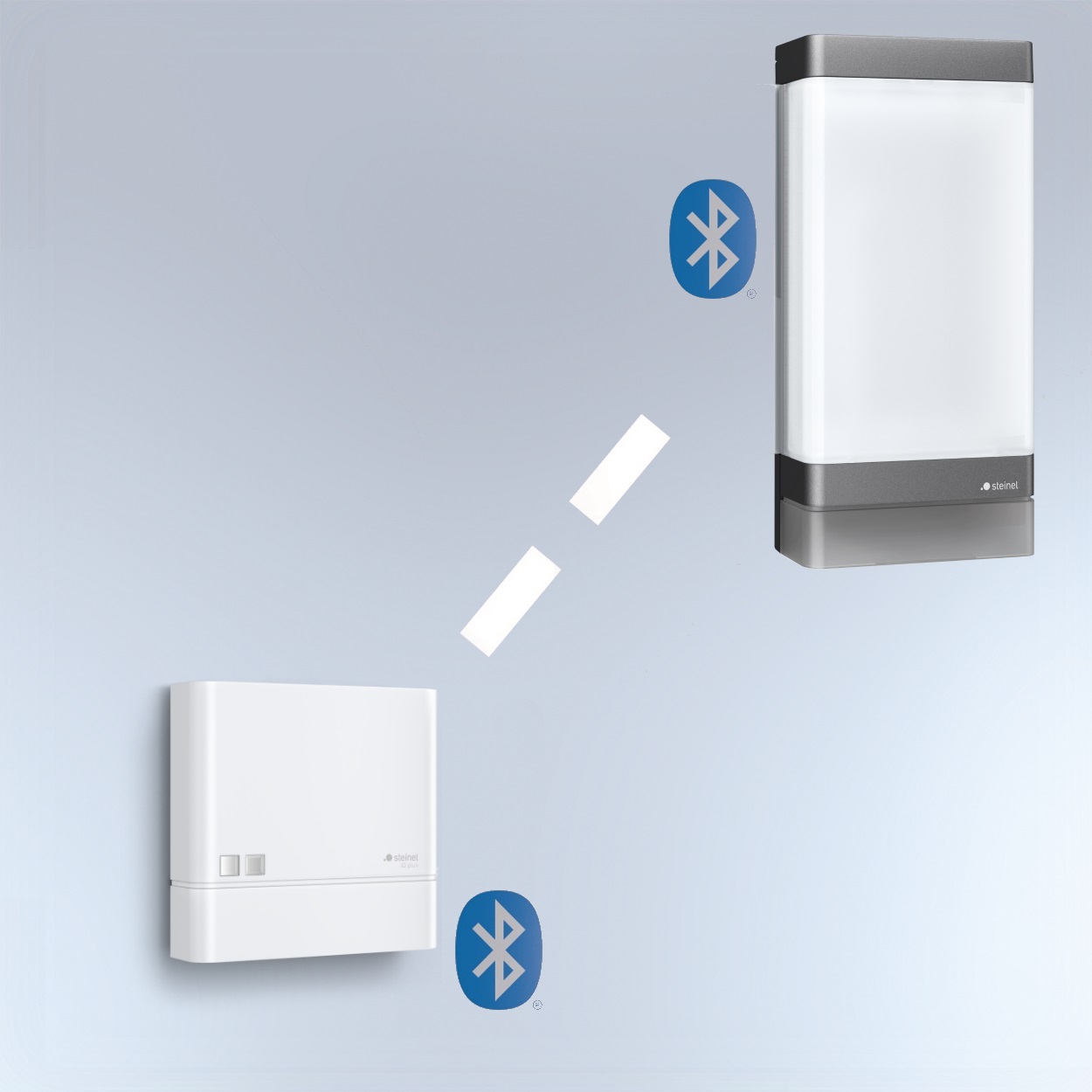

Interconnectable and adjustable via Bluetooth

Technical drawing

Sensor detection range
