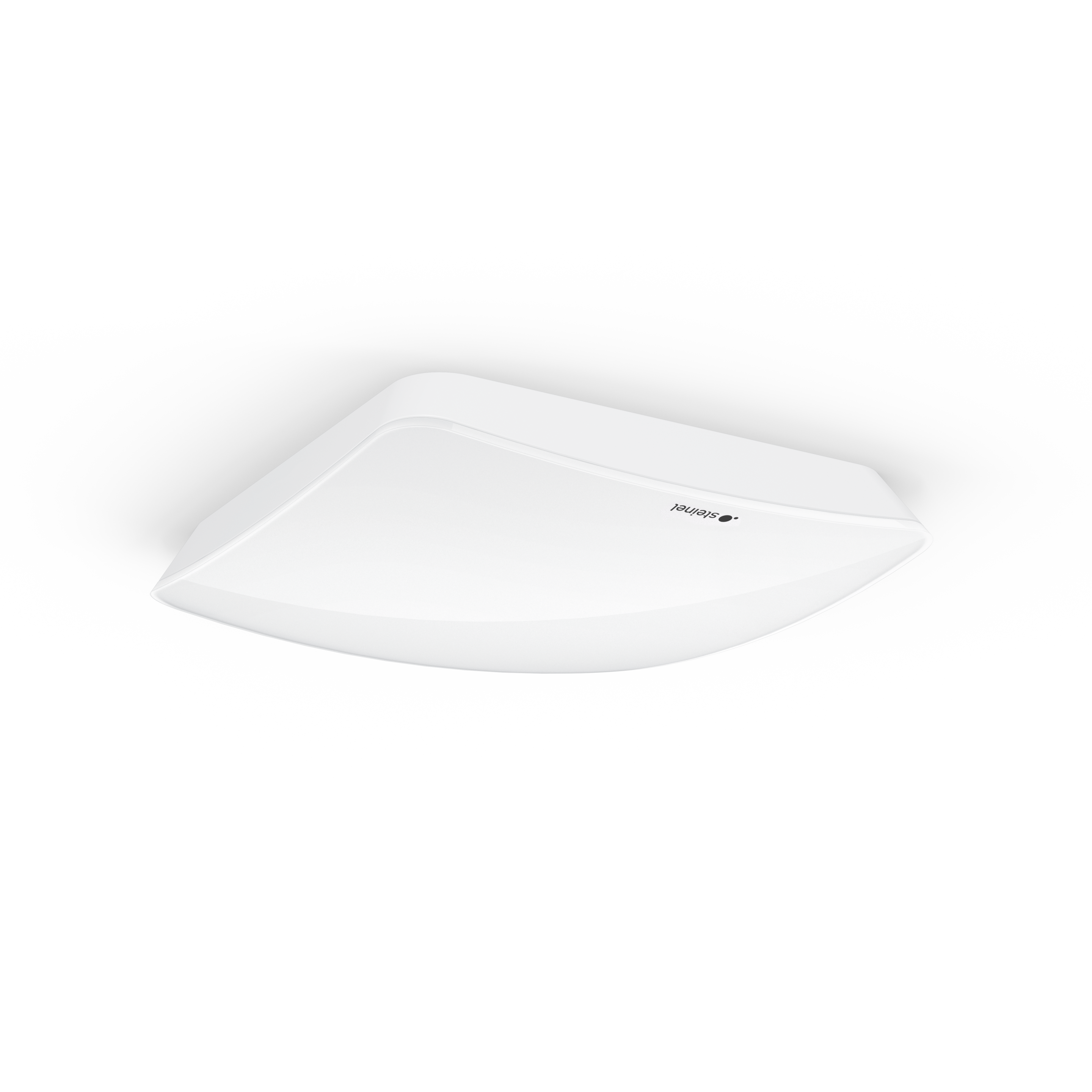

Steinel True Presence IP - concealed

Presence detector for offices and hotel rooms. Detects true presence, splash-proof.

ELDAS® no. 535 903 111

EAN-No. 4007841 085612

Price: Please log in to see prices

Colour

White

Mounting type

Concealed mounting Surface mounting

Variant

230V, 1 channel 230V, 2 channels Bluetooth Input-Device DALI-2 Input Device IP (REST API, MQTT, BacNet)

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector

Variants

Version IP (REST API, MQTT, BacNet)
Colour White
Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 52 x 103 x 103 mm

Electrical

Mains connection 44 – 57 V
Power 1,1 W
Supply voltage detail Passive PoE SELV, standard PoE (IEEE 802.3 af)

Sensor technology

Max. mounting height 12,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 7,2 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 15 m (177 m²)
Tangential range Ø 15 m (177 m²)
Mounting height 2,0 – 12,0 m
Presence range Ø 15 m (177 m²)
True Presence range Ø 9 m (64 m²)
Optimal mounting height 2,8 m

Connectivity

Networking Yes
With bus coupler Yes
Control technology Steinel Connect
Wireless networking via BT SIG Mesh
Networking via IP / IT

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 1000 lx
Base light function No
Main light adjustable No
Settings via App, Smartphone, Tablet, Bluetooth
With remote control No
Twilight setting teach No

Housing & material

Protection class (IP) IP20
Ambient temperature -20...+50 °C
Mounting location ceiling
Application location Indoors
Material Plastic
Application room Indoors, WC / washroom, care room, changing room, classroom, conference room / meeting room, dining hall / staff restaurant, duty room, high-bay warehouse, hotel room, kitchenette, lecture hall, one-person office, open-plan office, production facilities, reception / lobby, recreation room, sports hall, warehouse
Colour White
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

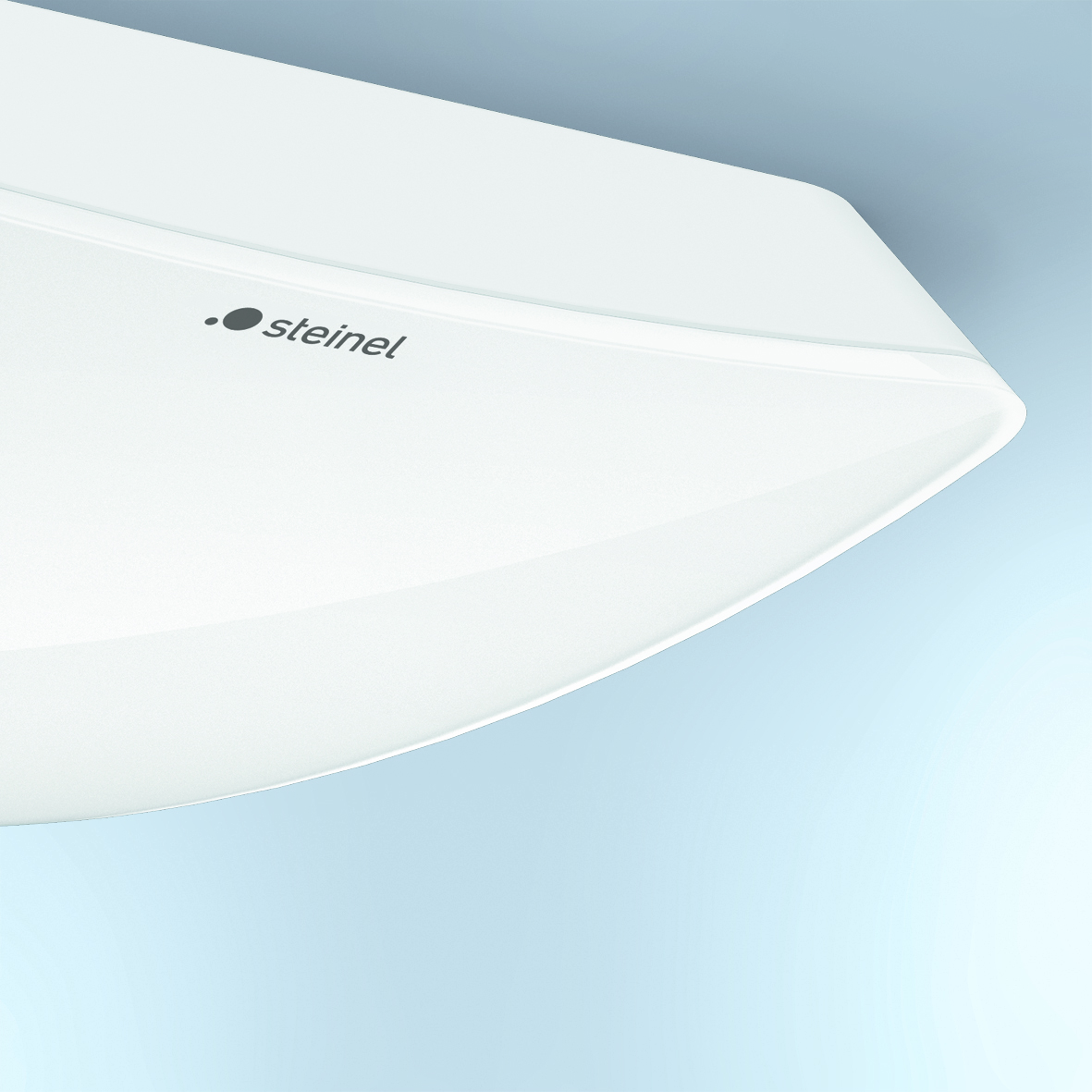

UV-resistant plastic

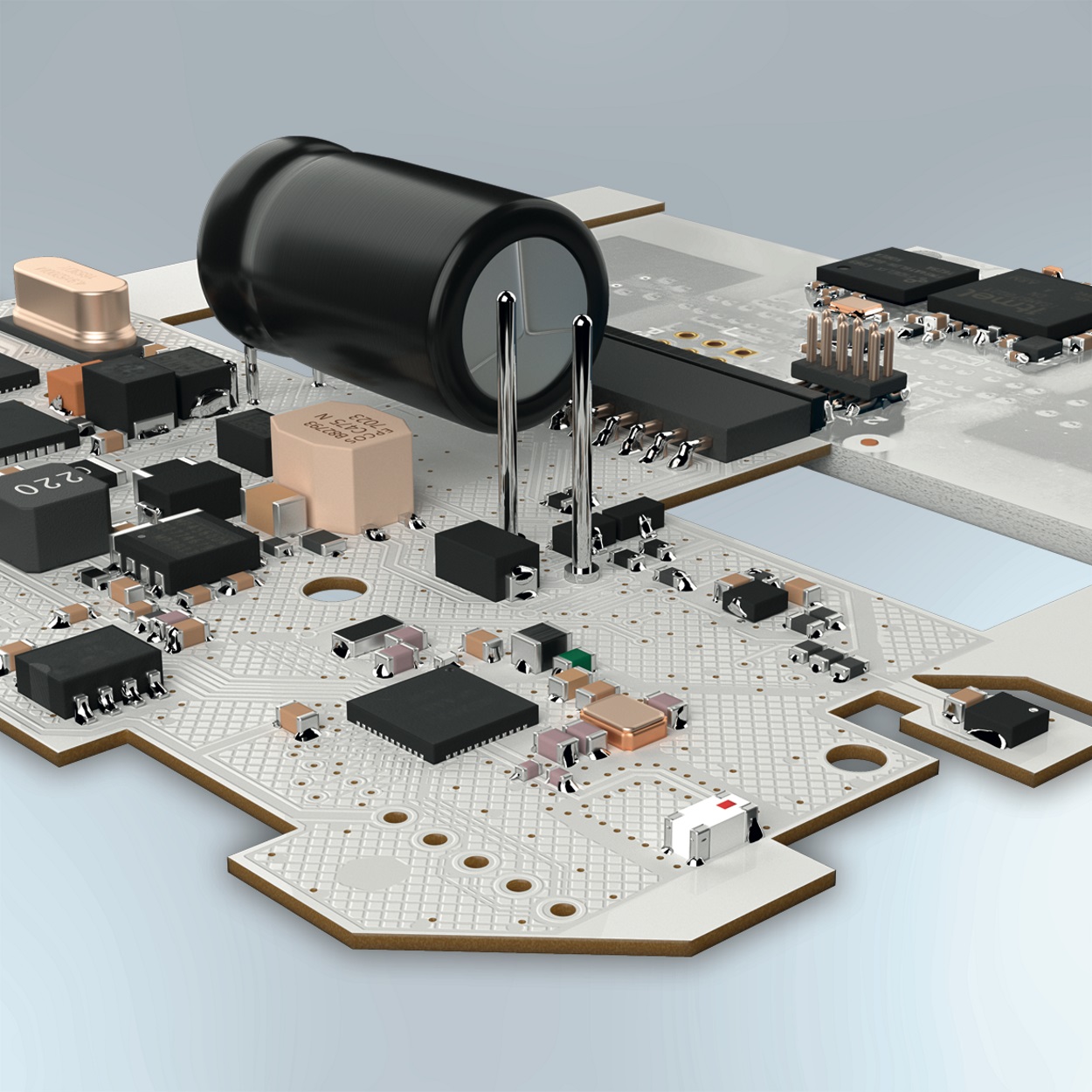

Digital high frequency sensor

Technical drawing

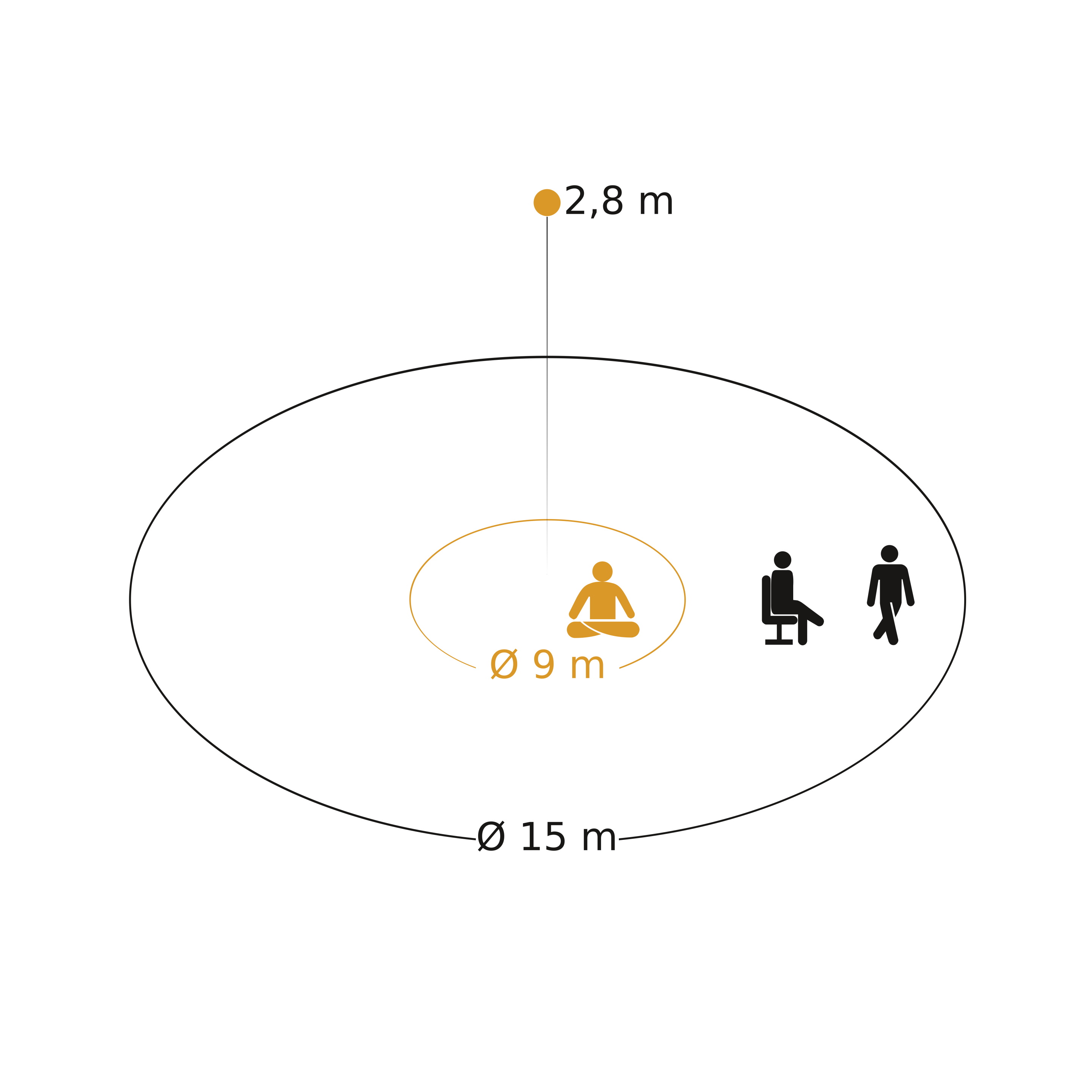

Sensor detection range

Wiring diagram 1

Circuit diagram
