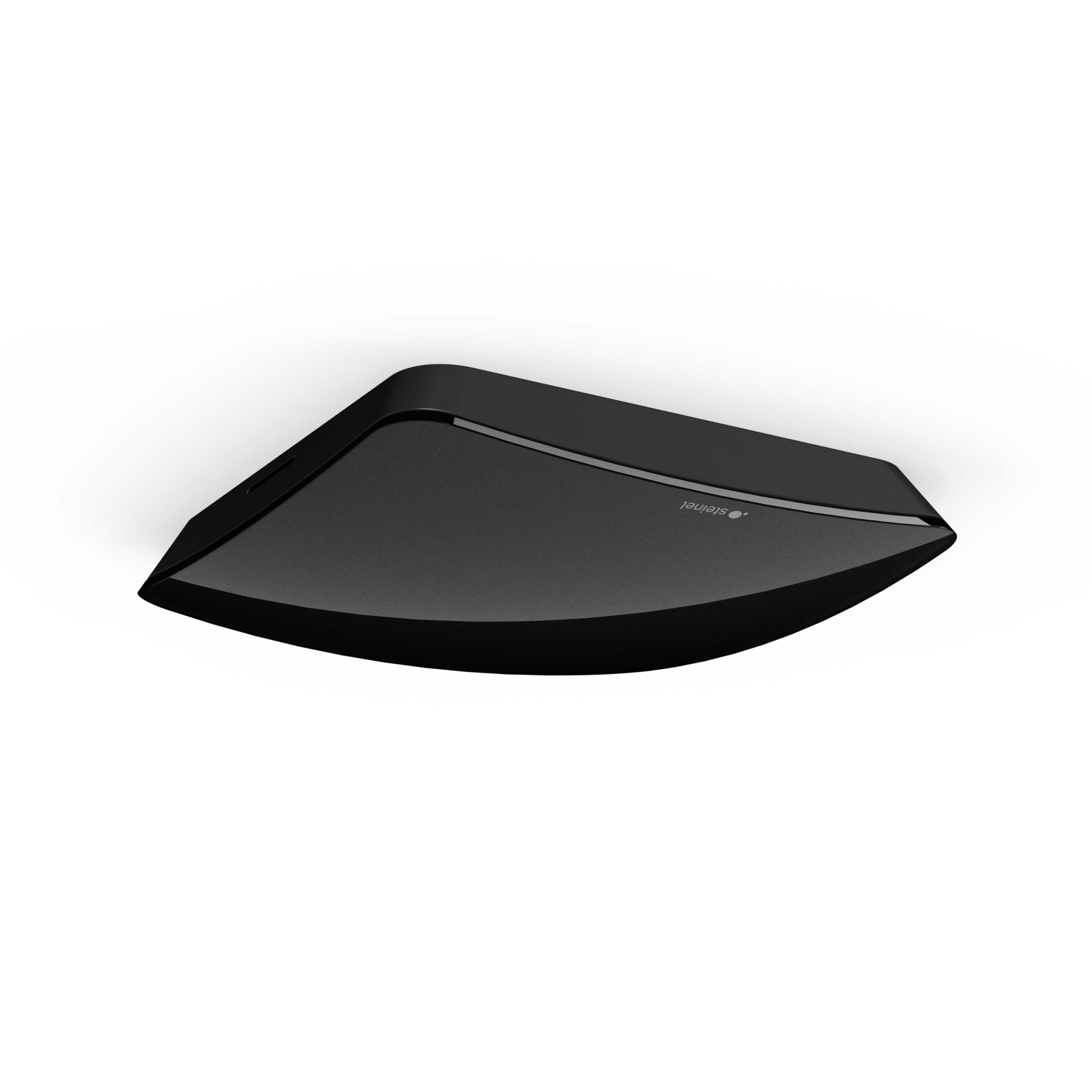

Steinel True Presence KNX - concealed black

Presence detector for offices, hotel rooms and lecture halls. Reliably knows if someone is in.

ELDAS® no. 535 918 134

EAN-No. 4007841 068516

Price: Please log in to see prices

Colour

Black White

Mounting type

Concealed mounting

Variant

230V, 1 channel KNX

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector

Variants

Version KNX

Colour Black

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 32 x 103 x 103 mm

Sensor technology

Max. mounting height 12,00 m

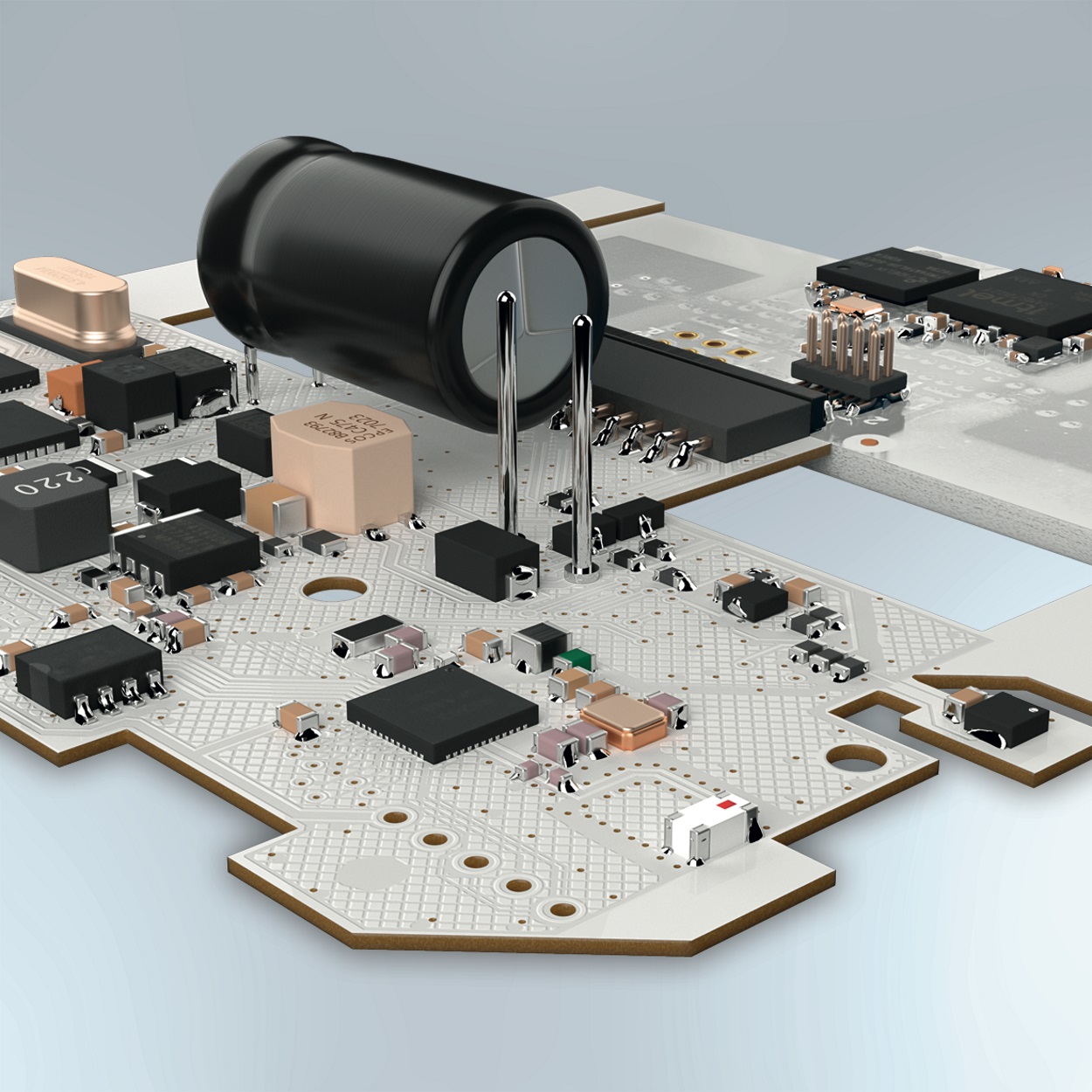

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

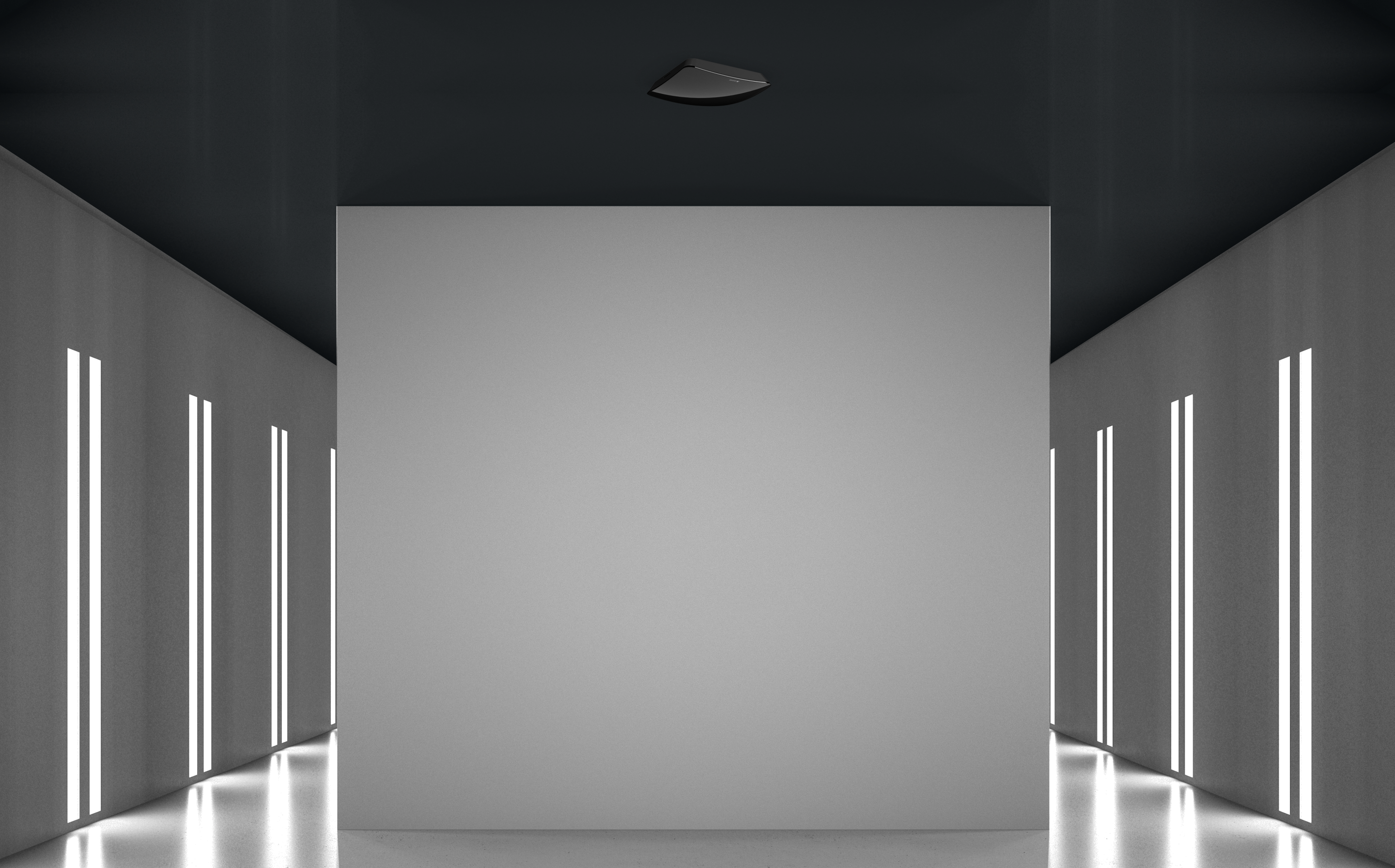

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2,0 – 12,0 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

KNX functions Basic light level function HVAC output Light output 4x Humidity output Presence output Day / night function Dewpoint Temperature output Logic gate

With bus coupler Yes

Control technology Steinel Connect

Wireless networking via BT Open Mesh

Networking via KNX

Lighting technology

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch No

Time setting 30 s – 1092 min

Main light adjustable 0 - 100 %

Settings via ETS software, App, Bluetooth

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature 0...+40 °C

Mounting location ceiling

Application location Indoors

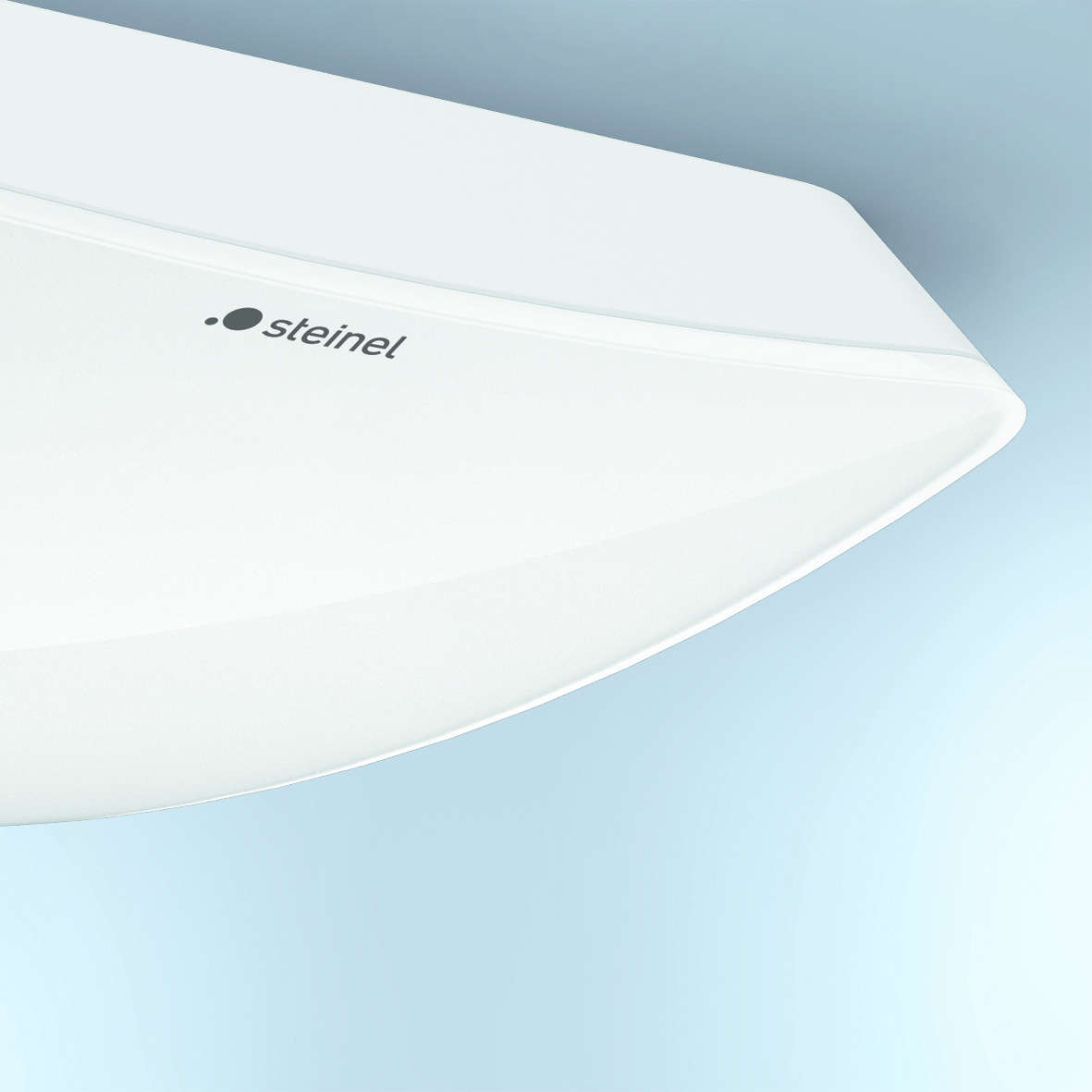

Material Plastic

Application room Indoors, WC / washroom, care room, changing room, classroom, conference room / meeting room, dining hall / staff restaurant, duty room, high-bay warehouse, hotel room, kitchenette, lecture hall, one-person office, open-plan office, production facilities, reception / lobby, recreation room, sports hall, warehouse

Colour Black

RAL colour 9005
