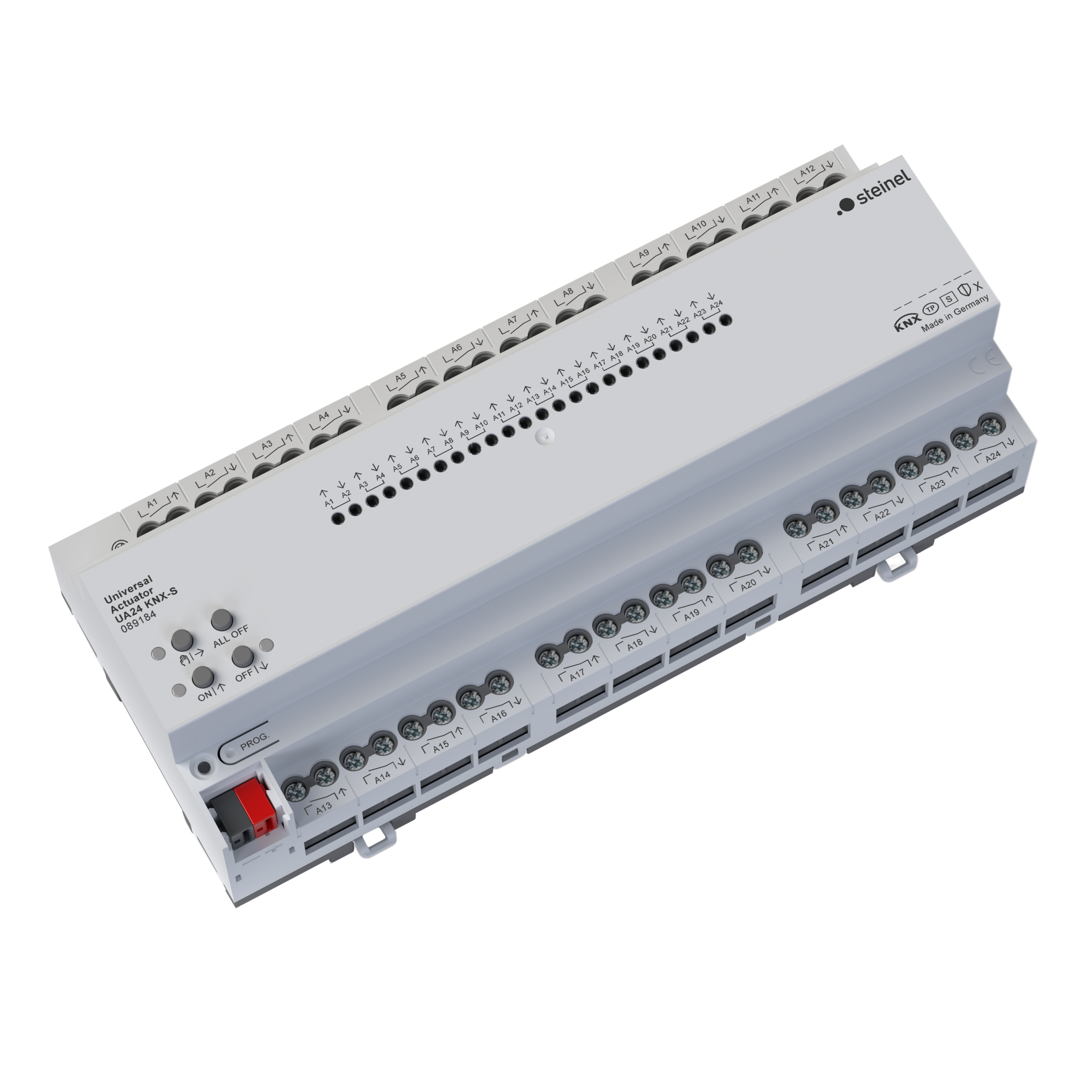

KNX switch actuator 24-gang / blinds actuator 12-gang for top-hat rail mounting - Switching of electrical loads with floating contacts - Blinds output by combining two neighbouring relay outputs - Binary output mix with switch and blinds actuator is possible - Switching current 16A / 140 µF, switch-on current 200 µs: 800 A - Mounting width 216mm (12 rail units) - 5-year product guarantee, KNX Data Secure
- KNX switch actuator 24-gang / blinds actuator 12-gang for top-hat rail mounting
- Switching of electrical loads with floating contacts
- Blinds output by combining two neighbouring relay outputs
- Binary output mix with switch and blinds actuator is possible
- Switching current 16A / 140 µF, switch-on current 200 µs: 800 A
- Mounting width 216mm (12 rail units)
- 5-year product guarantee, KNX Data Secure
Identification
Version
Other
Electrical
Mains connection
21 – 32 V
Capacitive load in µF
140 µF
Supply voltage detail
KNX bus
Connectivity
With bus coupler
Yes
Housing & material
Protection class (IP)
IP20
Protection class
II
Ambient temperature
from -5 up to 45 °C
Housing material
Plastic
Mounting type
DRA
Colour
grey
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
Certificates
EMC
