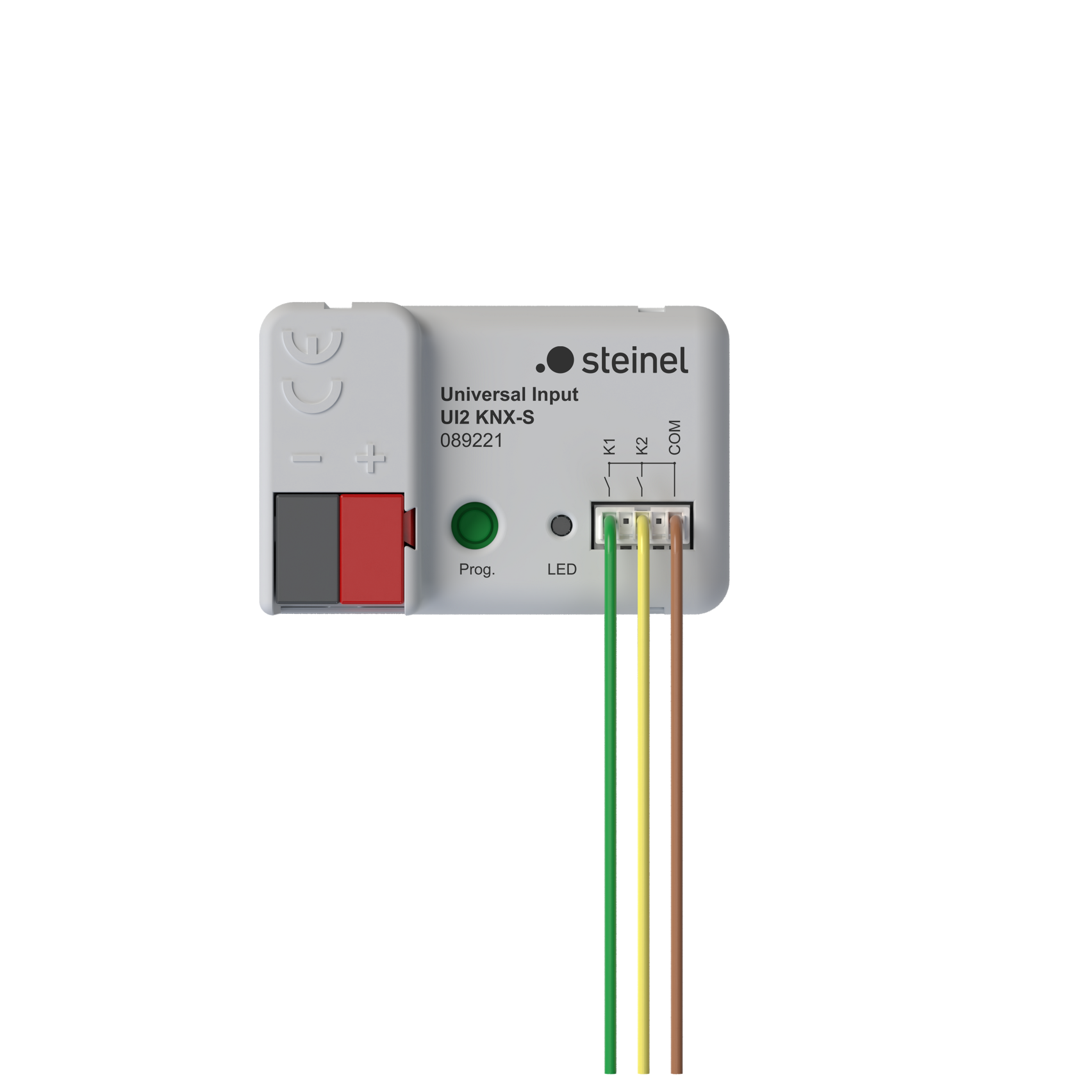

Universal input 2-gang for flush mounting in device box - Connection of floating contacts such as pushbuttons, switches or reed contacts - Operating functions: Switching, dimming, blinds, scenes or room temperature control - Encoder for dimming, colour temperature, RGBW, temperature or brightness values - Connection of door or window contacts for the evaluation of open, closed, tilted - 5-year product guarantee, KNX Data Secure
- Universal input 2-gang for flush mounting in device box
- Connection of floating contacts such as pushbuttons, switches or reed contacts
- Operating functions: Switching, dimming, blinds, scenes or room temperature control
- Encoder for dimming, colour temperature, RGBW, temperature or brightness values
- Connection of door or window contacts for the evaluation of open, closed, tilted
- 5-year product guarantee, KNX Data Secure
Electrical
Mains connection
21 – 32 V
Supply voltage detail
KNX bus
Connectivity
With bus coupler
Yes
Housing & material
Protection class (IP)
IP20
Protection class
III
Ambient temperature
from -5 up to 45 °C
Mounting type
Concealed wiring
Scope of delivery & warranty
Manufacturer warranty
5 years
