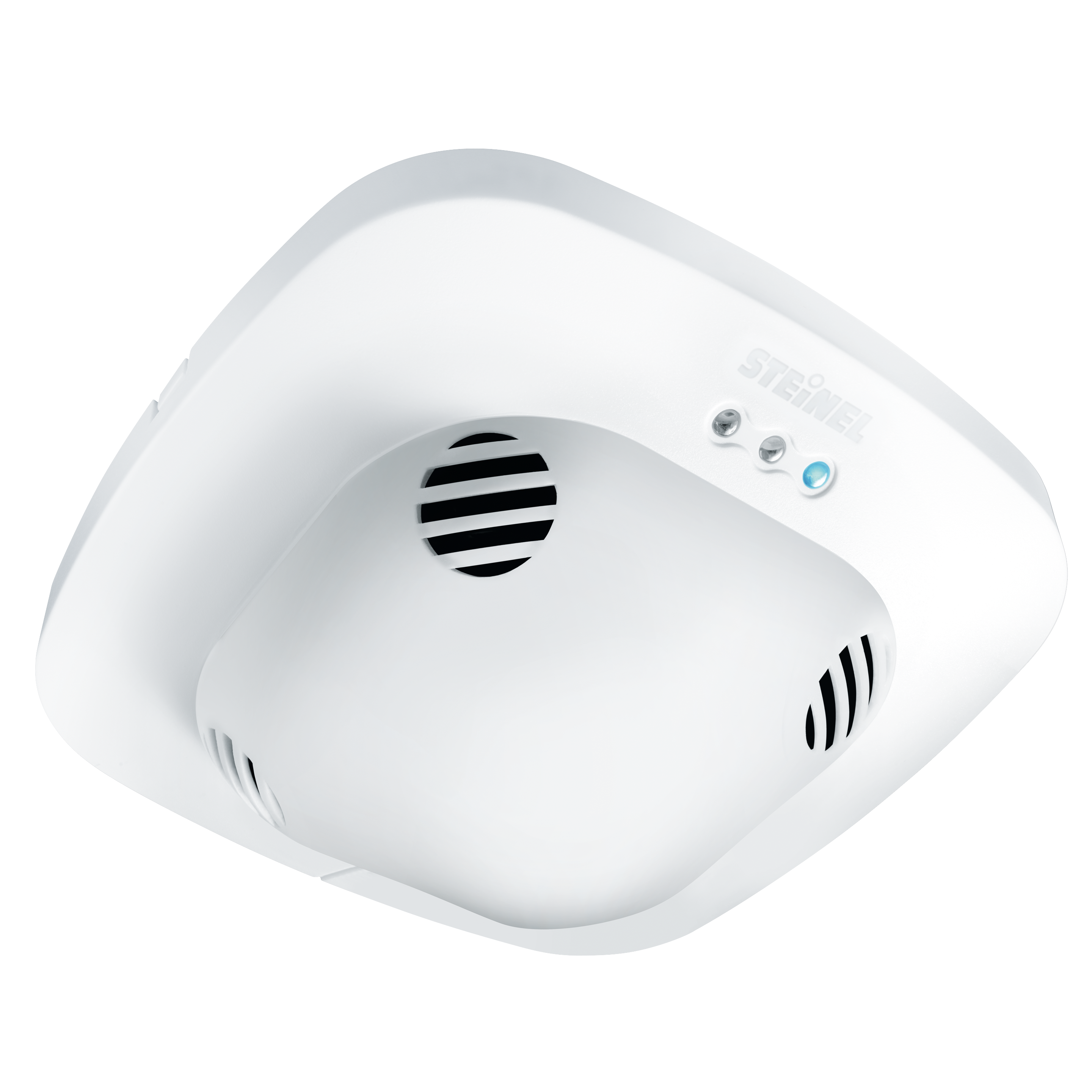

Steinel US 360 COM1 - in-ceiling installation

ELDAS® no. 535 930 010

EAN-No. 4007841 079611

Oddly shaped architecture, partition walls or other obstacles present insurmountable difficulties to some sensors. Yet the US 360's dynamic all-round precision detection capability works with absolute reliability behind objects too. Across a radius of 6 metres all round. Even in extreme temperatures. The space-filling ultrasonic waves make it possible.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 105 x 120 x 120 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Sensor technology

Max. mounting height 3,50 m

Sensor technology Ultrasonic

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 10 m (79 m²)

Tangential range Ø 6 m (28 m²)

Mounting height 2,50 – 3,50 m

Presence range Ø 6 m (28 m²)

US technology 40 kHz

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via Cable

Networking quantity max. 10 sensors

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode Semi-/fully automatic Pushbutton / switch mode Manual ON / ON-OFF

Settings via Remote control DIP switches Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from -25 up to 55 °C

Mounting location ceiling

Application location Indoors

Mounting type In-ceiling installation

Material Plastic

Application room Indoors WC / washroom classroom conference room / meeting room duty room function room / ancillary room one-person office open-plan office recreation room stairwell

Colour white

RAL colour 9010
