Steinel XLED CAM2 SC Anthracite

EAN-No. 4007841 092603

The XLED CAM2 SC is a floodlight with integrated camera and intercom, offering maximum security for your home – smart, reliable and completely cloud-free. Thanks to its powerful 180° sensor with a range of up to 10 m, it reliably detects movement around your property, in driveways or gardens – and immediately switches on the bright, warm white light (3000 K, 2310 lm at 21 W). The camera delivers razor-sharp images and videos in up to 2K resolution and transmits them in real time via Wi-Fi (2.4/5 GHz, Wi-Fi 6, WPA3) directly to your smartphone or tablet. Operation is easy and convenient via the STEINEL CAM app – no user account, no cloud, no subscription. You can communicate live with visitors at any time thanks to the integrated intercom. All recordings are stored locally on the included 16 GB micro-SD card (expandable), while full on-device processing ensures maximum data security in line with European standards. Setup is now even faster and easier via Bluetooth. The modern, durable design made of robust aluminium makes the XLED CAM2 SC the ideal security solution for modern outdoor spaces.

With the new generation of STEINEL camera lights, you always have house and garden in view. AI features, better resolution and easy control ensure smart security and comfort.

Better resolution: Now with up to 2K quality for razor-sharp video
AI on board: Person detection and masking – device-based, no cloud needed
Improved setup: Fast and easy thanks to setup assistant
Wi-Fi 6: Stable connection and high data rates
App control: Watch live, talk & receive alerts via smartphone
Local storage: Videos saved to microSD (16 GB included, expandable) – no subscription
Data protection: European servers, no user account – cybersecurity-compliant
Automatic light: 180° infrared sensor with up to 10 m range
Perfect lighting: Warm white LED (3000 K, 21 W, 2310 lm) with coverage up to 125 sqm
Premium design: Aluminium housing with swivelling LED panel

Dimensions

Dimensions L × W × H 167 x 210 x 275 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 21 W

Sensor technology

Max. mounting height 2,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 45 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range r = 2 m (6 m²)

Tangential range r = 10 m (157 m²)

Mounting height 1,80 – 2 m

Optimal mounting height 2 m

Connectivity

Networking via Wi-Fi

Lighting technology

Measured luminous flux 360° 2310 lm

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index = 80

With illuminant Yes, LED lamp

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start No

Continuous light selectable

Lifetime

LED lifetime max. °C 50000 h

LED lifetime L70B50 25°C > 36000 h

Settings

Twilight switch Yes

Twilight setting 10 – 10000 lx

Time setting 60 s – 15 Min.

Base light function Yes

Base light function time all night

Main light adjustable 30 - 100 %

Functions Iintercom system Camera

Settings via Wi-Fi

Twilight setting teach No

Base light function in percent 0 – 40 %

Base light function percent from 0 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature from -10 up to 40 °C

Housing material Aluminium

Cover material Glass transparent

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway outdoors terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class E

EPREL category Light source

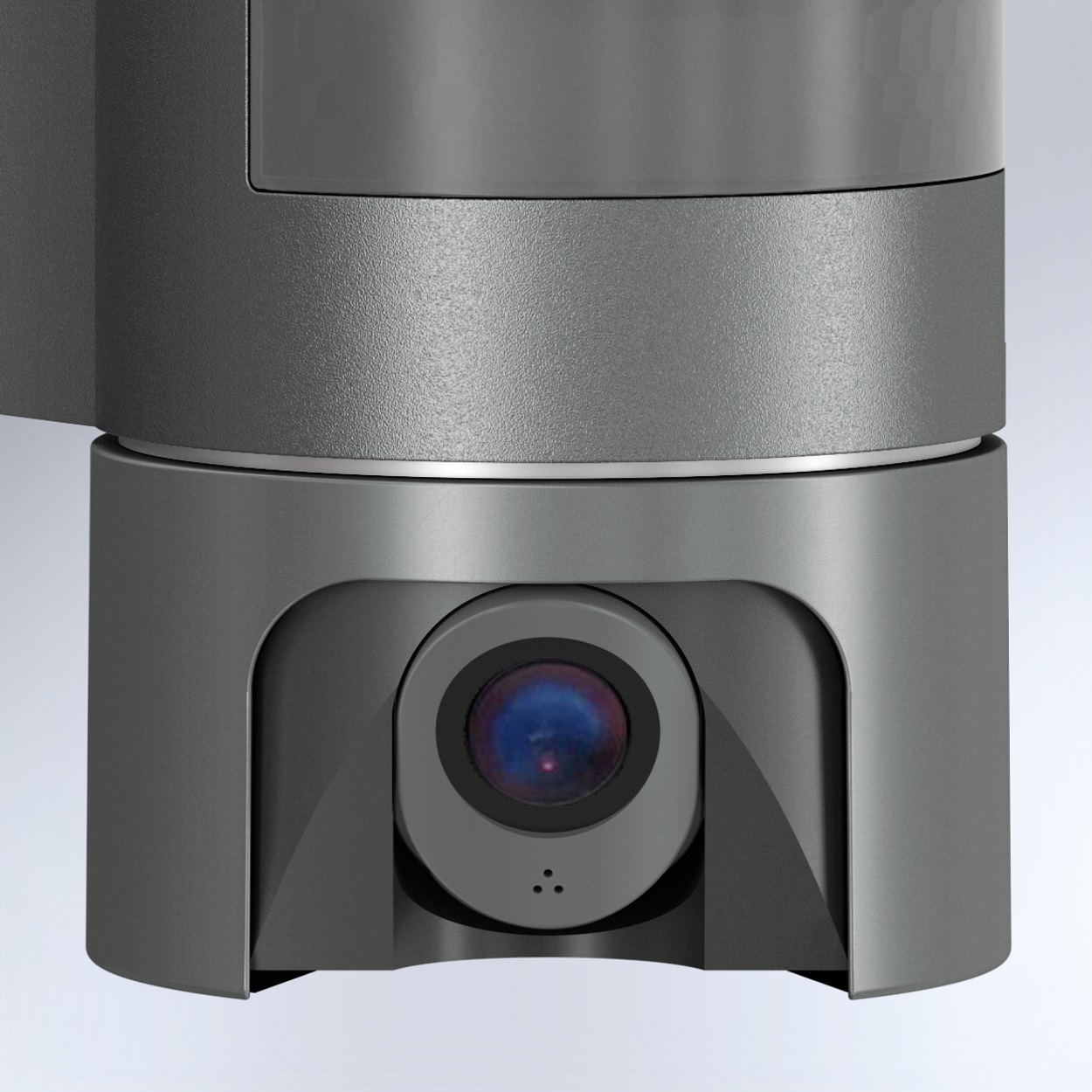

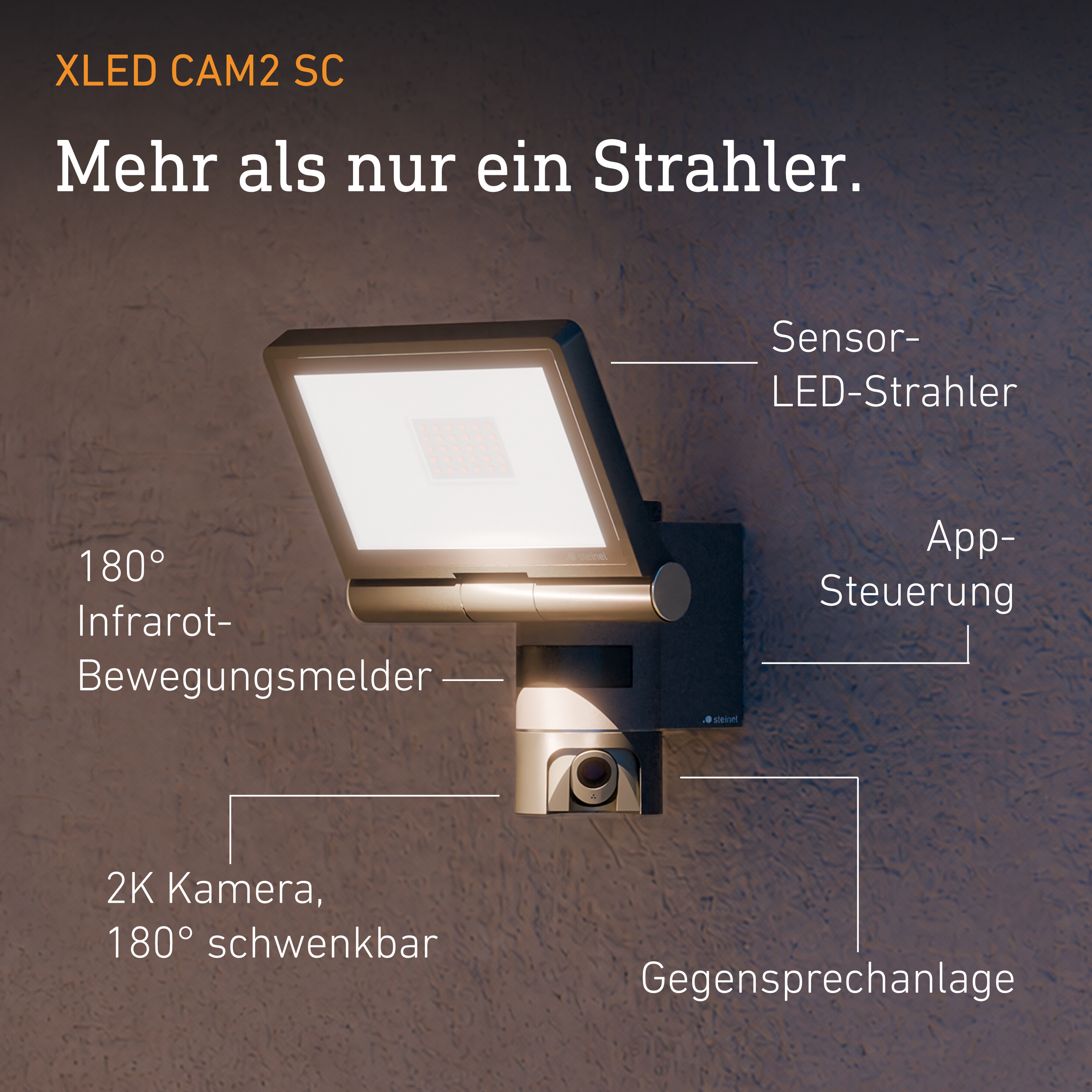

2K wide-angle colour camera, 180° swiveling

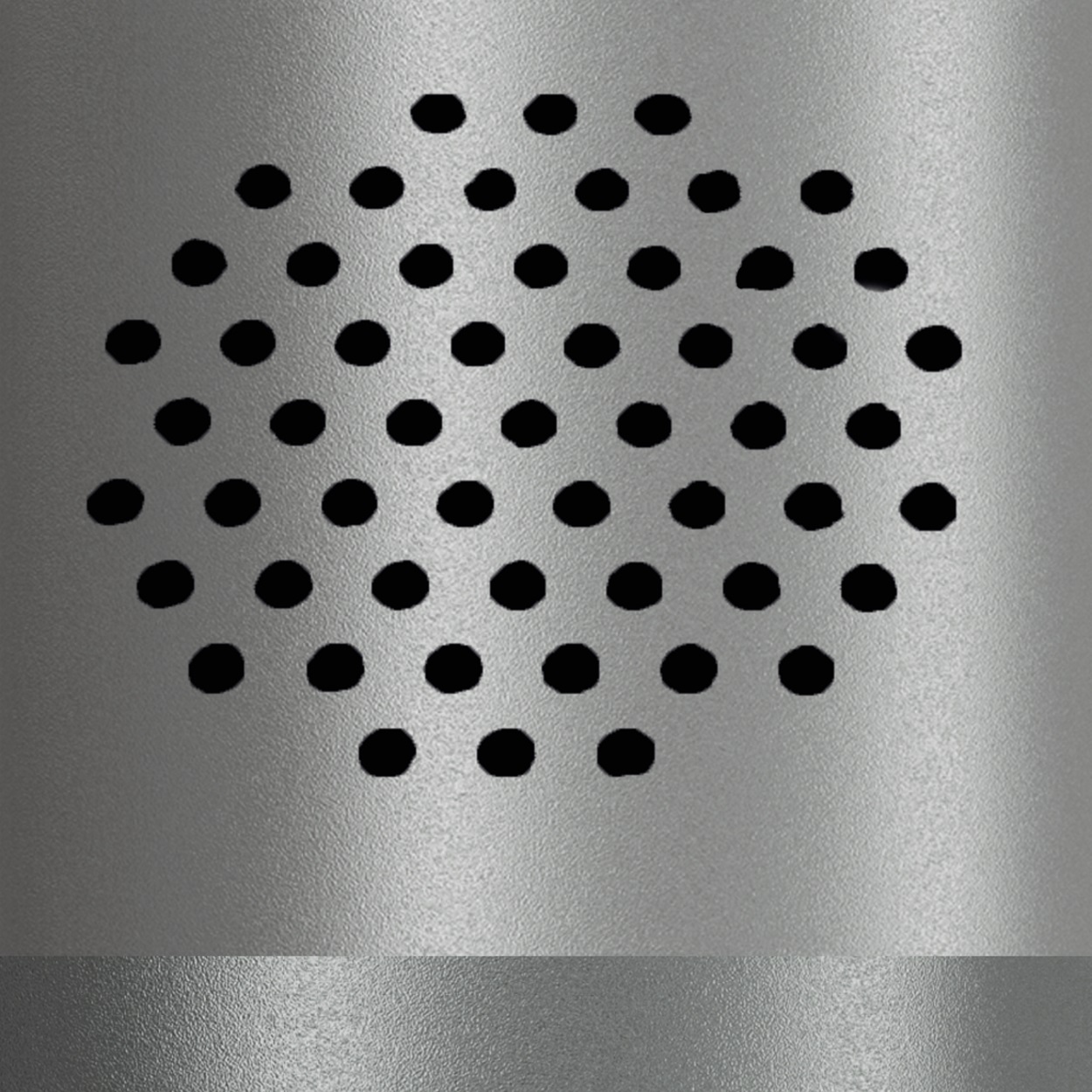

Integrated intercom unit

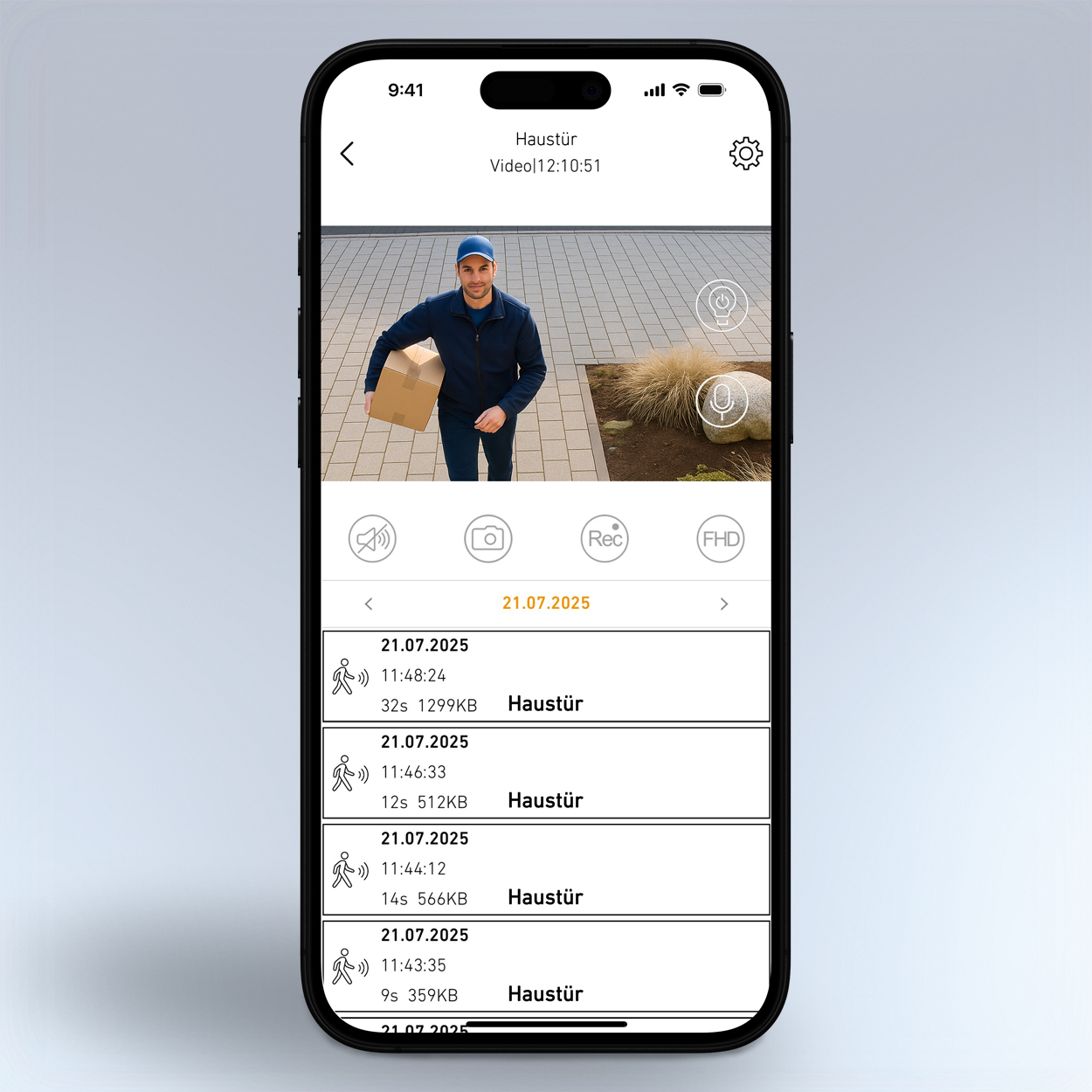

Communication via smartphone

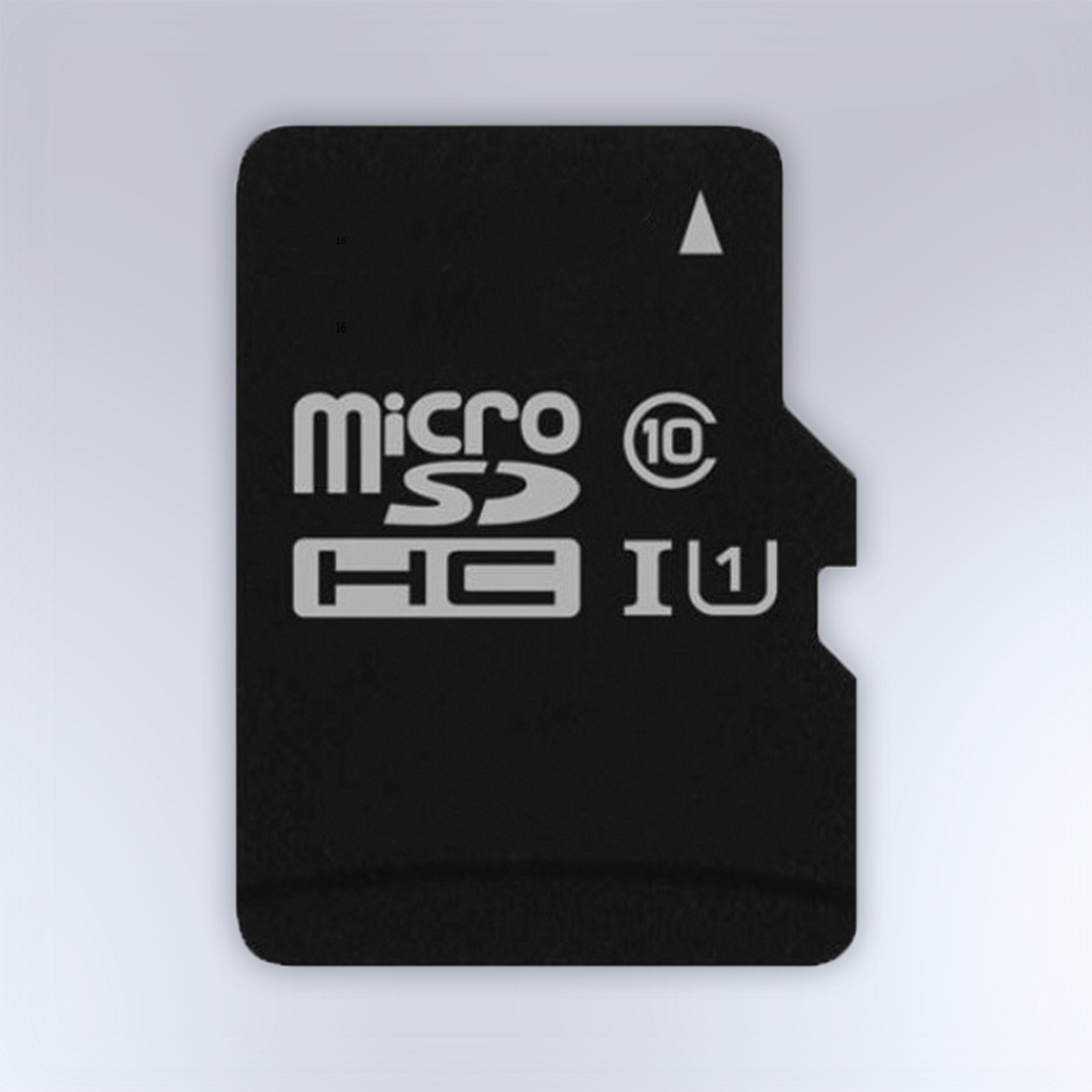

Micro SD card (16 GB included)

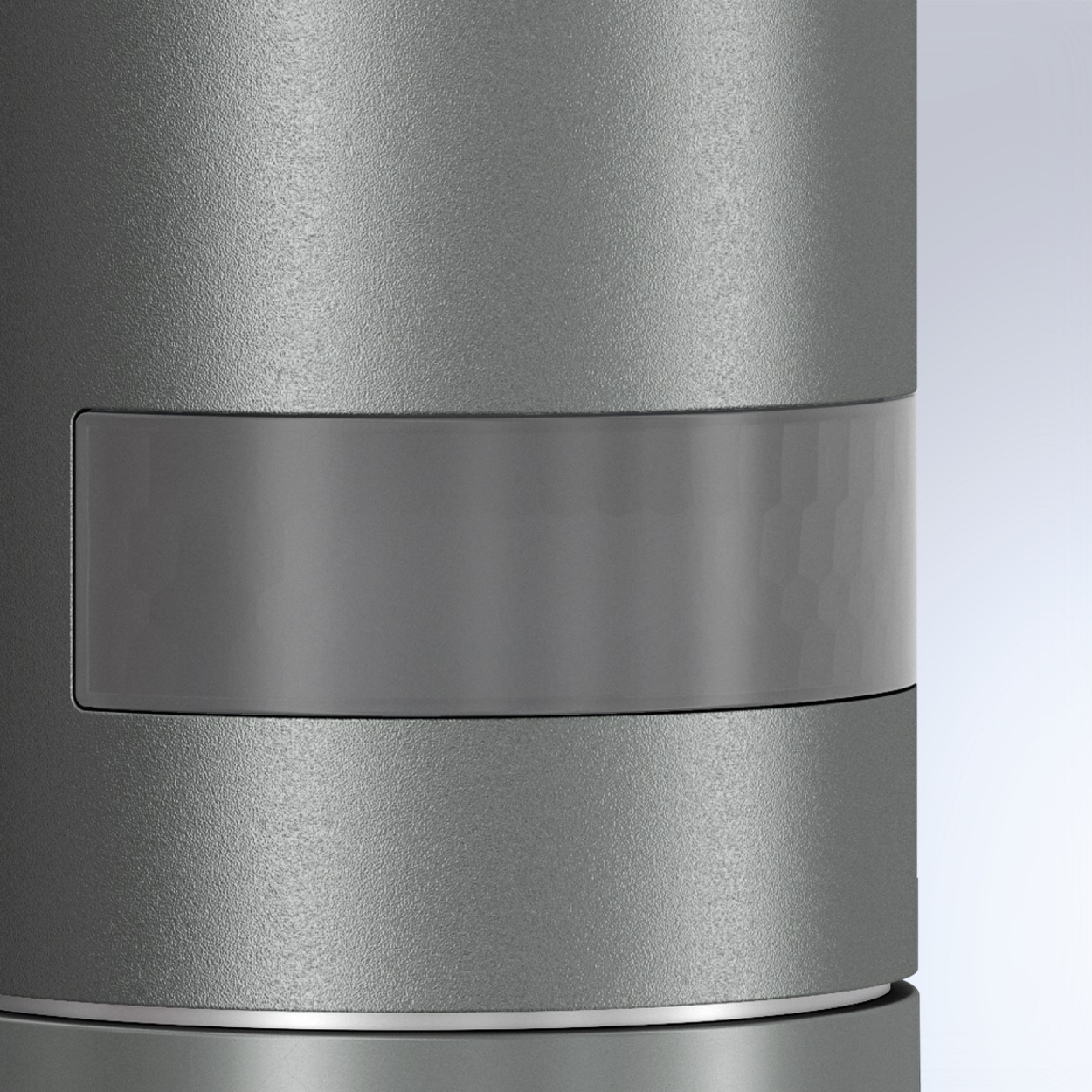

High-precision sensor

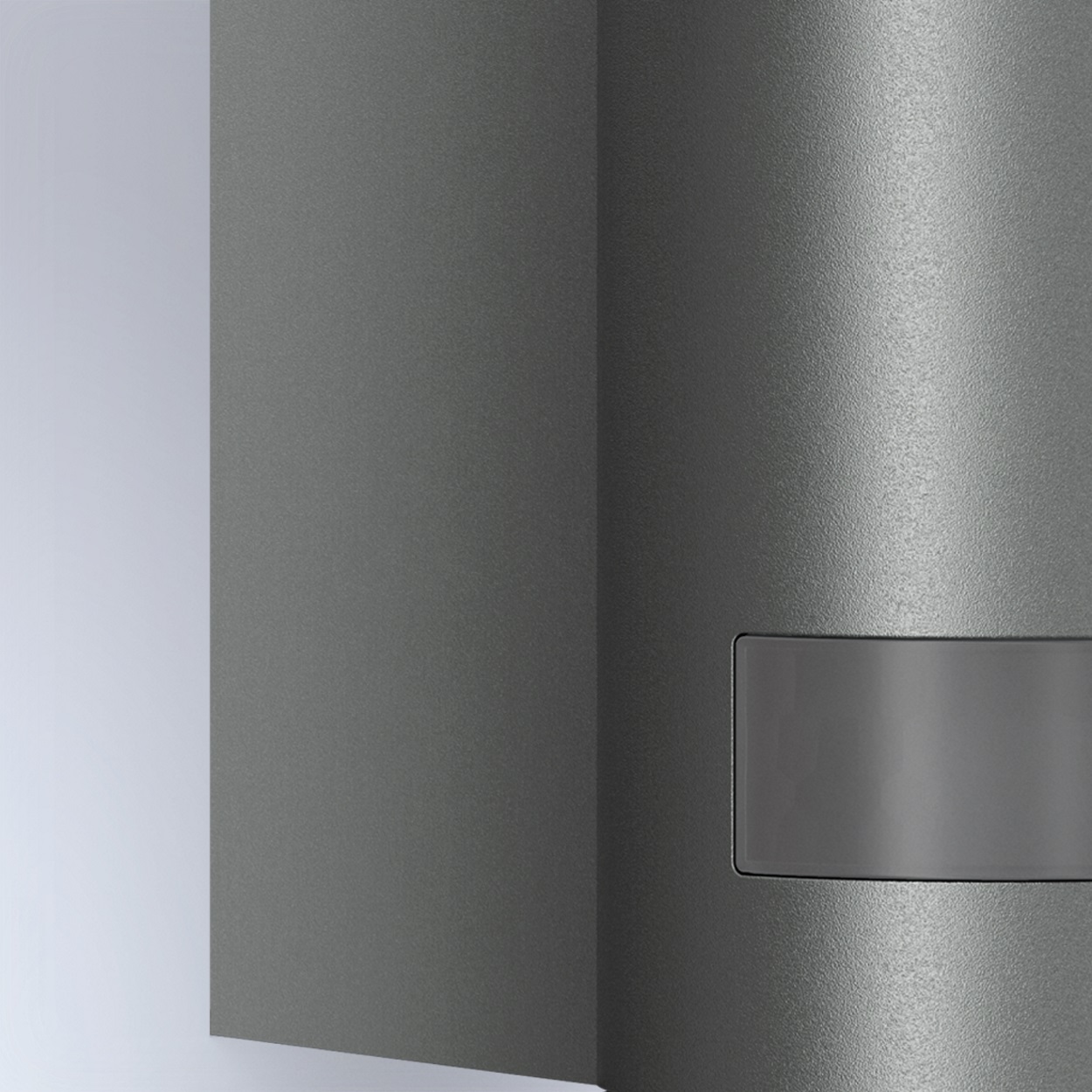

High-quality aluminium

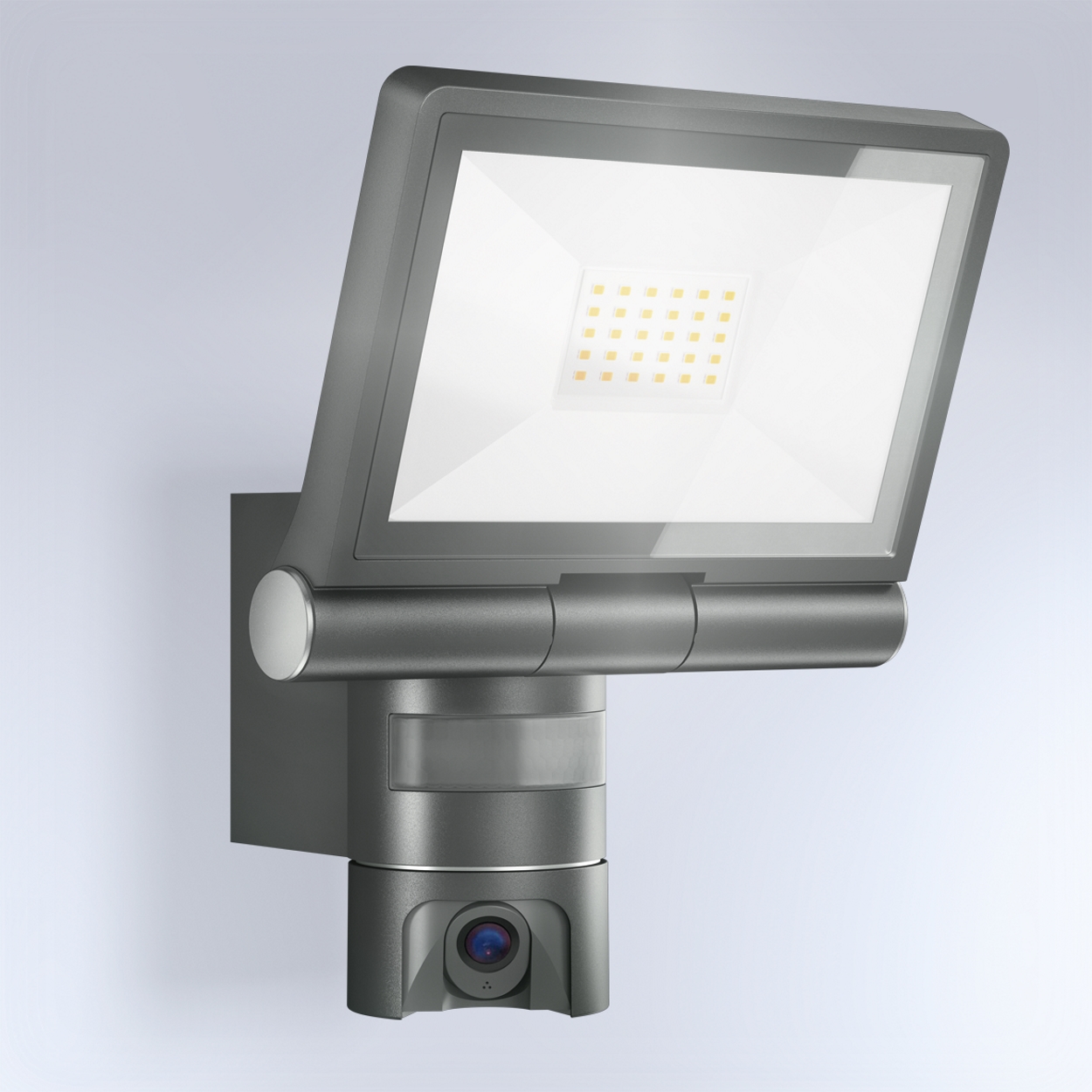

Optional basic lighting level 0 - 40%

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Drilling template
