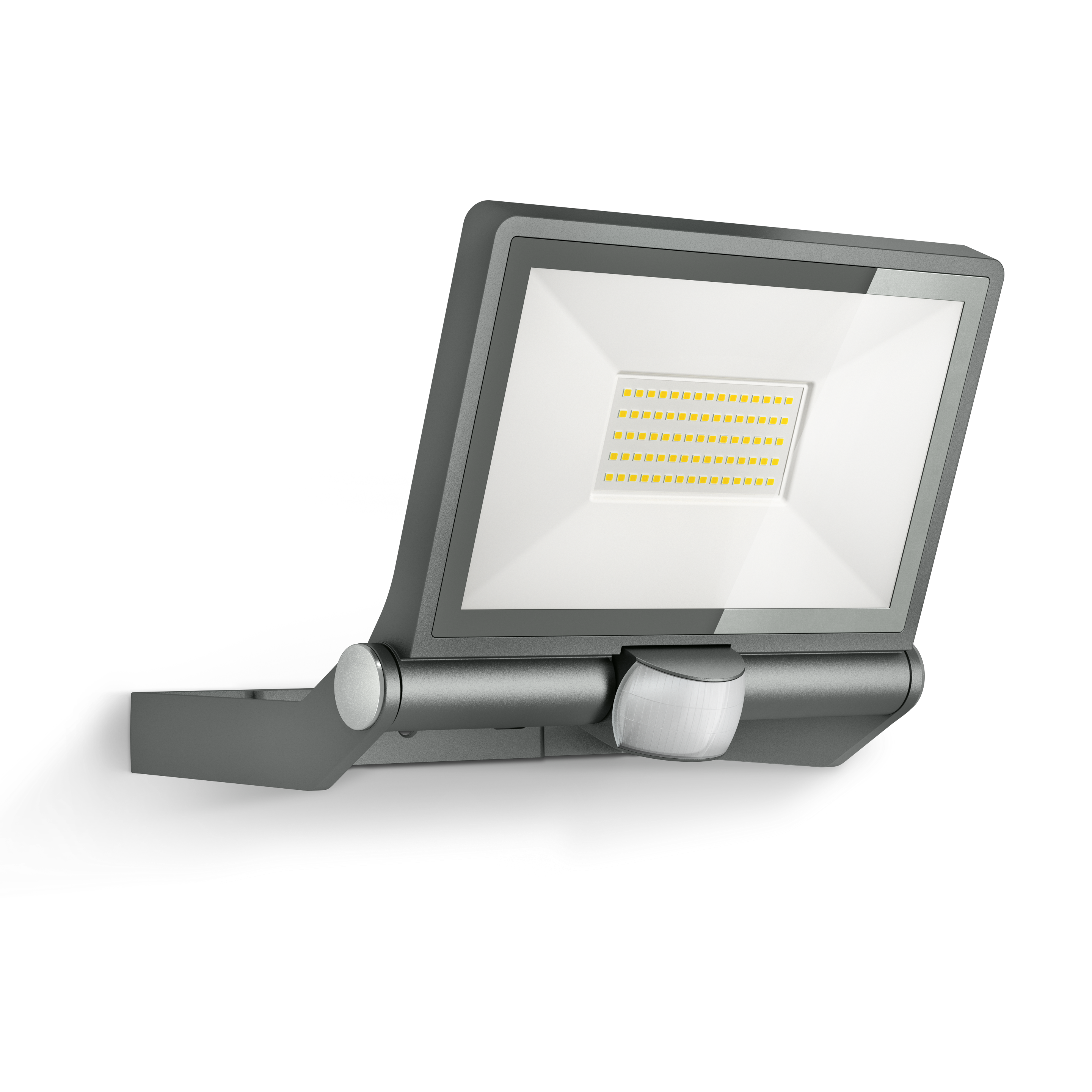

Steinel XLED ONE XL S Anthracite

ELDAS® no. 941 200 439

EAN-No. 4007841 065263

Colour

Anthracite white

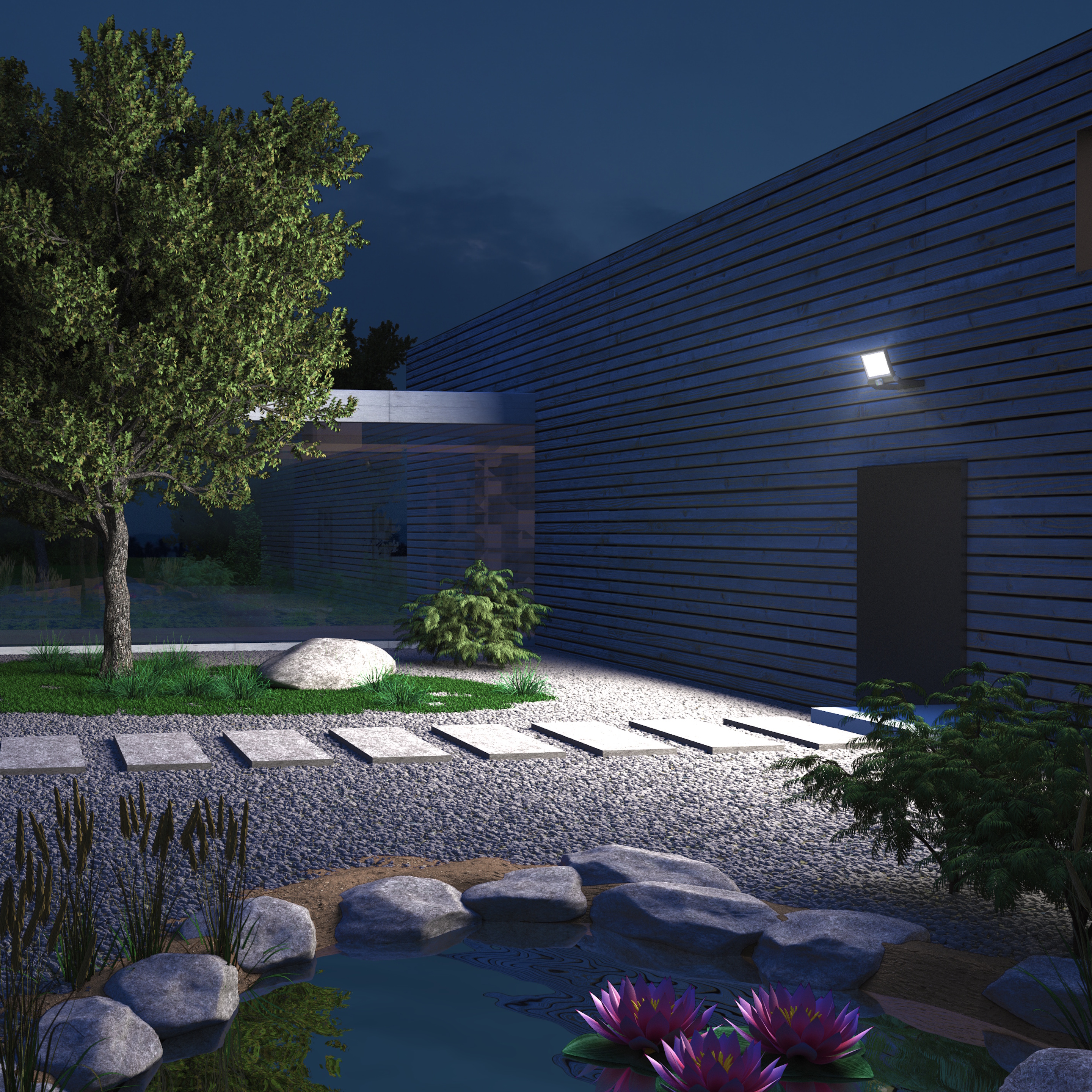

A warm white 3000 K and incredibly bright 4200 lm – XLED ONE XL S wall and ceiling spots (42,6 W) turn night into day and captivate with floodlight-style illumination. The LEDs in the spots are rated for a service life of around 30 years, providing decades of outstanding performance wherever they are used outside the home and in the garden. With the XLED ONE XL S, an infrared sensor with a coverage angle of 180° and maximum reach of 12 m automatically switches the light on as soon as movement is detected on the premises. Speaking of movement: the panel and sensor can be tilted through 180°. The light ON time can be adjusted. And the twilight setting can also be defined to suit needs. The spot comes with an IP44 protection rating.

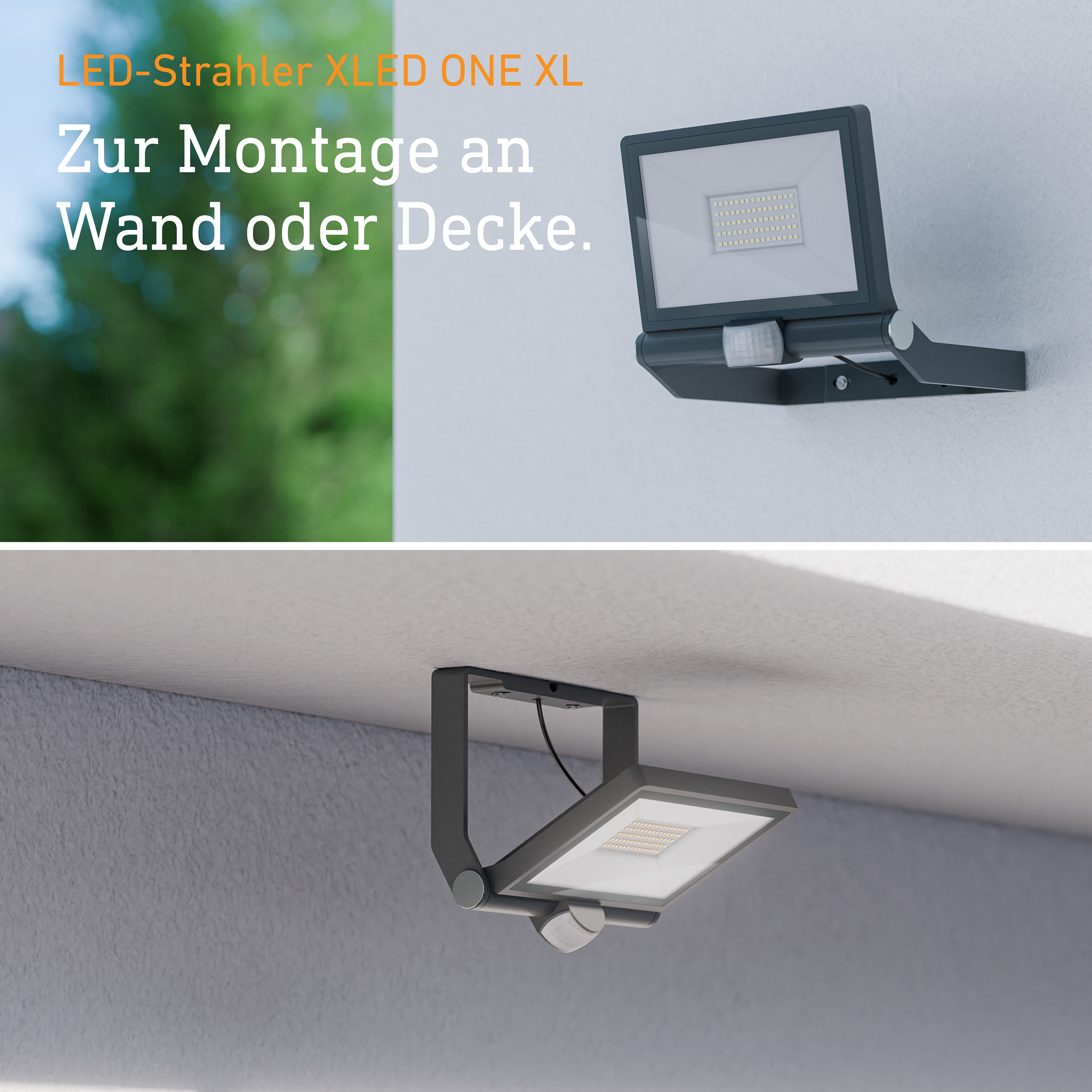

Spotlight with motion detector for wall and ceiling mounting with floodlight-like illumination of large areas
Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)
Automatic light thanks to 180 ° Infrared sensor with up to 12 m detection of movement

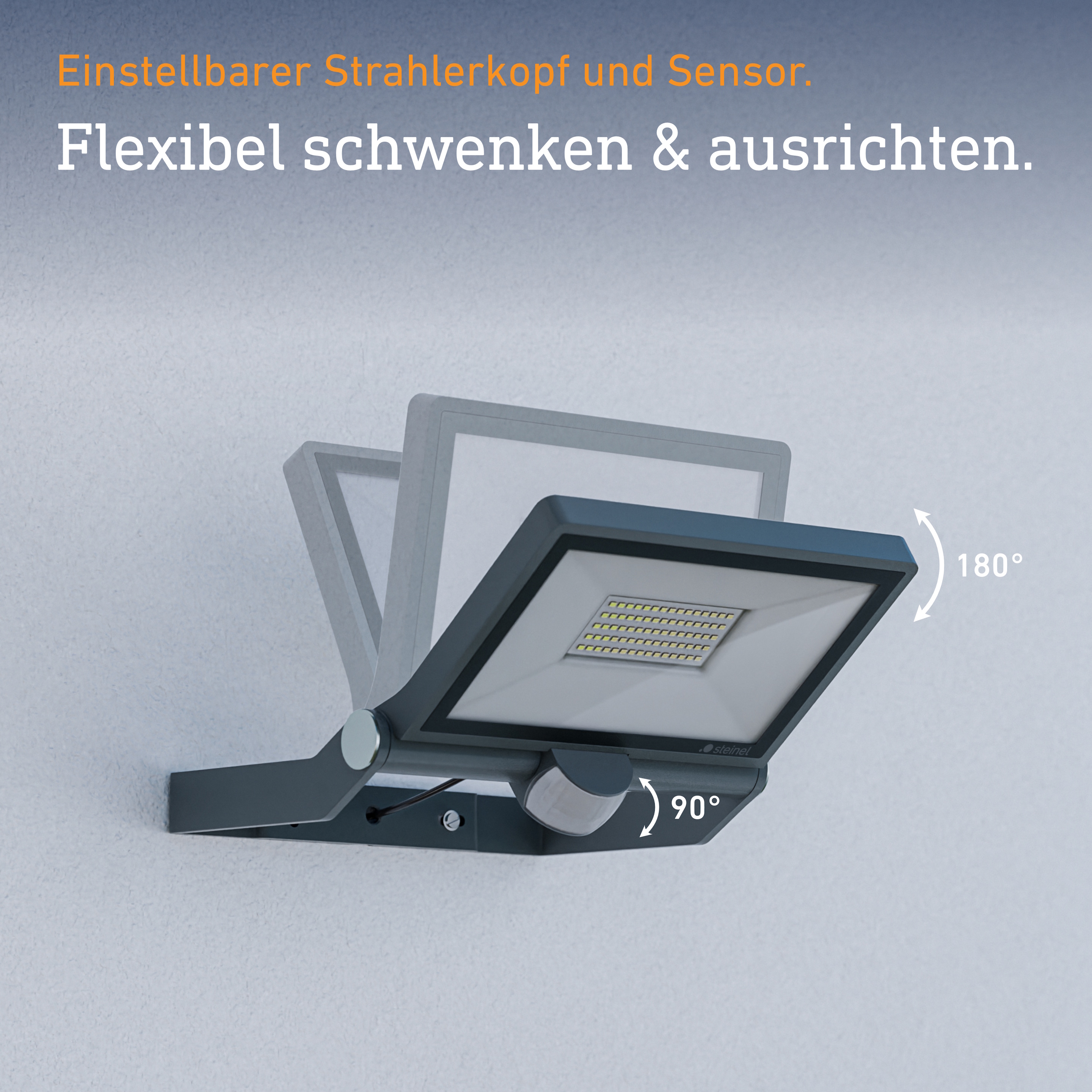

LED panel as well as sensor can be swivelled vertically by 180°, incl. cover sticker for exact adjustment of the detection area
Warm white light (3000 K) and long-life 42,6 W LEDs with 4200 lm, with an illumination of max. 300 sqm, max. 3m mounting height
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 222 x 259 x 215 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 42,6 W

Sensor technology

Max. mounting height 3,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Sneak-under protection No

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (14 m²)

Tangential range r = 12 m (226 m²)

Mounting height 1,8 – 3 m

Optimal mounting height 2 m

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 4200 lm

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Lifetime

LED lifetime max. °C 50000 h

LED lifetime L70B50 25°C > 36000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Glass transparent

Mounting location ceiling wall

Application location Outdoors

Mounting type Surface wiring

Application room courtyard & driveway outdoors

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

EPREL energy efficiency class E

EPREL category Surrounded product with integrated light source

Including STEINEL LED system

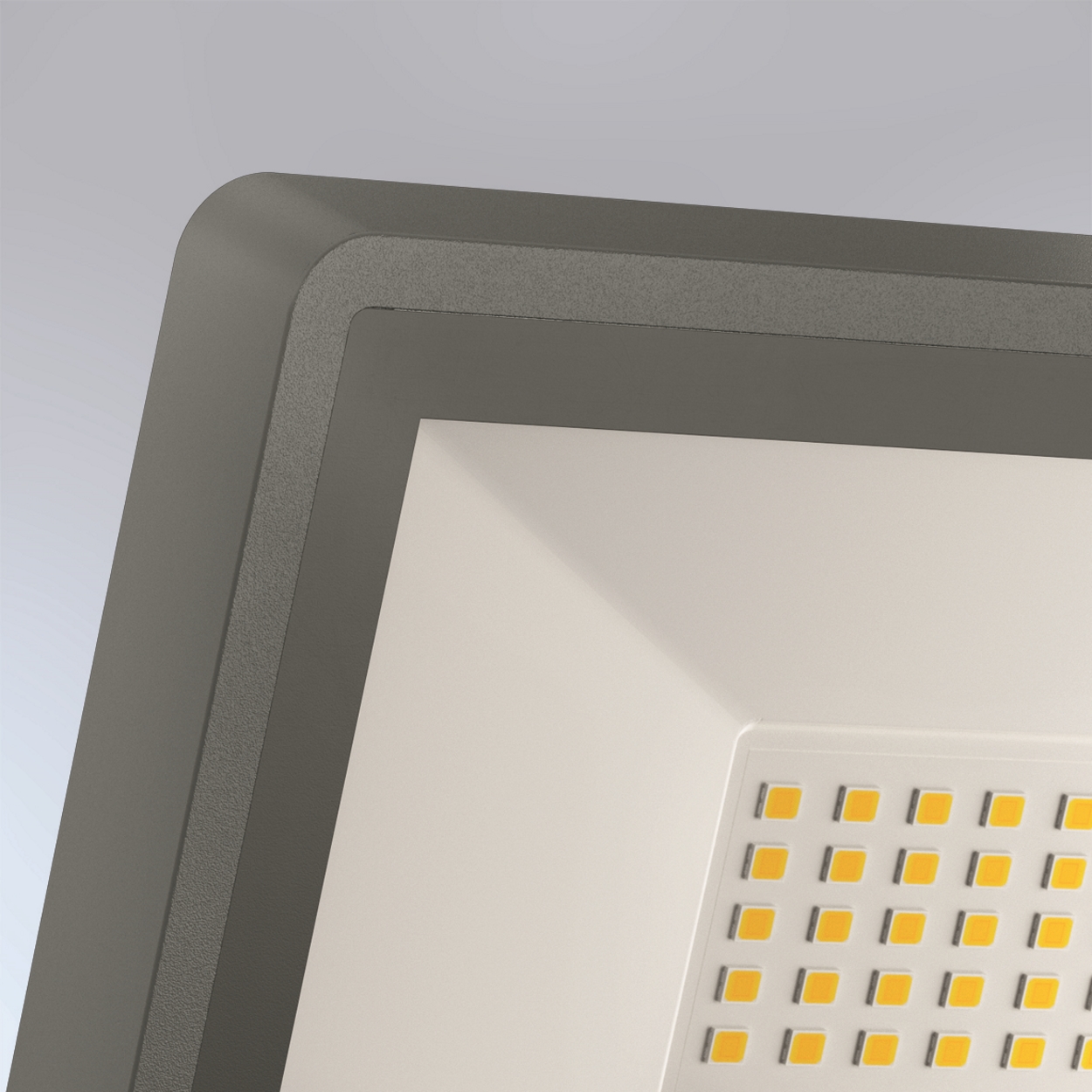

UV resistant material

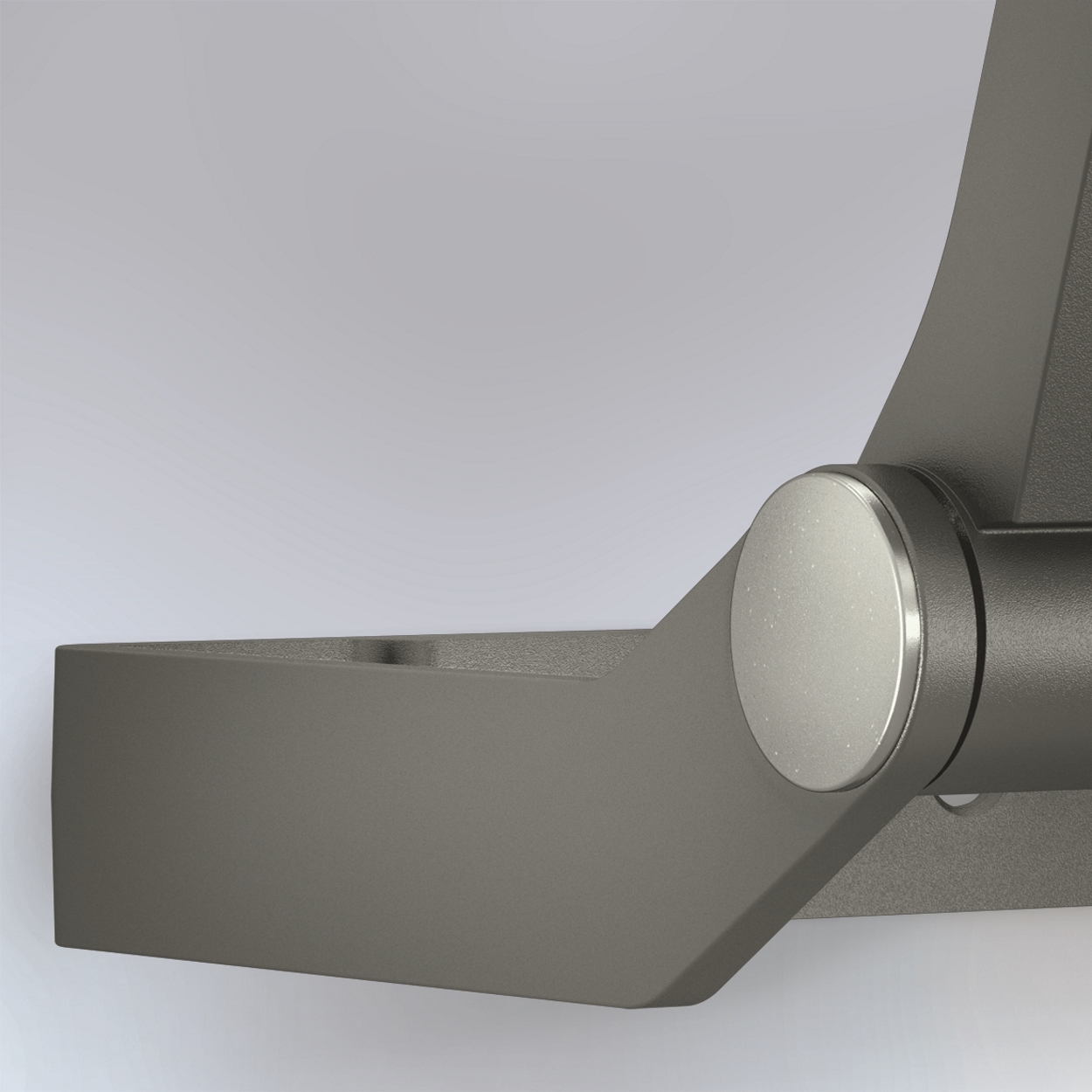

High-quality aluminium

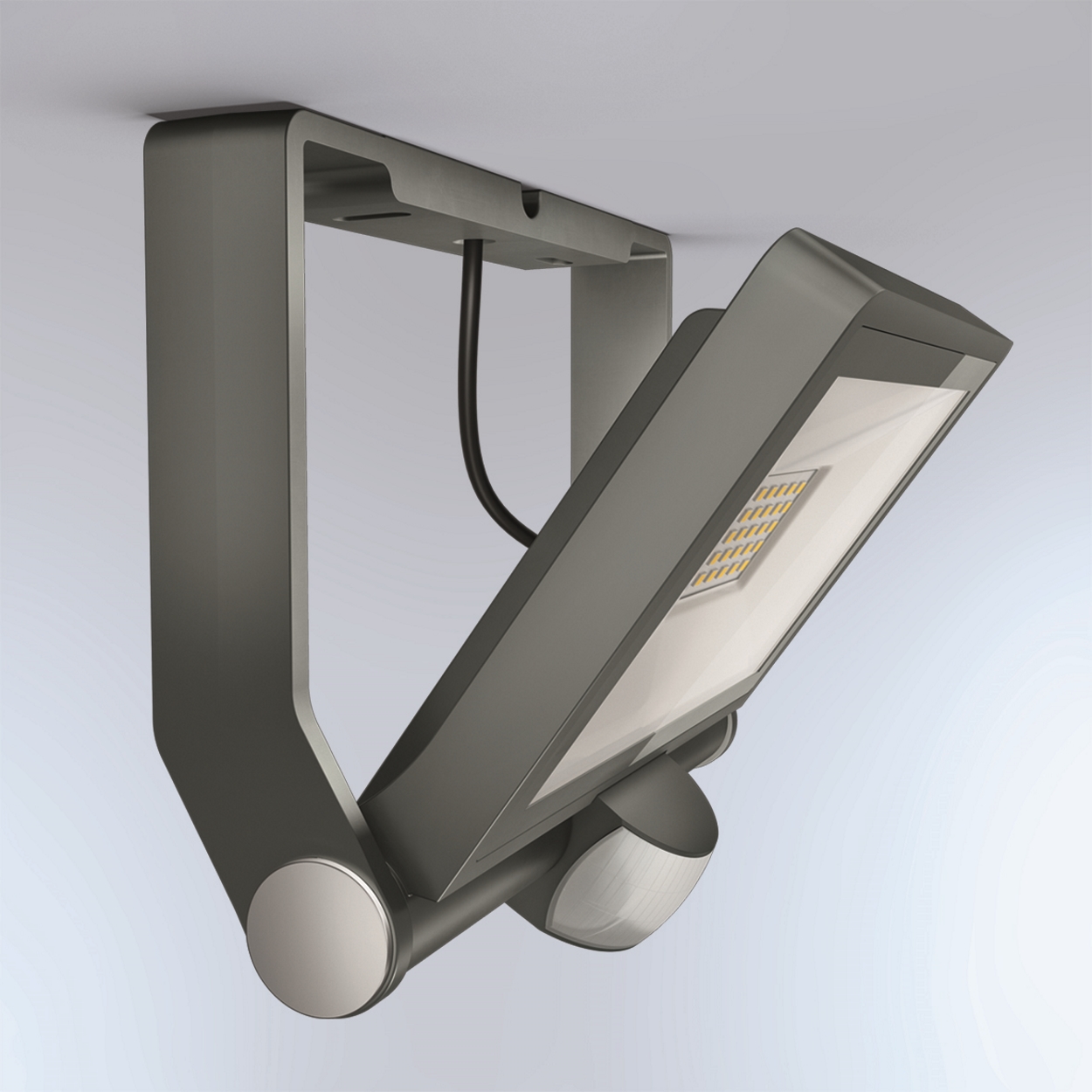

Suitable for mounting on ceilings

Technical drawing

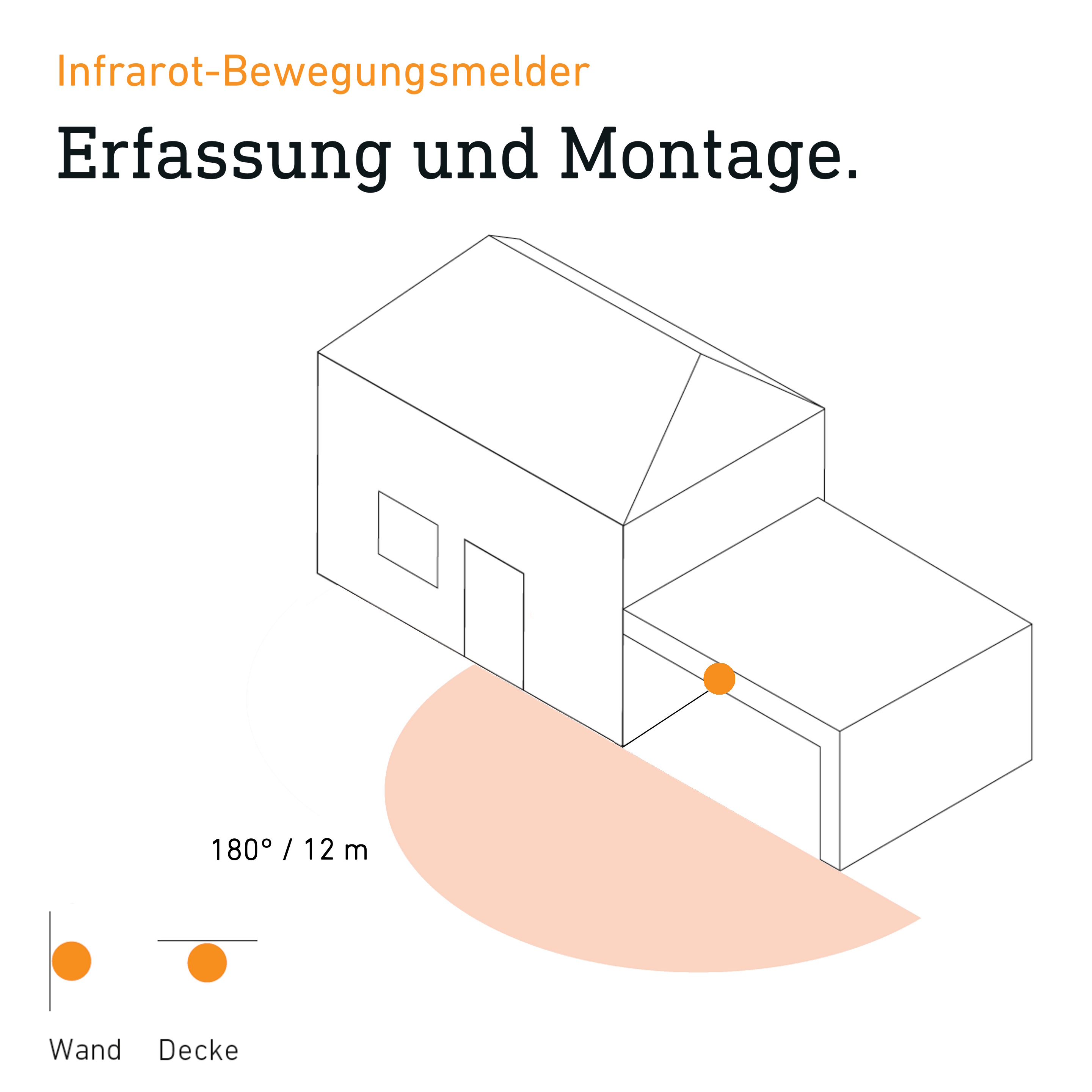

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template
