Steinel XLED PRO 240 black

Steinel XLED PRO 240 black

ELDAS® no. 941 501 359 · EAN-No. 4007841 068097

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel

Steinel XLED PRO 240 black

LED floodlight for walls and building corners. With or without motion sensor.

ELDAS® no. 941 501 359

EAN-No. 4007841 068097

Price: Please log in to see prices

Colour

Anthracite Black White

Version

Master Slave

The version of the XLED PRO 240 without sensor is simply interconnected with the master version via cable, providing synchronous illumination for even larger areas. The fully swivelling, extra-slim LED flat panel delivers 2124 lm of light, and is ideal for illuminating large areas around the building with on-demand lighting. In conjunction with 3000 K colour temperature, the opal diffuser produces an inviting lighting mood. The LED floodlight has a power consumption of just 19,3 W.

Variants

Version Slave
Colour Black

Dimensions

Dimensions L × W × H 161 x 180 x 199 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 19,3 W

Sensor technology

With motion detector No

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 2124 lm
Colour temperature 3000 K
LED colour deviation SDCM3
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system HCMC (High Conductive Magnesium Composite)
Soft light start No

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

Base light function No
Main light adjustable No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature -20...+40 °C
Housing material HCMC
Cover material Opal plastic
Mounting location corner, wall
Application location Outdoors
Mounting type Surface mounting
Application room all round the building, courtyard & driveway, outdoors, terrace / balcony
Colour Black

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class E
EPREL category Light source

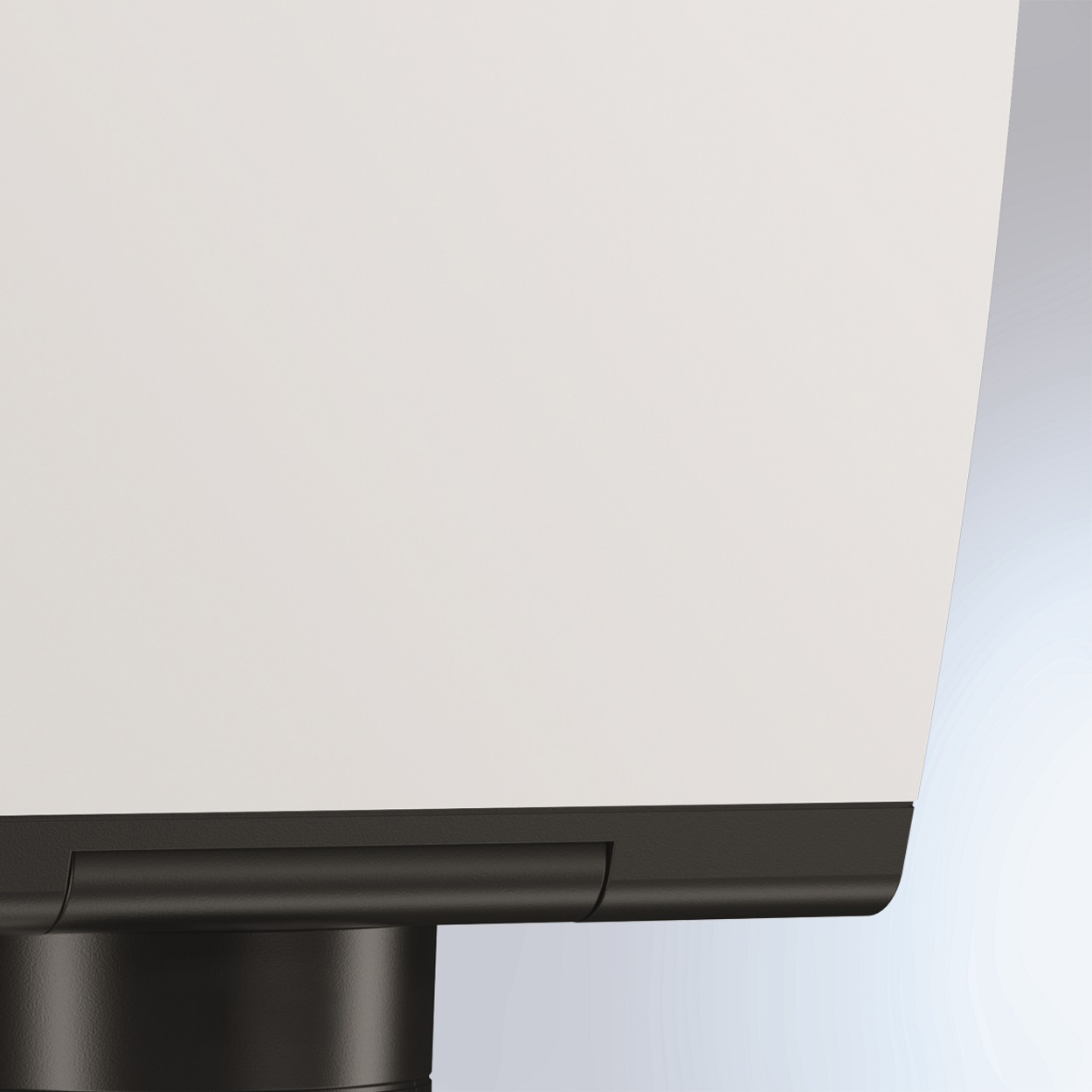

Including STEINEL LED system

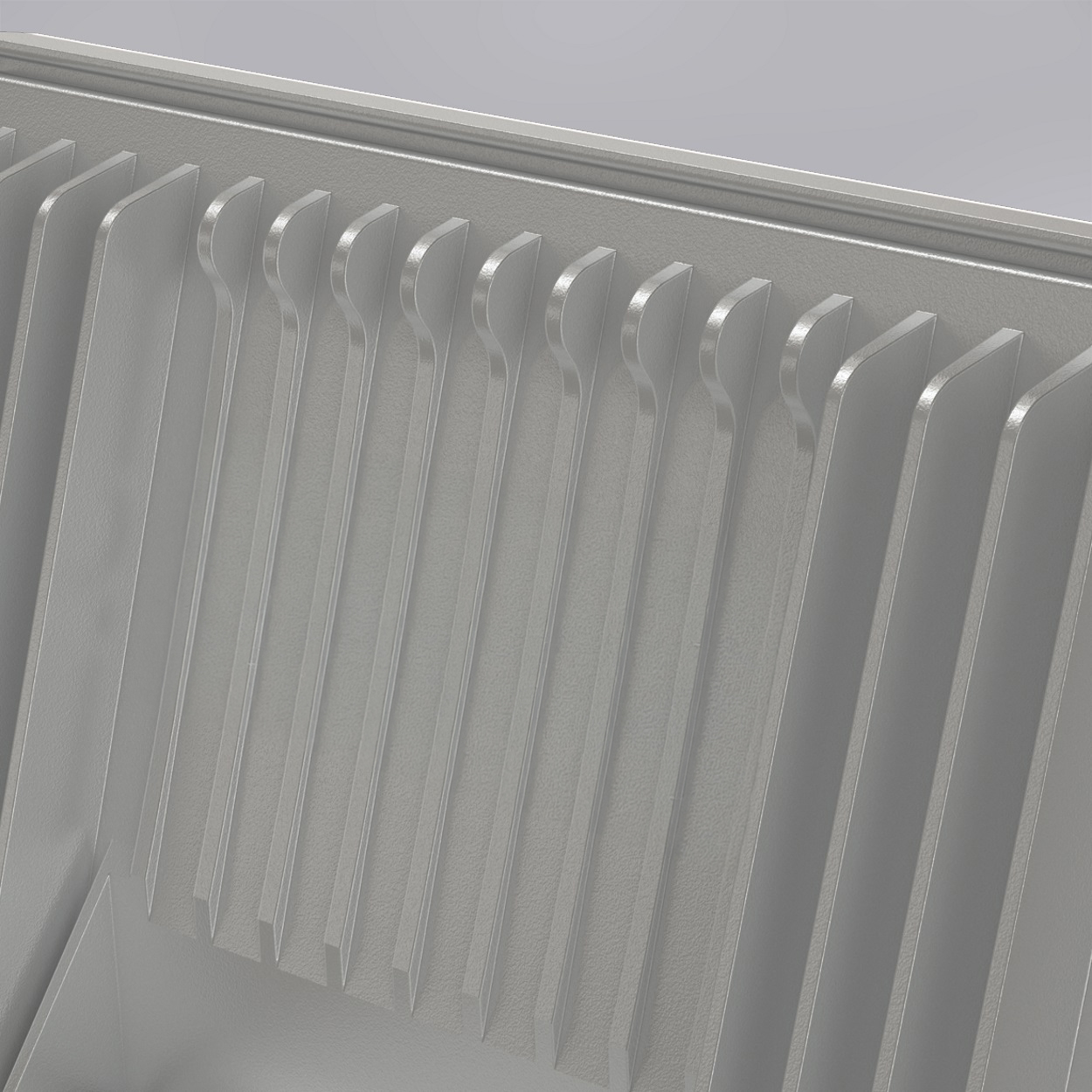

HCMC cooling system

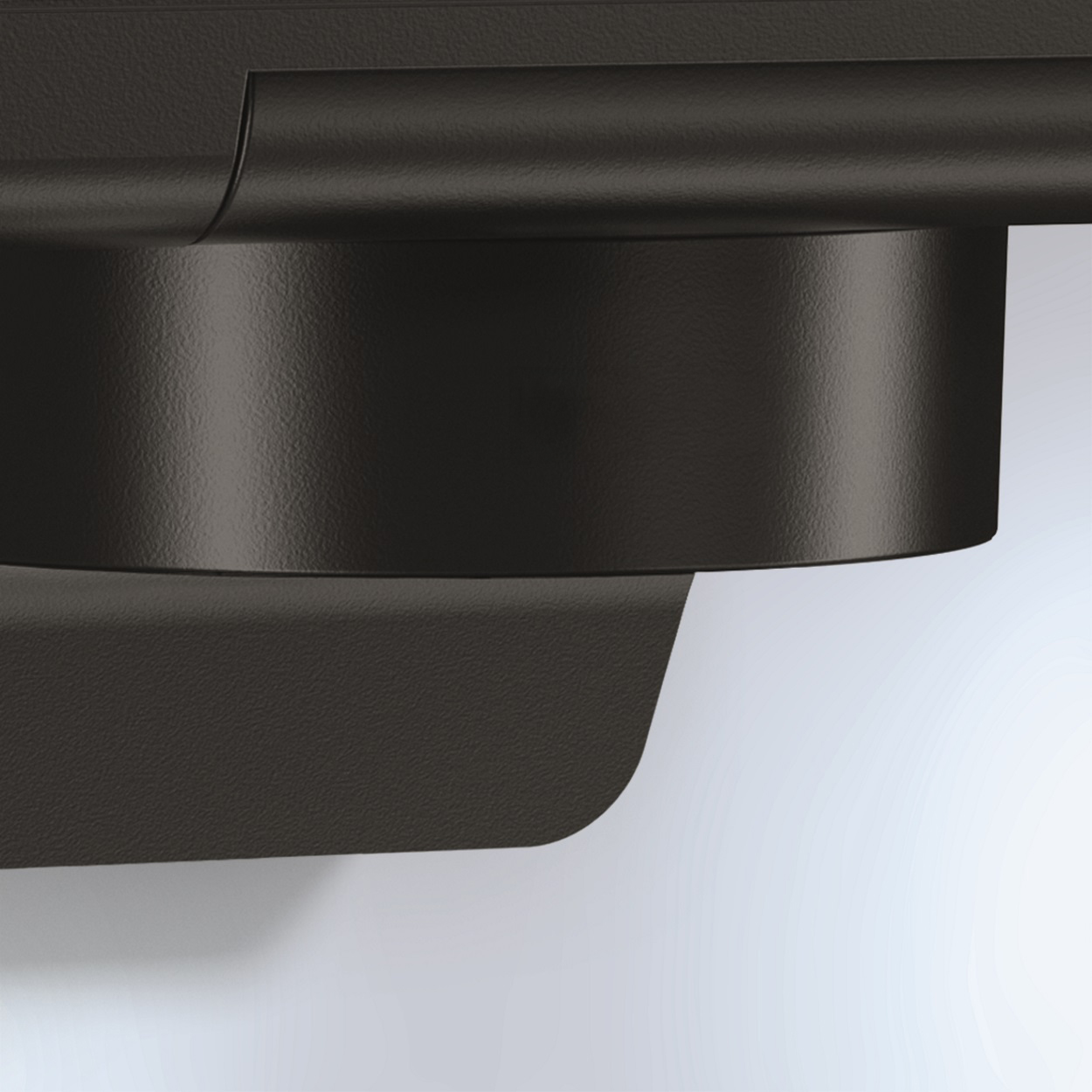

UV-resistant plastic

Colour rendering index Ra ≥80

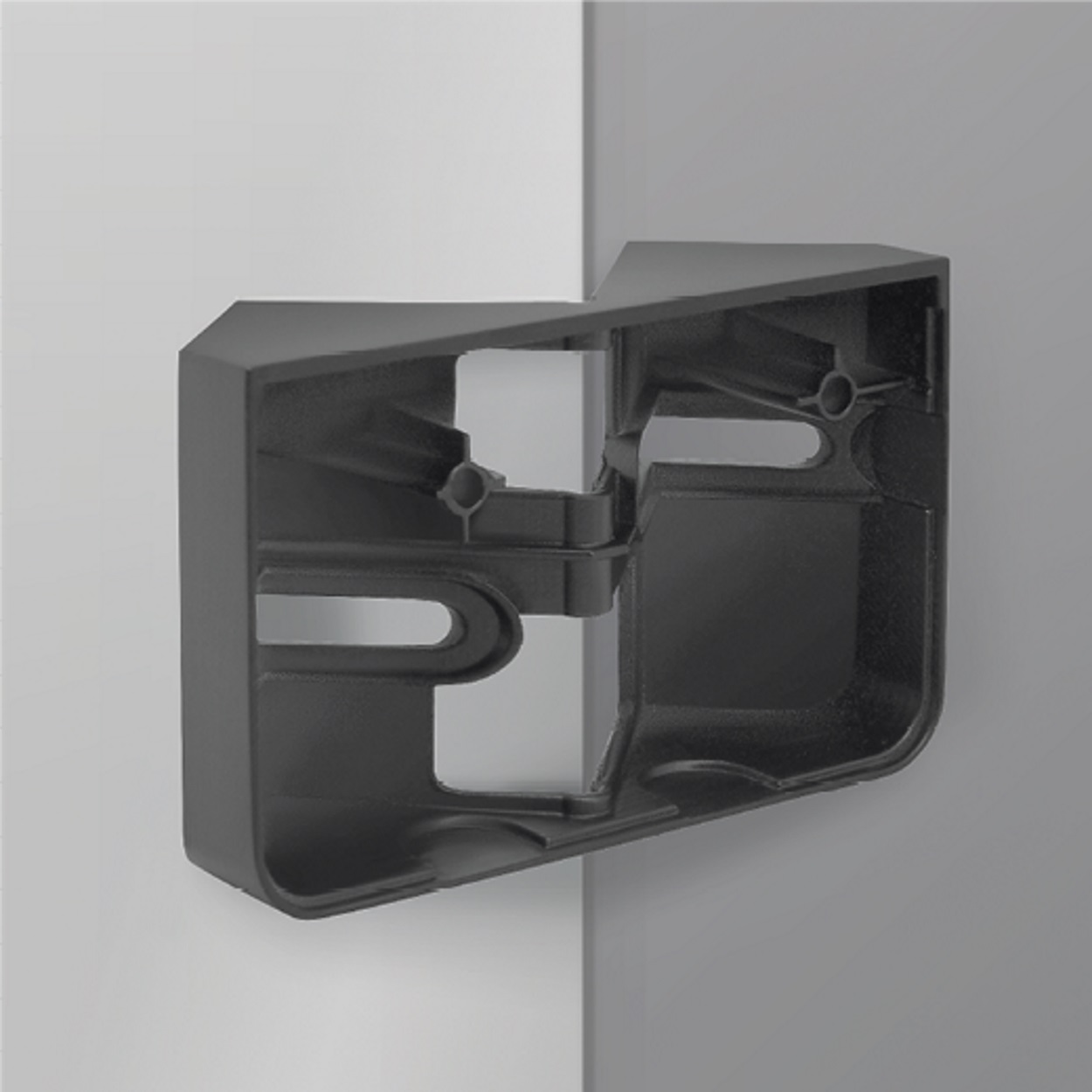

Optional corner wall mount bracket

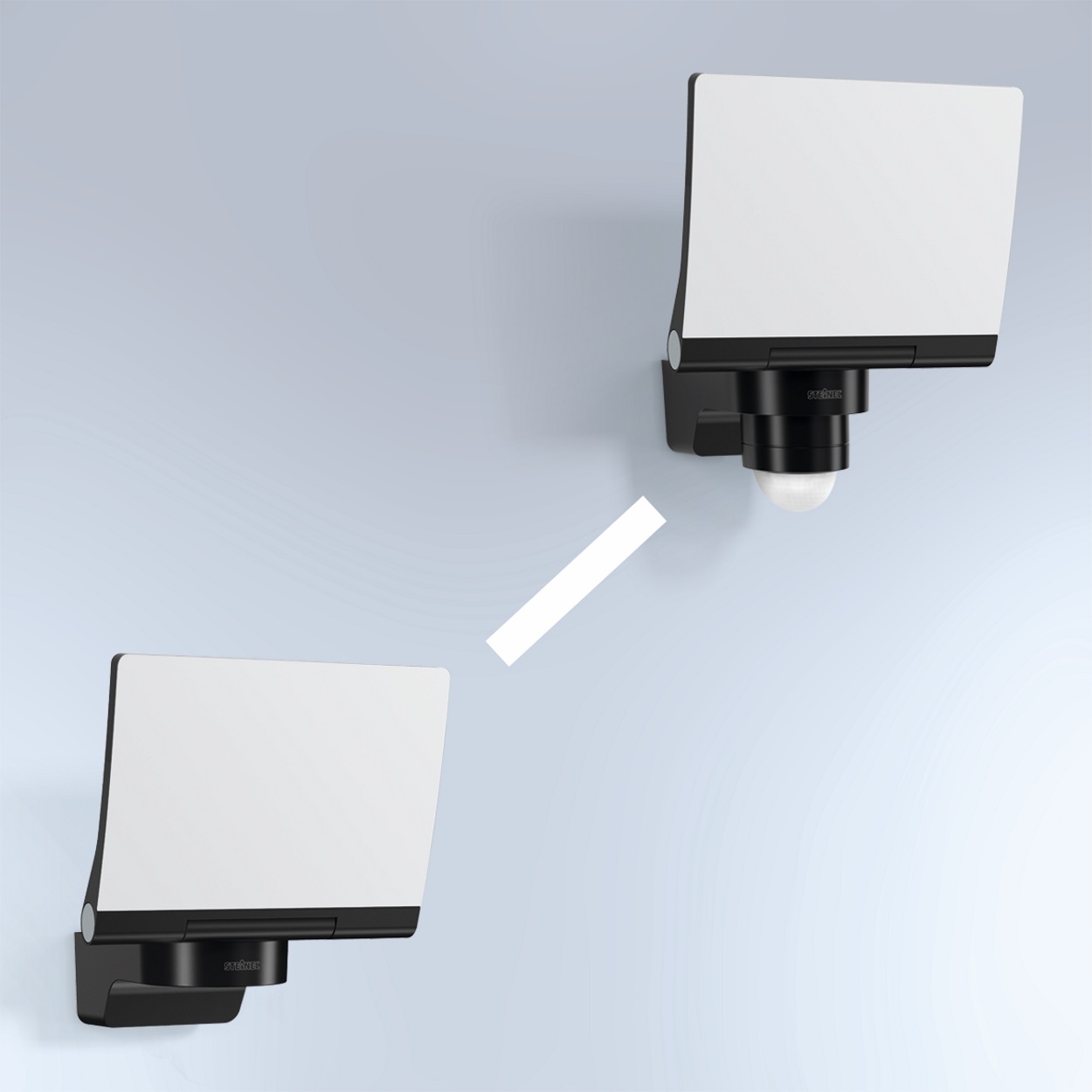

Can be interconnected with slave version

Technical drawing

Sensor detection range

Wiring diagram 1

Master/slave interconnection circuit diagram
