Steinel XLED PRO 240 S warm white white

Steinel XLED PRO 240 S warm white white

ELDAS® no. 941 200 429 · EAN-No. 4007841 068073

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel

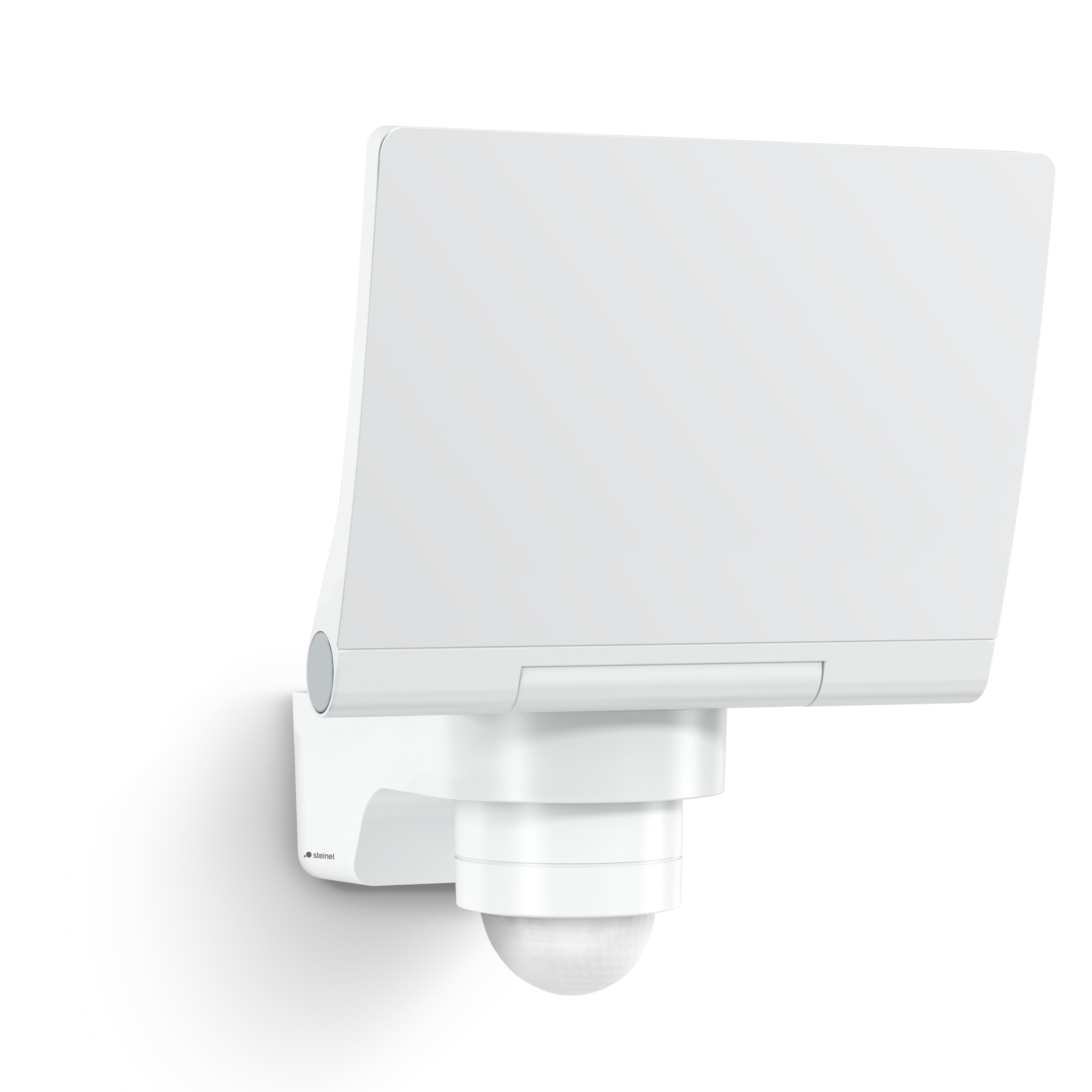

Steinel XLED PRO 240 S warm white white

LED floodlight for walls and building corners. With or without motion sensor.

ELDAS® no. 941 200 429

EAN-No. 4007841 068073

Price: Please log in to see prices

Colour

Anthracite Black White

Version

Master Slave

The XLED PRO 240 S sensor-switched outdoor floodlight is a lighting and detection wizard. The fully swivelling, extra-slim LED flat panel delivers 2124 lm of light, and is ideal for illuminating large areas around the building with on-demand lighting. In conjunction with 3000 K colour temperature, the opal diffuser produces an inviting lighting mood. The LED floodlight is fitted with a 240° infrared sensor that reliably detects the smallest of movements, has a reach of up to 12 m and makes an effective deterrent to unwanted visitors. The LED floodlight has a power consumption of just 19,3 W.

Variants

Version Master
Colour White

Dimensions

Dimensions L × W × H 161 x 180 x 223 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 19,3 W

Sensor technology

Max. mounting height 6,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 240 °
Opening angle 180 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability No
Radial range r = 3 m (19 m²)
Tangential range r = 12 m (302 m²)
Mounting height 1,8 – 6,0 m
Optimal mounting height 2,0 m

Connectivity

Networking Yes
Networking quantity maximum of 10 floodlights
Networking via Cable

Lighting technology

Measured luminous flux 360° 2124 lm
Colour temperature 3000 K
LED colour deviation SDCM3
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system HCMC (High Conductive Magnesium Composite)
Soft light start No
Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 10 s – 15 min
Base light function No
Main light adjustable No
Settings via Potentiometers
Twilight setting teach No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature -20...+40 °C
Housing material HCMC
Cover material Opal plastic
Cover material (scope of delivery) Cover clips
Mounting location corner, wall
Application location Outdoors
Mounting type Surface mounting
Application room all round the building, courtyard & driveway, outdoors, terrace / balcony
Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class E
EPREL category Light source

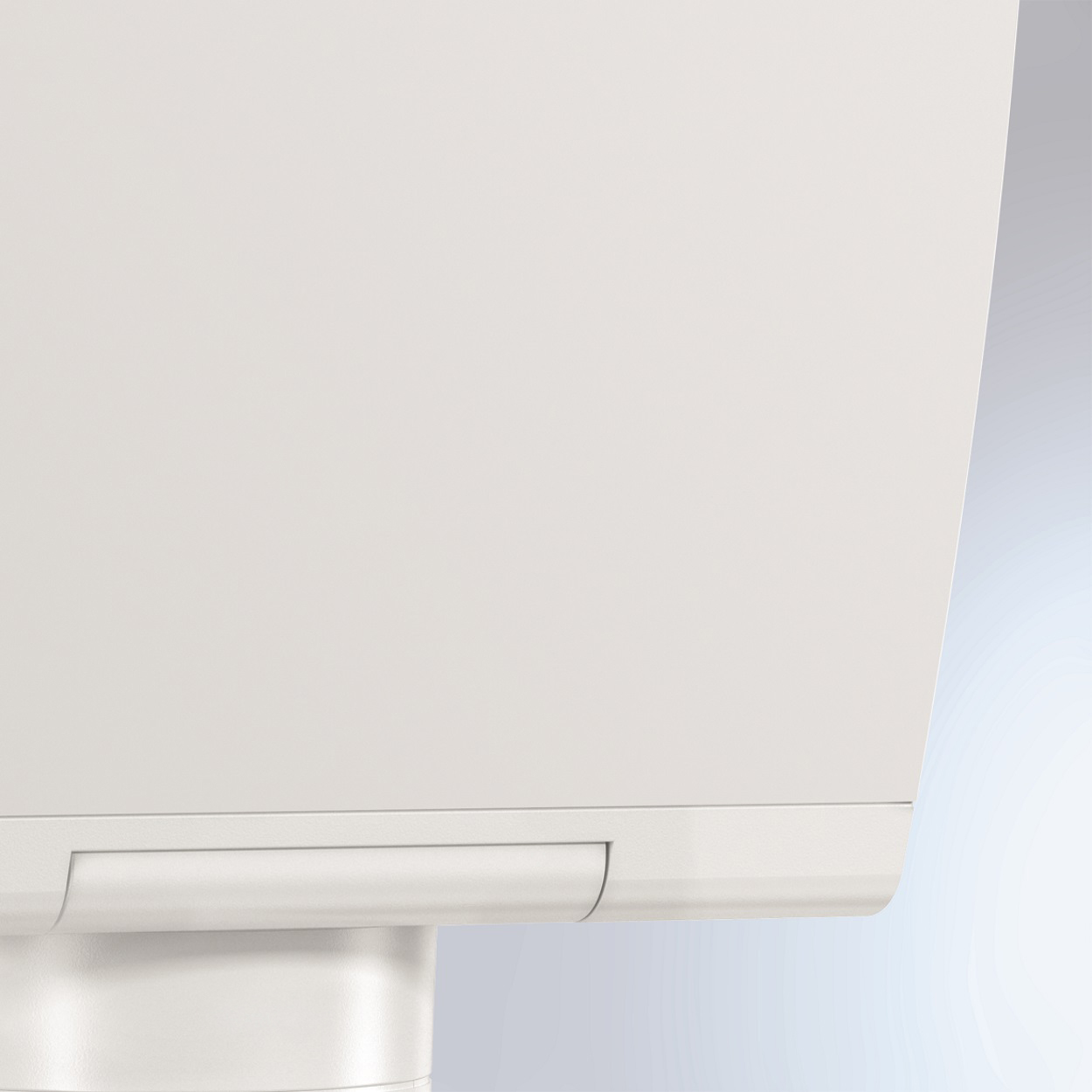

Including STEINEL LED system

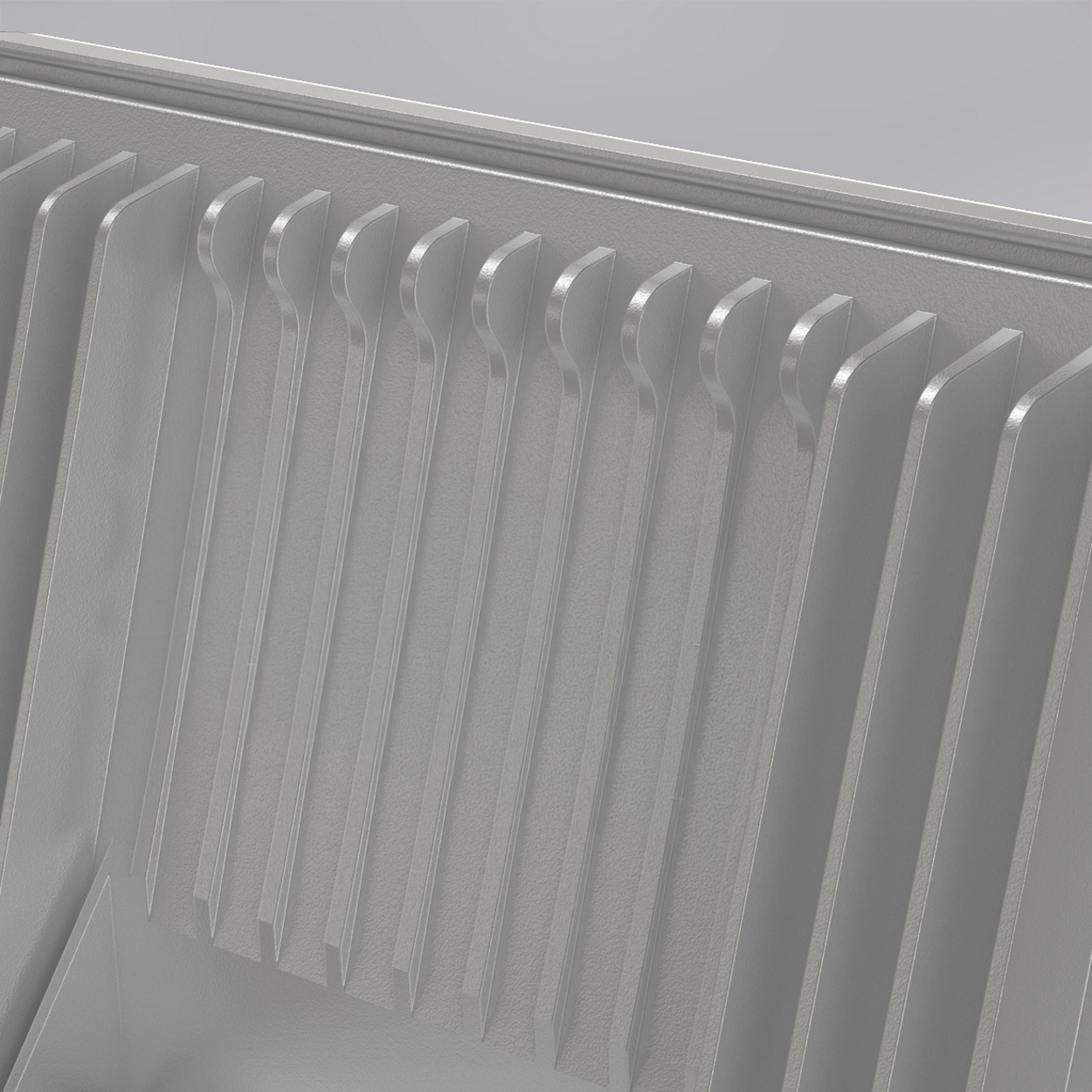

HCMC cooling system

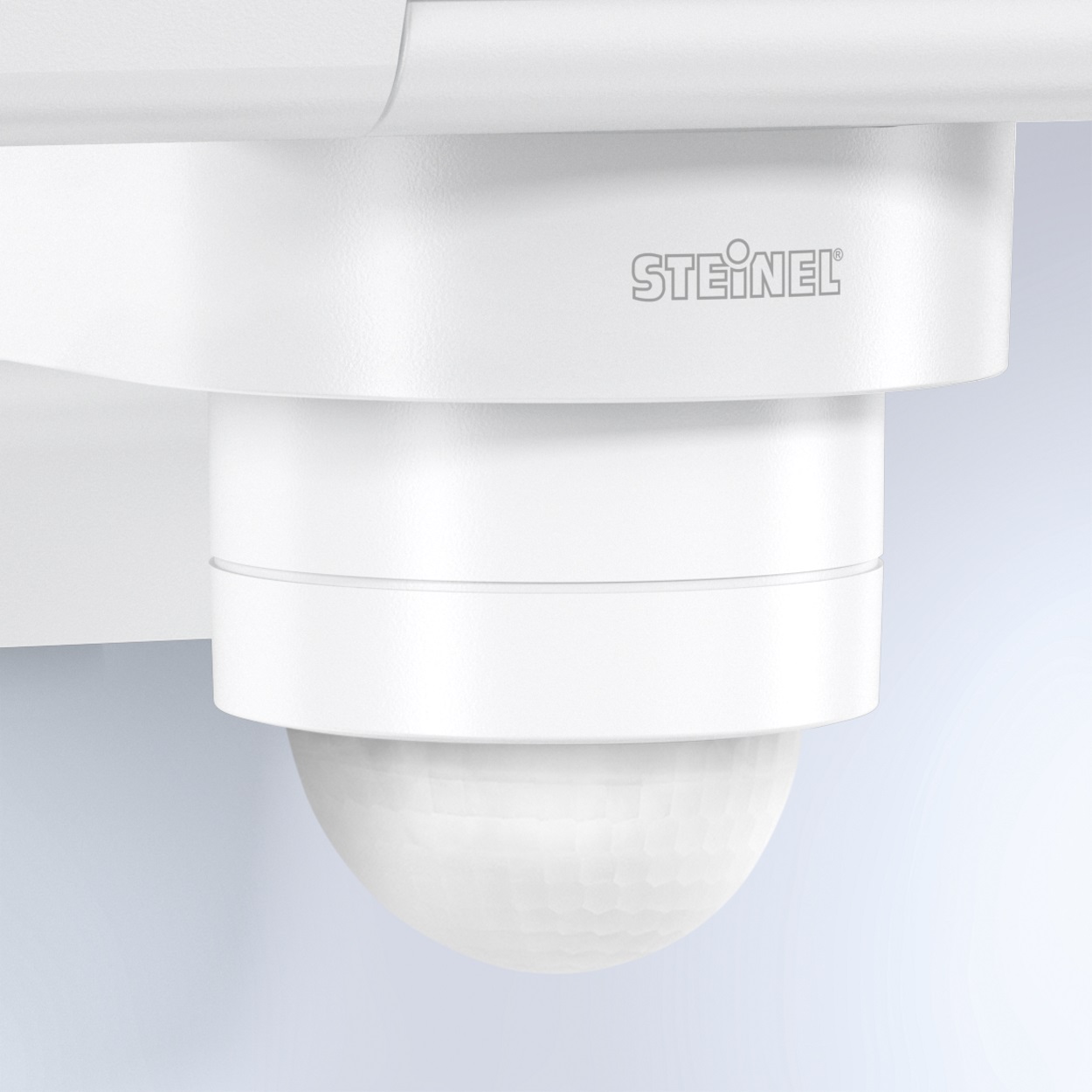

UV-resistant plastic

Colour rendering index Ra ≥80

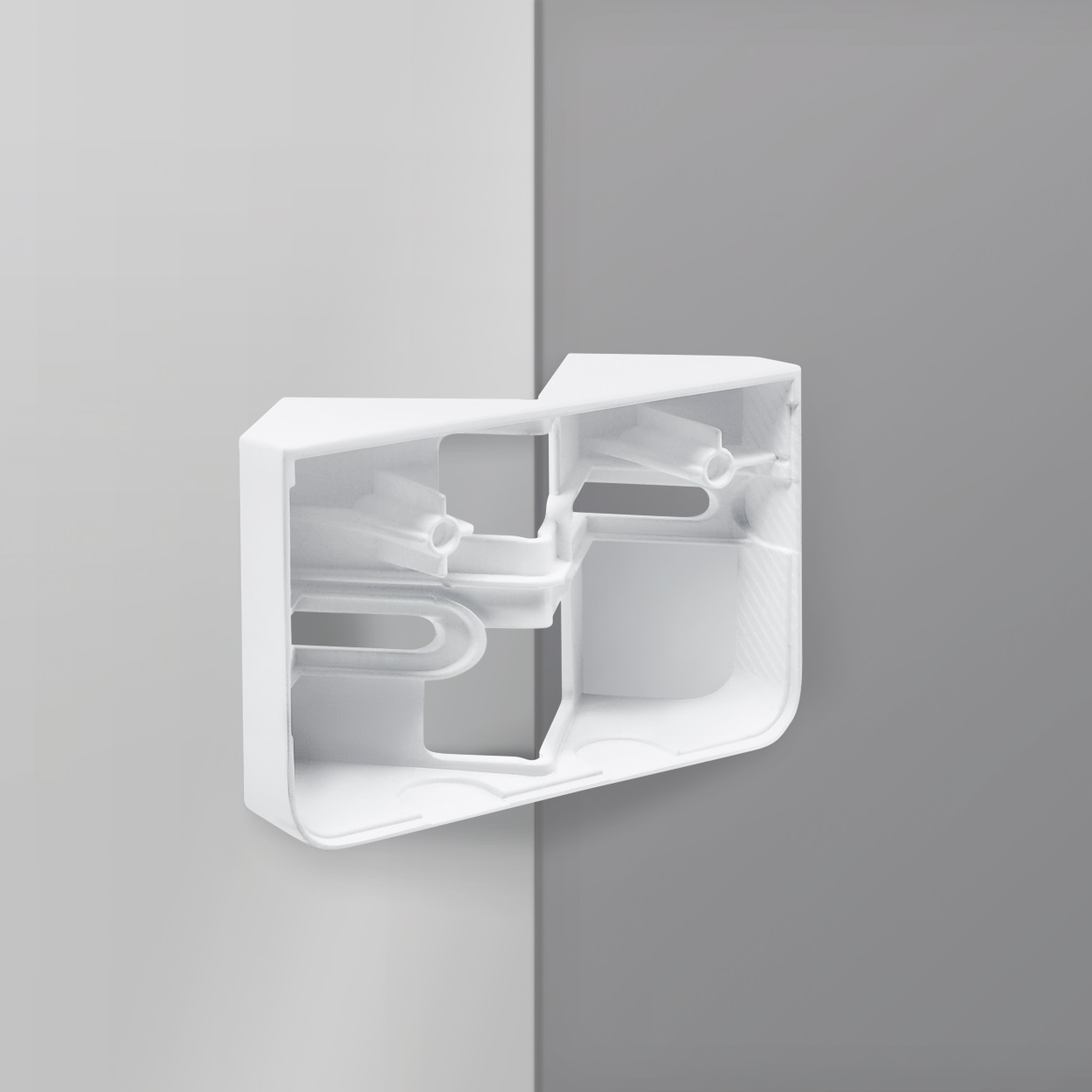

Optional corner wall mount bracket

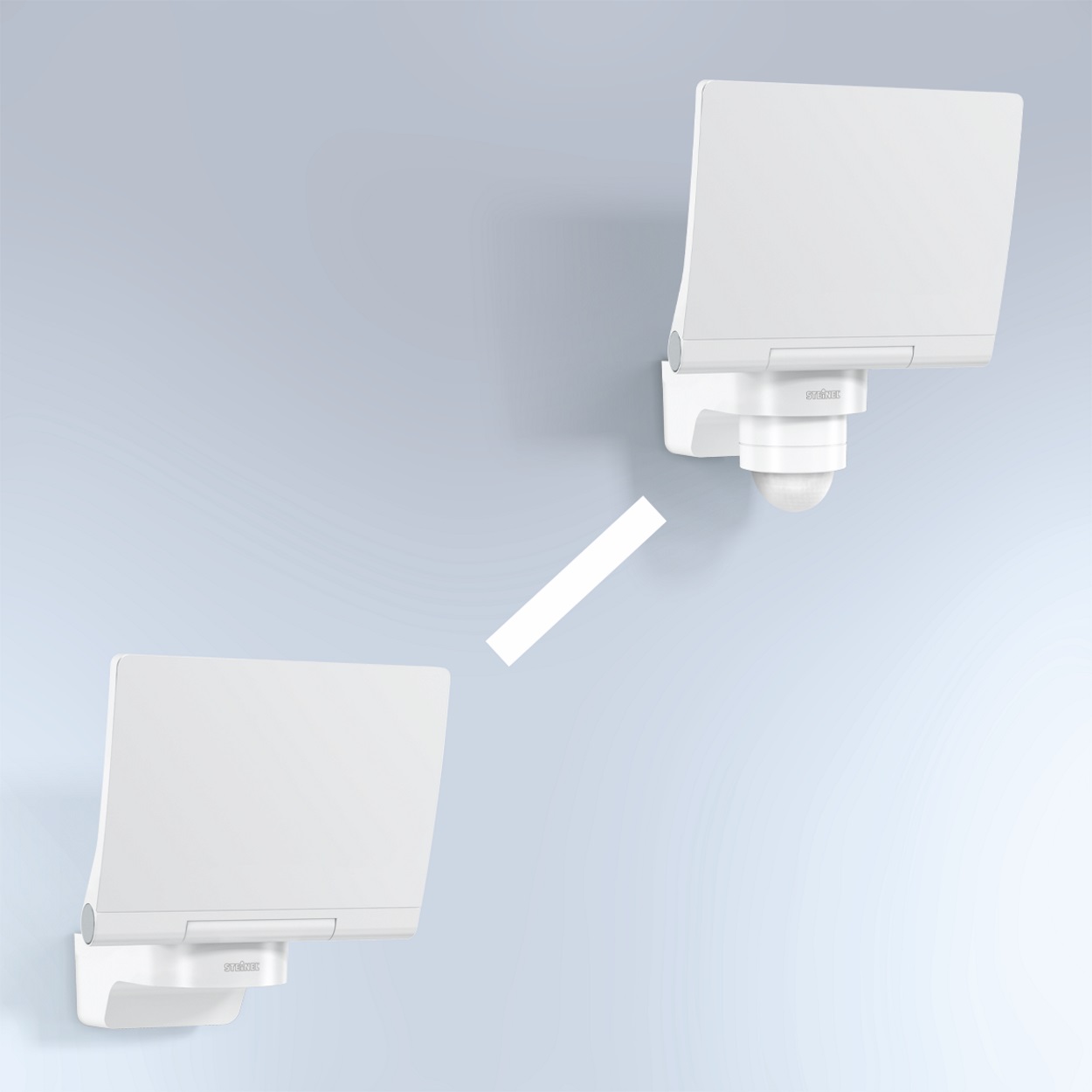

Interconnectable by cable (maximum of 10 units)

Technical drawing

Lichtverteilungskurve

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
