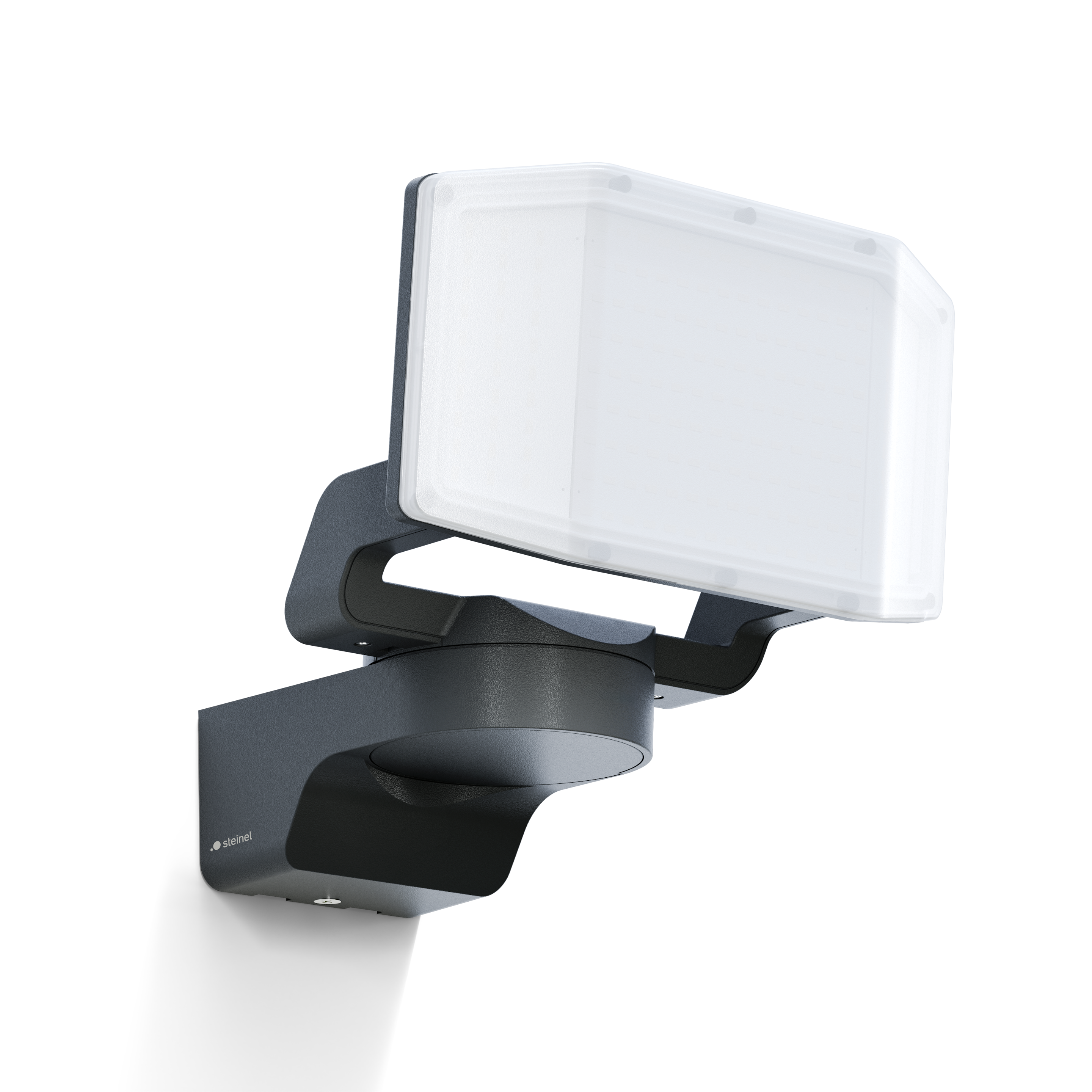

Steinel XLED PRO Expanse without motion detector - anthracite

Steinel XLED PRO Expanse without motion detector - anthracite

ELDAS® no. 941 463 409 · EAN-No. 4007841 091224

Technical data Illustrations Wiring diagrams Downloads
Steinel

Steinel XLED PRO Expanse without motion detector - anthracite

ELDAS® no. 941 463 409

EAN-No. 4007841 091224

Coming soon

This product has been announced and is not yet available.

Price: Please log in to see prices

Colour

Anthracite white

The XLED PRO Expanse LED spotlight illuminates even the most hidden corners. With three powerful light surfaces, it offers wide-angle panoramic illumination that bathes even hard-to-reach areas in bright light. With 13,6 W and 1642 lm, the XLED PRO Expanse delivers powerful, warm light (3000 K) that perfectly illuminates the surroundings. Whether above, below, to the right or to the left – the spotlight can be fully rotated, tilted and locked, and can therefore be adjusted to suit individual needs. Thanks to its IP54 rating and robust IK03 construction, it is also highly resistant and comes with a 5-year warranty. Available in anthracite and white, as well as a version with a motion detector. Corner wall brackets are available as an optional extra.

  • Wide-angle panoramic illumination thanks to three powerful LED light surfaces
  • Ideal for courtyards and driveways
  • High light output with 1642 lm and 13,6 W in warm white light (3000 K)

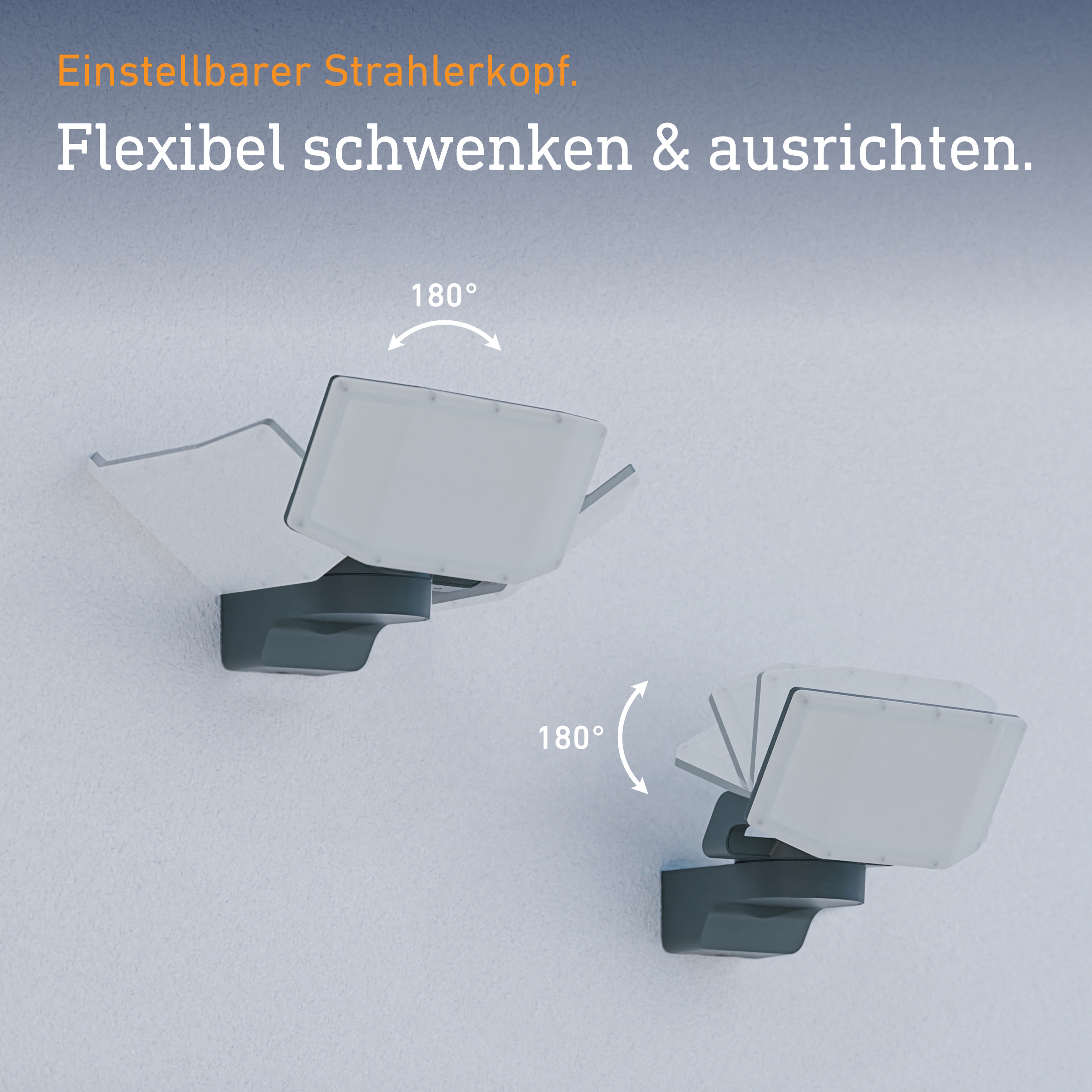

  • Flexibly adjustable: spotlight can be fully rotated, tilted and locked in place
  • Robust construction with IP54 protection and IK03 impact resistance
  • Corner wall brackets available as an option

Dimensions

Dimensions L × W × H 195 x 195 x 174 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 13,6 W

Connectivity

Networking Yes
Type of networking Sensor/slave
Networking via Cable

Lighting technology

Measured luminous flux 360° 1642 lm
Colour temperature 3000 K
Colour rendering index = 82
With illuminant Yes, LED lamp
Soft light start No

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

Base light function No

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Polycarbonate
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Application room all round the building courtyard & driveway front door garden sports hall terrace / balcony warehouse
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

Certificates DEKRA
EPREL energy efficiency class E
EPREL category Light source

Technical drawing

Sensor detection range

Wiring diagram 1

Master/slave interconnection circuit diagram
