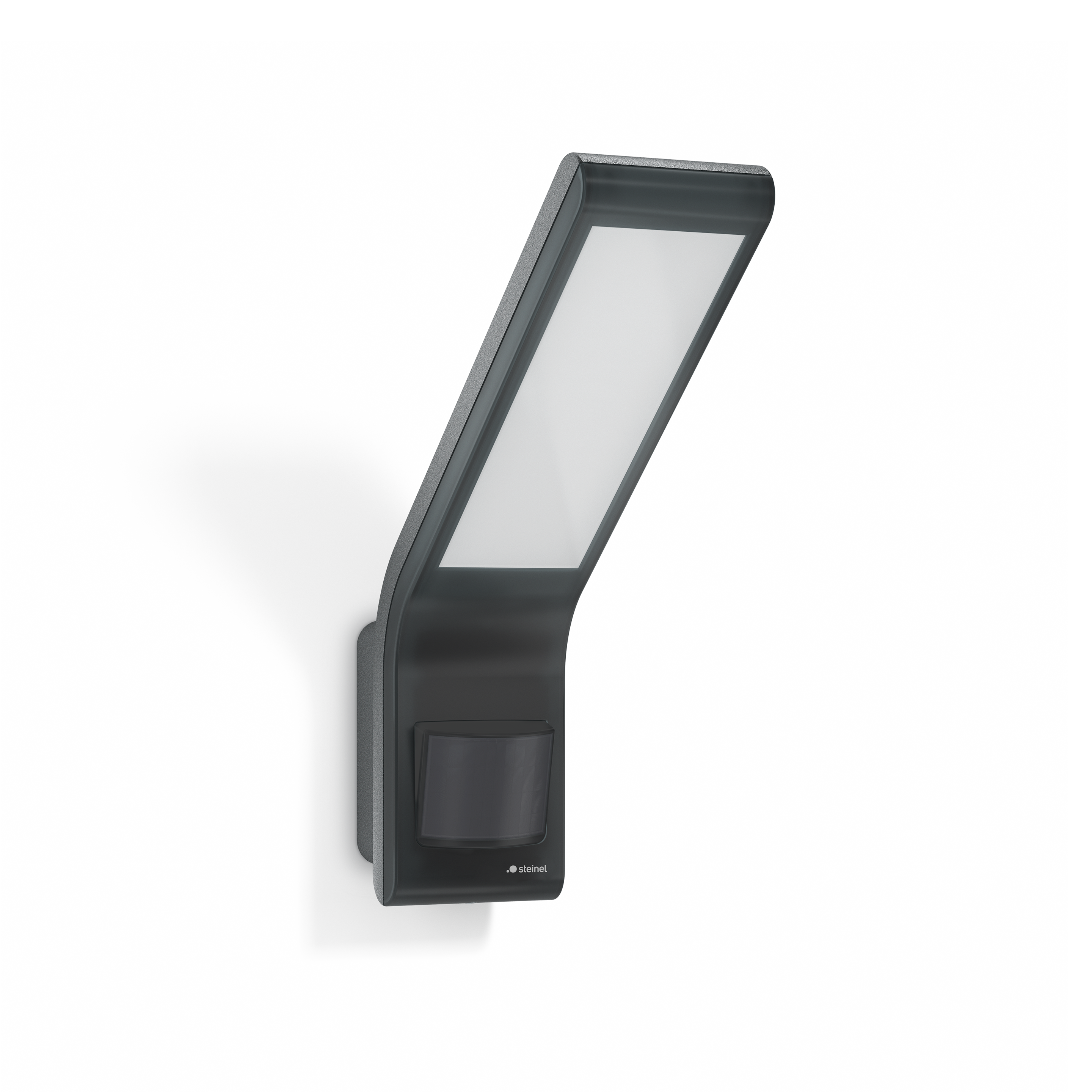

Steinel XLED slim S Anthracite

EAN-No. 4007841 012052

This product is being replaced by a successor product.

Go to successor product · XLED curved S Anthracite (012076)

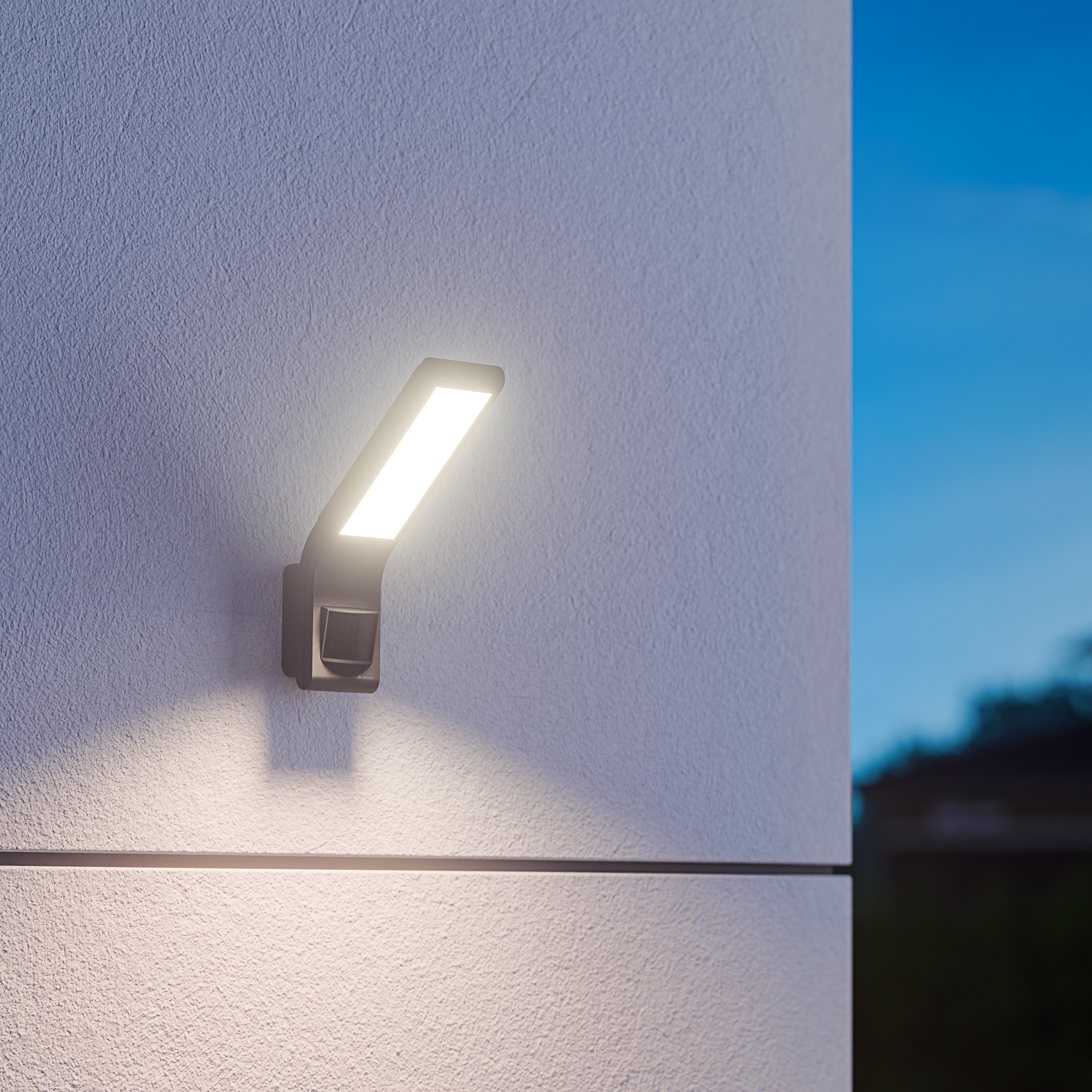

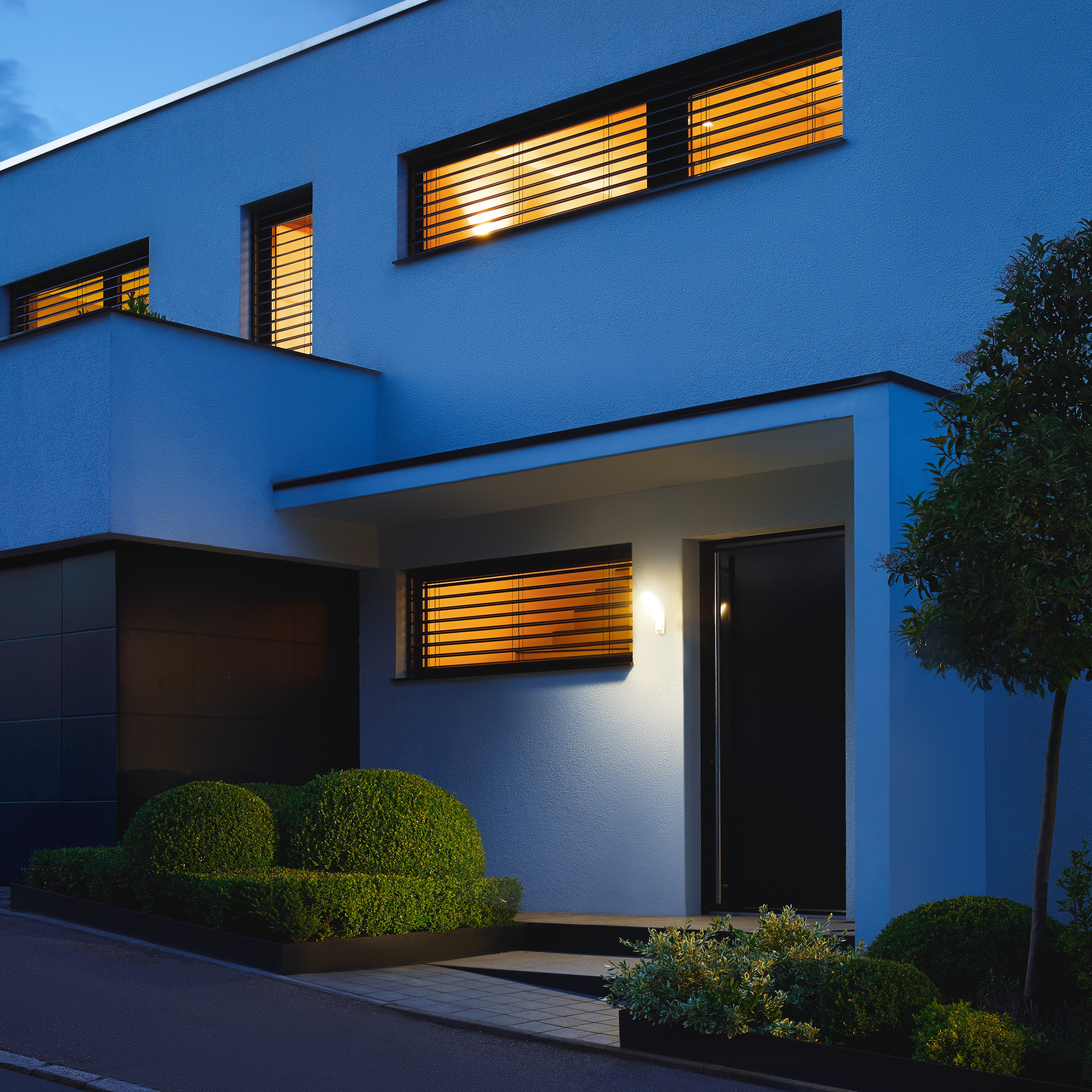

When visitors arrive, light comes into play with the economical outdoor floodlight XLED slim S. This stylish lighting solution captivates with its elegant design and provides attractive illumination for building entrances and pathways. On building facades the XLED slim S makes attractive lighting statements that not only look good but also ensure you get home safely. At the same time, the unobtrusive floodlight with its almost invisible sensor blends into the background with visual discretion.

Spotlight with motion detector for targeted illumination of small areas
Elegant slim design with sensor in housing colour
Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)
Automatic light thanks to 160 ° Infrared sensor with up to 8 m detection of movement
Incl. cover sticker for exact adjustment of the detection range
Warm white light (3000 K) and long-life 7,2 W LEDs with 648 lm, with an illumination of max. 100 sqm, max. 4m mounting height
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 201 x 66 x 241 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 7,2 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 160 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 4 m (22 m²)

Tangential range r = 8 m (89 m²)

Mounting height 1,80 – 4,00 m

Optimal mounting height 2,2 m

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 648 lm

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Active and Passive Thermo Control

Soft light start No

Lifetime

LED lifetime max. °C 50000 h

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 2 s – 70 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, transparent

Cover material (scope of delivery) sticker

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building outdoors terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class F

EPREL category Light source

Including STEINEL LED system

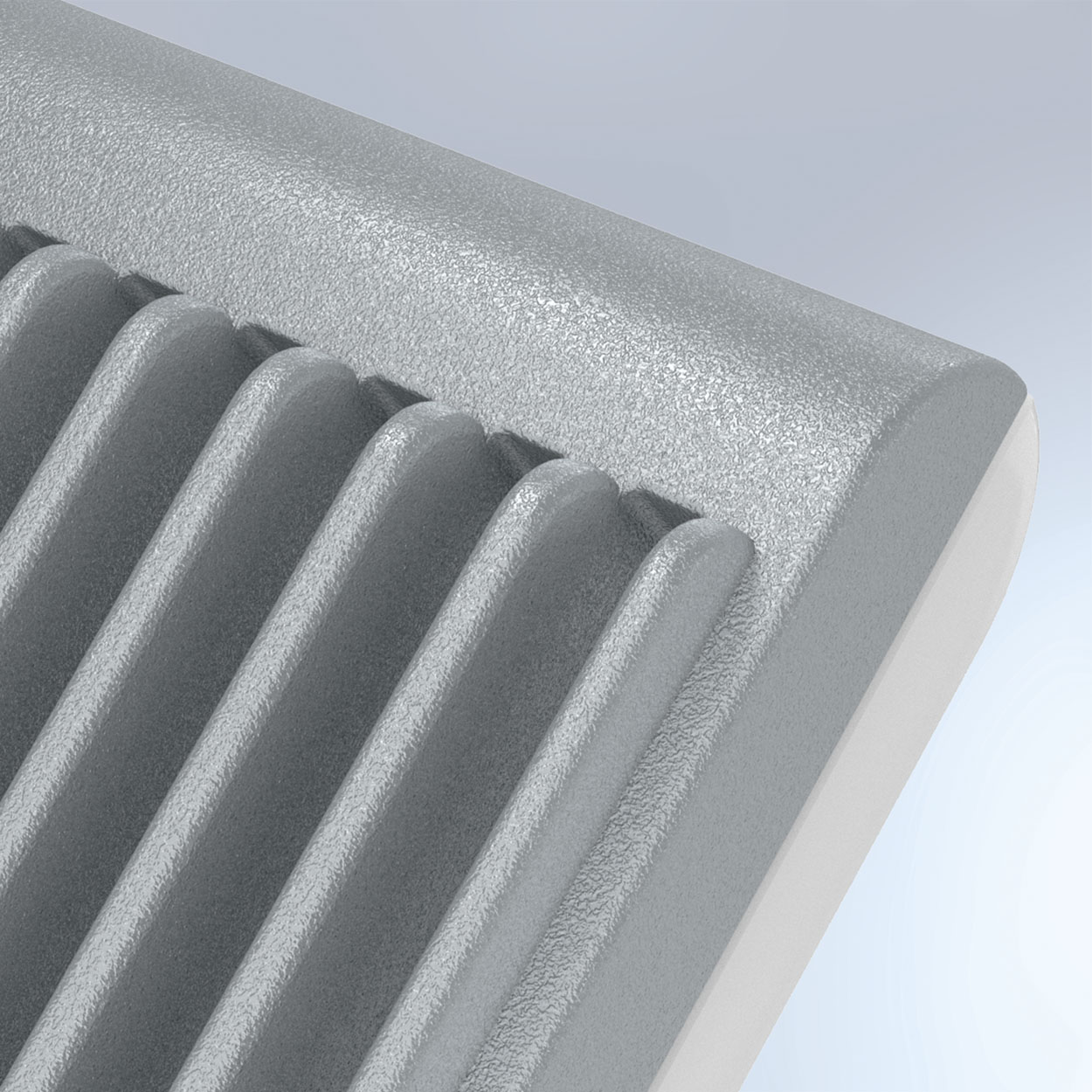

Intelligent LED cooling system

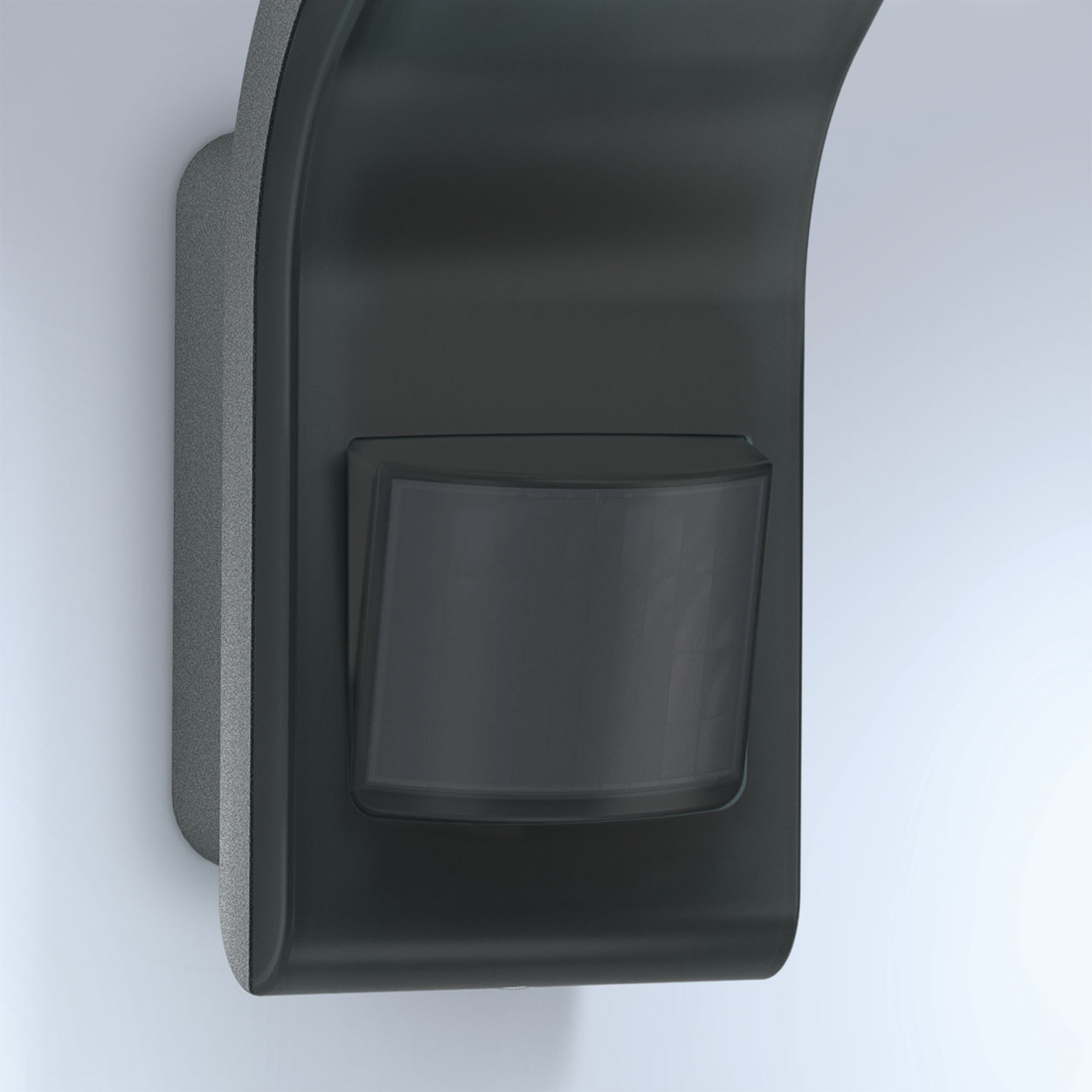

UV-resistant plastic

Colour rendering index Ra ≥ 80

Technical drawing

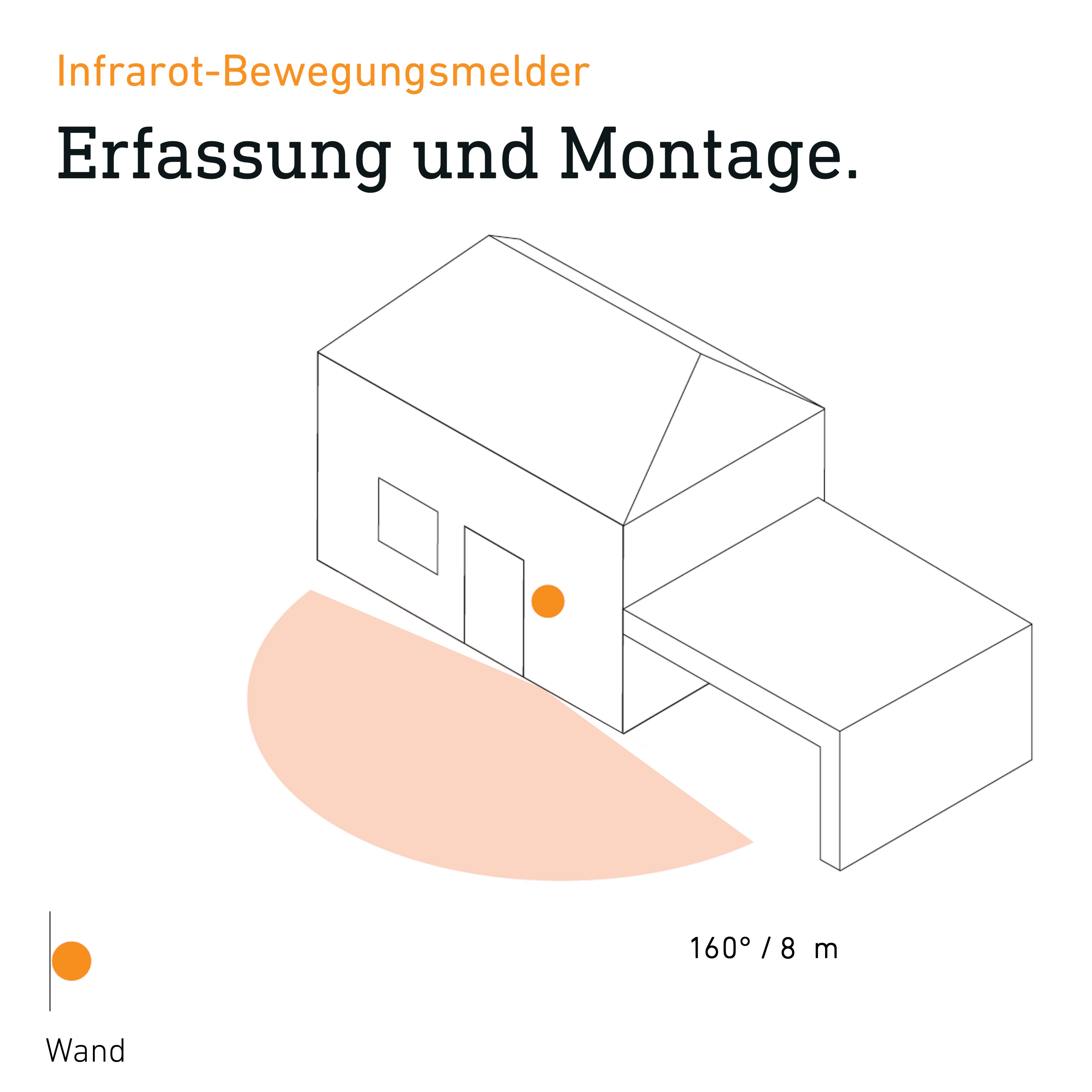

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template
