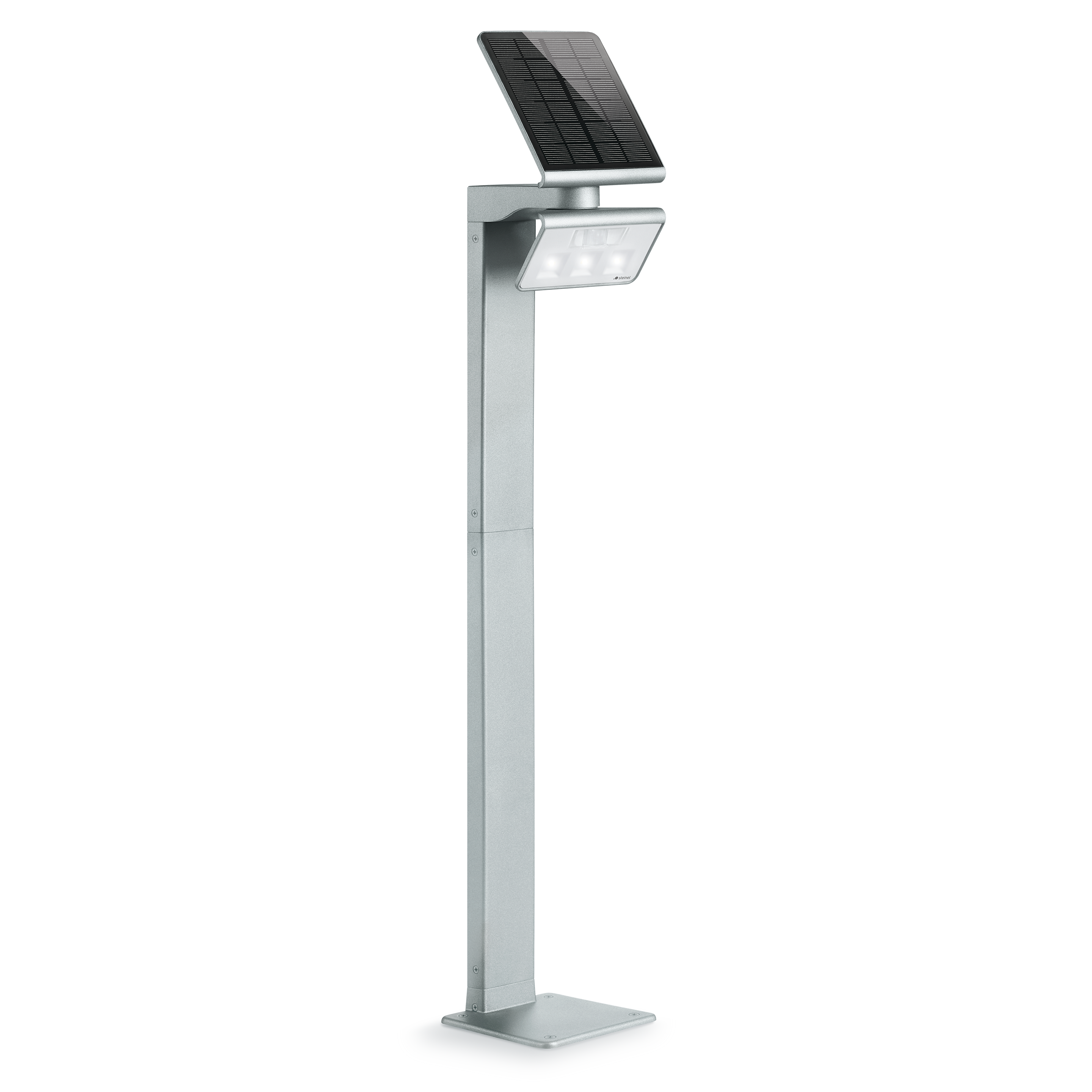

Steinel XSolar GL-S Silver

ELDAS® no. 924 808 012

EAN-No. 4007841 671211

Well-illuminated drives and paths to your front door give you and your guests the reassuring feeling of safety and security. The stand-mounted version of our efficient solar light lets you combine this with aesthetic elegance. Simply choose the stylish stand in the appropriate height – and illuminate up to 20 sq.m. with bright LED light. No energy costs whatsoever. With an LED life expectancy of 50,000 hours, changing a bulb is also a thing of the past.

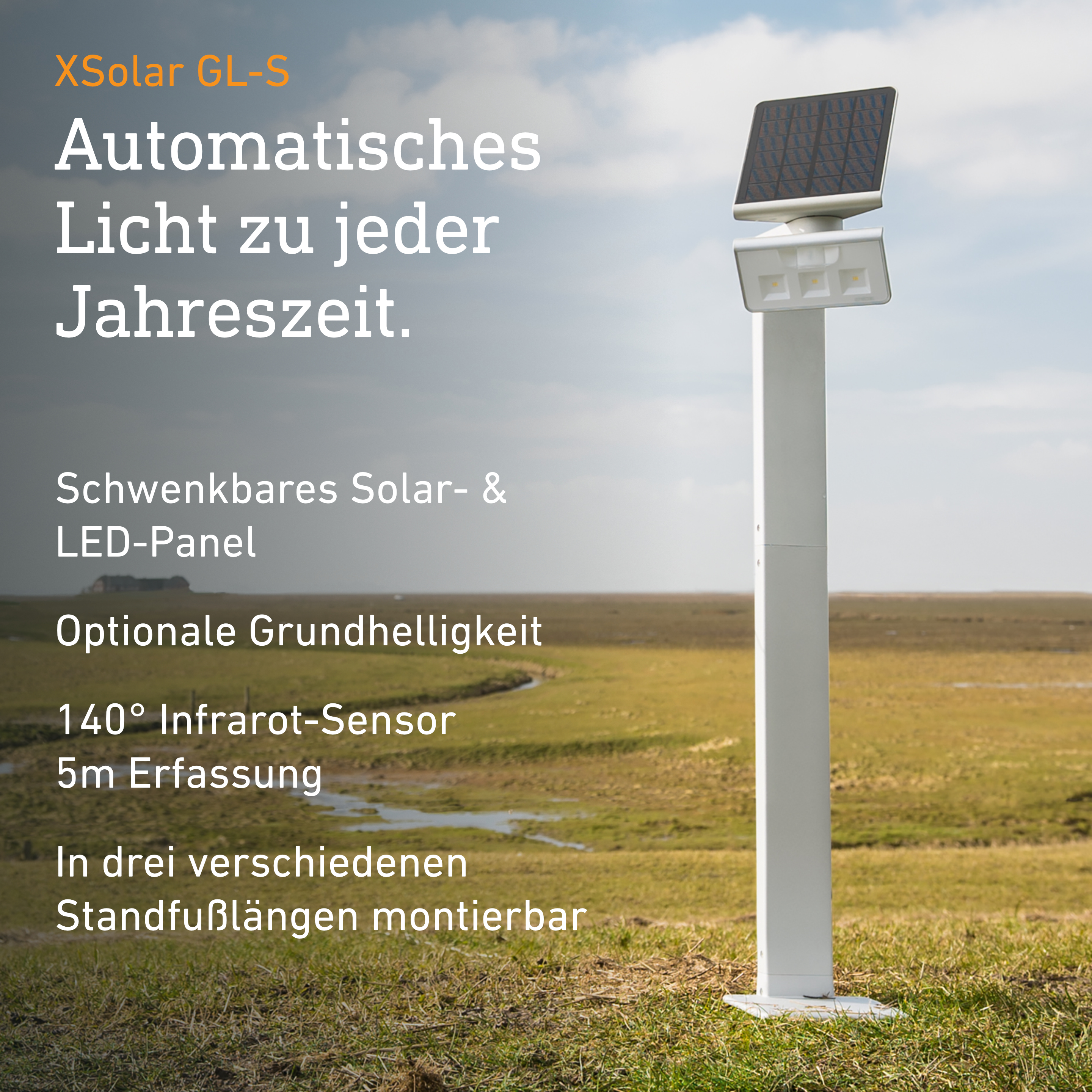

Solar path light with motion detector, mountable in three different stand lengths
Fast and flexible installation even in places without cable connection, 0€ electricity costs for 365 days of light a year
Thanks to the monocrystalline solar panel, the powerful lithium-ferrum battery charges optimally even in cloudy weather and with few hours of sunlight, 2500 mAh capacity for up to 60 days of light reserve

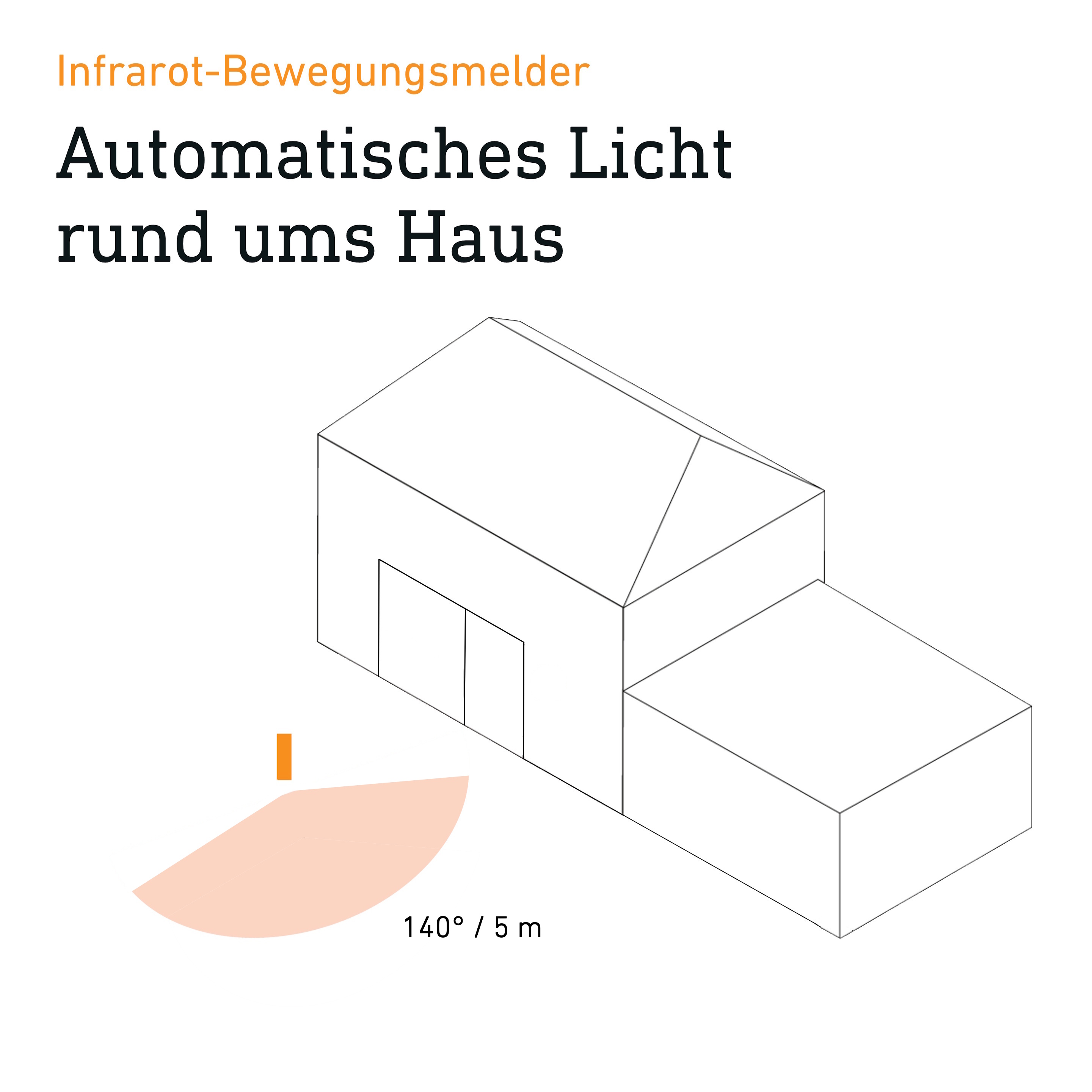

Automatic light thanks to 140 ° Infrared sensor with up to 5 m detection of movement
Functions: adjustable basic light in the morning and evening hours, pleasant soft light start, swivelling solar and LED panel
Warm white light (3000 K) with long-life 150 lm LED light system (50. 000 h LED life), with an illumination of 20 sqm.
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 188 x 194 x 1178 mm

Electrical

Power 1,2 W

Supply voltage detail Solar supply, no mains power required Lithium-iron-phosphate rechargeable battery 2500 mAh

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range r = 1.5 m (3 m²)

Tangential range r = 5 m (31 m²)

Optimal mounting height 1 m

Lighting technology

Measured luminous flux 360° 150 lm

Colour temperature 3000 K

LED colour deviation SDCM5

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start No

Lifetime

LED lifetime max. °C 50000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 lx

Time setting 10 s – 0,5 Min.

Base light function Yes

Base light function time all night

Main light adjustable No

Functions Motions sensor

Settings via Potentiometers

Base light function in percent 3 %

Base light function percent from 3 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class III

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, transparent

Mounting location Stand mounted

Application location Outdoors

Application room courtyard & driveway garden outdoors terrace / balcony

Colour Silver

Scope of delivery & warranty

Manufacturer warranty 3 years

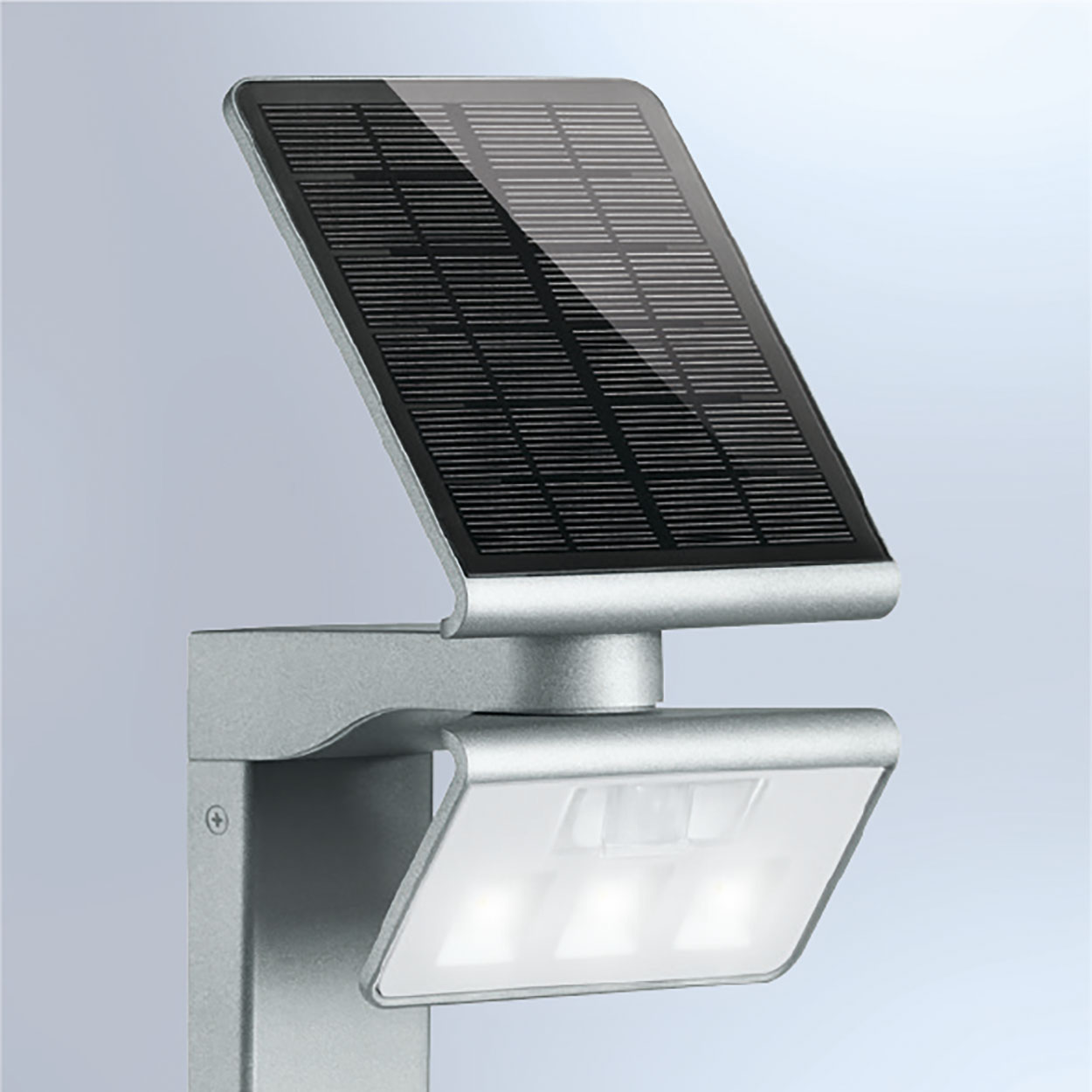

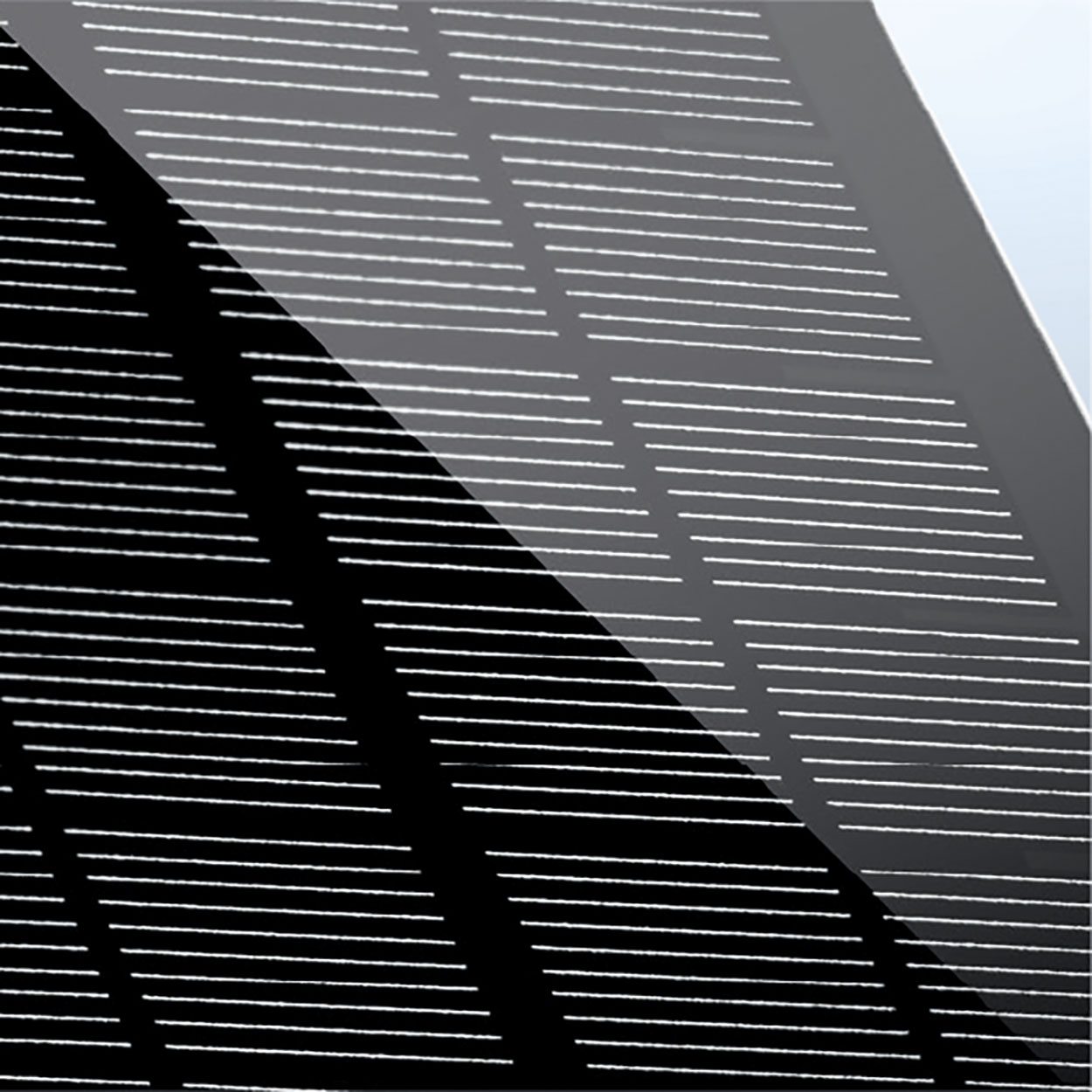

High-quality monocrystalline solar panel

Including 2500 mAh lithium iron-phosphate rechargeable battery

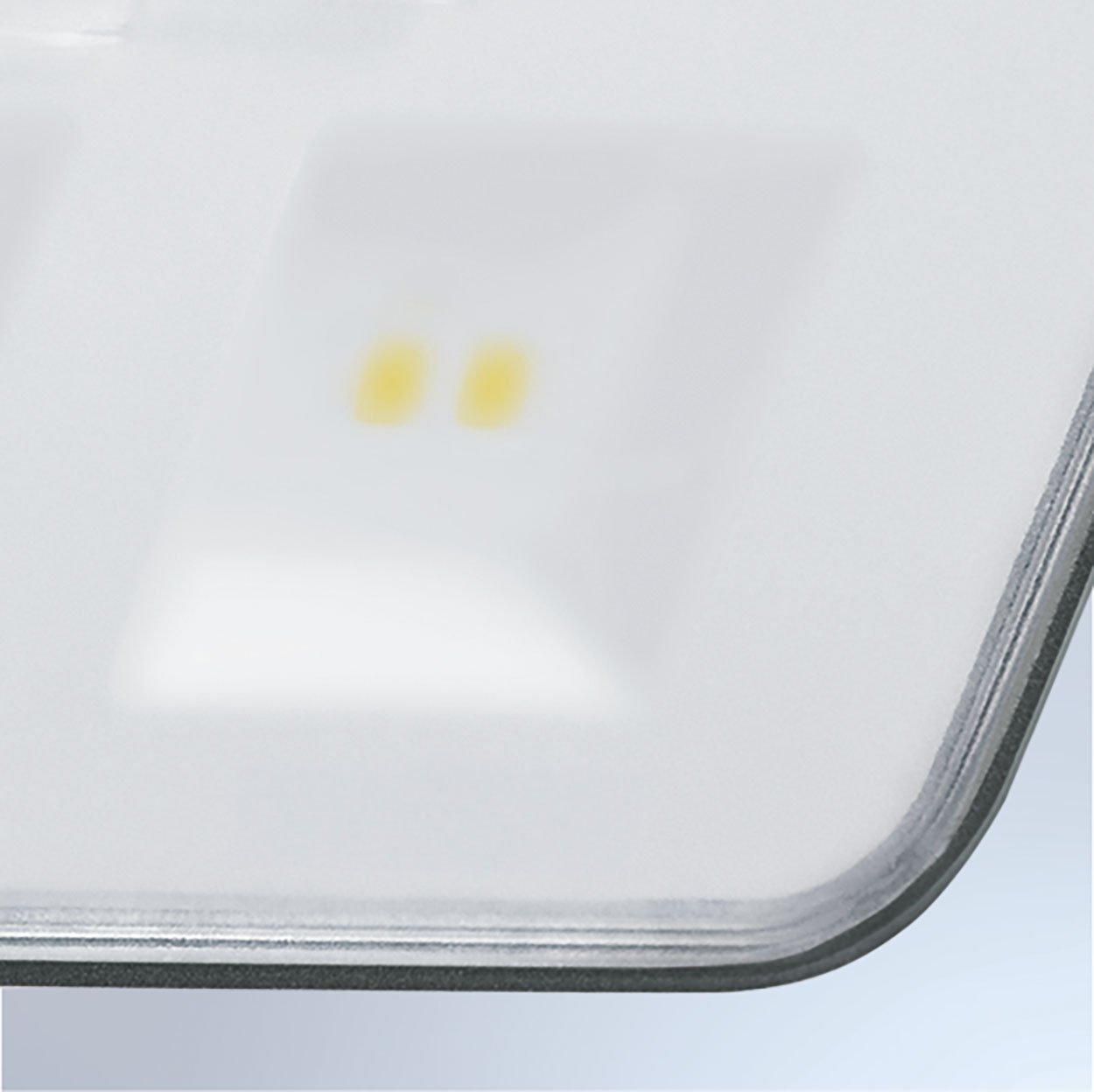

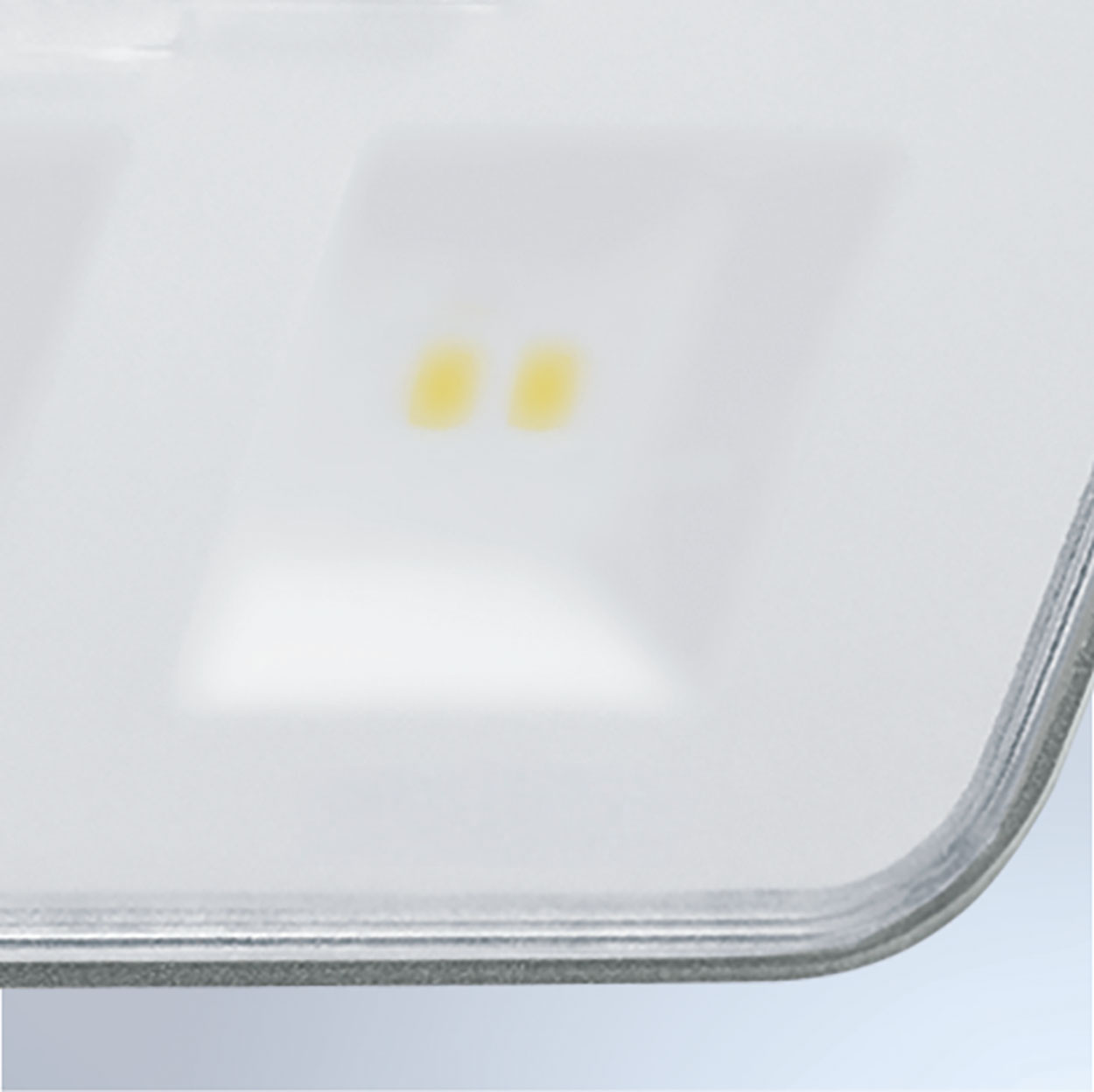

Including STEINEL LED system

Optional basic lighting level

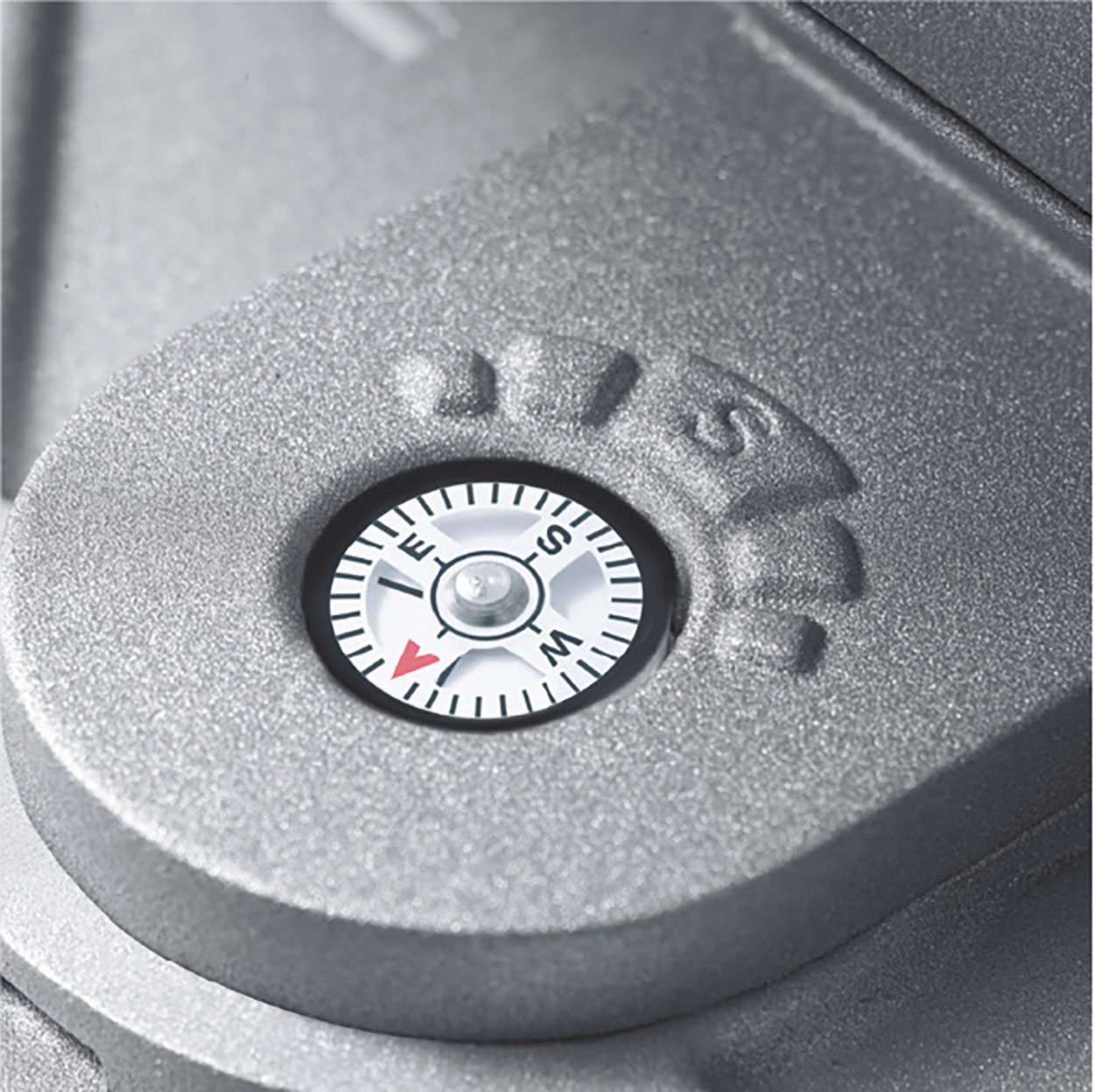

Compass for setting the panel to face the optimum direction

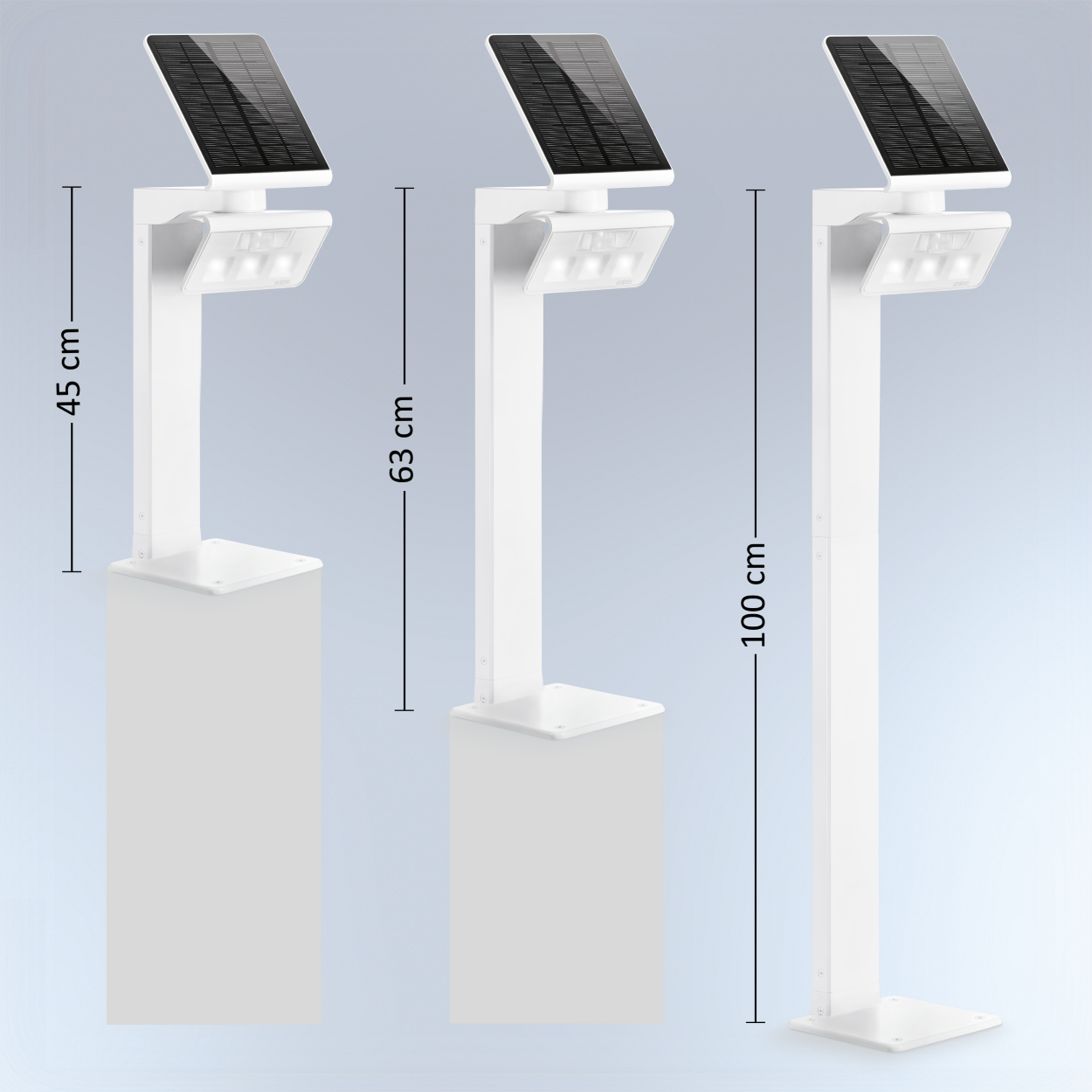

3 mounting heights

Technical drawing

Sensor detection range

Data sheet User manual Declaration of conformity
