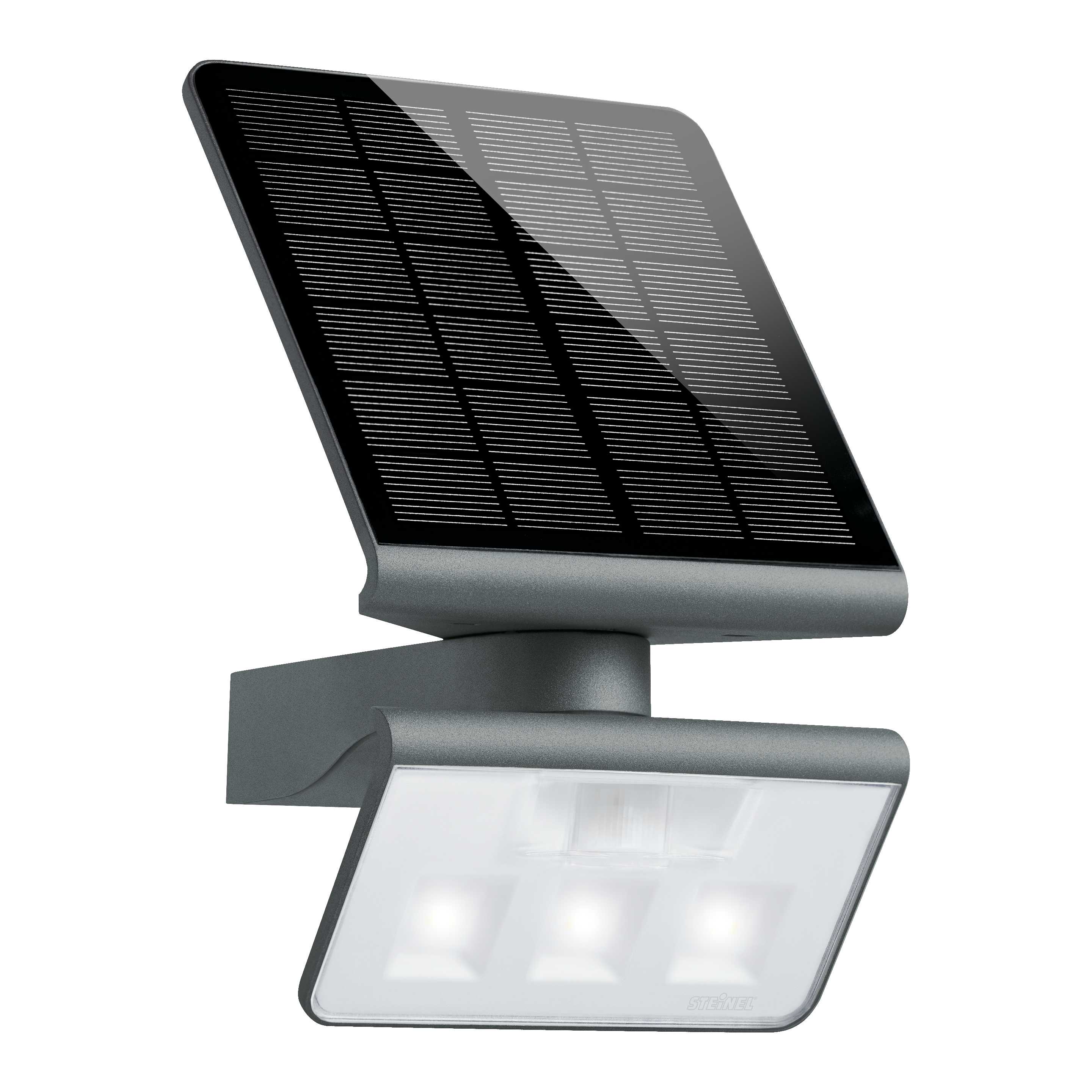

Steinel XSolar L-S ONE Anthracite

Steinel XSolar L-S ONE Anthracite

EAN-No. 4007841 081973

Technical data Highlights Illustrations Downloads Videos
Steinel

Steinel XSolar L-S ONE Anthracite

EAN-No. 4007841 081973

Price: Please log in to see prices

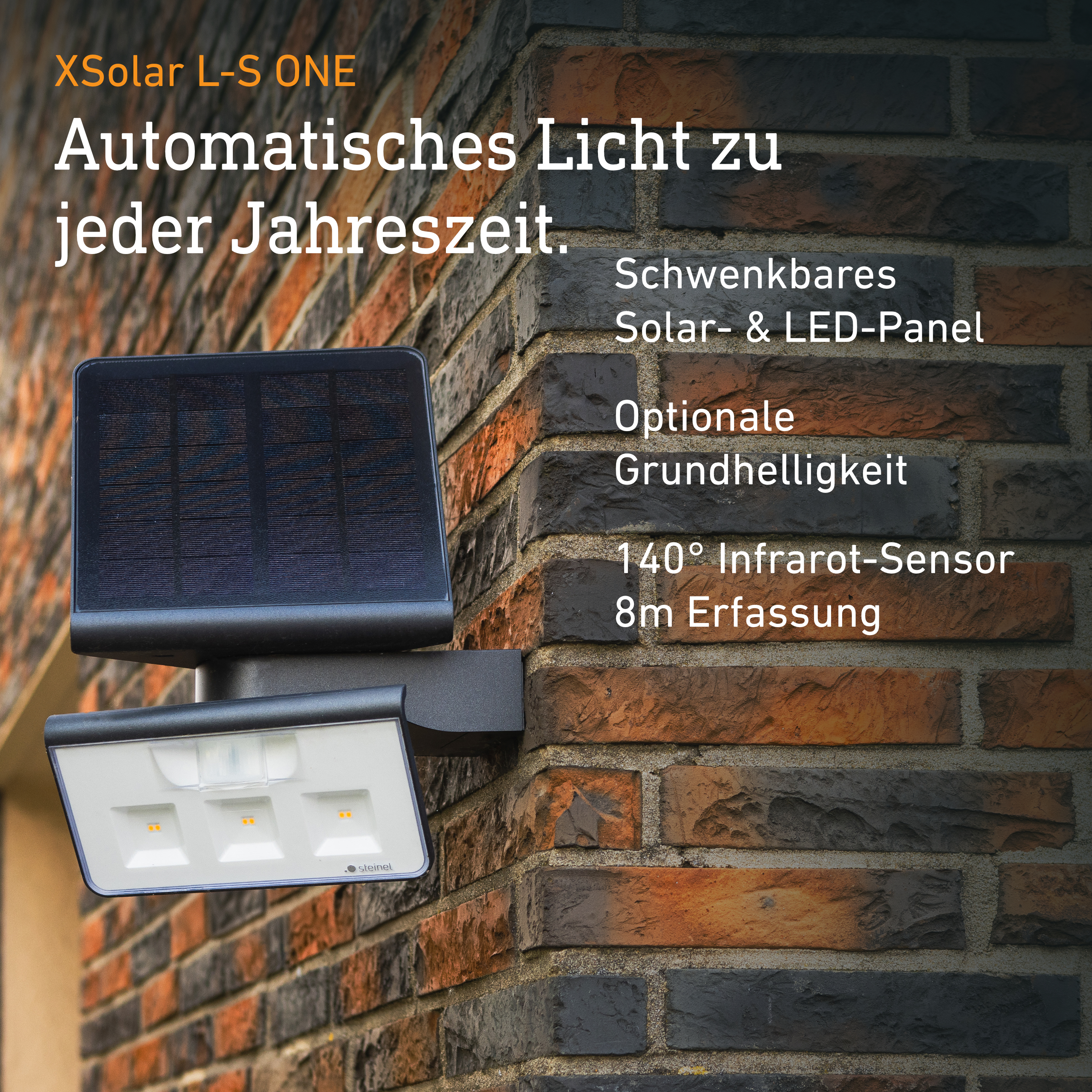

No energy costs. No electricity connection. No compromises. With the XSolar L-S One sensor LED light, STEINEL has developed a solar light that always works and also comes in sustainable plastic-free packaging. It combines the best technical components - from the highly efficient monocrystalline solar panel for 20% more output than conventional solar panels, the powerful infrared sensor, the temperature-resistant rechargeable battery with 60-day light reserve to the intelligent microprocessor control. Every outdoor area up to 30m² is reliably illuminated with warm-white light. 365 days a year. In all weathers. And 0,- Euro electricity costs. This makes it the most elegant and sustainable solution for mounting on garden walls, outside walls and wherever no electricity is available. Solar panel and LED panel cannot be separated.

  • NEW: Now in the trend colour anthracite RAL 7016!

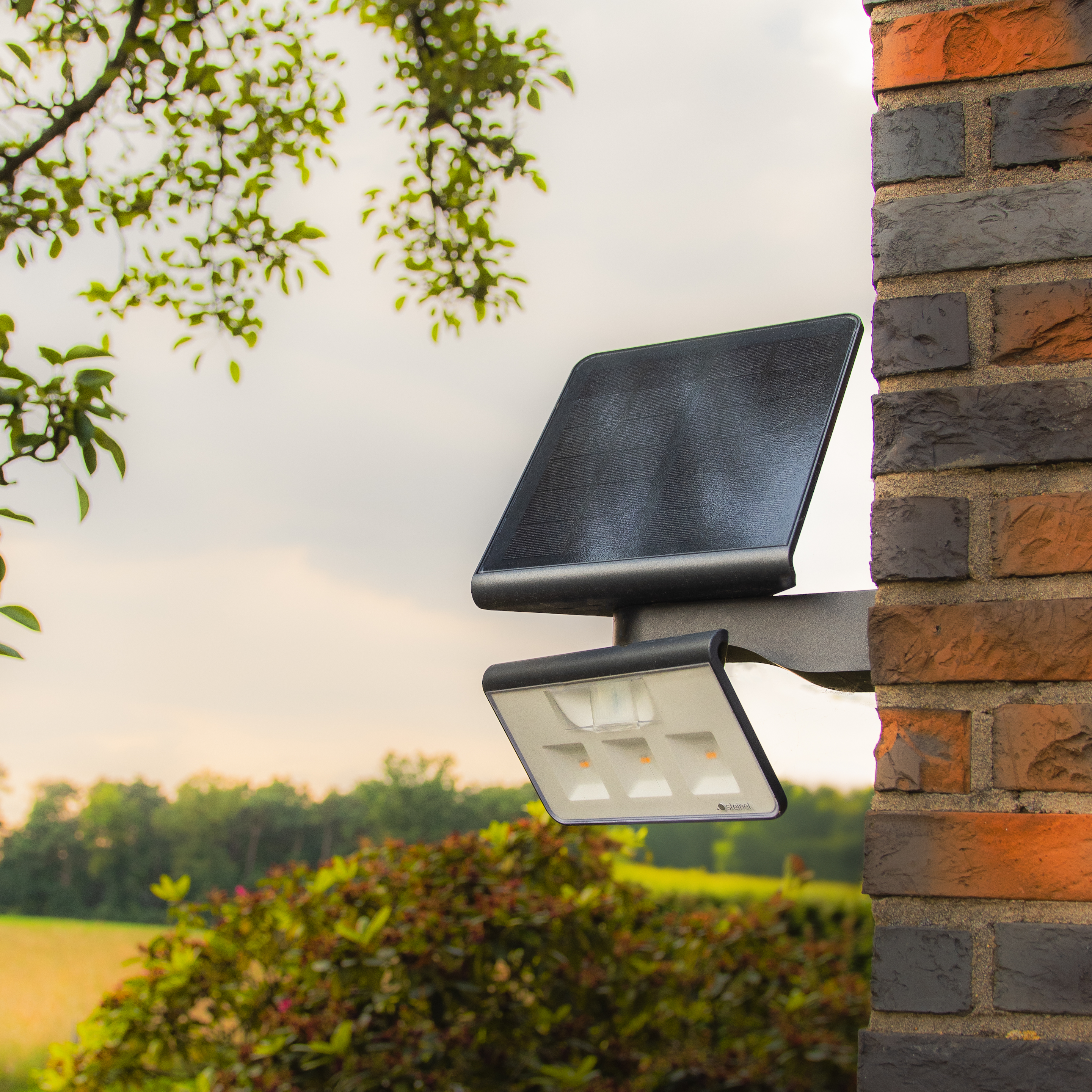

  • Solar light with motion detector, ideal for garden walls and outdoor walls without power connection
  • Fast and flexible installation even in places without cable connection, 0€ electricity costs for 365 days of light a year
  • Thanks to the monocrystalline solar panel, the powerful lithium-ferrum battery charges optimally even in cloudy weather and with few hours of sunlight, 2500 mAh capacity for up to 60 days of light reserve

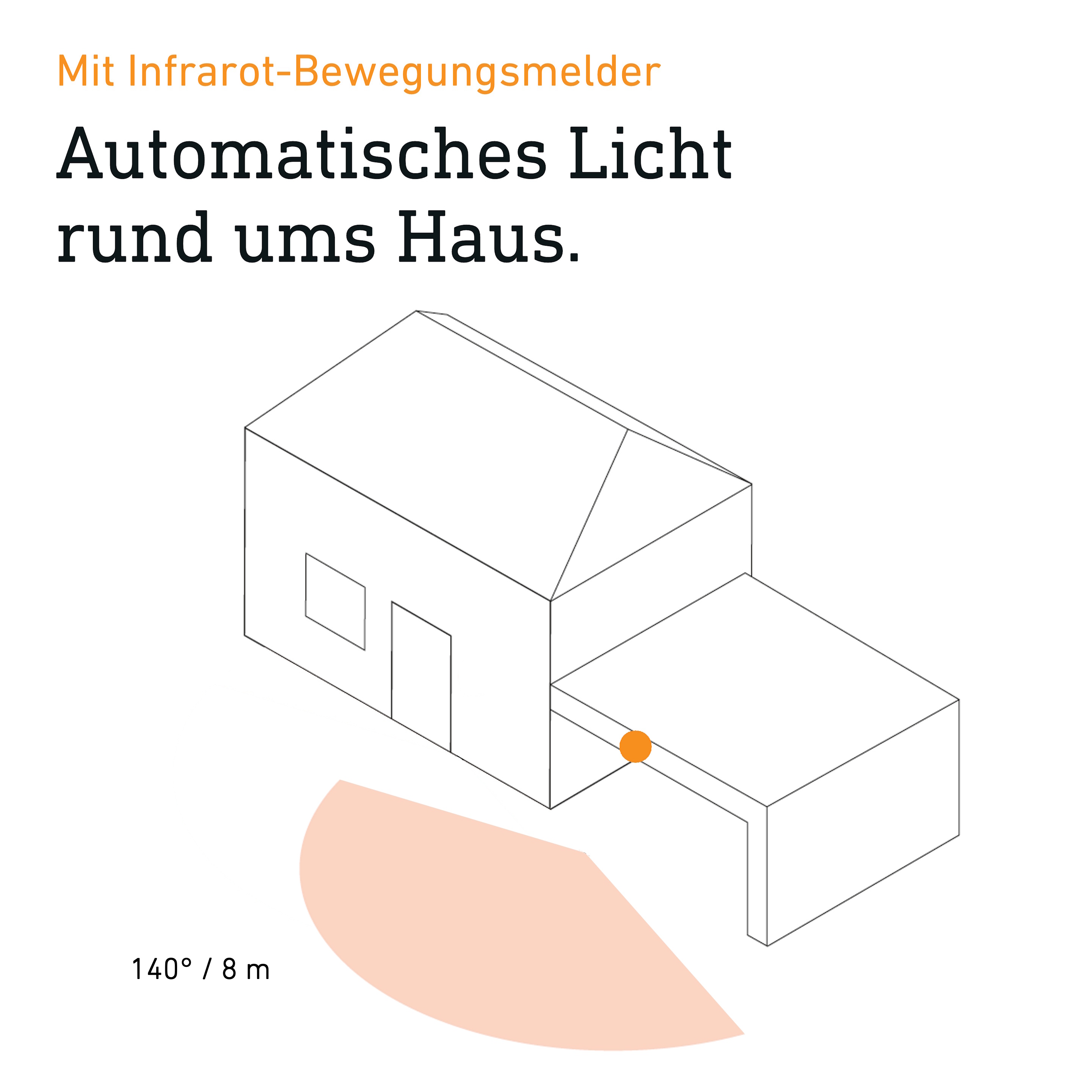

  • Automatic light thanks to 140 ° Infrared sensor with up to 8 m detection of movement
  • Functions: adjustable basic light in the morning and evening hours, pleasant soft light start, swivelling solar and LED panel
  • Warm white light (3000 K) with long-life 150 lm LED light system (50. 000 h LED life), with an illumination of 30 sqm.
  • Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 187 x 189 x 298 mm

Electrical

Power 1,2 W
Supply voltage detail Solar supply, no mains power required Lithium-iron-phosphate rechargeable battery 2000 mAh

Sensor technology

Max. mounting height 2,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 140 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability No
Mechanical scalability No
Radial range r = 2 m (5 m²)
Tangential range r = 8 m (78 m²)
Mounting height 1,80 – 2,00 m
Optimal mounting height 1,8 m

Lighting technology

Measured luminous flux 360° 150 lm
Colour temperature 3000 K
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No

Lifetime

LED lifetime max. °C 50000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight setting 2 lx
Time setting 10 s – 0,5 Min.
Base light function Yes
Base light function time all night
Functions Motions sensor
Settings via Potentiometers
Base light function in percent 3 %
Base light function percent from 3 %

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class III
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material PC structured
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Application room all round the building courtyard & driveway front door outdoors terrace / balcony
Colour Anthracite
RAL colour 7016

Scope of delivery & warranty

Manufacturer warranty 3 years

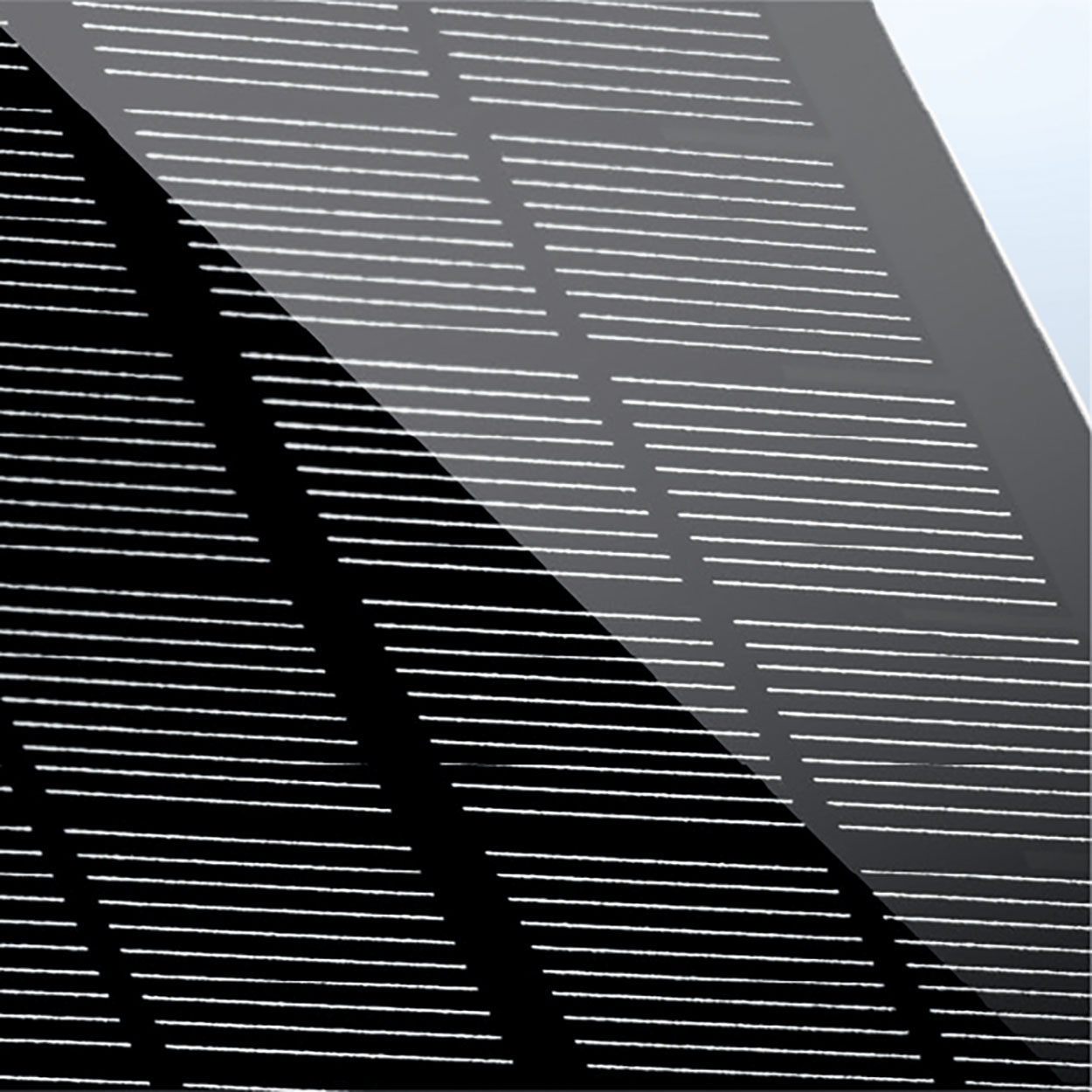

High-quality monocrystalline solar panel

Including 3000 mAh lithium iron-phosphate rechargeable battery

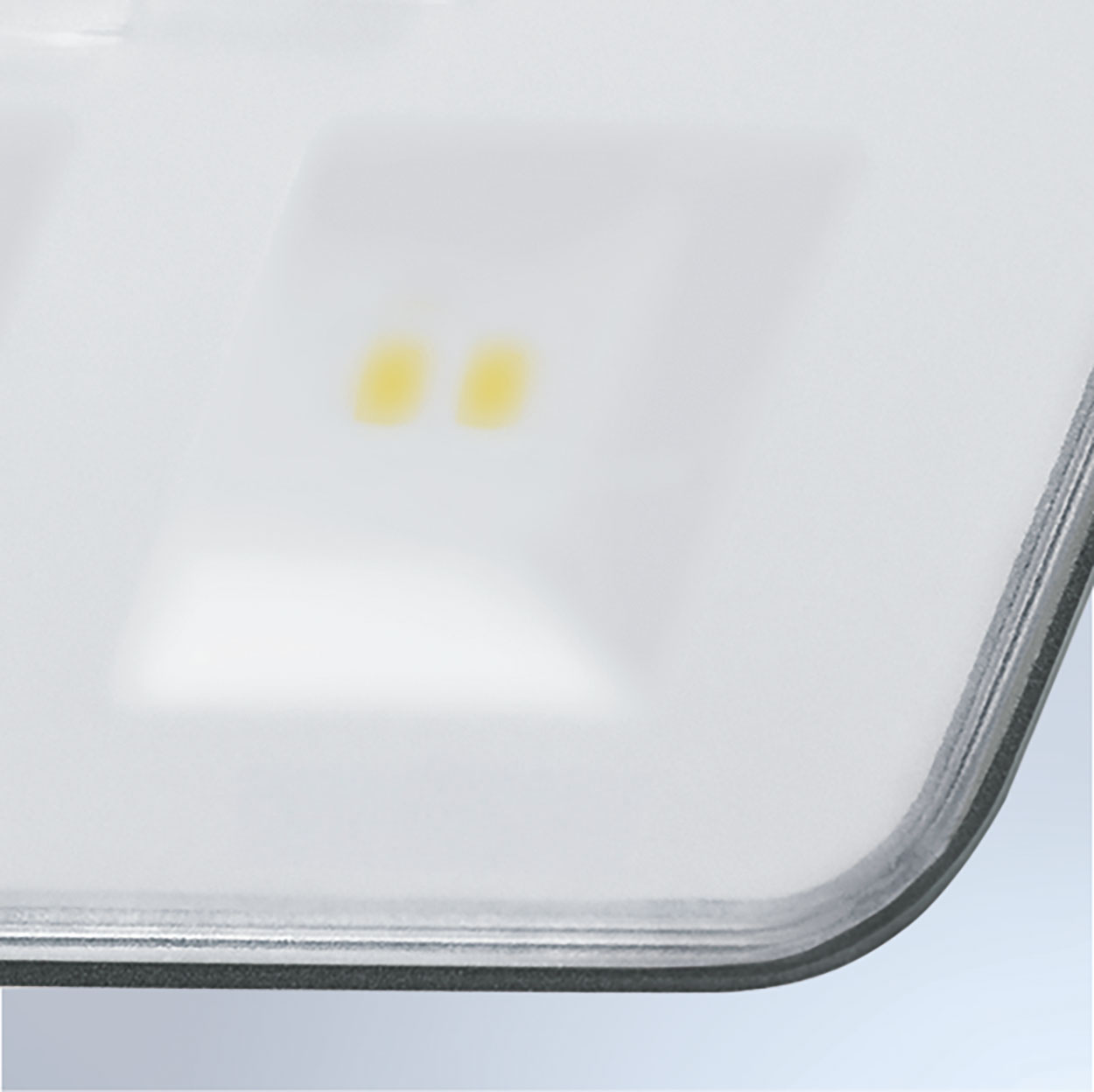

Including STEINEL LED system

Optional basic lighting level

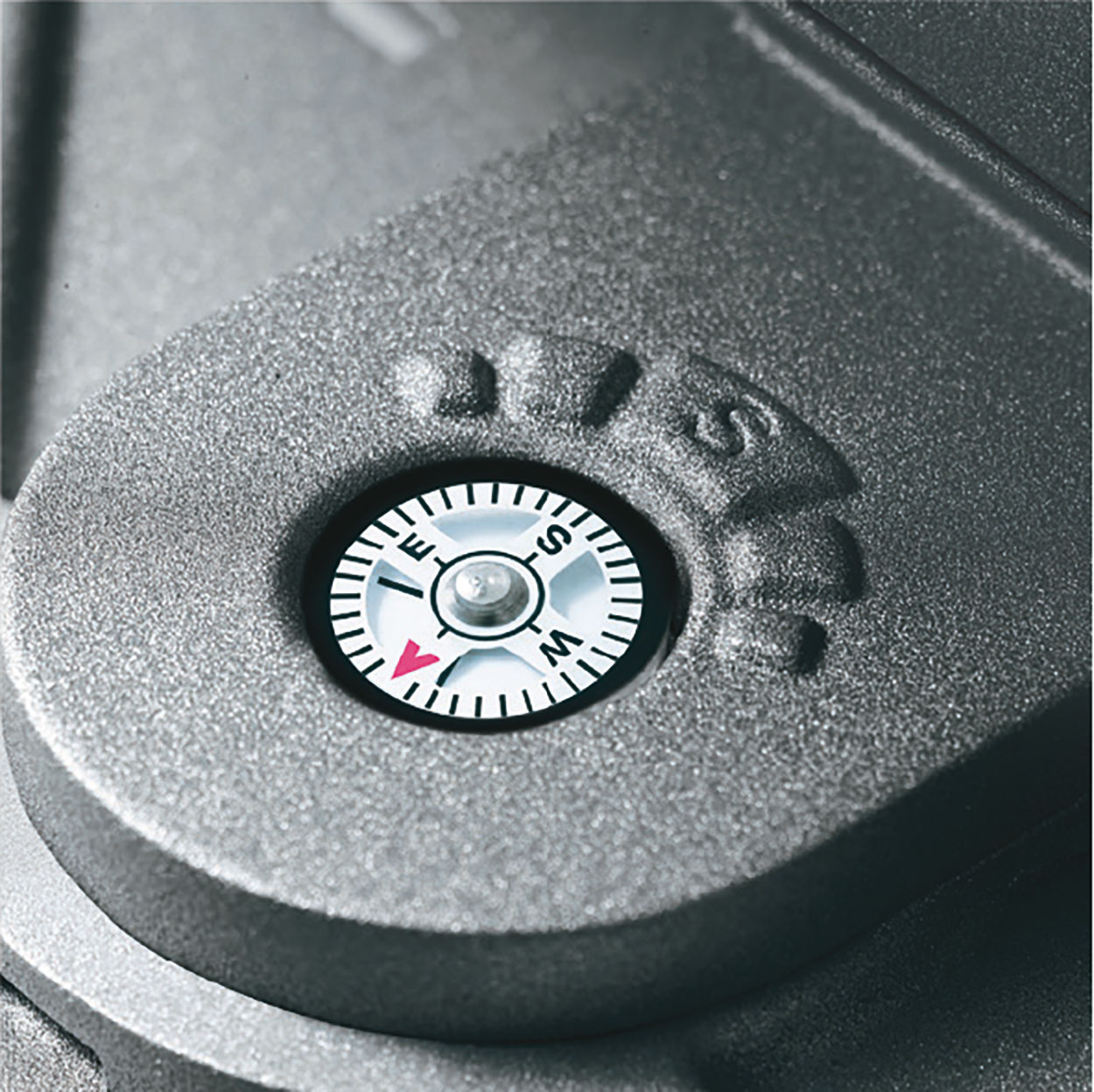

Compass for setting the panel to face the optimum direction

Technical drawing

Sensor detection range
