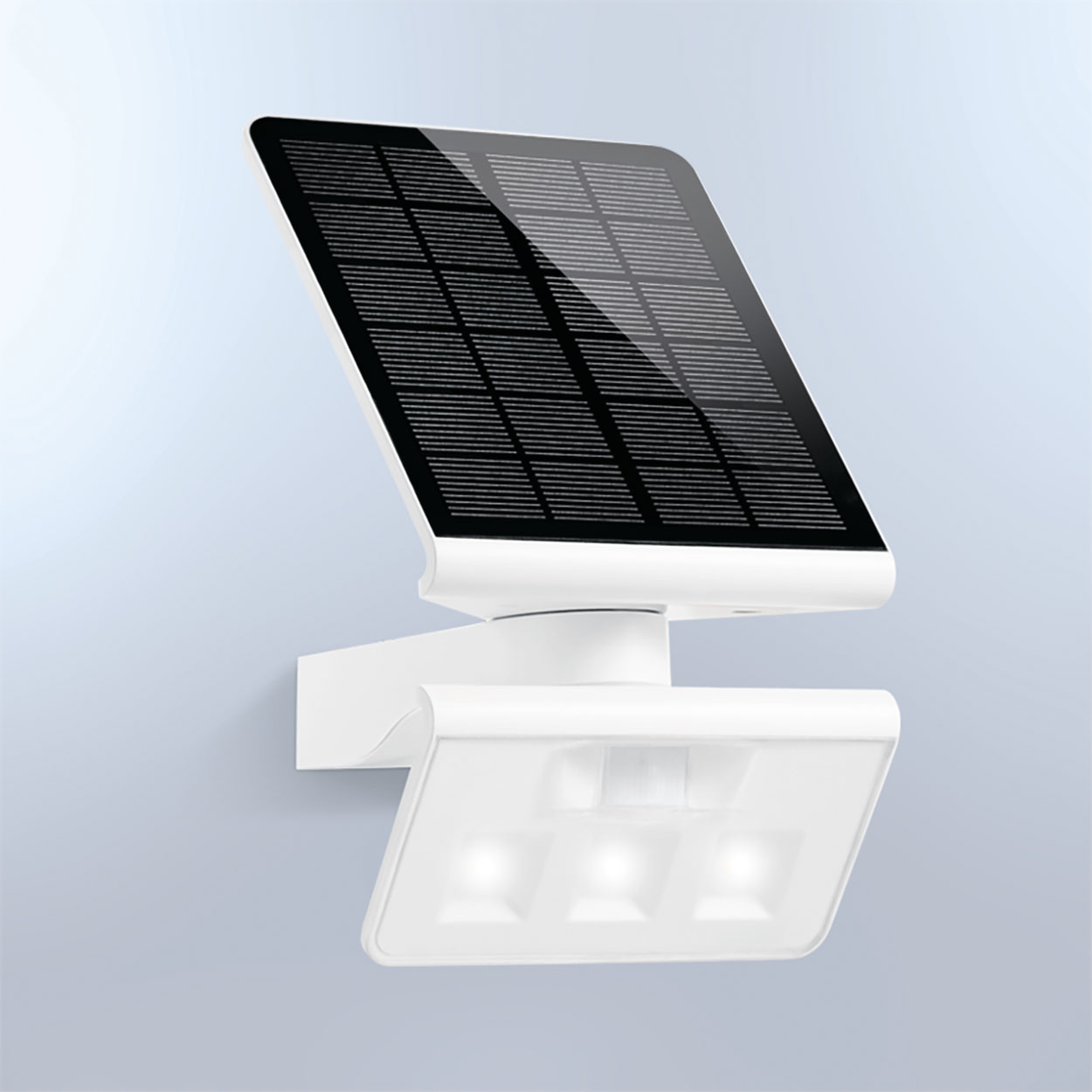

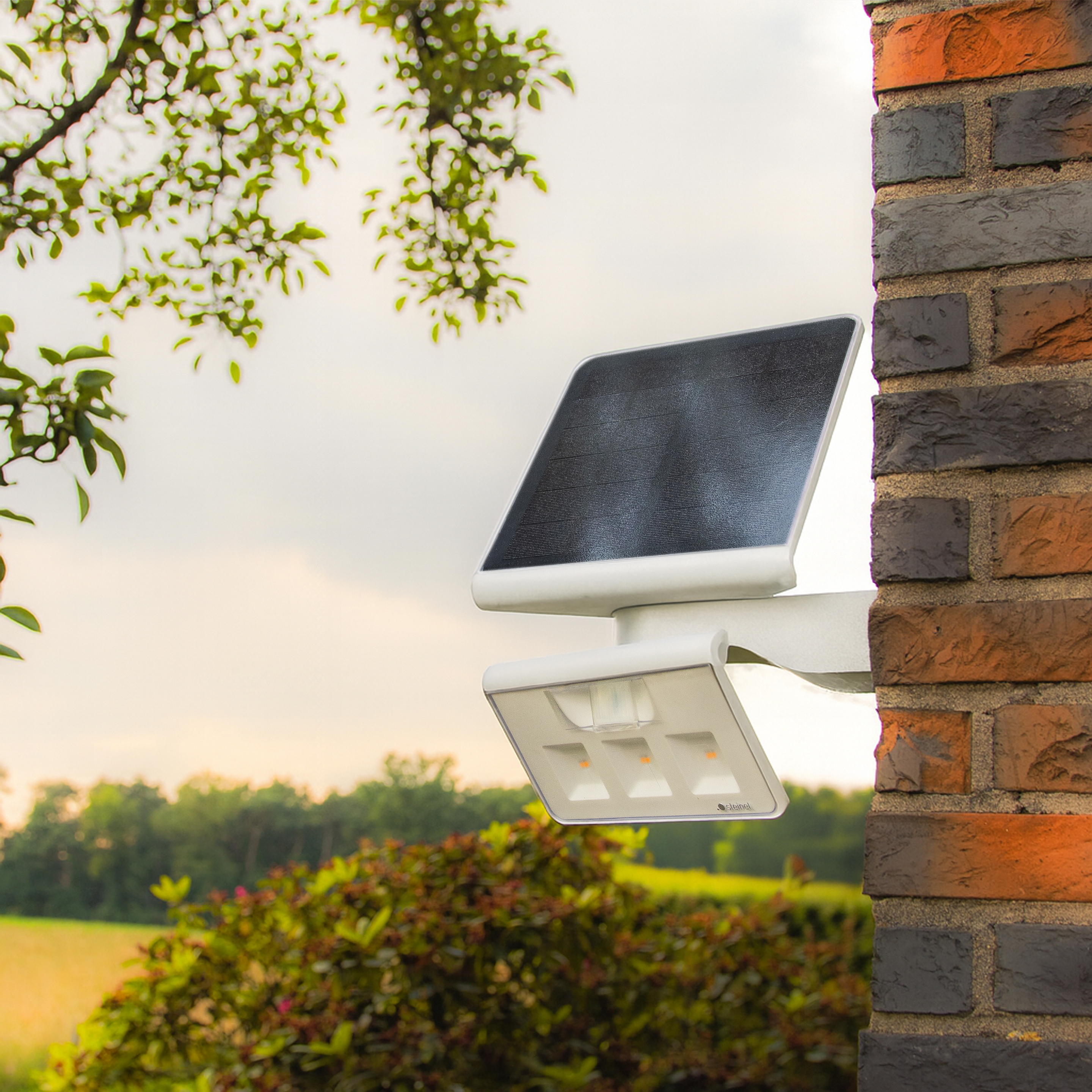

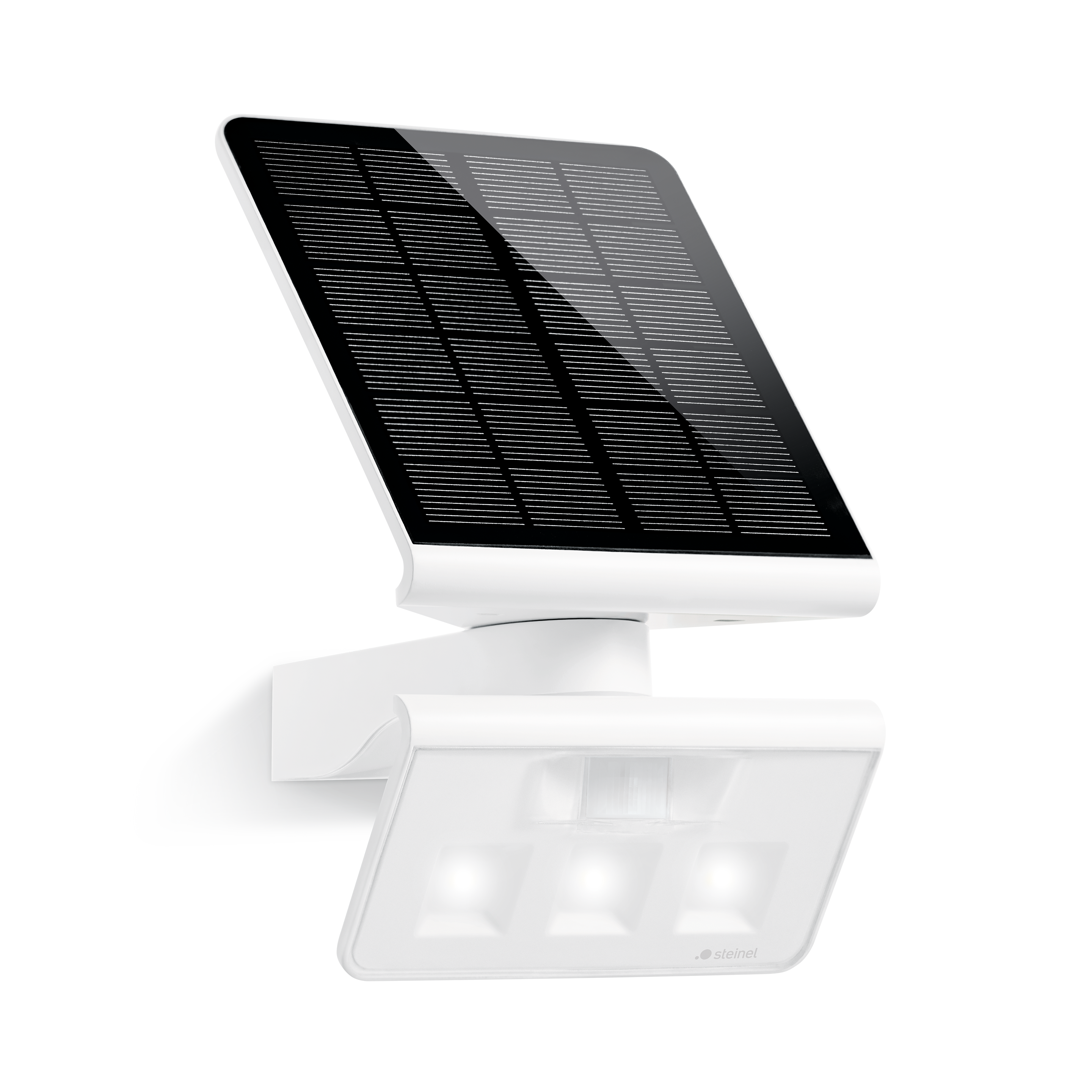

Steinel XSolar L-S white

ELDAS® no. 924 708 010

EAN-No. 4007841 671006

Never again become agitated over solar lights that let you down: developing the XSolar, STEINEL now has the first solar light that always works. In technical terms, it combines the best components – from the highly efficient monocrystalline solar panel, the high-performance infrared sensor and the temperature-resistant rechargeable battery providing lighting availability for 60 days to the intelligent microprocessor control system – reliably illuminating up to 30 sq.m. of your outdoor space with bright LED light. 365 days a year. In any weather. And zero energy costs. This makes it the smartest solution for mounting on garden walls, external walls and wherever there's no power connection available.

Solar light with motion detector, ideal for garden walls and outdoor walls without power connection
Fast and flexible installation even in places without cable connection, 0€ electricity costs for 365 days of light a year
Thanks to the monocrystalline solar panel, the powerful lithium-ferrum battery charges optimally even in cloudy weather and with few hours of sunlight, 2500 mAh capacity for up to 60 days of light reserve

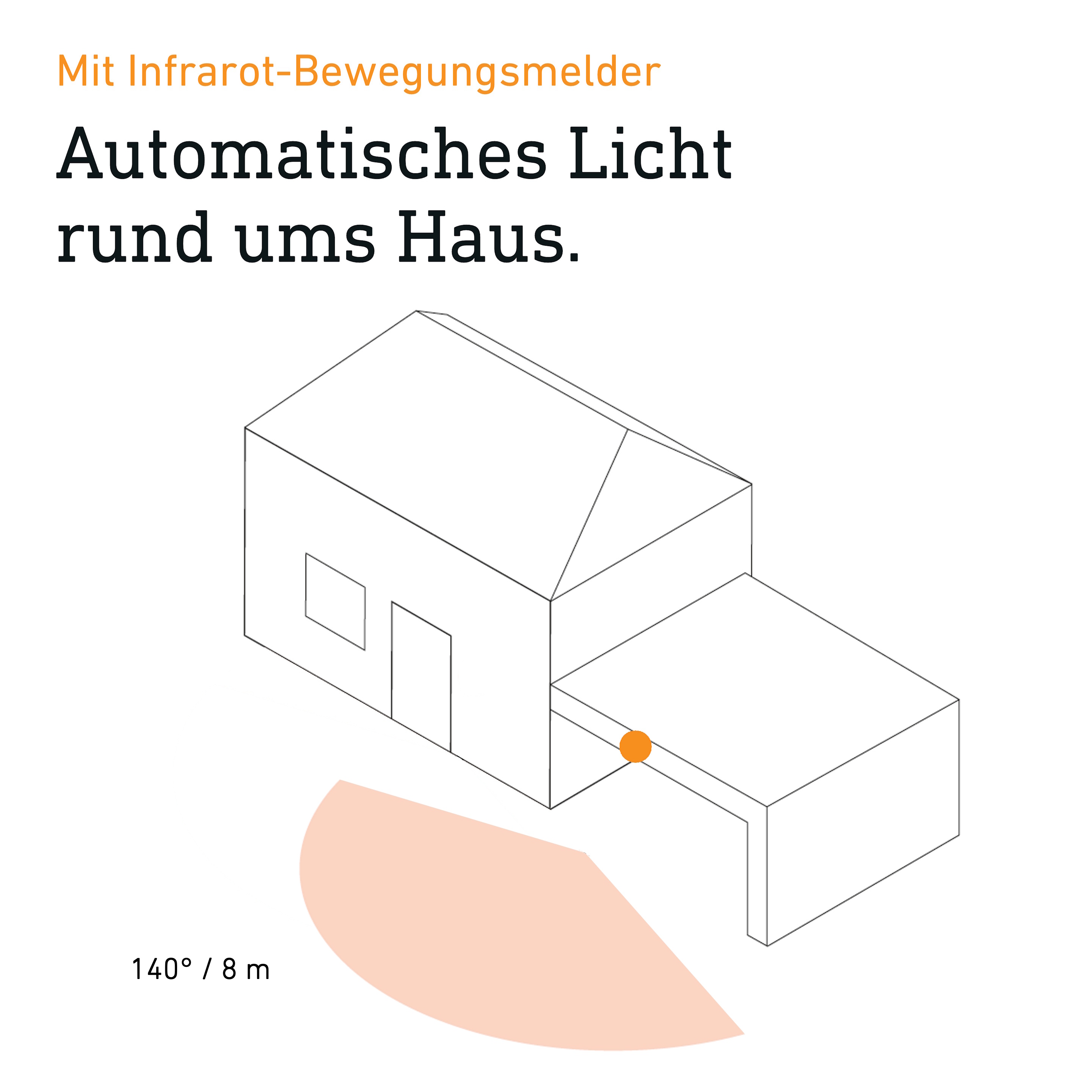

Automatic light thanks to 140 ° Infrared sensor with up to 8 m detection of movement

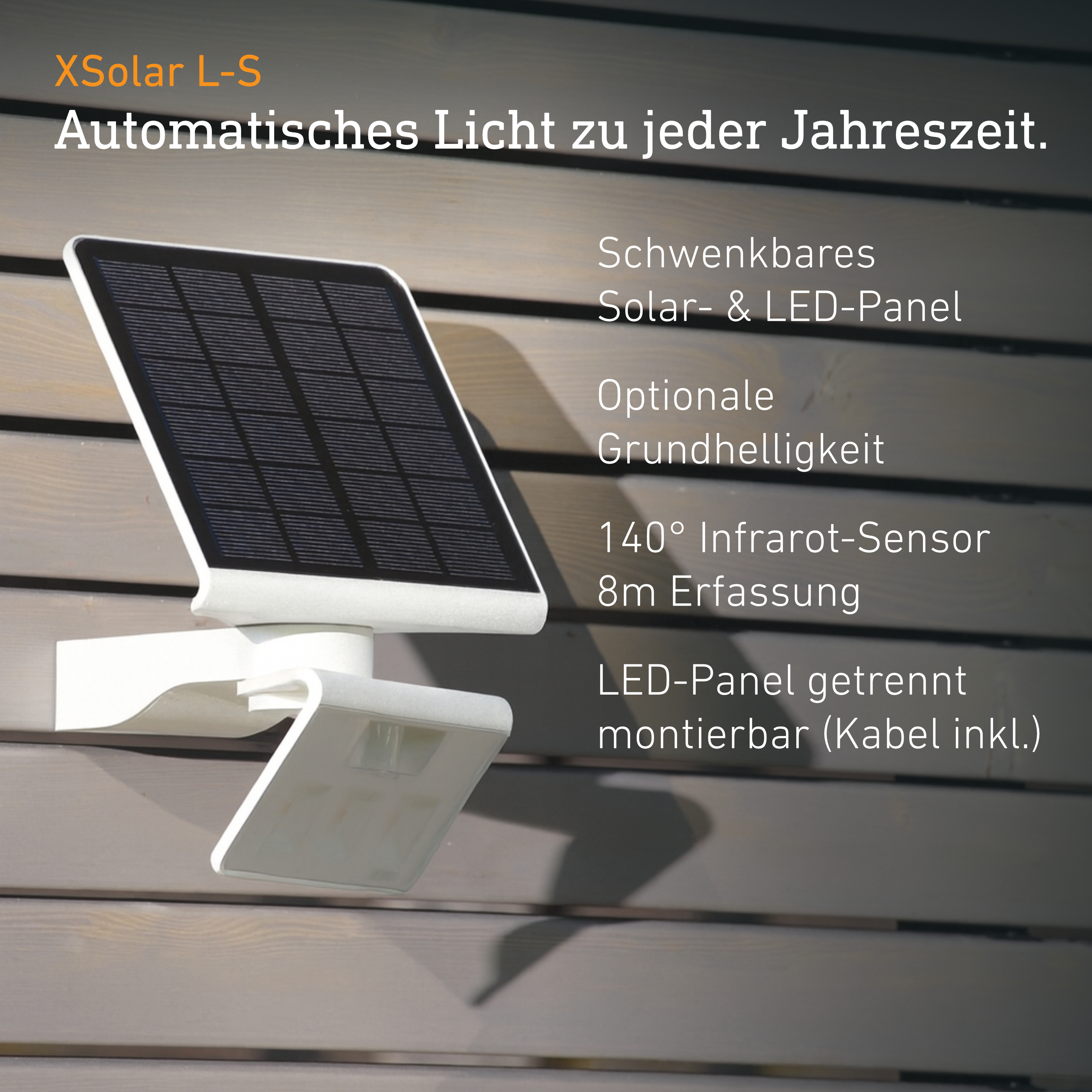

Functions: adjustable basic light in the morning and evening hours, pleasant soft light start, swivelling solar and LED panel, separate mounting of solar panel and LED panel possible
Warm white light (3000 K) with long-life 150 lm LED light system (50. 000 h LED life), with an illumination of 30 sqm.
Incl. 6m extension cable and mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 187 x 189 x 298 mm

Electrical

Power 1,2 W

Supply voltage detail Solar supply, no mains power required Lithium-iron-phosphate rechargeable battery 2500 mAh

Sensor technology

Max. mounting height 2,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range r = 2 m (5 m²)

Tangential range r = 8 m (78 m²)

Mounting height 1,80 – 2,00 m

Optimal mounting height 1,8 m

Lighting technology

Measured luminous flux 360° 150 lm

Colour temperature 3000 K

LED colour deviation SDCM5

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start No

Lifetime

LED lifetime max. °C 50000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 lx

Time setting 10 s – 0,5 Min.

Base light function Yes

Base light function time all night

Functions Motions sensor

Settings via Potentiometers

Base light function in percent 3 %

Base light function percent from 3 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class III

Ambient temperature from -20 up to 40 °C

Housing material Plastic

Cover material Plastic, transparent

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour white

Scope of delivery & warranty

Manufacturer warranty 3 years

Extension cable included 6 m

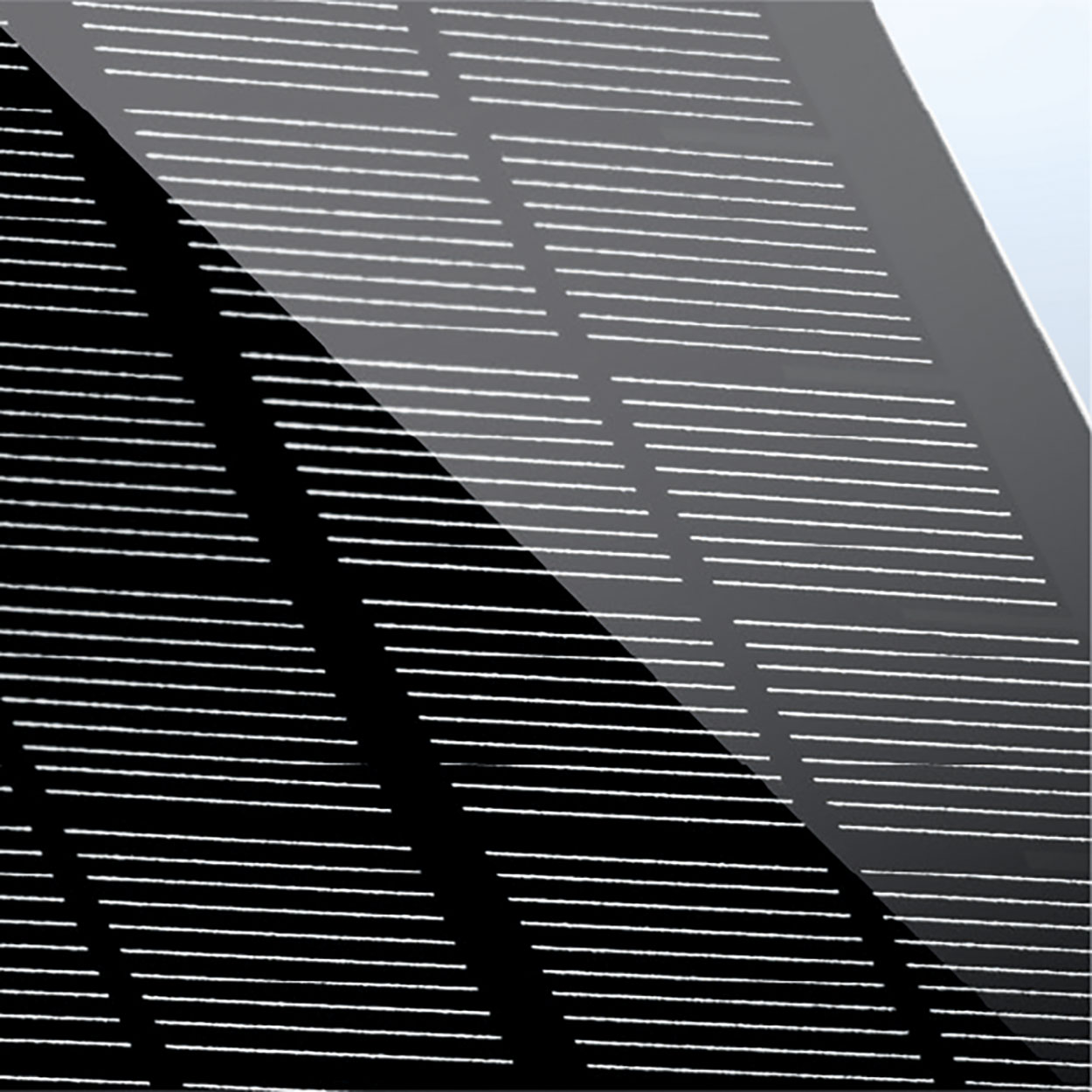

High-quality monocrystalline solar panel

Including 2500 mAh lithium iron-phosphate rechargeable battery

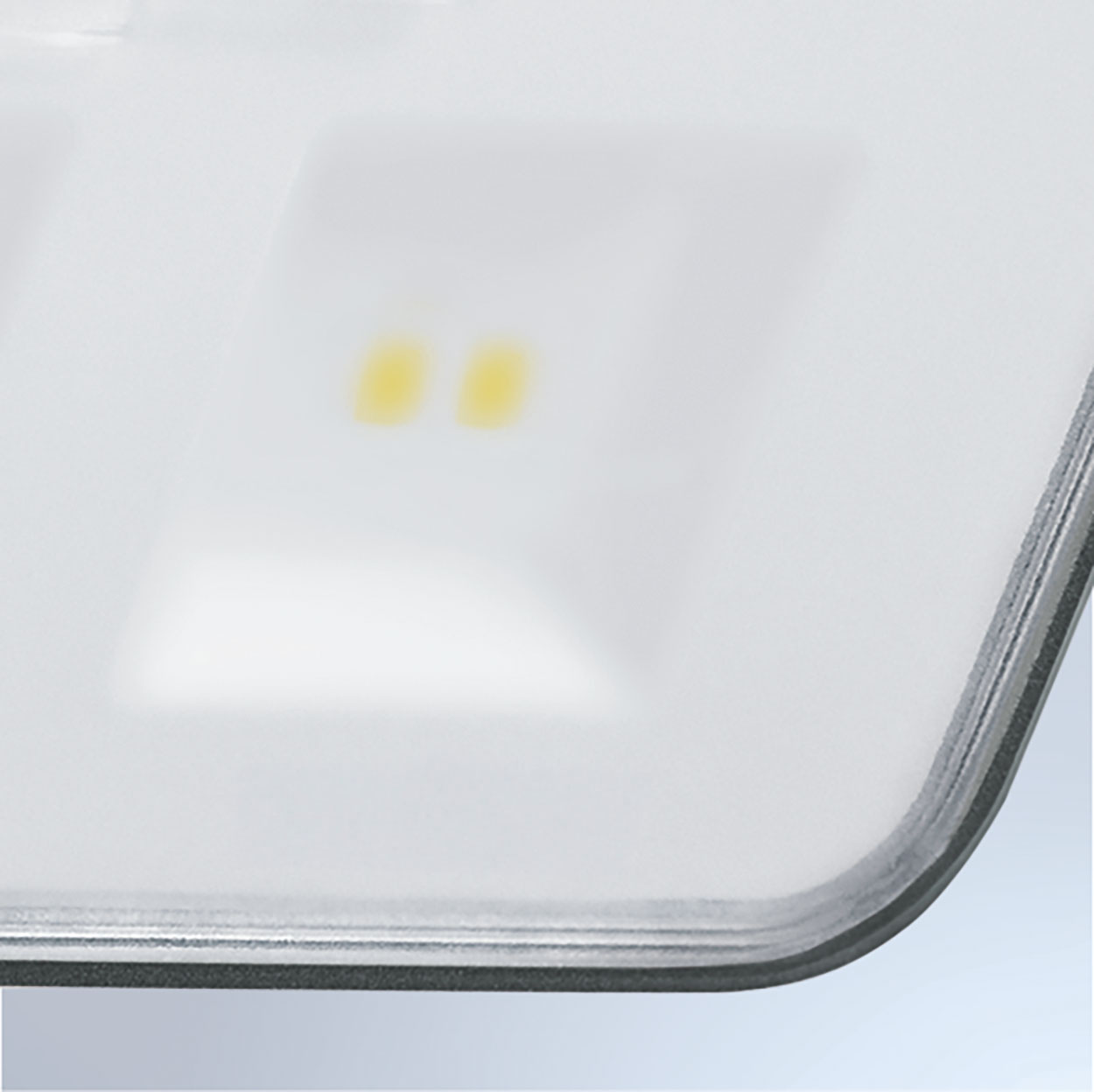

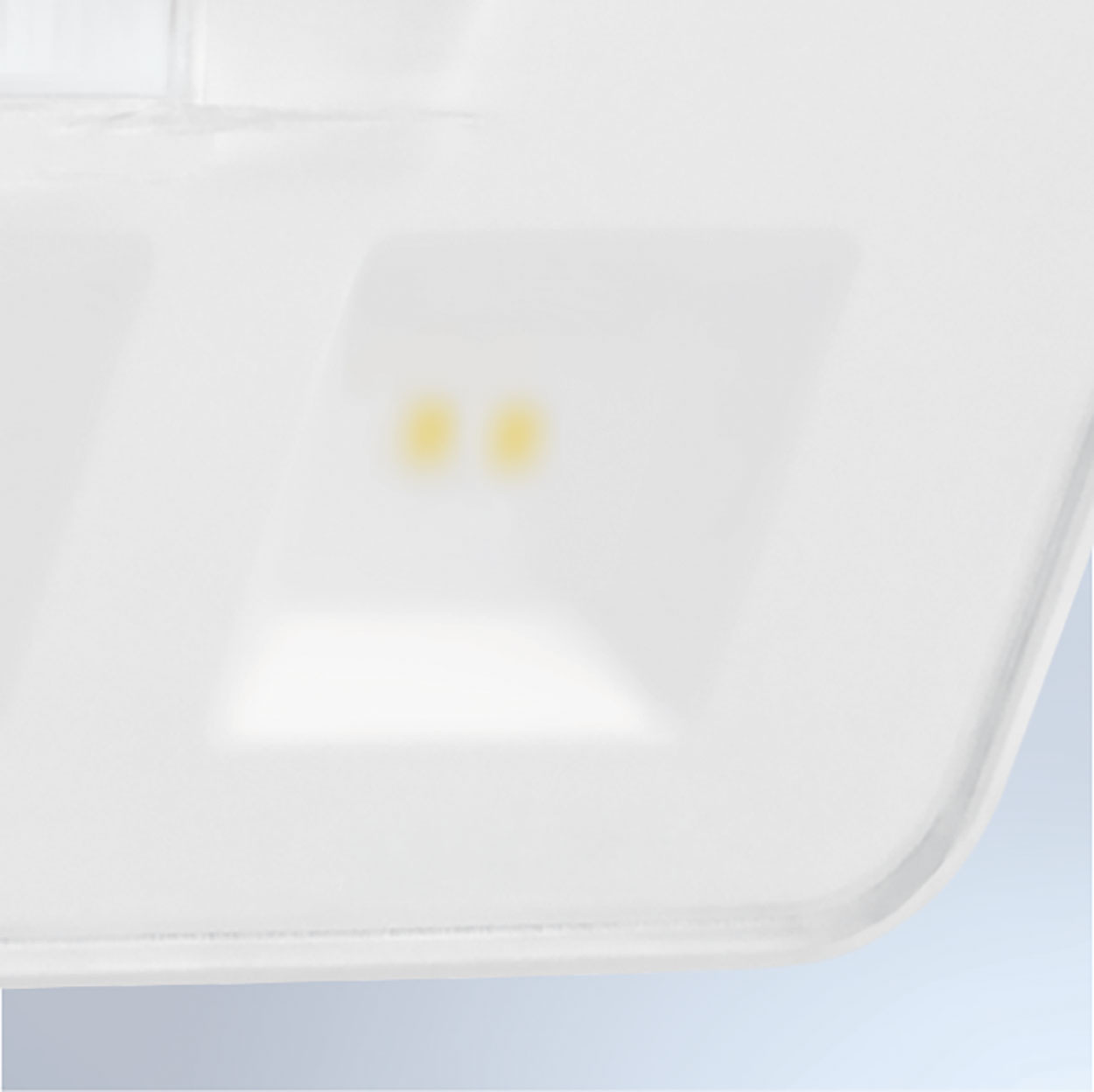

Including STEINEL LED system

Optional basic lighting level

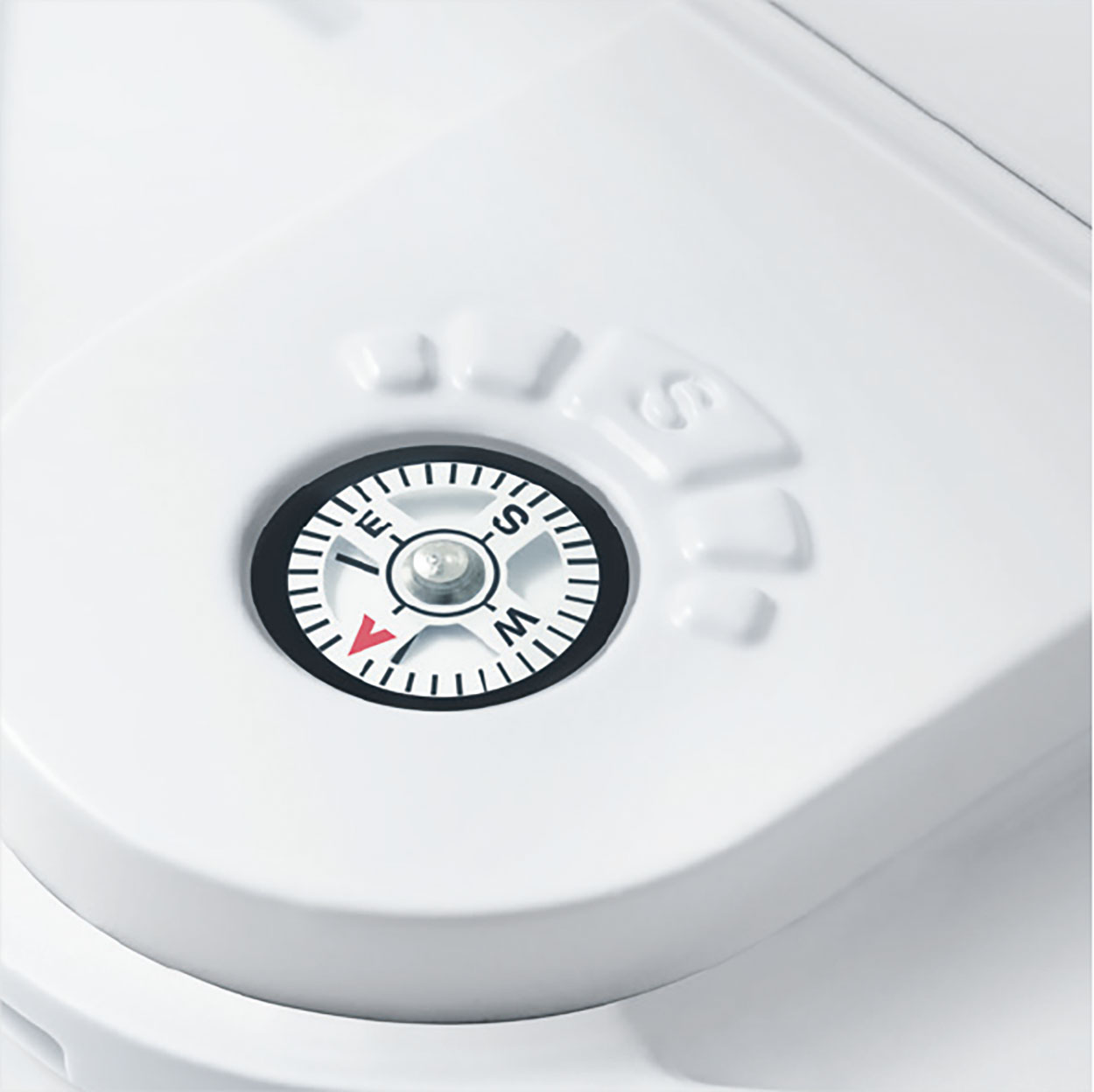

Compass for setting the panel to face the optimum direction

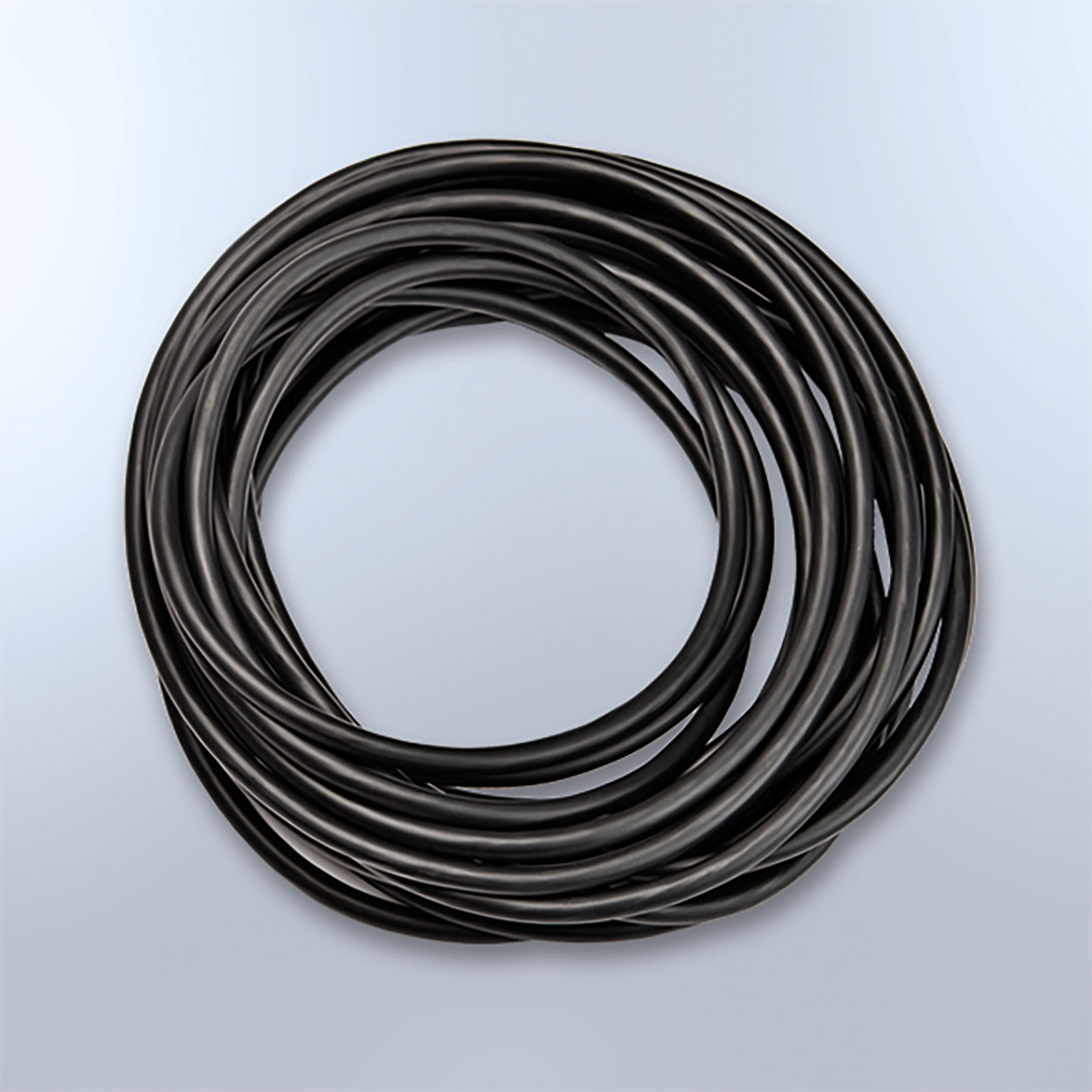

Included 6 m extension cable

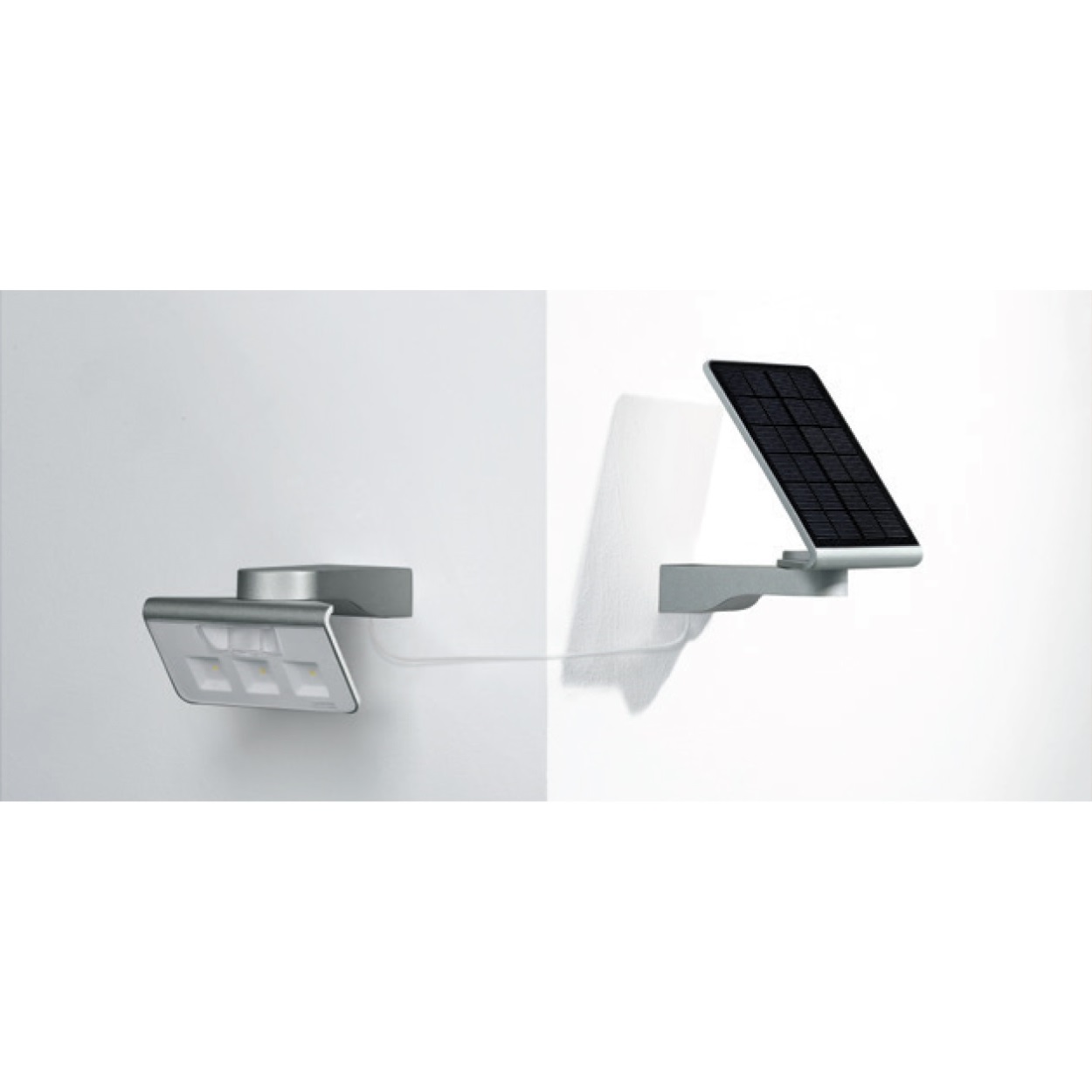

Solar panel and LED panel separate mounting possible

Technical drawing

Sensor detection range

Data sheet User manual Declaration of conformity Drilling template

Replacement extension lead for XSolar L-S

Item no. 006518
