Nevalux aluna DALI C500 3K
Product code 221429
Price: Please log in to see prices
Diameter
Ø910mm - 9800lm
Ø630mm - 6100lm
Ø500mm - 5200lm
Light colour
Warm white (3000K)
Neutral white (4000K)
Tunable White 2700K - 5600K
Intelligence
Connect LS (light sensor)
Connect PIR (motion and light sensor)
Mounting
Pendant mounting
Ceiling mounting
- Timeless simple textile lamp in 3 different sizes
- Available in ceiling and pendant versions
- Connect version with IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
- Connect version available with light sensor (LS) or with motion detector and light sensor (PIR)
- For universal use for illumination of offices, schools, traffic zones, etc.
- Very high quality workmanship from Swiss manufacturing
- Sophisticated thermal management for long service life
- Variants with adjustable light color (Tunable White) to emulate the natural course of daylight
- Fabric shade can be ordered in any color
Variants
Luminous flux
5200 lm (Down 4470, Up 730)
Dimensions
Dimensions Ø × H
500 x 118 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
43 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
With motion detector
No
With light sensor
No
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
5200 lm (Down 4470, Up 730)
Beam angle
105°
Luminaire luminous efficacy
122 lm/W
Glare value
UGR < 21
Lifetime
LED lifespan (25 °C)
70000 h
Settings
DALI dimming
Yes
With emergency light
No
Direct/indirect ratio separately controllable
No
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Steel
Cover material
Acrylic glass opal
Mounting type
Ceiling surface-mounted
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

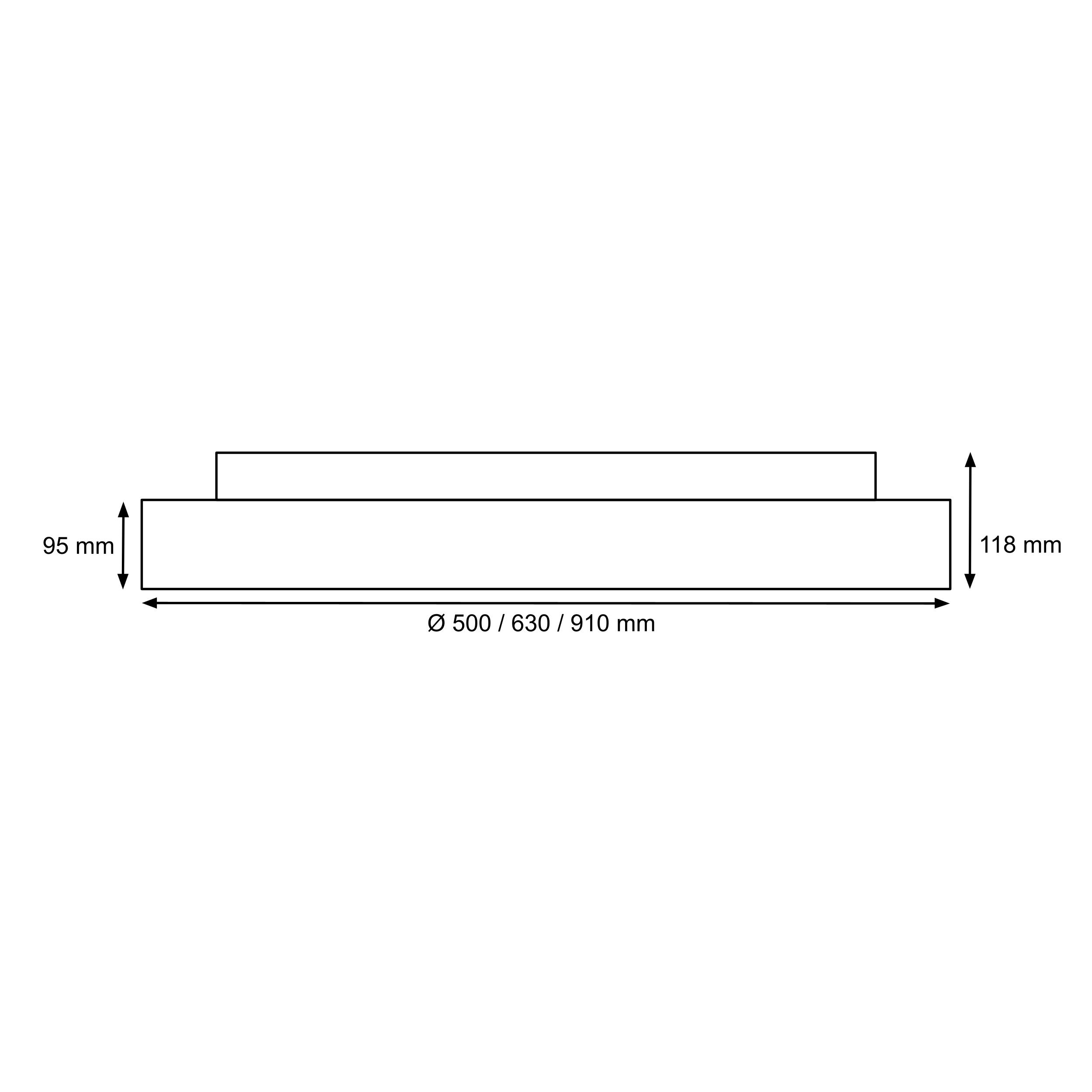

Technical drawing

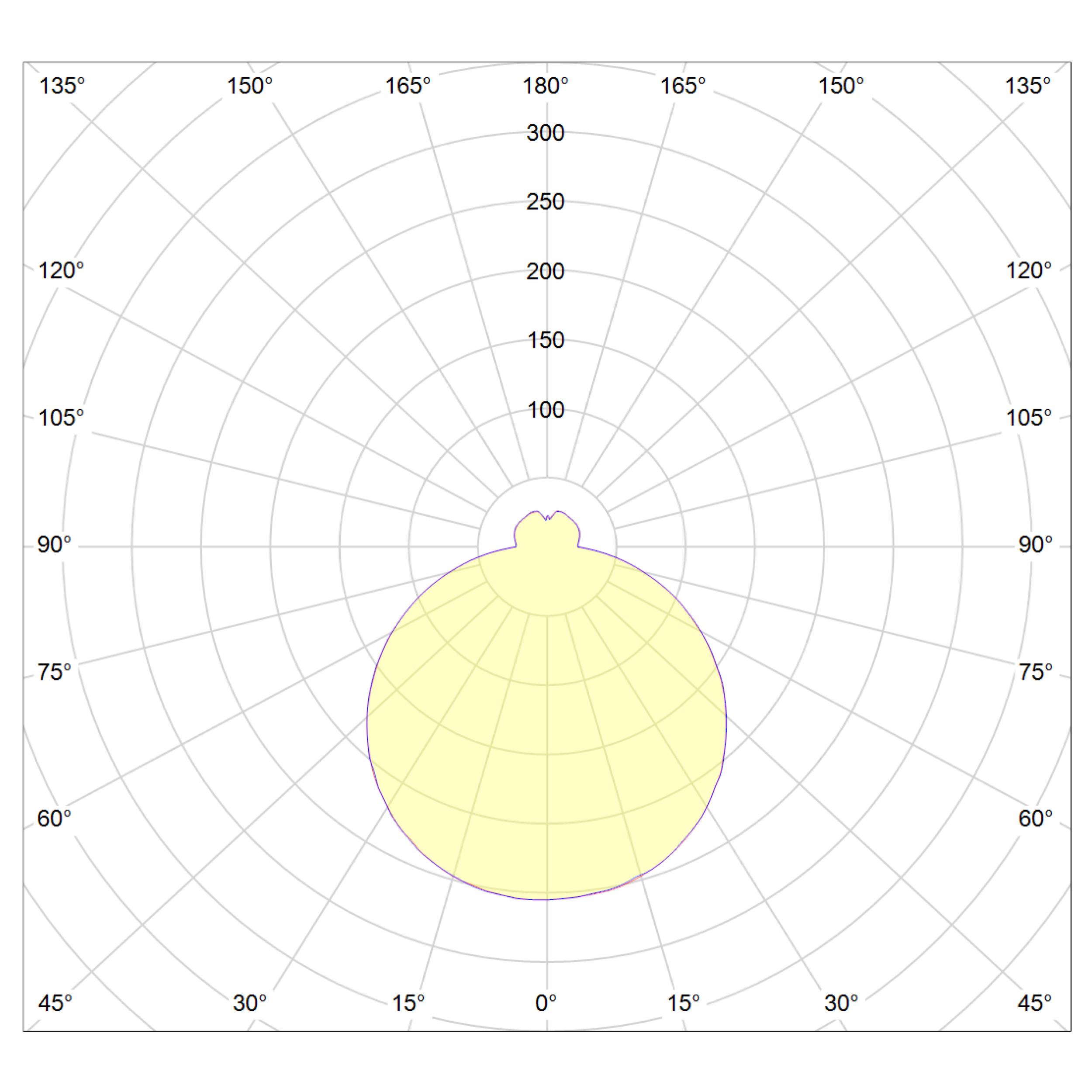

Lichtverteilungskurve

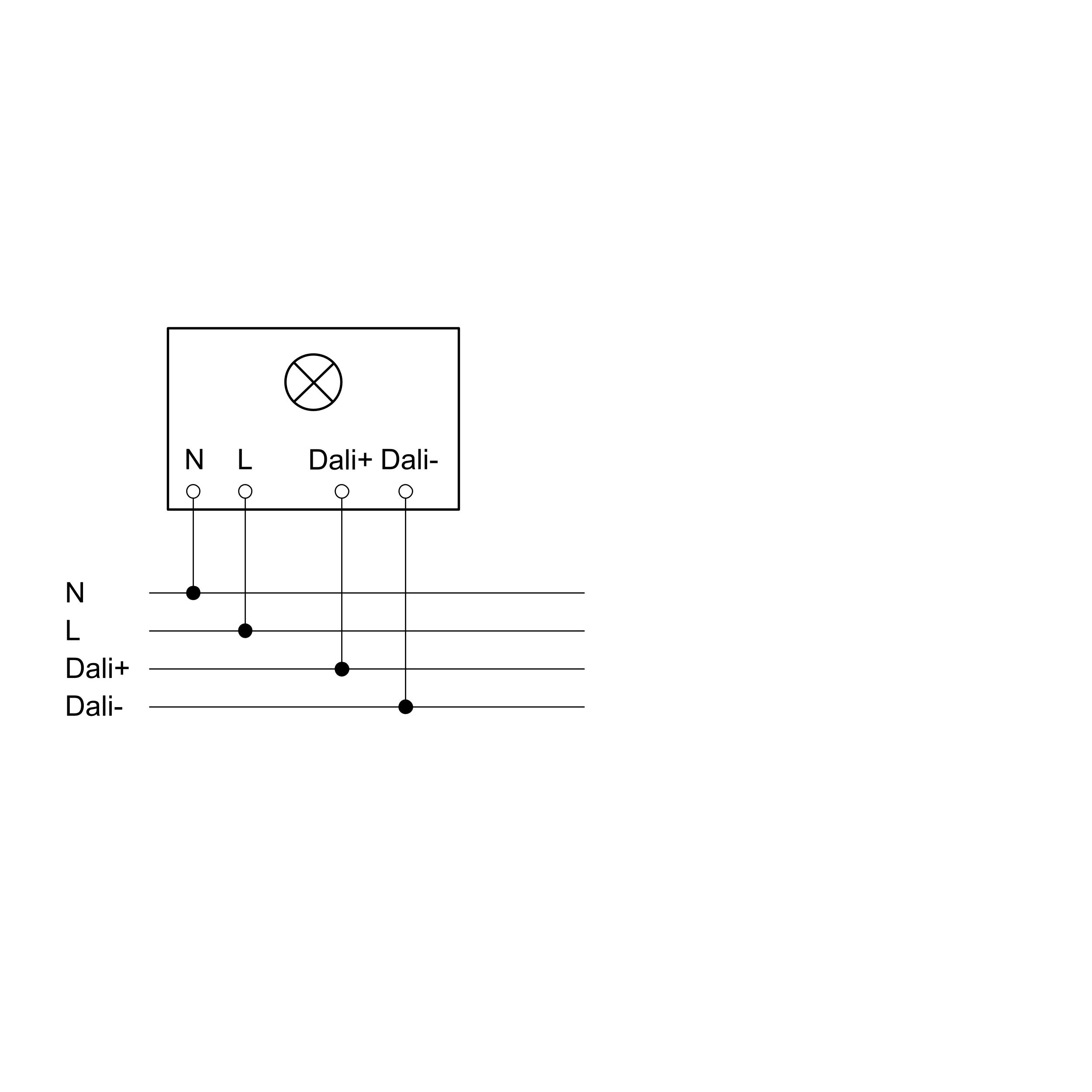

Wiring diagram 1
Wiring diagram

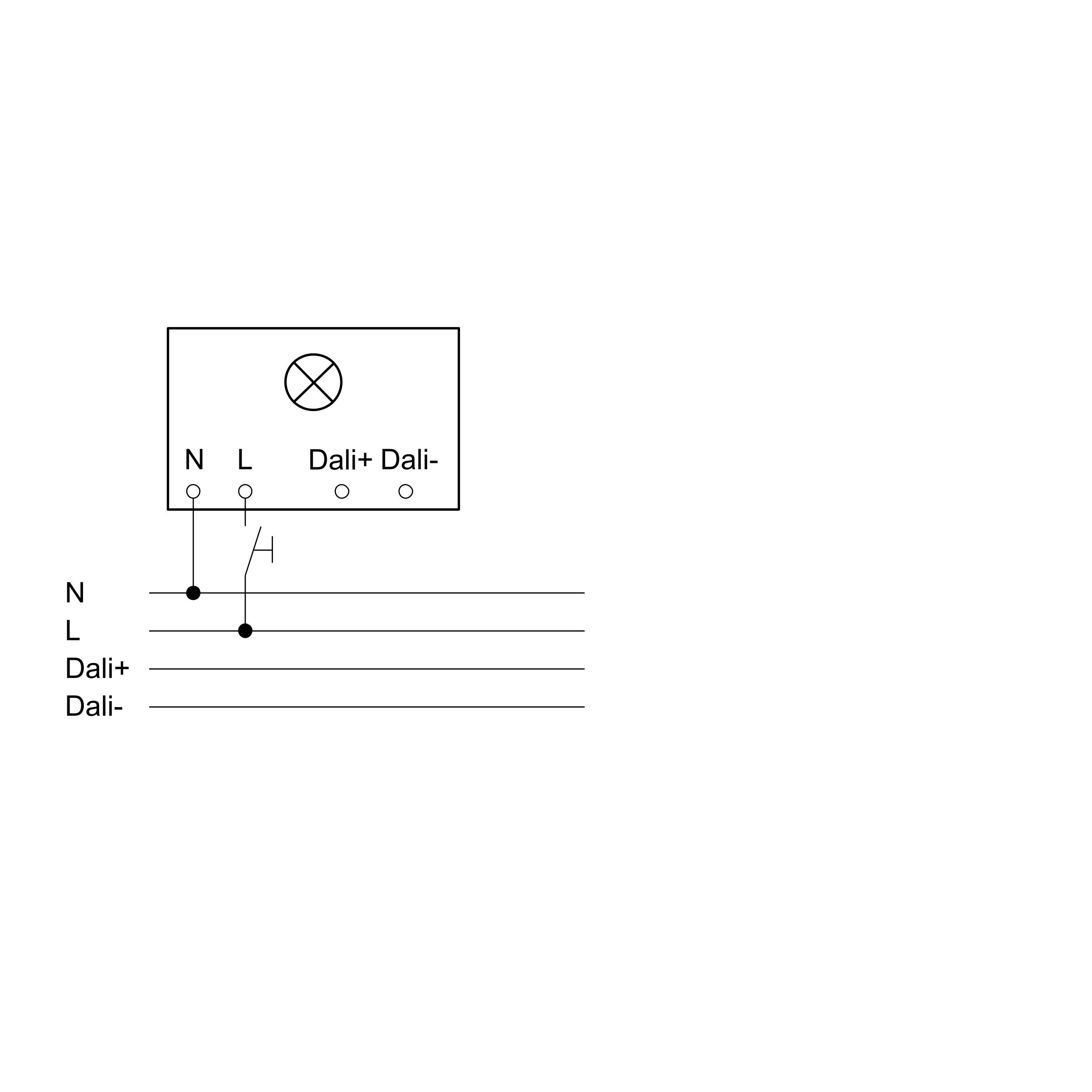

Wiring diagram 2
Wiring diagram
