nevalux aluna DALI C500 TW

Fabric light for offices and meeting rooms. Three sizes, as pendant or ceiling light.

Product code 221430

Price: Please log in to see prices

Dimensions Ø × H

500 x 118 mm 630 x 118 mm 910 x 118 mm

Colour temperature

3000 K 3000...5600 K 4000 K

Mounting type

Pendant mounting Surface mounted (ceiling / wall)

Control technology

Dali-Leuchte Smartlink Connect

With motion detector

No
  • Timeless simple textile lamp in 3 different sizes
  • Available in ceiling and pendant versions
  • Connect version with IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
  • Connect version available with light sensor (LS) or with motion detector and light sensor (PIR)
  • For universal use for illumination of offices, schools, traffic zones, etc.
  • Very high quality workmanship from Swiss manufacturing
  • Sophisticated thermal management for long service life
  • Variants with adjustable light color (Tunable White) to emulate the natural course of daylight
  • Fabric shade can be ordered in any color

Dimensions

Dimensions Ø × H 500 x 118 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 43 W
Replaceable driver Yes
Type of wiring Suitable for through wiring

Sensor technology

With light sensor No

Connectivity

Networking via DALI 2

Lighting technology

Colour temperature 3000...5600 K
LED colour deviation SDCM3
Colour rendering index 80 - 89
Illuminant LED
Luminous flux 5200 lm (Down 4470, Up 730)
Beam angle 105°
Luminaire luminous efficacy 122 lm/W
Glare value UGR < 21

Lifetime

LED lifespan (25 °C) 70000 h

Settings

DALI dimming Yes
With emergency light No
Direct/indirect ratio separately controllable No

Housing & material

Protection class (IP) IP20
Protection class I
Ambient temperature -20...+45 °C
Housing material Steel
Cover material Acrylic glass opal
Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class E

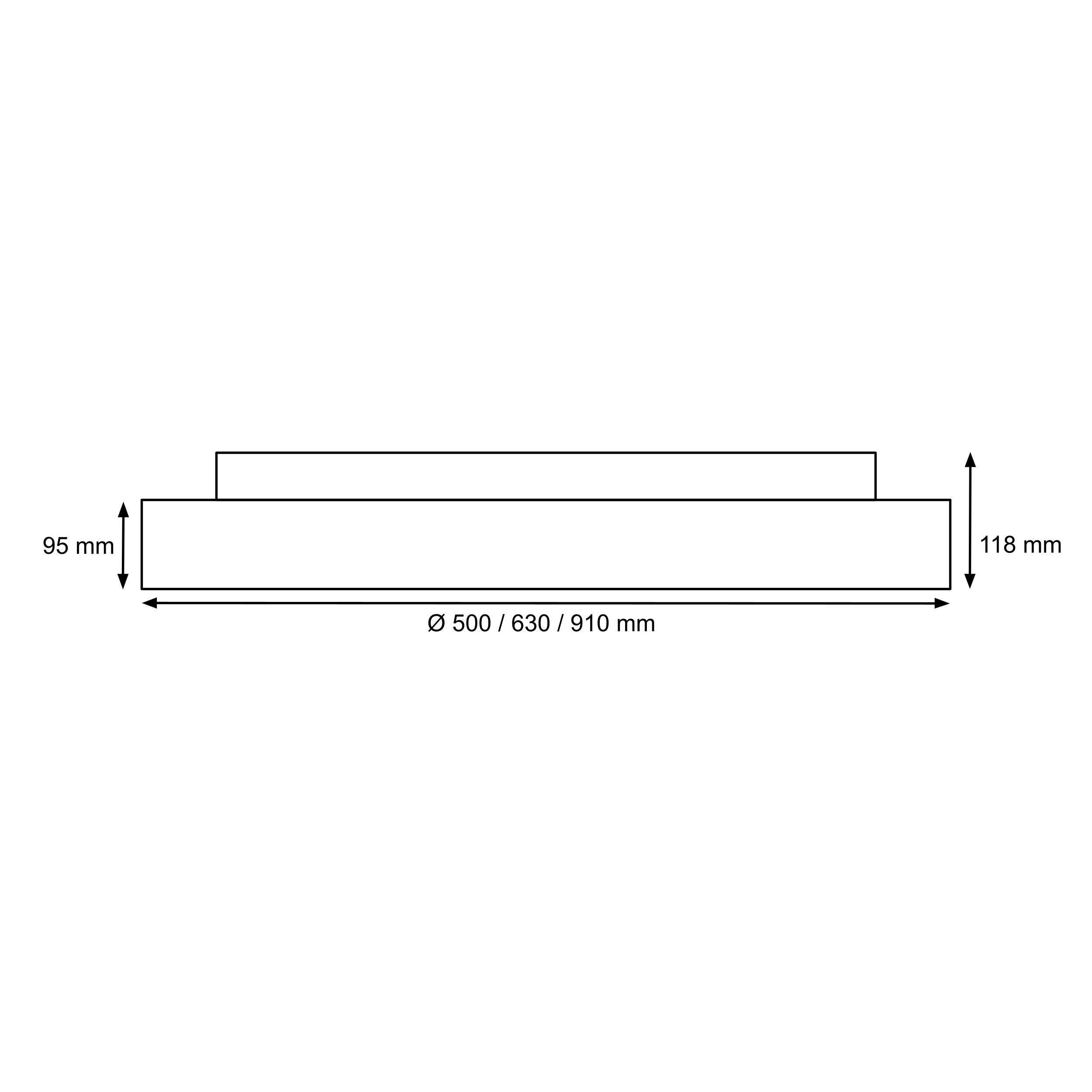

Technical drawing

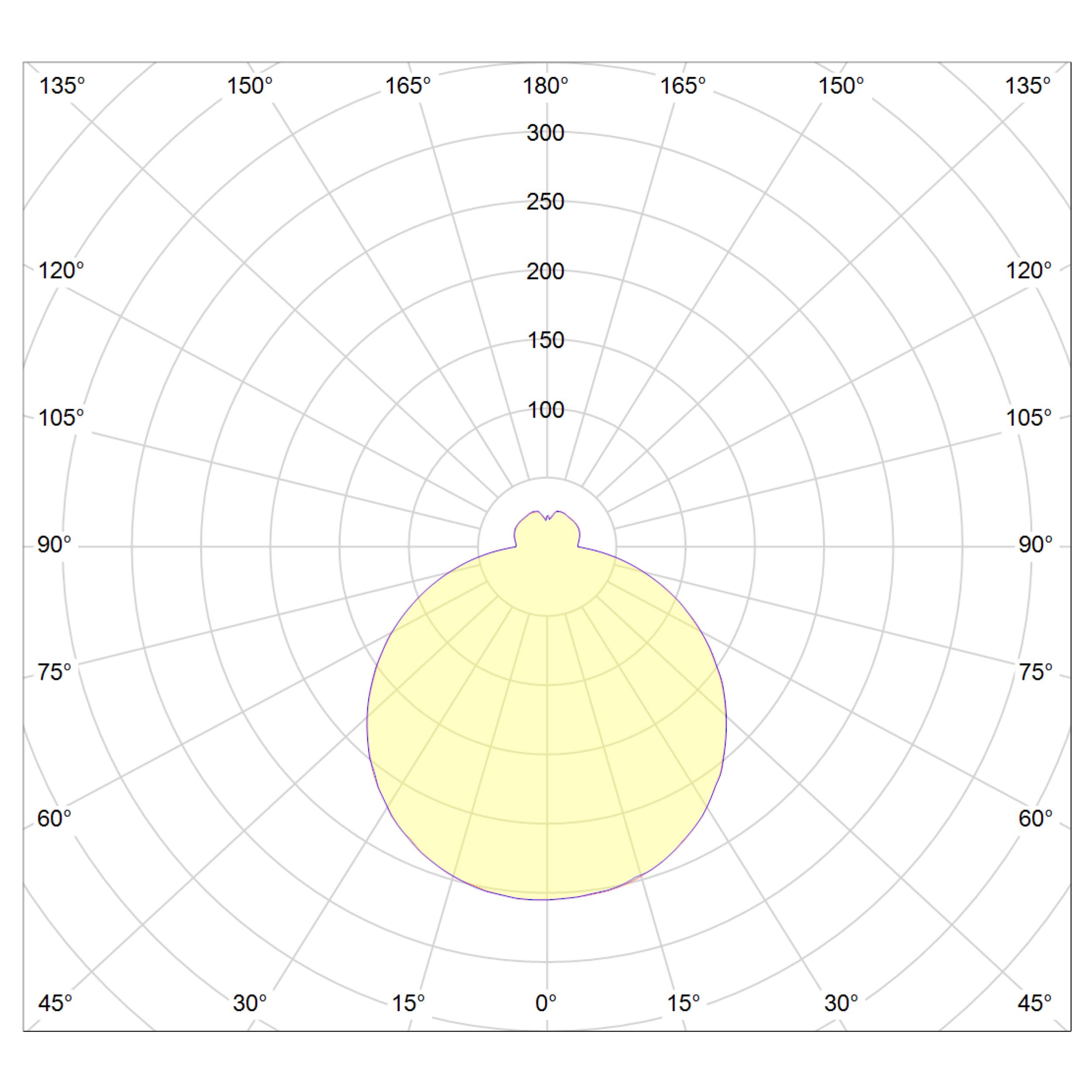

Lichtverteilungskurve

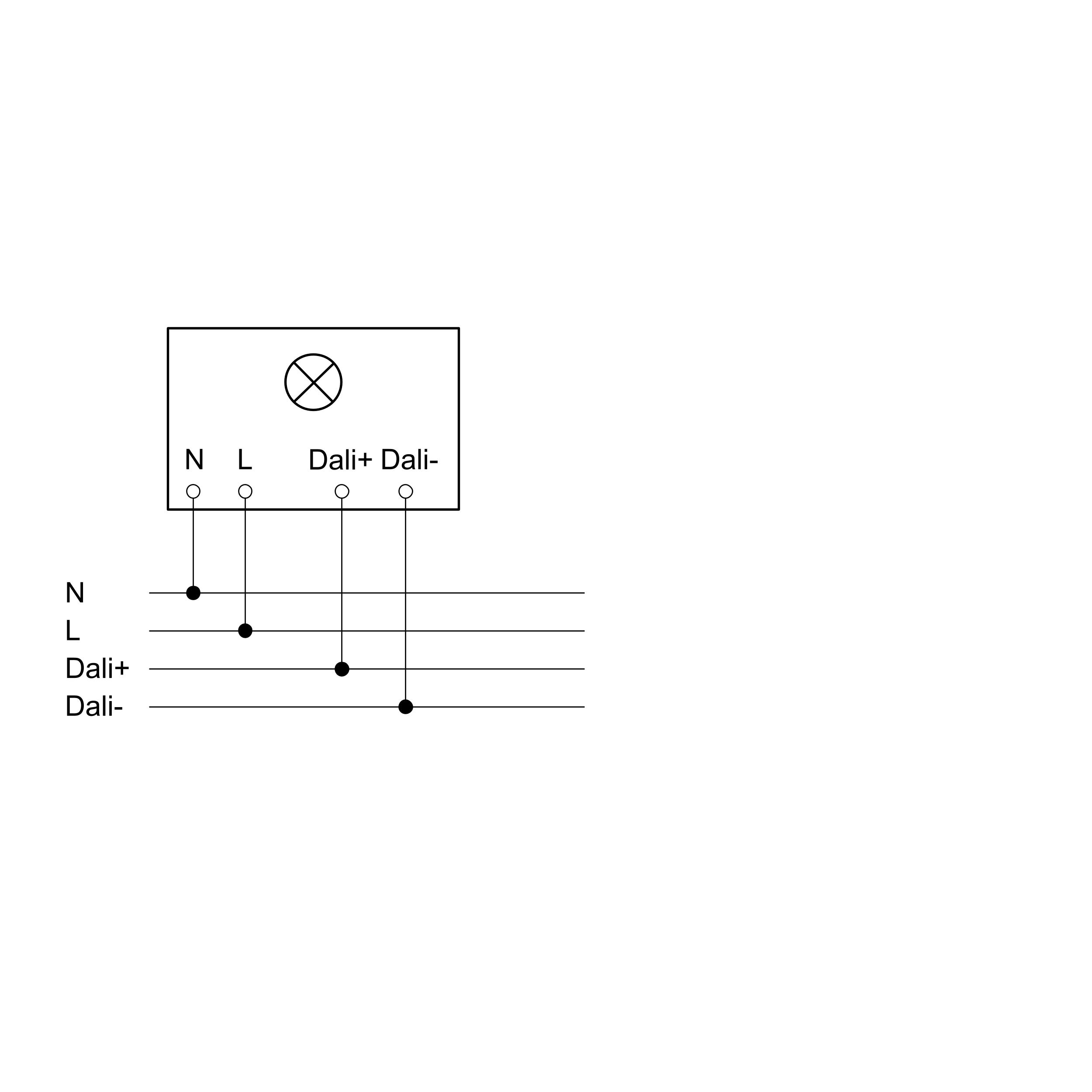

Wiring diagram 1

Wiring diagram

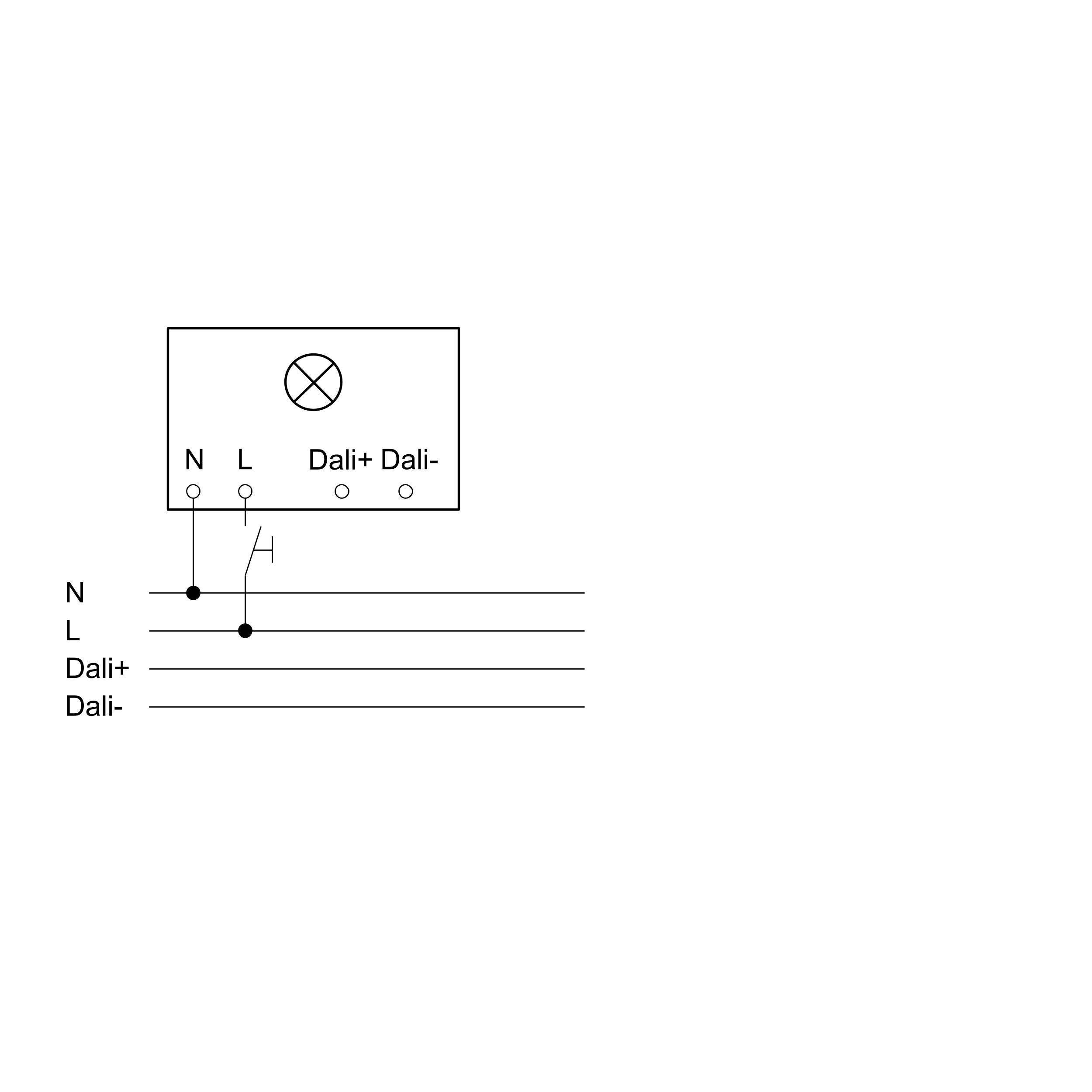

Wiring diagram 2

Wiring diagram
