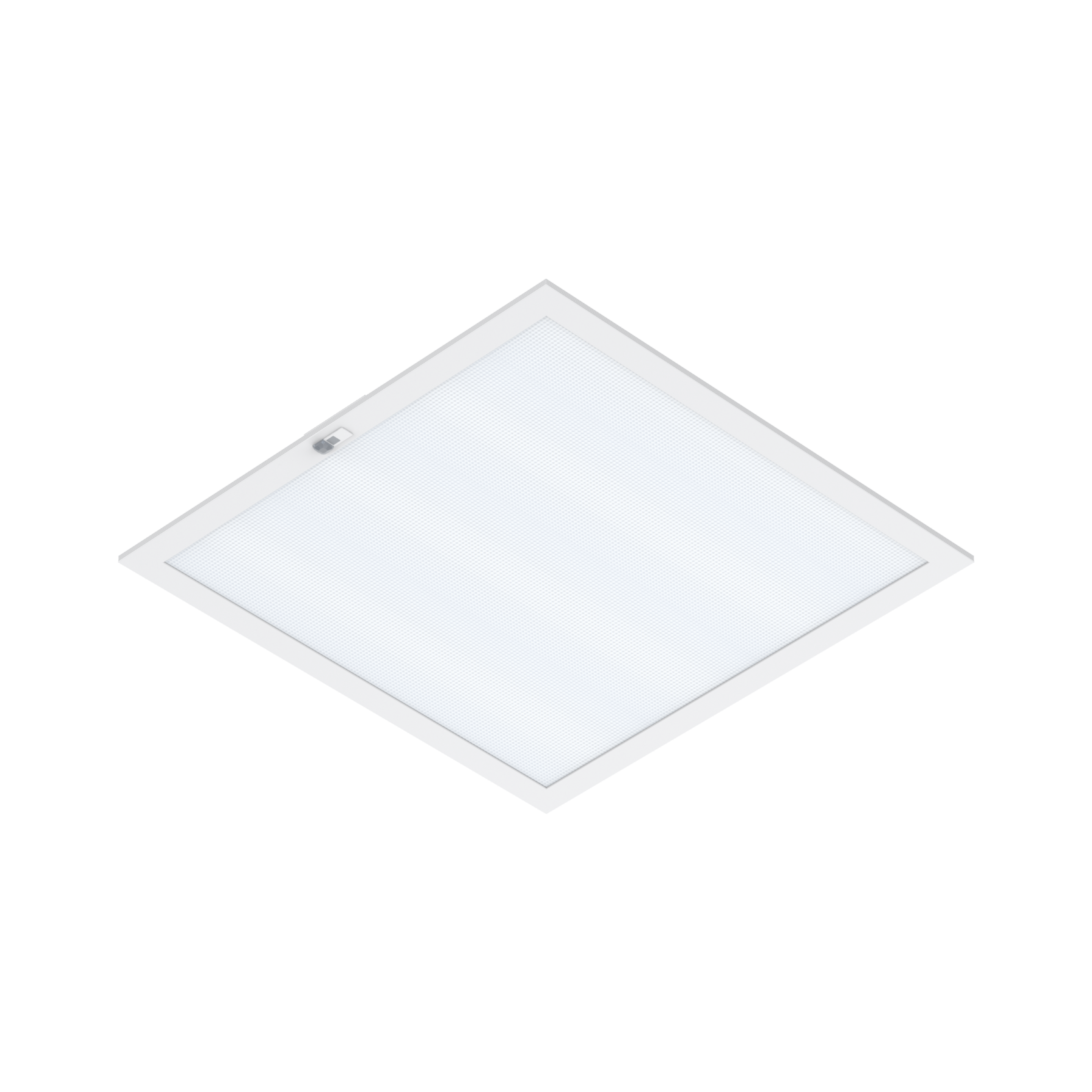

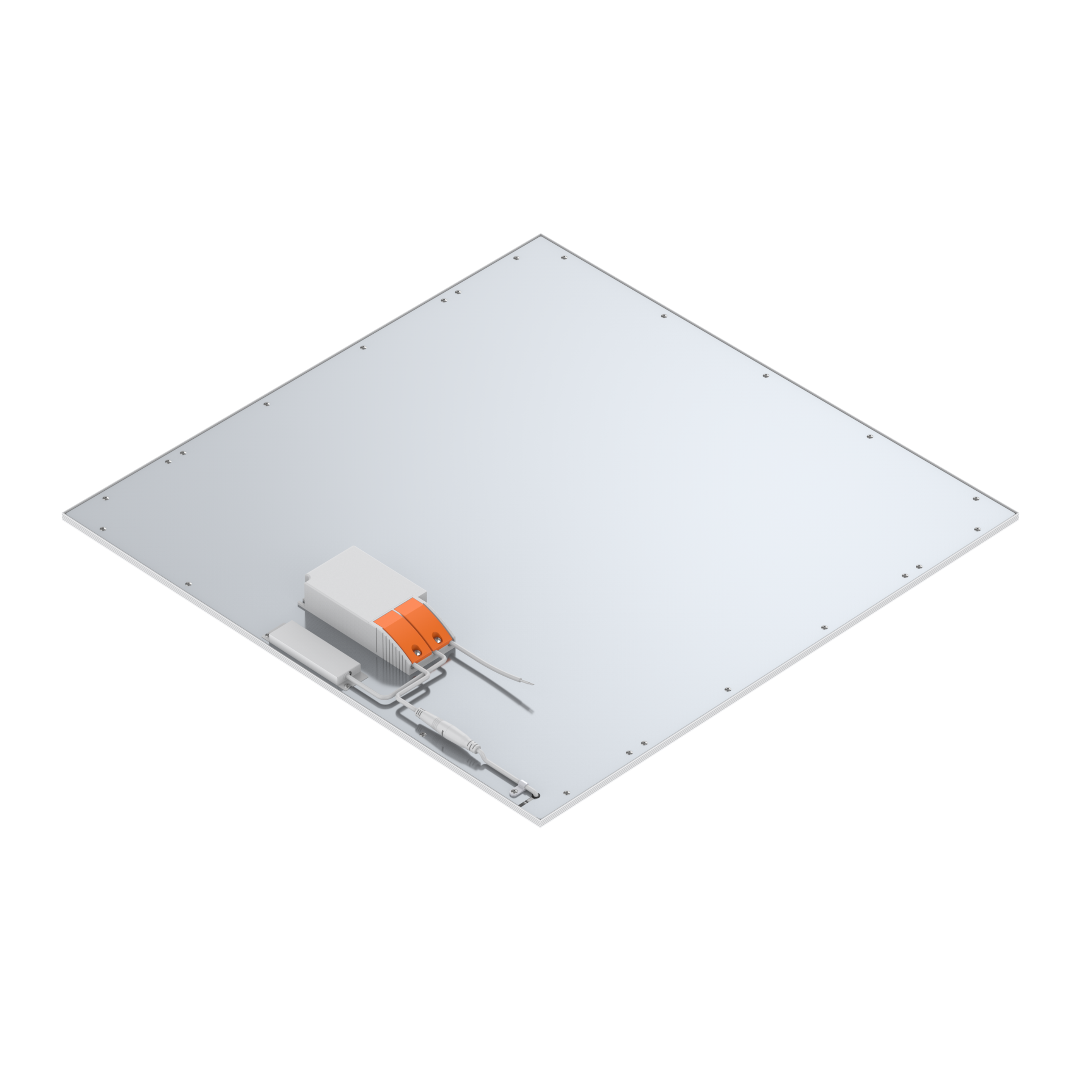

Nevalux anele connect C620
Product code 221635
Discontinued
This product is being discontinued and is available while stocks last. No successor product has been announced yet.
Price: Please log in to see prices
Version
595 mm
620 mm
Intelligence
DALI without intelligence
Connect incl. light control
- For universal use for lighting offices, schools, traffic zones, etc.
- Available as intelligent Connect version or as conventional DALI luminaire
- Connect variant with motion detector and powerful IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
- Microprismatic diffuser for best possible glare control
- Variants available with 595 and 620 mm length
- Surface-mounted housing and installation springs for suspended ceilings available as accessories
- Housing Aluminium RAL9016, white
Variants
Luminous flux
3960 lm
Dimensions
Dimensions L × W × H
620 x 620 x 8.5 mm (Einbautiefe: 40 mm)
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
33 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Radial range
4 x 4 m (16 m²)
Tangential range
6 x 6 m (36 m²)
Mounting height
< 10 m
Presence range
4 x 4 m (16 m²)
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
3960 lm
Beam angle
90°
Luminaire luminous efficacy
120 lm/W
Glare value
UGR < 19
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
No
With program-controlled lighting control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Microprismatic acrylic glass
Mounting type
In-ceiling installation
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

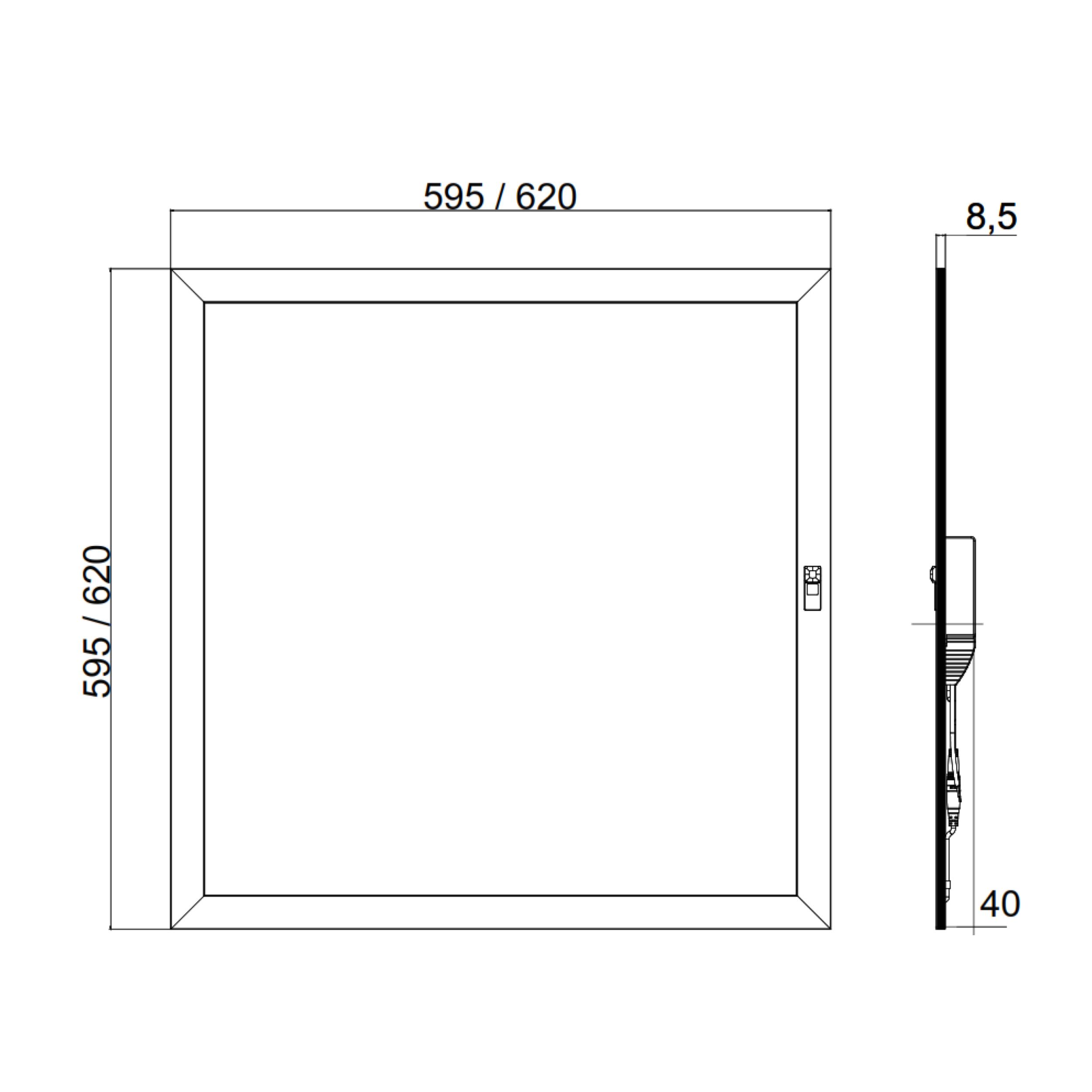

Technical drawing

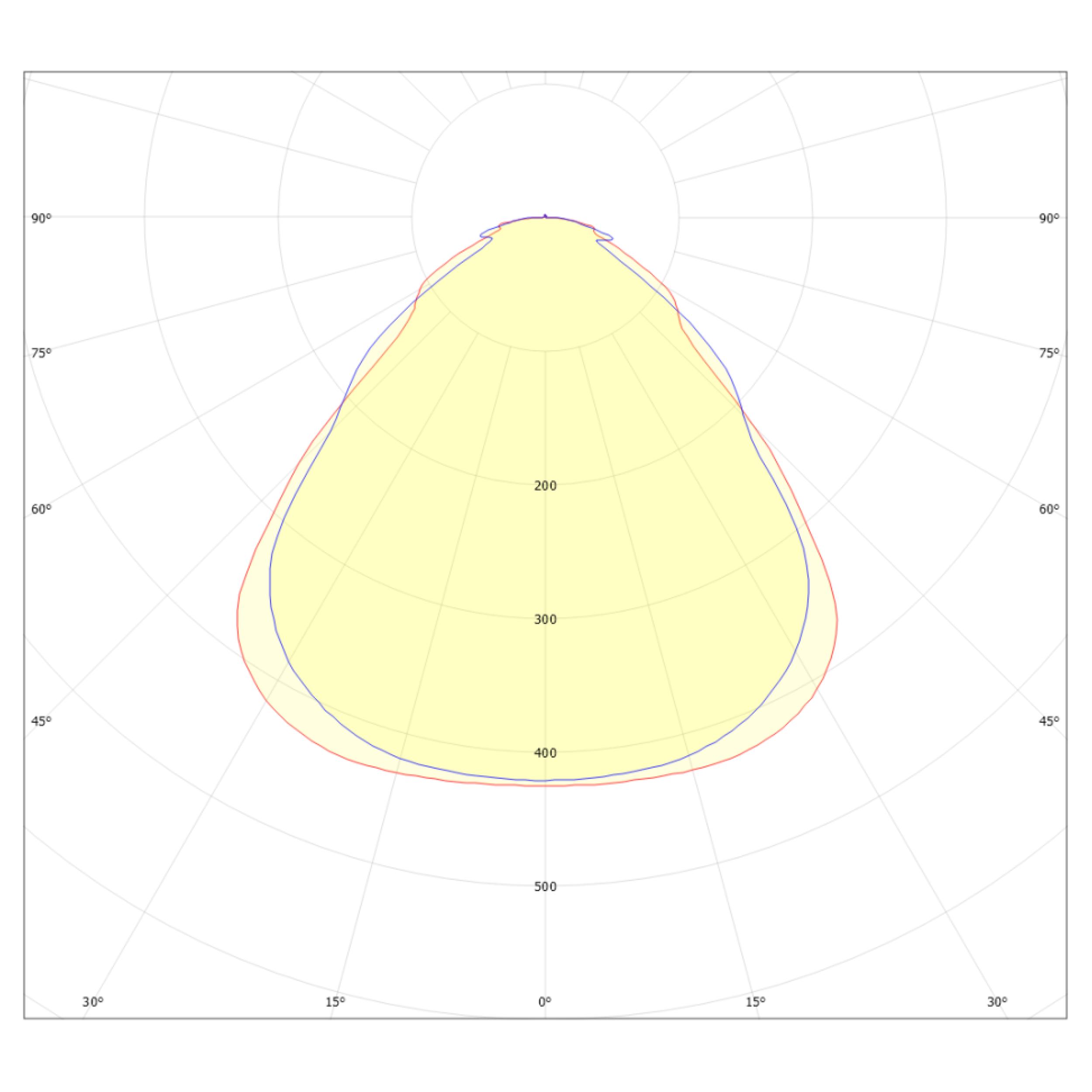

Lichtverteilungskurve

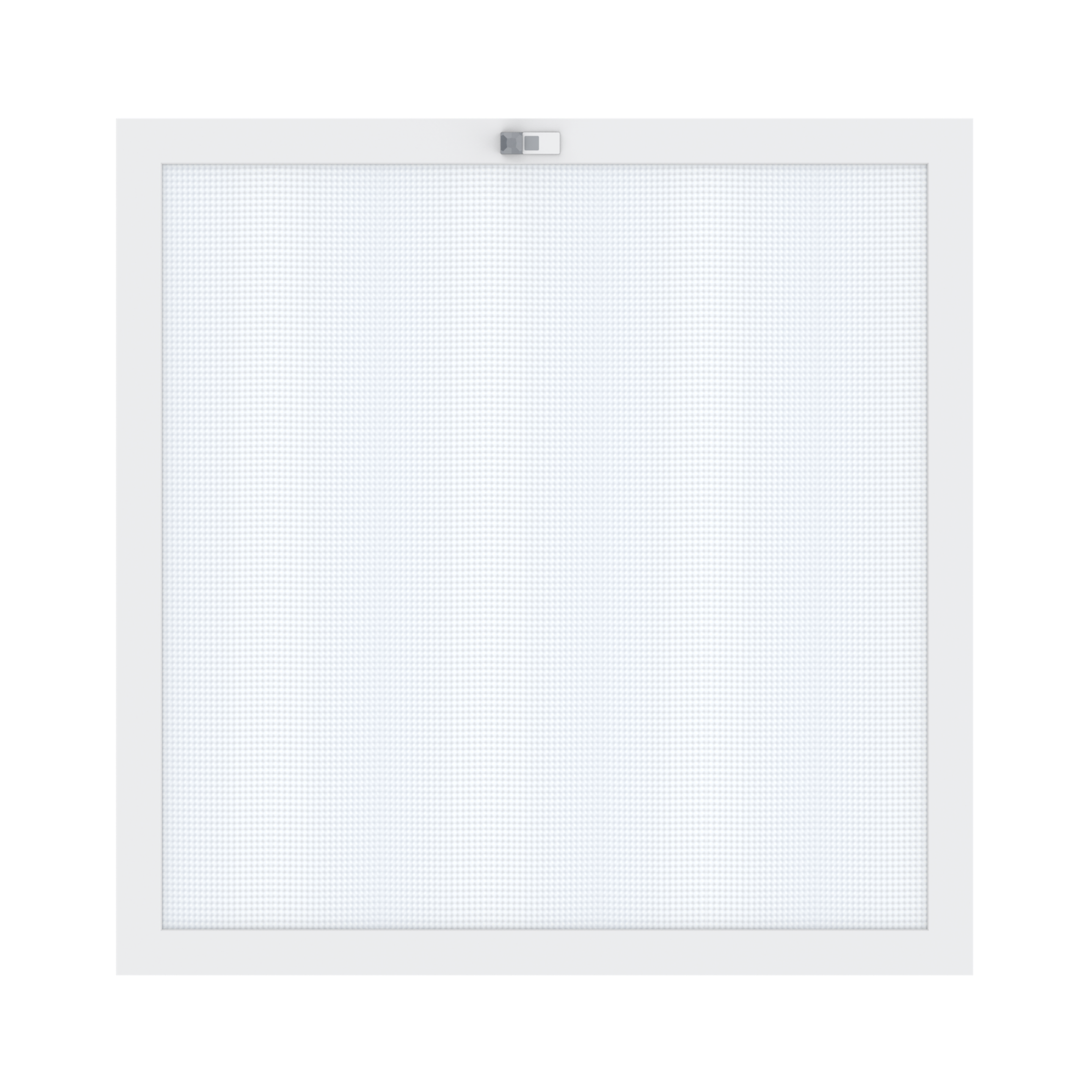

Sensor detection range

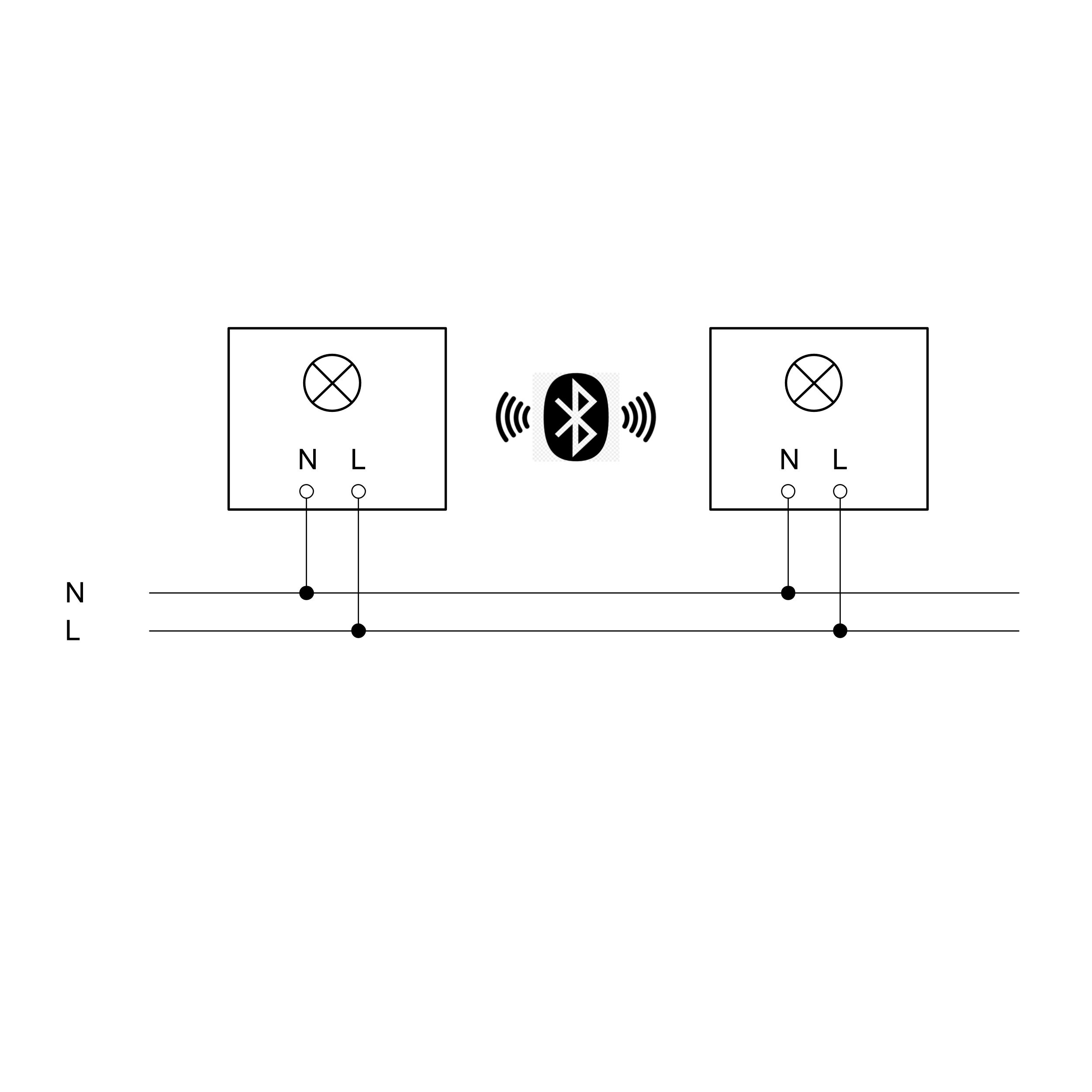

Wiring diagram 1
Wiring diagram networking radio

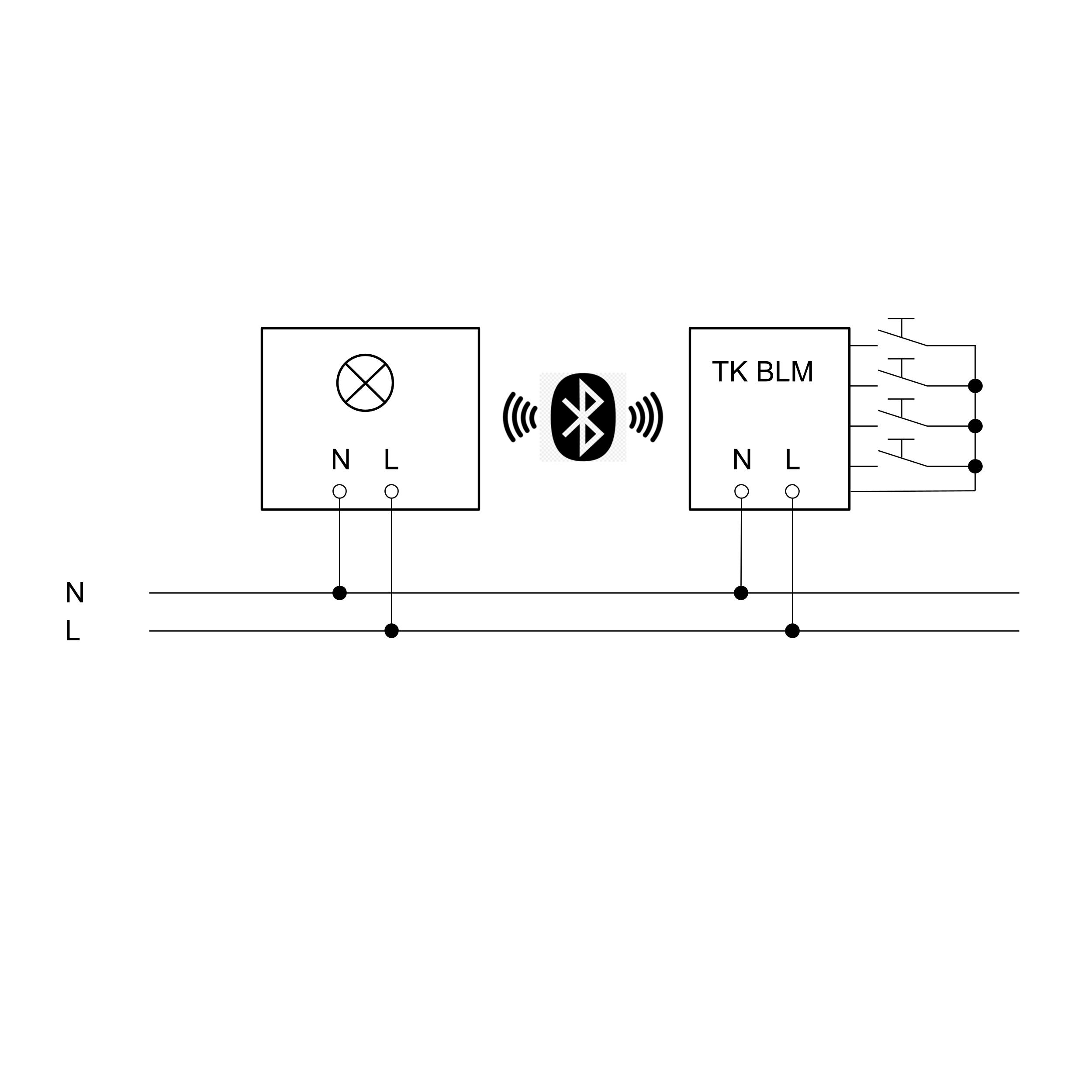

Wiring diagram 2
Wiring diagram pushbutton coupler
