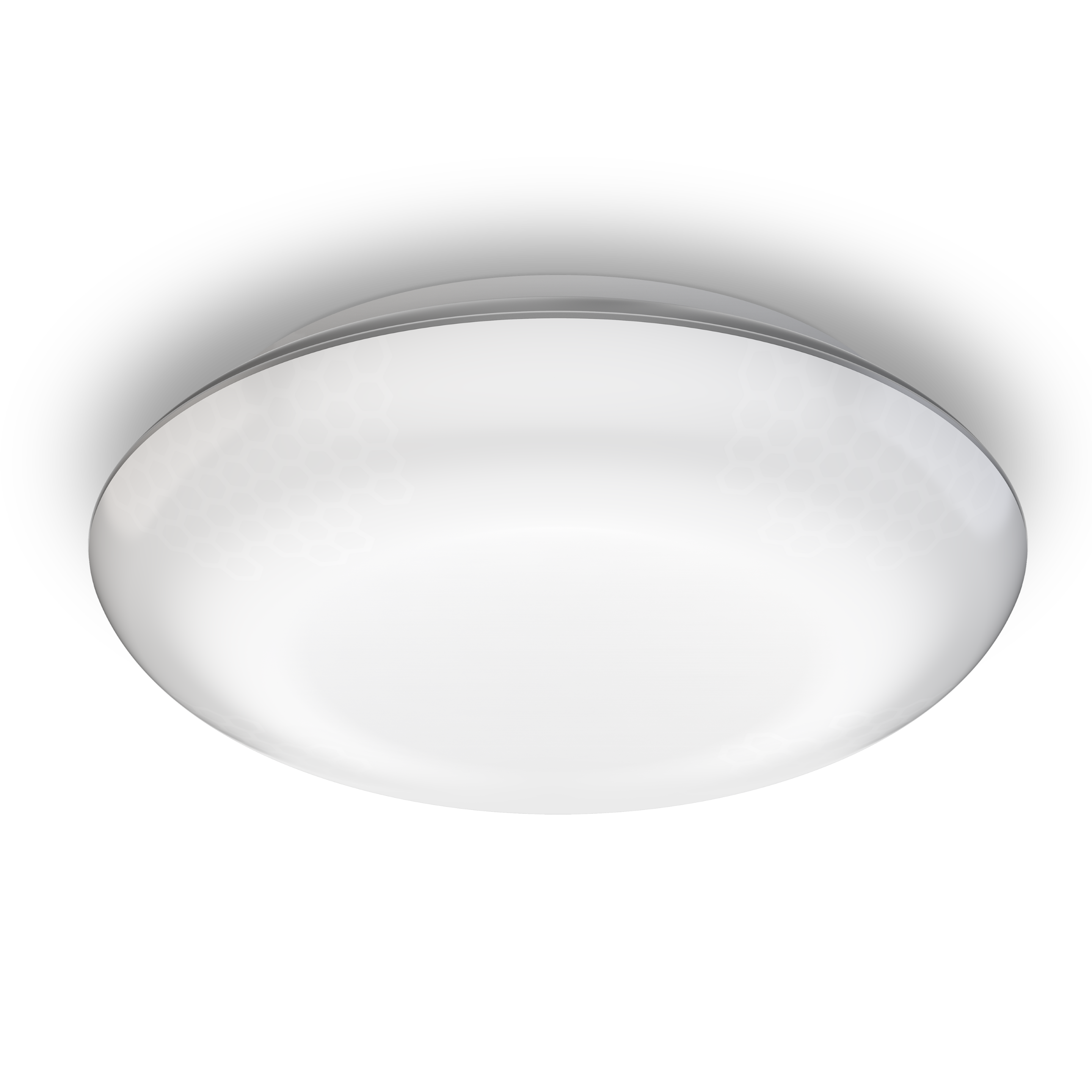

Nevalux DL Vario Quattro PRO S Neutral white silver

ELDAS® no. 941 300 189

EAN-No. 4007841 035495

This product is being replaced by a successor product.

Go to successor product · DL Vario Quattro PRO S Neutral white white (068196)

Detects precisely where you want it to. No more irritating inadvertent triggering. Four precision infrared sensors guarantee 360° all-round detection and can be adjusted in four directions to accommodate any situation. This makes it possible to define the detection zone with absolute precision. Reach: 2 to 8 m. Clean look without sensor elements to spoil the design because the sensor lenses are integrated into the luminaire diffuser where they are virtually hidden from view – a patented world first! 1430 lm at 14 W. In neutral white or warm white.

  • Including STEINEL LED system
  • Integrated sensor lenses
  • 4 infrared sensors adjustable in every direction
  • Reach adjusts in 4directions
  • 4-hour manual override (optional)
  • Impact-resistant material rated to IK07
  • Interconnectable by cable (maximum of 10 units)

Dimensions

Dimensions Ø × H 310 x 69 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 14 W
Switching output 1 resistive 500 W
Fluorescent lamps ECG 500 W
Fluorescent lamps uncompensated 500 VA
Fluorescent lamps series-compensated 500 VA
Fluorescent lamps parallel-compensated 500 VA
Switching output 1 low-voltage halogen lamps 500 VA
Own consumption 0,5 W

Sensor technology

Max. mounting height 6,00 m
Sensor technology Passiv Infrarot
With motion detector Yes
Opening angle 180 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability No
Mechanical scalability Yes
Range detail Reichweite von 2 - 8 m in 4 Richtungen (je 90 °) einstellbar
Radial range 6 x 6 m (36 m²)
Tangential range 16 x 16 m (256 m²)
Mounting height 2,00 – 6,00 m
Optimal mounting height 2,8 m

Connectivity

Networking Ja
Type of networking Master/Master
Networking via Kabel
Networking quantity max. 10 Leuchten
Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 1430 lm
Efficiency 102 lm/W
Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Ja, STEINEL LED-System
Illuminant LED nicht austauschbar
Base Ohne
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light schaltbar, 4 h

Lifetime

LED lifetime max. °C 50000 Std
LED lifetime L70B50 25°C > 60000 Std

Settings

Twilight switch Ja
Twilight setting 2 – 1000 lx
Time setting 5 s – 30 Min.
Base light function Ja
Base light function time 10/30 Min., ganze Nacht
Settings via Potis
With remote control No
Twilight setting teach No
Base light function in percent 10 %
Base light function percent from 10

Housing & material

Impact resistance IK07
Protection class (IP) IP54
Protection class II
Ambient temperature -20 – 35 °C
Housing material Kunststoff
Cover material Kunststoff strukturiert
Mounting location Decke
Application location Außenbereich
Mounting type Aufputz
Material Kunststoff
Application room Flur / Gang Funktionsraum / Nebenraum Treppenhaus Außenbereich Hauseingang Hof & Einfahrt Innenbereich
Colour Silber

Scope of delivery & warranty

Manufacturer warranty 5 Jahre

Certificates & EPREL

Certificates DEKRA EMV
EPREL category Umgebenes Produkt mit integrierter Lichtquelle

Technical drawing

Lichtverteilungskurve

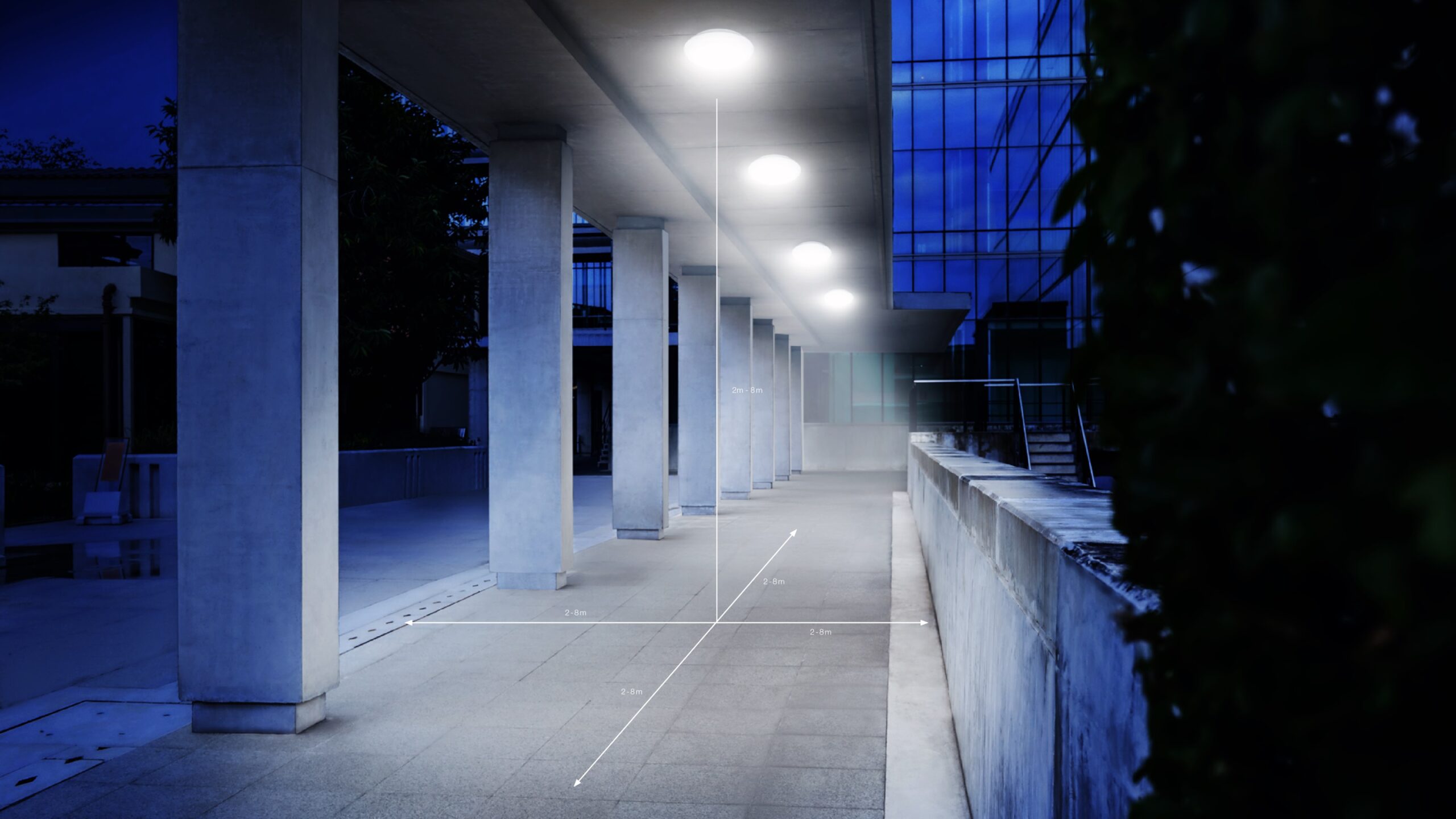

Sensor detection range

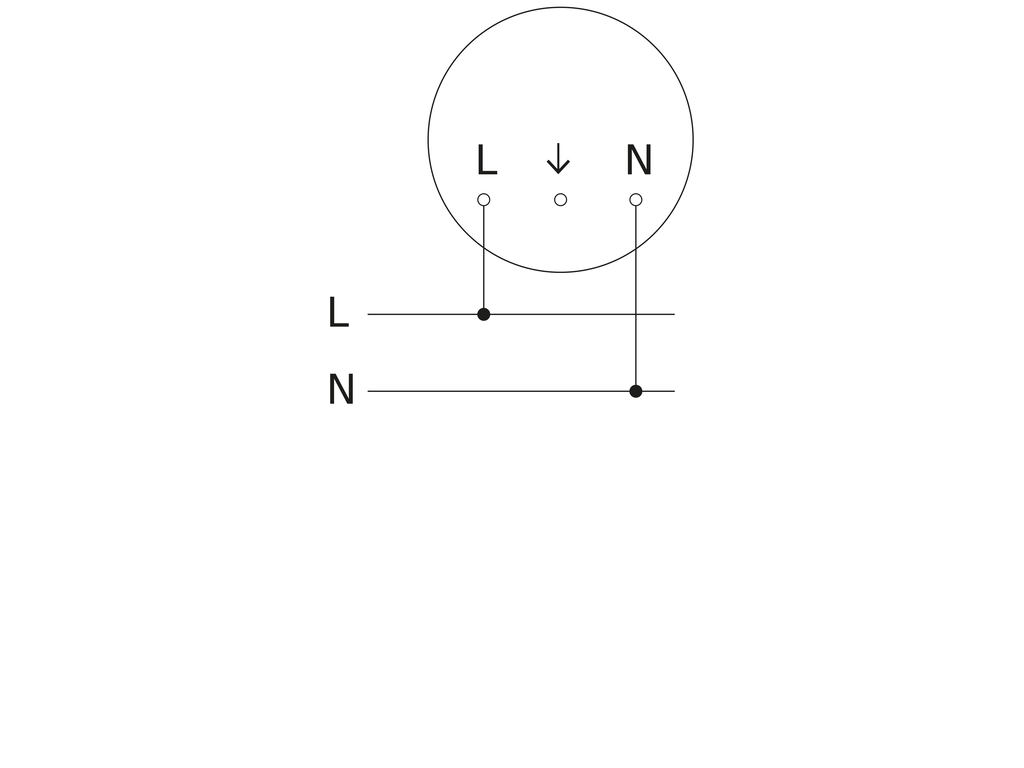

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
