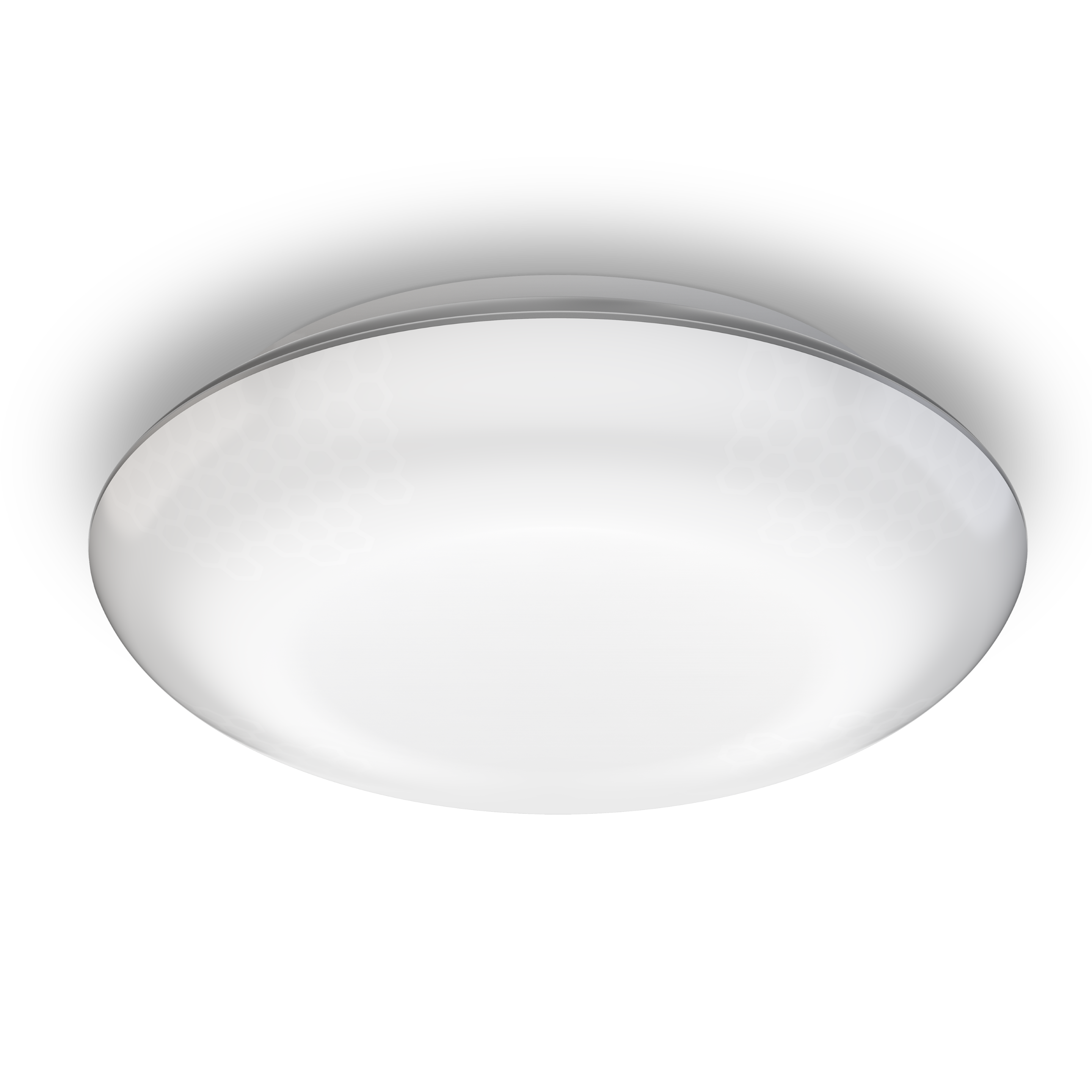

Nevalux DL Vario Quattro PRO S warm white silver

ELDAS® no. 941 300 159

EAN-No. 4007841 035433

This product is being replaced by a successor product.

Go to successor product · DL Vario Quattro PRO S warm white white (068202)

Detects precisely where you want it to. No more irritating inadvertent triggering. Four precision infrared sensors guarantee 360° all-round detection and can be adjusted in four directions to accommodate any situation. This makes it possible to define the detection zone with absolute precision. Reach: 2 to 8 m. Clean look without sensor elements to spoil the design because the sensor lenses are integrated into the luminaire diffuser where they are virtually hidden from view – a patented world first! 1430 lm at 14 W. In neutral white or warm white.

  • Including STEINEL LED system
  • Integrated sensor lenses
  • 4 infrared sensors adjustable in every direction
  • Reach adjusts in 4directions
  • 4-hour manual override (optional)
  • Impact-resistant material rated to IK07
  • Interconnectable by cable (maximum of 10 units)

Dimensions

Dimensions Ø × H 310 x 69 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 14 W
Fluorescent lamps ECG 500 W
Fluorescent lamps uncompensated 500 VA
Fluorescent lamps series-compensated 500 VA
Fluorescent lamps parallel-compensated 500 VA
Switching output 1 low-voltage halogen lamps 500 VA
LED lamps < 2 W 16 W
LED lamps > 2 W < 8 W 64 W
LED lamps > 8 W 64 W
Capacitive load in µF 88 µF
Own consumption 0,5 W

Sensor technology

Max. mounting height 6,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 360 °
Opening angle 180 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability No
Mechanical scalability Yes
Range detail Reach adjustable from 2 - 8 m in 4 directions (90° in each)
Radial range 6 x 6 m (36 m²)
Tangential range 16 x 16 m (256 m²)
Mounting height 2,00 – 6,00 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Type of networking Master/master
Networking via Cable
Networking quantity 10 lights max.
Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 1430 lm
Efficiency 102 lm/W
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable, 4h

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes
Twilight setting 2 – 1000 lx
Time setting 5 s – 30 Min.
Base light function Yes
Base light function time 10/30 min, all night
Settings via Potentiometers
With remote control No
Twilight setting teach No
Base light function in percent 10 %
Base light function percent from 10 %

Housing & material

Impact resistance IK07
Protection class (IP) IP54
Protection class II
Ambient temperature -20 – 35 °C
Housing material Plastic
Cover material Plastic, structured
Mounting location ceiling
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Application room Indoors corridor / aisle courtyard & driveway front door function room / ancillary room outdoors stairwell
Colour Silver

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA\nEMC
EPREL category Surrounded product with integrated light source

Technical drawing

Lichtverteilungskurve

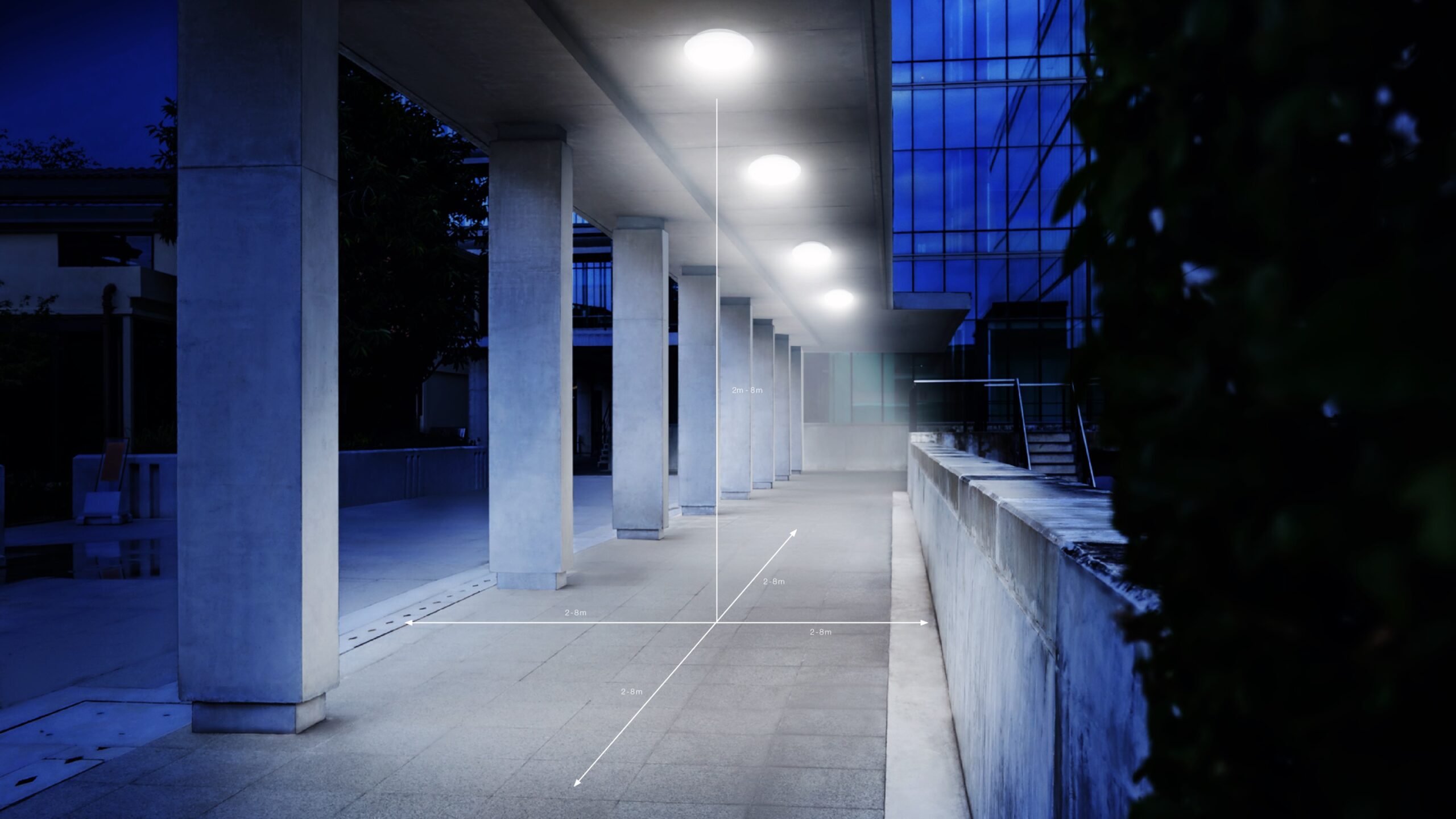

Sensor detection range

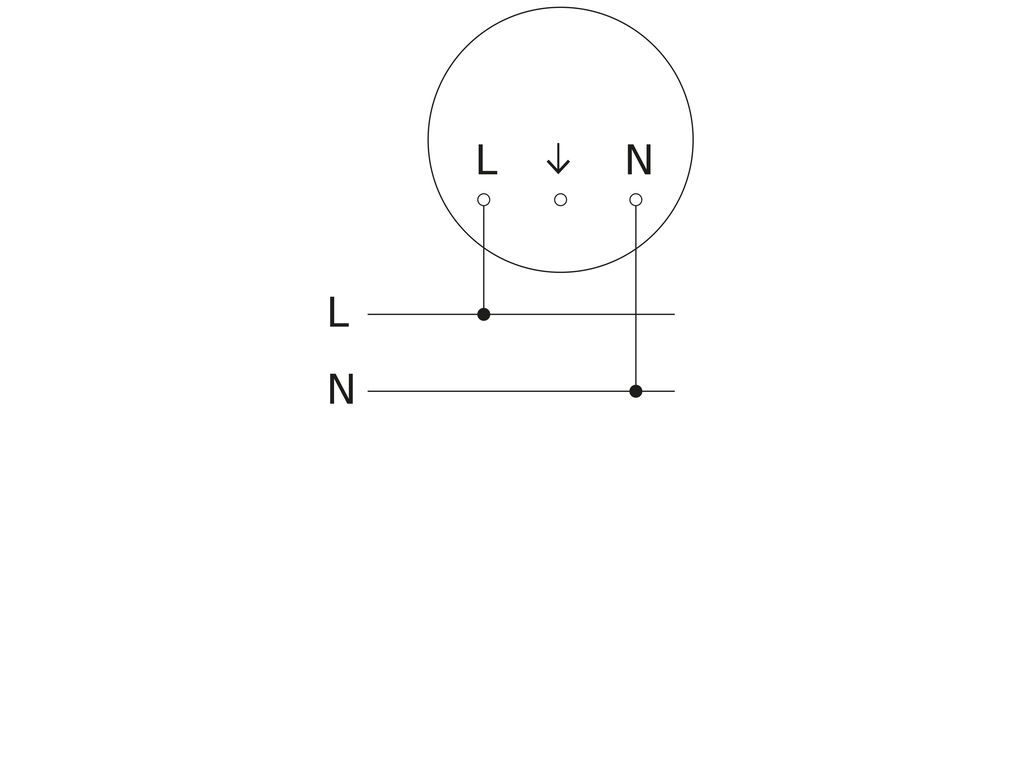

Wiring diagram 1
